Asus CUR-DLS User manual

®
CUR-DLS
Dual Socket370 Motherboard
USER’S MANUAL

2ASUS CUR-DLS User’s Manual
USER'S NOTICE
Product Name: ASUS CUR-DLS
Manual Revision: 1.00 E532
Release Date: May 2000
No part of this manual, including the products and software described in it, may be repro-
duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in
any form or by any means, except documentation kept by the purchaser for backup purposes,
without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITYOR FITNESS FORAPAR-
TICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,
EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDEN-
TAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF
PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSI-
NESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL
OR PRODUCT.
Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing byASUS; or (2)
the serial number of the product is defaced or missing.
Products and corporate names appearing in this manual may or may not be registered trade-
marks or copyrights of their respective companies, and are used only for identification or
explanation and to the owners’ benefit, without intent to infringe.
• Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.
• Intel, LANDesk, and Pentium are registered trademarks of Intel Corporation.
• Trend and ChipAwayVirus are trademarks of Trend Micro, Inc.
• Windows and MS-DOS are registered trademarks of Microsoft Corporation.
• ADI and SoundMAX are trademarks of Analog Devices, Inc..
The product name and revision number are both printed on the product itself. Manual revi-
sions are released for each product design represented by the digit before and after the period
of the manual revision number. Manual updates are represented by the third digit in the manual
revision number.
For previous or updated manuals, BIOS, drivers, or product release information, contactASUS
at http://www.asus.com.tw or through any of the means indicated on the following page.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FUR-
NISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT
ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COM-
MITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR
ANYERRORSORINACCURACIESTHATMAYAPPEARINTHISMANUAL,INCLUD-
ING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2000 ASUSTeK COMPUTER INC. All Rights Reserved.

ASUS CUR-DLS User’s Manual 3
ASUS CONTACT INFORMATION
ASUSTeK COMPUTER INC. (Asia-Pacific)
Marketing
Address: 150 Li-Te Road, Peitou, Taipei, Taiwan 112
Telephone: [phone]
Fax: [phone]
Email: [email protected]
Technical Support
MB/Others (Tel): [phone] (English)
Notebook (Tel): [phone] (English)
Desktop/Server (Tel):[phone] (English)
Fax: [phone]
Email: [email protected]
WWW: www.asus.com.tw
FTP: ftp.asus.com.tw/pub/ASUS
ASUS COMPUTER INTERNATIONAL (America)
Marketing
Address: 6737 Mowry Avenue, Mowry Business Center, Building 2
Newark, CA 94560, USA
Fax: [phone]
Email: [email protected]
Technical Support
Fax: [phone]
Email: [email protected]
WWW: www.asus.com
FTP: ftp.asus.com/Pub/ASUS
ASUS COMPUTER GmbH (Europe)
Marketing
Address: Harkortstr. 25, 40880 Ratingen, BRD, Germany
Fax: [phone]
Email: [email protected] (for marketing requests only)
Technical Support
Hotline: MB/Others: [phone] Notebook: [phone]
Fax: [phone]
Support (Email): www.asuscom.de/de/support (for online support)
WWW: www.asuscom.de
FTP: ftp.asuscom.de/pub/ASUSCOM

4ASUS CUR-DLS User’s Manual
CONTENTS
1. INTRODUCTION ............................................................................. 7
1.1 How This Manual Is Organized .................................................. 7
1.2 Item Checklist ............................................................................. 7
2. FEATURES ........................................................................................ 8
2.1 The ASUS CUR-DLS ................................................................. 8
2.1.1 Specifications .................................................................. 8
2.1.2 Specifications–Optional Components ............................. 9
2.1.3 Performance................................................................... 10
2.1.4 Intelligence .................................................................... 11
2.2 CUR-DLS Motherboard Components ...................................... 12
2.2.1 Component Locations.................................................. 13
3. HARDWARE SETUP ...................................................................... 14
3.1 CUR-DLS Motherboard Layout ............................................... 14
3.2 Layout Contents ........................................................................ 15
3.3 Hardware Setup Procedure ....................................................... 16
3.4 Motherboard Settings................................................................ 16
3.5 System Memory (DIMM) ......................................................... 17
3.5.1 SDRAM Configurations ................................................ 17
3.5.2 DIMM Installation......................................................... 18
3.6 Central Processing Unit (CPU) ................................................. 19
3.7.1 Expansion Card Installation Procedure ......................... 20
3.7 Expansion Cards ....................................................................... 20
3.7.2 Assigning IRQs for Expansion Cards............................ 21
3.8 Connectors ................................................................................ 22
SCSI Connection Notes ............................................................ 32
3.9 Starting Up the First Time ........................................................ 33
4. BIOS SETUP..................................................................................... 35
4.1 Managing and Updating Your BIOS ......................................... 35
4.1.1 Upon First Use of the Computer System....................... 35
4.1.2 Updating BIOS Procedures ........................................... 36
4.2 BIOS Setup Program ................................................................ 39
4.2.1 BIOS Menu Bar ............................................................. 40
4.2.2 Legend Bar .................................................................... 40
4.3 Main Menu................................................................................ 42
4.3.1 Primary & Secondary Master/Slave .............................. 43
4.3.2 Keyboard Features ......................................................... 46

ASUS CUR-DLS User’s Manual 5
CONTENTS
4.4 Advanced Menu ........................................................................ 48
4.4.1 Chip Configuration ........................................................ 50
4.4.2 I/O Device Configuration .............................................. 51
4.4.3 PCI Configuration ......................................................... 53
4.4.4 Shadow Configuration ..................................................... 55
4.5 Power Menu .............................................................................. 56
4.5.1 Power Up Control.......................................................... 58
4.5.2 Hardware Monitor ......................................................... 60
4.6 Boot Menu ................................................................................ 61
4.7 Exit Menu ................................................................................. 63
5. OS Driver Installation ...................................................................... 65
6. Software Reference........................................................................... 99
7. APPENDIX...................................................................................... 101
7.1 Glossary .................................................................................. 101

6ASUS CUR-DLS User’s Manual
FCC & DOC COMPLIANCE
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following
two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with manufacturer's instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interfer-
ence by one or more of the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING! Any changes or modifications to this product not expressly ap-
proved by the manufacturer could void any assurances of safety or performance
and could result in violation of Part 15 of the FCC Rules.
Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the
Federal Register, National Archives and Records Administration, U.S. Government Printing Office.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications.
This Class B digital apparatus complies with Canadian ICES-003.
CetappareilnumériquedelaclasseBestconformeàlanormeNMB-003duCanada.

ASUS CUR-DLS User’s Manual 7
1.1 How This Manual Is Organized
This manual is divided into the following sections:
1. INTRODUCTION Manual information and checklist
2. FEATURES Production information and specifications
3. HARDWARE SETUP Intructions on setting up the motherboard.
4. BIOS SETUP Intructions on setting up the BIOS
5. SOFTWARE SETUP Intructions on setting up the included software
6. SOFTWARE REFERENCE Reference material for the included software
7. APPENDIX Optional items and general reference
1.2 Item Checklist
Check that your package is complete. If you discover damaged or missing items,
contact your retailer.
(1) ASUS Motherboard
(1) I/O Shield
(1) Ribbon cable for master and slave IDE drives
(1) 68-pin LVD SCSI ribbon cable for Ultra160/Ultra2 devices with Terminator
(1) Ribbon cable for a 3.5” floppy disk drive
(1) Support drivers and utilities
(1) This Motherboard User’s Manual
Optional Items
(1) Socket 370 CPU Terminator (required when installing only one CPU)
1. INTRODUCTION
1.INTRODUCTION
Manual/Checklist

8ASUS CUR-DLS User’s Manual
2. FEATURES
Specifications
2. FEATURES
2.1 The ASUS CUR-DLS
The ASUS CUR-DLS motherboard is carefully designed for the demanding corpo-
rate user who wants advanced features processed by the fastest processors for multi-
server applications.
2.1.1 Specifications
•Latest Intel Processor Support
Intel Pentium
®
III 133MHz FSB Coppermine core FC-PGA
Intel Pentium
®
III 100MHz FSB Coppermine core FC-PGA
•Multi-Processor OS: Supports multi-processor operating systems such as Win-
dows NT/2000, Unix, Linux, and Netware when dual processors of the same
type and speed are installed.
•ServerWorks LE 3.0 Chipset: Features the ServerWorks LE 3.0 North Bridge
and RCC Open South Bridge. Supports PC133 SDRAM with ECC, dual peer to
peer PCI buses, and 64-bit (66/33MHz) PCI bus speed.
•OnboardGraphics:FeaturesATI RAGE-XLPCI VGAcontroller, 4MB PC100
SDRAM, and LCD panel connector.
•SmartNetworking!FeaturestheIntel 82559Fast-EthernetLANController (fully
integrated 10BASE-T/100BASE-TX). Supports Wired for Management, remote
wake-up, and OnNow initiative to reduce the Total Cost of Ownership (TCO).
•4GB PC133 Memory Support: Equipped with four Dual Inline Memory Mod-
ule (DIMM) sockets to support PC133 “registered” SDRAMs (available in 64,
128, 256, 512, or 1024MB densities) up to 4GB.
•SCSI Support: LSI 64-bit (66MHz) / 32-bit (33MHz) Ultra160 / Ultra2 (depend-
ingon model) dual channel SCSI controller supports up to30 SCSI devices. BIOS
configurable onboard SCSI terminations.
SCSI Chipset SCSI Type PCI1-4 PCI 5-6 PCI7
LSI 896 33MHz Ultra2 33MHz 33MHz 33MHz
LSI 1010-66 66MHz Ultra160 33MHz 66MHz (none)
•UltraDMA/33 Support: Comes with an onboard PCI Bus Master IDE control-
ler with two connectors that support four IDE devices on two channels. Sup-
ports UltraDMA/33, PIO Modes 3 & 4 and Bus Master IDE DMA Mode 2, and
Enhanced IDE devices, such as DVD-ROM, CD-ROM, CD-R/RW, LS-120, and
Tape Backup drives.

ASUS CUR-DLS User’s Manual 9
2. FEATURES
2. FEATURES
Optional Components
•PCI/ISA Expansion Slots:
(4) 32-bit (33MHz) PCI
(2/3) 64-bit (66/33MHz) PCI (depending on model)
(1) ASUS ASMC slot for IPMI compliant management solution
•4 USB Ports: Provides more options for additional peripherals.
•SMBus:Features the System Management Bus interface, which is used to physi-
cally transport commands and information between SMBus devices.
•Wake-Up Support: Supports Wake-On-LAN and Wake-On-Ring, and BIOS
Wake-Up.
•ISA Multi-I/O: Provides two high-speed UART compatible serial ports and
one parallel port with EPP and ECP capabilities. UART2 can also be directed
from COM2 to the Infrared Module for wireless connections.
• Around-the-Clock Intrusion Detection: Chassis intrusion circuitry can log
chassis open events into LDSM. The onboard battery supports detection even
when normal power is removed and through a new design, battery drain is even
lower than the RTC used for keeping time!
•Server Health Monitoring: Provides an easy way to examine and manage sys-
tem status information, such as CPU and systerm voltages, temperatures, and
fan status through the onboard hardware ASUS ASIC.
•Enhanced ACPI: Programmable BIOS (Flash EEPROM), offering enhanced
ACPI for Windows NT and Windows 2000 compatibility, and autodetection of
most devices for virtually automatic setup.
•Smart BIOS: 4Mbit firmware gives a new easy-to-use interface which pro-
vides more control and protection over the motherboard. Provides Vcore and
CPU/SDRAMfrequencyadjustments,bootblock write protection, and HD/SCSI/
MO/ZIP/CD/Floppy boot selection. Year 2000 certified.
•CPU Throttling: CPU throttling protects CPU from overheating.
•Integrated IOAPIC: Supports full 32-APIC entries and removes the need for a
separate IOAPIC chip.
2.1.2 Specifications–Optional Components
The following onboard components are optional at the time of purchase:
•Cape Lookout Chipset: The optional cape lookout chipset together with the
onboard Intel 82559 Fast-Ethernet controller supports Alert-On-Lan II (AOL-
II) monitoring and management solutions.

10 ASUS CUR-DLS User’s Manual
2. FEATURES
Performance
2. FEATURES
2.1.3 Performance
•UltraPerformance:Onboard Ultra160/Ultra2 (depending on model) dual chan-
nel SCSI controller with two connectors that support 30 Ultra160/Ultra2 SCSI
devices in two channels.
• Dual Speeds: CPU frequency can operate at either 133MHz or 100MHz de-
pending on the CPU installed.
• High-Speed Data Transfer Interface: SCSI transfers using Ultra160/Ultra2
(dependingonmodel)dual channel SCSI controllercan handleratesupto160MB/
s or 80MB/s. Ultra160/Ultra2 is backward compatible with slower SCSI de-
vices so that older SCSI devices are not wasted. (Ultra160/Ultra2 SCSI cables
have twisted pairs compared to flat ribbon cables used in older SCSI standards.)
•Advanced 64-bit PCI: Maximizes IO bandwidth for the next generation of 64-
bit PCI cards, supports up to (2) full 64-bit 66/33MHz PCI busses, and supports
up to (5) 32-bit 33MHz PCI busses.
•Full Peer-to-Peer Support:Allows full peer-to-peer transactions between PCI
busses and increases options for intelligent IO and Server Management cards.
• SDRAM Optimized Performance: This motherboard supports PC133 “regis-
tered” Synchronous Dynamic RandomAccess Memory (SDRAM), which increases
the data transfer rate to 1064MB/s max
• ACPIReady:ACPI (Advanced ConfigurationandPowerInterface) is alsoimple-
mented on all ASUS smart series motherboards. ACPI provides more Energy
Saving Features for future operating systems (OS) supporting OS Direct Power
Management (OSPM) functionality. With these features implemented in the OS,
PCs can be ready around the clock, yet satisfy all the energy saving standards.
To fully utilize the benefits of ACPI, an ACPI-supported OS, such as Windows
98, must be used.
• NewCompliancy:Both the BIOS and hardware levels of the motherboard meet
the stringent requirements for SDG2.0 certification. The new SDG2.0 require-
ments for systems and components are based on the following high-level goals:
support for Plug and Play compatibility and power management for configuring
and managing all system components, and 32-bit device drivers and installation
proceduresforWindows NT/2000. Color-codedconnectors and descriptiveicons
make identification easy as required by PC 99.

ASUS CUR-DLS User’s Manual 11
2. FEATURES
2. FEATURES
Intelligence
2.1.4 Intelligence
• Fan Status Monitoring and Alarm: To prevent system overheat and system
damage, the CPU, power supply, and system fans can be monitored for RPM
and failure. All the fans are set for its normal RPM range and alarm thresholds.
•TemperatureMonitoringandAlert:Topreventsystemoverheatandsystemdam-
age, this motherboard supports processor thermal sensing and auto-protection.
•Voltage Monitoring andAlert: System voltage levels are monitored to ensure
stable current to critical motherboard components. Voltage specifications are
more critical for future processors, so monitoring is necessary to ensure proper
system configuration and management.
• System Resources Alert: Today’s server operating systems, such as Windows
NT and Windows 2000, require much more memory and hard drive space to
present enormous user interfaces and run large applications. The onboard hard-
wareASUSASIC in conjunction Intel LDSM will warn the user before the sys-
tem resources are used up to prevent possible application crashes. Suggestions
will give the user information on managing their limited resources more effi-
ciently.
• Dual Function Power Button: Through BIOS, the power button can be defined
as the “Stand by” (a.k.a. Suspend or Sleep) button or as the Soft-Off (see ATX
Power / Soft-Off Switch Lead in 3.8 Connectors for more information) button.
Regardless of the setting, pushing the power button for more than 4 seconds will
enter the Soft-Off mode.
• Remote Ring On (requires modem): This allows a computer to be turned on
remotely through an internal or external modem. With this benefit on-hand, users
can access any information from their computers from anywhere in the world.
• Alert-on-LAN II (requires optional hardware component): Part ofWired for
Management to enable ITstaff to remotely respond to and resolve system trouble
which will decrease down time and lower total cost of ownership. Remote man-
agement response via remote diagnostics and troubleshooting work even when
the operating system has frozen. Remote power down for power management.
Asset tracking and monitoring through features like presence ping and logoff
notification.

12 ASUS CUR-DLS User’s Manual
2. FEATURES
2. FEATURES
MB Components
2.2 CUR-DLS Motherboard Components
See opposite page for locations. Location
Processor Support (2) Socket 370 for Pentium III Processors ............................... 2
Chipsets ServerWorks ServerSet LE 3.0 North Bridge........................... 4
ServerWorks Open South Bridge ........................................... 10
4Mbit Firmware Hub (FWH) ................................................. 17
ISA Multi-I/O Chipset ............................................................ 19
Main Memory Maximum 4GB support
(4) DIMM Sockets.................................................................... 5
PC133 “registered” SDRAM support
Expansion Slots (4) 32-bit (33MHz) PCI.......................................................... 20
(2) 64-bit / 32-bit PCI (depending on model)......................... 18
(1) 32-bit PCI (depending on model) ..................................... 16
(1) ASUS ASMS slot .............................................................. 15
System I/O (1) Floppy Disk Drive Connector............................................. 7
(2) IDE Connectors (UltraDMA33 Support)............................ 6
(1) Parallel Port Connector ........................................... (Top) 24
(2) Serial COM1/COM2 Port Connectors .........(Bottom) 23, 25
(1) RJ-45 Fast-Ethernet Connector............................... (Top) 26
(2) USB Port Connectors.........................................(Bottom) 26
(1) PS/2 Mouse Connector ........................................... (Top) 27
(1) PS/2 Keyboard Connector .................................(Bottom) 27
(1) VGA Monitor Connector ................................................. 22
Network Features Intel 82559 Fast-Ethernet Controller...................................... 21
Wake-On-LAN Connector.................. (see layout on next page)
Wake-On-Ring Connector .................. (see layout on next page)
Hardware Monitoring System Voltage Monitoring (integrated in ASUS ASIC) ....... 14
(4) Fan Power & Speed Monitoring Connectors (see layout on next page)
Power ATX Power Supply Connector ................................................. 1
Special Feature LSI 64-bit (66/33MHz) / 32-bit (33MHz) Ultra160 / Ultra2
(depending on model) 2 ch. SCSI controller ................ 11
Onboard SCSI Connectors ................................................... 8, 9
Form Factor ATX

ASUS CUR-DLS User’s Manual 13
2. FEATURES
2. FEATURES
Component Location

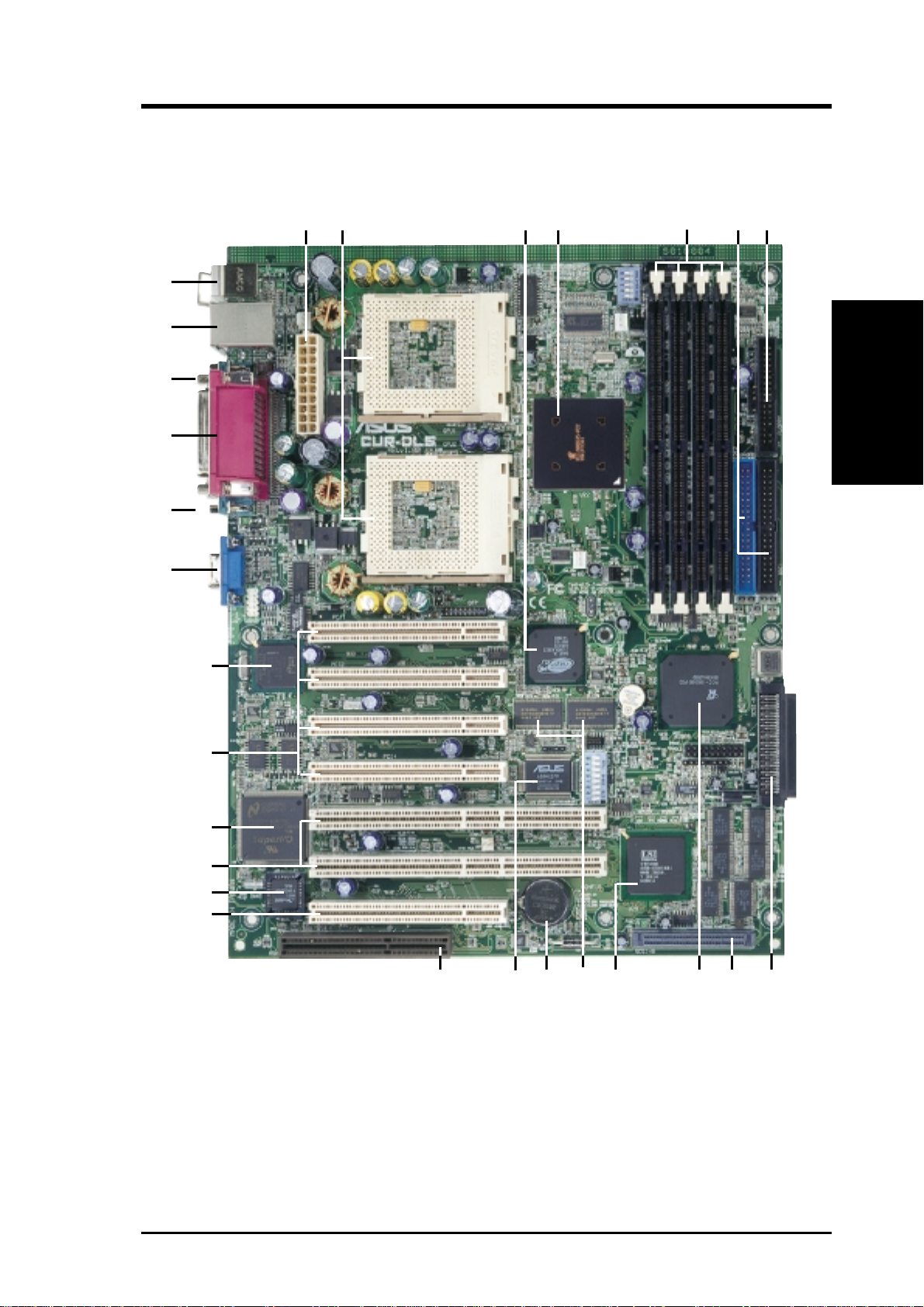

2.2.1 Component Locations
5
26
24
22
23
27
2
17
3
25
4
20
21
1
9
6
815 12 1011
7
13
16
19
18
14

14 ASUS CUR-DLS User’s Manual
3. HARDWARE SETUP
3.1 CUR-DLS Motherboard Layout
Primary
IDE
Secondary
IDE
FLOPPY
ASUS
ASIC
with Hardware
Monitor
DIMM Socket 0 (64/72-bit, 168-pin module)
01
DIMM Socket 1 (64/72-bit, 168-pin module)
23
DIMM Socket 2 (64/72-bit, 168-pin module)
45
CHASSIS
ASUS Server Management Card
(ASMC) Slot
Super
I/O
4Mbit
Flash
BIOS CR2032 3V
Lithium Cell
CMOS Power
WOL_CON
CUR-DLS
24.4cm (9.6in)
30.5cm (12in)
Socket 370
Socket 370
COM1
PARALLEL PORT
COM2
Bottom:
USB1
USB2
PS/2
T: Mouse
B: Keyboard
PCI2 (32-bit, 33MHz)
PCI1 (32-bit, 33MHz)
PCI3 (32-bit, 33MHz)
PCI4 (32-bit, 33MHz)
PCI7 (32-bit, 33MHz)
PCI5 (64-bit, 66/33MHz)
PCI6 (64-bit, 66/33MHz)
2MB
SDRAM 2MB SDRAM
DIMM Socket 3 (64/72-bit, 168-pin module)
67
VGA
ATX_POWER
CHA_FAN1 CPU_FAN1
CPU_FAN2
PANEL
IDELED
R
Intel
Fast
Ethernet
ServerWorks
(RCC)
NB6635
North Bridge
ATI
RAGE XL
VGA
Controller
ServerWorks
(RCC)
IB6566
South Bridge
LSI SCSI
Controller
CONFIG Switches (reserved)
USBPORT
3 & 4
Digital Flat Panel
(DFP) Connector
1234
WOR
SCSI-B
68-Pin Ultra160/Ultra2-Wide SCSI Connector
68-Pin Ultra160/Ultra2-Wide SCSI Connector
SCSI-A
Top:
RJ-45
SMB
CHA_FAN2
(Reserved)
3568
34 1
CLEAR CMOS
896/ 1010-66
(not available with 1010-66 SCSI)
5678
Motherboard Layout
3. H/W SETUP
Note: Grayed components are optional at the time of purchase.
SCSI Chipset SCSI PCI1-4 PCI 5-6 PCI7
LSI 896 33MHz Ultra2 33MHz 33MHz 33MHz
LSI 1010-66 66MHz Ultra160 33MHz 66MHz (none)

ASUS CUR-DLS User’s Manual 15
3. HARDWARE SETUP
Layout Contents
3. H/W SETUP
3.2 Layout Contents
Expansion Slots
1) DIMM 0/1/2/3 p.17 168-Pin System Memory Support
2) CPU p.19 Central Processing Unit (CPU)
3) PCI1/PCI2/PCI3/PCI4/PCI7 p.20 32-bitPCIBusExpansionSlots(PCI7dependsonmodel)
4) PCI5/PCI6 p.20 64-/32-bitPCIBusExpansionSlots(dependingonmodel)
Connectors
1) PS2KBMS p.22 PS/2 Mouse Connector (6-pin female)
2) PS2KBMS p.22 PS/2 Keyboard Connector (6-pin female)
3) USB p.23 Universal Serial Bus Ports 0 & 1 (Two 4-pin female)
4) LAN p.23 Fast-Ethernet Connector (RJ45)
5) PRINTER p.23 Parallel Port Connector (25-pin female)
6) COM1/COM2 p.23 SerialPortCOM1/COM2 Connectosr (Two 9-pin male)
7) VGA p.24 Monitor (VGA) Output Connector (15-pin female)
8) USBPORT p.24 Universal Serial Bus Port (10-1 pins)
9) CHASSIS p.25 Chassis Intrusion Connector (4-1 pins)
10) FLOPPY p.25 Floppy Disk Drive Connector (34-1 pins)
11) IDE1/IDE2 p.26 Primary/Secondary IDE Connectors (Two 40-1 pins)
12) WOL_CON p.27 Wake-On-LAN Connector (3 pins)
13) WOR p.27 Wake-On-Ring Connector (2 pins)
14) IDELED p.28 IDE/SCSI Activity LED (2 pins)
15) CPU_FAN1/2,CHA_FAN1/2 p.28 CPU and Chassis Fan Connectors (Four 3-pin)
16) SMB p.29 SMBus Connector (5-1 pins)
17) NIC (PANEL) p.29 NIC Activity LED (2 pins)
18) STATUS (PANEL) p.29 Status Activity LED (2 pins)
19) SMI (PANEL) p.29 System Management Interrupt Switch Lead (2 pins)
20) PWRSW (PANEL) p.30 ATX Power / Soft-Off Switch Lead (2 pins)
21) CHASSIS (PANEL) p.30 Chassis Intrusion Connector (2 pins)
22) RESET (PANEL) p.30 Reset Switch Lead (2 pins)
23) PWR.LED (PANEL) p.30 System Power LED Lead (3-1 pins)
24) NMI (PANEL) p.30 Non-Mask Interrupt Switch (2 pins)
25) SPEAKER (PANEL) p.30 System Warning Speaker Connector (4 pins)
26) IDELED (PANEL) p.30 IDE/SCSI Activity LED (2 pins)
27) ATXPWR p.31 ATX Power Supply Connector (20 pins)
28) SCSI-A/SCSI-B p.31 68-pin Ultra160/Ultra2 SCSIConnectors (Two 68 pins)

16 ASUS CUR-DLS User’s Manual
3. HARDWARE SETUP
3.3 Hardware Setup Procedure
Before using your computer, you must complete the following steps:
• Check Motherboard Settings
• Install Memory Modules
• Install the Central Processing Unit (CPU)
• Install Expansion Cards
• Connect Ribbon Cables, Panel Wires, and Power Supply
3.4 Motherboard Settings
WARNING! Computer motherboards and expansion cards contain very delicate
Integrated Circuit (IC) chips. To protect them against damage from static electric-
ity, you should follow some precautions whenever you work on your computer.
1. Unplug your computer when working on the inside.
2. Use a grounded wrist strap before handling computer components. If you do
nothave one, touch both of your hands to a safely grounded object or to a metal
object, such as the power supply case.
3. Hold components by the edges and try not to touch the IC chips, leads or con-
nectors, or other components.
4. Placecomponentsonagrounded antistatic pad or onthebagthatcame with the
component whenever the components are separated from the system.
5. Ensure that the ATX power supply is switched off before you plug in or
remove the ATX power connector on the motherboard.
Motherboard Settings
3. H/W SETUP

ASUS CUR-DLS User’s Manual 17
3. HARDWARE SETUP
System Memory
3. H/W SETUP
3.5 System Memory (DIMM)
NOTE: No hardware or BIOS setup is required after adding or removing memory.
This motherboard uses only Dual Inline Memory Modules (DIMMs). Sockets are
available for 3.3Volt(power level) “registered” Synchronous Dynamic RandomAc-
cess Memory (SDRAM) of 64, 128, 256, 512, 1024MB with Serial Presence Detect
(SPD). ECC memory modules must be used to provide reliability enhancements.
Memory speed setup is recommended through SDRAM Configuration in 4.4.1
Chip Configuration.
3.5.1 SDRAM Configurations
Technology Configuration Module # Chips Memory
(MB)
64Mbit 8M x 8 Single-Sided 9 64
Double-Sided 18 128
64Mbit 16M x 4 Double-Sided 18 128
Double-Sided & Stacked 36 256
128Mbit 32M x 4 Double-Sided 18 256
Double-Sided & Stacked 36 512
128Mbit 16M x 8 Single-Sided 9 128
Double-Sided 18 256
256Mbit 32M x 8 Single-Sided 9 128
Double-Sided 18 256
256Mbit 64M x 4 Single-Sided 18 512
Double-Sided & Stacked 36 1024
IMPORTANT: This motherboard’s chipset only supports 64Mbit, 128Mbit, and
256Mbit “registered” SDRAMs with ECC. This motherboard only operates using
synchronousdatatransferstothememory.Whenyouuseaprocessorwith100MHz
FSB, it will require that the memory supports 100MHz. When you use a proces-
sor with 133MHz FSB, it will require that the memory supports 133MHz or
else bootup may not be possible.

18 ASUS CUR-DLS User’s Manual
3. HARDWARE SETUP
System Memory
3. H/W SETUP
3.5.2 DIMM Installation
Insert the module(s) as shown. Because the number of pins are different on either
side of the breaks, the module will only fit in the orientation shown. DIMMs are
longer and have different pin contacts on each side and therefore have a higher pin
density compared to SIMMs.
CUR-DLS 168-Pin DIMM Sockets
20 Pins
60 Pins
88 Pins
Lock
CUR-DLS
R
TheDIMMsmustbe3.3V“registered”forthismotherboard.To determine the DIMM
type, check the notches on the DIMMs (see figure below).
The notches on the DIMM module will shift between left, center, or right to identify
the type and also to prevent the wrong type from being inserted into the DIMM slot
on the motherboard. You must ask your retailer the correct DIMM type before pur-
chasing.

ASUS CUR-DLS User’s Manual 19
3. HARDWARE SETUP

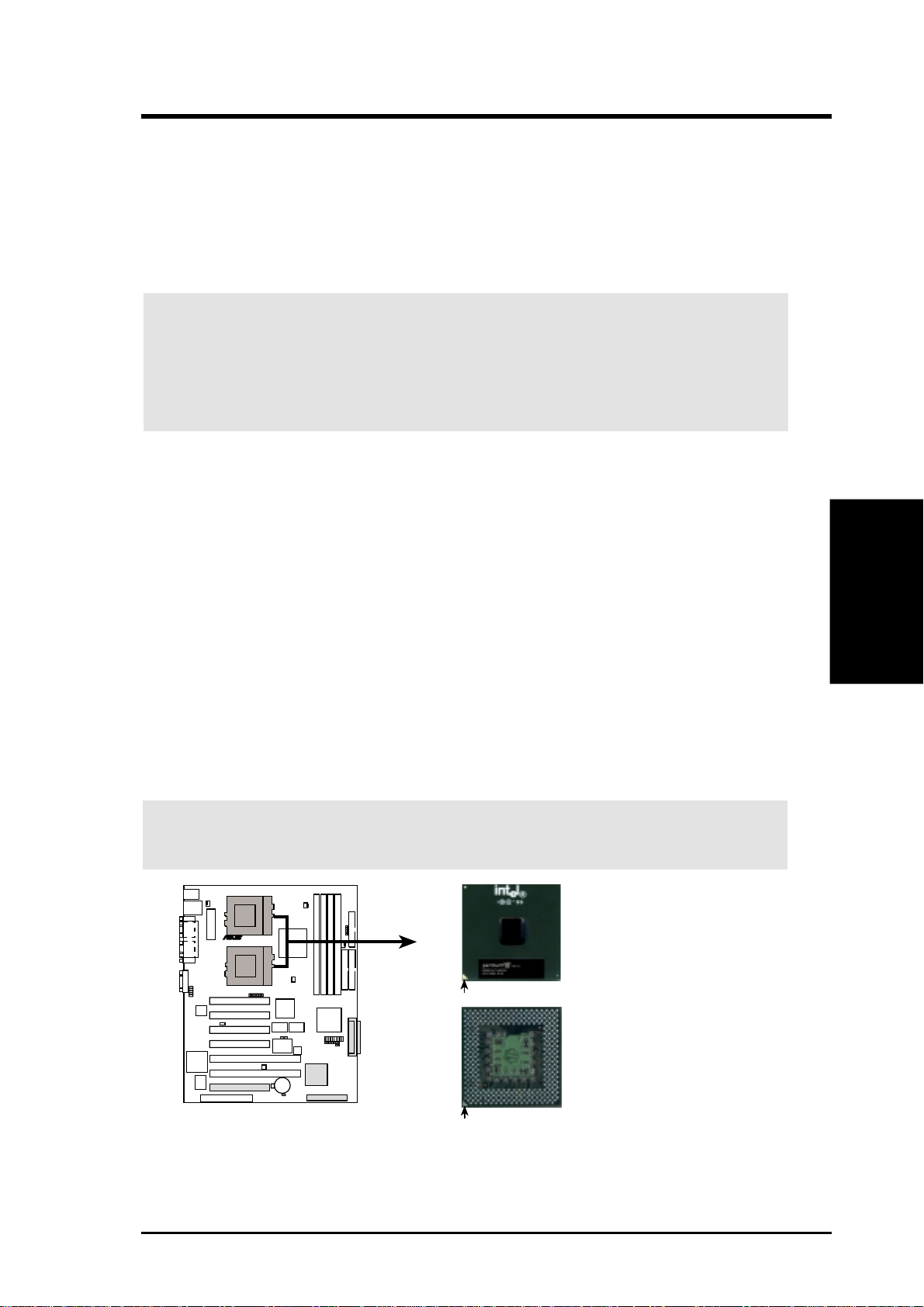

3.6 Central Processing Unit (CPU)
The motherboard provides a ZIF Socket 370. The CPU that came with the mother-
board should have a fan attached to it to prevent overheating. If this is not the case,
then purchase a fan before you turn on your system.
WARNING! Be sure that there is sufficient air circulation across the processor’s
heatsink by regularly checking that your CPU fan is working. Without sufficient
circulation, the processor could overheat and damage both the processor and the
motherboard. You may install an auxiliary fan, if necessary. The CPU will be
unstable if the heatsink is not properly mounted. Double check the contact.
To install a CPU, first turn off your system and remove its cover. Locate the ZIF
socket and open it by first pulling the lever sideways away from the socket then up-
wards to a 90-degree angle. Insert the CPU with the correct orientation as shown. The
notched corner should point towards the end of the lever. Because the CPU has a
corner pin for two of the four corners, the CPU will only fit in the orientation as
shown. The picture is for reference only; you should have a CPU fan that covers the
face of the CPU. With the added weight of the CPU fan, no force is required to insert
the CPU. Once completely inserted, close the socket’s lever while holding down the
CPU. Next, install an Intel recommended fan heatsink. Locate the CPU fan connector
(see 3.1MotherboardLayout or 3.8 Connectors) and connect the CPU fan cable to it.
NOTE: The correct Bus Frequency and Multiple for your Socket 370 processor is
automatically set by this motherboard. Socket 370 processors provide internal ther-
mal sensing so that a socket mounted thermal resistor is not needed.
CAUTION! Be careful not to scrape the motherboard when mounting a clamp-
style processor fan or else damage may occur to the motherboard.
CUR-DLS
R
CUR-DLS Socket 370
Gold Arrow
Socket 370 Pentium III
Socket 370 Terminator
(Use when only one
CPU is installed)
Silver Arrow
IMPORTANT:AnoptionalCPUterminatorisrequiredwheninstallingonlyoneCPU.
CPU
3. H/W SETUP

20 ASUS CUR-DLS User’s Manual
3. HARDWARE SETUP
3.7 Expansion Cards
WARNING! Unplug your power supply when adding or removing expansion
cards or other system components. Failure to do so may cause severe damage to
both your motherboard and expansion cards.
3.7.1 Expansion Card Installation Procedure
1. Read the documentation for your expansion card and make any necessary hard-
ware or software settings for your expansion card, such as jumpers.
2. Remove your computersystem’scoverandthe
bracket plate on the slot you intend to use.
Keep the bracket for possible future use.
3. Carefully align the card’s connectors and press
firmly.
4. Secure the card on the slot with the screw you
removed above.
5. Replace the computer system’s cover.
6. Set up the BIOS if necessary
(see 4.4.3 PCI Configuration)
7. Install the necessary software drivers for your
expansion card.
Expansion Cards
3. H/W SETUP
Socket 370 Socket 370
RCC
CNB30LE
MA
Cntl
MD
100/133MHz
Buffer DIMM
Peer-to-Peer PCI Bus
Configuration Diagram
PCI-5
64-bit
PCI-6
64-bit
PCI-7
32-bit LSI SCSI
Secondary PCI Bus (66/33MHz)
PCI-1
32-bit PCI-2
32-bit
PCI-3
32-bit
ATI RageXL
Primary PCI Bus (33MHz)
PCI-4
32-bit
Intel 82559
<53C1010-66
<53C1010-33
<896
33MHz33MHz33MHz 33MHz33MHz33MHz
(none)
66MHz66MHz
Peer-to-Peer PCI Bus Configuration Diagram
