Asus INTEL TUSL2-C User manual

®
TUSL2-C
Intel®815EPATX Motherboard
USER’S MANUAL

2ASUS TUSL2-C User’s Manual
USER'S NOTICE
Product Name: ASUS TUSL2-C
Manual Revision: 1.04 E769
Release Date: May 2001
No part of this manual, including the products and software described in it, may be repro-
duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in
any form or by any means, except documentation kept by the purchaser for backup purposes,
without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITYOR FITNESS FORAPAR-
TICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,
EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDEN-
TAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF
PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSI-
NESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL
OR PRODUCT.
Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing byASUS; or (2)
the serial number of the product is defaced or missing.
Products and corporate names appearing in this manual may or may not be registered trade-
marks or copyrights of their respective companies, and are used only for identification or
explanation and to the owners’ benefit, without intent to infringe.
• Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.
• Intel, LANDesk, and Pentium are registered trademarks of Intel Corporation.
• Trend and ChipAwayVirus are trademarks of Trend Micro, Inc.
• Windows and MS-DOS are registered trademarks of Microsoft Corporation.
The product name and revision number are both printed on the product itself. Manual revi-
sions are released for each product design represented by the digit before and after the period
of the manual revision number. Manual updates are represented by the third digit in the manual
revision number.
For previous or updated manuals, BIOS, drivers, or product release information, contactASUS
at http://www.asus.com.tw or through any of the means indicated on the following page.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FUR-
NISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT
ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COM-
MITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR
ANYERRORS ORINACCURACIESTHATMAYAPPEARIN THISMANUAL, INCLUD-
ING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2001 ASUSTeK COMPUTER INC.All Rights Reserved.

ASUS TUSL2-C User’s Manual 3
ASUS CONTACT INFORMATION
ASUSTeK COMPUTER INC. (Asia-Pacific)
Marketing
Address: 150 Li-Te Road, Peitou, Taipei, Taiwan 112
Telephone: [phone]
Fax: [phone]
Email: [email protected]
Technical Support
MB/Others (Tel): [phone] (English)
Notebook (Tel): [phone] (English)
Desktop/Server (Tel):[phone] (English)
Fax: [phone]
Email: [email protected]
WWW: www.asus.com.tw
FTP: ftp.asus.com.tw/pub/ASUS
ASUS COMPUTER INTERNATIONAL (America)
Marketing
Address: 6737 Mowry Avenue, Mowry Business Center, Building 2
Newark, CA 94560, USA
Fax: [phone]
Email: [email protected]
Technical Support
Fax: [phone]
Email: [email protected]
WWW: www.asus.com
FTP: ftp.asus.com/Pub/ASUS
ASUS COMPUTER GmbH (Europe)
Marketing
Address: Harkortstr. 25, 40880 Ratingen, BRD, Germany
Fax: [phone]
Email: [email protected] (for marketing requests only)
Technical Support
Hotline: MB/Others: [phone] Notebook: [phone]
Fax: [phone]
Support (Email): www.asuscom.de/de/support (for online support)
WWW: www.asuscom.de
FTP: ftp.asuscom.de/pub/ASUSCOM

4ASUS TUSL2-C User’s Manual
CONTENTS
1. INTRODUCTION ............................................................................. 7
1.1 How This Manual Is Organized .................................................. 7
1.2 Item Checklist ............................................................................. 7
2. FEATURES ........................................................................................ 8
2.1 The ASUS TUSL2-C .................................................................. 8
2.1.1 Specifications .................................................................. 8
2.1.2 Optional Components .................................................... 10
2.1.3 Performance................................................................... 10
2.1.4 Intelligence .................................................................... 11
2.2 TUSL2-C Motherboard Components ....................................... 12
3. HARDWARE SETUP ...................................................................... 14
3.1 TUSL2-C Motherboard Layout ................................................ 14
3.2 Layout Contents ........................................................................ 15
3.3 Hardware Setup Procedure ....................................................... 17
3.4 Motherboard Settings................................................................ 17
3.5 System Memory (DIMM) ......................................................... 24
3.5.1 General DIMM Notes .................................................... 24
3.5.2 Memory Installation ...................................................... 25
3.6 Central Processing Unit (CPU) ................................................. 26
3.7 Expansion Cards ....................................................................... 27
3.7.1 Expansion Card Installation Procedure ......................... 27
3.7.2 Assigning IRQs for Expansion Cards............................ 27
3.7.3 Communication and Networking Riser (CNR) Slot...... 28
3.7.4 Accelerated Graphics Port (AGP) Slot .......................... 29
3.8 External Connectors.................................................................. 30
3.9 Starting Up the First Time ........................................................ 43
4. BIOS SETUP..................................................................................... 45
4.1 Managing and Updating Your BIOS ......................................... 45
4.1.1 Upon First Use of the Computer System....................... 45
4.1.2 Updating BIOS Procedures ........................................... 46
4.2 BIOS Setup Program ................................................................ 49
4.2.1 BIOS Menu Bar ............................................................. 50
4.2.2 Legend Bar .................................................................... 50
4.3 Main Menu................................................................................ 52
4.3.1 Primary & Secondary Master/Slave .............................. 53
4.3.2 Keyboard Features ......................................................... 56

ASUS TUSL2-C User’s Manual 5
CONTENTS
4.4 Advanced Menu ........................................................................ 58
4.4.1 Chip Configuration ........................................................ 61
4.4.2 I/O Device Configuration .............................................. 64
4.4.3 PCI Configuration ......................................................... 66
4.4.4 Shadow Configuration................................................... 68
4.5 Power Menu .............................................................................. 69
4.5.1 Power Up Control.......................................................... 71
4.5.2 Hardware Monitor ......................................................... 73
4.6 Boot Menu ................................................................................ 74
4.7 Exit Menu ................................................................................. 76
5. SOFTWARE SETUP....................................................................... 79
5.1 Install Operating System........................................................... 79
5.2 Start Windows ........................................................................... 79
5.3 TUSL2-C Motherboard Support CD ....................................... 80
6. SOFTWARE REFERENCE ........................................................... 83
6.1 Winbond Smart Manager .......................................................... 83
6.2 ASUS PC Probe ........................................................................ 87
6.3 Multi-Channel Audio Feature Setup ......................................... 92
6.4 ASUS LiveUpdate .................................................................... 94
6.5 CyberLink PowerPlayer SE ...................................................... 95
6.6 CyberLink PowerDVD ............................................................. 96
6.7 CyberLink VideoLive Mail ....................................................... 97
7. APPENDIX....................................................................................... 99
7.1 Glossary .................................................................................... 99
INDEX ................................................................................................. 103

6ASUS TUSL2-C User’s Manual
FCC & DOC COMPLIANCE
FederalCommunications CommissionStatement
This device complies with FCC Rules Part 15. Operation is subject to the following
two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with manufacturer's instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interfer-
ence by one or more of the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING! Any changes or modifications to this product not expressly ap-
proved by the manufacturer could void any assurances of safety or performance
and could result in violation of Part 15 of the FCC Rules.
Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the
Federal Register, National Archives and Records Administration, U.S. Government Printing Office.
CanadianDepartment ofCommunicationsStatement
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications.
This Class B digital apparatus complies with Canadian ICES-003.
CetappareilnumériquedelaclasseBestconformeàlanormeNMB-003duCanada.

ASUS TUSL2-C User’s Manual 7
1.1 How This Manual Is Organized
This manual is divided into the following sections:
1. INTRODUCTION Manual information and checklist
2. FEATURES Production information and specifications
3. HARDWARE SETUP Instructions on setting up the motherboard.
4. BIOS SETUP Instructions on setting up the BIOS
5. SOFTWARE SETUP Instructions on setting up the included software
6. SOFTWARE REFERENCE Reference material for the included software
7. APPENDIX Optional items and general reference
1.2 Item Checklist
Check that your package is complete. If you discover damaged or missing items,
contact your retailer.
1. INTRODUCTION
1. INTRODUCTION
Manual / Checklist
Optional Items
USB Hub CNR card
LAN/Home PNA CNR card
ASUS iPanel
ASUS consumer infrared set
ASUSIrDA-compliantinfraredmodule
Package Contents
(1) ASUS Motherboard
(1) 40-pin 80-conductor ribbon cable
for internal UltraDMA100/66/33
IDE drives
(1) Ribbon cable for master and
slave IDE drives
(1) Ribbon cable for (1) 5.25”and (2)
3.5”floppy disk drives
(1) Bag of spare jumpers
(1) Support drivers and utilities
(1) This Motherboard User’s Manual
(1) ASUS 2-port USB connector set
with bracket

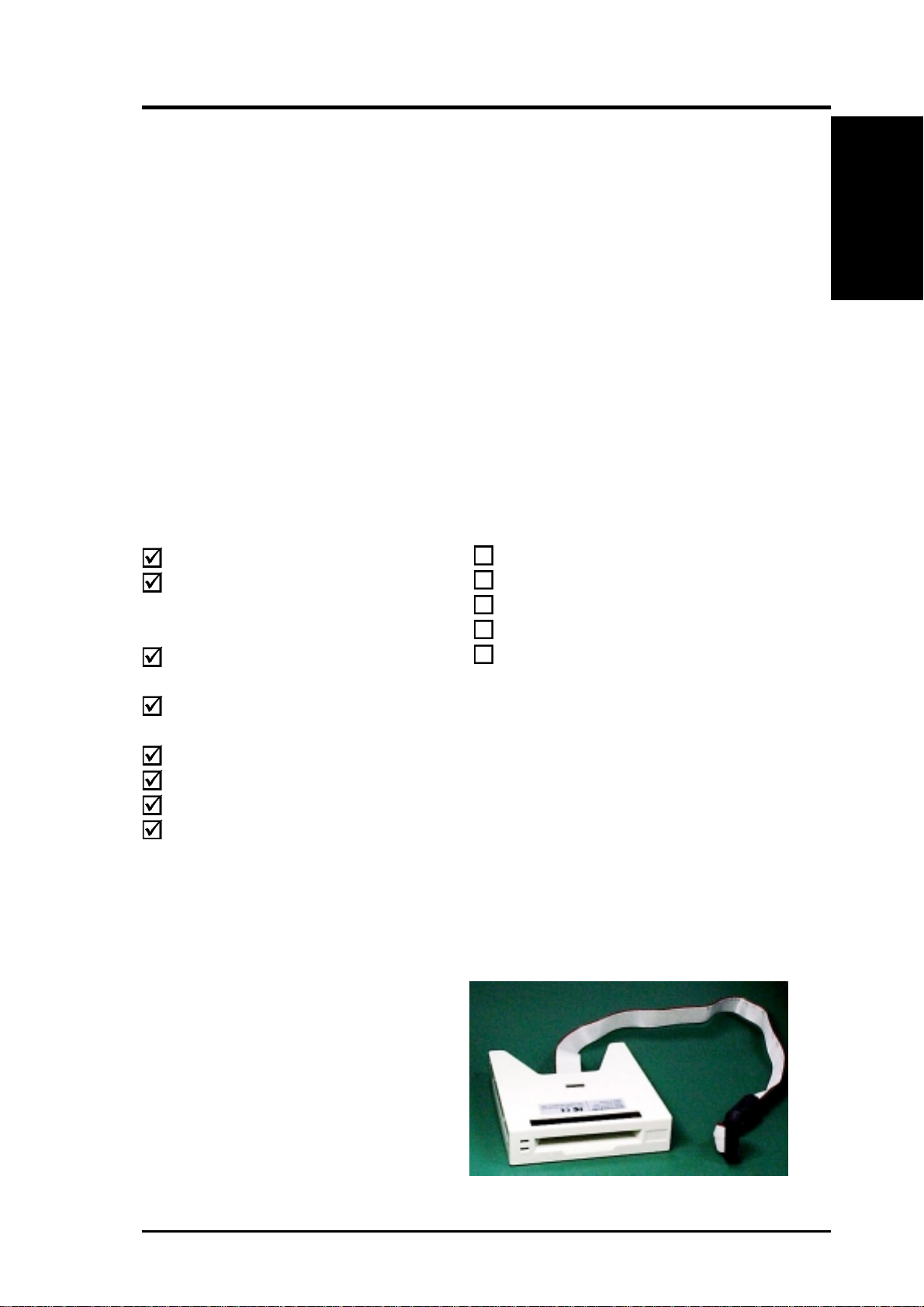

Special Optional Item: The Read2-In-01 SmartCard Reader
Power up your PC using a Smart Card. The TUSL2-C supports the
latest PC/SC compliant Smart Card Reader: the Read2-In-01.
Visit the manufacturer’s website:
www.tzt.com.tw or ask your local
dealer. See Section 6, Software
Reference, for more detailed
information about using the
Winbond Smart Manager
software.

8ASUS TUSL2-C User’s Manual
2.1 The ASUS TUSL2-C
TheASUS TUSL2-C motherboard is carefully designed for the demanding PC user
who wants advanced features processed by the fastest processors.
2.1.1 Specifications
•Latest Intel Processor Support
P III
®
Tualatin™100/133MHz FSB FC-PGA2
P
III
®
Coppermine™100/133MHz FSB FC-PGA
Celeron™66/100MHz FSB FC-PGA
•North Bridge System Chipset: The Intel
®
815EP chipset supports a 66/100/
133 Front Side Bus (FSB), up to 512MB of PC100/PC133 SDRAM, and AGP
4X mode, which can transport twice the amount of data compared to the current
AGP standard.
•South Bridge System Chipset: The Intel I/O Controller Hub 2 (ICH2) features
support for UltraDMA/100, which allows burst mode data transfer rates of up to
100MB/sec; two USB controllers for a total of 4 USB ports; and six channel
AC97 CODEC support.
•Intel
®
Accelerated Hub Architecture: Features a dedicated high speed hub
link between the ICH2 and GMCH with a bandwidth of 266MB/sec –twice the
maximum bandwidth of the PCI bus.
•PC100/PC133 Memory Support: Equipped with three Dual Inline Memory
Module (DIMM) sockets to support PC100/PC133-compliant SDRAMs
(available in 64, 128, 256, 512MB densities) up to 512MB.
•AGP Slot: Comes with an Accelerated Graphics Port slot that supports AGP
cardsforhighperformance,componentlevelinterconnect targetedat 3D graphical
applications supporting 133MHz 4X mode. Backward compatible to support
AGP 2X.
•UltraDMA33/66/100 Support: Comes with an onboard PCI Bus Master IDE
controller with two connectors that support four IDE devices on two channels.
Supports UltraDMA/100, UltraDMA/66, UltraDMA/33, PIO Modes 3 & 4 and
Bus Master IDE DMA Mode 2, and Enhanced IDE devices, such as DVD-ROM,
CD-ROM, CD-R/RW, LS-120, and Tape Backup drives.
•SmartCard Reader Support: Onboard header connects directly to a Smart
Card reader for security and Smart Card memory chip editing.
•Wake-Up Support: Supports Wake-On-LAN and Wake-On-Ring, Keyboard
Wake-Up, and BIOS Wake-Up.
•JumperFree™Mode:Allows processor settings and easy overclocking of fre-
quency and Vcore voltage all through BIOS setup when JumperFree™mode is
enabled. Easy-to-use DIP switches instead of jumpers are included to allow
manual adjustment of the processor’s external frequency.
2. FEATURES
Specifications
2. FEATURES

ASUS TUSL2-C User’s Manual 9
2. FEATURES
2. FEATURES
Specifications
•Around-the-Clock Intrusion Detection: Chassis intrusion circuitry can log
chassis open events into LDCM. The onboard battery supports detection even
when normal power is removed and through a new design, battery drain is even
lower than the RTC used for keeping time!
•PC Health Monitoring: Provides an easy way to examine and manage system
status information, such as CPU and systerm voltages, temperatures, and fan
status through the onboard hardware ASUS ASIC and the bundled ASUS PC
Probe or Intel LDCM software.
•CNR Support: A Communication and Networking Riser (CNR) slot provides
an interface to support very affordable multichannel audio,V.90 analog modem,
Home PNA, 10/100 Ethernet networking, and USB hub.
•PCI Expansion Slots: Provides six 32-bit PCI (PCI 2.2 compliant) expansion
slots. All PCI slots can support Bus Master PCI cards, such as SCSI or LAN
cards. (PCI supports up to 133MB/s maximum throughput.)
•Low Pin Count (LPC) Multi-I/O: Provides two high-speed UART compatible
serial ports and one parallel port with EPP and ECP capabilities. UART2 can
also be directed from COM2 to the Infrared Module for wireless connections.
•Enhanced ACPI & Anti-Boot Virus Protection: Programmable BIOS (Flash
EEPROM), offering enhanced ACPI for Windows 98/2000/Millenium
compatibility,built-infirmware-based virus protection, andautodetection of most
devices for virtually automatic setup.
•Smart BIOS: The firmware hub gives a new easy-to-use interface which pro-
videsmorecontrolandprotectionoverthemotherboard.ProvidesVcore and CPU/
SDRAM frequency adjustments, boot block write protection, and HD/SCSI/MO/
ZIP/CD/Floppybootselection. Hardware random number generator supportsnew
security software for data protection and secured Internet transactions.
•Concurrent PCI: Concurrent PCI allows multiple PCI transfers from PCI mas-
ter busses to the memory and processor.
•Onboard LED: The onboard LED will light up when there is standby power to
the motherboard. This acts as a reminder to the user to turn OFF the power
before plugging and unplugging devices so as not to damage the motherboard,
peripherals, and/or components.
•OneTouch Management:Supports an optionalASUS iPanel, an easy to access
box with system information LED display, front I/O ports, and space reserved
for a hard disk drive. With an ASUS iPanel, you can monitor your computer
system’s vital components.
•SMBus:Features the System Management Businterface,which is used to physi-
cally transport commands and information between SMBus devices.

10 ASUS TUSL2-C User’s Manual
2. FEATURES
Performance
2. FEATURES
2.1.2 Optional Components
The following onboard components are optional at the time of purchase:
•Onboard Audio: C-Media Audio Chip CMI8738 supporting the latest PCI 6
channel and HRTF 3D Audio sound circuitry. A software package helps setup
the multi-channel PC sound system.
•Smart Card Reader Compatible: PC/SC compliant Smart Card Reader
connectivity.
2.1.3 Performance
•UltraPerformance:OnboardIDEBusMastercontrollerwithtwoconnectorsthat
support four IDE devices in two channels. Supports UltraDMA/100, UltraDMA/
66,UltraDMA/33(IDEDMA Mode 2), PIO Modes 3&4,and supports Enhanced
IDEdevices:DVD-ROM,CD-ROM,CD-R/RW, LS-120,andTapeBackupdrives.
•Concurrent PCI: Concurrent PCI allows multiple PCI transfers from PCI
master buses to memory and processor.
•SDRAM Optimized Performance: This motherboard supports PC133-com-
pliant Synchronous Dynamic RandomAccess Memory (SDRAM), which increases
the data transfer rate to 1066MB/s max.
•ACPIReady:ACPI(AdvancedConfigurationandPowerInterface)isalsoimple-
mented on all ASUS smart series motherboards. ACPI provides more Energy
Saving Features for operating systems (OS) supporting OS Direct Power Man-
agement (OSPM).With these features implemented in the OS, PCs can be ready
around the clock, yet satisfy all the energy saving standards. To gain all the
benefits, an ACPI-supported OS, such as Windows 98/2000/ME is required.
•Suspend and Go: Suspend-to-RAM (STR) provides maximum power savings
as an alternative to leaving the computer ON and QuickStart™so that you do
not have to wait for a long time for system bootup.
•NewCompliancy: Both the BIOS and hardware levels of the motherboard meet
the stringent requirements for PC 99 certification. The new PC 99 requirements
for systems and components are based on high-level goals: support for Plug and
Play compatibility and power management for managing all system compo-
nents, and 32-bit device drivers and installation procedures for Windows 95/98/
NT. Color-coded connectors and descriptive icons make identification easy.

ASUS TUSL2-C User’s Manual 11
2. FEATURES
2. FEATURES
Intelligence
2.1.4 Intelligence
•Fan Status Monitoring and Alarm: To prevent system overheat and system
damage, the CPU, power supply, and system fans can be monitored for RPM
and failure. All the fans are set for its normal RPM range and alarm thresholds.
•Temperature Monitoring and Alert: To prevent system overheat and system
damage,this motherboard supports processor thermalsensing and auto-protection.
•Voltage Monitoring andAlert: System voltage levels are monitored to ensure
stable current to critical motherboard components. Voltage specifications are
more critical for future processors, so monitoring is necessary to ensure proper
system configuration and management.
•System Resources Alert: Today’s operating systems, such as Windows 98/
Millenium,Windows NT/2000,require much morememory and harddrive space
to present enormous user interfaces and run large applications. The onboard
hardware ASUS ASIC in conjunction with either the bundled ASUS PC Probe
or Intel LDCM will warn the user before the system resources are used up to
prevent possible application crashes. Suggestions will give the user information
on managing their limited resources more efficiently.
•Dual Function Power Button: Through BIOS, the power button can be defined
as the “Stand by”(a.k.a. Suspend or Sleep) button or as the Soft-Off (see ATX
Power / Soft-Off Switch Lead in 3.8 Connectors for more information) button.
Regardless of the setting, pushing the power button for more than 4 seconds will
enter the Soft-Off mode.
•Remote Ring On (requires modem): This allows a computer to be turned on
remotely through an internal or external modem. With this benefit on-hand, users
can access any information from their computers from anywhere in the world.
•Message LED (requiresACPI OS support): Message LEDs now act as infor-
mation providers. Through the way a particular LED illuminates, the user can
determine if a message has been received from a fax/modem.A simple glimpse
provides useful information to the user. This function requires ACPI OS and
driver support.
•Peripheral Power Up: Keyboard or Mouse power up can be enabled or dis-
abled through BIOS setup to allow the computer to be powered ON using your
keyboard or mouse click.

12 ASUS TUSL2-C User’s Manual



..(Bottom) 22
Location
Processor Support Socket 370 for Pentium III/Celeron (FC-PGA/2) Processors .. 2
Feature Setting DIP Switches ................................................... 6
Chipsets Intel 815EP Chipset .................................................................. 3
Intel I/O Controller Hub 2 (ICH2) ......................................... 11
Low Pin Count (LPC) Multi-I/O Chipset ............................... 12
2 MB Firmware Hub (FWH) .................................................. 13
Main Memory 3 DIMM Sockets (maximum 512MB support) ........................ 4
PC133 SDRAM support
Expansion Slots 6 PCI Slots .............................................................................. 19
1 Accelerated Graphics Port (AGP) Slot ................................ 21
1 CNR Slot ............................................................................. 16
System I/O USB Headers .......................................................................... 15
1 Floppy Disk Drive Connector ............................................... 7
2 IDE Connectors (UltraDMA/100 Support) ........................... 5
1 Smart Card Header ................................................................ 8
1 ASUS iPanel Connector ........................................................ 9
1 Parallel Port Connector ............................................. (Top) 24
1 Serial COM2 Port Connector .............................. (Bottom) 23
1 Serial COM1 Port Connector .............................. (Bottom) 25
2 USB Port Connectors ......................................................... 26
1 PS/2 Mouse Connector .............................................. (Top) 27
1 PS/2 Keyboard Connector ................................... (Bottom) 27
Audio C-Media Audio Chip (optional) ............................................. 18
1 Game/MIDI Connector (on audio model only) ......... (Top) 22
1 Line Out Connector (on audio model only)
1 Line In Connector (on audio model only)
1 Microphone Connector (on audio model only)
Network Features Wake-On-LAN Connector...................................................... 20
Wake-On-Ring Connector ...................................................... 10
Hardware Monitoring System Voltage Monitoring (integrated in ASUS ASIC) ....... 14
3 Fan Power and Speed Monitoring Connectors
Power ATX Power Supply Connector ................................................. 1
Special Feature Onboard LED ......................................................................... 17
Form Factor ATX
2. FEATURES
2. FEATURES
MB Components
2.2 TUSL2-C Motherboard Components
See opposite page for locations.

ASUS TUSL2-C User’s Manual 13
2. FEATURES
2. FEATURES
Component Location
2.2.1 Component Locations
2345
13 814
21
11
23
24
25
26
27
76
12
18
17
10
16
9
22
1
15
20
19

14 ASUS TUSL2-C User’s Manual
3. HARDWARE SETUP
3.1 TUSL2-C Motherboard Layout
PS/2KBMS
T: Mouse
B: Keyboard
PWR_FAN
GAME_AUDIO
Mic
In
Line
Out
Line
In
PCI1
PCI2
PCI4
PCI3
PANEL
IDELED
FLOPPY
SECONDARYIDE
PRIMARYIDE
TUSL2-C
CHA_FAN
CD
AUX
®
PLED2
Accelerated Graphics Port (AGP)
CR2032 3V
Lithium Cell
CMOS Power
DIMM1 (64/72 bit, 168-pin module)
1 0
DIMM2 (64/72 bit, 168-pin module)
3 2
CLRTC
DSW
Socket 370
AUDIO_EN
USB
T: Port0
B: Port 1
PCI5
CNR_SLOT
C-Media
PCI
Audio
Super
I/O
CPU_FAN
Firmware
Hub
(FWH)
MODEM
CHA
WOL_CON
WOR
AAPANEL
MIC2
HPHONE
JEN
AFPANEL
DIMM3 (64/72 bit, 168-pin module)
5 4
DIP
Switches
PCI6
ASUS ASIC
with
Hardware
Monitor
VIO
Intel I/O
Controller
Hub
(ICH2)
Intel
815EP
Chipset
USBPWR01
KBPWR
SMB
USBPWR56
USBP56
SMARTCON
IR_CON
JTPWR
OC3
COM1
PARALLEL PORT
COM2
ATX Power Connector
Motherboard Layout
3. H/W SETUP
Grayed components are optional at the time of purchase.

ASUS TUSL2-C User’s Manual 15
3. HARDWARE SETUP
3.2 Layout Contents
Motherboard Settings
1) JEN p.18 JumperFree™Mode (Enable/Disable)
2) USWR01 p.19 USB Device Wake Up (Enable/Disable)
USWR56
3) AUDIO_EN p.20 Onboard CMI8738 PCI 6 ch. Audio (Enable/Disable)
4) KBPWR p.20 Keyboard Power Up (Enable/Disable)
5) VIO p.21 Voltage I/O Setting (3.3V/3.40V/3.60V)
6) DSW p.22 CPU External Frequency Setting
Expansion Slots
1) DIMM1/2/3 p.24 168-Pin System Memory Support
2) CPU p.26 Central Processing Unit (CPU)
3) PCI1/2/3/4/5/6 p.27 32-bit PCI Bus Expansion Slots
4) CNR1 p.28 Communication and Network Riser Slot
5) AGP p.29 Accelerated Graphics Port (AGP) Slot
Connectors
1) PS2KBMS p.30 PS/2 Mouse Connector (6 pin female)
2) PS2KBMS p.30 PS/2 Keyboard Connector (6 pin female)
3) USB p.31 Universal Serial Bus Ports (Two 4 pin female)
4) PRINTER p.31 Parallel Port Connector (25-pin female)
5) COM1/COM2 p.31 Serial Port Connectors (9-pin male, 10-1 pin)
6) GAME_MIDI p.32 Game/MIDI Connector (15-pin female) (optional)
7) AUDIO p.32 Audio Port Connectors (Three 1/8”female) (optional)
8) FLOPPY p.32 Floppy Disk Drive Connector (34-1pin)
9) PRIMARY/SECONDARYIDE p.33 Primary/Secondary IDE Connectors (Two 40-1pin)
10) IDELED p.34 IDE Activity LED (2 pin)
11) CPU_FAN, PWR_FAN p.34 CPU, PowerSupply,Chassis FanConnectors(Three 3 pin)
CHA_FAN
12) CD, AUX, MODEM p.35 Internal Audio Connectors (Four 4 pins) (optional)
13) HPHONE p.35 Headphone True-Level Line Out Header (3 pin)
14) MIC2 p.35 Internal Microphone Connector (3 pin)
15) AFPANEL / IR_CON p.36 ASUS iPanel Connector (12-1 pin)
16) SMARTCON p.36 ASUS SmartCard Connector (10-1 pin )
17) AAPANEL p.37 ASUS iPanel Audio Connector (12-1 pin)
18) ACHA p.37 Chassis Intrusion Connector (2 pin)
Layout Contents
3. H/W SETUP

ASUS TUSL2-C User’s Manual
3. HARDWARE SETUP
16
Layout Contents
3. H/W SETUP
19) WOL_CON p.38 Wake-On-LAN Connector (3 pin)
20) WOR_CON p.38 Wake-On-Ring Connector (2 pin)
21) USB56 p.39 USB Headers (10-1 pin)
22) SMB p.39 SMBus Connector (5-1 pin)
23) ATXPWR p.40 ATX Power Supply Connector (20 pin)
24) JTPWR p.40 Power Supply Thermal Sensor Connector (2 pin)
25) PWRLED (PANEL) p.41 System Power LED Lead (3-1 pin)
26) KEYLOCK (PANEL) p.41 Keyboard Lock Switch Lead (2 pin)
27) SPEAKER (PANEL) p.41 System Warning Speaker Connector (4 pin)
28) MSG.LED (PANEL) p.41 System Message LED (2 pin)
29) SMI (PANEL) p.41 System Management Interrupt Switch Lead (2 pin)
30) PWRSW (PANEL) p.41 ATX Power / Soft-Off Switch Lead (2 pin)
31) RESET (PANEL) p.41 Reset Switch Lead (2 pin)

ASUS TUSL2-C User’s Manual 17
3. HARDWARE SETUP
Motherboard Settings
3. H/W SETUP
3.3 Hardware Setup Procedure
Before using the computer, it is necessary to complete the following steps:
•Check Motherboard Settings
•Install Memory Modules
•Install the Central Processing Unit (CPU)
•Install Expansion Cards
•Connect Ribbon Cables, Panel Wires, and Power Supply
3.4 Motherboard Settings
WARNING! Computer motherboards and expansion cards contain delicate
Integrated Circuit (IC) chips. To protect them against damage from static
electricity, take precautions whenever working on the computer.
1. Unplug the computer when working on the inside.
2. Use a grounded wrist strap before handling computer components. If you do
nothave one, touch both hands to a safelygrounded object or toa metal object,
such as the power supply case.
3. Hold components by the edges and try not to touch the IC chips, leads or
connectors, or other components.
4. Placecomponentson a grounded antistatic pad oronthebag that came with the
component whenever the components are separated from the system.
5. Ensure that the ATX power supply is switched off before plugging in or
removing the ATX power connector on the motherboard.
TUSL2-C Onboard LED
ON OFF
Standby
Power Powered
Off
PLED2
TUSL2-C
®
WARNING! Make sure the power supply is inplugged when adding or
removing system components. Failure to do so may cause severe damage to
the motherboard, peripherals, and/or components. The onboard LED when lit
acts as a reminder that the system is in suspend or soft-off mode and not pow-
ered OFF.

ASUS TUSL2-C User’s Manual
3. HARDWARE SETUP
18
Motherboard Settings
3. H/W SETUP
Motherboard Feature Settings
The motherboard’s onboard functions are either adjusted through jumpers or
DIP switches. When using DIP switches, the white block represents the switch
position. The example below shows all the switches in the OFF position.
TUSL2-C
®
1. Frequency Selection
2. Frequency Selection
3. Frequency Selection
4. Frequency Selection
5. Frequency Selection.
TUSL2-C DIP Switches
DSW
ON OFF
ON
12345
1) JumperFree™Mode (JEN)
This jumper enables or disables the JumperFree™mode. The JumperFree™
mode allows processor settings to be made through the BIOS setup (see 4.4
Advanced Menu).
NOTE: In JumperFree™mode, all dip switches must be set to OFF.
Setting JEN
Disable (Jumper) [1-2]
Enable (JumperFree) [2-3] (default)
TUSL2-C
®
TUSL2-C JumperFree™
Mode Setting
JEN
DSW
ON
12345
OFF
Disable
12
Enable
23
JumperFree Mode
(Default)
Jumper Mode
JEN

ASUS TUSL2-C User’s Manual 19
3. HARDWARE SETUP
Motherboard Settings
3. H/W SETUP
2) USB Device Wake Up (USWR01, USWR56)
These jumpers disable or enable the USB device wake up function. Set these
jumpers to Enable to wake up the computer with USB devices. This
feature requires an ATX power supply that can supply at least 2A on the +5VSB
lead. The default is set to Disable because not all computers have the appropriate
ATX power supply. The computer will not power ON if the jumper is set to
Enable and if the wrong ATX power supply is connected. NOTE: This jumper
must be set in conjunction with Wake On USB for STR State in 4.5.1 Power Up
Control.
NOTES
1. For enabling Wakeup during STR/STD/Soft off functions, set to Enable.
2. The total current consumed must NOT exceed the power supply capability
(+5VSB) whether under normal working conditions or in the sleep mode.
Setting USWR01, USWR56
Disable [1-2] (default)
Enable [2-3]
TUSL2-C
®
TUSL2-C USB Device Wake Up
USBPWR01
USBPWR56
Disable
(Default)
12
Enable
23
Disable
(Default)
12
Enable
23

ASUS TUSL2-C User’s Manual
3. HARDWARE SETUP
20
Motherboard Settings
3. H/W SETUP
3) Onboard CMI8738 PCI Audio Setting (AUDIO_EN)
(available on audio model only)
The onboard CMI8738 PCI 6 channel Audio chip may be enabled or disabled
using these jumpers. Disable the onboard audio Codec if using a PCI audio card
on any of the expansion slots or a primary audio/modem CNR on a CNR slot
(see CNR Slot later in this section).
Setting AUDIO_EN
Enable [1-2] (default)
Disable [2-3]
TUSL2-C
®
TUSL2-C Audio Setting
Disable
Enable
(Default)
1223
AUDIO_EN
4) Keyboard Power Up (KBPWR)
This jumper disables or enables the keyboard power up function. Set this jumper
to Enable if you wish the keyboard (by pressing <Spacebar>) to power up the
computer. This feature requires an ATX power supply that can supply at least
300mA on the +5VSB lead. The default is set to Disable because not all
computers have the appropriateATX power supply. The computer will not power
ON if you set this to Enable and if the wrong ATX power supply is connected.
NOTE: This jumper must be set in conjunction with Wake On PS2 KB/PS2
Mouse/CIR in 4.5.1 Power Up Control.
Setting KBPWR
Enable [1-2] (default)
Disable [2-3]
TUSL2-C
®
TUSL2-C Keyboard Power Setting
KBPWR
Disable
2
3
Enable
(Default)
1
2
