Asus J6412T-IM-A User manual

Industrial Motherboard
J6412T-IM-A

ii
E20507
Revised Edition V2
July 2022
Copyright © 2022 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.

iii
Contents
Chapter 1 Product overview
1.1 Package contents......................................................................... 1-1
1.2 Features ........................................................................................ 1-1
1.3 Specications............................................................................... 1-2
Chapter 2 Motherboard information
2.1 Before you proceed ..................................................................... 2-1
2.2 Motherboard layout...................................................................... 2-2
2.3 Central Processing Unit (CPU) ................................................... 2-4
2.4 System memory ........................................................................... 2-5
2.5 Jumpers ........................................................................................ 2-6
2.6 Connectors ................................................................................. 2-10
2.6.1 Rear panel connectors.................................................. 2-10
2.6.2 Internal connectors ....................................................... 2-11
Chapter 3 BIOS setup
3.1 BIOS setup program .................................................................... 3-1
3.1.1 BIOS menu screen.......................................................... 3-2
3.2 Main menu .................................................................................... 3-2
3.2.1 System Date [Day MM/DD/YYYY] .................................. 3-2
3.2.2 System Time [HH:MM:SS] .............................................. 3-2
3.3 Advanced menu ........................................................................... 3-3
3.3.1 PCH-FW Conguration ................................................... 3-3
3.3.2 Trusted Computing ......................................................... 3-3
3.3.3 CPU Conguration .......................................................... 3-3
3.3.4 Graphics Conguration ................................................... 3-4
3.3.5 PCI Express Conguration.............................................. 3-4
3.3.6 Super IO Conguration ................................................... 3-5
3.3.7 Serial Console Redirection ............................................. 3-6
3.3.8 SATA Conguration ........................................................ 3-7
3.3.9 Network Stack Conguration .......................................... 3-8
3.3.10 USB Conguration .......................................................... 3-8
3.3.11 NVMe Conguration........................................................ 3-8
3.3.12 Onboard Device Conguration........................................ 3-9
3.3.13 APM Conguration........................................................ 3-10
3.3.14 Watchdog Timer............................................................ 3-10

iv
3.3.15 EZ-Flash ....................................................................... 3-11
3.3.16 LVDS Conguration ...................................................... 3-11
3.4 Hardware Monitor menu............................................................ 3-12
3.5 Security menu ............................................................................ 3-12
3.6 Boot menu .................................................................................. 3-14
3.7 Exit menu.................................................................................... 3-14
Save Changes & Exit ................................................................... 3-14
Discard Changes & Exit ............................................................... 3-14
Save Changes & Reset................................................................ 3-15
Discard Changes & Reset............................................................ 3-15
Save Changes.............................................................................. 3-15
Discard Changes.......................................................................... 3-15
Restore Defaults .......................................................................... 3-15
Save as User Defaults ................................................................. 3-15
Restore User Defaults.................................................................. 3-15
Appendix
Notices.......................................................................................................A-1
Service and Support.................................................................................A-5

1-1
Chapter 1: Product Overview
1.1 Package contents
Check your industrial motherboard package for the following items.
1 x ASUS J6412T-IM-A Motherboard
1 x SATA 6.0 Gb/s cable
1 x SATA power cable
2 x ASUS I/O Shield
NOTE: If any of the above items is damaged or missing, contact your
distributor or sales representative immediately.
1.2 Features
• Built-in Intel®Celeron®Quad-core Processor J6412
• Two DDR4 3200/3000/2800/2666/2400/2133 MHz Non-ECC Un-buffered SO-
DIMMs up to 32 GB
• 1 x SATA 6Gb/s, 3 x USB 3.2 Gen 2, 1 x USB 2.0, 6 x COM headers
• 1 x PCIe 3.0/2.0 x1 slot (colay with M.2 E Key), 1 x Full/Half-size PCIe
mini card slot (w/SIM holder), 1 x M.2 Socket 1 with E key, 1 x M key, type
2242/2260/2280 (PCIE x2 / SATA mode) supports NVMe
• Multi-display: 1 x HDMI (colay with DP), 1 x DisplayPort, 1 x LVDS, 1 x
Embedded DisplayPort (BOM colay with LVDS,optional), HDMI + DP + LVDS,
HDMI(Default) + DP + eDP, DP + DP + LVDS, DP + DP + eDP
Chapter 1
Product overview

J6412T-IM-A
1-2
1.3 Specications
(continued on the next page)
CPU Built-in Intel®J6412 SoC onboard Processor
Memory 2 x DDR4, max.32GB, DDR4 3200/3000/2800/2666/2400/2133
MHz Non-ECC, Unbuffered Memory
Graphics
Integrated graphics processor - Intel®HD Graphics support
- Supports HDMI®output with a maximum resolution of 3840 x
2160 @ 30Hz
- Supports DisplayPort output with a maximum resolution of
4096 x 2160 @ 60Hz
- Supports DisplayPort output with a maximum resolution of
4096 x 2160 @ 60Hz (colay with HDMI, optional)
- Supports LVDS output with a maximum resolution of 1920 x
1200 @ 60Hz
- Supports Embedded DisplayPort output with a maximum
resolution of 4096 x 2160 @ 60Hz (colay with LVDS,
optional)
Supports up to three displays simultaneously
Expansion slots
1 x PCI Express 3.0/2.0 x1 slot (colay with M.2 E Key)
1 x Full/Half-size PCIe minicard slot (w/SIM holder)
1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT device (colay
with PCIe)
1 x M key, type 2242/2260/2280 (PCIE x2 / SATA mode) supports
NVMe
Storage 1 x SATA Gen 3.0 up to 6.0 Gb/s port
1 x Full/Half-size mSATA slot (shared with Mini PCIe)
Ethernet 2 x Realtek®8111H, supports WOL/PXE
Audio Realtek® ALC897 High Denition Audio
Rear panel I/O
ports
1 x HDMI®port
1 x DisplayPort
3 x USB 3.2 Gen 2 ports
1 x USB 2.0 port
2 x LAN (RJ45) ports
1 x Audio jack
1 x DC-IN jack
Internal
Connectors
6 x Serial Port headers (5 x RS232, 1 x RS232/422/485)
1 x Chassis Fan header (PWM Mode)
1 x Chassis intrusion header
1 x Front panel audio header (AAFP)
1 x System panel header (10-1 pin)
1 x Clear CMOS jumper

1-3
Chapter 1: Product Overview
Internal
Connectors
2 x USB 2.0 headers support additional 4 USB 2.0 ports
1 x 8-bit GPIO header
1 x COM debug header
1 x 4-pin ATX 12V power connector
1 x SATA power connector
1 x SATA port
1 x PS/2 port
1 x Speaker header
1 x eDP connector (optional)
1 x SPI TPM header
1 x AT/ATX selection header
1 x LVDS signal header
1 x LCD panel monitor switch header
1 x LVDS Panel VCC Power Selection jumper
1 x LVDS Panel Backlight Enable Signal Selection
1 x LVDS Backlight Panel header
Power
requirement
12V DC-in (1x external DC jack; 1 x internal 4-pin power
connector)
Operation
Temperature 0~60°C
Non-Operation
Temperature -40~85°C
Relative Humidity 0%~85%
OS support Windows®10 (64bit) / Windows®10 IoT Enterprise
Ubuntu, RedHat Enterprise, Fedora Workstation, OpenSUSE
Form Factor Thin Mini-ITX Form Factor, 6.7”x 6.7” (17.0cm x 17.0cm)
NOTE: Specications are subject to change without notice.

2-1
Chapter 2: Motherboard information
Chapter 2
Motherboard information
2.1 Before you proceed
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
CAUTION!
• Unplug the power cord from the wall socket before touching any
component.
• Before handling components, use a grounded wrist strap or touch a safely
grounded object or a metal object, such as the power supply case, to avoid
damaging them due to static electricity.
• Hold components by the edges to avoid touching the ICs on them.
• Whenever you uninstall any component, place it on a grounded antistatic
pad or in the bag that came with the component.
• Before you install or remove any component, always remove the AC power
by unplugging the power cord from the power outlet. Failure to do so may
cause severe damage to the motherboard, peripherals, or components.

J6412T-IM-A
2-2
17.0cm(6.7in)
17.0cm(6.7in)
CHASSIS
SD_CARD
(BOTTOM)
AAFP
STEREO_OUT_L
STEREO_OUT_R
ALC
897
AUDIO
Super
I/O
(BOTTOM)
MPCIE1
2260
2242
2280
MPCIE
256Mb
BIOS
PCIEX1
NANO_SIM1
M.2_(SOCKET3)
M.2(WIFI)
LVDS_EDP LCD_BLKT_PANEL
GPIO_CON
USB12
USB34
KBMS_CON
SPI_TPM
AT_ATX_SEL
VCC_PWR_SEL
SPEAKER
F_PANEL
CLRTC1
BATT_CON
CHA_FAN
DC_PWR
ATX12V
COM2_SEL
COM1_SEL
LAN12
DP1
DP2_HDMI2
DDR4 So-DIMM_A1 (64bit, 204-pin module) DDR4 So-DIMM_B1 (64bit, 204-pin module)
COM6
COM5
SATA6G
SATA_PWR
COM4
COM3 COM_DEBUG
COM1 COM2
PANEL_SW
Intel®
J6412 SoC
RTL
8111H
RTL
8111H
U32G2_3
_U2_4
U32G2_12
BKLTEN_SEL
15
12
11
14
13
8
10
9
12 19 20 16 18 17 21 23 22
2526 24
31
32
30
29
27
28
1 5 6 72 3 4

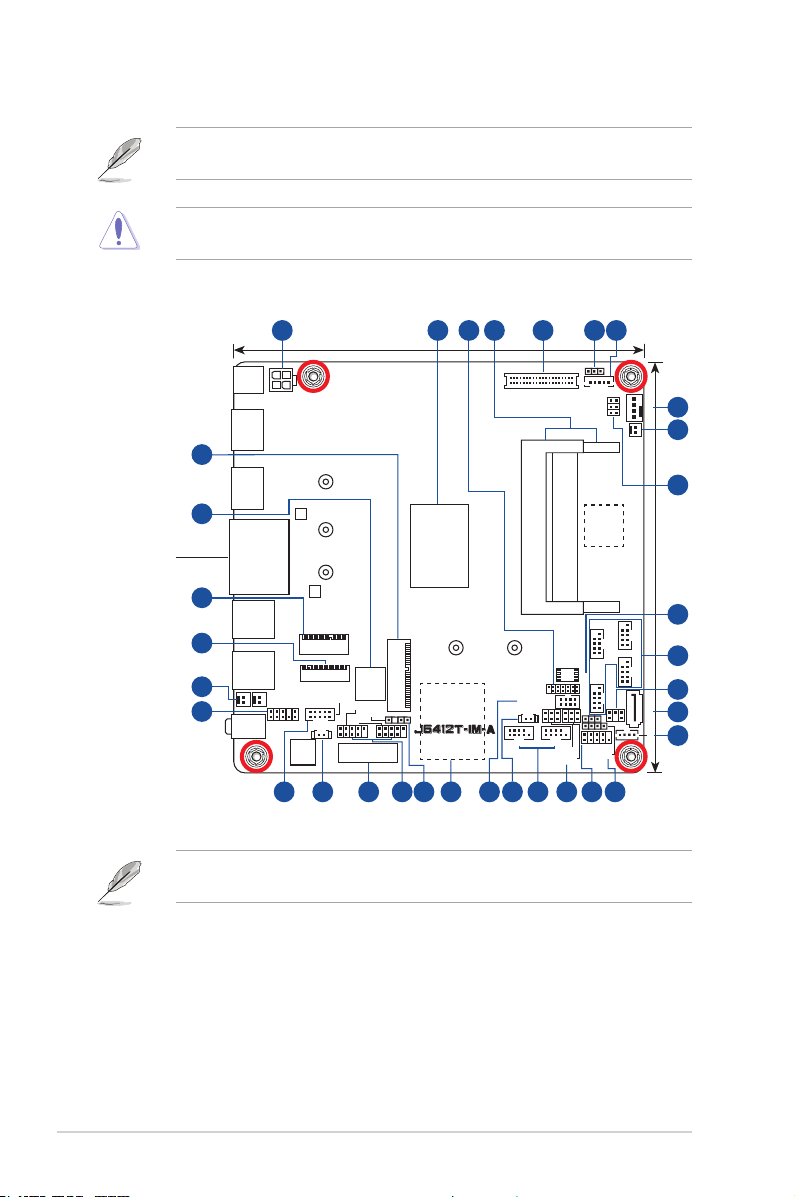

2.2 Motherboard layout
Place this side
towards the rear
of the chassis
NOTE: Place four screws into the holes indicated by circles to secure the
motherboard to the chassis.
CAUTION! Do not overtighten the screws! Doing so can damage the
motherboard.
NOTE: The audio codec may vary between motherboards, please consult
your sales window for the motherboards’ exact codec type.

2-3
Chapter 2: Motherboard information
Connectors/Jumpers/Slots Page
1. ATX Power connector (4-pin ATX12V) 2-11
2. Built-in Intel®Celeron®Quad-core Processor J6412 2-4
3. SPI_TPM header (14-1 pin SPI_TPM) 2-21
4. DDR4 SO-DIMM slots 2-5
5. LVDS/EDP header (40-pin LVDS_EDP) 2-16
6. LVDS Panel Backlight Enable Signal Selection (BKLTEN_SEL) 2-9
7. LVDS Backlight Panel header (5-pin LCD_BLKT_PANEL) 2-15
8. Chassis fan header (4-pin CHA_FAN) 2-11
9. LCD Panel monitor switch header (2-pin PANEL_SW) 2-19
10. LVDS Panel VCC Power Selection jumper (6-pin VCC_PWR_SEL) 2-8
11. AT/ATX mode selection jumper (3-pin AT_ATX_SEL) 2-7
12. COM Port headers (10-1 pin COM1~COM6) 2-20
13. SATA 6.0 Gb/s port (7-pin SATA6G) 2-13
14. SATA Power connector (SATA_PWR) 2-13
15. Speaker header (4-1 pin SPEAKER) 2-14
16. System Panel header (10-1 pin F_PANEL) 2-14
17. COM RING/+5V/+12V selection jumpers (6-pin COM1_SEL, COM2_SEL) 2-7
18. RTC Battery header (2-pin BATT_CON) 2-18
19. PS/2 Keyboard and Mouse header (8-pin KBMS_CON) 2-12
20. SD Card slot (SD_CARD) 2-21
21. Chassis Intrusion header (4-pin CHASSIS) 2-8
22. USB 2.0 headers (10-1pin USB_12, USB_34) 2-12
23. PCIe 3.0/2.0 x1 slot (PCIEX1) 2-22
24. Clear RTC RAM (2-pin CLRTC) 2-6
25. General Purpose Input/output header (GPIO_CON) 2-18
26. Front Panel Audio header (10-1 pin AAFP) 2-19
27. Internal Stereo Speaker header (2-pin STEREO_OUT_L, STEREO_OUT_R) 2-9
28. M.2 socket 3 (M.2_SOCKET3) 2-17
29. M.2 Wi-Fi slot 2-17
30. Nano SIM Card slot 2-20
31. MPCIe combo slot (MPCIE) 2-16

J6412T-IM-A
2-4

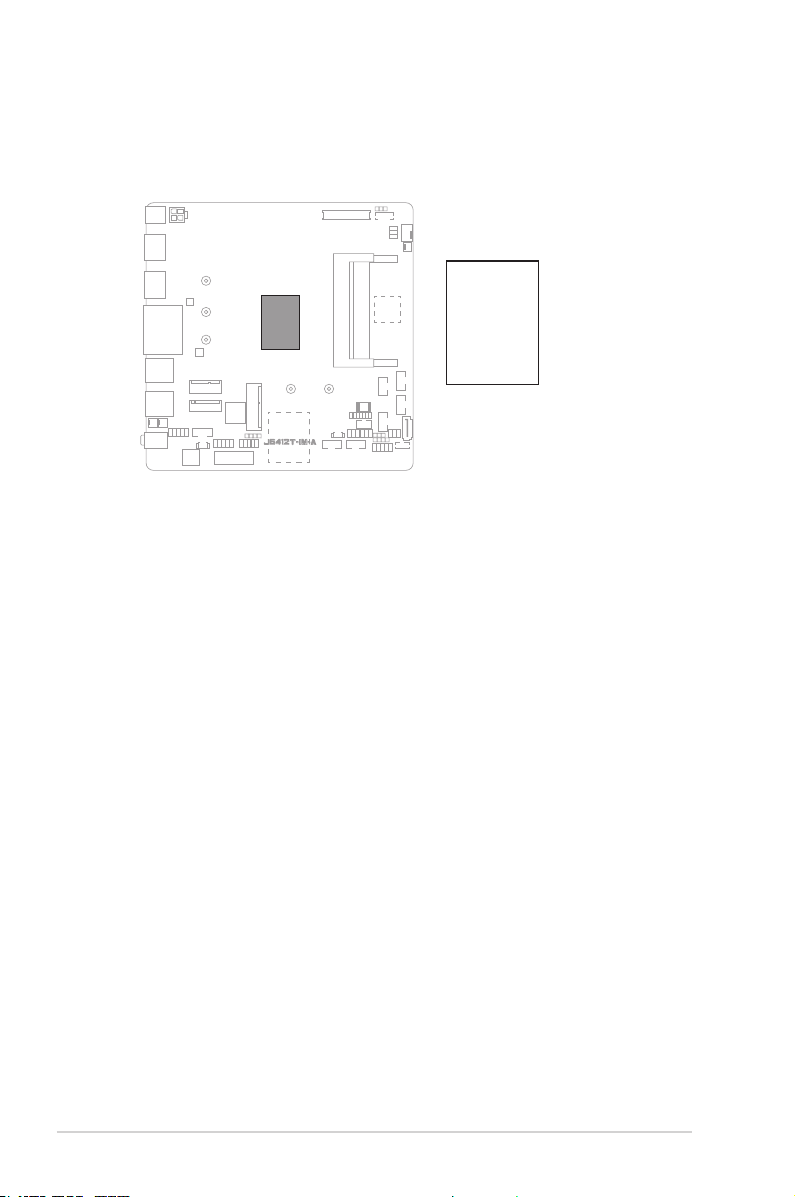

2.3 Central Processing Unit (CPU)
The motherboard comes with an onboard Intel®processor J6412.
Intel®
J6412 SoC

2-5
Chapter 2: Motherboard information
2.4 System memory

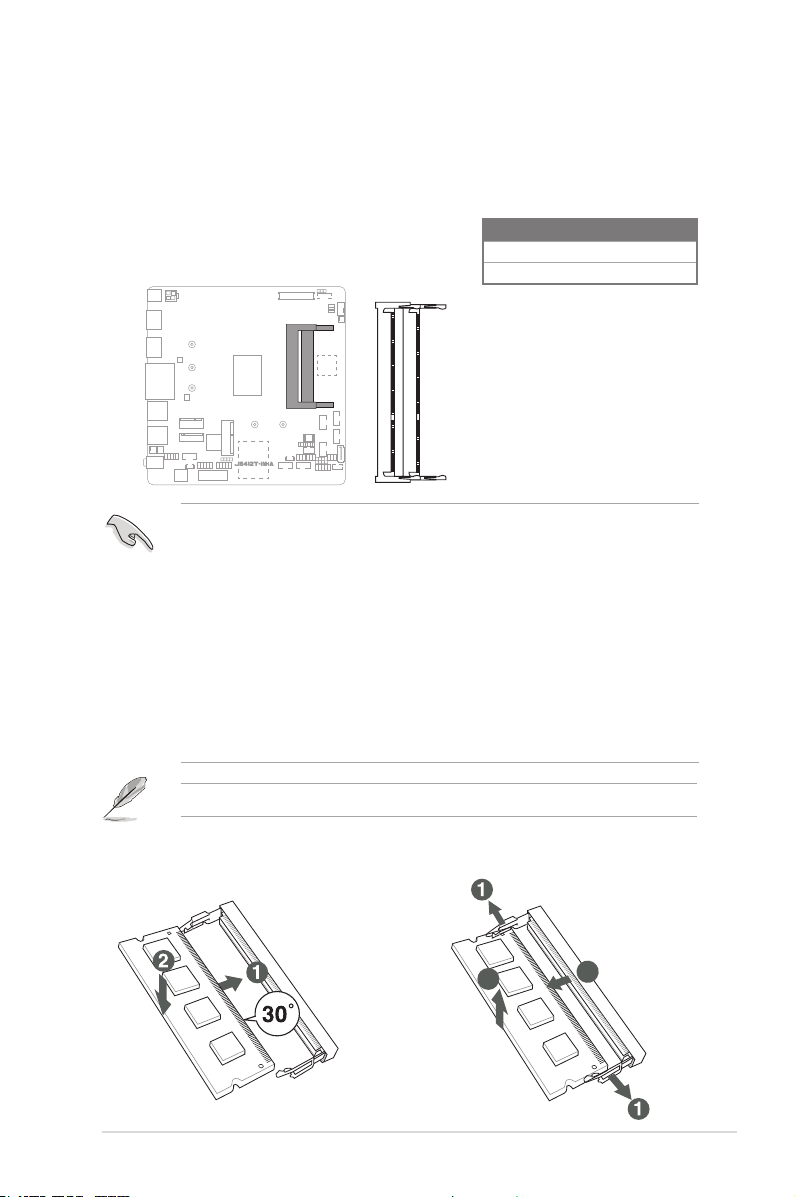

This motherboard comes with two Double Data Rate 4 Low Voltage (DDR4L) Small
Outline Dual Inline Memory Module (SO-DIMM) sockets. The gure illustrates the
location of the DDR4L DIMM socket:
Channel Sockets
Channel A DIMM_A1
Channel B DIMM_B1
SO-DIMM_A1 SO-DIMM_B1
IMPORTANT!
• You may install varying memory sizes in Channel A and Channel B. The
system maps the total size of the lower-sized channel for the dual-channel
conguration. Any excess memory from the higher-sized channel is then
mapped for single-channel operation.
• Always install the DIMMS with the same CAS Latency. For an optimum
compatibility, we recommend that you install memory modules of the same
version or data code (D/C) from the same vendor. Check with the vendor to
get the correct memory modules.
• According to Intel®CPU spec, DIMM voltage below 1.35V is recommended
to protect the CPU.
NOTE: Visit the ASUS website at www.asus.com for the latest QVL.
To install a SO-DIMM
3
2
To remove a SO-DIMM
3
2

J6412T-IM-A
2-6
2.5 Jumpers

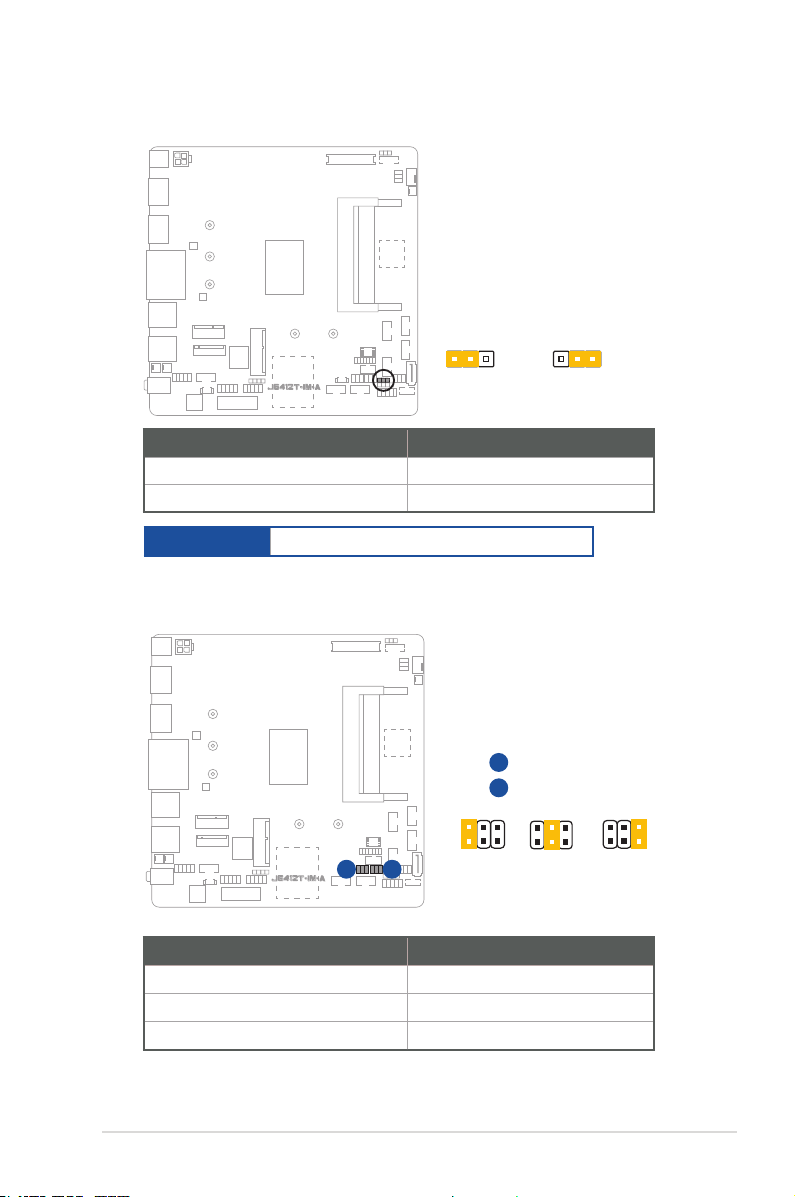

1. Clear RTC RAM (2-pin CLRTC)
This header allows you to clear the CMOS RTC RAM data of the system
setup information such as date, time, and system passwords.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Use a metal object such as a screwdriver to short the two pins.
3. Plug the power cord and turn ON the computer.
4. Hold down the <Del> key during the boot process and enter BIOS setup
to re-enter data.
NOTE: If the steps above do not help, remove the onboard battery and move
the jumper again to clear the CMOS RTC RAM data. After clearing the CMOS,
reinstall the battery.
+3V_BAT_RTC
GND
CLRTC1
PIN 1
Connector type HEADER 1x2p, 2.54mm pitch, S/T

2-7
Chapter 2: Motherboard information
2. AT/ATX mode selection jumper (3-pin AT_ATX_SEL)
Pins
1-2 (Default) ATX mode
2-3 AT mode
21 2 3
ATX MODE
(Default)
AT MODE
AT_ATX_SEL
Connector type HEADER 1x3p, 2.54mm pitch, S/T
3. COM Ring/+5V/+12V selection jumpers (6-pin COM1_SEL, COM2_SEL)
Setting Pins
12V 1-2
5V 3-4
Ring (Default) 5-6
RI
(Default)
5V12V
COM2_SEL
1
2
3
4
5
6
B
COM1_SEL
A
A B

J6412T-IM-A
2-8
4. Chassis intrusion header (4-1 pin_CHASSIS)
This header is for a chassis-mounted intrusion detection sensor or switch. Connect
one end of the chassis intrusion sensor or switch cable to this connector. The
chassis intrusion sensor or switch sends a low-level signal to this connector
when a chassis component is installed. The signal is then generated as a chassis
intrusion event.
PIN 1
3 4
3 4
CHASSIS
PIN 1
Chassis Intruder - Close Chassis Intruder - Open
3-4jumper closed
3-4jumper removed (Default)
Connector type HEADER 4p, K2, 2.54mm pitch
5. LVDS Panel VCC Power Selection jumper (6-pin VCC_PWR_SEL)
12V5V
1
3V
(Default)
VCC_PWR_SEL
3
4
5
6
2
Connector type HEADER 1 x 3p, 2.54mm pitch, S/T
Setting Pins
12V 1.4.5-6
5V 1.4.5-3
3V (Default) 1.4.5-2

2-9
Chapter 2: Motherboard information
6. LVDS Panel Backlight Enable Signal Selection (BKLTEN_SEL)
Pins
12V (Default) 1-2
5V 2-3
1 2 2 3
LCD_ENABKLT_S
(Default)
LCD_ENABKLT_S#
BKLTEN_SEL
Connector type HEADER 1x3p, 2.54mm pitch, S/T
7. Internal Stereo Speaker header (2-pin STEREO_OUT_L, STEREO_
OUT_R)
The internal mono speaker header allows connection to an internal, low-power
speaker for basic system sound capability. The subsystem is capable of driving a
speaker load of 4 Ohms at 3 Watts (rms).
PIN 1
A_SPK_L-
A_SPK_L+
STEREO_OUT_L
A
A
PIN 1
A_SPK_R-
A_SPK_R+
STEREO_OUT_R
B
B

J6412T-IM-A
2-10
2.6 Connectors
2.6.1 Rear panel connectors

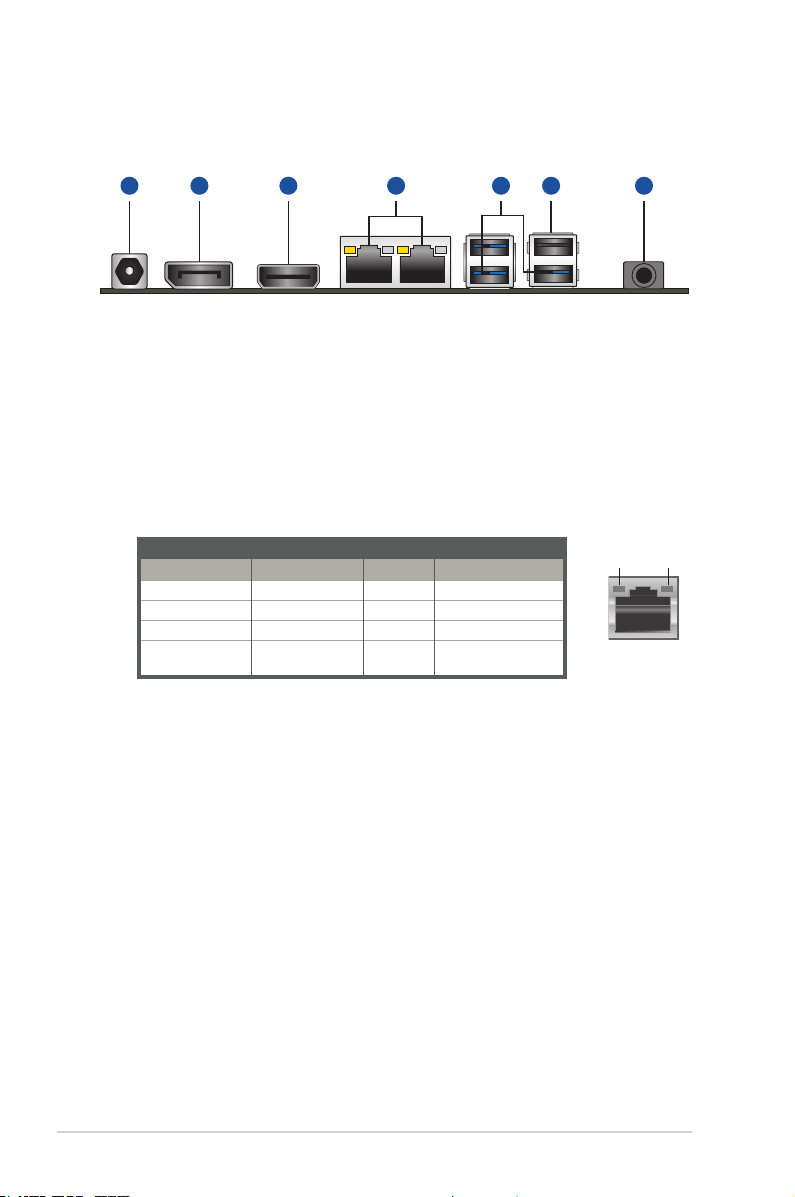

51 46
2 3 7
1. DC power connector. Insert the power adapter into this port.
2. DisplayPort port. This port connects a device with DisplayPort connector.
3. HDMI®port. This port is for a High-Denition Multimedia Interface (HDMI®)
connector, and is HDCP compliant allowing playback of HD DVD, Blu-Ray,
and other protected content.
4. LAN (RJ-45) ports. These ports allow Gigabit connection to a Local Area
Network (LAN) through a network hub.
LAN port LED indications
LAN port
Speed
LED
Activity Link
LED
Activity/Link LED Speed LED
Status Description Status Description
Off No link OFF 10Mbps connection
Yellow Linked ORANGE 100Mbps connection
Yellow (Blinking) Data activity GREEN 1Gbps connection
Yellow (Blinking
then steady)
Ready to wake
up from S5 mode
7. Audio port. This port connects to an audio device.
5. USB 3.2 Gen 2 (up to 10Gbps) ports. These 9-pin Universal Serial Bus
(USB) ports are for USB 3.2 Gen 2 devices.
6. USB 2.0 port. These Universal Serial Bus (USB) ports are for USB 2.0
devices.

2-11
Chapter 2: Motherboard information
2.6.2 Internal connectors

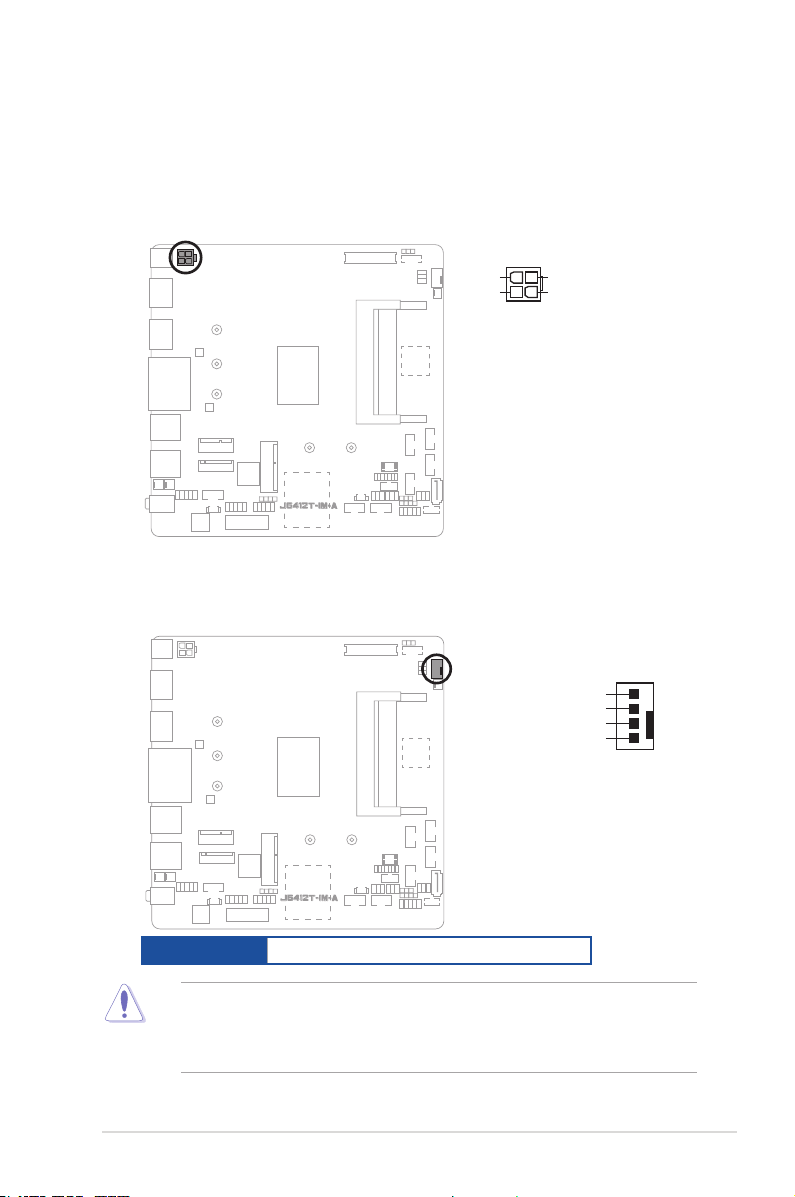

1. ATX Power connector (4-pin ATX12V)
Correctly orient the ATX power supply plug into this connector and push
down rmly until the connector completely ts.
PIN 1
ATX12V
DC_PWR
DC_PWR
GND
GND
CAUTION: Do not forget to connect the fan cables to the fan headers.
Insufcient air flow inside the system may damage the motherboard
components. These are not jumpers! Do not place jumper caps on the fan
headers!
2. Chassis Fan header (4-pin CHA_FAN)
Connect the fan cable to the fan header on the motherboard, ensuring that
the black wire of each cable matches the ground pin of the header.
CHA_FAN
O_CHAFAN_PWM_Q
O_CHAFANIN_R
12V
GND
PIN 1
Connector type WAFER HD 4p, 2.54mm pitch, S/T

J6412T-IM-A
2-12
O_MS_CLK_R
O_MS_DATA_R
GND
+5V_ZPS2
O_KB_CLK_R O_KB_DATA_R GND +5V_ZPS2
KBMS_CON
PIN 1
3. PS/2 Keyboard/mouse header (6-pin KBMS_CON)
This header is for an IBM PS/2-compatible keyboard or mouse.
4. USB 2.0 headers (10-pin USB_12, USB_34)
These headers are for USB 2.0 ports. Connect the USB cables to these
headers. These USB headers comply with USB 2.0 specication that
supports up to 480 Mbps connection speed.
A B
USB12
+5V_USB2_P67 USB2_PN7_CN USB2_PP7_CN GND NC
PIN 1
A
USB34
+5V_USB2_P89 USB2_PN9_CN USB2_PP9_CN GND NC
+5V_USB2_P89
USB2_PN8_CN
USB2_PP8_CN
GND
PIN 1
B
+5V_USB2_P67
USB2_PN6_CN
USB2_PP6_CN
GND
Connector type Header 2x5p, K9, 2.54mm pitch

2-13
Chapter 2: Motherboard information
CAUTION! Never connect a 1394 cable to the USB headers. Doing so will
damage the motherboard.
NOTE: The USB cables are purchased separately.
5. SATA Power connector (4-pin SATA_PWR)
This connector is for the SATA power cable. The power cable plug is
designed to t this connector in only one orientation. Find the proper
orientation and push down rmly until the connector completely ts.
SATA_PWR1
+5V GND GND +12V
PIN 1
IMPORTANT: The SATA power connector supports 1A current to the
maximum.
6. SATA 6.0 Gb/s port (7-pin SATA6G)
This port connects to a SATA 6.0 Gb/s hard disk drive or an optical drive via
a SATA 6.0 Gb/s signal cable.
SATA6G
GND
RSATA_RXP
RSATA_RXN
GND
RSATA_TXN
RSATA_TXP
GND
Connector type WAFER HD 7p, 1.27mm pitch
