Asus PRIME Z790M-PLUS D4 User manual

Motherboard
PRIME
Z790M-PLUS D4

ii
E21165
Revised Edition V2
September 2022
Copyright © 2022 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by
any means, except documentation kept by the purchaser for backup purposes, without the express
written permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless
such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM
ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN
THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identification or explanation and to the
owners’ benefit, without intent to infringe.

iii
Contents
Safety information...................................................................................................... iv
About this guide.......................................................................................................... v
PRIME Z790M-PLUS D4 specifications summary ................................................... vi
Package contents........................................................................................................ x
Chapter 1: Product Introduction
1.1 Before you proceed ................................................................................... 1-1
1.2 Motherboard layout.................................................................................... 1-2
Chapter 2: Basic Installation
2.1 Building your PC system...........................................................................2-1
2.1.1 CPU installation........................................................................... 2-1
2.1.2 Cooling system installation..........................................................2-3
2.1.3 DIMM installation......................................................................... 2-6
2.1.4 M.2 installation ............................................................................ 2-7
2.1.5 Motherboard installation.............................................................. 2-9
2.1.6 ATX power connection.............................................................. 2-11
2.1.7 SATA device connection........................................................... 2-12
2.1.8 Front I/O connector ................................................................... 2-13
2.1.9 Expansion card installation ....................................................... 2-14
2.2 Motherboard rear and audio connections ............................................. 2-16
2.2.1 Rear I/O connection .................................................................. 2-16
2.2.2 Audio I/O connections............................................................... 2-17
2.3 Starting up for the first time.................................................................... 2-20
2.4 Turning off the computer ........................................................................ 2-20
Chapter 3: BIOS and RAID Support
3.1 Knowing BIOS ............................................................................................ 3-1
3.2 BIOS setup program .................................................................................. 3-2
3.3 ASUS EZ Flash 3 ........................................................................................ 3-3
3.4 ASUS CrashFree BIOS 3............................................................................3-4
3.5 RAID configurations .................................................................................. 3-5
Appendix
Notices .................................................................................................................... A-1
Warranty................................................................................................................... A-6
ASUS contact information...................................................................................... A-8
Service and Support ............................................................................................... A-8

iv
Safety information
Electrical safety
• To prevent electrical shock hazard, disconnect the power cable from the electrical
outlet before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all
power cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These
devices could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not
sure about the voltage of the electrical outlet you are using, contact your local power
company.
• If the power supply is broken, do not try to fix it by yourself. Contact a qualified service
technician or your retailer.
Operation safety
• Before installing the motherboard and adding devices on it, carefully read all the
manuals that came with the package.
• Before using the product, ensure all cables are correctly connected and the power
cables are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area
where it may become wet.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualified service
technician or your retailer.
• Your motherboard should only be used in environments with ambient temperatures
between 0°C and 40°C.
Button/Coin Batteries Safety Information
WARNING
KEEP OUT OF REACH OF CHILDREN
Swallowing can lead to chemical burns,
perforation of soft tissue, and death. Severe
burns can occur within 2 hours of ingestion.
Seek medical attention immediately.

v
About this guide
This user guide contains the information you need when installing and configuring the
motherboard.
How this guide is organized
This guide contains the following parts:
• Chapter 1: Product Introduction
This chapter describes the features of the motherboard and the new technology it
supports. It includes description of the switches, jumpers, and connectors on the
motherboard.
• Chapter 2: Basic Installation
This chapter lists the hardware setup procedures that you have to perform when
installing system components.
• Chapter 3: BIOS and RAID Support
This chapter tells how to boot into the BIOS, upgrade BIOS using the EZ Flash Utility
and support on RAID.
Where to find more information
Refer to the following sources for additional information and for product and software
updates.
1. ASUS website
The ASUS website (www.asus.com) provides updated information on ASUS hardware
and software products.
2. Optional documentation
Your product package may include optional documentation, such as warranty flyers,
that may have been added by your dealer. These documents are not part of the
standard package.
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this user guide.
CAUTION: Information to prevent damage to the components and injuries to
yourself when trying to complete a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to help you complete a task.

vi
PRIME Z790M-PLUS D4 specifications summary
CPU
Intel®Socket LGA1700 for 13th Gen Intel®Core™ Processors & 12th Gen
Intel®Core™, Pentium®Gold and Celeron®Processors*
Supports Intel®Turbo Boost Technology 2.0 and Intel®Turbo Boost Max
Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel®Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel®Z790 Chipset
Memory
4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/
5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/
4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/
3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133
Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel®Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules
vary depending on the CPU and memory configuration, for more information
refer to www.asus.com for memory support list.
Graphics
1 x DisplayPort**
1 x HDMI®port***
* Graphics specifications may vary between CPU types. Please refer to
www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI®2.1.
Expansion Slots
Intel®13th &12th Gen Processors*
1 x PCIe 5.0 x16 slot
Intel®Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x1 slots
* Please check the PCIe bifurcation table on the support site
(https://www.asus.com/support/FAQ/1037507/).
Note: To ensure compatibility of the device installed, please refer to
https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel®13th &12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel®Z790 Chipset
M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel®Rapid Storage Technology supports PCIe RAID 0/1/5/10 and SATA RAID
0/1/5/10.
Ethernet 1 x Intel®1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth®M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately.
(continued on the next page)

vii
PRIME Z790M-PLUS D4 specifications summary
USB
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports*
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the
bandwidth.
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support
7.1 Surround Sound audio output.
Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI®port
1 x Intel®1Gb Ethernet port
3 x Audio jacks
Internal I/O Connectors
Fan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO_Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
(continued on the next page)

viii
PRIME Z790M-PLUS D4 specifications summary
Internal I/O Connectors
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
AI Suite 3
- TurboV EVO
- PC Cleaner
- DIGI+ VRM
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
(continued on the next page)

ix
PRIME Z790M-PLUS D4 specifications summary
Software Features
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Operating System Windows®11, Windows®10 64-bit
Form Factor mATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Specifications are subject to change without notice. Please refer to the ASUS website for
the latest specifications.

x
Package contents
Check your motherboard package for the following items.
Motherboard 1 x PRIME Z790M-PLUS D4 motherboard
Cables 2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
2 x Screw packages for M.2 SSD*
* The package including 2 screws and 1 nut is for installing an M.2 WIFI
module into the M.2 WIFI slot and an M.2 SSD module into the M.2_2 slot.
Documentation 1 x User guide
If any of the above items is damaged or missing, contact your retailer.

PRIME Z790M-PLUS D4 1-1
Chapter 1
Product Introduction
1
Chapter 1: Product Introduction
1.1 Before you proceed
Take note of the following precautions before you install motherboard components or
change any motherboard settings.
• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due
to static electricity.
• Hold components by the edges to avoid touching the ICs on them.
• Whenever you uninstall any component, place it on a grounded antistatic pad or in
the bag that came with the component.
• Before you install or remove any component, ensure that the ATX power supply is
switched off or the power cord is detached from the power supply. Failure to do so
may cause severe damage to the motherboard, peripherals, or components.
• The pin definitions in this chapter are for reference only. The pin names depend on
the location of the header/jumper/connector.
• For more information on installing your motherboard, please scan the QR code
below:

1-2 Chapter 1: Product Introduction
Chapter 1

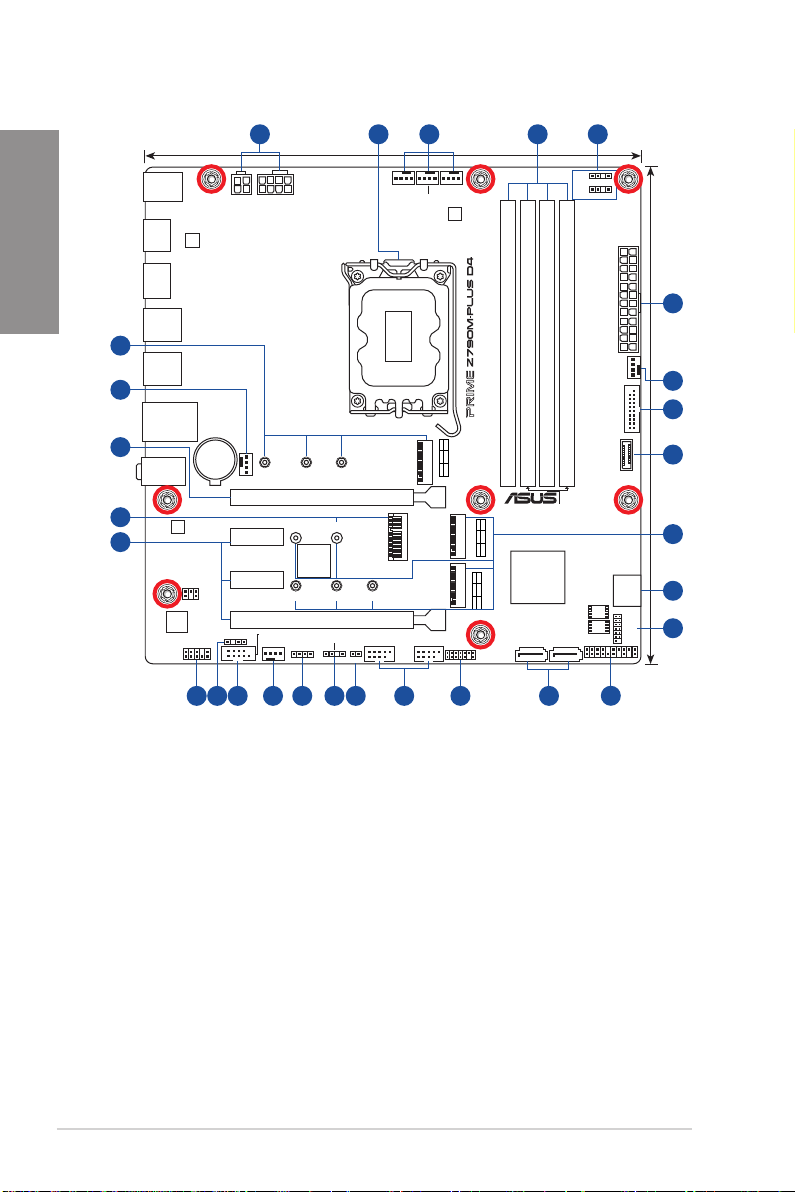

1.2 Motherboard layout
DDR4 DIMM_A1 (64bit, 288-pin module) DDR4 DIMM_A2 (64bit, 288-pin module) DDR4 DIMM_B1 (64bit, 288-pin module) DDR4 DIMM_B2 (64bit, 288-pin module)
DIGI+
VRM
CHA_FAN2
CPU_FAN
CHA_FAN3
AIO_PUMP
CPU_OPT
CLRTC
SATA6G_34
M.2_2(SOCKET3)M.2_3(SOCKET3)
PANEL
TPM
AAFP
TB_HEADER
SATA6G_2SATA6G_1
128Mb
BIOS
64Mb
BIOS
ATX_12V_1ATX_12V_2
LGA1700
ATX_PWR
USB_E34USB_E12
U32G1_78
Intel®
Z790
ASM
1442K
BATTERY
LAN_U32G1_34
HDMI
DP
USB_1112
AUDIO
Super
I/O
COM_DEBUG
M.2_1(SOCKET3)
2280 2260 2242
2280 2260
2280 2260
2230
2242
PCIEX1(G4)_1
PCIEX1(G4)_2
PCIEX16(G4)
PCIEX16(G5)
SPDIF_OUT
RGB_HEADER
ADD_GEN 2_1
ADD_GEN 2_2
ADD_GEN 2_3
COM
CHA_FAN1
U32G2_9
U32G1_56
U32G2X2_C1
24.4cm(9.6in)
24.4cm(9.6in)
M.2_1(SOCKET3)
PCIE SATA IRST
4.0 X4 X V
PCIE SATA IRST
4.0 X4 X V
PCIE SATA IRST
4.0 X4 V V
M.2(WIFI)
Ethernet
Audio
Codec
U32_C10
M.2_2(SOCKET3)
M.2_3(SOCKET3)
1st
9
8
4
6
18
5
1415 17
5 21 4 11
74 11 13 20 19 1012
7
3
3
4
6
16

PRIME Z790M-PLUS D4 1-3
Chapter 1
Layout contents Page
1. CPU socket 1-4
2. DIMM slots 1-5
3. Expansion slots 1-7
4. Fan and Pump headers 1-8
5. Power connectors 1-9
6. M.2 slots (SOCKET 3) 1-10
7. SATA 6Gb/s ports 1-11
8. USB 3.2 Gen 1 Type-C®Front Panel connector 1-12
9. USB 3.2 Gen 1 header 1-12
10. USB 2.0 headers 1-13
11. Addressable Gen 2 headers 1-14
12. Aura RGB header 1-15
13. Clear CMOS header 1-16
14. COM Port header 1-17
15. Front Panel Audio header 1-17
16. M.2 slot (Key E) 1-18
17. S/PDIF Out header 1-18
18. SPI TPM header (14-1pin) 1-19
19. System Panel header 1-20
20. Thunderbolt™(USB4®) header 1-21

1-4 Chapter 1: Product Introduction
Chapter 1

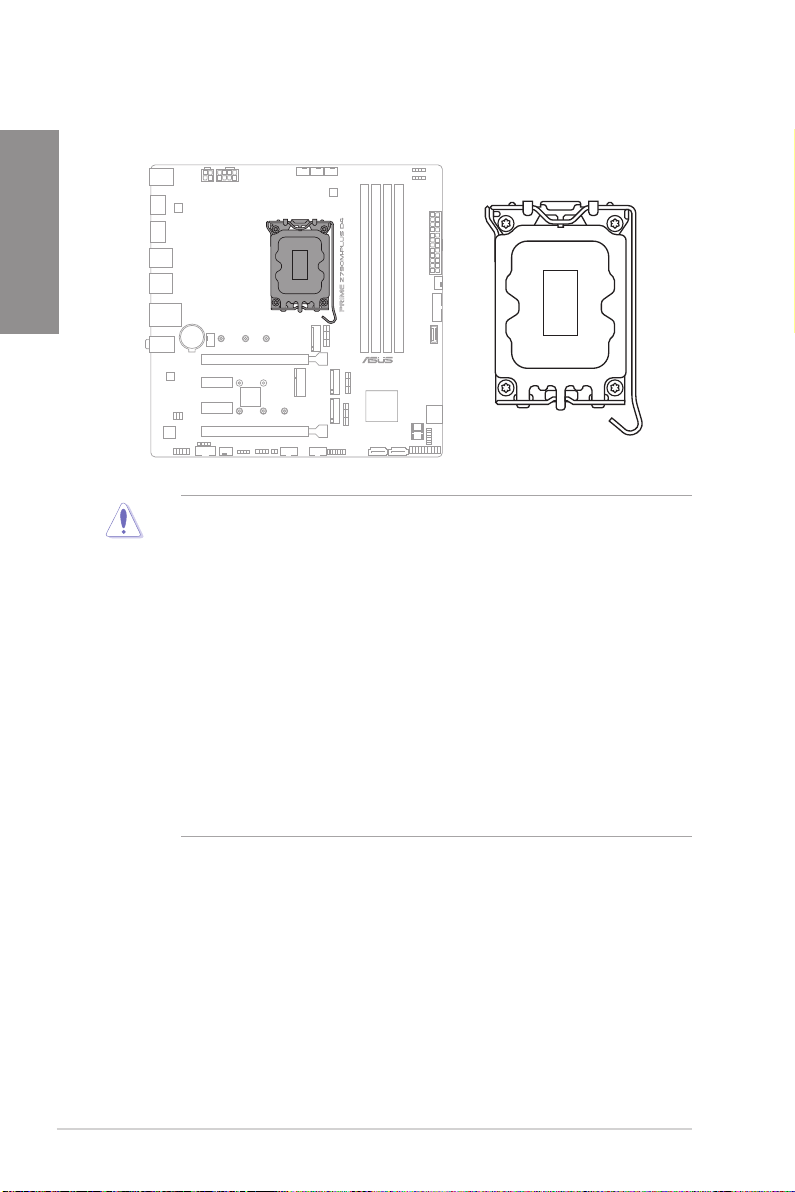

1. CPU socket
The motherboard comes with a LGA1700 socket designed for 13th Gen Intel®Core™
Processors and 12th Gen Intel®Core™, Pentium®Gold and Celeron®Processors.
LGA1700
• Ensure that you install the correct CPU designed for LGA1700 socket only. DO NOT
install a CPU designed for other sockets on the LGA1700 socket.
• The CPU fits in only one correct orientation. DO NOT force the CPU into the socket
to prevent bending the connectors on the socket and damaging the CPU.
• Ensure that all power cables are unplugged before installing the CPU.
• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and
the socket contacts are not bent. Contact your retailer immediately if the PnP cap
is missing, or if you see any damage to the PnP cap/socket contacts/motherboard
components. ASUS will shoulder the cost of repair only if the damage is shipment/
transit-related.
• Keep the cap after installing the motherboard. ASUS will process Return
Merchandise Authorization (RMA) requests only if the motherboard comes with the
cap on the LGA1700 socket.
• The product warranty does not cover damage to the socket contacts resulting from
incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the
PnP cap.

PRIME Z790M-PLUS D4 1-5
Chapter 1
2. DIMM slots

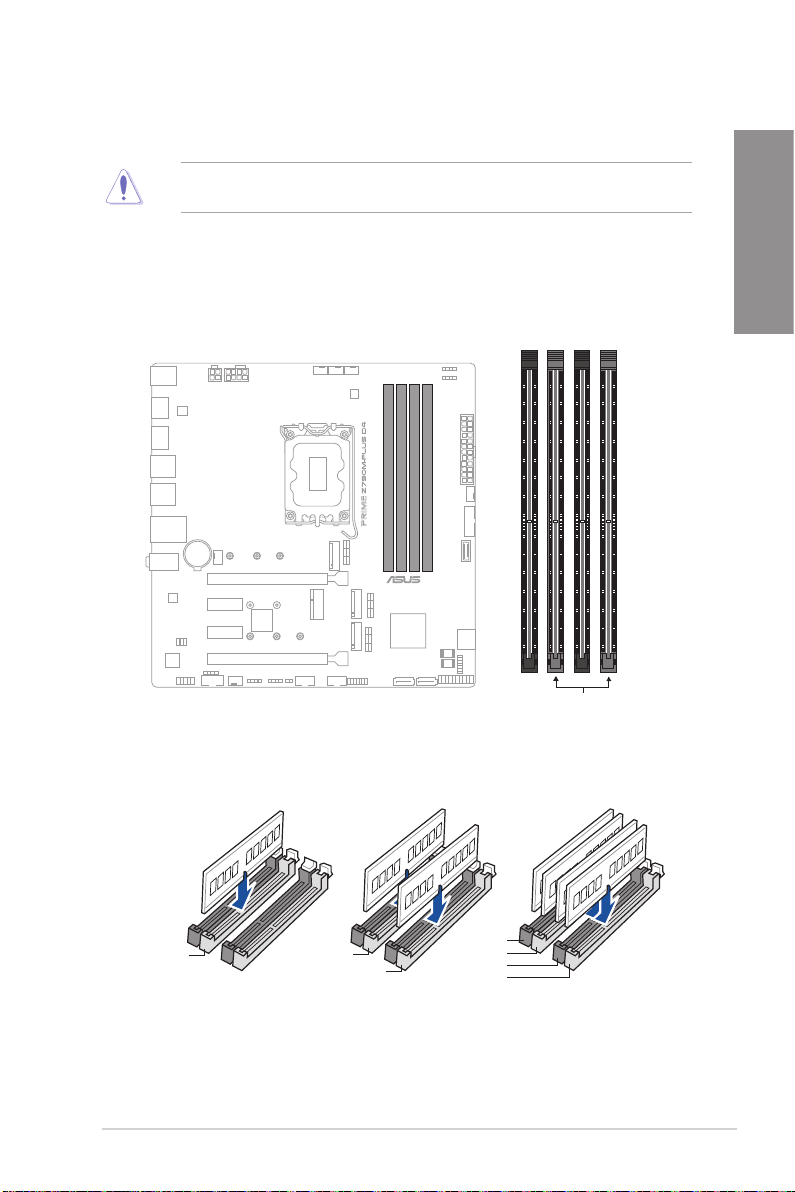

The motherboard comes with Dual Inline Memory Modules (DIMM) slots designed for DDR4
(Double Data Rate 4) memory modules.
A DDR4 memory module is notched differently from a DDR, DDR2, or DDR3 module. DO
NOT install a DDR, DDR2, or DDR3 memory module to the DDR4 slot.
1st
DIMM_B1 DIMM_B2 DIMM_A1 DIMM_A2
Recommended memory configurations
DIMM_A2
DIMM_A1
DIMM_A2
DIMM_B2
DIMM_A2
DIMM_B1
DIMM_B2

1-6 Chapter 1: Product Introduction
Chapter 1
Memory configurations
You may install 4 GB, 8 GB, 16 GB, and 32 GB unbuffered and non-ECC DDR4 DIMMs into
the DIMM sockets.
You may install varying memory sizes in Channel A and Channel B. The system maps
the total size of the lower-sized channel for the dual-channel configuration. Any excess
memory from the higher-sized channel is then mapped for single-channel operation.
• The default memory operation frequency is dependent on its Serial Presence Detect
(SPD), which is the standard way of accessing information from a memory module.
Under the default state, some memory modules for overclocking may operate at a
lower frequency than the vendor-marked value.
• For system stability, use a more efficient memory cooling system to support a full
memory load or overclocking condition.
• Always install the DIMMs with the same CAS Latency. For an optimum compatibility,
we recommend that you install memory modules of the same version or data code
(D/C) from the same vendor. Check with the vendor to get the correct memory
modules.
• Visit the ASUS website for the latest QVL.

PRIME Z790M-PLUS D4 1-7
Chapter 1
3. Expansion slots
Unplug the power cord before adding or removing expansion cards. Failure to do so may
cause you physical injury and damage motherboard components.
1
2PCIEX16(G4)
PCIEX16(G5)
Recommended VGA configuration
Slot Slot Description Single VGA Dual VGA
1. PCIEX16(G5) x16 x16
2. PCIEX16(G4) - x4
Connect chassis fans to the chassis fan connectors when using multiple graphics cards for
better thermal environment.
Please refer to the following tables for the recommended VGA configuration and Hyper M.2
configuration.

1-8 Chapter 1: Product Introduction
Chapter 1
4. Fan and Pump headers

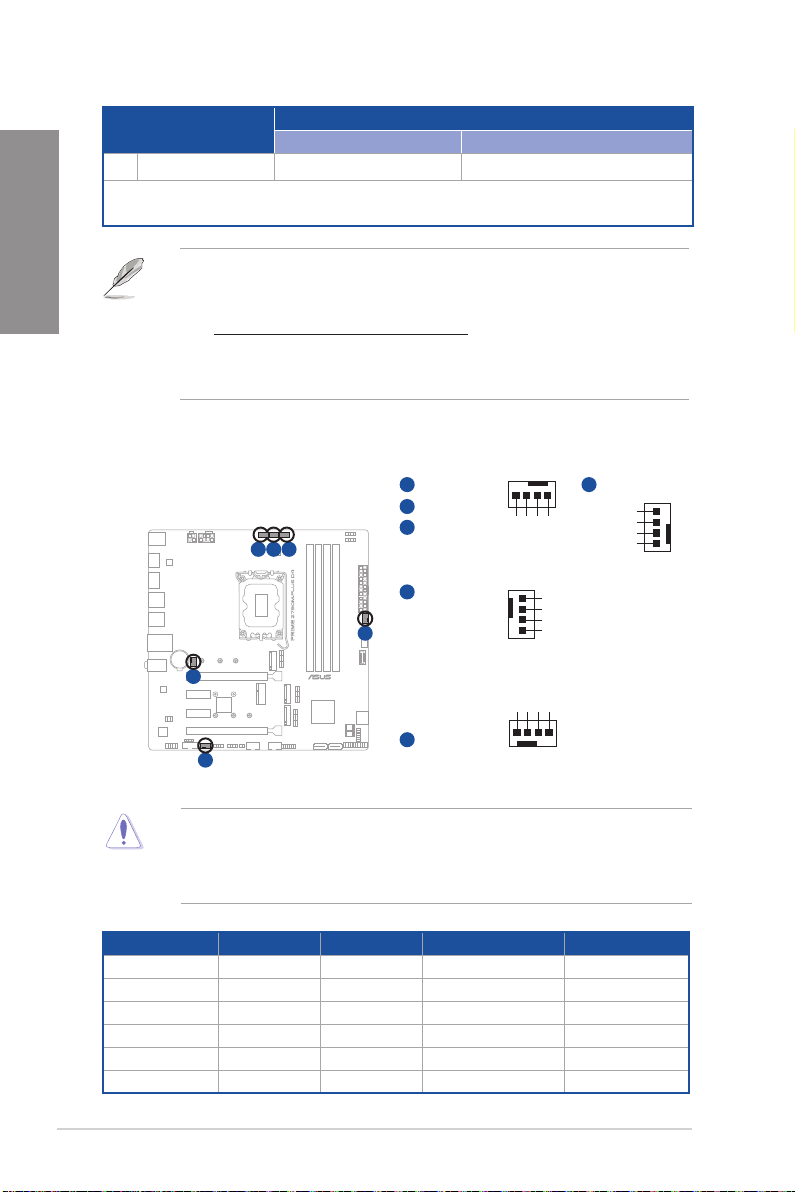

The Fan and Pump headers allow you to connect fans or pumps to cool the system.
E
A B C
D
F
FAN PWM
FAN IN
FAN PWR
GND
FAN PWM
FAN IN
FAN PWR
GND
GND FAN PWR FAN IN FAN PWM
CHA_FAN1 GND
FAN PWR
FAN IN
FAN PWM
A
B
CHA_FAN2
E
C
D
CPU_OPT
AIO_PUMP
CPU_FAN FCHA_FAN3
• DO NOT forget to connect the fan cables to the fan headers. Insufficient air flow
inside the system may damage the motherboard components. These are not
jumpers! Do not place jumper caps on the fan headers!
• Ensure the cable is fully inserted into the header.
Header Max. Current Max. Power Default Speed Shared Control
CPU_FAN 1A 12W Q-Fan Controlled -
CPU_OPT 1A 12W Q-Fan Controlled -
CHA_FAN1 1A 12W Q-Fan Controlled -
CHA_FAN2 1A 12W Q-Fan Controlled -
CHA_FAN3 1A 12W Q-Fan Controlled -
AIO_PUMP 1A 12W Full-Speed -
• Additional PCIe bifurcation and M.2 settings for RAID function are also supported
when a Hyper M.2 x16 series card is installed.
• For full details on the PCIe bifurcation, you may visit the support site at
https://www.asus.com/support/FAQ/1037507/.
• The Hyper M.2 x16 series card is sold separately.
• Adjust the PCIe bifurcation under BIOS settings.
PCIe bifurcation & M.2 settings in PCIe x16 slots (from CPU)
Slot Description Quantity of identifiable M.2 SSD (pcs)
Situation 1 Situation 2
1 PCIEX16(G5) 1 (x16)* 2 (x8+x8)**
* Install an M.2 SSD card to the M.2_1 or M.2_3 slot on the Hyper M.2 X16 series card.
** Install two M.2 SSD cards to the M.2_1 and M.2_3 slots on the Hyper M.2 X16 series card.

PRIME Z790M-PLUS D4 1-9
Chapter 1
5. Power connectors
These Power connectors allow you to connect your motherboard to a power supply.
The power supply plugs are designed to fit in only one orientation. Find the proper
orientation and push down firmly until the power supply plugs are fully inserted.
AB
C
A
C
B
ATX_12V_2 ATX_12V_1
+12V DC
+12V DC
+12V DC
+12V DC
GND
GND
GND
GND
ATX_PWR
PIN 1
PIN 1
GND
+5 Volts
+5 Volts
+5 Volts
-5 Volts
GND
GND
GND
PSON#
GND
-12 Volts
+3 Volts
+3 Volts
+12 Volts
+12 Volts
+5V Standby
Power OK
GND
+5 Volts
GND
+5 Volts
GND
+3 Volts
+3 Volts
PIN 1
+DC_IN +DC_IN
GND GND
Ensure to connect the 8-pin power plug, or connect both the 8-pin and 4-pin power plugs.
• We recommend that you use a PSU with a higher power output when configuring a
system with more power-consuming devices. The system may become unstable or
may not boot up if the power is inadequate.
• If you want to use two or more high-end PCI Express x16 cards, use a PSU with
1000W power or above to ensure the system stability.

1-10 Chapter 1: Product Introduction
Chapter 1
6. M.2 slots

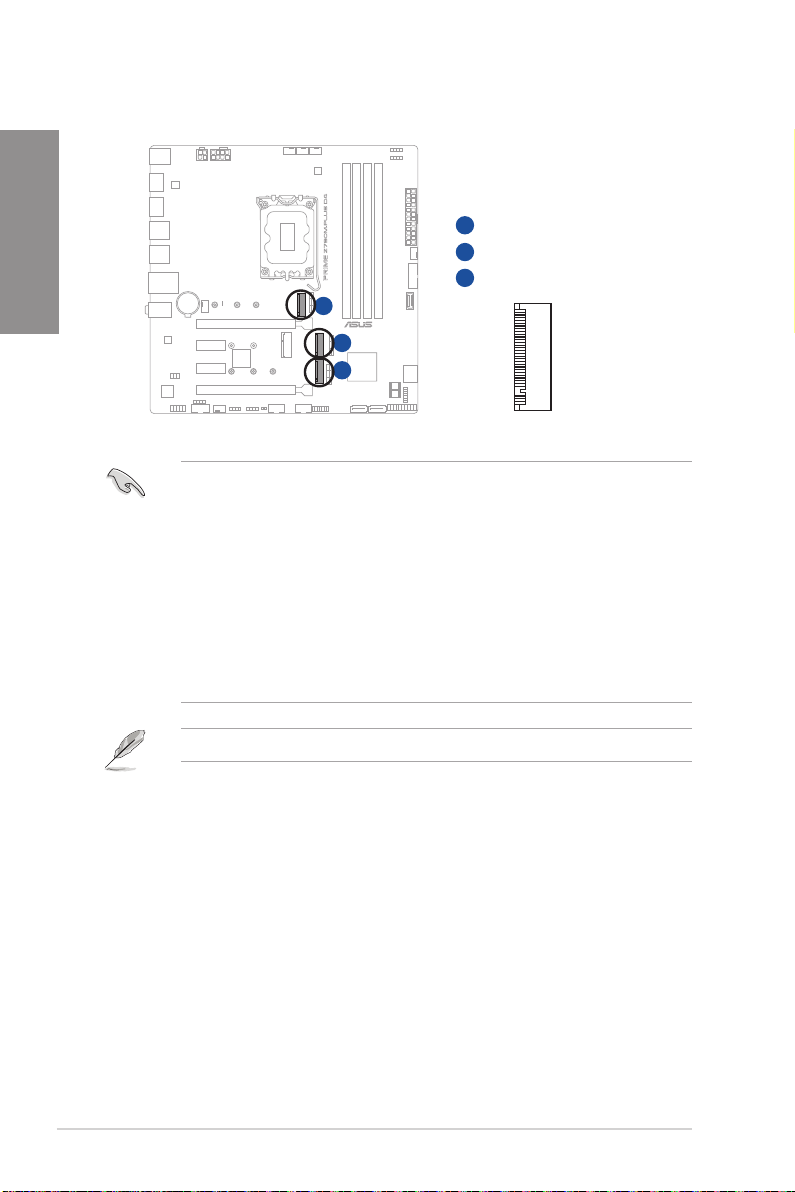

The M.2 slots allow you to install M.2 devices such as M.2 SSD modules.
A
C
B
M.2_1(SOCKET3)
M.2_2(SOCKET3)
A
B
M.2_3(SOCKET3)
C
• Intel®13th and 12th Gen processors:
- M.2_1 supports PCIe 4.0 x4 mode M Key design and type 2242/2260/2280 storage
devices.
• Intel®Z790 Chipset
- M.2_2 supports PCIe 4.0 x4 mode M Key design and type 2260/2280 storage
devices.
- M.2_3 supports PCIe 4.0 x4 and SATA modes M Key design and type 2242/2260/
2280 storage devices.
• Intel®Rapid Storage Technology supports PCIe RAID 0/1/5/10 and SATA RAID
0/1/5/10.
The M.2 SSD module is purchased separately.
