Asus PRO A320M-R2 User manual

Motherboard
PRO A320M-R2

ii
E15772
Second Edition
August 2019
Copyright © 2019 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.
Offer to Provide Source Code of Certain Software
This product contains copyrighted software that is licensed under the General Public License (“GPL”),
under the Lesser General Public License Version (“LGPL”) and/or other Free Open Source Software
Licenses. Such software in this product is distributed without any warranty to the extent permitted by the
applicable law. Copies of these licenses are included in this product.
Where the applicable license entitles you to the source code of such software and/or other additional data,
you may obtain it for a period of three years after our last shipment of the product, either
(1) for free by downloading it from http://support.asus.com/download
or
(2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location
where you want to have it shipped to, by sending a request to:
ASUSTeK Computer Inc.
Legal Compliance Dept.
15 Li Te Rd.,
Beitou, Taipei 112
Taiwan
In your request please provide the name, model number and version, as stated in the About Box of the
product for which you wish to obtain the corresponding source code and your contact details so that we
can coordinate the terms and cost of shipment with you.
The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as
the corresponding binary/object code.
This offer is valid to anyone in receipt of this information.
ASUSTeK is eager to duly provide complete source code as required under various Free Open Source
Software licenses. If however you encounter any problems in obtaining the full corresponding source
code we would be much obliged if you give us a notication to the email address [email protected], stating
the product and describing the problem (please DO NOT send large attachments such as source code
archives, etc. to this email address).

iii
Contents
Safety information ...................................................................................... iv
About this guide ......................................................................................... iv
Package contents ....................................................................................... vi
PRO A320M-R2 specications summary.................................................. vi
Chapter 1: Product introduction
Motherboard overview ............................................................................. 1-1
Central Processing Unit (CPU)................................................................ 1-7
System memory........................................................................................ 1-8
Chapter 2: BIOS information
BIOS setup program................................................................................. 2-1
BIOS menu screen.................................................................................... 2-2
Event Log .................................................................................................. 2-3
Exit menu................................................................................................... 2-4
Appendix
Notices.......................................................................................................A-1
ASUS contact information .......................................................................A-5

iv
Safety information
Electrical safety
• To prevent an electrical shock hazard, disconnect the power cable from the electrical
outlet before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all
power cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These devices
could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not
sure about the voltage of the electrical outlet you are using, contact your local power
company.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied service
technician or your retailer.
Operation safety
• Before installing the motherboard and adding components, carefully read all the manuals
that came with the package.
• Before using the product, ensure all cables are correctly connected and the power
cables are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area
where it may be exposed to moisture.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualied service
technician or your retailer.
About this guide
This user guide contains the information you need when installing and conguring the
motherboard.
How this guide is organized
This guide contains the following parts:
• Chapter 1: Product introduction
This chapter describes the features of the motherboard and the new technology it
supports. It includes descriptions of the switches, jumpers, and connectors on the
motherboard.
• Chapter 2: BIOS information
This chapter discusses changing system settings through the BIOS Setup menus.

v
Where to nd more information
Refer to the following sources for additional information and for product and software
updates.
1. ASUS websites
The ASUS website provides updated information on ASUS hardware and software
products. Refer to the ASUS contact information.
2. Optional documentation
Your product package may include optional documentation, such as warranty yers,
that may have been added by your dealer. These documents are not part of the
standard package.
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this manual.
DANGER/WARNING: Information to prevent injury to yourself when
completing a task.
CAUTION: Information to prevent damage to the components when
completing a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to help you complete a task.
Typography
Bold text Indicates a menu or an item to select.
Italics
Used to emphasize a word or a phrase.
<Key> Keys enclosed in the less-than and greater-than sign
means that you must press the enclosed key.
Example: <Enter> means that you must press the Enter or
Return key.
<Key1> + <Key2> + <Key3> If you must press two or more keys simultaneously, the key
names are linked with a plus sign (+).

vi
PRO A320M-R2 specications summary
(continued on the next page)
Package contents
Check your motherboard package for the following items.
Motherboard ASUS PRO A320M-R2 motherboard
Cables 2 x Serial ATA 6.0 Gb/s cables
Accessories 1 x I/O shield
Application DVD 1 x Support DVD
Documentation 1 x User Manual
If any of the above items are damaged or missing, contact your retailer.
CPU
AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega
Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th
Generation A-series/Athlon X4 Processors
Supports CPU up to 8 cores*
* For limited CPU only, refer to www.asus.com for the AMD CPU support list.
Chipset AMD A320 chipset
Memory
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™
with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
2 x DIMMs, max. 32GB, DDR4 2933*/2666/2400/2133 MHz, ECC and non-ECC,
un-buffered memory
AMD 7th Generation A-series / Athlon x4 processors:
2 x DIMMs, max. 32GB, DDR4 2400/2133 MHz, non-ECC, un-buffered memory
Dual-channel memory architecture
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualied Vendors List).
Graphics
Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with
Radeon™ Vega Graphics/ 7th Generation A-Series APU
Multi-VGA output support: HDMI, D-Sub, and DisPlay ports
- Supports HDMI 1.4b output with a maximum resolution of 4096 x 2160 @30Hz
- Supports D-Sub output with a maximum resolution of 1920 x 1200 @60Hz
- Supports DisPlay output with a maximum resolution of 4096 x 2304 @60Hz
- Maximum shared memory of 2048 MB
Expansion
slots
1 x PCI Express 3.0/2.0 x16 slot*
1 x PCI Express 3.0/2.0 x1 slot
* The working speed of the PCIe 3.0/2.0 x16 slot varies by CPUs.
AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors:
PCI Express 3.0/2.0 x16 slot (max. @x16 mode)
AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4
Processors:
PCI Express 3.0/2.0 x16 slot (max. @x8 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors:
PCIe 3.0/2.0 x16 (max. @ x4 mode)
LAN Realtek®RTL8111H Gigabit LAN Controller
Audio
Realtek® ALC 887 8-Channel High Denition Audio CODEC
* Use a chassis with HD audio module in the front panel to support an 8-channel audio
output.

vii
PRO A320M-R2 specications summary
(continued on the next page)
Storage AMD A320 Chipset
- 4 x Serial ATA 6.0 Gb/s connectors with RAID 0, RAID 1 and RAID 10 support
USB
- 1 x USB 3.1 Gen 2 port (1 Type-C port at mid-board)
- 6 x USB 3.1 Gen 1 ports ( 2 ports at mid-board, 4 ports at back panel)
- 4 x USB 2.0/1.1 ports (4 ports at mid-board)
ASUS unique
features
Bespoke Motherboard Design & Business Focused Features :
- ASUS Self Recovering BIOS: Automatically recovers BIOS update once crash
happens
- ASUS Event Log: Records activities of system and provides information in
BIOS
- ASUS Commercial BIOS kit: Speeds up BIOS update solution by partial BIOS
design
- 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80%
to ensure handle diverse environment
- Overcurrent Protection: Short circuit prevention, protects your system
Easy Assembly Design :
- Fixed-position&Color-coded Connectors: Enable easy identication and
cable-matching, speeding up the production line
- Box Headers: USB headers are box style, enabling fast connector installation
and preventing pin damage
Rear panel
I/O ports
1 x PS/2 keyboard port (purple)
1 x PS/2 mouse port (green)
1 x HDMI port
1 x D-Sub port
1 x LAN (RJ-45) port
1 x Display port
4 x USB 3.1 Gen 1 ports
3 x Audio jacks support 8-channel audio output
Internal
connectors
1 x USB 3.1 Gen 2 connector (type C)
1 x USB 3.1 Gen 1 connector supporting additional 2 USB 3.1 Gen 1 ports (type A)
2 x USB 2.0/1.1 connectors supporting additional 4 USB 2.0/1.1 ports
4 x SATA 6.0Gb/s connectors
1 x 4-pin CPU Fan connector for 4-pin PWM mode
1 x 4-pin Chassis Fan connector for 4-pin PWM mode
1 x Front panel audio connector(AAFP)
1 x System panel connector
1 x 24-pin EATX power connector
1 x 4-pin ATX 12V power connector
1 x 4-1 pin chassis intrusion connector
1 x Speaker connector
1 x COM connector
1 x 2-pin Clear CMOS header
1 x SPI TPM header
1 x LPC Debug header

viii
PRO A320M-R2 specications summary
BIOS features
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.0, ACPI 6.1, Multi-
language BIOS, ASUS smart recovering BIOS, ASUS Event log, ASUS
Commercial Kit
Manageability WfM 2.0, DMI 2.0, WOL by PME, PXE
OS support Windows®10 (64-bit)
Form factor mATX Form Factor 8.9 inch x 7.9 inches ( 22.9 cm x 20.3 cm )
Specications are subject to change without notice.

ASUS PRO A320M-R2 1-1
Product introduction
1
Motherboard overview
• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due
to static electricity.
• Before you install or remove any component, ensure that the ATX power supply is
switched off or the power cord is detached from the power supply. Failure to do so
may cause severe damage to the motherboard, peripherals, or components.
• Unplug the power cord before installing or removing the motherboard. Failure to do so
can cause you physical injury and damage to motherboard components.
Place this
side towards
the rear of the
chassis

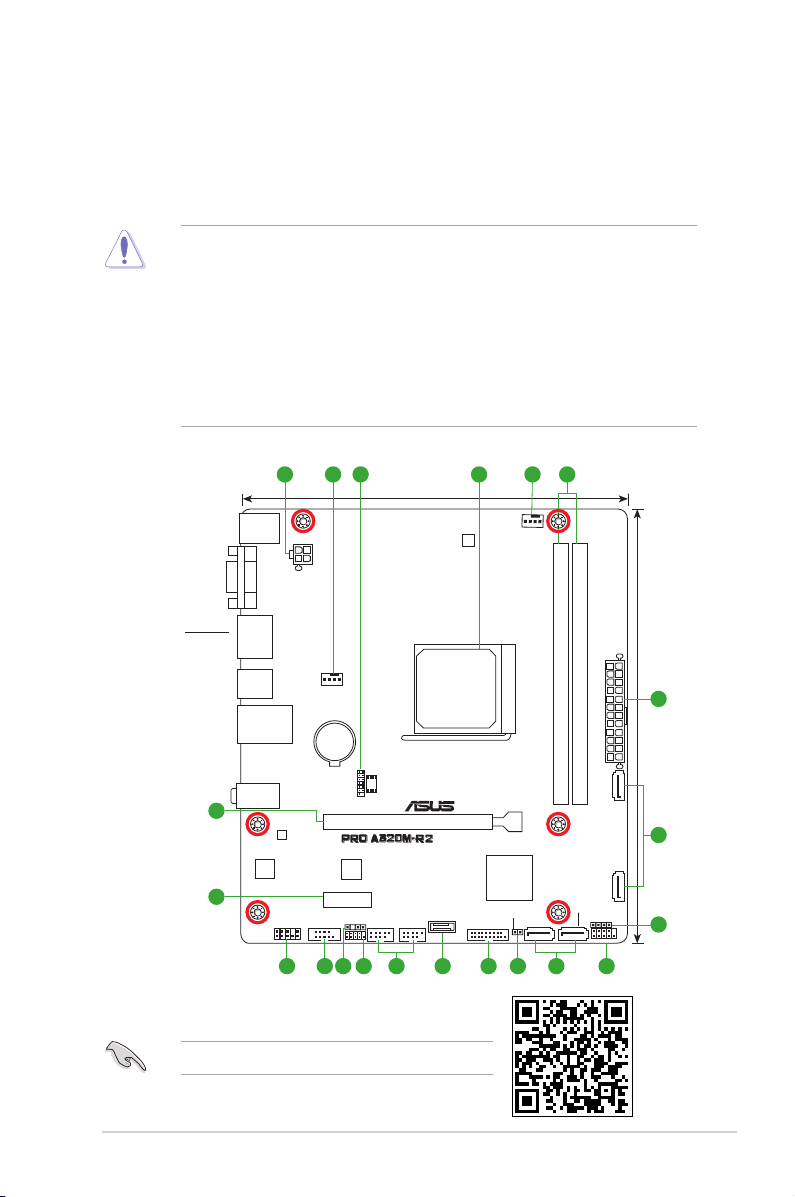

Scan the QR code to get the detailed pin denitions.
PCIEX16
SPI_TPM
PCIEX1_1
SPEAKER
CLRTC
F_PANEL
CHASSIS
LPC_DEBUG
USB12 USB56 U31G1_12
AAFP COM
EATXPWR
CPU_FAN
CHA_FAN
BATTERY
Super
I/O
ALC
887
RTL
8111H
DIGI
+VRM
22.9cm(8.9in)
AMD®
A320
DDR4 DIMM_A1* (64bit, 288-pin module)
SOCKET AM4
DDR4 DIMM_B1* (64bit,288-pin module)
AUDIO
KBMS
HDMI_DP
U31G1_56
LAN_U31G1_34
20.3cm(7.9in)
128Mb
BIOS
SATA6G_1
SATA6G_2
SATA6G_3 SATA6G_4
VGA
ATX12V
U31G2_C1
1 52 3
2
4
1
861011 9
1
1
6
1
7
17
16 15 1314
18
12

1-2 Chapter 1: Product introduction
CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN)
Connect the fan cables to the fan connectors on the motherboard, ensuring that the
black wire of each cable matches the ground pin of the connector.
Do not forget to connect the fan cables to the fan connectors. Insufcient air ow inside
the system may damage the motherboard components. These are not jumpers! Do not
place jumper caps on the fan connectors! The CPU_FAN connector supports a CPU fan
of maximum 1A (12 W) fan power.
TPM connector (14-1 pin SPI_TPM)
This connector supports a Trusted Platform Module (TPM) system with a Serial
Peripheral Interface (SPI), allowing you to securely store keys, digital certicates,
passwords and data. A TPM system also enhances network security, protects
digital identities, and ensures platform integrity.
AMD AM4 CPU socket
This motherboard comes with an AMD AM4 Socket designed for AMD Ryzen™
2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™
Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4
Processors.
For more details, refer to Central Processing Unit (CPU).
DDR4 DIMM slots
Install 2 GB, 4 GB, 8 GB, and 16 GB unbuffered ECC and non-ECC DDR4 DIMMs
into these DIMM sockets.
For more details, refer to System memory.
AMD A320 Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1~4)
These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA
6.0 Gb/s signal cables.
ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)
These connectors are for ATX power supply plugs. The power supply plugs are
designed to t these connectors in only one orientation. Find the proper orientation
and push down rmly until the connectors completely t.
• For a fully congured system, we recommend that you use a power supply unit
(PSU) that complies with ATX 12 V Specication 2.0 (or later version) and provides
a minimum power of 300 W. This PSU type has 24-pin and 4-pin power plugs.
• DO NOT forget to connect the 4-pin ATX +12V power plug. Otherwise, the system
will not boot up.
• We recommend that you use a PSU with higher power output when conguring a
system with more power-consuming devices or when you intend to install additional
devices. The system may become unstable or may not boot up if the power is
inadequate.

ASUS PRO A320M-R2 1-3
Clear RTC RAM (2-pin CLRTC)
This header allows you to clear the CMOS RTC RAM data of
the system setup information such as date, time, and system
passwords.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Use a metal object such as a screwdriver to short the
two pins.
3. Plug the power cord and turn ON the computer.
4. Hold down the <Del> key during the boot process and
enter BIOS setup to re-enter data.
CLRTC
+3V_BAT
GND
PIN 1
If the steps above do not help, remove the onboard battery and short the two pins again
to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery.
USB 3.1 Gen 1 connector (20-1 pin U31G1_12)
This connector allows you to connect a USB 3.1 Gen 1 module for additional USB
3.1 Gen 1 front or rear panel ports. With an installed USB 3.1 Gen 1 module, you
can enjoy all the benets of USB 3.1 Gen 1 including faster data transfer speeds
of up to 5Gbps, faster charging time for USB-chargeable devices, optimized power
efciency and backward compatibility with USB 2.0.
USB 3.1 Gen 2 front panel connector (U31G2_C1)
This connector allows you to connect a USB 3.1 Gen 2 module for additional USB
3.1 Gen 2 ports. The latest USB 3.1 Gen 2 connectivity provides data transfer
speeds of up to 10 Gbps.
Speaker connector (4-pin SPEAKER)
This 4-pin connector is for the chassis-mounted system warning speaker. The
speaker allows you to hear system beeps and warnings.
System panel connector (10-1 pin F_PANEL)
This connector supports several chassis-mounted functions.
PIN 1
PWR BTN
P_LED+
P_LED-
F_PWRBTN#
GND
HDD_LED+
HDD_LED-
GND
RSTCON#_PANEL
(NC)
F_PANEL
+PWR LED-
+HDD_LED- RESET

1-4 Chapter 1: Product introduction
LPC Debug header
This header allows connection to a LPC debug card.
• Scan the QR code to view the meaning of each debug
code.
• Debug codes are only available for ASUS LPC debug
card.
• Contact your region sales representative for LPC debug
header ordering.
Chassis intrusion header (4-1 pin CHASSIS)
This header is for a chassis-mounted intrusion detection sensor or switch. Connect
one end of the chassis intrusion sensor or switch cable to this connector. The
chassis intrusion sensor or switch sends a high-level signal to this connector when
a chassis component is removed or replaced. The signal is then generated as a
chassis intrusion event.
By default, the pin labeled “Chassis Signal” and “Ground” are shorted with a jumper
cap. Remove the jumper caps only when you intend to use the chassis intrusion
detection feature.
Serial port connector (10-1 pin COM)
This connector is for a serial (COM) port. Connect the serial port module cable to
this connector, then install the module to a slot opening at the back of the system
chassis.
Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
HD Audio standard. Connect one end of the front panel audio I/O module cable to
this connector.
• We recommend that you connect a high-denition front panel audio module to this
connector to avail of the motherboard’s high-denition audio capability.
• If you want to connect a high-denition front panel audio module to this connector,
set the Front Panel Type item in the BIOS setup to [HD Audio]. By default, this
connector is set to [HD Audio].
USB 2.0 connectors (10-1 pin USB12, USB56)
These connectors are for USB 2.0 ports. Connect the USB module cable to any
of these connectors, then install the module to a slot opening at the back of the
system chassis. These USB connectors comply with USB 2.0 specications and
support up to 480Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!

ASUS PRO A320M-R2 1-5
LAN port
Speed
LED
Activity Link
LED
Activity/Link LED Speed LED
Status Description Status Description
Off No link OFF 10Mbps connection
Orange Linked ORANGE 100Mbps connection
Orange
(Blinking)
Data activity GREEN 1Gbps connection
Orange
(Blinking then
steady)
Ready to wake
up from S5 mode
1. PS/2 Mouse (green) port. This port is for a PS/2 mouse.
2. D-Sub port. This 15-pin port is for a D-Sub monitor or other D-Sub compatible devices.
3. DisplayPort. This port is for a DisplayPort-compatible device.
4. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.
LAN port LED indications
1 4
10
5 6
7
23
89
1.2.2 Rear panel connectors
PCI Express 3.0/2.0 x1 slot
This motherboard has one PCI Express 3.0/2.0 x1 slot that supports PCI Express
x1 network cards, SCSI cards, and other cards that comply with the PCI Express
specications.
PCI Express 3.0 / 2.0 x16 slot
This motherboard supports one PCI Express 3.0 / 2.0 x16 graphic card that
complies with the PCI Express specications.

1-6 Chapter 1: Product introduction
8. USB 3.1 Gen 1 ports. These 9-pin Universal Serial Bus (USB) ports connect to USB
3.1 Gen 1 devices.
• USB 3.1 Gen 1 devices can only be used for data storage.
• Due to the design of AMD AM4 series chipset, all USB devices connected to the USB
2.0 and USB 3.1 Gen 1 ports are controlled by the xHCI controller.
• We strongly recommend that you connect USB 3.1 Gen 1 devices to USB 3.1 Gen 1
ports for faster and better performance from your USB 3.1 Gen 1 devices.
9. HDMI port. This port is for a High-Denition Multimedia Interface (HDMI) connector,
and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected
content.
10. PS/2 keyboard (purple) port. This port is for a PS/2 keyboard.
Audio 2.1, 4.1, 5.1 or 7.1-channel conguration
Port Headset
2.1-channel 4.1-channel 5.1-channel 7.1-channel
Light Blue (Rear panel) Line In Rear Speaker Out Rear Speaker Out Rear Speaker Out
Lime (Rear panel) Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink (Rear panel) Mic In Mic In Bass/Center Bass/Center
Lime (Front panel) - - - Side Speaker Out
5. Line In port (light blue). This port connects to the tape, CD, DVD player, or other
audio sources.
6. Line Out port (lime). This port connects to a headphone or a speaker. In the 4.1,
5.1and 7.1-channel congurations, the function of this port becomes Front Speaker
Out.
7. Microphone port (pink). This port connects to a microphone.
Refer to the audio conguration table for the function of the audio ports in 2.1, 4.1, 5.1, or
7.1-channel conguration.

ASUS PRO A320M-R2 1-7
Central Processing Unit (CPU)
This motherboard comes with an AMD AM4 Socket designed for
AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega
Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st
Generation/7th Generation A-series/Athlon X4 Processors.
Unplug all power cables before installing the CPU.
The AM4 socket has a different pinout from the FM2+/FM2 socket. Ensure that you use a
CPU designed for the AM4 socket. The CPU ts in only one correct orientation. DO NOT
force the CPU into the socket to prevent bending the pins and damaging the CPU!

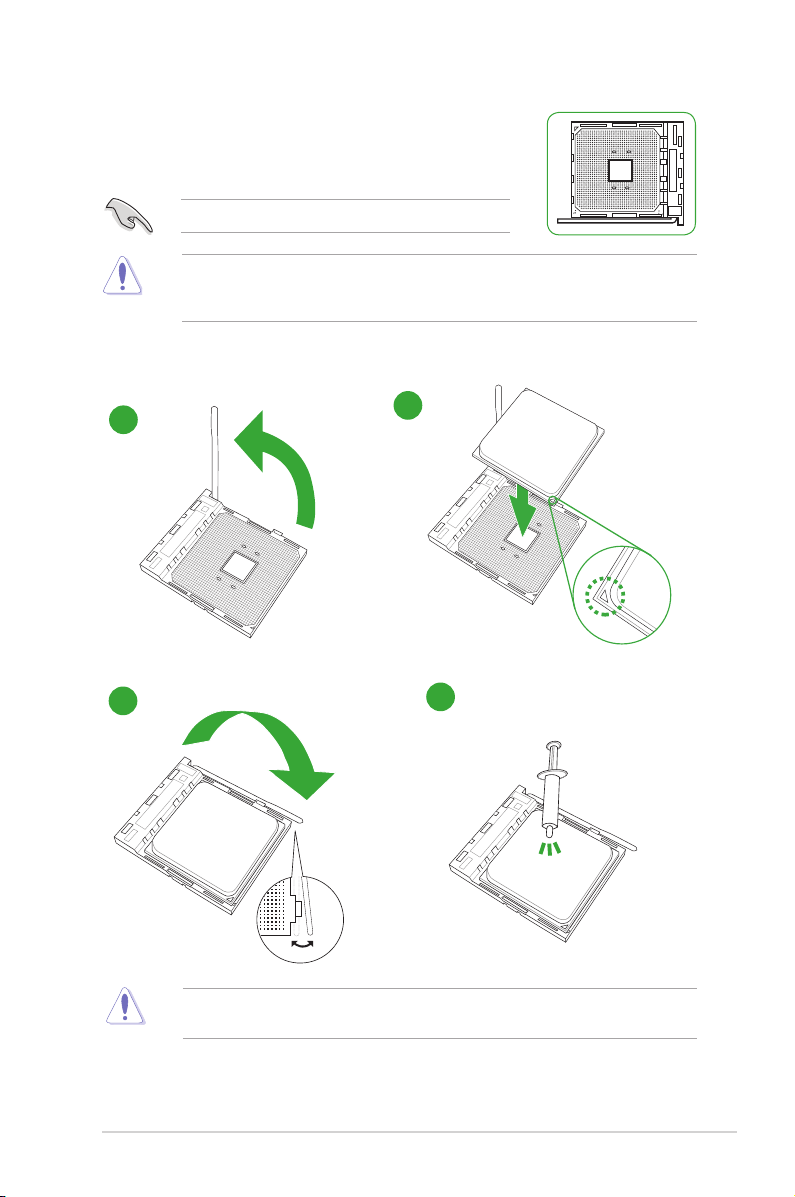

Installing the CPU
Apply the Thermal Interface Material to the CPU heatsink and CPU before you install the
heatsink and fan if necessary.
1
3
2
4

1-8 Chapter 1: Product introduction
System memory
Overview
This motherboard comes with two Double Data Rate 4 (DDR4) Dual Inline Memory Module
(DIMM) sockets. The gure illustrates the location of the DDR4 DIMM sockets:
• You may install varying memory sizes in Channel A and Channel B. The system
maps the total size of the lower-sized channel for the dual-channel conguration. Any
excess memory from the higher-sized channel is then mapped for single-channel
operation.
• Always install DIMMs with the same CAS latency. For optimal compatibility, we
recommend that you install memory modules of the same version or date code (D/C)
from the same vendor. Check with the retailer to get the correct memory modules.
Recommended memory conguration
Channel Sockets
Channel A DIMM_A1*
Channel B DIMM_B1*
• For system stability, use a more efcient memory cooling system to support a full
memory load (2 DIMMs).
• Refer to www.asus.com for the latest Memory QVL (Qualied Vendors List).
DIMM_A1*
DIMM_B1*
DIMM_A1*
DIMM_A1*
DIMM_B1*

ASUS PRO A320M-R2 1-9

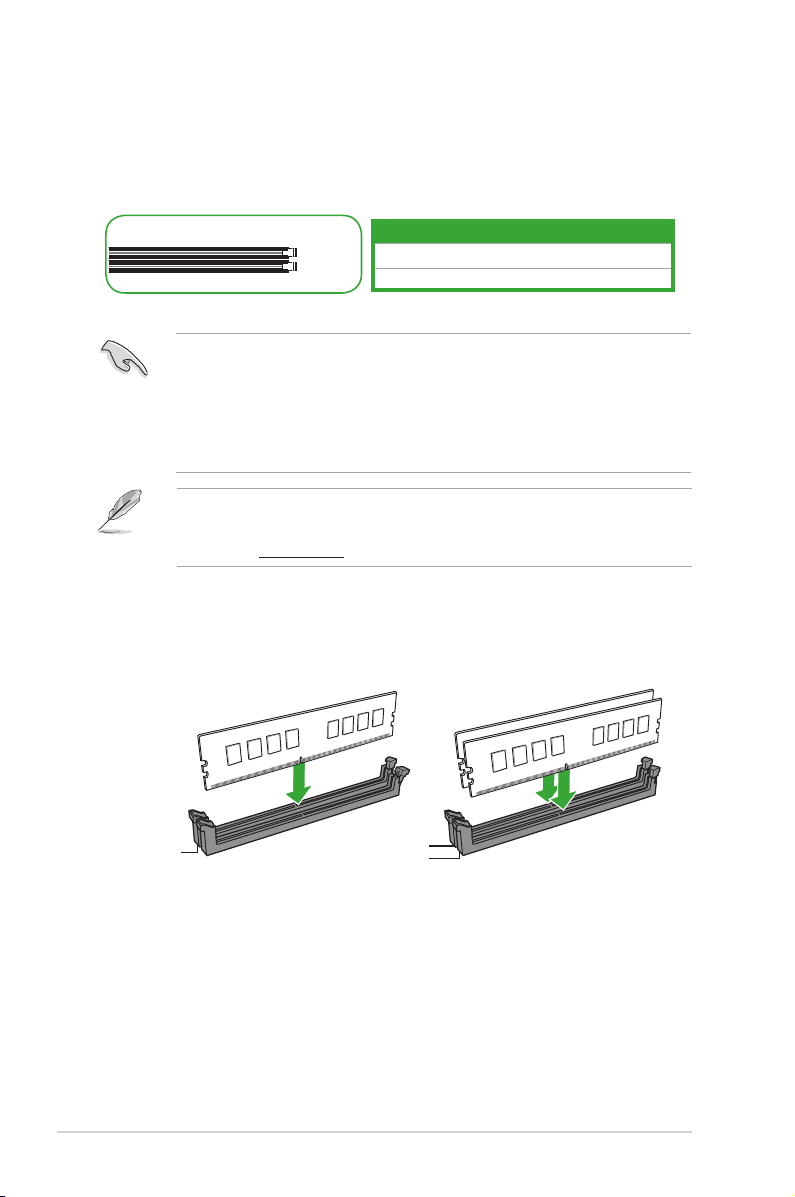

Installing a DIMM
12
To remove a DIMM
B
A
B
A
A

BIOS information
2
Scan the QR code to view the BIOS update guide.
The system will automatically active ASUS Self-Recovering BIOS after reboot from the
BIOS update failure.
ASUS Self-Recovering BIOS
ASUS-exclusive BIOS protection technology automatically recovers the system’s BIOS with a veried
backup in the event of an update failure, preventing the need to replace or reinstall your hardware.
• Ensures safe BIOS updates
• Requires no additional software
• Provides automatic update failure detection and recovery
• Reduces maintenance frequency and costs
BIOS setup program
Use the BIOS Setup program to update the BIOS or congure its parameters. The BIOS
screens include navigation keys and brief online help to guide you in using the BIOS Setup
program.
Entering BIOS Setup at startup
To enter BIOS Setup at startup:
Press <Delete> or <F2> during the Power-On Self Test (POST). If you do not press <Delete>
or <F2>, POST continues with its routines.
Entering BIOS Setup after POST
To enter BIOS Setup after POST:
• Press <Ctrl>+<Alt>+<Del> simultaneously.
• Press the reset button on the system chassis.
• Press the power button to turn the system off then back on. Do this option only if you
failed to enter BIOS Setup using the rst two options.
Using the power button, reset button, or the <Ctrl>+<Alt>+<Del> keys to force reset from a
running operating system can cause damage to your data or system. We recommend you
always shut down the system properly from the operating system.
ASUS PRO A320M-R2
2-1

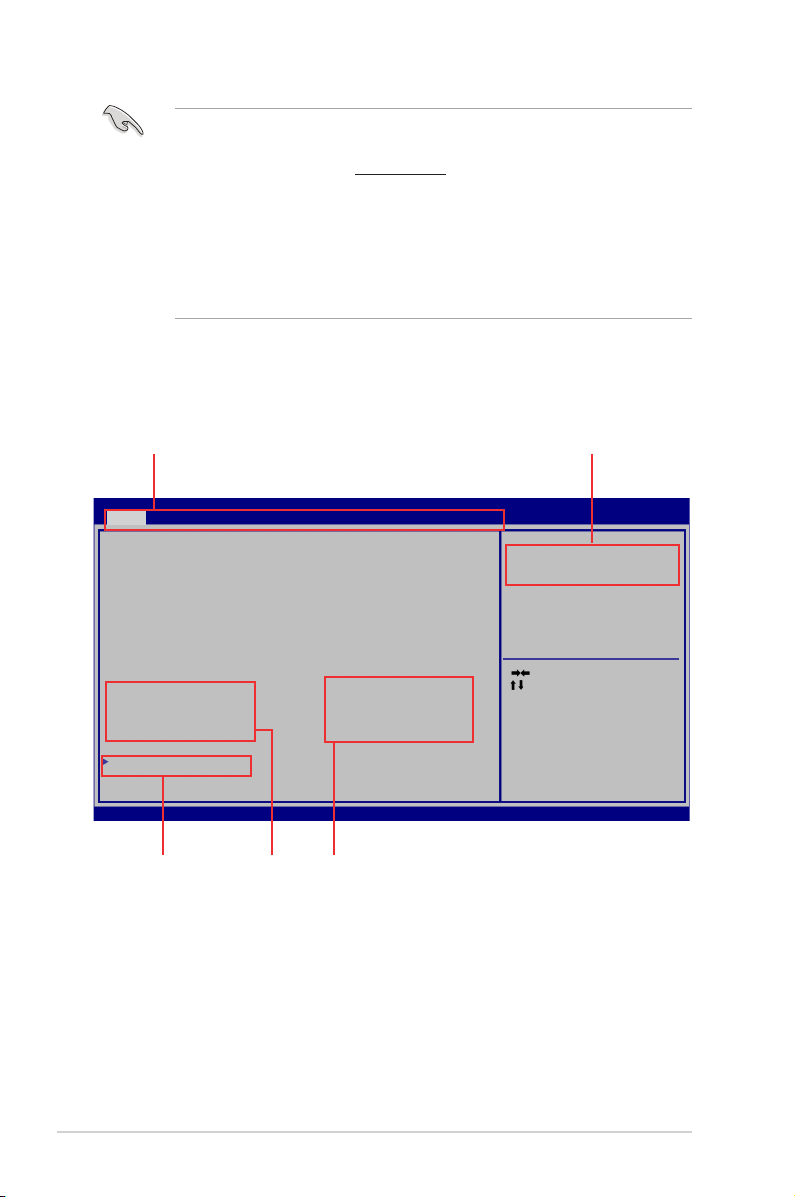

BIOS menu screen
:Select Screen
: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F5: Optimized Defaults
F10: Save & Exit
ESC: Exit
Version 2.17.1246 Copyright (C) 2019 American Megatrends, Inc.
Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc.
Main Ai Tweaker Advanced Monitor Boot Tool Exit
Choose the default
language
BIOS Version 0301 x64
Build Date and Time 05/05/2019
CPU Information AMD Ryzen 5 1500X
Brand String Quad-Core Processor
Speed 3500MHz
Total Memory 8192MB (DDR4)
Speed 2133MHz
System Language [English]
System Date [Wed 05/15/2019]
System Time [21:25:25]
Access Level Administrator
Security
BIOS Information
Menu bar
Menu items
General Help
Conguration elds
Sub-menu item
• The BIOS setup screens shown in this section are for reference purposes only, and
may not exactly match what you see on your screen.
• Visit the ASUS website at www.asus.com to download the latest BIOS le for this
motherboard.
• If the system becomes unstable after changing any BIOS setting, load the default
settings to ensure system compatibility and stability. Select the Load Optimized
Defaults item under the Exit menu or press hotkey F5.
• If the system fails to boot after changing any BIOS setting, try to clear the CMOS and
reset the motherboard to the default value. See section Motherboard overview for
information on how to erase the RTC RAM.
2-2
Chapter 2: BIOS information

Event Category Description Event Log
BIOS Updates Update status, latest version and
update time
BIOS updated from xxxx to xxxx
BIOS update successful
AC Power loss Abnormal power loss events AC Power Loss
4S Forced Shutdown
RTC reset Real-time-clock (RTC) reset time RTC time reset has occurred
Chassis
instrusion
Record of when the chassis has
been opened A chassis intrusion has occurred
Hardware
changes
Modications to the CPU,
memory or HDDs
New CPU Installed
HDD has been changed!
Memory has been changed!
Hardware status
USB current*, CPU
temperature**, and CPU voltage
events**
USB Over Current occurred
CPU Over Heating Error!
CPU Over Voltage Error!
A built-in event log enables easier troubleshooting by capturing useful system information ,
including:
Event Log
You can access Event Log from the Tool menu.
:Select Screen
: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F5: Optimized Defaults
F10: Save & Exit
ESC: Exit
Version 2.17.1246 Copyright (C) 2019 American Megatrends, Inc.
Press ENTER to run the
utility to select and
update BIOS.
Start EZFlash
ASUS Overclocking prole
ASUS SPD Information
Event Log
Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc.
Main Ai Tweaker Advanced Monitor Boot Tool Exit
* Record of when USB Over Current occurs
** Record of when CPU temperature rises above 75°C
***Record of when CPU Voltage reaches below 0 mV or above 1550mV
ASUS PRO A320M-R2
2-3
Table of contents
Other Asus Motherboard manuals

Asus
Asus F1A55-M LX PLUS R2.0 User manual

Asus
Asus TUEP2-M User manual

Asus
Asus H110I-PLUS D3 User manual

Asus
Asus P4S8X User manual

Asus
Asus X99-A II User manual

Asus
Asus M3N-H/HDMI User manual

Asus
Asus H110S2/CSM User manual

Asus
Asus Motherboard P5V-VM DH User manual

Asus
Asus ProArt Z490-CREATOR 10G User manual

Asus
Asus P8Z77-V LE PLUS User manual

Asus
Asus Prime B460I-PLUS User manual

Asus
Asus MAXIMUS IV EXTREME-Z User manual

Asus
Asus STRIX B250H GAMING User manual

Asus
Asus B85M-G User manual

Asus
Asus P5G41T-M LX V2 User manual

Asus
Asus Z97-P User manual

Asus
Asus P4S-X User manual

Asus
Asus P5P41T USB3 User manual

Asus
Asus P5LD2-TVM SE/S User manual

Asus
Asus P4T533 User manual
