Asus Ptgd1-la puffer m-ul8e User manual

Motherboard

PTGD1-LA

(Puffer M-UL8E)

Checklist

Contents

PTGD1-LA specifications summary ..................................................... iii

1. Motherboard layout ................................................................. 1

2. Central Processing Unit (CPU) ................................................. 2

3. System memory ...................................................................... 5

4. Expansion slots ........................................................................ 8

5. Jumpers ................................................................................. 10

6. Connectors ............................................................................ 11

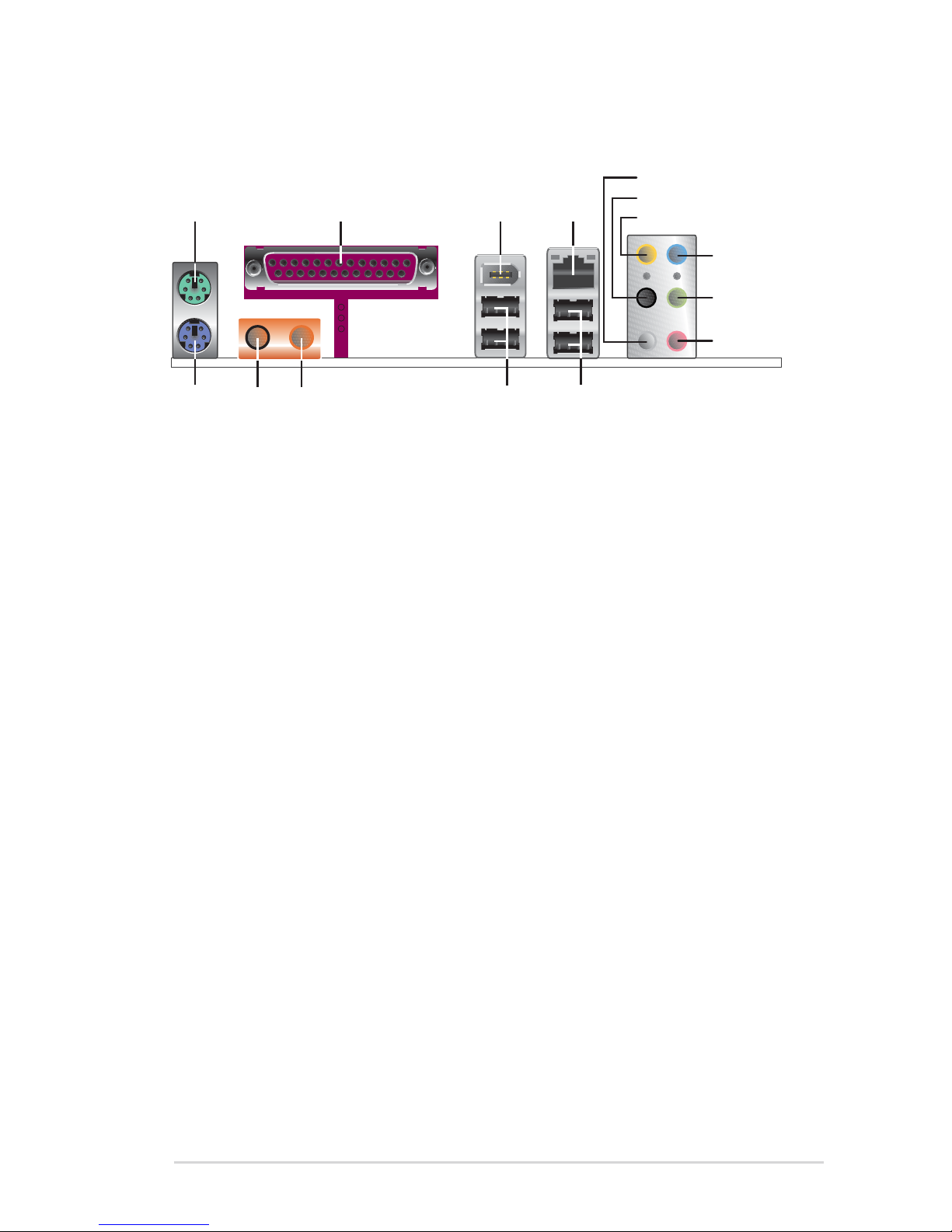

6.1 Rear panel connectors ............................................. 11

6.2 Internal connectors .................................................. 13

iiiiii

iii

PTGD1-LA specifications summary

LGA775 socket for the Intel

Pentium

4 processor

Nortbridge: Intel

915P Memory Controller Hub

(MCH)

Southbridge: Intel

ICH6

800 MHz

4 x 184-pin DDR DIMM sockets for up to 4 GB

non-ECC DDR SDRAM

1 x PCI Express x16 slot for discrete graphics card

3 x PCI slots

1 x PS/2 mouse port

1 x PS/2 keyboard port

1 x Parallel port

1 x IEEE 1394a port

1 x LAN (RJ-45) port

6 x audio ports support 8-channel audio configuration

4 x USB 2.0 ports support hot-plug function

1 x S/PDIF Out port

1 x S/PDIF In port

1 x Floppy connector

1 x IDE connector

1 x 24-pin ATX power connector

1 x 4-pin ATX 12 V power connector

4 x Serial ATA connectors

1 x IEEE 1394a connector

2 x USB 2.0 connectors

1 x CPU fan connector

1 x System fan connector

2 x Internal audio connectors

1 x Front headphone connector

1 x System panel connector

Southbridge supports:

- 2 x Ultra DMA 66/100 hard disk drives

- 4 x Serial ATA (SATA) ports with hot-swap

function

CPUCPU

CPU

ChipsetChipset

Chipset

Front Side Bus (FSB)Front Side Bus (FSB)

Front Side Bus (FSB)

MemoryMemory

Memory

Expansion slotsExpansion slots

Expansion slots

Rear panelRear panel

Rear panel

Internal connectorsInternal connectors

Internal connectors

StorageStorage

Storage

(continued on the next page)

iviv

Southbridge supports 8-channel audio configuration

with Intel

High Definition Audio CODEC

Realtek

ALC880 High Definition Audio CODEC

Realtek

RTL8101L 10/100Mbps Fast Ethernet

LAN controller

VIA VT6307 supports two IEEE 1394a ports

ASUS A8000 for CPU, system, and chassis fan

control, motherboard and CPU temperature

4Mb FWH EEPROM

HP BIOS with enhanced ACPI, DMI, Green, and PnP

Features Plus

Micro-ATX form factor: 9.6 in x 9.6 in

PTGD1-LA specifications summary

AudioAudio

Audio

LANLAN

LAN

IEEE 1394IEEE 1394

IEEE 1394

PC healthPC health

PC health

monitoringmonitoring

monitoring

BIOS featuresBIOS features

BIOS features

Form factorForm factor

Form factor

* Specifications are subject to change without notice

ASUS PTGD1-LA (Puffer M-UL8E)ASUS PTGD1-LA (Puffer M-UL8E)

ASUS PTGD1-LA (Puffer M-UL8E) 11

1. Motherboard layout

24.5cm (9.6in)

PCI1

PTGD1-LA

VT6307

IEEE

Controller

4Mbit

Flash

ROM

PS/2KBMS

T: Mouse

B: Keyboard

AUDIO

FRONT_AUDIO

ALC880

USB2.0

T: USB3

B: USB4

Top:

RJ-45

CLRTC

FLOPPY

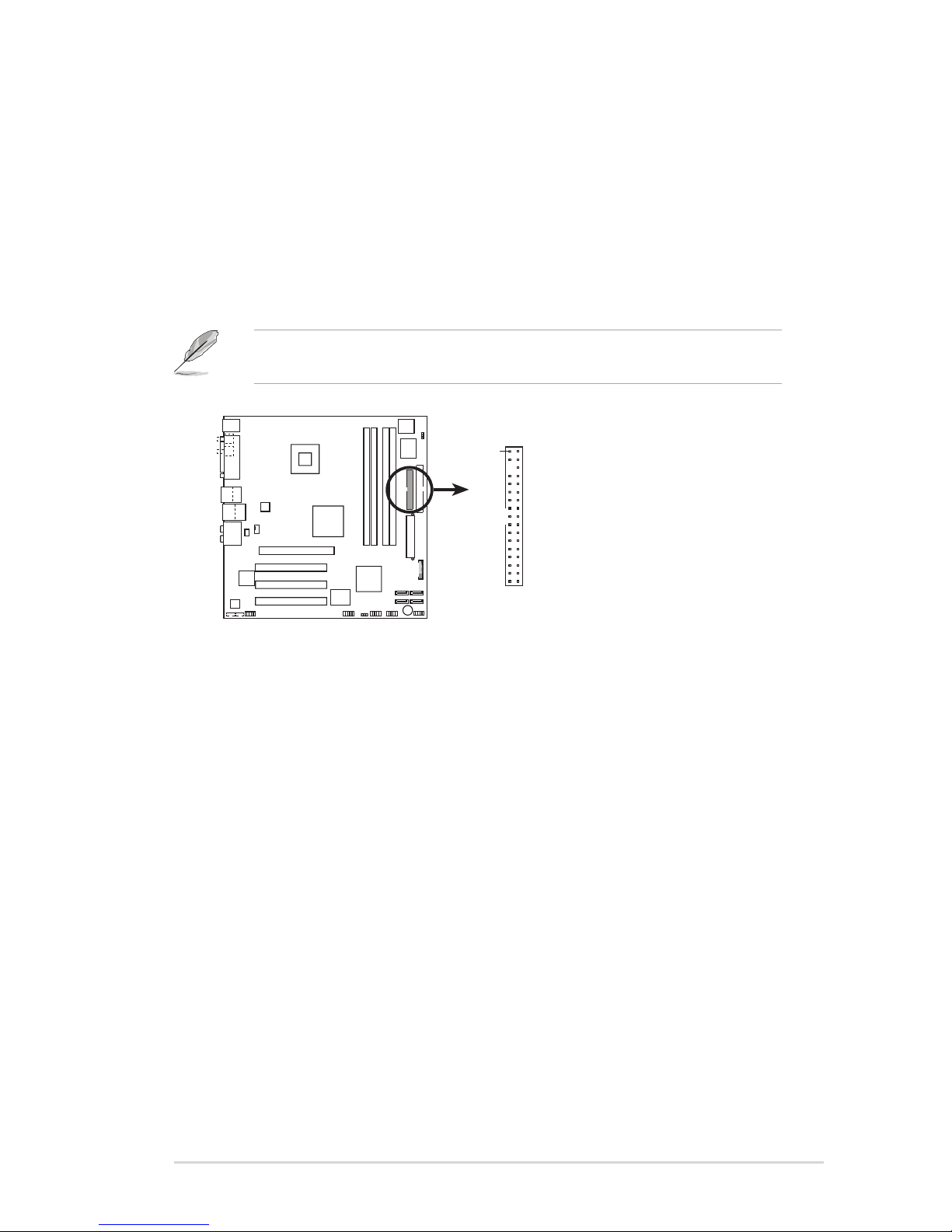

IDE

ATX Power Connector

DDR DIMMA1 (64 bit,184-pin module)

SYS_FAN

FRONT_USB1

24.5cm (9.6in)

PCI2

PCI3

Intel

ICH6

Intel

915P

MCH

BUZZ1

T:USB1

B:USB2

Bottom:

1394

Top:

RTL8101L

FRONT_PANEL

BAT_H

FRONT_USB2

ATX12V

SATA1

PARALLEL PORT

DDR DIMMA2 (64 bit,184-pin module)

DDR DIMMB1 (64 bit,184-pin module)

DDR DIMMB2 (64 bit,184-pin module)

CPU_FAN

SATA2

SATA3 S ATA4

CLPWD

ASUS

A8000

PCIEX16

F_LINE_IN

CD_IN

FRONT_1394

Below:Mic In

Center:Line Out

Top:Line In

Top:

Subwoofer Speaker Out

Center

Rear Speaker Out

Below

Side Speaker Out

ASUS PTGD1-LA (Puffer M-UL8E)ASUS PTGD1-LA (Puffer M-UL8E)

ASUS PTGD1-LA (Puffer M-UL8E)

Installing the CPUInstalling the CPU

Installing the CPU

To install a CPU:

1. Locate the CPU socket on the motherboard.

2. Central Processing Unit (CPU)

The motherboard comes with a surface mount LGA775 socket designed for

the Intel

Pentium

4 processor in the 775-land package.

Before installing the CPU, make sure that the socket box is facing

towards you and the load lever is on your left.

• Your boxed Intel

Pentium

4 LGA775 processor package should

come with installation instructions for the CPU, heatsink, and the

retention mechanism. If the instructions in this section do not match

the CPU documentation, follow the latter.

•

Upon purchase of the motherboard, make sure that the PnP cap is

on the socket and the socket contacts are not bent. Contact your

retailer immediately if the PnP cap is missing, or if you see any

damage to the PnP cap/socket contacts/motherboard components.

ASUS will shoulder the cost of repair only if the damage is shipment/

transit-related.

•

Keep the cap after installing the motherboard. ASUS will process

Return Merchandise Authorization (RMA) requests only if the

motherboard comes with the cap on the LGA775 socket.

• The product warranty does not cover damage to the socket

contacts resulting from incorrect CPU installation/removal, or

misplacement/loss/incorrect removal of the PnP cap.

PTGD-LA

PTGD1-LA CPU Socket 775

ASUS PTGD1-LA (Puffer M-UL8E)ASUS PTGD1-LA (Puffer M-UL8E)

ASUS PTGD1-LA (Puffer M-UL8E) 33

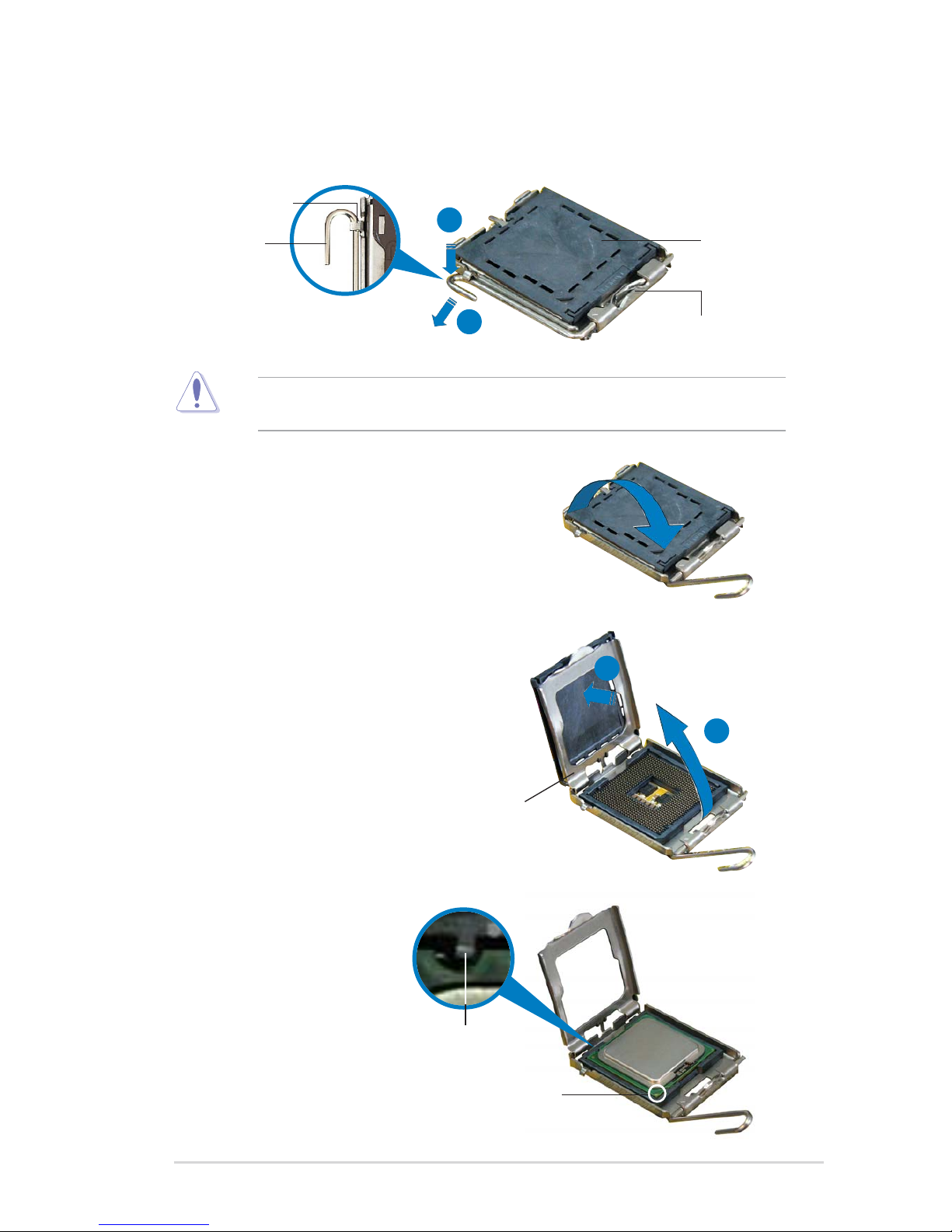

3. Lift the load lever in the

direction of the arrow to a 135º

angle.

4. Lift the load plate with your

thumb and forefinger to a

100º angle (A), then push

the PnP cap from the load

plate window to remove (B).

To prevent damage to the socket pins, do not remove the PnP cap

unless you are installing a CPU.

5. Position the CPU over

the socket, making

sure that the gold

triangle is on the

bottom-left corner of

the socket. The

socket alignment key

should fit into the

CPU notch.

Alignment keyAlignment key

Alignment key

Gold triangle markGold triangle mark

Gold triangle mark

Load plateLoad plate

Load plate

2. Press the load lever with your thumb (A), then move it to the left (B)

until it is released from the retention tab.

Retention tabRetention tab

Retention tab

Load leverLoad lever

Load lever

This side of theThis side of the

This side of the

socket box shouldsocket box should

socket box should

face you.face you.

face you.

PnP capPnP cap

PnP cap

ASUS PTGD1-LA (Puffer M-UL8E)ASUS PTGD1-LA (Puffer M-UL8E)

ASUS PTGD1-LA (Puffer M-UL8E)

Notes on IntelNotes on Intel

Notes on Intel

Hyper-Threading TechnologyHyper-Threading Technology

Hyper-Threading Technology

• This motherboard supports Intel

Pentium

4 CPUs in the 775-land

package with Hyper-Threading Technology.

• Hyper-Threading Technology is supported under Windows

XP/2003

Server and Linux 2.4.x (kernel) and later versions only. Under Linux,

use the Hyper-Threading compiler to compile the code. If you are

using any other operating systems, disable the Hyper-Threading

Techonology item in the BIOS to ensure system stability and

performance.

• Installing Windows

XP Service Pack 1 or later version is recommended.

• Make sure to enable the Hyper-Threading Technology item in BIOS

before installing a supported operating system.

• For more information on Hyper-Threading Technology, visit

www.intel.com/info/hyperthreading.

To use the Hyper-Threading Technology on this motherboard:

1. Install an Intel

Pentium

4 CPU that supports Hyper-Threading

Technology.

2. Power up the system and enter the BIOS Setup. Under the Advanced

Menu, make sure that the item Hyper-Threading Technology is set to

Enabled. The item appears only if you installed a CPU that supports

Hyper-Threading Techonology.

3. Reboot the computer.

The CPU fits in only one correct orientation. DO NOT force the CPU into

the socket to prevent bending the connectors on the socket and

damaging the CPU!

6. Close the load plate (A), then

push the load lever (B) until

it snaps into the retention

tab.

ASUS PTGD1-LA (Puffer M-UL8E)ASUS PTGD1-LA (Puffer M-UL8E)

ASUS PTGD1-LA (Puffer M-UL8E) 55

3. System memory

The motherboard comes with four Double Data Rate (DDR) Dual Inline

Memory Module (DIMM) sockets.

The following figure illustrates the location of the DDR DIMM sockets.

Memory configurationsMemory configurations

Memory configurations

You can install 128 MB, 256 MB, 512 MB, and 1GB DDR SDRAM DIMMs into

the DIMM sockets using the memory configurations in this section.

• Installing DDR DIMMs other than the recommended configurations

may cause memory sizing error or system boot failure. Use any of

the recommended configurations on the next page.

• Install only identicalidentical

identicalidentical

identical (the same type and size) DDR DIMM pairs

using the recommended configurations.

• Make sure that the memory frequency matches the CPU FSB

(Front Side Bus). Refer to the Memory frequency/CPU FSB

synchronization table on the next page.

• This motherboard does not support double-sided 16-bit DDR DIMMs.

• Do not create a three-DIMM configuration in dual-channel mode. The

third DIMM is ignored in the dual-channel operation.

PTGD-LA

PTGD1-LA 184-pin DDR DIMM sockets

DIMM_A1

DIMM_A2

DIMM_B1

DIMM_B2

ASUS PTGD1-LA (Puffer M-UL8E)ASUS PTGD1-LA (Puffer M-UL8E)

ASUS PTGD1-LA (Puffer M-UL8E)

Recommended memory configurationsRecommended memory configurations

Recommended memory configurations

Memory frequency/CPU FSB synchronizationMemory frequency/CPU FSB synchronization

Memory frequency/CPU FSB synchronization

* Use only identical DDR DIMM pairs.* Use only identical DDR DIMM pairs.

* Use only identical DDR DIMM pairs.

SocketsSockets

Sockets

ModeMode

Mode DIMM1DIMM1

DIMM1DIMM1

DIMM1 DIMM2DIMM2

DIMM2DIMM2

DIMM2 DIMM3DIMM3

DIMM3DIMM3

DIMM3 DIMM4DIMM4

DIMM4DIMM4

DIMM4

Single-channel (1) Installed — — —

(2) — Installed — —

(3) — — Installed —

(4) — — — Installed

Dual-channel* (1) Installed — Installed —

(2) — Installed — Installed

(3) Installed Installed Installed Installed

CPU FSBCPU FSB

CPU FSB DDR DIMM TypeDDR DIMM Type

DDR DIMM TypeDDR DIMM Type

DDR DIMM Type Memory FrequencyMemory Frequency

Memory FrequencyMemory Frequency

Memory Frequency

800 MHz PC3200 400 MHz

533 MHz PC3200/PC2700 400/333 MHz

ASUS PTGD1-LA (Puffer M-UL8E)ASUS PTGD1-LA (Puffer M-UL8E)

ASUS PTGD1-LA (Puffer M-UL8E) 77

3.33.3

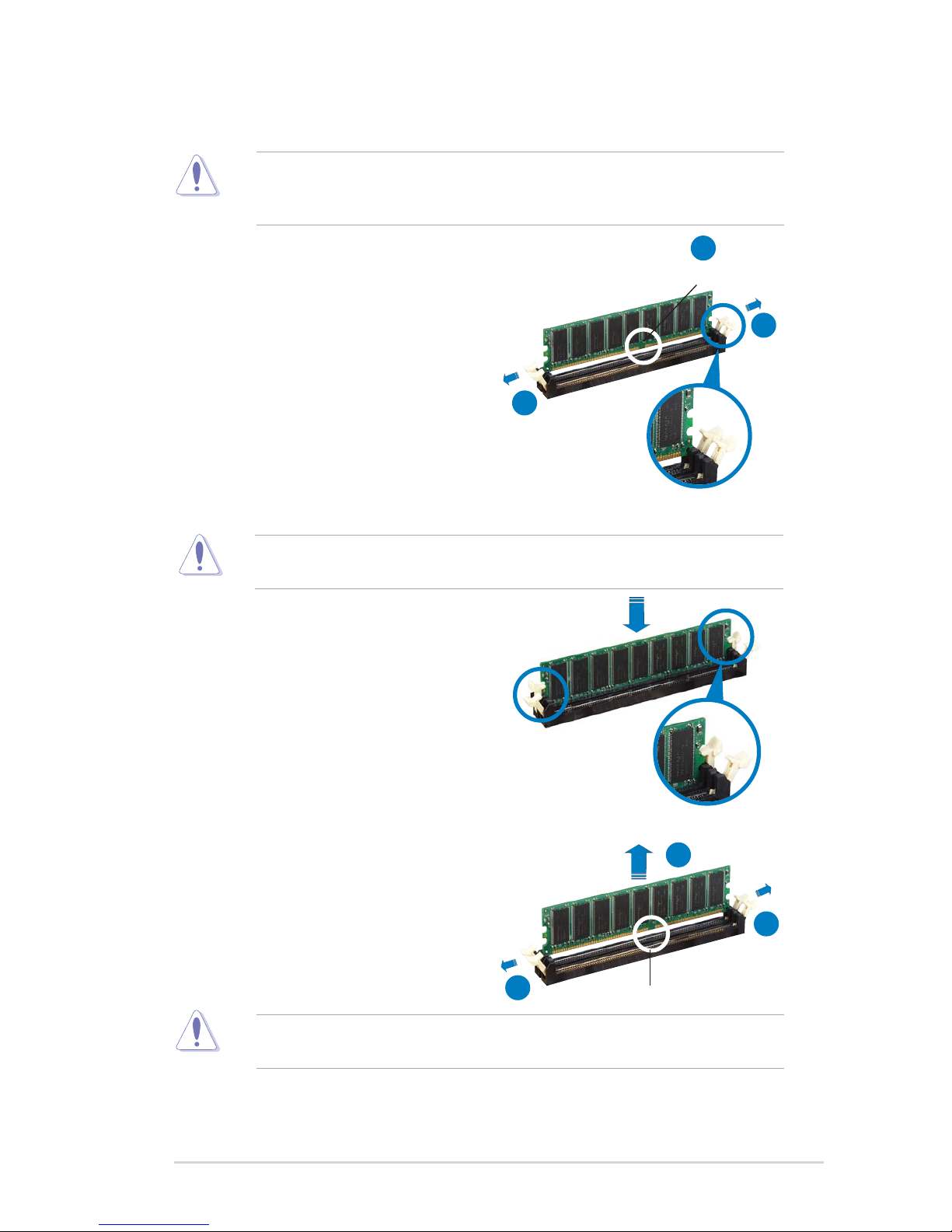

3.3 Removing a DDR DIMMRemoving a DDR DIMM

Removing a DDR DIMMRemoving a DDR DIMM

Removing a DDR DIMM

To remove a DIMM:

1. Simultaneously press the

retaining clips outward to unlock

the DIMM.

2. Remove the DIMM from the socket.

Support the DIMM lightly with your fingers when pressing the retaining

clips. The DIMM might get damaged when it flips out with extra force.

3.23.2

3.2 Installing a DDR DIMMInstalling a DDR DIMM

Installing a DDR DIMMInstalling a DDR DIMM

Installing a DDR DIMM

3. Firmly insert the DIMM into the

socket until the retaining clips

snap back in place and the DIMM

is properly seated.

To install a DIMM:

1. Unlock a DIMM socket by

pressing the retaining clips

outward.

2. Align a DIMM on the socket such

that the notch on the DIMM

matches the break on the

socket.

Locked Retaining ClipLocked Retaining Clip

Locked Retaining Clip

Make sure to unplug the power supply before adding or removing DIMMs

or other system components. Failure to do so may cause severe damage

to both the motherboard and the components.

A DDR DIMM is keyed with a notch so that it fits in only one direction.

DO NOT force a DIMM into a socket to avoid damaging the DIMM.

Unlocked retaining clipUnlocked retaining clip

Unlocked retaining clip

DDR DIMM notchDDR DIMM notch

DDR DIMM notch

DDR DIMM notchDDR DIMM notch

DDR DIMM notch

ASUS PTGD1-LA (Puffer M-UL8E)ASUS PTGD1-LA (Puffer M-UL8E)

ASUS PTGD1-LA (Puffer M-UL8E)

4. Expansion slots

The motherboard has one PCI Express and three PCI slots.

To install and configure an expansion card:

1. Install an expansion card following the instructions that came with the

chassis.

2. Turn on the system and change the necessary BIOS settings, if any.

3. Assign an IRQ to the card. Refer to the tables below.

4. Install the drivers and/or software applications for the expansion card

according to the card documentation.

Standard interrupt assignmentsStandard interrupt assignments

Standard interrupt assignments

IRQIRQ

IRQ Standard FunctionStandard Function

Standard FunctionStandard Function

Standard Function

0 System Timer

1 Standard 101/102-key or Microsoft

Natural PS/2 Keyboard

2 Programmable Interrupt Controller

3 AHPC IRQ Holder for PCI IRQ Steering

3 Intel

82801FB/FBM PCI Express Root Port-2660

3 Intel

82801FB/FBM USB Universal Host Controller-265B

3 Intel

i915P MCH

5 AHPC IRQ Holder for PCI IRQ Steering

5 Realtek

TRL8139/810x Family Fast Ethernet NIC

5 Intel

82801FB/FBM PCI Express Root Port-2662

5 Intel

82801FB/FBM USB Universal Host Controller-2658

5 Intel

82801FB/FBM USB2 Enhanced Host Controller-265C

6 Standard Floppy Disk Controller

7 ECP Printer Port (LPT1)

8 System CMOS/Real Time Clock

9 SCI IRQ used by ACPI Bus

10 AHPC IRQ Holder for PCI IRQ Steering

10 VIA OHCI Compliant IEEE 1394 Host Controller

10 Intel

82801FB/FBM PCI Express Root Port-2666

10 Intel

82801FB/FBM Ultra ATA Storage Controllers-2659

11 AHPC IRQ Holder for PCI IRQ Steering

11 Intel

82801FB/FBM PCI Express Root Port-2664

11 Intel

82801FB/FBM USB Universal Host Controller-265A

12 Microsoft

Port Mouse

13 Numeric Data Processor

14 Intel

82801FB/FBM Ultra ATA Storage Controllers-266F

14 Intel

82801FB Ultra ATA Storage Controllers-2652

ASUS PTGD1-LA (Puffer M-UL8E)ASUS PTGD1-LA (Puffer M-UL8E)

ASUS PTGD1-LA (Puffer M-UL8E) 99

PCI slotsPCI slots

PCI slots

There are three 32-bit PCI slots on

this motherboard. The slots support

PCI cards such as a LAN card, SCSI

card, USB card, and other cards that

comply with PCI specifications.

PCI Express slotPCI Express slot

PCI Express slot

This motherboard has one PCI Express

slot, which supports a 164-pin x16

interface graphics card.

IRQ assignments for this motherboardIRQ assignments for this motherboard

IRQ assignments for this motherboard

AB CDE F

PCI slot 1 — — — shared — —

PCI slot 2 shared — — — — —

PCI slot 3 — used — — — —

Onboard LAN — — — — — used

Onboard 1394 controller — — — — used —

ASUS PTGD1-LA (Puffer M-UL8E)ASUS PTGD1-LA (Puffer M-UL8E)

ASUS PTGD1-LA (Puffer M-UL8E)

1010

5. Jumpers

Clear RTC RAM (3-pin CLRTC)Clear RTC RAM (3-pin CLRTC)

Clear RTC RAM (3-pin CLRTC)

This jumper allows you to clear the Real Time Clock (RTC) RAM in

CMOS. You can clear the CMOS memory of date, time, and system

setup parameters by erasing the CMOS RTC RAM data. The onboard

button cell battery powers the RAM data in CMOS, which include

system setup information such as system passwords.

To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.

2. Move the jumper cap from pins 2-3 (Normal) to pins 1-2 (Clear

CMOS). Keep the cap on pins 2-3 for about 5~10 seconds, then

move the cap back to pins 2-3.

3. Plug the power cord and turn ON the computer.

4. Hold down the <Del> key during the boot process and enter BIOS

setup to re-enter data.

Except when clearing the RTC RAM, never remove the cap from the

default position. Removing the cap will cause system boot failure!

Clear password (3-pin CLPWD)Clear password (3-pin CLPWD)

Clear password (3-pin CLPWD)

This jumper allows you to clear the password if you forgot your

password.

12 23

PTGD-LA

PTGD1-LA Clear RTC RAM

CLRTC

Normal Clear CMOS

(Default)

PTGD-LA

PTGD1-LA Clear password setting

CLPWD

Normal

Clear Password

(Default)

ASUS PTGD1-LA (Puffer M-UL8E)ASUS PTGD1-LA (Puffer M-UL8E)

ASUS PTGD1-LA (Puffer M-UL8E) 1111

1111

6. Connectors

6.16.1

6.1 Rear panel connectorsRear panel connectors

Rear panel connectorsRear panel connectors

Rear panel connectors

1.1.

1. PS/2 mouse port (green).PS/2 mouse port (green).

PS/2 mouse port (green).PS/2 mouse port (green).

PS/2 mouse port (green). This port is for a PS/2 mouse.

2.2.

2. Parallel port.Parallel port.

Parallel port.Parallel port.

Parallel port. This 25-pin port connects a parallel printer, a scanner,

or other devices.

3.3.

3. IEEE 1394a port.IEEE 1394a port.

IEEE 1394a port.IEEE 1394a port.

IEEE 1394a port. This 6-pin IEEE 1394a port provides high-speed

connectivity for audio/video devices, storage peripherals, PCs, or

portable devices.

4.4.

4. LAN (RJ-45) port.LAN (RJ-45) port.

LAN (RJ-45) port.LAN (RJ-45) port.

LAN (RJ-45) port. This port allows connection to a Local Area

Network (LAN) through a network hub.

5.5.

5. Side Speaker Out port (gray).Side Speaker Out port (gray).

Side Speaker Out port (gray).Side Speaker Out port (gray).

Side Speaker Out port (gray). This port connects to the side

speakers in an 8-channel audio configuration.

6.6.

6. Rear Speaker Out port (black).Rear Speaker Out port (black).

Rear Speaker Out port (black).Rear Speaker Out port (black).

Rear Speaker Out port (black). This port connects to the rear

speakers on a 4-channel, 6-channel, or 8-channel audio configuration.

7.7.

7. Center/Subwoofer port (yellow orange).Center/Subwoofer port (yellow orange).

Center/Subwoofer port (yellow orange).Center/Subwoofer port (yellow orange).

Center/Subwoofer port (yellow orange). This port connects

the center/subwoofer speakers.

8.8.

8. Line In port (light blue).Line In port (light blue).

Line In port (light blue).Line In port (light blue).

Line In port (light blue). This port connects a tape, CD, DVD

player or other audio sources.

9.9.

9. Line Out port (lime).

Line Out port (lime).

Line Out port (lime).Line Out port (lime).

Line Out port (lime). This port connects a headphone or a

speaker. In 4-channel, 6-channel, and 8-channel mode, the function of

this port becomes Front Speaker Out.

10.10.

10. Microphone port (pink).Microphone port (pink).

Microphone port (pink).Microphone port (pink).

Microphone port (pink). This port connects a microphone.

2 43

1314

ASUS PTGD1-LA (Puffer M-UL8E)ASUS PTGD1-LA (Puffer M-UL8E)

ASUS PTGD1-LA (Puffer M-UL8E)

1212

11.11.

11. USB 2.0 ports 3 and 4.USB 2.0 ports 3 and 4.

USB 2.0 ports 3 and 4.USB 2.0 ports 3 and 4.

USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus

(USB) ports are available for connecting USB 2.0 devices.

12.12.

12. USB 2.0 ports 1 and 2.USB 2.0 ports 1 and 2.

USB 2.0 ports 1 and 2.USB 2.0 ports 1 and 2.

USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus

(USB) ports are available for connecting USB 2.0 devices.

13.13.

13. Coaxial S/PDIF Out port.Coaxial S/PDIF Out port.

Coaxial S/PDIF Out port.Coaxial S/PDIF Out port.

Coaxial S/PDIF Out port. This port connects an external audio

output device via a coaxial S/PDIF cable.

14.14.

14. Coaxial S/PDIF In port.Coaxial S/PDIF In port.

Coaxial S/PDIF In port.Coaxial S/PDIF In port.

Coaxial S/PDIF In port. This port connects an external audio input

device via a coaxial S/PDIF cable.

15.15.

15. PS/2 keyboard port (purple).PS/2 keyboard port (purple).

PS/2 keyboard port (purple).PS/2 keyboard port (purple).

PS/2 keyboard port (purple). This port is for a PS/2 keyboard.

Audio 2, 4, 6, or 8-channel configurationAudio 2, 4, 6, or 8-channel configuration

Audio 2, 4, 6, or 8-channel configuration

Headset/Headset/

Headset/

2-channel2-channel

2-channel 4-channel4-channel

4-channel4-channel

4-channel 6-channel6-channel

6-channel6-channel

6-channel 8-channel8-channel

8-channel8-channel

8-channel

Light Blue Line In Line In Line In Line In

Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out

Pink Mic In Mic In Mic In Mic In

Yellow Orange - - Center/Subwoofer Center/Subwoofer

Black - Rear Speaker Out Rear Speaker Out Rear Speaker Out

Gray - - - Side Speaker Out

ASUS PTGD1-LA (Puffer M-UL8E)ASUS PTGD1-LA (Puffer M-UL8E)

ASUS PTGD1-LA (Puffer M-UL8E) 1313

1313

6.26.2

6.2 Internal connectorsInternal connectors

Internal connectorsInternal connectors

Internal connectors

This section describes and illustrates the internal connectors on the

motherboard.

1.1.

1. Floppy disk drive connector (34-1 pin FLOPPY)Floppy disk drive connector (34-1 pin FLOPPY)

Floppy disk drive connector (34-1 pin FLOPPY)Floppy disk drive connector (34-1 pin FLOPPY)

Floppy disk drive connector (34-1 pin FLOPPY)

This connector supports the provided floppy drive ribbon cable. After

connecting one end to the motherboard, connect the other end to the

floppy drive. (Pin 5 is removed to prevent incorrect insertion when

using ribbon cables with pin 5 plug).

Pin 5 on the connector is removed to prevent incorrect cable connection

when using an FDD cable with a covered Pin 5.

PTGD-LA

NOTE: Orient the red markings on

the floppy ribbon cable to PIN 1.

PTGD1-LA Floppy disk drive connector

FLOPPY

PIN 1

ASUS PTGD1-LA (Puffer M-UL8E)ASUS PTGD1-LA (Puffer M-UL8E)

ASUS PTGD1-LA (Puffer M-UL8E)

1414

2.2.

2. IDE connector (40-1 pin IDE)IDE connector (40-1 pin IDE)

IDE connector (40-1 pin IDE)IDE connector (40-1 pin IDE)

IDE connector (40-1 pin IDE)

This connector is for an Ultra DMA 100/66 signal cable. The Ultra DMA

100/66 signal cable has three connectors: a blue connector for the

primary IDE connector on the motherboard, a black connector for an

Ultra DMA 100/66 IDE slave device (optical drive/hard disk drive), and

a gray connector for an Ultra DMA 100/66 IDE master device (hard disk

drive). If you install two hard disk drives, you must configure the

second drive as a slave device by setting its jumper accordingly. Refer

to the hard disk documentation for the jumper settings.

• Pin 20 on the IDE connector is removed to match the covered hole

on the Ultra DMA cable connector. This prevents incorrect insertion

when you connect the IDE cable.

• Use the 80-conductor IDE cable for Ultra DMA 100/66 IDE devices.

PTGD-LA

PTGD1-LA IDE connector

NOTE: Orient the red markings

(usually zigzag) on the IDE

ribbon cable to PIN 1.

IDE

PIN 1

ASUS PTGD1-LA (Puffer M-UL8E)ASUS PTGD1-LA (Puffer M-UL8E)

ASUS PTGD1-LA (Puffer M-UL8E) 1515

1515

3.3.

3. ATX power connectors (24-pin ATXPWR, 4-pin ATX12V)ATX power connectors (24-pin ATXPWR, 4-pin ATX12V)

ATX power connectors (24-pin ATXPWR, 4-pin ATX12V)ATX power connectors (24-pin ATXPWR, 4-pin ATX12V)

ATX power connectors (24-pin ATXPWR, 4-pin ATX12V)

These connectors are for an ATX power supply. The plugs from the

power supply are designed to fit these connectors in only one

orientation. Find the proper orientation and push down firmly until the

connectors completely fit.

•

Do not forget to connect the 4-pin ATX +12 V power plug;

otherwise, the system will not boot up.

•

Make sure that your ATX 12V power supply can provide 8A on the

+12V lead and at least 1A on the +5-volt standby lead (+5VSB).

The minimum recommended wattage is 230W, or 300W for a fully

configured system. The system can become unstable and might

experience difficulty powering up if the power supply is inadequate.

• You must install a PSU with a higher power rating if you intend to

install additional devices.

PTGD-LA

PTGD1-LA ATX power connectors

ATXPWR

ATX12V

+12V DCGND

+3 Volts

Ground

+5 Volts

Ground

Power OK

+5V Standby

+12 Volts

-5 Volts

+5 Volts

+3 Volts

-12 Volts

Ground

PSON#

Ground

+5 Volts

+12 Volts

+3 Volts

+5 Volts

Ground

ASUS PTGD1-LA (Puffer M-UL8E)ASUS PTGD1-LA (Puffer M-UL8E)

ASUS PTGD1-LA (Puffer M-UL8E)

1616

4.4.

4. SS

Serial ATA connectorserial ATA connectors

erial ATA connectorserial ATA connectors

erial ATA connectors

(7-pin SATA1, S(7-pin SATA1, S

(7-pin SATA1, SATA2, SATA3, SATA4)ATA2, SATA3, SATA4)

ATA2, SATA3, SATA4)ATA2, SATA3, SATA4)

ATA2, SATA3, SATA4)

These connectors are for the Serial ATA signal cables for Serial ATA

hard disk drives.

Important notes on Serial ATAImportant notes on Serial ATA

Important notes on Serial ATA

•

Install the Windows

2000 Service Pack 4 or the Windows

Service Pack1 before using Serial ATA.

•

When using the connectors in SS

Standard IDEtandard IDE

tandard IDEtandard IDE

tandard IDE mode, connect the

primary (boot) hard disk drive to the SATA1 connector.

PTGD-LA

PTGD1-LA SATA connectors

SATA4

GND

RSATA_TXP1

RSATA_TXN1

GND

RSATA_RXP1

RSATA_RXN1

GND

SATA3

SATA2

SATA1

Other manuals for PTGD1-LA Puffer M-UL8E

This manual suits for next models

Table of contents

Other Asus Motherboard manuals

Popular Motherboard manuals by other brands

MSI

MSI FUZZY CX700 user manual

Analog Devices

Analog Devices EVAL-ADN4680EEBZ user guide

Sapphire Audio

Sapphire Audio IPC-AM4-SA user manual

Renesas

Renesas RL78 Series user manual

Piesia

Piesia T8375A manual

AOpen

AOpen AX34 Pro II Online manual

ECS

ECS A31G Series user manual

Texas Instruments

Texas Instruments ADS8402 user guide

Biostar

Biostar I865G-M4 Setup manual

VIA Technologies

VIA Technologies EPIA ME6000 - VIA Motherboard - Mini ITX Operation guidelines

IEI Technology

IEI Technology KINO-HM551 user manual

Lite-on Tech

Lite-on Tech TR100 user manual

Peak

Peak PCAN-PC/104-Plus user manual

Texas Instruments

Texas Instruments SN75LVCP600S user guide

C&T Solution

C&T Solution CT-MSB01 user manual

Gigabyte

Gigabyte GA-8SD user manual

AMD

AMD 7ZX-1 user manual

Dataman

Dataman 448PRO2AP-AU user manual

Asus PTGD1-LA Puffer M-UL8E User manual

Popular Motherboard manuals by other brands
