Asus Z170-DELUXE Series User manual

Motherboard
Z170-DELUXE
Series

ii
E10627
Revised Edition V2
July 2015
Copyright© 2015 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.
Offer to Provide Source Code of Certain Software
This product contains copyrighted software that is licensed under the General Public License (“GPL”),
under the Lesser General Public License Version (“LGPL”) and/or other Free Open Source Software
Licenses. Such software in this product is distributed without any warranty to the extent permitted by the
applicable law. Copies of these licenses are included in this product.
Where the applicable license entitles you to the source code of such software and/or other additional data,
you may obtain it for a period of three years after our last shipment of the product, either
(1) for free by downloading it from http://support.asus.com/download
or
(2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location
where you want to have it shipped to, by sending a request to:
ASUSTeK Computer Inc.
Legal Compliance Dept.
15 Li Te Rd.,
Beitou, Taipei 112
Taiwan
In your request please provide the name, model number and version, as stated in the About Box of the
product for which you wish to obtain the corresponding source code and your contact details so that we
can coordinate the terms and cost of shipment with you.
The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as
the corresponding binary/object code.
This offer is valid to anyone in receipt of this information.
ASUSTeK is eager to duly provide complete source code as required under various Free Open Source
Software licenses. If however you encounter any problems in obtaining the full corresponding source
code we would be much obliged if you give us a notication to the email address [email protected], stating
the product and describing the problem (please DO NOT send large attachments such as source code
archives, etc. to this email address).

iii
Contents
Safety information...................................................................................................... vi
About this guide........................................................................................................ vii
Z170-DELUXE specifications summary ................................................................... ix

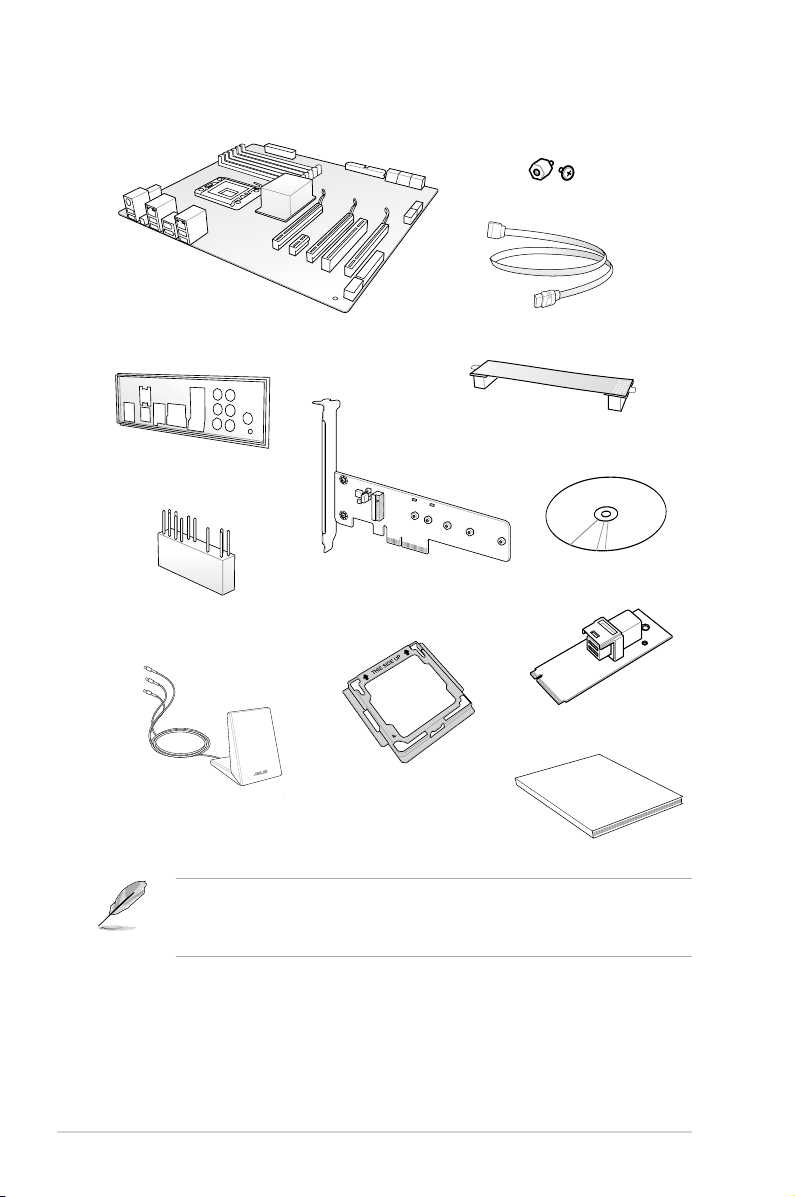

Package contents..................................................................................................... xvi

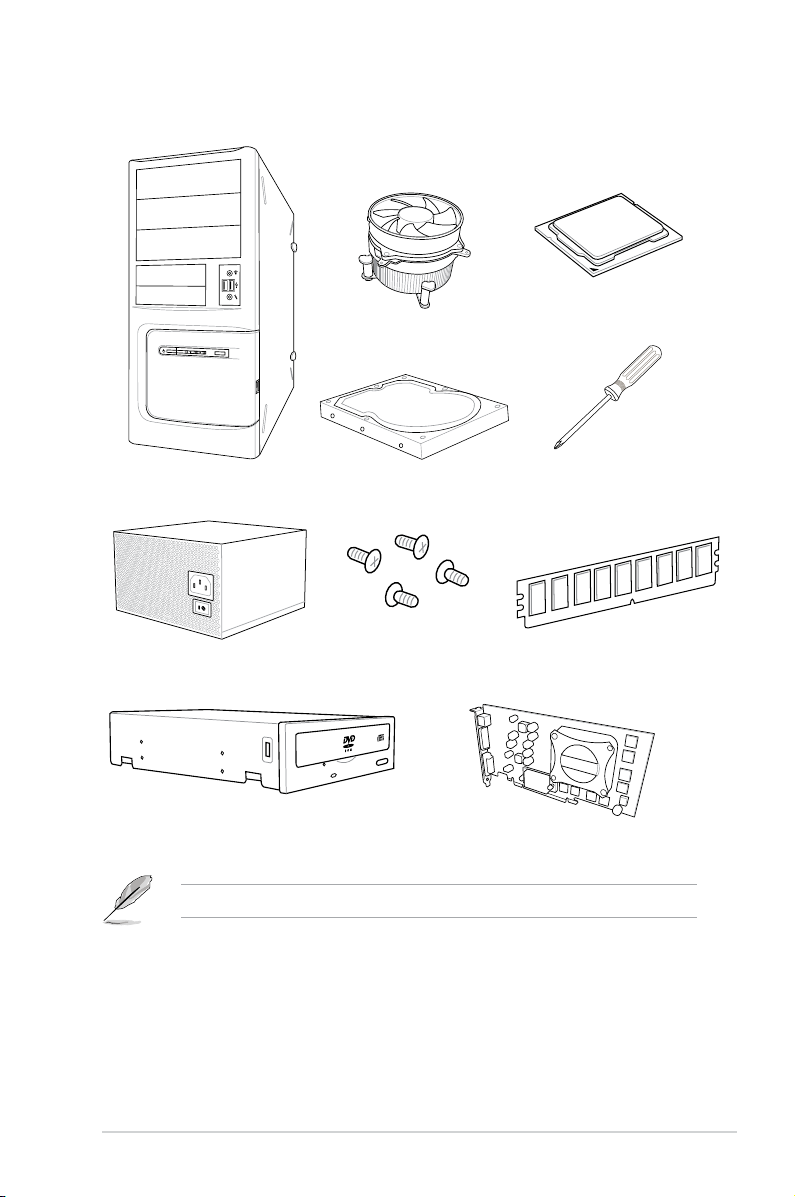

Installation tools and components........................................................................ xvii
Chapter 1: Product Introduction
1.1 Special features..........................................................................................1-1
1.1.1 Product highlights........................................................................ 1-1
1.1.2 Other special features................................................................. 1-2
1.2 Motherboard overview............................................................................... 1-3
1.2.1 Before you proceed..................................................................... 1-3
1.2.2 Motherboard layout ..................................................................... 1-4
1.2.3 Central Processing Unit (CPU) ................................................... 1-6
1.2.4 System memory .......................................................................... 1-7
1.2.5 Expansion slots......................................................................... 1-15
1.2.6 Onboard buttons and switches.................................................. 1-17
1.2.7 Jumpers .................................................................................... 1-22
1.2.8 Onboard LEDs .......................................................................... 1-23
1.2.9 Internal connectors.................................................................... 1-30
Chapter 2: Basic Installation
2.1 Building your PC system...........................................................................2-1
2.1.1 Motherboard installation.............................................................. 2-1
2.1.2 CPU installation........................................................................... 2-3
2.1.3 CPU heatsink and fan assembly installation............................... 2-5
2.1.4 DIMM installation......................................................................... 2-7
2.1.5 ATX Power connection................................................................ 2-8
2.1.6 SATA device connection............................................................. 2-9
2.1.7 Front I/O Connector .................................................................. 2-10
2.1.8 Expansion Card installation....................................................... 2-11
2.1.9 Wi-Fi antenna installation.......................................................... 2-12
2.2 BIOS update utility................................................................................... 2-13
2.3 Motherboard rear and audio connections .............................................2-15
2.3.1 Rear I/O connection .................................................................. 2-15
2.3.2 Audio I/O connections............................................................... 2-17
2.4 Starting up for the first time.................................................................... 2-19
2.5 Turning off the computer ........................................................................ 2-20

iv
Chapter 3: BIOS Setup
3.1 Knowing BIOS ............................................................................................3-1
3.2 BIOS setup program ..................................................................................3-2
3.2.1 EZ Mode...................................................................................... 3-3
3.2.2 Advanced Mode .......................................................................... 3-4
3.2.3 QFan Control............................................................................... 3-7
3.2.4 EZ Tuning Wizard ....................................................................... 3-9
3.3 My Favorites .............................................................................................3-12
3.4 Main menu ................................................................................................3-14
3.5 Ai Tweaker menu......................................................................................3-16
3.6 Advanced menu .......................................................................................3-31
3.6.1 CPU Conguration .................................................................... 3-32
3.6.2 Platform Misc Conguration...................................................... 3-34
3.6.3 System Agent (SA) Conguration ............................................. 3-36
3.6.4 PCH Conguration .................................................................... 3-37
3.6.5 PCH Storage Conguration....................................................... 3-37
3.6.6 USB Conguration .................................................................... 3-39
3.6.7 Network Stack Conguration..................................................... 3-40
3.6.8 Onboard Devices Conguration................................................ 3-40
3.6.9 APM Conguration.................................................................... 3-43
3.6.10 HDD/SSD SMART Information ................................................. 3-44
3.6.11 Intel(R) Thunderbolt .................................................................. 3-44
3.7 Monitor menu ...........................................................................................3-45
3.8 Boot menu ................................................................................................3-50
3.9 Tool menu.................................................................................................3-56
3.9.1 ASUS EZ Flash 3 Utility ............................................................ 3-56
3.9.2 Secure Erase ............................................................................ 3-56
3.9.3 ASUS Overclocking Prole ....................................................... 3-58
3.9.4 ASUS SPD Information............................................................. 3-59
3.9.5 Graphics Card Information........................................................ 3-59
3.10 Exit menu..................................................................................................3-60
3.11 Updating BIOS.......................................................................................... 3-61
3.11.1 EZ Update................................................................................. 3-61
3.11.2 ASUS EZ Flash 3...................................................................... 3-62
3.11.3 ASUS CrashFree BIOS 3.......................................................... 3-64

v
Chapter 4: Software Support
4.1 Installing an operating system .................................................................4-1
4.1.1 Windows®7 and USB 3.0 driver for 100 Series .......................... 4-1
4.2 Support DVD information.......................................................................... 4-8
4.2.1 Running the support DVD ........................................................... 4-8
4.2.2 Obtaining the software manuals.................................................. 4-9
4.3 Software information ...............................................................................4-10
4.4 AI Suite 3...................................................................................................4-10
4.4.1 Ai Charger+............................................................................... 4-14
4.4.2 USB 3.1 Boost...........................................................................4-15
4.4.3 EZ Update................................................................................. 4-16
4.4.4 USB BIOS Flashback................................................................ 4-18
4.4.5 Push Notice............................................................................... 4-20
4.4.6 System Information ................................................................... 4-23
4.4.7 Key Express.............................................................................. 4-25
4.5 Audio configurations............................................................................... 4-27
Chapter 5: RAID Support
5.1 RAID configurations ..................................................................................5-1
5.1.1 RAID denitions .......................................................................... 5-1
5.1.2 Installing Serial ATA hard disks .................................................. 5-2
5.1.3 Setting the RAID item in BIOS .................................................... 5-2
5.1.4 Intel®Rapid Storage Technology Option ROM utility.................. 5-3
5.2 Creating a RAID driver disk ......................................................................5-7
5.2.1 Creating a RAID driver disk in Windows®.................................... 5-7
5.2.2 Installing the RAID driver during Windows®OS installation........ 5-8
Appendix
Notices .................................................................................................................... A-1
ASUS contact information...................................................................................... A-6

vi
Safety information
Electrical safety
• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet
before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all
power cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These devices
could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not
sure about the voltage of the electrical outlet you are using, contact your local power
company.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied service
technician or your retailer.
Operation safety
• Before installing the motherboard and adding devices on it, carefully read all the manuals
that came with the package.
• Before using the product, ensure all cables are correctly connected and the power
cables are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area
where it may become wet.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualied service
technician or your retailer.

vii
About this guide
This user guide contains the information you need when installing and conguring the
motherboard.
How this guide is organized
This guide contains the following parts:
1. Chapter 1: Product Introduction
This chapter describes the features of the motherboard and the new technology it
supports. It includes description of the switches, jumpers, and connectors on the
motherboard.
2. Chapter 2: Basic Installation
This chapter lists the hardware setup procedures that you have to perform when
installing system components.
3. Chapter 3: BIOS Setup
This chapter tells how to change system settings through the BIOS Setup menus.
Detailed descriptions of the BIOS parameters are also provided.
4. Chapter 4: Software Support
This chapter describes the contents of the support DVD that comes with the
motherboard package and the software.
5. Chapter 5: RAID Support
This chapter describes the RAID congurations.
Where to find more information
Refer to the following sources for additional information and for product and software
updates.
1. ASUS website
The ASUS website (www.asus.com) provides updated information on ASUS hardware
and software products.
2. Optional documentation
Your product package may include optional documentation, such as warranty yers,
that may have been added by your dealer. These documents are not part of the
standard package.

viii
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this manual.
DANGER/WARNING: Information to prevent injury to yourself when trying to
complete a task.
CAUTION: Information to prevent damage to the components when trying to
complete a task
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to help you complete a task.
Typography
Bold text Indicates a menu or an item to select.
Italics Used to emphasize a word or a phrase.
<Key> Keys enclosed in the less-than and greater-than sign
means that you must press the enclosed key.
Example: <Enter> means that you must press the Enter or
Return key.
<Key1> + <Key2> + <Key3> If you must press two or more keys simultaneously, the key
names are linked with a plus sign (+).

ix
CPU
LGA1151 socket for 6th Generation Intel®Core™ i7/ i5/ i3/Pentium®/Celeron®
Processors
Supports 14nm CPU
Supports Intel®Turbo Boost Technology 2.0*
* The Intel®Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset Intel®Z170 Express Chipset
Memory
4 x DIMM, max. 64GB, DDR4 3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)
/3200(O.C.)/3000(O.C.)/2800(O.C.)*/2666(O.C.)*/2400(O.C.)*/2133 MHz,
non-ECC, un-buffered memory
Dual channel memory architecture
Supports Intel® Extreme Memory Prole (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Please refer to Memory QVL(Qualified Vendors List) for details.
Expansion slots
2 x PCI Express 3.0/2.0 x16 slots (single at x16 or dual at x8/x8 mode)
1 x PCI Express 3.0/2.0 x16 slot* (max. at x4 mode, compatible with PCIe x1,
x2 and x4 devices)
4 x PCI Express 2.0 x1 slots
* The PCIe x16_3 slot shares bandwidth with SATA6G_56. The PCIe x16_3 is
default set at x2 mode.
VGA
Integrated Graphics Processor- Intel®HD Graphics support
Multi-VGA output support: DisplayPort/HDMI port
Supports DisplayPort 1.2* with max. resolution 4096 x 2160@24Hz / 3840 x
2160@60Hz
Supports HDMI 2.0 with max. resolution 4096 x 2160@60 / 24Hz**
Supports Intel®InTru™ 3D/Quick Sync Video/Clear Video HD Technology/
Insider™
Supports up to 2 displays simultaneously
Maximum shared memory of 512MB
*DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up
to 3 displays.
** HDMI 2.0 60Hz resolution support requires necessary drivers update.
Multi-GPU
support
Supports NVIDIA®2-Way/Quad-GPU SLI™ Technology (with 2 PCIex16
graphics card)
Supports AMD®3-Way/Quad-GPU CrossFireX™ Technology
Storage
Intel®Z170 Express Chipset with RAID 0, 1, 5, 10 and Intel Rapid
Storage Technology 14 support*
- 1 x SATA Express port (compatible with 2 x SATA 6.0 Gb/s ports)
- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices
support (both SATA & PCIE mode)**
- 6 x SATA 6.0 Gb/s ports (gray, 2 from SATA Express)
- Supports Intel®Smart Response Technology***
Hyper M.2 X4 Mini Card
- 1 x M.2 Socket 3 with M Key, type 2230/2242/2260/2280/22110 storage
devices support (PCIE mode only)
(continued on the next page)
Z170-DELUXE specifications summary

x
(continued on the next page)
Z170-DELUXE specifications summary
Storage
ASMedia®SATA 6Gb/s controller****
- 2 x SATA 6Gb/s ports (black)
*Supports PCIE RAID configurations via onboard M.2 and PCIEX16_3 slot
storages.
** The M.2 socket shares SATA ports with SATA Express. Adjust BIOS
settings to use an M.2 SATA device.
*** These functions will work depending on the CPU installed.
****These SATA ports are for data hard drivers only. ATAPI devices are not
supported.
LAN
Gigabit Intel LAN connection - 802.3az Energy Efcient Ethernet (EEE)
appliance
Intel®I219-V Gigabit LAN - Dual interconnect between the integrated
Media Access Controller (MAC) and physical layer (PHY)
Intel®I211-AT Gigabit LAN controller
ASUS LAN Guard
ASUS Turbo LAN Utility
Wireless Data
Network
Speedy Wi-Fi 802.11 a/b/g/n/ac supports dual frequency band 2.4/5 GHz
Up to 1300Mbps transfer speed
ASUS Wi-Fi GO! Utility
Bluetooth Bluetooth v4.0
Audio
Realtek® ALC1150 8-channel high denition audio CODEC featuring
Crystal Sound 3
- Separate layer for left and right track, ensuring both sound deliver
equal quality
- Top notch audio sensation delivers according to the audio
conguration
- Audio shielding ensures precise analog/digital separation and greatly
reduced multi-lateral interference
- Audio Amplier to enhance the highest quality sound for headphone
and speakers
- Premium Japan-made audio capacitors provides warm, natural, and
immersive sound with exceptional clarity and delity
- High quality 112dB SNR stereo playback output (Line-out@back) &
104dB SNR recording input (Line-in) support
- Absolute Pitch 192khz/24bit true BD lossless sound
- BD audio layer content protection
- DTS Studio Sound
- DTS Connect
- Supports jack-detection, multi-streaming, front panel jack-retasking
(MIC)
- Optical S/PDIF out port at back I/O

xi
USB
Intel®Z170 Express Chipset- supports ASUS USB 3.1 Boost
- 5 x USB 3.0/2.0 ports (4 ports @mid-board, 1 port @back panel, blue)
- 5 x USB 2.0/1.1 ports (4 ports @mid-board, 1 port @back panel)
ASMedia®USB 3.1 controllers- supports ASUS USB 3.1 Boost and 3A
power output
- 5 x USB 3.1/3.0/2.0 ports @back panel (teal blue, Type A)
- 1 x USB 3.1/3.0/2.0 port @back panel (Type C)
ASUS Exclusive
Features
Superb Performance
OC Design: ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance.
5-Way Optimization
- Whole system optimization with a single click! Perfectly consolidates better
CPU performance, power saving, digital power control, system cooling and
app usages.
DIGI+ Power Control
- CPU Power: Digital 16-phase power design
- iGPU Power: Digital 4-phase power design
- DRAM Power: Digital 2-phase power design
TPU
- Auto Tuning, GPU Boost, 2-level TPU switch
EPU
- EPU, EPU switch
Fan Xpert 3 featuring Fan Auto Tuning function and multiple thermistors
selection for optimized system cooling control
Turbo App featuring system performance tuning, network priority, and audio
scene conguration for selected applications.
UEFI BIOS
- Most advanced options with fast response time
Special Memory O.C. Design
- Superb memory O.C. capability under full load by minimizing the coupling
noise and signal reection effect
PC Cleaner
- Fast and easy way to get rid of unnecessary junk les
Seamless Entertainment
Wi-Fi GO!
- Wi-Fi GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard &
Mouse, File Transfer
- Wi-Fi GO! & NFC Remote app for portable smartphone/tablet, supporting
iOS 7 & Android 4.0 systems
(continued on the next page)
Z170-DELUXE specifications summary

xii
ASUS Exclusive
Features
Media Streamer
- Pipe music or movies from your PC to a smart TV, your
entertainment goes wherever you go!
- Media Streamer app for portable smartphone/tablet, supporting
iOS 7 & Android 4.0 systems
HyStream
- Stream Android/iOS/Windows devices’ screen on your PC
screen.*
*Contact your device vendor for supporting information.
eSports Champions
Turbo LAN
- Fast and smooth online gaming with lower pings and less lags
Crystal Sound 3
- Hear the cleanest sound with dedicated audio design onboard!
Turbo APP
- Tailored app performance, network priority and audio
conguration for your needs
EZ DIY
Push Notice
- Monitor your PC status with smart devices in real time
USB BIOS Flashback with USB BIOS Flashback Wizard for EZ
BIOS download scheduling
UEFI BIOS EZ Mode featuring friendly graphics user interface
- CrashFree BIOS 3
- EZ Flash 3
Q-Design
- ASUS Q-code
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
ASUS Special Features
ASUS 5X Protection :
- ASUS DIGI+ VRM - 16 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit
damage prevention
Z170-DELUXE specifications summary
(continued on the next page)

xiii
ASUS Special Features
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan
with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-
resistant coating
- LAN Guard
- USB 3.1 Boost
- Key Express
- Ai Charger+
- MemOK!
- EZ XMP
- Mobo Connect
ASUS Quiet Thermal
Solution
Quiet Thermal Design
- ASUS Fan Xpert 3
- ASUS Fanless Design: Heat-pipe solution with the aesthetic
streamline IO cover
ASUS Exclusive
Overclocking Features
Precision Tweaker 2
- CPU Core/Cache Voltage: Adjustable CPU Core/Cache Voltage at
0.005V increment
- CPU Graphics Voltage: Adjustable CPU Graphics voltage at
0.005V increment
- CPU VCCIO Voltage: Adjustable CPU VCCIO Voltage at 0.0125V
increment
- CPU System Agent Voltage: Adjustable CPU System Agent
Voltage at 0.0125V increment
- DRAM Voltage: 200-step Memory voltage control
- PCH Core Voltage: 88-step Chipset voltage control
SFS (Stepless Frequency Selection)
- BCLK/PCIE frequency tuning from 40MHz up to 500MHz at
0.01MHz increment
Overclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall)
Rear Panel I/O Ports
1 x DisplayPort
1 x HDMI port
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth
v4.0)
1 x Optical S/PDIF out
2 x Intel LAN (RJ45) ports
5 x USB 3.1/3.0/2.0 ports (teal blue, Type A)
1 x USB 3.1/3.0/2.0 ports (Type C)
1 x USB 3.0/2.0 port (blue, supports Key Express)
1 x USB 2.0/1.1 port (black, supports USB BIOS Flashback)
8-channel Audio I/O ports
Z170-DELUXE specifications summary
(continued on the next page)

xiv
Internal I/O connectors
2 x USB 3.0/2.0 connectors support additional 4 USB ports (19-pin)
2 x USB 2.0/1.1 connectors support additional 4 USB ports
1 x M.2 Socket 3 (for M Key, type 2242/2260/2280/22110 devices)
1 x SATA Express connector
6 x SATA 6.0Gb/s connectors (4 x gray; 2 x black)
1 x CPU Fan connector (4-pin) for both 3-pin(DC mode) and
4-pin(PWM mode) CPU coolers control with auto detection
support
1 x CPU OPT Fan connector (4-pin)
1 x Water Pump header
4 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode) and
4-pin(PWM mode) coolers control
1 x Front panel audio connector (AAFP)
1 x S/PDIF out header
1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series
support
1 x TPM connector
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x System Panel(Q-Connector)
1 x MemOK! button
1 x Clear CMOS jumper
1 x USB BIOS Flashback button
1 x DRCT(Direct Key) connector
1 x TPU switch (advanced two-stage adjustments)
1 x EPU switch
1 x EZ XMP switch
1 x Power-on button
1 x 5-pin EXT_FAN(Extension Fan) connector
BIOS Features
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM
BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3,
CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3
My Favorites, Quick Note, Last Modied log, F12 PrintScreen and
ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE
Accessories
1 x ASUS 3T3R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/
g/n/ac compliant)
6 x Serial ATA 6.0Gb/s cables
1 x ASUS SLI bridge connector
1 x ASUS Q-Shield
1 x 2 in 1 Q-connector
1 x Hyper M.2 X4 Mini Card
1 x Hyper Kit
2 x M.2 screw package
1 x user’s manual
1 x CPU Installation Tool
Z170-DELUXE specifications summary
(continued on the next page)

xv
Support DVD contents
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
Operating system
support
Windows® 10*
Windows®8.1*
Windows®7
*64-bit supported only.
Form factor ATX Form Factor, 12” x 9.6” (30.5 cm x 24.4 cm)
Z170-DELUXE specifications summary
Specications are subject to change without notice.

xvi
• If any of the above items is damaged or missing, contact your retailer.
• The illustrated items above are for reference only. Actual product specications may
vary with different models.
Package contents
Check your motherboard package for the following items
ASUS Z170-DELUXE Series motherboard
User manual
1 x Hyper M.2 X4 Mini Card
1 x Hyper Kit
1 x CPU Installation Tool
Support DVD
6 x Serial ATA 6 Gb/s cables
2 x M.2 screws
1 x ASUS SLI™ bridge connector
1 x ASUS Q-Shield
User Manual
1 x 2-in-1 ASUS Q-Connector kit
1 x 3T3R dual-band Wi-Fi moving antennas
(Wi-Fi 802.11a/b/g/n/ac compliant)

xvii
Installation tools and components
The tools and components above are not included in the motherboard package.
PC chassis
Power supply unit
Intel®LGA1151 compatible CPU Fan
Intel®LGA1151 CPU
DIMM
SATA hard disk drive
Graphics card
Phillips (cross) screwdriver
SATA optical disc drive (optional)
1 bag of screws

xviii

ASUS Z170-DELUXE Series 1-1
Chapter 1
Product Introduction
1
1.1 Special features
1.1.1 Product highlights
LGA1151 socket for the 6th Generation Intel®Core™ i7/Intel®Core™ i5/Intel®
Core™ i3, Pentium®and Celeron®processors
This motherboard supports 6th generation Intel®Core™ i7/Intel®Core™ i5/Intel®Core™ i3,
Pentium®, and Celeron®processors in the LGA1151 package. It provides great graphics
and system performance with its GPU, dual-channel DDR4 memory slots and PCI Express
2.0/3.0 expansion slots.
Intel®Z170 Express Chipset
Intel®Z170 Express Chipset is a single chipset that supports the LGA1151 socket for the
6th generation Intel®Core™ i7/Intel®Core™ i5/Intel®Core™ i3, Pentium®, and Celeron®
processors. It utilizes the serial point-to-point links, which increases bandwidth and enhances
the system’s performance. It natively supports up to ten USB 3.0 ports, six SATA 6 Gb/s
ports, and M.2 Gen 3 X4 support for faster data retrieval.
PCI Express®3.0
PCI Express®3.0 (PCIe 3.0) is the PCI Express bus standard that provides twice the
performance and speed of PCIe 2.0. It provides an optimal graphics performance,
unprecedented data speed and seamless transition with its complete backward compatibility
to PCIe 1.0/2.0 devices.
Quad-GPU SLI and 3-WAY CrossFireX™ Support
This motherboad features NVIDIA SLI and 3-Way AMD CrossreX support that enables
mulit-GPU setup, giving you the full power of the latest graphics technologies. It also features
native support for 4K/UHD (ultra high denition) resolution of up to 4096 x 2160 via HDMI or
DisplayPort, resulting to four times the number of pixels for incredible visual clarity, detail,
and realism.
SATA Express support
SATA Express provides faster data transfer speeds of up to 10 Gb/s, allowing your system to
catch up with the speed of the SSDs. It also features backward compatibility with up to two
SATA drives of the same speed.
Chapter 1: Product Introduction

1-2 Chapter 1: Product Introduction
Chapter 1
Dual-Channel DDR4 3466 MHz Support
The motherboard supports the dual-channel DDR4 memory that features data transfer rates
of DDR4 3466 MHz to boost the system’s performance, and to meet the higher bandwidth
requirements of 3D graphics, multimedia and Internet applications.
PCIe 3.0 x4 M.2 Support
With a 4x PCI Express 3.0/2.0 bandwidth, the M.2 can support up to 32 Gbit/s of data transfer
speed. It is a perfect choice for the operating system or application drive, making your system
and its installed apps work in a faster pace.
Complete USB 3.1 integration
This motherboard has the latest USB 3.1 connectivity built in for the very fastest USB data
transfers — that’s up to 10 Gb/s, or twice as fast as USB 3.0. The next-generation standard
is completely backward-compatible with your existing USB devices, and you’ll be all set for
USB 3.1’s breakneck speeds.
1.1.2 Other special features
DTS Connect
To get the most out of your audio entertainment across all formats and quality levels, DTS
Connect combines two enabling technologies, DTS Neo:PC™ upmixes stereo sources (CDs,
MP3s, WMAs, internet radio) into as many as 7.1 channels of incredible surround sound.
Consumers can connect their PC to a home theater system. DTS Interactive is capable of
performing mult-channel encoding of DTS bitstreams on personal computers, and sending
encoded bitstreams out of a digital audio connection (such as S/PDIF or HDMI) designed to
deliver audio to an external decoder.
ErP Ready
The motherboard is European Union’s Energy-related Products (ErP) ready, and ErP
requires products to meet certain energy efciency requirement in regards to energy
consumptions. This is in line with ASUS vision of creating environment-friendly and energy-
efcient products through product design and innovation to reduce carbon footprint of the
product and thus mitigate environmental impacts.
