Asus DSL-N66U User manual

DSL-N66U

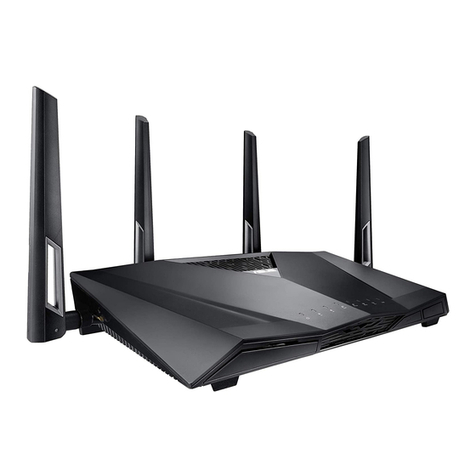

Dual-band Wi-Fi ADSL/VDSL Modem Router
User Guide

2
Copyright © 2013 ASUSTeK Computer Inc. All Rights Reserved.
No part of this manual, including the products and software described
in it, may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language in any form or by any means, except
documentation kept by the purchaser for backup purposes, without the express
written permission of ASUSTeK Computer Inc. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired,
modified or altered, unless such repair, modification of alteration is authorized
in writing by ASUS; or (2) the serial number of the product is defaced or missing.
ASUS PROVIDES THIS MANUAL“AS IS”WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,
EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS
AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR
PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE
FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE
AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A
COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY
FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be
registered trademarks or copyrights of their respective companies, and are used
only for identification or explanation and to the owners’benefit, without intent
to infringe.
E8322
First Edition
April 2013

3
Table of contents
1 A quick look 5
Package contents ........................................................................................ 5
Your ADSL/VDSL router............................................................................. 6
2 Creating your network 9
Positioning your router ............................................................................. 9
What you need ...........................................................................................10
Connecting your devices........................................................................11
Before you proceed...................................................................................12
3 NetworkcongurationusingthewebGUI 17
Logging in to the web GUI .....................................................................17
Setting up the wireless security settings ..........................................19
Managing your network clients ...........................................................21
Monitoring your USB device..................................................................22
Creating your Guest Network ...............................................................24
Using the Traffic Manager.......................................................................25
Using the USB Extension ........................................................................26
Configuring the Advanced settings....................................................34
Setting up your network printer ..........................................................38
4 Usingtheutilities 43
Device Discovery .......................................................................................43
Firmware Restoration...............................................................................44
5 Troubleshooting 45

4
Troubleshooting ........................................................................................45
ASUS DDNS Service ..................................................................................49
Appendices 51
Notices...........................................................................................................51
Networks Global Hotline Information................................................65
ASUS Contact information .....................................................................68

5
1 A quick look
Package contents
• If any of the items is damaged or missing, contact ASUS for
technical inquiries and support. Refer to the ASUS Support
Hotline list at the back of this user manual.
• Keep the original packaging material in case you would need
future warranty services such as repair or replacement.
ADSL/VDSL WiFi modem router
Network cable
AC adapter
Phone cable
Quick Start Guide
Warranty card
Support CD (User Manual/utilities)
Splitter (varies with regions)

6
Your ADSL/VDSL router
Front features
USB 2.0 LED
Off: No power or no physical connection with a USB device.
On: Has physical connection with a USB device.
LAN LED
Off: No power or no physical connection
On: Has physical connection to an Ethernet network
Flashing: Transmitting or receiving data (through Ethernet cable)
5GHz LED
Off: No 5GHz signal.
On: Wireless system is ready.
Flashing: Transmitting or receiving data via wireless connection.
2.4GHz LED
Off: No 2.4GHz signal.
On: Wireless system is ready.
Flashing: Transmitting or receiving data via wireless connection.

7
• Use only the power adapter that came with your package.
Using other adapters may damage the device.
• Specifications:
DC Power adapter DC Output: +19V with max 3.42A current;
Operating
Temperature
0~40oC Storage 0~70oC
Operating Humidity 50~90% Storage 20~90%
WAN LED
Off: No power or no physical connection.
On: Has physical connection to a wide area network (WAN).
ADSL/VDSL LED
Off: No ADSL/VDSL link or unable to establish ADSL/VDSL link.
Flashing: ADSL/VDSL is attempting to connect to a DSLAM.
Power LED
Off: No power.
On: Device is ready.
Flashing slowly: Rescue mode
Flashing quickly: WPS in progress.
Wi-Fi switch
Switch to turn the WiFi feature on/off.
WPS button
This button launches a WPS session.

8
Ethernet WAN DSL WAN
Reset button
This button resets or restores the system to its factory default settings.
USB 2.0 ports
Insert USB 2.0 devices such as USB hard disks or USB flash drives into these
ports.
Insert your iPad’s USB cable into one of these ports to charge your iPad.
Ethernet WAN port
Connect to your network via an Ethernet cable.
LAN 1 ~ 4 ports
Connect network cables into these ports to establish LAN connection.
DSL WAN (ADSL/VDSL) port
Connect to a splitter or to a telephone outlet via an RJ-11 cable.
Power (DC-In) port
Insert the bundled AC adapter into this port and connect your router to a
power source.
Rear features

9
2 Creating your network
DSL-N66U
N900 Dual Band Wi-FiADSL/VDSL M odem Router
Positioning your router
To get the best wireless network performance from your wireless
router, follow the recommendations below:
• Place the wireless router at the center of your network for
maximum wireless coverage.
• Keep the device away from metal obstructions and away from
direct sunlight.
• Keep the device away from 802.11g or 20MHz only Wi-Fi
devices, 2.4GHz computer peripherals, Bluetooth devices,
cordless phones, transformers, heavy-duty motors, fluorescent
lights, microwave ovens, refrigerators, and other industrial
equipment to prevent signal interference or loss.

10
What you need
To set up your network, you need one or two computers that meet
the following system requirements:
• Ethernet RJ-45 (LAN) port (10Base-T/100Base-TX/1000Base-T)
• IEEE 802.11b/g/n wireless capability
• An installed TCP/IP service
• Web browser such as Microsoft Internet Explorer, Mozilla
Firefox, Apple Safari, or Google Chrome
• If your computer does not have built-in wireless capabilities,
install an IEEE 802.11b/g/n WLAN adapter to your computer
to connect to the network.
• With its dual band technology, your ADSL/VDSL router
supports 2.4GHz and 5GHz wireless signals simultaneously.
This allows you to browse the Internet or access e-mail
messages using the 2.4GHz band while streaming high-
definition audio/video files such as movies or music using the
5GHz band.
• If you are using only one computer with a single band IEEE
802.11b/g/n WLAN adapter, you will only be able to use the
2.4GHz band.
• If you are using only one computer with a dual band IEEE
802.11a/b/g/n WLAN adapter, you will be able to use the
2.4GHz or 5GHz band.
• If you are using two computers with both IEEE 802.11a/b/g/n
WLAN adapters, you will be able to use both 2.4GHz and 5GHz
bands simultaneously.
• The Ethernet RJ-45 cables used to connect the network
devices should not exceed 100 meters.

11
Connecting your devices
Wired connection
To set up your ADSL/VDSL router using a wired connection:
1. Insert the splitter’s line connector to the phone outlet and
connect your phone into the phone port.
2. Using the bundled phone cable, connect your DSL-N66U’s
ADSL/VDSL port to the splitter’s DSL port.
3. Using the bundled network cable, connect your computer to
the ADSL/VDSL router’s LAN port.
Ethernet WAN DSL WAN
Network cable
Wall power outlet
Wall telephone
outlet
• Use a wired connection when setting up your wireless router
to avoid possible wireless setup issues.
• Before setting up your ASUS wireless router, do the following:
• If you are replacing an existing router, disconnect it from
your network.
• Disconnect the cables/wires from your existing modem. If
your modem has a backup battery, remove it as well.
• Reboot your computer (recommended).

12
Before you proceed
Before configuring your wireless router, apply the steps
described in this section to each computer on the network to
avoid problems connecting to the wireless network.
A. Disable any configured proxy servers.
Windows®7
1. Click Start > Internet
Explorer.
2. Click Tools >
Internet options >
Connections tab >
LAN settings.

13
3. From the Local Area
Network (LAN) Settings
window, uncheck Use a
proxy server for your LAN.
4. Click OK then Apply.
MAC OSX
1. From your Apple
Safari browser, click
Safari > Preferences
> Advanced. On the
Proxies item, click
Change Settings...
2. From the Network
screen, uncheck FTP
Proxy and Web Proxy
(HTTP).
3. Click OK then Apply.

14
B. Configure TCP/IP settings to automatically obtain
an IP address.
Windows®7
1. Click Start > Control Panel
> Network and Internet
> Network and Sharing
Center > Change adapter
settings.
2. On the Network Connections
window, click on Local Area
Connection.
3. On the Local Area Connection
Network Status window, click
Properties.
4. Select Internet Protocol
Version 4 (TCP/IPv4) or
Internet Protocol Version
6 (TCP/IPv6), then click
Properties.

15
6. Tick Obtain an IP address
automatically.
7. Click OK.
MAC OSX
1. Click Apple Menu
>System Preferences >
Network
2. Click Ethernet on the
left panel.
3. On the Configure IPv4,
item select Using
DHCP.
4. Cllick Apply.

16
1. Ensure that the DSL LED on the DSL-N66U front panel is on and
not flashing.
2. Launch your web browser.The QIS web page appears
automatically and starts detecting your connection type,
VPI/VCI value and encapsulation mode.
If the QIS web page does not appear after you launched your
web browser, disable the proxy settings on your web browser.
Setting up your ADSL/VDSL router

17
3 Network conguration using
the web GUI
Logging in to the web GUI
Your ASUS Wireless Router uses a web-based user interface that
allows you to configure the router using any web browser such as
Internet Explorer, Mozilla Firefox, Apple Safari, or Google Chrome.
To log in to the web GUI:
1. Launch your web browser and manually key in the wireless
router’s default IP address: 192.168.1.1
2. On the login page, key in the default user name (admin) and
password (admin).

18
3. The wireless router GUI provides access to various
configuration settings.

19
Setting up the wireless security settings
To protect your wireless network from unauthorized access, you
need to configure its security settings.
To set up the wireless security settings:
1. Key in 192.168.1.1 on your web browser.
2. On the login screen, key in the default user name (admin) and
password (admin), then click OK.The wireless router’s web GUI
launches.
3. On the Network Map screen, select the System status icon to
display the wireless security settings such as SSID, security level,
and encryption settings.
You can set up different wireless security settings for 2.4GHz
and 5GHz bands.
2.4GHz security settings

20
5GHz security settings
4. On the Wireless name (SSID) field, key in a unique name for
your wireless network.
5. From the Security Level dropdown list, select the encryption
method for your wireless network.
The IEEE 802.11n/ac standard prohibits using High Throughput
with WEP or WPA-TKIP as the unicast cipher. If you use these
encryption methods, your data rate will drop to IEEE 802.11g
54Mbps connection.
6. Key in your security passkey.
7. Click Apply when done.
