AT&T 9351 User manual

900 MHz Cordless Telephone/
Answering System 9351
Please also read
Part 1 — Important
Product Information
USER’S MANUAL
Part 2
DELETE
AT&T and the globe symbol are registered trademarks ofAT&T Corp.licensed toAdvancedAmericanTelephones.
REVISED
1/1/01
9351_book_2ATT 1/1/01 3:33 PM Page ii

© 2000AdvancedAmericanTelephones. All rights reserved.
Printed in China. 850004375 Issue 2AT&T 12/00
9351_book_2ATT 1/1/01 3:33 PM Page iii

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . 2
BeforeYou Install.......................... 2
Table/Desk Installation ................. 4
Wall Installation ............................ 5
TELEPHONE OPERATION . . . . . . . . . . . . . 7
Make orAnswer a Call.................. 7
End a Call...................................... 7
Change Channel............................ 7
Redial ............................................ 7
HandsetVolume............................ 7
Flash/CallWaiting.......................... 7
Page/Handset Locator................... 8
TemporaryTone Dialing................ 9
Handset Ringer Style..................... 9
Ringer Off ..................................... 9
Headset Jack................................ 10
Operating Range......................... 10
TELEPHONE MEMORY . . . . . . . . . . . . . . . 11
Store Memory Numbers.............. 11
Store a Pause in a
Memory Number..................... 11
Change/Replace a Stored
Memory Number..................... 11
Dial Memory Numbers ............... 11
Directory Label........................... 11
ANSWERING SYSTEM OPERATION
At the Base ................................ 12
Audible Indicators....................... 12
About Mailboxes......................... 12
AboutAnnouncements ............... 12
RecordYour Announcement....... 13
Answering System Feature Setup. 14
Feature Summary........................ 14
ListenTo,Save
& Delete Messages................... 15
Call Screening/Intercept............. 16
Record a Memo........................... 16
MessageWindow Display............ 16
ANSWERING SYSTEM OPERATION
At Touch Tone Phone.................. 17
Connect with the
Answering System ................... 17
Voice Menu................................. 17
RemoteAccess Commands......... 18
BATTERIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Charging the Handset
Battery Pack............................. 19
Replacing the Handset
Battery Pack............................. 20
Spare Battery Charger................. 21
IN CASE OF DIFFICULTY . . . . . . . . . . . . . . 22
CONTENTS
1
9351_book_2ATT 1/1/01 3:33 PM Page 1

Before You Install
1Choose a location for the base near an electrical outlet and a
telephone jack.
This phone requires a modular telephone jack and a standard electrical
outlet (110vAC) not controlled by a wall switch.

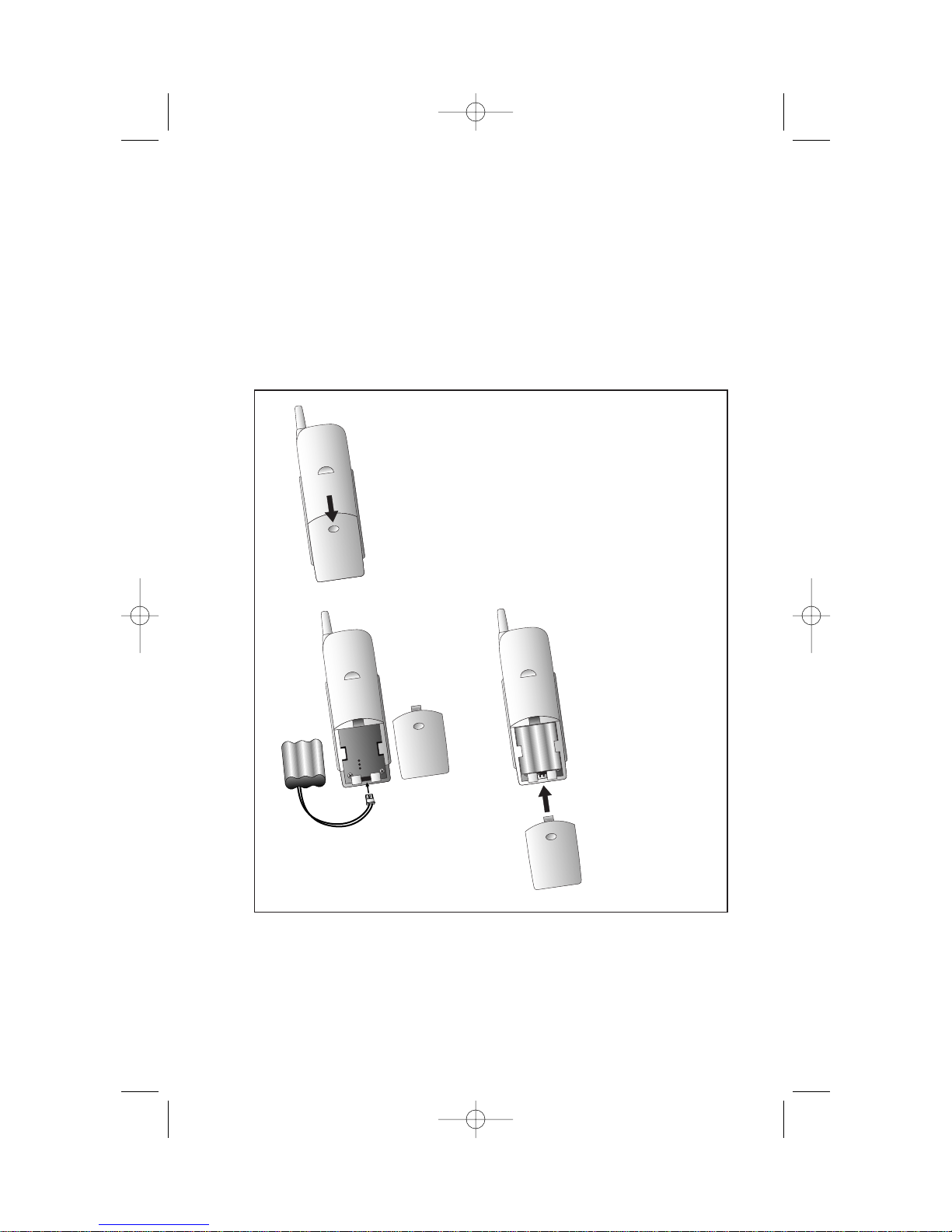

2Install the handset battery.
b) Plug battery pack
connector into
handset.
d) Replace
cover by
sliding it up
into place.
a) Remove battery
compartment
cover by pressing
on the
indentation
and sliding
downward.
c) Place battery pack
in compartment
with the wires in
the lower left
corner,along the
bottom of the
battery pack.
2
INSTALLATION
9351_book_2ATT 1/1/01 3:33 PM Page 2

INSTALLATION
3
3Attach the belt clip to the cordless handset (optional).
To attach To remove
9351_book_2ATT 1/1/01 3:33 PM Page 3

INSTALLATION
4
Use only the power cord supplied with this product. If you need a
replacement,call 1 800 222-3111.
3 Charge the handset battery.
Place the handset in the base. Charge the battery for at least 24 hours
the first time. After the first charge,the battery is typically fully
charged overnight.
4Check for dial tone.
After the batteries are charged,pick up the handset and press P;
you should hear a dial tone.
5Set the dial mode.
If you have touch tone service,the phone is ready to use as soon as the
batteries are charged.
If you have dial pulse (rotary) service,you’ll need to change the dial mode.
When the phone is off,press P,*,#,Pto set the dial mode to
dial pulse. To return to touch tone dialing,press P,*,*,P.
Standard
electrical outlet Modular telephone
jack
Table/Desk Installation
1Connect the
telephone
line cord.
2 Connect the power cord. The
ANSWER ON/OFF light goes on,and CL
flashes in the MessageWindow.
9351_book_2ATT 1/1/01 3:33 PM Page 4

INSTALLATION
5
Wall Installation
1Position the wall mount adapter on the base.
2 Connect the telephone line cord.
3 Connect the power cord.
TheANSWER ON/OFF light goes on,and CL flashes in the
MessageWindow.
Use only the power cord supplied with this product. If you
need a replacement,call 1 800 222-3111.
Align tabs on wall
mount adapter with
holes on bottom of
base. Snap wall
mount adapter firmly
into place.
9351_book_2ATT 1/1/01 3:33 PM Page 5

INSTALLATION
6
4Mount the base on the wall.
5 Follow Steps 3–5 in “Table/Desk Installation.”
a) Align holes on base
with mounting studs
on wall jack.
b) Place power
cord as shown,
so it hangs
straight down
between base
and wall.
c) Pull base down
on mounting
studs until it
locks into place.
9351_book_2ATT 1/1/01 3:33 PM Page 6

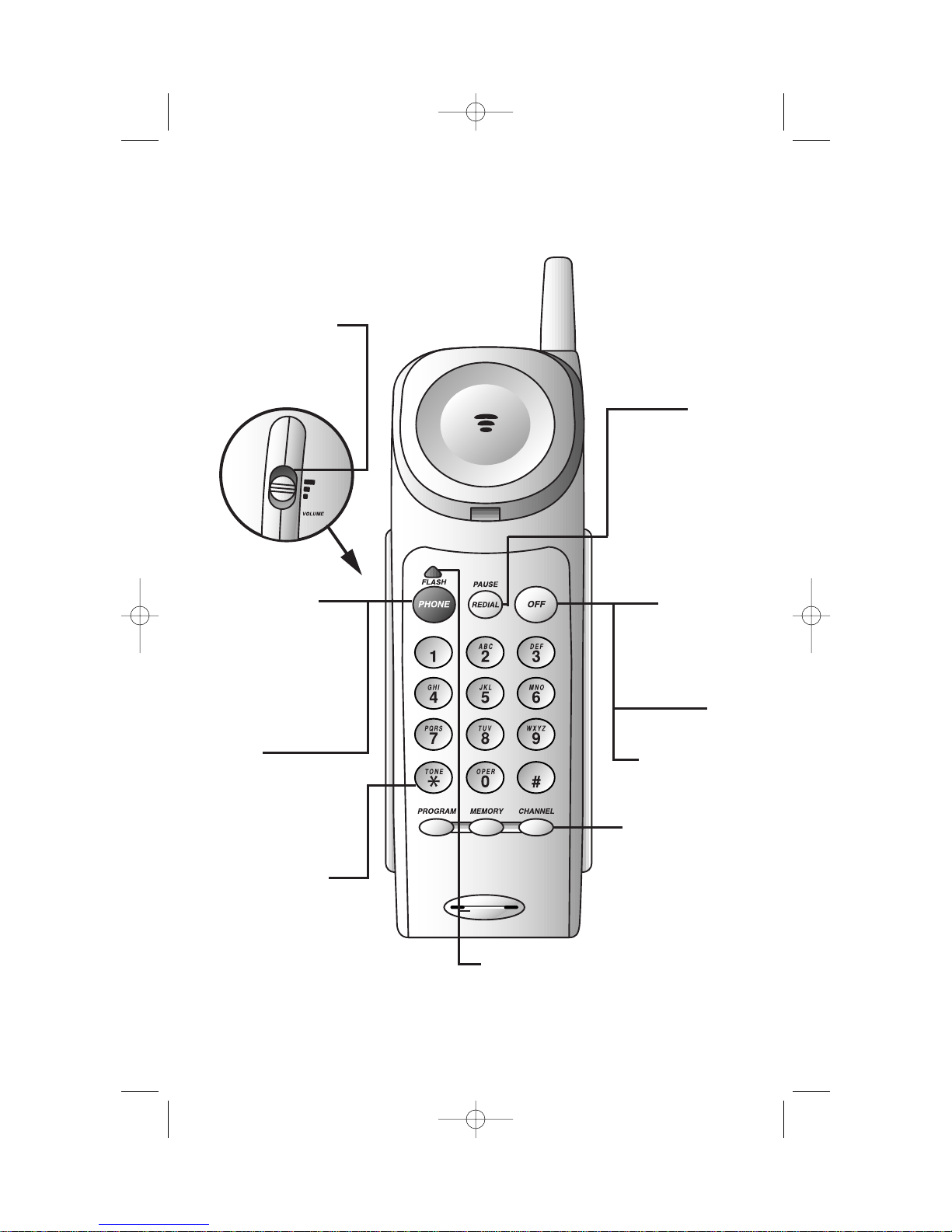

TELEPHONE OPERATION
7
End a Call
Place handset
in base
— OR —
Press O.
Exit
programming.
Cancel a page.
Handset Volume
Adjust volume of
what you hear
through the handset.
Make or
Answer a Call
Lift handset
from base
— OR —
Press Pand
wait for light to
go on steadily.
Flash/
Call Waiting
Access special
telephone company
subscriber services. Change Channel
Switch to a
clearer channel.
Redial
Follow the
instructions under
“Make orAnswer
a Call,”then press
Rto call the
last number dialed
(up to 24 digits).
On steadily: Blinking:
Handset in use Programming mode
Flashing: Flashing slowly:
Line ringing Battery low
Temporary Tone
9351_book_2ATT 1/1/01 3:33 PM Page 7

TELEPHONE OPERATION
8

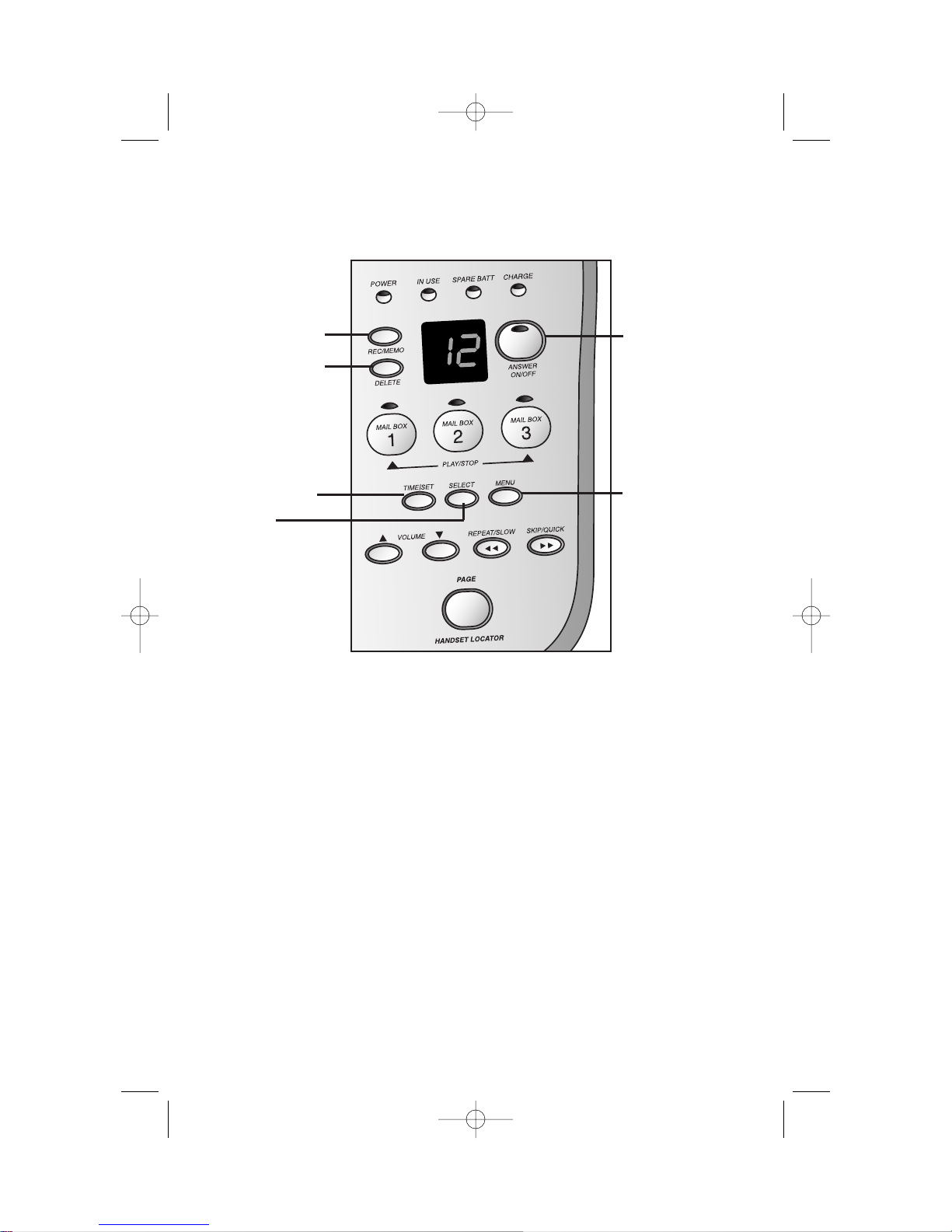

Page/Handset Locator
Press once to page the handset for up
to one minute;press twice to cancel.
Indicates
handset
is in base
Indicates
spare battery
is installed
Indicates base
is connected to
AC power
Flashes when a call is coming
in; on steadily when any
phone on this line is in use
Spare battery
compartment
9351_book_2ATT 1/1/01 3:33 PM Page 8
