ATC Pacific RFTR780 User manual

Models:
RFTR780
RFTR920
RFTRC920
RFTRC1320
Pacic
Towel rail
Manual towel rail ATC_v01 · E1400302 · 20210322
NOTE
A qualied electrician must carry out the electrical installation of this towel rail. The electrical
installation must comply with current UK regulations. Any claim on the warranty could be invalid
if these requirements have not been met.

CONTENT
IMPORTANT INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
CONTROL OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ELECTRICAL POWER SUPPLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
INSTALLATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Location of the towel rail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Manual Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Set program temperatures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Setting the time and date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Entering a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Boost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Display settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Programming with APP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Keypad Locking (Anti-Tamper) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Advanced settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Runback mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Activating runback mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Setback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Max temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Default Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
ECODESIGN TABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
MAINTENANCE AND CARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
GUARANTEE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
CORRECT DISPOSAL OF THIS PRODUCT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

IMPORTANT INFORMATION
• Caution: parts of this product may become very hot and cause burns. You have to lend
special attention in the presence of children and vulnerable people.
• Children under 3 years of age should be kept away from this appliance unless they are
under continuous supervision.
• Children aged between 3 and 8 years old must only switch the appliance ON or OFF,
provided that the appliance has been placed or installed in a normal position and that
these children have or have been instructed to use the device safely and understand the
potential hazards.
• Children between 3 and 8 years old should not plug in, adjust, clean, or carry out user
maintenance.
• This device can be used by children at least 8 years of age and
by persons with reduced physical, sensory or mental abilities or
no experience or knowledge, if they are properly supervised or
if instructions for the safe use of the device have been given to them and the risks
involved have been addressed.
• Children should not play with the device.
• Cleaning and user maintenance should not be performed by unattended children.
• To avoid danger to very young children, it is recommended to install this towel heater so
that the lowest heating bar is at least 600 mm above the oor.
• This appliance must only be connected according to the rules and standards in
application, by an authorized person.
• If the power cable is damaged, it must be replaced by the manufacturer, its after-sales
service or similarly qualied persons in order to avoid a hazard.
• All work on the electrical parts must be carried out by a qualied professional.
• At the rst heating, a slight door may appear corresponding to the evacuation of any
traces related to the manufacture of the device.
• A power management system or power failure is not compatible with our devices. It
damages the thermostats.
• For safety reasons, it is strictly forbidden to rell the towel rails. If necessary, contact the
manufacturer’s after-sales service or a qualied professional.
• To ensure proper operation and avoid overheating, the electronic controller must not be
covered by a towel or a bathrobe.
• Before servicing the towel rail, turn it o󰀨 and let it cool down. Never use abrasives and
solvents.
• The towel rail is lled with a heat transfer uid dangerous to health if swallowed. In the
event of a leak, contact your installer and take any precautionary measures to prevent
any ingestion of uid by users, especially young children and vulnerable persons.
3

MODEL Power
(W) Color Shape Dimensions (mm) HxWxD
Net Weight
(kg) Nº tubes
RFTR780W 300 White Straight 860 x 500 x 120 9 14
RFTR920W 450 White Straight 1000 x 500 x 120 11 18
RFTRC920W 450 White Curved 1020 x 500 x 90 11 18
RFTRC1320W 750 White Curved 1400 x 500 x 90 15 25
TECHNICAL DATA
GENERAL INFORMATION
Pacic towel rail is manufactured in steel, with a white or chrome nish. It is simple to t and maintenance-
free.
Fast to heat up and fully programmable either directly into the towel rail or by using the optional remote
control.
• Designed and fabricated in accordance with EN 60335-1, EN 60335-2- 43 and EN 55014 (regulations
for domestic appliances)
• Standard colour White (RAL 9010)
• Class II and IP44 Rated
• 220-240V A.C.
• Wall mounted
• Forced function button (BOOST): operation for a specied time
• Large TFT display.
• CR2032 lithium battery for watch maintenance.
CONTROL OPTIONS
The towel rail is designed to be used in conjunction with the system and App,
providing total control of your heating system from anywhere in the world via the internet.
The App is available for both Android and iOS devices and o󰀨ers the ultimate in control and
energy monitoring.
Search for “Tevolve” on the either the Google Play Store or the Apple App Store.
Scan this QR code to access to the download.
It is also possible to programme each towel rail individually without the App by using the built in controls and
screen. This may be convenient for single heaters however we recommend the Tevolve Gateway to control
multiple heaters.
ELECTRICAL POWER SUPPLY
A qualied electrician must carry out the electrical installation of this towel rail. The electrical installation
must comply with current regulations. Any claim on the warranty could be invalid if these requirements have
not been met.
The towel rail requires a 220-240V, 50Hz power supply.
Connecting wires:
Brown: Live
Blue (or grey): Neutral
NOTE: The towel rail does not require an earth wire.
The connecting wires must be of the appropriate section, in regards to the length of cable, type of cable and
power rating of the apparatus.
The apparatus must be connected into a connecting box. According to regulations, the apparatus must be
connected to the power supply by means of an all-pole circuit breaker with a contact gap of at least 3mm or
by a thermal-magnetic circuit breaker.
4

ATTENTION!
PLACE ALWAYS IN THE CORRECT POSITION
INSTALLATION INSTRUCTIONS
LOCATION OF THE TOWEL RAIL
It is essential to mount the towel rail with the control box on the lower right hand side.
To avoid risks this appliance must be installed with the lowest heated rail at least 600mm above the oor.
In bathrooms, the towel rail must never be installed in such a way that the switches and other control
devices can be touched by a person in the bathtub or shower.
This product is rated as IP44 and can be located in zone 2, the area stretching 60cm outside the perimeter
of the bath and to a height of 2.25m from the oor. If you are in doubt please contact a qualied electrician
for advice.
The towel rail under no circumstances, should be installed below an electric power point.
ZONE
0
ZONE
1ZONE
2
ZONE
2
ZONE
2
60cm
60cm
60cm
225cm
5

COMPONENTS
The components for fastening the towel rail to a wall are supplied in a bag together with the appliance.
There are four support assemblies, each consisting of the following components:
(A) 1 plastic tube Ø28 x 65mm + screw M5
(B) 1 plastic tube Ø20 x 55mm with threaded inserts
(C) 1 screw M6
(D) 1 plastic retainer (conic 15º)
(E) 1 plastic cap
(F) 1 screw Ø3 x 10mm
(G) 1 screw Ø6 x 50mm
(H) 1 nylon stopper Ø10mm
MOUNTING
The towel rail is xed to the wall by four support assemblies. Two support assemblies should be positioned
between the 2nd and 3rd horizontal tubes from the top and two between the 2nd and 3rd horizontal tubes from
the bottom.
STEP 1
First, the 4 supports are placed on the towel rail, take a piece (B), x the piece (D) with the screw (C) and
insert it between two tubes from the front, taking care that the conical part of parts (B) and (D) faces inside
the appliance. Repeat this in all four support positions.
STEP 2
Once the brackets are attached to the appliance, check their position and mark the 4 support points on the
wall. Drill the holes in the wall and insert the plug (H).
STEP 3
We take part (A), insert the screw (G) and x it on the wall plug.
Insert part (B) into part (A) and t the screws (F), do not tighten them.
STEP 4
Once all the supports are in place, place the covers (E) on the piece (D).
Check that the towel rail is in a perfectly vertical position and tighten the screws (F).
6
A
G
BH
F
C
DE

OPERATING INSTRUCTIONS
The control is based on six buttons and a TFT display.
Current time
Current mode
(AUTO, MANUAL, OFF)
Set point temperature
Day of the week Radio paired icon
Notication area
Heating
indicator
Boost ON/OFF Decrease Increase Mode/OK
AUTO / MANUAL
/ OFF
BOOST/
CONFIG
(long press)
Towel rail controls
Note: The 4 symbols on the side of the screen
will change depending on the menu that the
user is accessing.
The rst press of any button will wake up the towel rail any further
button presses will activate the function required.
Switching ON:
Once the towel rail has been mounted on
the wall and correctly connected to the mains
electricity power supply, press the main On/O󰀨
button on the left side of the towel rail control.
The screen will show various information and
the towel rail is ready to operate.
Switching OFF:
To switch o󰀨 the towel rail, press the On/O󰀨
button on the left side of the towel rail control
until the symbol appears as shown in the
following screen:
When the towel rail is in OFF mode, it will keep
the programs and will continue to communicate
with the gateway (if connected) but will not heat.
To turn the towel rail back on, press the On/
O󰀨 button again, it will return to the last selected
mode (MANUAL or AUTO).
Operating modes:
To access the di󰀨erent modes, press the MODE
button: AUTO mode ( ) or manual mode (
). You will see the following screens:
In the operating modes, the indicated area can
display a message indicating the status of the
towel rail. See the following screens:
7
Wednesday
11:00
21.5°C
Wed. 11:00
Set point:
COMFORT
Wed. 11:00h
21.5°C
Set point:
Wed. 11:00h
21.5°C
Set point: error messages
err03
EASY MODE
EASY
Low Surface
Temperature
MODE
LST 75%
open window
self adaptive
AWAY status for
geofencing
MODE / OK CONFIG
Wed. 11:00h
21.5°C
Set point:
COMFORT

MANUAL PROGRAMMING
To assist with programming the TFT screen is
backlit and will stay illuminated for approximately
10 seconds after the last button is pressed. (To
change the backlight time, see the section on
DISPLAY)
When the towel rail is operational and the room
temperature is lower than the set temperature the
heating symbol will be shown indicating that
the towel rail is producing heat.
The following screens show OFF, AUTO and
MANUAL modes. To change between the di󰀨erent
modes press OK/Mode button and to turn it o󰀨 the
OFF button. .
When the towel rail is in AUTO mode the
temperature can be adjusted by pressing the +/-
buttons. This change will remain active until either
the next programme change or until midnight when
the temperature will revert to the preset value.
When the temperature has been adjusted in
AUTO mode a hand will show beside the auto to
symbol to show the amended set-point.
To return to AUTO mode press the OK/Mode
button.
NOTE: To rapidly change the temperature set-
point in any mode press and hold the +/- keys.
SET PROGRAM TEMPERATURES
To amend the temperature set points used in
the program mode, press and hold the CONFIG
button until the following screen appears:
Select either Comfort, Eco or Anti-Frost and
press OK to enter the menu.
Press the +/- button to change the temperature
of each mode then press OK to conrm and return
to the main operation screen, repeat the above to
set the other program temperature set-points.
SETTING THE TIME AND DATE
If a towel rail is paired with a Gateway then the
local time from the internet is automatically applied
to the towel rail.
To set the Clock on an unpaired Towel rail, press
and hold the CONFIG button until the CONFIG
menu is shown and then select SETTINGS, press
OK and then select TIME Settings and press OK
again .
In the TIME menu the Time, Date and Daylight
Savings (DST) can be set.
8
Wednesday
11:00
21.5°C
Wed. 11:00
Set point:
COMFORT
Wed. 11:00h
21.5°C
Set point:
COMFORT
21.0°C
Set point:
OK
ECO
18.0°C
Set point:
OK
ANTI-FROST
7.0°C
Set point:
OK
21.5°C
Wed. 11:00
Set point:
COMFORT
CONFIG
COMFORT
ECO
ANTI-FROST
PROGRAM
SETTINGS
COMFORT
TIME
DATE
DST
TIME SETTINGS
CONFIG
COMFORT
ECO
ANTI-FROST
PROGRAM
SETTINGS
COMFORT TIME
Settings
DISPLAY
Settings
ADVANCED
Settings
SETTINGS

Select TIME and press OK.
The current set time is shown on the display, to
change time move the underline to the hours and
press OK.
The hours will ash, use the +/- keys to adjust
to the correct value and press OK, move to the
minutes and repeat to set the correct time. Once
complete press the CONFIG button to exit.
To set the Date select the Date menu, press OK
and enter the Day, Month and Year.
To exit the Date menu, press the CONFIG
button.
The Towel rail can automatically adjust the time
o󰀨set for Daylight savings. To set this option on or
o󰀨 choose ON or OFF in the DST menu.
ENTERING A PROGRAM
The AUTO mode of the towel rail allows you to
run a program designed to accommodate your
lifestyle. To enter a new program into the Heater
press and hold the CONFIG button until the
CONFIG menu appears, then use the +/- buttons
to select PROGRAM and press OK.
To enter a program into the towel rail rst select
the day of the week in the upper left corner of the
programming screen and press OK, change the
day to the day you want to program and press OK.
Once the correct day
is selected, select “add
period” and press OK. The
underline will change to a
box around the times that
can be changed. Press OK
and the ON time will begin to ash.
Change the ON time to
the starting time the towel
rail should heat (7:00 in our
example), press OK and
the OFF time starts to ash.
Change the OFF time to the
end of the heating period required (e.g:12:00).
Once the times have
been entered, chose the
temperature set point
required for the heating
period; either Comfort or
Economy .
Any time periods outside of Comfort or Economy
are automatically set to Anti-Frost .
Once the set point is chosen choose either “OK”
to save the setting or “x” to delete.
Extra heating times can be added by selecting
“add period” and repeating the above procedure.
Once the program for the
day is complete, it can be
copied to other days in the
week by selecting COPY
from the programming
screen.
The copy screen will
appear and the day that is
being copied from will not
be available. (Wednesday in
the example.)
Select the days to copy to and then move the
underline to “OK” on the screen and press the OK
button.
The screen will change back to the program
menu.
To Exit press CONFIG or leave the towel rail
and the display will revert to the current running
mode.
9
22:00
TIME SETTINGS
TIME
TIME
DATE
DST
TIME SETTINGS
Day
Month
Year
01
01
2019
TIME SETTINGS
DATE
DST
OFF
ON
TIME SETTINGS
Wednesday
add period
COPY
ON OFF mode
PROGRAM
00:00 23:59
Wednesday COPY
07:00 12:00 x
17:00 20:00 x
ON OFF mode
PROGRAM
add period
Wednesday COPY
07:00 12:00 x
ON OFF mode
PROGRAM
add period
Wednesday COPY
07:00 12:00 x
17:00 20:00 x
ON OFF mode
PROGRAM
add period
Copy Wednesday to:
Mon
PROGRAM
Tu e
Thu
Sat
Wed
Fri
Sun
OK CANCEL
CONFIG
COMFORTCOMFORT
ECO
ANTI-FROST
PROGRAM
SETTINGS
Wednesday
add period
COPY
ON OFF mode
PROGRAM

The rst press of any button will wake up the towel rail any further
button presses will activate the function required.
To make sure your program is running Press
the OK/MODE button until is shown at the
bottom of the screen.
The screen will change between the operation
screen and the next time of operation.
At any time, the temperature can be changed
with the +/- buttons.
BOOST
The towel rail has a Boost mode that allows the
user to temporarily override
the current operating mode.
The Boost button will
immediately turn on the towel
rail for 1 hour at 2ºC warmer
than room temperature.
To adjust the BOOST temperature, use the +/-
buttons.
To adjust the duration, press
the CONFIG button, the
BOOST time setting screen
will be displayed; set the
required time between 1
hour and 24 hours. To return
to the BOOST screen press
the CONFIG button.
You can quickly adjust the duration with the
BOOST button . Each press will increase the
duration of BOOST mode by 1h.
To return to the previous mode and cancel the
Boost mode, press the OK button.
DISPLAY SETTINGS
The DISPLAY menu on the towel rail allows the
user to customise how the towel rail looks whilst
the screen is on and o󰀨, it also allows the button
sound to be controlled.
To open the DISPLAY menu, press and
hold CONFIG until the menu appears, select
SETTINGS and press OK, nally select DISPLAY
and press OK.
To Adjust the brightness of
the screen, select Brightness
level and press OK.
The ON levels are between
1=25%, 2=50%, 3=75% &
4=100%.
The OFF levels are O󰀨,
1=3%, 2=10% and 3=20%.
Chose the level required
and press OK.
To set the time the screen
stays on for after the
last button press, select
Backlight Time from the
DISPLAY menu and chose
how many seconds are
required. The factory default
is 10s.
The towel rail features a
“responsible consumption”
Eco Display mode, this
mode will show a coloured
bar across the bottom of
the screen to encourage the
user to set an economical
temperature.
This feature is turned on
and o󰀨 in the ECO DISPLAY
menu.
To de-activate the beep
when each key is pressed
enter the BEEP menu and
select either On or O󰀨.
10
22.5°C
1h 35m
BOOST
set temp
+
TIME
1h
BOOST
Set time:
OK
21.5°C
Wed. 11:00
Set point:
COMFORT Next Program ON Time
Starts at:Tue. 20:00
Set point:
21.5°C
Wed. 11:00
Brightness Level
1 2 3 4
ON
Level
OFF 1 2 3
OFF
Level
DISPLAY SETTINGS
Backlight Time
5 10 30 always
DISPLAY SETTINGS
Eco Display
OFF
ON
DISPLAY SETTINGS
Beep
OFF
ON
DISPLAY SETTINGS
CONFIG
COMFORT
ECO
ANTI-FROST
PROGRAM
SETTINGS
COMFORT
TIME
Settings
DISPLAY
Settings
ADVANCED
Settings
SETTINGS
Brightness Level
Backlight Time
Eco Display
Beep
DISPLAY SETTINGS

The rst press of any button will wake up the towel rail any further
button presses will activate the function required.

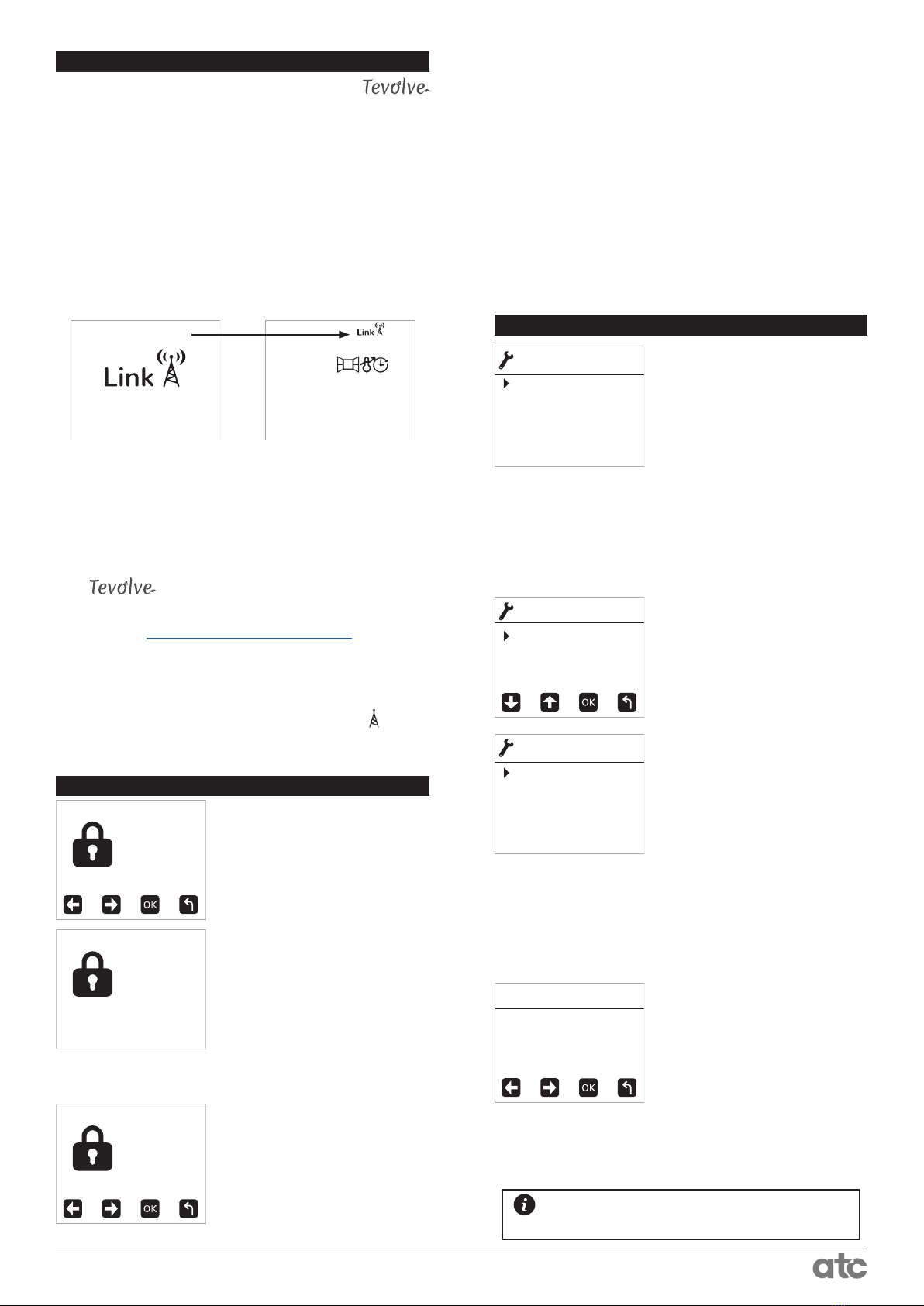

PROGRAMMING WITH APP
To programme a towel rail with a
Gateway the heater must be paired to the
Gateway. In order to complete this operation the
pairing/discovery mode of the Gateway should
be activated. To complete this process, press the
Link button on the Gateway for 2 seconds. (Details
of this procedure can be found in the Tevolve
Gateway instruction manual).
Once this is done, press and hold the OK button
on the for 3 seconds while the towel rail is in one
of the main modes (OFF, AUTO, MANUAL).
Once the pairing process completes the display
will show “Link” with an antenna and then display
the same information in the upper right corner of
the screen.
The towel rail is now ready to accept programme
instructions from the Gateway/App.
A account is required to use the
App, complete the activation process at:
http://tevolve.termoweb.net
If the towel rail has been linked to the Gateway
and for some reason communication is lost, the
Link icon disappears and the antenna starts
ashing in red alternating with Link text.
KEYPAD LOCKING (ANTI-TAMPER)
The keypad can be locked
to prevent any unauthorised
person (children, people
in public places, nurseries,
o󰀩ces, hotels etc.) altering
the settings of the towel rail.
A Password is required
to lock the keypad (0 0 0 0
by default), See Password
Settings Chapter for
further details on changing
passwords.
To Lock the towel rail
Press and hold the + and –
buttons until the lock screen
appears. Enter the password
on the screen and press OK.
The screen will change to show the Lock screen
and any button presses will be ignored and the
locked screen displayed.
To unlock the keypad press and hold the +
and - until the unlock screen appears. Enter the
password and press OK. If the incorrect password
is entered “INVALID CODE” will be displayed.
When the keypad is locked the towel rail will
still receive communications from the Gateway.
ADVANCED SETTINGS
The Advanced settings
menu is password protected
to prevent any inadvertent
changes to the factory
settings.
To access the Advanced
settings, enter the password (default 0 0 0 0).
It is strongly recommended to set a custom
password once installation is complete. (For more
information see the password section).
The units menu allows the
main temperature units of
the towel rail to be chosen
between Celsius (°C) and
Fahrenheit (°F).
The Control Type menu
allows two types of control
of the temperature control
setting. PID will calculate
the best switching point for
the heater depending on
previous room readings.
Hysteresis is the di󰀨erence between the detected
temperature and the set-point required before the
heater will come on. It is not recommended to
change these settings.
The temperature o󰀨set
menu allows the display
temperature to be adjusted
by ± 3°C. Adjusting this set-
point will a󰀨ect the operation
of the thermostat set-points,
changing this setting is only
recommended if the displayed temperature is
noticeably di󰀨erent from another sensor in the
space.
11
PAIRED WITH
GATEWAY
Next Program ON Time
Starts at:Tue. 20:00
Set point:
21.5°C
Wed. 11:00
ENTER CODE
TO LOCK
- - - - OK
LOCKED
ENTER CODE
TO UNLOCK
- - - - OK
Units
Control Type
Temp Offset
Open Window
Self Adaptive
ADVANCED
SETTINGS
Celsius
Fahrenheit
UNITS
PID
Hysteresis .25°C
Hysteresis .35°C
Hysteresis .5°C
Hysteresis .75°C
Control Type
Display temp
22.5°C
Offset +1.1°C
Temp. Offset

The Open window setting
will turn the heating of the
towel rail o󰀨 if the unit detects
a rapid drop in temperature
over a short period of time.
To re-activate the heating
if the open window function
has activated press any
button the towel rail.
If the temperature rises
above the minimum detected
temperature then the heater
will reactivate and turn the open window function
o󰀨 (i.e. the window was closed).
If this function comes on frequently e.g. in an
area where there is an external doorway, it is
recommended to turn the open window function
o󰀨.
The Self Adaptive setting
will allow the towel rail to
calculate the optimum time
to start the heating cycle
when running in Program
mode.
If this setting is turned
on it will be shown in the
Notication area and the
heating will come on before
the programmed starting
time so that the room is at
the correct temperature at
the programmed starting
time.
The Low Surface
Temperature (LST) menu
will allow the output of the
heater to be limited to a
lower setting to prevent
the surface of the heater
becoming too hot.
It is recommended that if
the LST function is activated
then the towel rail should be
locked with a non-standard
password after activation to
prevent the function being
turned o󰀨.
(See Password Section for details on changing
the factory default password)
EASY Mode is a simple
mode of operation where
by only the + and – buttons
on the towel rail operate to
increase or decrease the
temperature. The OK button
is de-activated.
When running in Easy
mode the screen will show
EASY in the notication area
to let the user know that the
mode is active.
To exit EASY mode press
and hold the CONFIG button
for 10 seconds, then select
“o󰀨”.
Runback: See Runback
Section on page 14
Password: See Password
Section on page 14
Resetting the towel rail
will return all settings to the
factory defaults and will also
delete any ‘pairing’ with a
Gateway.
To activate the RESET feature select with arrow
buttons OK, and press the OK button.
The rst press of any button will wake up the towel rail any further
button presses will activate the function required.
12
OFF
ON
Open Window
Wed. 11:00h
21.5°C
Set point:
OFF
ON
Self Adaptive
OFF
ON
EASY mode
OFF (100%)
75%
50%
20%
LowSurfaceTemp
Wed. 11:00h
21.5°C
Set point:
COMFORT
EASY
set temp
21.5°C
Set point:
Wed. 11:00
Status ON
Change
Password
Runback Config
Setback
Max. Temp.
Runback
Confirm
OK CANCEL
RESET
LST 23%
Wed. 11:00h
21.5°C
Set point:

PASSWORD
The Password Function of the towel rail serves
a number of functions; Keylock, Advanced menu
access and also Runback access when the
Runback is activated. The Default password from
the factory is four zero’s (0 0 0 0), however it is
strongly recommended that once installation is
complete that an alternative code is set.
To access the password function enter the
ADVANCED SETTINGS menu (see above) and
then select PASSWORD.
The password can be turned on or o󰀨 and
changed.
To turn the password on or o󰀨, select Status and
press OK.
Select either “ON” or “OFF” and press OK.
If you are reactivating the password then the
Enter New password screen is shown (The
password will always default back to 0 0 0 0).
If the password is turned o󰀨, the Keylock,
Advanced Settings menu and Runback controls
are accessible without entering a password.
To Change the password code when the
password is active select Change from the
password screen and press OK.
Enter and conrm the new password and press
OK.
RUNBACK MODE
The towel rail comes with a Runback mode for
use when the heater will be installed in areas
where restricted user control is required.
When Runback Mode is active it allows the user
to set the towel rail to run for a specic pre-set
amount of time and temperature. It is also possible
to set a maximum temperature (Max Temp) above
the Runback setting to allow the user to increase
the temperature within the limits allowed.
Before activating Runback mode it is strongly
recommended that an alternative password is set
and activated and the comfort mode temperature
set-point is set to 35°C. When the password is
activated the user will have no access to any
towel rail settings without the password.
NOTE: Any display settings will be used in
RUNBACK mode, eg. Backlight time and intensity,
Eco mode etc. These should be adjusted prior to
setting Runback to Active.
After the Runback time period ends the room
temperature will return to o󰀨 (7°C minimum) until
the Runback is restarted.
It is also possible to set a minimum temperature
to be maintained (Setback) outside of the
Runback mode; when setback mode is activated
the room temperature will only fall as low as the
Setback temp and be maintained at this point until
Runback is restarted.
ACTIVATING RUNBACK MODE
Runback mode is activated
from the Advanced settings
menu.
The main Runback screen
has 3 options:
• Runback Cong
• Setback Cong
• Max Temp
Set Runback to ON to
activate the mode.
13
Runback Config
Setback
Max. Temp.
Runback
Runback Config.
OFF
ON
Settings
Runback
Status ON
Change
Password
Status
ON
OFF
Password
Status ON
Change
Password
CONFIRM NEW
PASSWORD
1 2 3 4 OK
ENTER
PASSWORD
- - - - OK

Note: The Runback settings menu is not
available unless the Runback mode has been
turned on.
The Default time for
Runback to operate is
30 minutes, this can be
increased in ½ hour sections
up to 8 hours (480 mins) by
using the + & - and OK.
0 → 30 → 60 → 90 → 120
→ 150 → 180 → 210 → 240
→ 270 → 300 → 330 → 360
→ 390 → 420 → 450 → 480
→0
The time can be limited to
any of the above values, when the user activates
the Runback timer, they can choose any of the
times up to the maximum set on installation. After
the Runback has expired the next activation
will start at the previous time selected. i.e. If the
previous setting was 60min, the next activation
will start at 60min.
The temperature that
the towel rail runs at when
Runback is activated is
set in the Runback Temp
menu. Use +/- to set the
temperature and press OK.
Please note that the
Runback temperature
cannot be set higher than
the Comfort setting in the
main menu.
SETBACK
The setback mode can be
used to limit the temperature
that the area where the heater
is installed can fall to outside
of the Runback operation.
This temperature can be
set between 7°C (minimum)
and 0.5°C less than the
Runback temperature set-
point.
When Setback is
operational, the screen will
show “Setback” and the set-
point.
MAX TEMPERATURE
The Max Temperature
setting allows the installer
to set a temperature
higher than the Runback
temperature set-point to give
the user some leeway in the
temperature of the room.
Typically this is set 1-2°C
higher than the Runback
setting.
Both the Setback and
Max temp are set with the +/- buttons from their
respective menus.
The graphs below show typical scenarios for
each of the settings.
When Setback and Max temp is OFF, the user
has a choice between the minimum towel rail
temperature of 7°C and the Runback temp setting.
Outside of the Runback period the temperature
will fall as low as 7°C if the towel rail is not re-
activated.
When Runback and Setback are activated then
the user has a limited choice of temperature
between the Setback setting and the Runback
setting.
Time
Runback ON, Setback ON,
Max Temp OFF
Runback
Set point
Temperature
Heating End
Heating Start
Setback Limit
Temperature
Temp Range available to User
Temperature
Time
Runback ON, Setback OFF,
Max Temp OFF
Runback
Set point
Initial room Temperature Heating End
Heating Start
Min radiator
Temp (7ºC)
Temp Range available to User
14
Runback Config
Setback
Max. Temp.
Runback
Max Temp.
25.5°C
Runback
Settings
Max Time
RunBack Temp
Runback
Max Time
30 min
Runback
Temp
22°C min
Runback
30Minutes
Runback
22.5°C
set temp
TIME
Setback Config
OFF
ON
Settings
Runback
Setback Temp.
17°C
Runback
TIME
set temp
17°C
Setback

Runback ON, Setback ON,
Max Temp ON
Temperature
Runback
Set point
Heating End
Time
Temp. increased
By user to Max.
Max Temp.
Set point
Heating Start
Setback Limit
Temperature
Temp Range available to User
TROUBLESHOOTING
If the power of the Lithium
battery drops, in the screen,
a small icon will remind the
user that the battery is at.
When a towel rail has been
paired with a Gateway, the
text “Link” and an antenna
with ashing waves appears
on the top right of the screen.
If the towel rail is paired with an internet
connected Gateway the time and date are always
updated when the towel rail reconnects to the
Gateway.
When the Gateway is not
powered or it is too far away
from towel rail, the Link
text alternates with a red
antenna without waves to
alert the user that the towel
rail cannot communicate
with the Gateway.
If a towel rail is paired with a Gateway, and the
internet connection is lost the heating system is
not accessible from the app.
However the running schedule remains in the
towel rail memory and continues with the last user
setting once the lithium battery is not at.
The Lithium battery (CR2032) life is around 5
years from date of manufacture, this life can be
decreased depending storage conditions.
To change the battery contact your installer or
an electrician.
Outside of the Runback period the temperature
will fall to the Setback temperature if the towel rail
is not re-activated. (Building Fabric Protection)
When all 3 settings are activated then the user
has a choice between Setback as a minimum and
the Max temp setting as a maximum.
The Towel rail will always come on at the
Runback set point.
In the example above the user has activated
Runback and then increased the temperature to
the Max Temp set point after a time.
ERROR CODES
The Towel rail continuously checks to ensure
that it is working correctly all the time, however
in some cases the towel rail may display an Error
code on the screen.
Below you will nd each code and a short
description on the cause of each issue.
OC Disconnected or Open circuit temperature
sensor.
SC Damaged or Short circuit temperature
sensor.
15
21.5°C
Wed. 11:00
Set point:
COMFORT
21.5°C
Wed. 11:00
Set point:
COMFORT
21.5°C
Wed. 11:00
Set point:
COMFORT

DEFAULT VALUES
Default mode: OFF
Type of control: PID
Temperature o󰀨set: 0°C
Open window detection: Disabled
Adaptive Start: Disabled
Programming in one hour intervals,
All programmed hours in anti frost mode
Set point temperatures:
• Anti-freeze 7°C
• Eco 18°C
• Comfort 21°C
• Manual temperature: 21°C
• Boost mode temperature: 21°C
• Boost mode time: 1 hour
Low Surface Temperature: Disabled
Password status: Activated
Password: 0000
Units: °C
Keyboard: Unlocked
Easy mode: Disabled
Runback mode: Disabled
Setback: Disabled
Runback temperatures and defaults:
• Antifreeze: 7°C
• Eco: 18°C
• Comfort: 21°C
• Max. Temperature of Runback: 21°C
• Max time of Runback: 30. Minutes
Screen brightness on: Max (4)
Screen brightness o󰀨: Min (OFF)
Screen time on: Min (5s)
Beep: Disabled
EcoDisplay: Disabled
DST: Disabled
Default date: 01-01-2019 (Tuesday)
16

ECODESIGN TABLE
Models RFTR780W RFTR920W RFTRC920W RFTRC1320W
Heat output
Nominal heat output (Pnom) 0.3 kW 0.45 kW 0.45 kW 0.75 kW
Maximum continuous heat output
(Pmax,c)0.3 kW 0.45 kW 0.45 kW 0.75 kW
Auxiliary electricity consumption
At nominal heat output (elmax) 0.0005 kW 0.0005 kW 0.0005 kW 0.0005 kW
At minimum heat output (elmin) 0.0005 kW 0.0005 kW 0.0005 kW 0.0005 kW
In standby mode (elSB) 0.0005 kW 0.0005 kW 0.0005 kW 0.0005 kW
Type of heat output/room
temperature control: Electronic room temperature control plus week timer
Other control options: Room temperature control, with open window detection
With adaptive start control
With distance control option
ATC Electrical and Mechanical
Head O󰀩ce & Showrooms
ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland.
IRL Tel: [phone]
UK Tel: [phone]
Fax: [phone]
Email: [email protected]
17

NOTES
18

NOTES
19

MAINTENANCE AND CARE
ATC towel rails require very little maintenance.
The surfaces of the towel rail must not be cleaned with an abrasive product or those containing granular
substances.
We recommend regular cleaning with PH neutral products.
In order to clean the towel rail, it is recommended that the electric power is switched o󰀨.
GUARANTEE
Your appliance is guaranteed for 2 years from the date of purchase – during this period we will repair or
exchange, at our discretion, any faulty or defective parts providing the appliance has been used in
accordance with the operating & installation instructions and has not been misused or mistreated in any
way.
Any un-authorised repair or attempted repair will invalidate the guarantee. You may be asked to return
the product to our workshop for inspection to establish whether the fault is covered under the
guarantee. Transportation charges are not covered under the guarantee.
The guarantee is valid in the UK and Ireland only.
This guarantee is additional to your statutory rights.
In the unlikely event of a problem with your appliance please contact your supplier.
CORRECT DISPOSAL OF THIS PRODUCT
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate
collection systems)
This marking shown on the product or its literature, indicates that it should not be
disposed of with other household wastes at the end of its working life.
To prevent possible harm to the environment or human health from uncontrolled waste
disposal, please separate this from other types of wastes and recycle it responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local
government o󰀩ce, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
Head O󰀩ce & Energy Showrooms:
ATC House, Broomhill Drive,
Tallaght, D24 EF99
Ireland.
Tel: [phone]
UK Tel: [phone]
Email: [email protected]
