ATD Tools LED 200 BEAM User manual

Product manual
LED 200 BEAM

1 SECURITY TIPS
WARNING!!! To reduce the risk of fire, electric shock, or
injury to persons, follow these important safety instructions:
non-professionals, not to disassemble the light arbitrarily and
lighting accessories inside.
rated voltage range: AC110V-120V/60Hz or AC200V-240V / 50HZ
(to be selected).
not beam irradiate the flammable materials, flammable materials
and the lamp should be maintained at least 1M over the distance.
lamps used in ambient temperature: -15 ℃-40 ℃, the highest
temperature of the surface of the lamp: 60 ℃.
to keep away from the liquid substance and humid environment.
before using the lights must ensure the good grounding, can not
install charging and remove any parts.
the installation of lamps, must be fixed screw fasteners with
additional security cable and regular inspection.
lamps consecutive working hours is not recommended more than
10 hours.
should stop using the lights in time when happens unusual
conditions during the process
lamp parts of the rotation, external accessories and paste parts
should be regular inspected, such as the emergence of loose and
rock, should be reinforced in a timely manner to prevent the
accident.
lamps adopt strong winds to refrigerate, it is easy to accumulate the
dust, so you have to clean it weekly especially the cooling air
opening, otherwise the dust will plug leading to poor light

2 TECHNOLOGY REFERENCE
Input voltage: AC100-240V, 50/60HZ
Power Consumption: 300W
Light source: 200W white light LED module
Average life of the light source: 20,000 + hours
Color temperature: 7000-8000K
Control mode: master and slave, DMX, manual
DMX Channel:12/15 Channels
Support for the RDM function, and the DMX software upgrade function
Color Wheel:12 colors + white light, with a rainbow effect, can be arbitrarily
positioned
Gobo Wheel: 1 fixed pattern wheel, 14 patterns + white light hole, Shake
the effect of running water
Colorful Wheel: an independent 6 color wheel, can achieve the pattern of
rainbow effect
Prism : 8 / 16 prism, bidirectional rotation
Angle : Pan =540°，Tilt= 270°,with 16bit scan accuracy, Automatic reset
Atomizing mirror: Atomizing diffuser
Beam angle: 2.2°
Strobe: synchronous pulse frequency strobe, random pulse frequency
strobe
Focus: the pattern can be adjusted arbitrarily clear
Appearance: high-strength and temperature-resistant engineering plastic
shell, streamlined appearance design
Menu display: 1.77-inch color LCD display, Both Chinese and English display,
can be inverted display
Protection: efficient heat dissipation system, full temperature monitoring,
automatic protection of over temperature
Ambient temperature: 0°C-45°C
Cooling system: forced air cooling
Protection level: IP20
Dimensions: 12.6”x9.1”x20”in
Weight: 12KG

3 Board Instruction
Address(地
址)
001-512
RUN(运行)
DMX512
Auto1(自走 1)
Auto2(自走 2)
Sound1(声控 1)
Sound2(声控 2)
TEST(测试)
ALL(整灯测试)
Pan&Tilt(X/Y 测试)
SET(设置)
Disp.setting(显示设置)
Display(屏幕保护)
ON/OFF(开/
关)
Filp display(显示翻转)
ON/OFF(开/
关)
Key lock(按键锁设置)
ON/OFF(开/
关)
Disp flash(显示闪烁设置)
ON/OFF(开/
关)
Back light(背光亮度)
1-50
INFO(信息)
Time Info(时间信息)
Total Fix. Hours(总计使用时
间)
XXXX:XX
Partial Fix. Hours(本次使用时
间)
XXXX:XX
Total Lamp Hours(总计亮灯
时间)
XXXX:XX
Partial Lamp Hour(本次亮灯
时间)
XXXX:XX
Software Ver(软件版
本号)
Vx.xx

MANUAL(
手动)
Pan(X 轴)
000-255
Pan Fine(X 轴微调)
000-255
Tilt(Y 轴)
000-255
Tilt Fine(Y 轴微调)
000-255
Speed(速度)
000-255
Dimmer(总调光)
000-255
Strobe(频闪)
000-255
Colour Wheel(颜色盘)
000-255
Gobo Wheel(图案盘)
000-255
Prism1(棱镜 1)
000-255
Prism2(棱镜 2)
000-255
Focus(调焦)
000-255
Reset(复位)
000-255
RESET(复位)
All Reset(整机复位)
No/Yes(否/是)

4 DMX CHANNEL SHEET
16C
H
Function
DMX
Value
Description
1
Pan
0-255
Pan
2
Pan Fine
0-255
Pan Fine
3
Tilt
0-255
Tilt
4
Tilt Fine
0-255
Tilt Fine
5
Speed
0-255
Pan/Tilt speed
6
Dimmer
0-255
Intensity 0 to 100%
7
Shutter/Strob
e
0-31
Led turn off
32-63
Led turn on
64-95
Strobe effect slow to fast
96-127
Led turn on
128-159
Pulse-effect in sequences
160-191
Led turn on
192-223
Random strobe effect slow to fast
224-255
Led turn on
8
Colour Wheel
0-127
Continual positioning
128－129
Open/white
Positioning
130-134
Colour 1
135-139
Colour 2
140-144
Colour 3

145-149
Colour 4
150-154
Colour 5
155-159
Colour 6
160-164
Colour 7
165-169
Colour 8
170-211
Forwards rainbow effect from fast to slow
212-213
No rotation
214-255
Backwards rainbow effect from slow to fast
9
Sta.Gobo
Wheel
0-5
Open/hole
Positioning
6-14
Gobo 1
15-23
Gobo 2
24-32
Gobo 3
33-41
Gobo 4
42-50
Gobo 5
51-59
Gobo 6
60-68
Gobo 7
69-77
Gobo 8
78-86
Gobo 9
Shaking gobos from slow to fast
87-95
Gobo 1
96-104
Gobo 2
105-113
Gobo 3

114-122
Gobo 4
123-131
Gobo 5
132-140
Gobo 6
141-149
Gobo 7
150-158
Gobo 8
159-167
Gobo 9
168-169
Open/hole
170-211
Forwards gobo wheel rotation from fast to
slow
212-213
No rotation
214-255
Backwards gobo wheel rotation from slow
to fast
10
Rot.GoboWhe
el
0-11
Open/hole
Positioning
12-24
Gobo 1
25-37
Gobo 2
38-50
Gobo 3
51-63
Gobo 4
64-76
Gobo 5
77-89
Gobo 6
Shaking gobos from slow to fast
90-102
Gobo 1
103-115
Gobo 2
116-128
Gobo 3

129-141
Gobo 4
142-154
Gobo 5
155-167
Gobo 6
168-169
Open/hole
170-211
Forwards gobo wheel rotation from fast to
slow
212-213
No rotation
214-255
Backwards gobo wheel rotation from slow
to fast
11
Gobo.Rot
Wheel
0－127
Gobo rotation and indexing
128－191
Forwards Gobo rotation from fast to slow
192－193
No rotation
194－255
Backwards Gobo rotation from slow to fast
12
Frost
0－127
Open position(hole)
128－255
Frost
13
Prism1
0－127
Open position(hole)
128－192
Prism1
193－255
Forwards prism1 rotation from slow to
fast
14
Prism2
0－127
Open position(hole)
128－192
Prism2
193－255
Forwards prism2 rotation from slow to
fast
15
Focus
0-255
Continual adjustment from near to near
16
Reset
0-79
No Function

80-84
Total reset
85-88
Pan/Tilt reset
89-255
Reserved

5 FIXED EQUIPMENT
Please keep the equipment far away from the flammable objects like
finishing material, etc. keep at least 0.5m distance from the flammable
objects.
Warning: using two lamp clamps fix the equipment on the bottom of the
lamp holder according to the instruction. to make sure the place of
install the lamp is safe and suitable ,and the installation point that have
chosen is safety and reliable.
The place of installing the lamp must support the 10 times weight of the
lamp itself. And test the pensile place and make sure the place isn’t out
of the shape.
Must install the second protection when fixing the equipment like
proper protective screening. The second protection is used to prevent
drop off and lost of lamp and components.

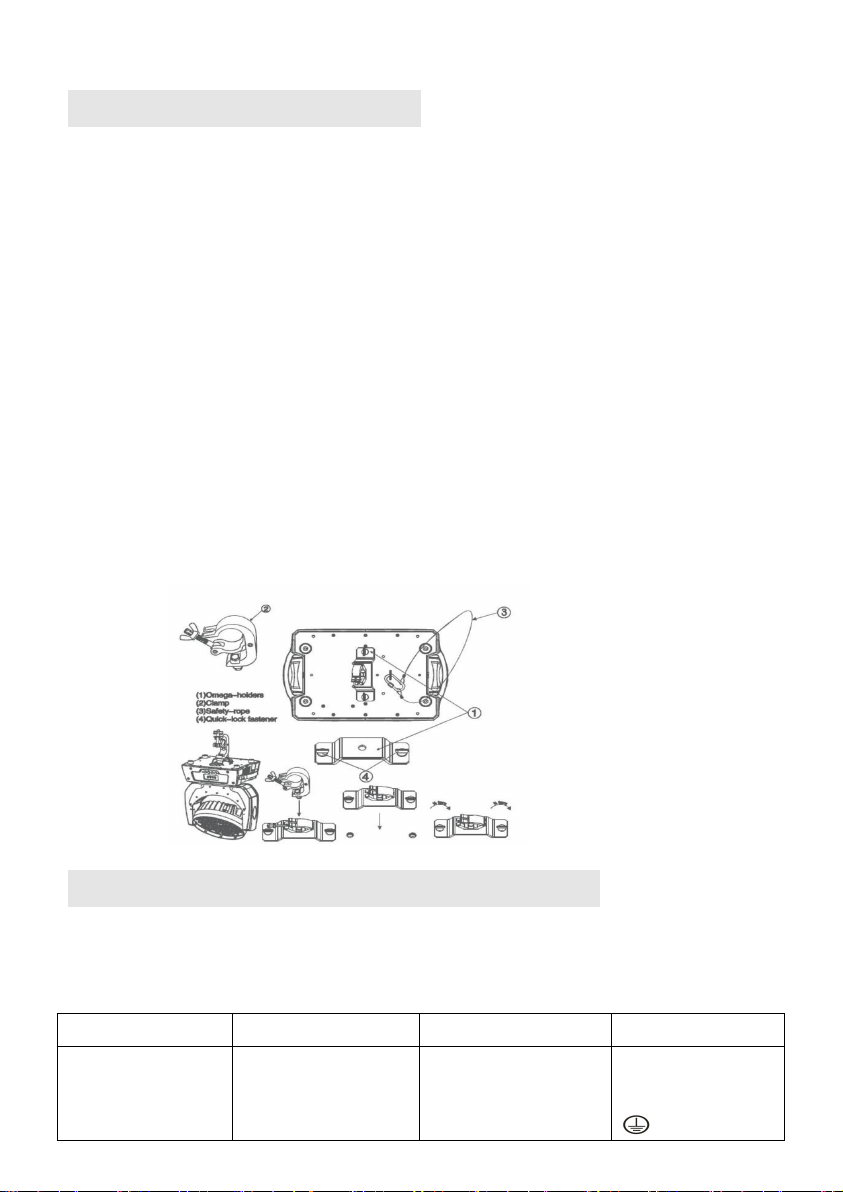

Lamps can directly install the lamp holder , which is shown in the
figure:
6 MAIN MACHINE CONNECTION
Please checking the power equipment supported.
Please put the plug of power source wire connect with the main power
source .
( EU )Wire
Wire(America)
Direction of wire
General marks
Brown
Light blue
Yellow/Green
Black
White
Green
Live
Neutral
Earth
L
N


Warranty Card
Name Model Production Purchase
Description: These must be truthfully fill, seal by the end-user and point-of-sale, or else the
warranty will not work (warranty period and terms, see the following)
warranty period：one year since purchase warranty terms：1、If fail when using the product
in normal state, you can made under the provisions of the warranty, show the warranty card
and purchase bills(copy), and enjoy free maintenance service in a specific service center or
the manufacturer.
2. The following will be the implementation of paid service:
(1)Without the effective warranty card
(2)There’s blank, alter and no point-of-sale name
(3)Fail caused by unresistance
(4)Fail caused by transportation or unloading
(5)Fail caused by not operate by manual
(6)Fail caused by disassemble without unauthorized
(7)Fail caused by using the unauthorized control system
Note:
Based on our company continue to improve the product, the statement
containing data may have changed, and will not notice the change any
more. Company retains its right to change specifications related when
product is improved. Thanks for your understanding.
End User
Company Name:
Add:
Sale Store
Link man:
Tel: Stamp
