Atec N1 User manual

. PORTABLE PRACTICE NET
A - Loop Hole Cap (x2)
B - Top Fiberglass Pole (x2)
C - Bottom Fiberglass Pole (x2)
D - Upright (x2)
E - Leg (x4)
F - Base Pole - Side (x2)
G - Middle Base Pole (x1)
H - Corner Loop (x2)
I - Side Sleeve (x2)
J - Carabiner (x2)
ATEC Customer Service
(p) 1.800.755.5100
(e) [email protected]
When using the N1, always have the net leaning
towards you. The angle of the N1 improves the
stability and ball collection features of the net and
reduces the probability of stray balls.
FRAME
NET
B
A A
HH
CC
DD
E
E
E
FGF
E
B
I
J J
I
Your N1 comes with a 1-year Limited Warranty.
Under normal use and care ATEC guarantees, to the original owner, the N1
to be free from defects in materials and workmanship.
During this period ATEC will repair or replace with new or refurbished
components, at ATEC’s sole discretion, any component found to be
defective without cost to the owner, provided the defective product is
returned to the factory at the owners expense. Proof of purchase may be
required by ATEC to approve certain warranty claims.
1. Connect Legs (E) to the Uprights (D). Two Legs attach to each Upright.
2. Connect the Middle Base Pole (G) to the two Side Base Poles (F).
3. Connect the Base Assembly (F+G+F) to the base of the Uprights (D).
- You should now have the frame base completed.
4. Connect the Top Fiberglass Poles (B) to the Bottom Fiberglass Poles (C).
- Repeat on other set of poles.
5. Slide the connected fiberglass poles (B+C) through the Side Sleeve (I).
- Repeat on other side.
6. Attach Corner Loop (H) to the Loop Hole Cap (A).
- Repeat on other side.
7. Connect the Fiberglass Pole and Corner Loop assembly (B+C+H+A) to
the base. Do this by inserting the bottom of the Bottom Fiberglass Pole (C)
into the top of the Upright (D).
- Repeat on other side. This second side will be tight and require
some pulling of the net to get the net secured.
8. Attach Carabiners (J) to metal loops on the base. Your N1 is now ready.
WARRANTY
ORIENTATION
QUESTIONS?
PARTS

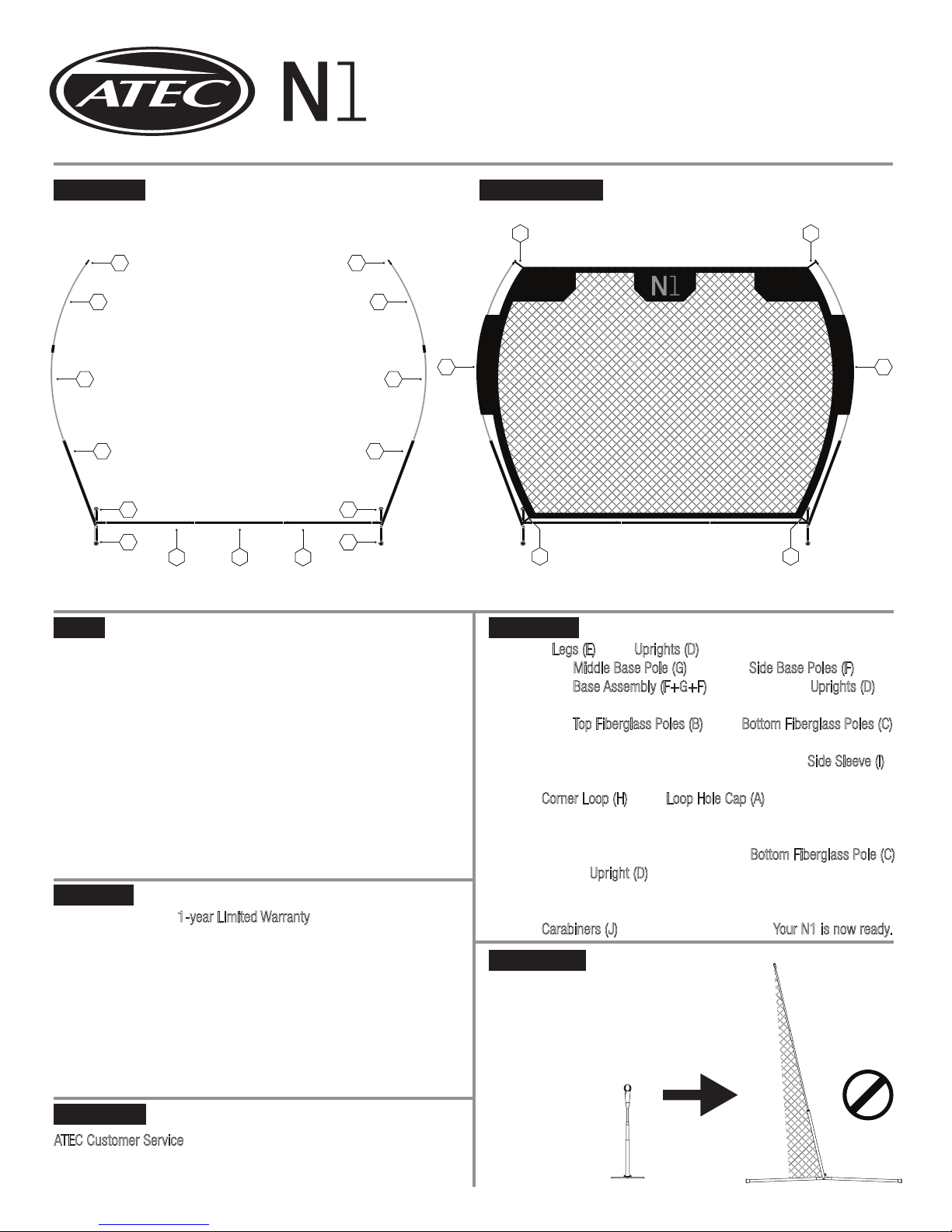

FRAME VIEW ASSEMBLED VIEW
DIRECTIONS
MODEL: WTATN1000

. PORTABLE PRACTICE NET QUICK START
2
1
3
1
7
7
4
5
6
