Datenblatt

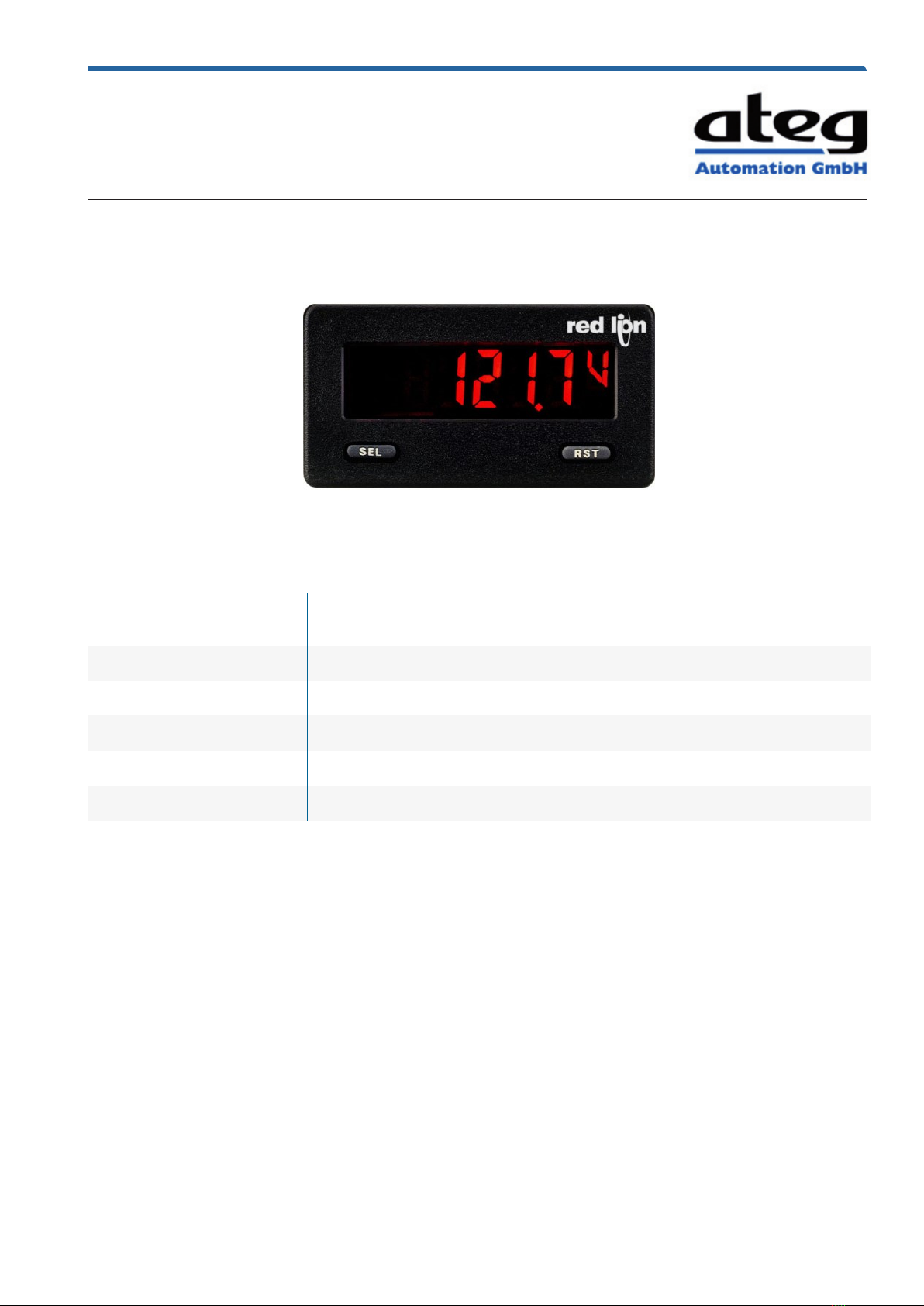

Digitalanzeige CUB5V
CUB5V
CUB5VBezeichnung
75 x 39 x 44 mmAbmessungen
CUB5VR00, CUB5VB00Artikelnummer
12 mmZeichenhöhe
Standard-LCD, optional: rot/grün hinterleuchtetZeichenfarbe
-Geberversorgung
frontseitig über Tastatur oder SoftwareBedienung
optional Relaisausgangskarte, optional TransistorausgangskarteSchaltausgang
-Analogausgang
5Anzahl Zeichen
LCD (hinterleuchtet, dimmbar)Anzeige
GleichspannungEingang
75 x 38 mmFormat
NormsignalArt
0 - 200 V über Jumper einstellbarMessbereich
horizontalAusrichtung
Erstellt am 04.09.2021 um 05:30 Uhr | Alle Angaben ohne Gewähr, Irrtümer und Änderungen vorbehalten! Seite 1 von 14

ATEG Automation GmbH |Intzestraße 50 |42859 Remscheid |Germany |Tel.: [phone] |[email protected] |www.ateg.de
Datenblatt
Digitalanzeige CUB5V
CUB5V
9 - 28 VDC, optional: externes Netzteil 85-250 VAC / Ausgang 12 VDC/400 mA,
optional: externes Netzteil 85-280 VAC / Ausgang 24 VDC/200 mA
Versorgungsspannung
IP65 frontseitigSchutzgrad
-35°C ... 75°CUmgebungstemperatur
RS232 optional, RS485 optional, USB optionalSchnittstellenausgang
EinbaugehäuseBauart
DigitalanzeigeAusführung
Erstellt am 04.09.2021 um 05:30 Uhr | Alle Angaben ohne Gewähr, Irrtümer und Änderungen vorbehalten! Seite 2 von 14

ATEG Automation GmbH |Intzestraße 50 |42859 Remscheid |Germany |Tel.: [phone] |[email protected] |www.ateg.de
Datenblatt
Digitalanzeige CUB5V
CUB5V
1
FOUR SELECTABLE D.C. RANGES
0 to 200 mV, 2 V, 20 V, 200 V
MINIMUM AND MAXIMUM DISPLAY CAPTURE
LCD, REFLECTIVE OR RED/GREEN LED BACKLIGHTING
0.48" (12.2 mm) HIGH DIGITS
OPTIONAL SETPOINT OUTPUT CARDS
OPTIONAL SERIAL COMMUNICATIONS CARDS (RS232 or RS485)
OPTIONAL USB PROGRAMMING CARD
OPERATES FROM 9 TO 28 VDC POWER SOURCE
FRONT PANEL OR CRIMSON PROGRAMMABLE
DISPLAY COLOR CHANGE CAPABILITY AT SETPOINT OUTPUT
NEMA 4X/IP65 SEALED FRONT BEZEL
MODEL CUB®5V - MINIATURE ELECTRONIC 5-DIGIT DC VOLTMETER
GENERAL DESCRIPTION
The CUB5 provides the user the ultimate in flexibility, from its complete user
programming to the optional setpoint control and communication capability.
The CUB5V accepts a DC Voltage input signal and provides a display in the
desired unit of measure. The meter also features minimum and maximum
display capture, display offset, units indicator, and programmable user input.
The display can be toggled either manually or automatically between the
selected displays.
The CUB5 display has 0.48" (12.2 mm) high digits. The LCD is available in
two versions, reflective and red/green backlight. The backlight version is user
selectable for the desired color and also has variable display intensity.
The capability of the CUB5 can be easily expanded with the addition of
option cards. Setpoint capability is field installable with the addition of the
setpoint output cards. Serial communications capability for RS232 or RS485 is
added with a serial option card.
The CUB5 can be powered from an optional Red Lion Micro-Line/Sensor
Power Supply (MLPS), which attaches directly to the back of a CUB5. The
MLPS is powered from 85 to 250 VAC and provides up to 400 mA to drive the
unit and sensors.
VOLTAGE
The CUB5V is the DC Volt meter. It features 4 voltage input ranges, that are
selected by the user via a programming jumper and software input range
selection. The ranges consist of following: 0 to 200 mV, 2 V, 20 V, 200 V. Users
should select the appropriate voltage range that covers their maximum input.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in this
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use this meter to directly command motors, valves, or other actuators
not equipped with safeguards. To do so can be potentially harmful to persons or
equipment in the event of a fault to the meter.
Bulletin No. CUB5V-H
Drawing No. LP0645
Released 04/16
Tel [phone]
Fax [phone]
www.redlion.net
CAUTION: Risk of Danger.
Read complete instructions prior to
installationand operation of the unit.
CAUTION: Risk of electric shock.
DIMENSIONS In inches (mm)
.13 (3.3)
(43.4)
1.71
2.95 (74.9)
SEL
.15 (3.8)
1.54 (39.1)
RST
(68 )
+.025
-.000
+8
-0
1.29 (32.8)
2.68
-.000
1.30
(33 )
-0
+6
+.024
Note: Recommended minimum clearance (behind the panel) for mounting clip installation is 2.15" (54.6) H x 3.00" (76.2) W.
CUS LISTED
UL
R
51EB
IND. CONT. EQ.
Erstellt am 04.09.2021 um 05:30 Uhr | Alle Angaben ohne Gewähr, Irrtümer und Änderungen vorbehalten! Seite 3 von 14

ATEG Automation GmbH |Intzestraße 50 |42859 Remscheid |Germany |Tel.: [phone] |[email protected] |www.ateg.de
Datenblatt
Digitalanzeige CUB5V
CUB5V
1. DISPLAY: 5 digit LCD 0.48" (12.2 mm) high digits
CUB5VR00: Reflective LCD with full viewing angle
CUB5VB00: Transmissive LCD with selectable red or green LED backlight,
viewing angle optimized. Display color change capability with output state
when using an output module.
2. POWER: Input voltage range is +9 to +28 VDC with short circuit and input
polarity protection.
MODEL
NO. DISPLAY COLOR
INPUT CURRENT
@ 9 VDC
WITHOUT
CUB5RLY0
INPUT CURRENT
@ 9 VDC WITH
CUB5RLY0
CUB5VR00 --- 10 mA 40 mA
CUB5VB00 Red (max intensity) 85 mA 115 mA
CUB5VB00 Green (max intensity) 95 mA 125 mA
3. INPUT RANGES: Jumper Selectable
D.C. Voltages: 200 mV, 2 V, 20 V, 200 V
4. SIGNAL INPUTS:
INPUT
RANGE
ACCURACY
@23 °C, less
than 85% RH
INPUT
IMPEDANCE
MAX
INPUT
SIGNAL
RESOLUTION TEMP.
COEFFICIENT
200 mVDC 0.1% of span 1.027 MΩ75 VDC 10 µV 70 ppm / °C
2 VDC 0.1% of span 1.027 MΩ75 VDC .1 mV 70 ppm / °C
20 VDC 0.1% of span 1.027 MΩ250 VDC 1 mV 70 ppm / °C
200 VDC 0.1% of span 1.027 MΩ250 VDC 10 mV 70 ppm / °C
5. OVERRANGE RATINGS, PROTECTION & INDICATION:
9 to 28 VDC power circuit is not isolated from the signal circuit.
Input Overrange Indication: “OLOL”.
Input Underrange Indication: “ULUL”.
Display Overrange/Underrange Indication: “.....”/“-.....”
6. A/D CONVERTER: 16 bit resolution
7. RESPONSE TIME:
Display: 500 msec min.
Output: 800 msec max (with input filter setting of 0)
8. NORMAL MODE REJECTION: 60 dB 50/60 Hz
9. USER INPUT (USR): Programmable input. Connect terminal to common
(USR COMM) to activate function. Internal 10KΩpull-up resistor to +9 to
28 VDC.
Threshold Levels: VIL = 0.7 V max; VIH = 2.4 V min; VMAX = 28 VDC
Response Time: 5 msec typ.; 50 msec debounce (activation and release)
10. CONNECTIONS: Wire clamping screw terminals
Wire Strip Length: 0.3" (7.5 mm)
Wire Gage: 30-14 AWG copper wire
Torque: 3.5 inch-lbs (0.395 N-m) max.
11. MEMORY: Nonvolatile E2PROM memory retains all programming
parameters and max/min values when power is removed.
12. CONSTRUCTION: This unit is rated for Type 4X/IP65 requirements for
indoor/outdoor use. Installation Category I, Pollution Degree 2. High impact
plastic case with clear viewing window. Panel gasket and mounting clip
included.
13. ENVIRONMENTAL CONDITIONS:
Operating Temperature Range for CUB5VR00: -35 to 75°C
Operating Temperature Range for CUB5VB00 depends on display color
and intensity level as per below:
INTENSITY LEVEL TEMPERATURE
Red Display 1 & 2 -35 to 75°C
3-35 to 70°C
4-35 to 60°C
5-35 to 50°C
Green Display 1 & 2 -35 to 75°C
3-35 to 65°C
4-35 to 50°C
5-35 to 35°C
Storage Temperature: -35 to 85°C
Operating and Storage Humidity: 0 to 85% max. relative humidity (non-
condensing)
Vibration to IEC 68-2-6: Operational 5-500 Hz, 5 g.
Shock to IEC 68-2-27: Operational 30 g
Altitude: Up to 2000 meters
14. CERTIFICATIONS AND COMPLIANCES:
CE Approved
EN 61326-1 Immunity to Industrial Locations
Emission CISPR 11 Class A
Safety requirements for electrical equipment for measurement, control, and
laboratory use:
EN 61010-1: General Requirements
EN 61010-2-030: Particular Requirements for Testing and Measuring
Circuits
RoHS Compliant
UL Recognized Component: File #E179259
UL Listed: File #E137808
Type 4X Indoor/Outdoor Enclosure rating (Face only)
IP65 Enclosure rating (Face only)
IP20 Enclosure rating (Rear of unit)
Refer to EMC Installation Guidelines for additional information.
15. WEIGHT: 3.2 oz (100 g)
2
General Meter SpecificationS
orderinG inforMation
TYPE MODEL NO. DESCRIPTION PART NUMBER
CUB5 CUB5V
DC Volt Meter with reflective display CUB5VR00
DC Volt Meter with backlight display CUB5VB00
Optional Plug-in Cards
CUB5RLY Single Relay Option Card CUB5RLY0
CUB5SNK Dual Sinking Open Collector Output card CUB5SNK0
CUB5COM
RS485 Serial Communications Card CUB5COM1
RS232 Serial Communications Card CUB5COM2
CUB5USB USB Programming Card CUB5USB0
Accessories
MLPS
+12 VDC Micro-Line Power Supply, 85 to 250 VAC source, 400 mA max out MLPS1000
+24 VDC Micro-Line Power Supply, 85 to 250 VAC source, 200 mA max out MLPS2000
CBLPRO Programming Cable RS232 (RJ11-DB9) CBLPROG0
CBPRO Communication Cable RS485 (RJ11-DB9) CBPRO007
SFCRD Crimson PC Configuration Software, Free Download Available1SFCRD200
CBLUSB USB Programming Cable CBLUSB00
1 Crimson software is a free download from http://www.redlion.net. System requirements for the software are listed on the download page.
Erstellt am 04.09.2021 um 05:30 Uhr | Alle Angaben ohne Gewähr, Irrtümer und Änderungen vorbehalten! Seite 4 von 14

ATEG Automation GmbH |Intzestraße 50 |42859 Remscheid |Germany |Tel.: [phone] |[email protected] |www.ateg.de
Datenblatt
Digitalanzeige CUB5V
CUB5V
3

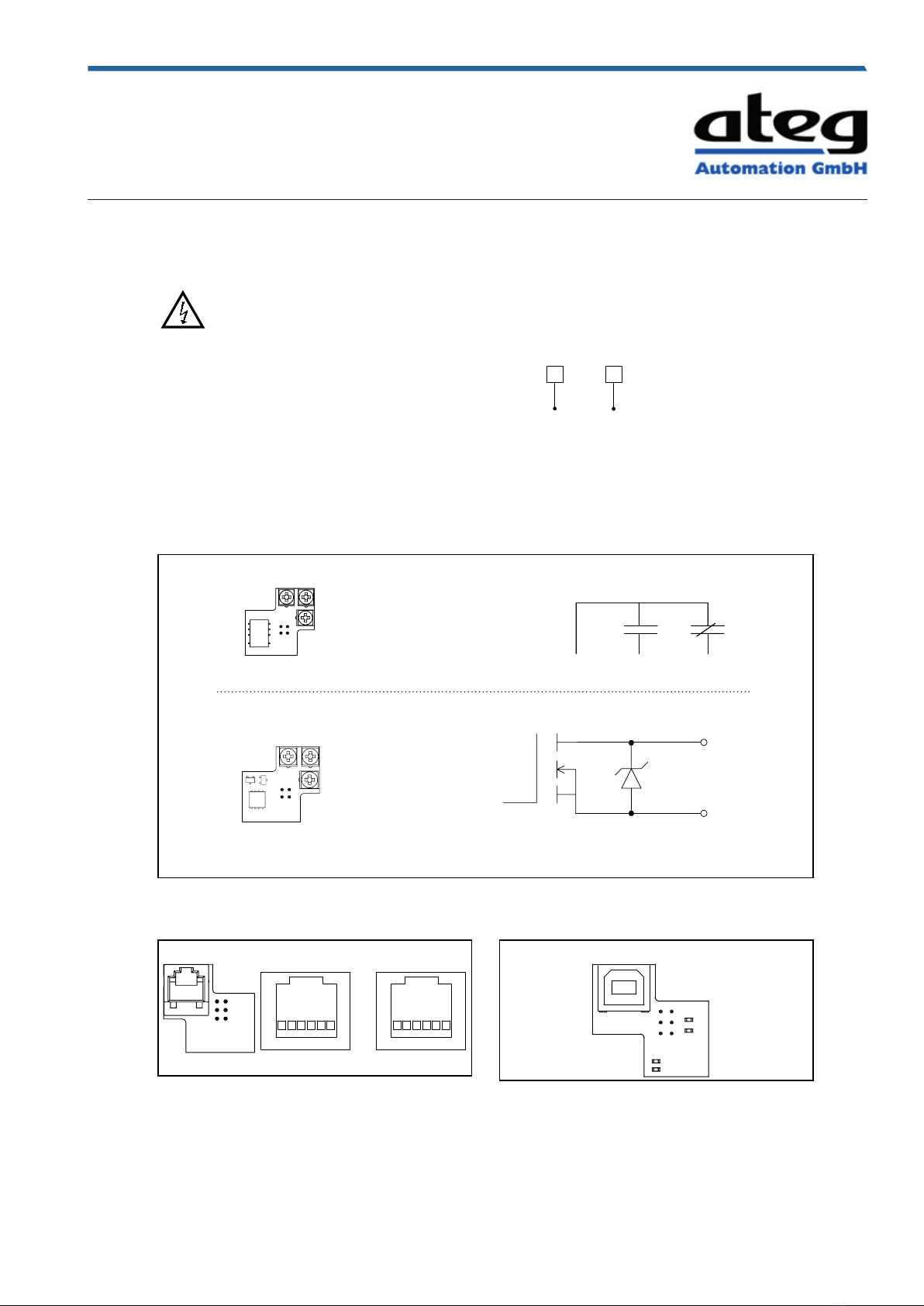

ADDING OPTION CARDS
The CUB5 meters can be fitted with optional output cards and/or serial
communications cards. The details for the plug-in cards can be reviewed in the
specification section below. The plug-in cards, that are sold separately, can be
installed initially or at a later date.
WARNING: Disconnect all power to the unit before installing
Plug-in card.
Note: Measurement errors may occur if signal input common is shared with
another circuit common (ie, serial common, Dual Sinking Output option card,
or Power Supply common) on multiple units.
SINGLE RELAY CARD
Type: Single FORM-C relay
Isolation To Sensor & User Input Commons: 1400 Vrms for 1 min.
Working Voltage: 150 Vrms
Contact Rating: 1 amp @ 30 VDC resistive; 0.3 amp @ 125 VAC resistive
Life Expectancy: 100,000 minimum operations
DUAL SINKING OUTPUT CARD
Type: Non-isolated switched DC, N Channel open drain MOSFET
Current Rating: 100 mA max.
VDS ON: 0.7 V @ 100 mA
VDS MAX: 30 VDC
Offstate Leakage Current: 0.5 mA max.
RS485 SERIAL COMMUNICATIONS CARD
Type: RS485 multi-point balanced interface (non-isolated)
Baud Rate: 300 to 38.4k
Data Format: 7/8 bits; odd, even, or no parity
Bus Address: 0 to 99; max 32 meters per line
Transmit Delay: Selectable (refer to CUB5COM bulletin)
RS232 SERIAL COMMUNICATIONS CARD
Type: RS232 half duplex (non-isolated)
Baud Rate: 300 to 38.4k
Data Format: 7/8 bits; odd, even, or no parity
USB PROGRAMMING CARD
Type: USB virtual comms port
Connection: Type B
Baud Rate: 300 to 38.4k
Unit Address: 0 to 99
optional pluG-in cardS

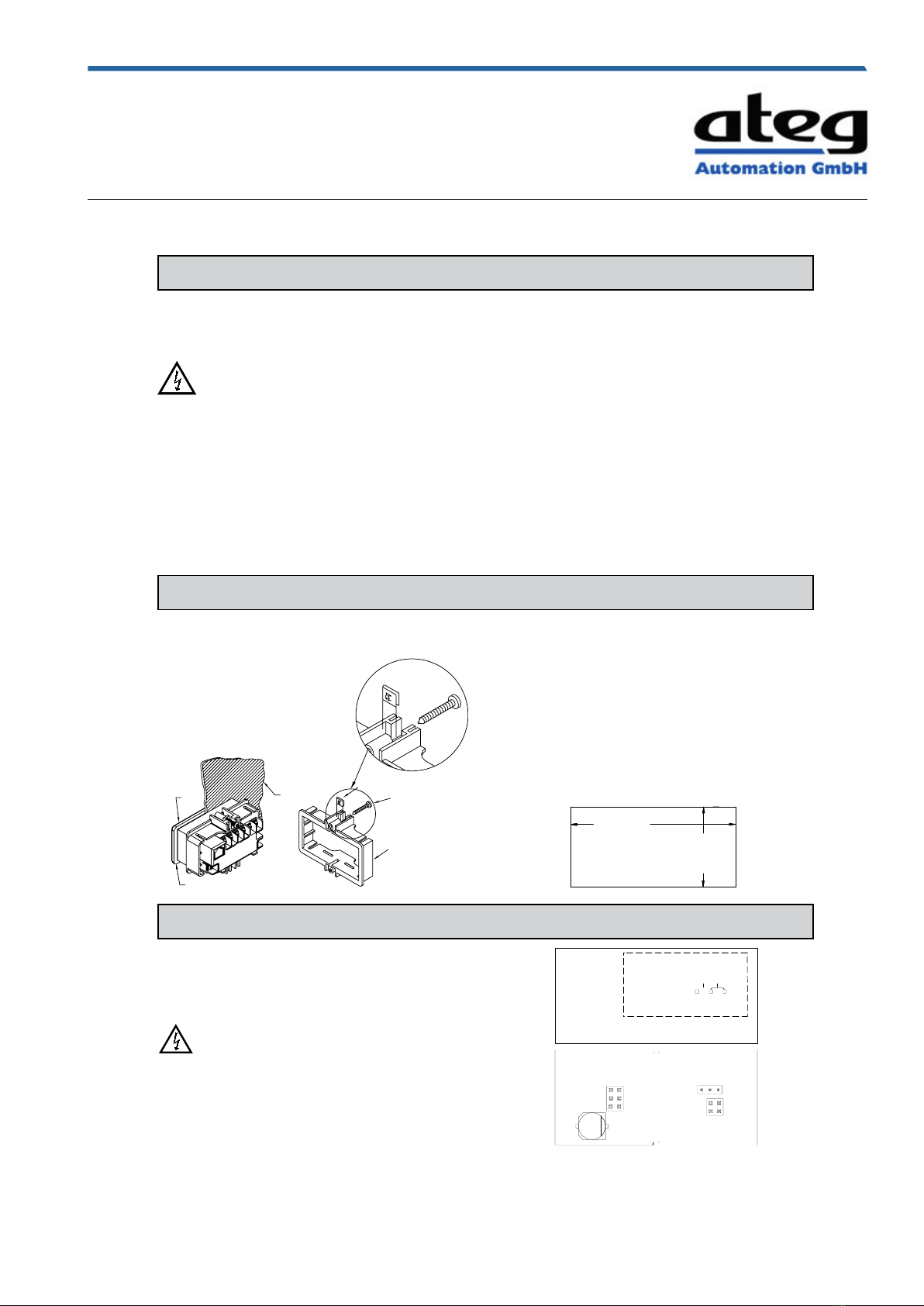

1.0 inStallinG the Meter
INSTALLATION
The meter meets NEMA 4X/IP65 requirements when properly installed. The
unit is intended to be mounted into an enclosed panel. Prepare the panel cutout
to the dimensions shown. Remove the panel latch from
the unit. Slide the panel gasket over the rear of the
unit to the back of the bezel. The unit should be
installed fully assembled. Insert the unit into the
panel cutout.
While holding the unit in place, push the panel latch over the rear of the unit
so that the tabs of the panel latch engage in the slots on the case. The panel latch
should be engaged in the farthest forward slot possible. To achieve a proper seal,
tighten the latch screws evenly until the unit is snug in the panel (Torque to
approx. 28 to 36 in-oz [0.202 to 0.26 N-m]). Do not over-tighten the screws.
INSTALLATION ENVIRONMENT
The unit should be installed in a location that does not exceed the operating
temperature and provides good air circulation. Placing the unit near devices that
generate excessive heat should be avoided.
The bezel should only be cleaned with a soft cloth and neutral soap product.
Do NOT use solvents. Continuous exposure to direct sunlight may accelerate the
aging process of the bezel.
Do not use tools of any kind (screwdrivers, pens, pencils, etc.) to operate the
keypad of the unit.
2.0 SettinG the JuMperS
INPUT RANGE JUMPER
This jumper is used to select the proper input range. The input range selected
in programming must match the jumper setting. Select a range that is high
enough to accommodate the maximum input to avoid overloads. To access the
jumper, remove the rear cover of the meter.
Warning: Exposed line voltage exists on the circuit boards. Remove
all power to the meter and load circuits before accessing inside of
the meter.
REMOVE/REPLACE THE REAR COVER
To remove the rear cover, locate the cover locking tab below the 2nd and 3rd
input terminals. To release the tab, insert a small, flat blade screwdriver between
the tab and the plastic wall below the terminals. Inserting the screwdriver will
provide enough pressure to release the tab locks. To replace the cover, align the
cover with the input terminals and press down until the cover snaps into place.
INPUT RANGE JUMPER
MAIN CIRCUIT
BOARD
200VDC
2VDC
INPUT RANGE
JUMPER LOCATION
200mV/
20V/
2.68
(68 )
+.8 1.30
-.0
(33 )
-.000
+.6
-.0
-.000
+.024
+.025
PANEL
GASKET
BEZEL PANEL MOUNTING SCREW
NUT FASTENER
MOUNTING CLIP
Erstellt am 04.09.2021 um 05:30 Uhr | Alle Angaben ohne Gewähr, Irrtümer und Änderungen vorbehalten! Seite 5 von 14

ATEG Automation GmbH |Intzestraße 50 |42859 Remscheid |Germany |Tel.: [phone] |[email protected] |www.ateg.de
Datenblatt
Digitalanzeige CUB5V
CUB5V
WIRING OVERVIEW
Electrical connections are made via screw-clamp terminals located on the
back of the meter. All conductors should conform to the meter’s voltage and
current ratings. All cabling should conform to appropriate standards of good
installation, local codes and regulations. It is recommended that the power
supplied to the meter (DC or AC) be protected by a fuse or circuit breaker.
Strip the wire, leaving approximately 0.3" (7.5 mm) bare lead exposed
(stranded wires should be tinned with solder.) Insert the lead under the correct
screw-clamp terminal and tighten until the wire is secure. (Pull wire to verify
tightness.) Each terminal can accept up to one #14 AWG (2.55 mm) wire, two
#18 AWG (1.02 mm), or four #20 AWG (0.61 mm).
EMC INSTALLATION GUIDELINES
Although Red Lion Controls Products are designed with a high degree of
immunity to Electromagnetic Interference (EMI), proper installation and wiring
methods must be followed to ensure compatibility in each application. The type
of the electrical noise, source or coupling method into a unit may be different
for various installations. Cable length, routing, and shield termination are very
important and can mean the difference between a successful or troublesome
installation. Listed are some EMI guidelines for a successful installation in an
industrial environment.
1. A unit should be mounted in a metal enclosure, which is properly connected
to protective earth.
2. Use shielded cables for all Signal and Control inputs. The shield connection
should be made as short as possible. The connection point for the shield
depends somewhat upon the application. Listed below are the recommended
methods of connecting the shield, in order of their effectiveness.
a. Connect the shield to earth ground (protective earth) at one end where the
unit is mounted.
b. Connect the shield to earth ground at both ends of the cable, usually when
the noise source frequency is over 1 MHz.
3. Never run Signal or Control cables in the same conduit or raceway with AC
power lines, conductors, feeding motors, solenoids, SCR controls, and
heaters, etc. The cables should be run through metal conduit that is properly
grounded. This is especially useful in applications where cable runs are long
and portable two-way radios are used in close proximity or if the installation
is near a commercial radio transmitter. Also, Signal or Control cables within
an enclosure should be routed as far away as possible from contactors,
control relays, transformers, and other noisy components.
4. Long cable runs are more susceptible to EMI pickup than short cable runs.
5. In extremely high EMI environments, the use of external EMI suppression
devices such as Ferrite Suppression Cores for signal and control cables is
effective. The following EMI suppression devices (or equivalent) are
recommended:
Fair-Rite part number 0443167251 (RLC part number FCOR0000)
Line Filters for input power cables:
Schaffner # FN2010-1/07 (Red Lion Controls # LFIL0000)
6. To protect relay contacts that control inductive loads and to minimize radiated
and conducted noise (EMI), some type of contact protection network is
normally installed across the load, the contacts or both. The most effective
location is across the load.
a. Using a snubber, which is a resistor-capacitor (RC) network or metal oxide
varistor (MOV) across an AC inductive load is very effective at reducing
EMI and increasing relay contact life.
b. If a DC inductive load (such as a DC relay coil) is controlled by a transistor
switch, care must be taken not to exceed the breakdown voltage of the
transistor when the load is switched. One of the most effective ways is to
place a diode across the inductive load. Most RLC products with solid
state outputs have internal zener diode protection. However external diode
protection at the load is always a good design practice to limit EMI.
Although the use of a snubber or varistor could be used.
RLC part numbers: Snubber: SNUB0000
Varistor: ILS11500 or ILS23000
7. Care should be taken when connecting input and output devices to the
instrument. When a separate input and output common is provided, they
should not be mixed. Therefore a sensor common should NOT be connected
to an output common. This would cause EMI on the sensitive input common,
which could affect the instrument’s operation.
Visit RLC’s web site at http://www.redlion.net/emi for more information on
EMI guidelines, Safety and CE issues as they relate to Red Lion Controls
products.
4.0 WirinG the Meter
4.1 POWER WIRING 4.2 USER INPUT WIRING
USR COMM
USR
+9-28 VDC
COMM INP +
PWR COMMON
Sinking Logic
USR COMM
USR
The user input of the meter is
internally pulled up to +9 to +28 V
with 10 K resistance. The input is
active when it is pulled low (<0 .7 V).
Connect external switching device between the
User Input terminal and User Input Common.
}
4
The Plug-in cards are separately purchased option cards that perform specific
functions. The cards plug into the main circuit board of the meter
CAUTION: The Plug-in cards and main circuit board contain static
sensitive components. Before handling the cards, discharge
static charges from your body by touching a grounded bare
metal object. Ideally, handle the cards at a static controlled
clean workstation. Also, only handle the cards by the edges.
Dirt, oil or other contaminants that may contact the cards can
adversely affect circuit operation.
REMOVE/REPLACE THE REAR COVER
To remove the rear cover, locate the cover locking tab below the 2nd and 3rd
input terminals. To release the tab, insert a small, flat blade screwdriver between
the tab and the plastic wall below the terminals. Inserting the screwdriver will
provide enough pressure to release the tab locks. To replace the cover, align the
cover with the input terminals and press down until the cover snaps into place.

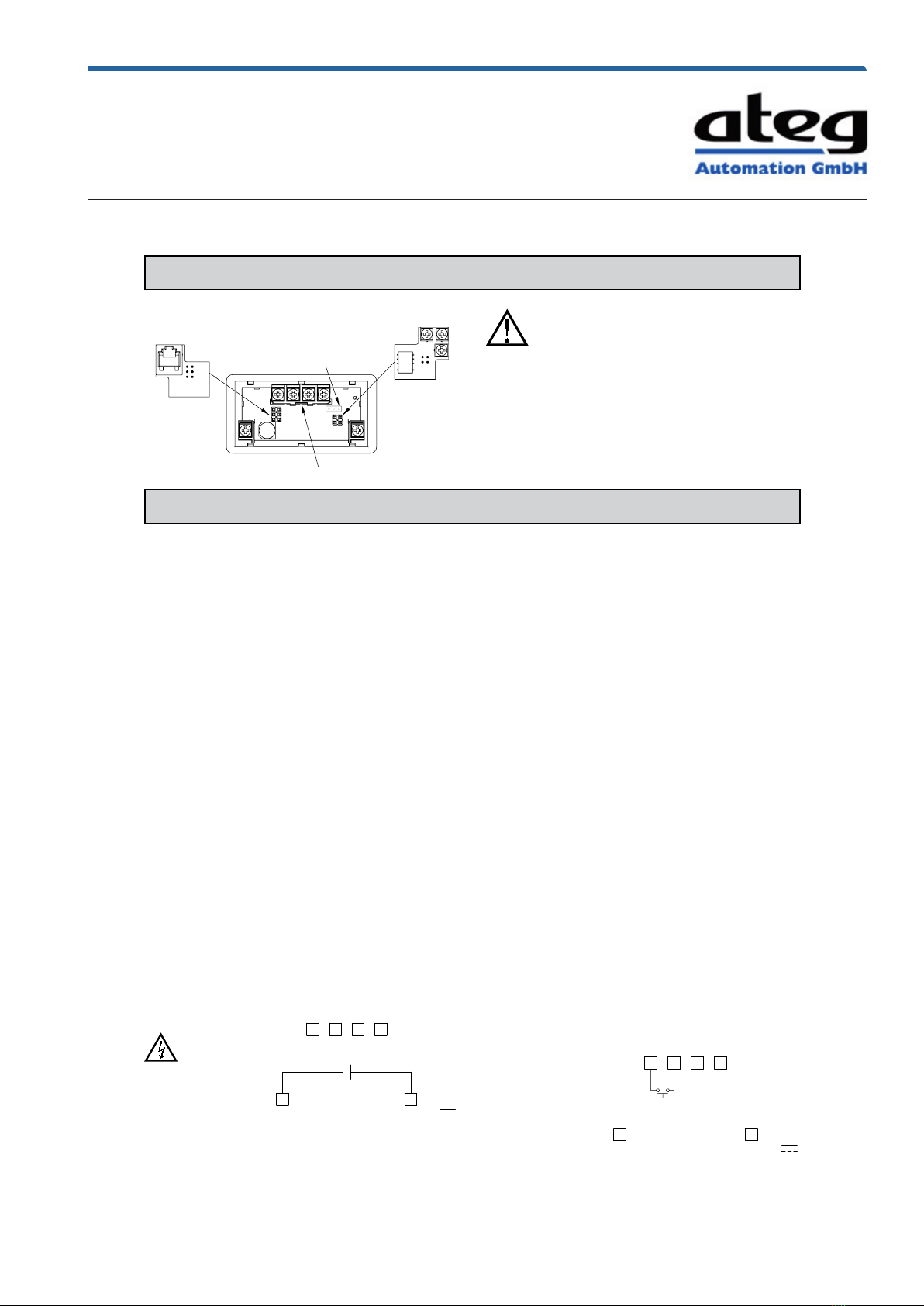

3.0 inStallinG pluG-incardS
Comms or
Programming
Card
Range Jumpers
Locking Tab
Setpoint Card
USR COMM
USR
+9-28 VDC
COMM INP +
PWR COMMON
+
-
DC Power
+9 to +28 VDC: +VDC
Power Common: -VDC
CAUTION: 9 to 28 VDC
power circuit is not isolated
from the signal circuit.
Erstellt am 04.09.2021 um 05:30 Uhr | Alle Angaben ohne Gewähr, Irrtümer und Änderungen vorbehalten! Seite 6 von 14

ATEG Automation GmbH |Intzestraße 50 |42859 Remscheid |Germany |Tel.: [phone] |[email protected] |www.ateg.de
Datenblatt
Digitalanzeige CUB5V
CUB5V
5
4.3 INPUT WIRING
CAUTION: Power input common is NOT isolated from user and input
commons. In order to preserve the safety of the meter application, the
power input common must be suitably isolated from hazardous live earth
referenced voltage; or input common must be at protective earth ground
potential. If not, hazardous voltage may be present at the signal or user
inputs and input common terminals. Appropriate considerations must then be given
to the potential of the user and input commons with respect to earth ground; and the
common of the plug-in cards with respect to input common.
Before connecting signal wires, the Input Range Jumper should be verified for proper
position.
4.4 SETPOINT (OUTPUT) WIRING
COM
N.C.
N.O.
SINGLE SETPOINT RELAY PLUG-IN CARD
Voltage Signal
(self powered)
-+
COMM
INP+
COM N.O. N.C.
ELECTRICAL CONNECTIONS
DUAL SETPOINT N-FET OPEN DRAIN PLUG-IN CARD
CO
M
OSNK 1(2)
(30 V MAX.)
ELECTRICAL CONNECTIONS
OSNK1
OSNK2
COM
JUMPER
POSITION
MAX INPUT
VOLTAGE
200 mV ⁄2 VDC 75 VDC
20V ⁄200 VDC 250 VDC
Output Common is not isolated from DC Power Common. Load must be
wired between OSNK terminal and V+ of the load supply.
4.5 SERIAL COMMUNICATION WIRING
N/C
RS485
2
COMM
A+ B-
N/C
534
N/C
RS232
5
N/C
TX
N/C
43
COMM
COMM
2
RX
61
61
4.6 USB PROGRAMMING
USB PROGRAMING PLUG-IN CARD
SERIAL COMMUNICATIONS PLUG-IN CARD
RJ11 CONNECTOR PIN OUTS
Erstellt am 04.09.2021 um 05:30 Uhr | Alle Angaben ohne Gewähr, Irrtümer und Änderungen vorbehalten! Seite 7 von 14

ATEG Automation GmbH |Intzestraße 50 |42859 Remscheid |Germany |Tel.: [phone] |[email protected] |www.ateg.de
Datenblatt
Digitalanzeige CUB5V
CUB5V
6

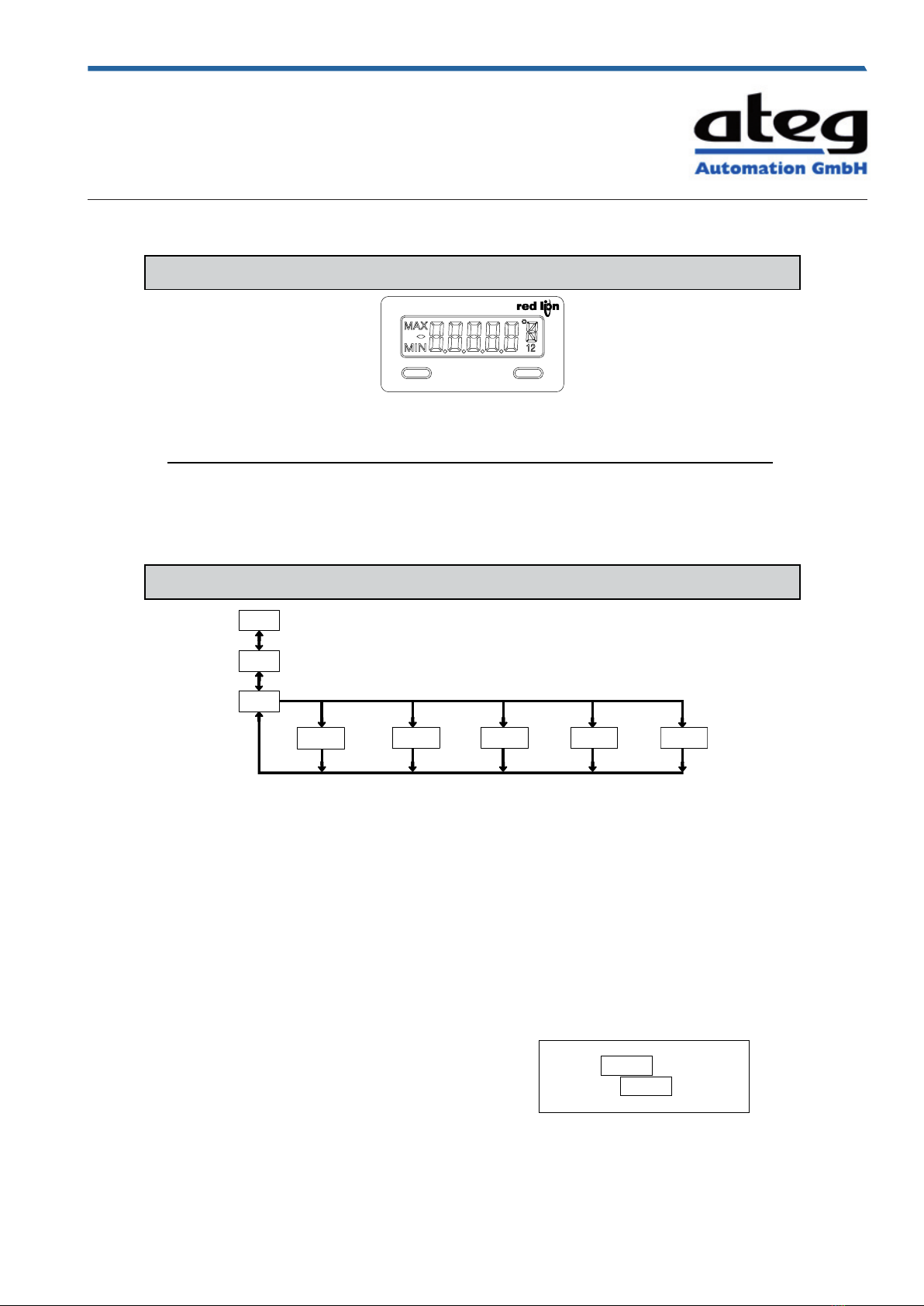

5.0 revieWinG the front ButtonS and diSplay
SEL RST
PROGRAMMING MODE ENTRY (SEL BUTTON)
It is recommended all programming changes be made off line, or before
installation. The meter normally operates in the Display Mode. No parameters
can be programmed in this mode. The Programming Mode is entered by
pressing and holding the SEL button. If it is not accessible then it is locked by
either a security code, or a hardware lock.
MODULE ENTRY (SEL & RST BUTTONS)
The Programming Menu is organized into separate modules. These modules
group together parameters that are related in function. The display will alternate
between Pro and the present module. The RST button is used to select the desired
module. The displayed module is entered by pressing the SEL button.
MODULE MENU (SEL BUTTON)
Each module has a separate module menu (which is shown at the start of each
module discussion). The SEL button is pressed to advance to a particular
parameter to be changed, without changing the programming of preceding
parameters. After completing a module, the display will return to Pro NO.
Programming may continue by accessing additional modules.
SELECTION / VALUE ENTRY
For each parameter, the display alternates between the present parameter and
the selections/value for that parameter. The RST button is used to move through
the selections/values for that parameter. Pressing the SEL button, stores and
activates the displayed selection/value. This also advances the meter to the next
parameter.
For numeric values, press the RST button to access the value. The right hand
most digit will begin to flash. Pressing the RST button again increments the
digit by one or the user can hold the RST button and the digit will automatically
scroll. The SEL button will advance to the next digit. Pressing and holding the
SEL button will enter the value and move to the next parameter.
PROGRAMMING MODE EXIT (SEL BUTTON)
The Programming Mode is exited by pressing the SEL button with Pro NO
displayed. This will commit any stored parameter changes to memory and
return the meter to the Display Mode. (If power loss occurs before returning to
the Display Mode, verify recent parameter changes.)
PROGRAMMING TIPS
It is recommended to start with Module 1 and proceed through each module in
sequence. When programming is complete, it is recommended to record the
parameter programming and lock out parameter programming with the user input
or programming security code.
FACTORY SETTINGS
Factory Settings may be completely restored in Module 2. This is useful
when encountering programming problems.
ALTERNATING SELECTION DISPLAY
In the explanation of the modules, the following dual display with arrows will
appear. This is used to illustrate the display alternating between the parameter
on top and the parameter’s Factory Setting on the bottom. In most cases,
selections and values for the parameter will be listed on the right.
6.0 proGraMMinG the Meter
Parameters
Output
Setpoint
Parameters
Signal Input
Pro
DISPLAY
MODE
Panel Key
Function
Parameters
3-dSP
Parameters
Display and Front
NO
SEL
RST
SEL SEL SEL SEL
2-SEC
1-INP 4-SPt 5-SEr
SEL
Serial
Setup
Parameters
Secondary
OVERVIEW
PROGRAMMING MENU
Indicates Program Mode Alternating Display
Factory Settings are shown.
Parameter
Selection/Value
BUTTON DISPLAY MODE OPERATION ENTERING PROGRAM MODE PROGRAMMING MODE OPERATION
SEL Index display through enabled values Press and hold for 2 seconds to activate Store selected parameter and index to next parameter
RST Resets values (MIN/MAX) or outputs Advances through the program menu
Increments selected parameter value or selection
OPERATING MODE DISPLAY DESIGNATORS
MAX - Maximum display capture value
MIN - Minimum display capture value
“1” - To the right of the display indicates setpoint 1 output activated.
“2” - To the right of the display indicates setpoint 2 output activated.
Pressing the SEL button toggles the meter through the selected displays. If display scroll is enabled, the display will toggle automatically every four seconds between
the enabled display values.


N0
USrIN
Erstellt am 04.09.2021 um 05:30 Uhr | Alle Angaben ohne Gewähr, Irrtümer und Änderungen vorbehalten! Seite 8 von 14

ATEG Automation GmbH |Intzestraße 50 |42859 Remscheid |Germany |Tel.: [phone] |[email protected] |www.ateg.de
Datenblatt
Digitalanzeige CUB5V
CUB5V
Display
Decimal
Point
Filter
Setting
Filter
Band
Input Value
for Scaling
Point 1
Display Value
For Scaling
Point 1
User Input
Assignment
Input
Range
SEL
rANGE dECPt FILtr bANd INP 1 dSP 1 INP 2 U-ASN
1-INP Pro
User Input
Function
dSP 2 USrIN
Input Value
for Scaling
Point 2
Display Value
For Scaling
Point 2
StYLE
Scaling
Style
OFSEt
Display
Offset
Value
7
6.1 Module 1 - SiGnal input paraMeterS (1-INP)
PARAMETER MENU


200u
rAN6E
CUB5V INPUT RANGE
Select the input range that corresponds to the external signal. This selection
should be high enough to avoid input signal overload but low enough for the
desired input resolution. This selection and the position of the Input Range
Jumper must match.


0
dECPt 0.000 0.00000.000.00
DISPLAY DECIMAL POINT
Select the decimal point location for the Input, MIN and MAX displays. This
selection also affects the dSP1 and dSP2 parameters and setpoint values.


1
FILtr
FILTER SETTING
If the displayed value is difficult to read due to small process variations or
noise, increased levels of filtering will help to stabilize the display. Software
filtering effectively combines a fraction of the current input reading with a
fraction of the previous displayed reading to generate the new display.
Filter values represent no filtering (0), up to heavy filtering (3). A value of 1
for the filter uses 1/4 of the new input and 3/4 of the previous display to generate
the new display. A filter value of 2 uses 1/8 new and 7/8 previous. A filter value
of 3 uses 1/16 new and 15/16 previous.
0,1 2 3


10
bANd
FILTER BAND
The filter will adapt to variations in the input signal. When the variation
exceeds the input filter band value, the filter disengages. When the variation
becomes less than the band value, the filter engages again. This allows for a
stable readout, but permits the display to settle rapidly after a large process
change. The value of the band is in display units, independent of the Display
Decimal Point position. A band setting of ‘0’ keeps the filter permanently
engaged at the filter level selected above.
0to 199 display units


KEy
StYLE
SCALING STYLE
If Input Values and corresponding Display Values are known, the Key-in
(KEY) scaling style can be used. This allows scaling without the presence or
changing of the input signal. If Input Values have to be derived from the actual
input signal source or simulator, the Apply (APLY) scaling style must be used.
KEy APLY


0.00
INP 1
INPUT VALUE FOR SCALING POINT 1
For Key-in (KEY) style, enter the first Input Value using the front panel buttons.
(The Input Range selection sets the decimal location for the Input Value).
For Apply (APLY) style, the meter shows the previously stored Input Value. To
retain this value, press the SEL button to advance to the next parameter. To
change the Input Value, press the RST button and apply the input signal to the
meter. Adjust the signal source externally until the desired Input Value appears.
Press the SEL button to enter the value being displayed.
0to 29999


0.00
dSP 1
DISPLAY VALUE FOR SCALING POINT 1
-19999 to 99999
Enter the first Display Value by using the front panel buttons. This is the same
for KEY and APLY scaling styles. The decimal point follows the dECPt selection.


100.00
INP 2
INPUT VALUE FOR SCALING POINT 2
0to 29999
For Key-in (KEY) style, enter the known second Input Value using the front
panel buttons.
For Apply (APLY) style, the meter shows the previously stored Input Value for
Scaling Point 2. To retain this value, press the SEL button to advance to the next
parameter. To change the Input Value, press the RST button and apply the input
signal to the meter. Adjust the signal source externally until the desired Input
Value appears. Press the SEL button to enter the value being displayed.


100.00
dSP 2
DISPLAY VALUE FOR SCALING POINT 2
-19999 to 99999
Enter the second Display Value by using the front panel buttons. This is the
same for KEY and APLY scaling styles.
0.2u 200.00 mV
2u 2.0000 V
20.000 V
200.00 V
20u
200u
SELECTION RANGE
RESOLUTION
RANGE
RESOLUTION
SELECTION


0.00
OFSEt
DISPLAY OFFSET VALUE
The display can be corrected with an offset value. This can be used to
compensate for signal variations or sensor errors. This value is automatically
updated after a Zero Display to show how far the display is offset. A value of
zero will remove the effects of offset.
-19999 to 19999
General Notes on Scaling
1. When using the Apply (APLY) scaling style, input values for scaling points
must be confined to the signal input imits of the selected range.
2. The same Input Value should not correspond to more than one Display Value.
(Example: 10 V can not equal 0 and 10.)
3. For input levels beyond the programmed Input Values, the meter extends the
Display Value by calculating the slope from the two coordinate pairs (INP1 /
dSP1 & INP2 / dSP2).
Erstellt am 04.09.2021 um 05:30 Uhr | Alle Angaben ohne Gewähr, Irrtümer und Änderungen vorbehalten! Seite 9 von 14

ATEG Automation GmbH |Intzestraße 50 |42859 Remscheid |Germany |Tel.: [phone] |[email protected] |www.ateg.de
Datenblatt
Digitalanzeige CUB5V
CUB5V
Entering Code 66 will overwrite all user settings with
the factory settings. The meter will display rESEt and then
return to CodE 00. Press the SEL button to exit the module.
Entering Code 50 will display the version (x.x) of the
meter. The display then returns to CodE 00. Press the SEL
button to exit the module.
8
6.2 Module 2 - Secondary function paraMeterS (2-SEC)
SEL
Max Capture
Delay Time
Max Display
Enable
Min Display
Enable
Access Code
For Service
Operations
Min Capture
Delay TIme
Factory
Service
Operations
2-SEC
HI-En HI-t LO-En LO-t FCS CodE
Pro
PARAMETER MENU
MIN DISPLAY ENABLE
USER INPUT ASSIGNMENT
Select the value(s) to which the User Input Function is assigned. The User
Input Assignment only applies if a selection of reset, display hold, or print and
reset is selected in the User Input Function menu.
MODEDISPLAY
No Function
NO
DESCRIPTION
User Input disabled.
Program Mode Lock-out
P-Loc
Zero Input
(Edge triggered)
ZErO Zero the Input Display value causing
Display Reading to be Offset.
COLOr
d-SEL
d-LEV
d-HLd
rESEt Resets the assigned value(s) to the
current input value.
HI-LOHI
dSPLO
See Programming Mode Access chart
(Module 3).
YESNO
MODE DESCRIPTIONDISPLAY
Setpoint 1 and 2 Reset
Setpoint 1 Reset
Setpoint 2 Reset
Print and Reset
Reset both setpoint 1 and 2 outputs.
Resets setpoint 1 output.
Resets setpoint 2 output.
Same as Print Request followed by a
momentary reset of the assigned value(s).
rSt12
rSt-1
rSt-2
P-r5t
Print Request
Serial transmit of the active parameters
selected in the Print Options menu
(Module 5).
Print


2.0
HI-t


NO
LO-En


NO
FCS
MAX CAPTURE DELAY TIME
When the Input Display is above the present MAX value for the entered
delay time, the meter will capture that display value as the new MAX reading.
A delay time helps to avoid false captures of sudden short spikes.


2.0
LO-t MIN CAPTURE DELAY TIME
When the Input Display is below the present MIN value for the entered delay
time, the meter will capture that display value as the new MIN reading. A delay
time helps to avoid false captures of sudden short spikes.
0.0 to 999.9 seconds
USER INPUT FUNCTION


NO
USrIN


dSP
U-ASN


NO
HI-En
MAX DISPLAY ENABLE
0.0 to 999.9 seconds
Select yES to perform either of the Factory Service Operations shown below.
FACTORY SERVICE OPERATIONS
yESNO
YESNO
Enables the Maximum Display Capture capability.
Enables the Minimum Display Capture capability.
The CUB5V uses stored voltage calibration values to
provide accurate voltage measurements. Over time, the
electrical characteristics of the components inside the meter
will slowly change, with the result that the stored calibration
values no longer accurately define the input circuit. For most applications,
recalibration every 1 to 2 years should be sufficient.
Calibration of the CUB5V involves an input voltage calibration, which
should only be performed by individuals experienced in calibrating electronic
equipment. Allow a 30 minute warm up before performing any calibration
related procedures. The following procedures should be performed at an
ambient temperature of 15 to 35°C (59 to 95°F).
CAUTION: The accuracy of the calibration equipment will directly affect the
accuracy of the CUB5V.
Voltage Calibration
1. Connect a precision DC voltage source with an accuracy of 0.01% or better
to the INP+ (positive) and COMM (negative) terminals of the CUB5V. Set
the output of the voltage source to zero.
2. With the display at CodE 48, press and hold the SEL button for 2 seconds. Unit
will display CAL NO.
3. Press the RST button to select the range to be calibrated.
4. Press the SEL button. Display reads 0.0v.
5. With the voltage source set to zero (or a dead short applied to the input), press
SEL. Display reads CALC for about 8 seconds.
6. When the display reads the selected range, apply full-scale input signal for
the range. (Note: For 200V range, apply 100V as indicated on the display.)
Press SEL. Display reads CALC for about 8 seconds.
7. Repeat steps 3 through 6 for each input range to be calibrated. When display
reads CAL NO, press the SEL button to exit calibration.
CALIBRATION


48
CodE


66
CodE


50
CodE
RESTORE FACTORY DEFAULT SETTINGS
VIEW VERSION DISPLAY
Backlight Color
(Edge Triggered)
Display Select
(Edge Triggered)
Display Intensity Level
(Edge Triggered)
Display Hold
Reset (Edge triggered)
Change backlight color with each
activation (backlight version only).
Advance once for each activation.
Increase intensity one level for each
activation (backlight version only).
Holds the assigned display, but all other
meter functions continue as long as
activated (maintained action).
Erstellt am 04.09.2021 um 05:30 Uhr | Alle Angaben ohne Gewähr, Irrtümer und Änderungen vorbehalten! Seite 10 von 14

ATEG Automation GmbH |Intzestraße 50 |42859 Remscheid |Germany |Tel.: [phone] |[email protected] |www.ateg.de
Datenblatt
Digitalanzeige CUB5V
CUB5V
9
The Security Code determines the programming mode and the accessibility
of programming parameters. This code can be used along with the Program
Mode Lock-out (P-Loc) in the User Input Function parameter (Module 1).
Two programming modes are available. Full Programming mode allows all
parameters to be viewed and modified. Quick Programming mode permits only
the Setpoint values to be modified, but allows direct access to these values
without having to enter Full Programming mode.
Programming a Security Code other than 0, requires this code to be entered
at the CodE prompt in order to access Full Programming mode. Depending on the
code value, Quick Programming may be accessible before the CodE prompt
appears (see chart).
PROGRAMMING SECURITY CODE
000 to 999
USER INPUT
FUNCTION
USER INPUT
STATE
SECURITY
CODE
MODE WHEN “SEL”
BUTTON IS PRESSED
FULL PROGRAMMING
MODE ACCESS
0Full Programming Immediate Access
not P-Loc ______ 1-99 Quick Programming
After Quick Programming
with correct code entry
at CodE prompt *
100-999 CodE prompt With correct code entry
at CodE prompt *
0Programming Lock No Access
Active 1-99 Quick Programming No Access
P-Loc
100-999 CodE prompt With correct code entry
at CodE prompt *
Not Active 0-999 Full Programming Immediate Access
* Entering Code 222 allows access regardless of security code.
6.3 Module 3 - diSplay and front panel Button
paraMeterS (3-dSP)
SEL
Pro
Front Panel
Display
Select Enable
Display
Update Time
Front Panel
Reset Enable
Programming
Security Code
Zero Display
W/Display
Reset
Display
Color
Units
Indicator
Selection
Backlight Unit Only
3-dSP
dSP-t SEL rSt ZErO UNItS COLOr CodE
Display
Intensity
Level
d-LEVScroL
Display
Scroll
Enable
PARAMETER MENU
The yES selection allows the SEL button to toggle through the enabled
displays.
FRONT PANEL DISPLAY SELECT ENABLE (SEL)
This selection allows the RST button to reset the selected value(s).
FRONT PANEL RESET ENABLE (RST)
The yES selection allows the display to automatically scroll through the
enabled displays. The scroll rate is every 4 seconds. This parameter only appears
when the MAX or MIN displays are enabled.
DISPLAY SCROLL ENABLE
NOyES
dSPNO
HI
LO
HI-LO
NOyES
This parameter activates the Units Indicator on the display. There are two
methods of selecting the Indicator. List will present a group of Units
preprogrammed into the meter. Segments allows the user to choose which of the
segments should light.
UNITS INDICATOR SELECTION
LISt SEGSOFF
Enter the desired display color, red or green. This parameter is active for
backlight units only.
DISPLAY COLOR (BACKLIGHT UNIT ONLY)
6rnrEd
Enter the desired Display Intensity Level (1-5). The display will actively dim
or brighten as levels are changed. This parameter is active for backlight units only.
DISPLAY INTENSITY LEVEL (BACKLIGHT UNIT ONLY)
1 to 5


1
dSP-t


yES
SEL


dSP
rSt


NO
ScroL
This parameter enables the RST button or user input to zero the input display
value, causing the display reading to be offset.
Note: For this parameter to operate, the RST button or User Input being used
must be set to dSP and the Input value must be displayed. If these conditions are
not met, the display will not zero.
ZERO DISPLAY WITH DISPLAY RESET
NOyES


NO
ZErO


OFF
UNItS


rEd
COLOr


5
d-LEV


000
CodE
DISPLAY UPDATE TIME
This parameter sets the display update time in seconds.
10.5 2 seconds
Erstellt am 04.09.2021 um 05:30 Uhr | Alle Angaben ohne Gewähr, Irrtümer und Änderungen vorbehalten! Seite 11 von 14

ATEG Automation GmbH |Intzestraße 50 |42859 Remscheid |Germany |Tel.: [phone] |[email protected] |www.ateg.de
Datenblatt
Digitalanzeige CUB5V
CUB5V
Enter the reset action of the output. See figure for details.
Auto = Automatic action; This action allows the output to
automatically reset off at the trigger points per the Setpoint Action shown in
Setpoint Output Figures. The “on” output may be manually reset (off)
immediately by the front panel RST button or user input.The output remains
off until the trigger point is crossed again.
LAtCH = Latch with immediate reset action; This action latches the output on at
the trigger point per the Setpoint Action shown in Setpoint Output Figures.
Latch means that the output can only be turned off by the front panel RST
10

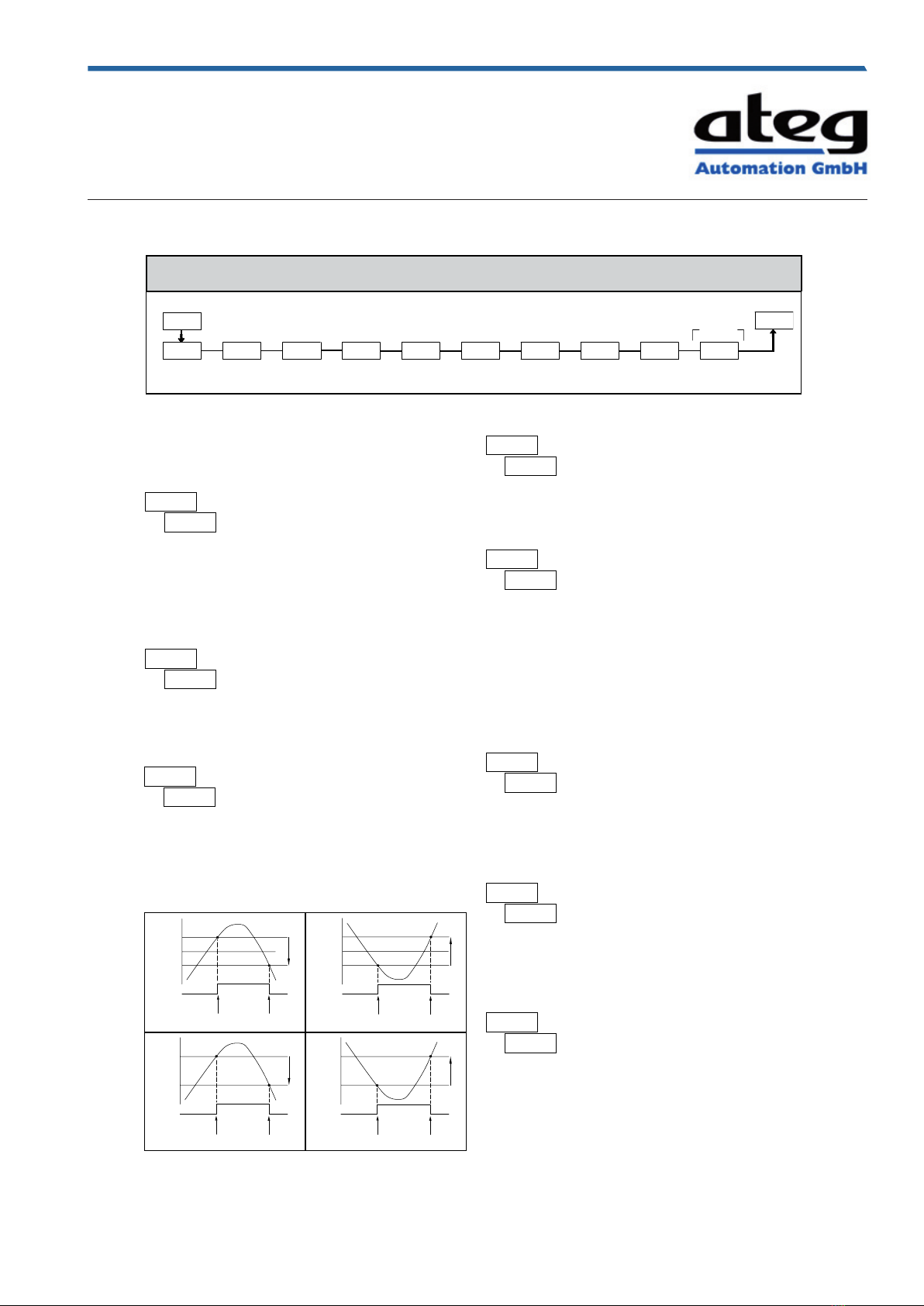

6.4 Module 4 - Setpoint output paraMeterS (4-SPt)
SEL
Setpoint
Action
Setpoint
Select
Setpoint
Value
Output Reset
Action
Hysteresis
Value
Off Time
Delay
On Time
Delay
Output Reset
W/Display
Reset
Change Display
Color with
Output State
Backlight
Unit Only
SPSEL
4-SPt
Act-n SPt-n HYS-n tON-n tOF-n rSt-n rEn-n ChC-n
Pro
Standby
Operation
Stb-n
PARAMETER MENU
The Setpoint Output Parameters are only active when an optional output
module is installed in the meter.
Enter the setpoint (output) to be programmed. The nin the following
parameters will reflect the chosen setpoint number. After the chosen setpoint
is completely programmed, the display will return to SPSEL. Repeat steps for
each setpoint to be programmed. Select NO to exit the module. The number of
setpoints available is setpoint output card dependent.
SETPOINT SELECT
SP-2SP-1NO


NO
SPSEL


2
HYS-n
HYSTERESIS VALUE


0.0
tOF-n


0.0
tON-n
OFF TIME DELAY
ON TIME DELAY
OUTPUT RESET ACTION
LAtCHAuto L-dLY
0.0 to 599.9 seconds
0.0 to 599.9 seconds


Auto
rSt-n
1to 59999
Enter desired hysteresis value. See Setpoint Output Figures for visual
explanation of how setpoint output actions (balanced and unbalanced) are
affected by the hysteresis. When the setpoint is a control output, usually
balanced hysteresis is used. For alarm applications, usually unbalanced
hysteresis is used. For unbalanced hysteresis modes, the hysteresis functions on
the low side for high acting setpoints and functions on the high side for low
acting setpoints.
Note: Hysteresis eliminates output chatter at the switch point, while time delay
can be used to prevent false triggering during process transient events.
Enter the time value in seconds that the output is delayed from turning on
after the trigger point is reached. A value of 0.0 allows the meter to update the
output status per the response time listed in the Specifications.
Enter the time value in seconds that the output is delayed from turning off
after the trigger point is reached. A value of 0.0 allows the meter to update the
output status per the response time listed in the Specifications.
Select YES to enable Setpoint 2 and access the setup parameters. If NO is
selected, the unit returns to SPSEL and setpoint 2 is disabled.
SETPOINT 2 ENABLE
NOYES


NO
Enb-2
Enter the action for the selected setpoint (output). See Setpoint Output
Figures for a visual detail of each action.
SETPOINT ACTION


HI-Ub
Act-n LO-UbHI-UbLO-bL
HI-bL
LO-Ub =
HI-Ub =
LO-bL =
HI-bL =
Low Acting, with unbalanced hysteresis
High Acting, with unbalanced hysteresis
Low Acting, with balanced hysteresis
High Acting, with balanced hysteresis
OUTPUT
STATE
OFF ON
Hys
SP + ½Hys
SP
SP - ½Hys
OFF
TRIGGER POINTS
High Acting (Balanced Hys) = HI-bL
OUTPUT
STATE
OFF ON
Hy
s
SP + Hy
s
SP
OFF
TRIGGER POINTS
Low Acting (Unbalanced Hys) = LO-Ub
OUTPUT
STATE
OFF ON
Hy
s
SP + ½Hys
SP
SP - ½Hys
OFF
TRIGGER POINTS
Low Acting (Balanced Hys) = LO-bL
OUTPUT
STATE
OFF ON
Hy
s
SP
SP - Hy
s
OFF
TRIGGER POINTS

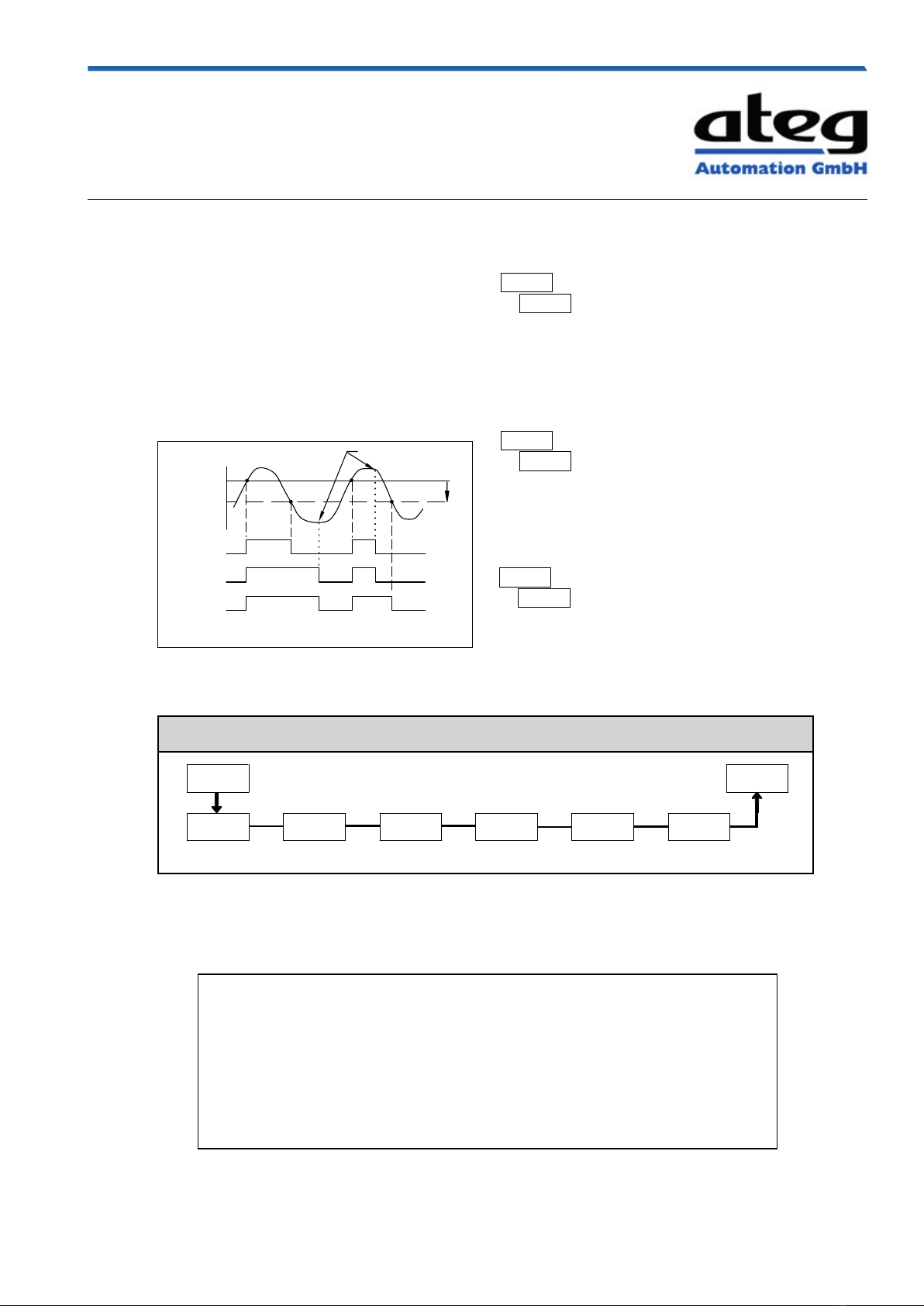

High Acting (Unbalanced Hys) = HI-Ub
SETPOINT VALUE
Enter the desired setpoint value. The decimal point position for the setpoint
and hysteresis values follow the selection set in Module 1.
-19999 to 99999


10000
SPt-n
Erstellt am 04.09.2021 um 05:30 Uhr | Alle Angaben ohne Gewähr, Irrtümer und Änderungen vorbehalten! Seite 12 von 14

ATEG Automation GmbH |Intzestraße 50 |42859 Remscheid |Germany |Tel.: [phone] |[email protected] |www.ateg.de
Datenblatt
Digitalanzeige CUB5V
CUB5V
11
6.5 Module 5 - Serial Setup paraMeterS (5-SEr)
SEL
Data BitBaud Rate Parity Bit Print
Options
Meter
Address
Abbreviated
Printing
5-SEr
bAUd dAtA PAr Addr Abbr OPt
Pro
The Serial Setup Parameters are only active when one of the optional serial communication/programming cards is installed in the meter.
Refer to the CUB5COM bulletin for details on CUB5 RS232 or RS485 serial communications.
Refer to the CUB5USB bulletin for details on the CUB5 USB programming and programming requirements.
PARAMETER MENU
button or user input manual reset, serial reset command or meter power
cycle. When the user input or RST button is activated (momentary action),
the corresponding “on” output is reset immediately and remains off until the
trigger point is crossed again. (Previously latched alarms will be off if power
up Display Value is lower than setpoint value.)
L-dLY = Latch with delay reset action; This action latches the output on at the
trigger point per the Setpoint Action shown in Setpoint Output Figures. Latch
means that the output can only be turned off by the front panel RST button
or user input manual reset, serial reset command or meter power cycle. When
the user input or RST button is activated (momentary action), the meter
delays the event until the corresponding “on” output crosses the trigger off
point. (Previously latched outputs are off if power up Display Value is lower
than setpoint value. During a power cycle, the meter erases a previous L-dLY
reset if it is not activated at power up.)
OUTPUT
STATE
OFF ON
Hys
SP
Auto
OFF ON OFF
OFF ON OFF ON OFF
OFF ON OFF ON OFF
MANUAL
RESET
LAtCH
L-dLY
SP - Hys
( )
( )
( )
{
Setpoint Output Reset Actions
This parameter enables the RST button or user input to reset the output when
the display is reset.
Note: For this parameter to operate, the RST button or User Input being used
must be set to dSP and the Input value must be displayed. If these conditions are
not met, the output will not reset.


YES
rEn-n
OUTPUT RESET WITH DISPLAY RESET
YESNO
When YES, the output is disabled (after a power up) until the trigger point is
crossed. Once the output is on, the output operates normally per the Setpoint
Action and Output Reset Action.


NO
Stb-n


NO
ChC-n
STANDBY OPERATION
YESNO
This parameter enables the backlight CUB5 to switch the backlight color when
the output state changes. This parameter is only active for the backlight version.
CHANGE DISPLAY COLOR w/OUTPUT STATE
YESNO
LIMITED WARRANTY
(a) Red Lion Controls Inc., Sixnet Inc., N-Tron Corporation, or Blue Tree Wireless Data, Inc. (the “Company”) warrants that all Products shall be free from defects
in material and workmanship under normal use for the period of time provided in “Statement of Warranty Periods” (available at www.redlion.net) current at the
time of shipment of the Products (the “Warranty Period”). EXCEPT FOR THE ABOVE-STATED WARRANTY, COMPANY MAKES NO WARRANTY
WHATSOEVER WITH RESPECT TO THE PRODUCTS, INCLUDING ANY (A) WARRANTY OF MERCHANTABILITY; (B) WARRANTY OF
FITNESS FOR A PARTICULAR PURPOSE; OR (C) WARRANTY AGAINST INFRINGEMENT OF INTELLECTUAL PROPERTY RIGHTS OF A
THIRD PARTY; WHETHER EXPRESS OR IMPLIED BY LAW, COURSE OF DEALING, COURSE OF PERFORMANCE, USAGE OF TRADE OR
OTHERWISE. Customer shall be responsible for determining that a Product is suitable for Customer’s use and that such use complies with any applicable local,
state or federal law.
(b) The Company shall not be liable for a breach of the warranty set forth in paragraph (a) if (i) the defect is a result of Customer’s failure to store, install,
commission or maintain the Product according to specifications; (ii) Customer alters or repairs such Product without the prior written consent of Company.
(c) Subject to paragraph (b), with respect to any such Product during the Warranty Period, Company shall, in its sole discretion, either (i) repair or replace the
Product; or (ii) credit or refund the price of Product provided that, if Company so requests, Customer shall, at Company’s expense, return such Product to Company.
(d) THE REMEDIES SET FORTH IN PARAGRAPH (c) SHALL BE THE CUSTOMER’S SOLE AND EXCLUSIVE REMEDY AND COMPANY’S
ENTIRE LIABILITY FOR ANY BREACH OF THE LIMITED WARRANTY SET FORTH IN PARAGRAPH (a).
Erstellt am 04.09.2021 um 05:30 Uhr | Alle Angaben ohne Gewähr, Irrtümer und Änderungen vorbehalten! Seite 13 von 14

ATEG Automation GmbH |Intzestraße 50 |42859 Remscheid |Germany |Tel.: [phone] |[email protected] |www.ateg.de
Datenblatt
Digitalanzeige CUB5V
CUB5V
Backlight
Unit Only
Backlight Unit Only
Filter Band
Input
Range
Display
Decimal Point
Filter Setting User Input
Function
Input Value
for Scaling
Point 1
User Input
Assignment
SEL
RST Exit
Programming
SEL
RST
RST
RST
RST
RST
SEL
SEL
SEL
SEL
Display Value
for Scaling
Point 1
Input Value
for Scaling
Point 2
Display Value
for Scaling
Point 2
Display Offset
Value
Scaling Style
Setpoint
Action
Setpoint
Select
Setpoint
Value
Output Reset
Action
Hysteresis
Value
Off Time
Delay
On Time
Delay
Output Reset
W/Display
Reset
Change Display
Color with
Output State
SPSEL
4-SPt Act-n SPt-n HYS-n tON-n tOF-n rSt-n rEn-n ChC-n
Standby
Operation
Stb-n
Front Panel
Reset Enable
Front Panel
Display
Select Enable
Display
Update Time
dSP-t SEL rSt
3-dSP
Display
Intensity
Level
COLOr
Units
Indicator
Selection
UNItS
Display
Color
d-LEV
Programming
Security Code
CodE
rANGE dECPt
1-INP FILtr bANd USrIN
INP 1 dSP 1 INP 2 U-ASN
LO-En
Min Display
Enable
Max Capture
Delay Time
Max Display
Enable
HI-En HI-t2-SEC
Min Capture
Delay TIme
LO-t
Factory
Service
Operations
FCS
Access Code
For Service
Operations
CodE
PAr
Parity BitBaud Rate
bAUd
Data Bit
dAtA
5-SEr
Meter
Address
Addr
Abbreviated
Printing
Abbr
Print
Options
OPt
NO
Pro
End
dSP 2
OFSEt StYLE
Zero Display
W/Display
Reset
ZErO ScroL
Display
Scroll
Enable
cuB5v proGraMMinG QuicK overvieW
Press and hold SEL button to enter Programming Mode.
Powered by TCPDF (www.tcpdf.org)
Erstellt am 04.09.2021 um 05:30 Uhr | Alle Angaben ohne Gewähr, Irrtümer und Änderungen vorbehalten! Seite 14 von 14
