USER GUIDE
ATEQ VT36
Version HA1-09
Reference: UM-36400C-U

REVISION OF THE ATEQ VT36 MANUAL
Due to continuing improvements, the information contained in this user manual, the features and design
of this device are subject to be changed without prior notice.
Edition/
Revision Reference Date
(week/year) Chapters updated
First edition UM-36400A-U 41/2015 -----
Second edition UM-36400B-U 36/2016 Firmware version HA1-06.
Third edition UM-36400C-U 22/2017 Firmware version HA1-09.

Table of contents
UM-36400C-U User manual ATEQ VT36 Page 1/32
TABLE OF CONTENTS
User guide 2
VT36 TPMS TOOL..........................................................................................................2
1. SPECIFICATIONS ...............................................................................................................................2
2. IMPORTANT SAFETY INSTRUCTIONS.............................................................................................3
3. CAUTION.............................................................................................................................................4
4. FUNCTION KEYS................................................................................................................................5
5. POWER ON..........................................................................................................................................6
6. OPERATING INSTRUCTIONS............................................................................................................7
VT36 USE........................................................................................................................8
1. CHECK SENSOR ................................................................................................................................8
2. PROGRAM BLANK SENSOR...........................................................................................................11
3. PART # LOOKUP ..............................................................................................................................17
SETTINGS.....................................................................................................................19
1. ENTER SETTINGS MENU.................................................................................................................19
ABOUT..........................................................................................................................23
1. ENTER IN THE ABOUT MENU.........................................................................................................23
LANGUAGE..................................................................................................................24
1. ENTER LANGUAGES MENU............................................................................................................24
RECENT SENSOR DATA.............................................................................................25
1. RECENT SENSOR DATA MENU......................................................................................................25
MISCELLANEOUS .......................................................................................................26
1. CHARGE............................................................................................................................................26
2. TROUBLESHOOTING.......................................................................................................................27
3. TOOL UPDATE..................................................................................................................................27
4. LIMITED HARDWARE WARRANTY ................................................................................................29
5. SAFETY BATTERY AND CHARGE INFORMATION.......................................................................29
6. FCC STATEMENTS...........................................................................................................................30
7. CE STATEMENTS.............................................................................................................................31
8. RECYCLING ......................................................................................................................................31
Index 32

VT36 TPMS TOOL user guide
UM-36400C-U User manual ATEQ VT36 Page 2/32
User guide
VT36 TPMS TOOL
1. SPECIFICATIONS
Battery Type: Rechargeable Li-Po (Lithium-Polymer).
Battery Life: Approximately 400 activations per full charge.
Dimensions (Max. L,W,D): 6.5" x 3.7" x 1.5" (16.5 cm x 9.5 cm x 3.8 cm).
Case Material: High Impact ABS.
Response Frequency: Main frequencies: 315 MHz and 433.92 MHz (supporting
most specific frequencies).
Low Battery Indication: LCD bar graph display.
Weight: Approx. 2 lbs.
Temperature: Operating: -4° F to 131° F (-20° C to +55° C).
Storage: -40°F to 140° F (-40° C to +60° C).
Operating Altitude: Up to 6560 ft (2000 m).

VT36 TPMS TOOL user guide
UM-36400C-U User manual ATEQ VT36 Page 3/32
2. IMPORTANT SAFETY INSTRUCTIONS
Do not discard. Retain for future reference.
This device complies with:
- Part 15 of the FCC Rules (FCC ID: 2AFOA-VT36)
- CE / CEM standards
- ROHS standards
Operation is subject to the following two conditions:
(1) This device will not cause harmful interference, and
(2) This device will accept any interference received, including interference that may
cause undesired or improper operation.
WARNING: This product emits electromagnetic and electronically
generated waves that may interfere with the safe operation of
pacemakers.
Individuals that have pacemakers should never use this product.
WARNING:
Do not use on live electrical circuits.
Must read instructions before use.
Wear safety goggles. (User and bystanders).
Risk of entanglement.
Read the Warranty, Safety and Recycling information at the end of this user guide.

VT36 TPMS TOOL user guide
UM-36400C-U User manual ATEQ VT36 Page 4/32
3. CAUTION
READ THESE INSTRUCTIONS BEFORE USING
Your Tire Pressure Monitoring (TPM) tool has been designed to be durable, safe, and
reliable when properly used.
All TPMS TOOLS are intended to be used only by qualified and trained automotive
technicians or in a light industrial repair shop environment. Please read all instructions
below before using. Always follow these safety instructions. If you have any questions
pertaining to the safe or reliability use of this tool, please call your local dealer.
1. Read All Instructions
All warnings on the tool and in this manual should be adhered to. All operating instructions
should be followed.
2. Retain Instructions
The safety and operating instructions should be retained for future reference.
3. Heed Warnings
User and bystanders must wear safety goggles and must read instructions before use. Do
not use on live electrical circuits, risk of entanglement.
4. Cleaning
Clean with a soft dry cloth, or if necessary, a soft damp cloth. Do not use any harsh
chemical solvents such as acetone, thinner, brake cleaner, alcohol, etc as this may
damage the plastic surface.
5. Water & Moisture
Do not use this tool where contact or immersion in water is a possibility. Never spill liquid
of any kind onto the tool.
6. Storage
Do not use or store the tool in an area where it is exposed to direct sunlight or excessive
moisture.
7. Use
To reduce the risk of fire, do not operate the tool in the vicinity of open containers or
flammable liquids. Do not use if the potential for explosive gas or vapors exists. Keep the
tool away from heat generating sources. Do not operate the tool with the battery cover
removed.

VT36 TPMS TOOL user guide
UM-36400C-U User manual ATEQ VT36 Page 5/32
4. FUNCTION KEYS
Power ON /OFF switch Test or trigger sensor.
Next, continue or confirm. Cancel, previous step.
Navigate to select "up”. Navigate to select “down”.
Navigate to select “left”. Navigate to select “right”.
Battery charge
indicator and
low bat light
Trigger light
Result lights
Keyboard
Antenna

VT36 TPMS TOOL user guide
UM-36400C-U User manual ATEQ VT36 Page 6/32
5. POWER ON
Press key to turn on device, the TPMS TOOL
Displays first the VT logo as Fig. 1.
Fig. 1
The software version as Fig. 2.
ATEQ VT36
Version HU1−09−01
ZONE:AMERICA
Fig. 2
At first starting or after a factory reset, the work
zone is asked as Fig. 3.
ZONE
> AMERICA
EUROPE
COREA
Fig. 3
Then reverts to the MAIN MENU as Fig. 4.
MAIN MENU
CHECK SENSOR
Fig. 4

VT36 TPMS TOOL user guide
UM-36400C-U User manual ATEQ VT36 Page 7/32
6. OPERATING INSTRUCTIONS
6.1. TPMS TOOL OVERVIEW
Read and diagnose sensors.
Service Procedure
Read Sensor Test
Before servicing the tires/wheels, using your
TPMS TOOL, trigger each of the vehicle's sensors to
make sure they are working properly.
This will eliminate the liability associated with
replacing previously damaged or defective sensors.
MAIN MENU
CHECK SENSOR
This procedure will not change the vehicle settings because the vehicle has yet to be put
into learn/retraining mode. This procedure allows you to quickly identify damaged or
defective sensors, because some vehicles do not report a damaged or defective sensor
condition on the instrument cluster for up to 20 minutes.
Note: If the sensors do not trigger, please refer to the Troubleshooting section of this Guide.
Perform tire/wheel service.
Begin by triggering the driver's front left (LF) wheel sensor.
The same procedure should be followed on all wheel sensors, in a
clockwise rotation.
We recommend you trigger each wheel sensor, one final time, to
make sure they are working correctly prior to releasing the vehicle to
the customer.
1 Start FL
4 End RL
FR 2
RR 3
Fig. 5

VT36 TPMS TOOL user guide
UM-36400C-U User manual ATEQ VT36 Page 8/32
VT36 USE
IMPORTANT:
Vehicle specific information in this manual is used as an example and may not
represent specific instructions each make and model may require. When performing
various functions with the tool, it is important to refer to the on-screen prompts
and/or repair manual information.
1. CHECK SENSOR
MAIN MENU
CHECK SENSOR
VEHICLE SELECTION
SUBARU
SUZUKI
TESLA
> TOYOTA
1.1. SELECT CAR MANUFACTURER
VEHICLE SELECTION
SUBARU
SUZUKI
TESLA
> TOYOTA
TOYOTA
ProAce Combi
> RAV4 III
RAV4 IV
Solara II
1.2. SELECT CAR MODEL
TOYOTA
ProAce Combi
> RAV4 III
RAV4 IV
Solara II
RAV4 III
> 2005−2013

VT36 TPMS TOOL user guide
UM-36400C-U User manual ATEQ VT36 Page 9/32
1.3. SELECT YEAR
RAV4 III
> 2005−2013
RAV4 III
> 4 WHEELS
5 WHEELS
1.4. SELECT WHEEL NUMBER
This option does not appear for all vehicles.
RAV4 III
> 4 WHEELS
5 WHEELS
RAV4 III
▲
◄►
▼
SELECT TIRE
C: : START
The tool is ready to trigger the
sensors.

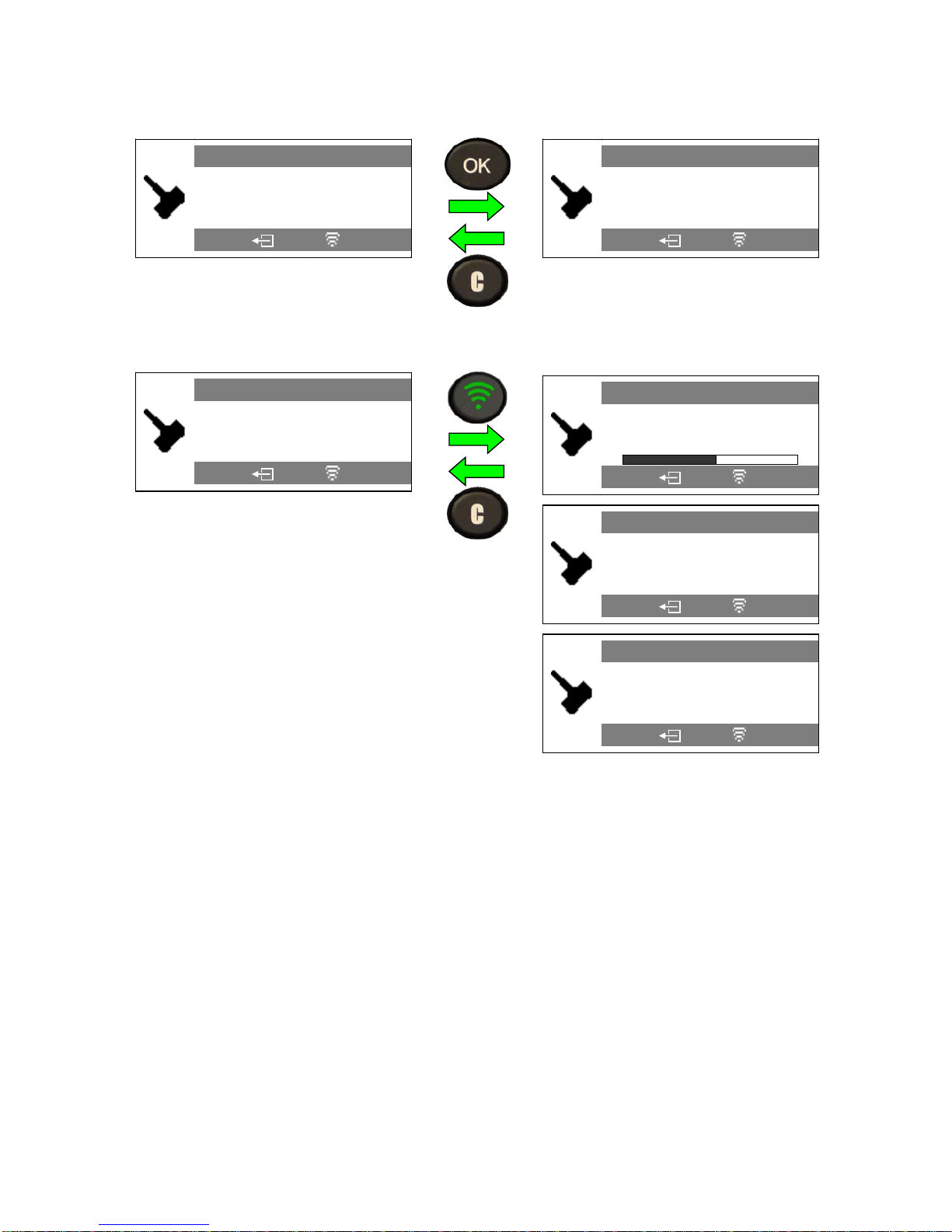

1.5. TEST SENSOR
RAV4 III
▲
◄►
▼
SELECT TIRE
C: : START
For tire selection.
RAV4 III
TRIGGER PROCESSING
C: : START

VT36 TPMS TOOL user guide
UM-36400C-U User manual ATEQ VT36 Page 10/32

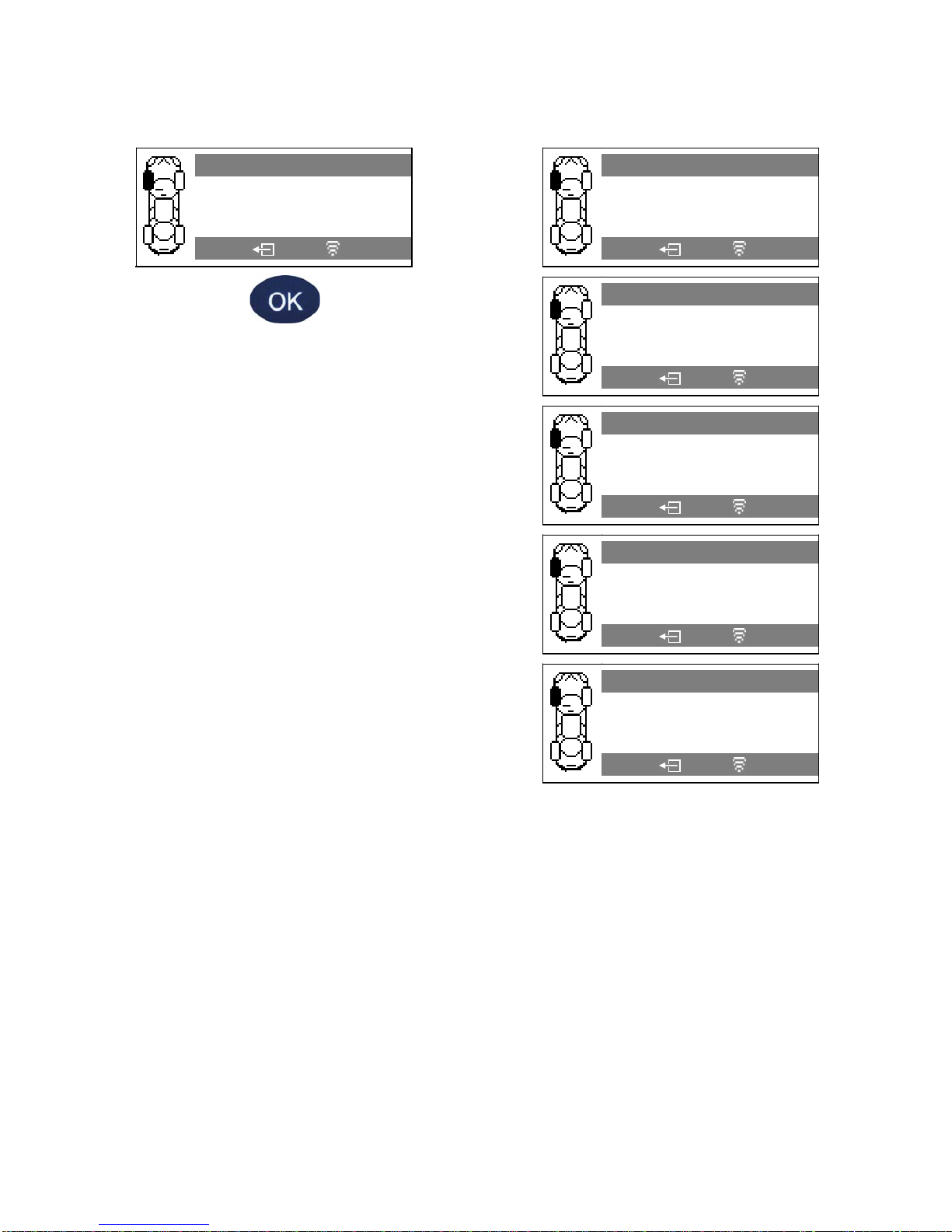

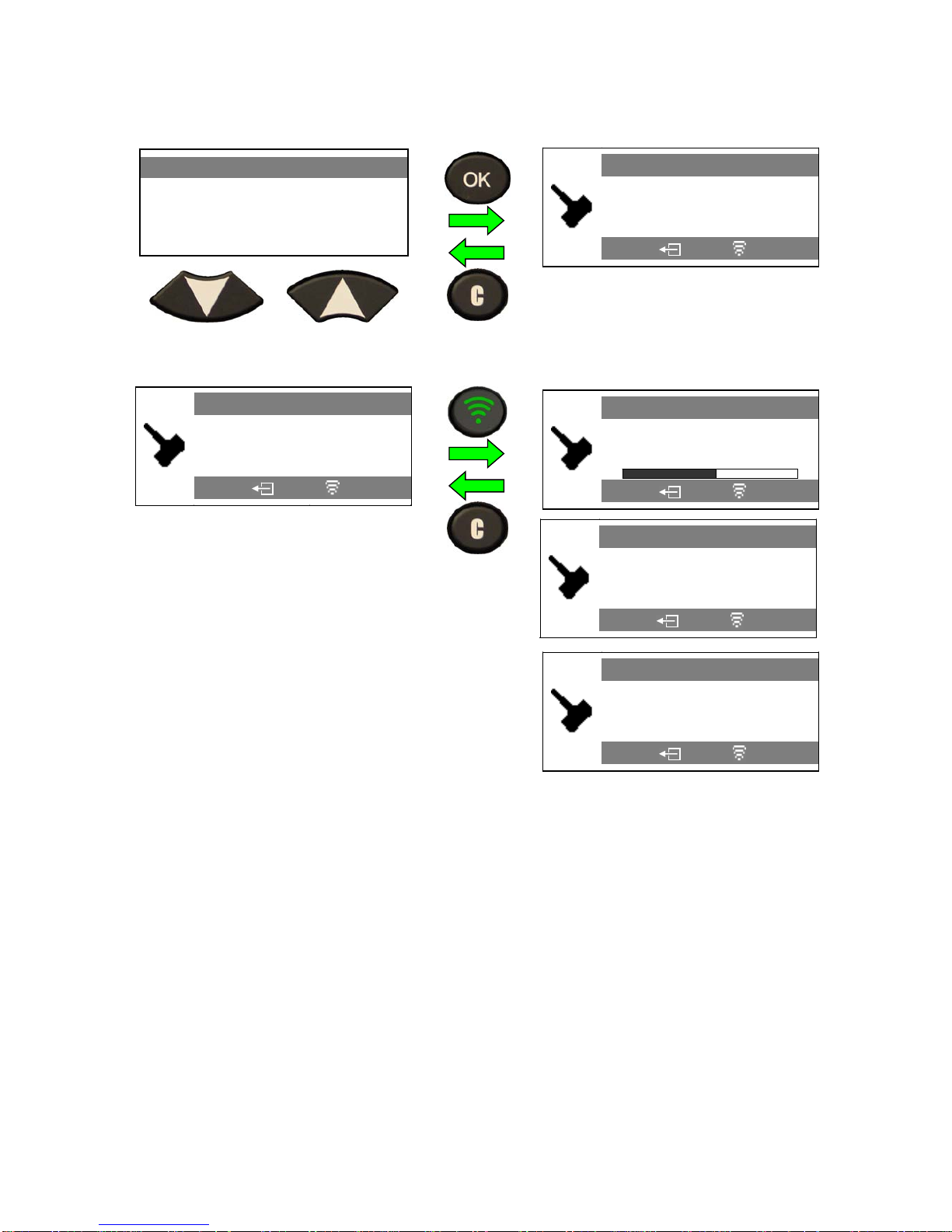

1.6. TEST RESULTS
RAV4 III
TRIGGER PROCESSING
C: : START
1: PASS: press to go to next
tire.
2/3: FAIL.
1: PASS
RAV4 III
F383834 25°C
0.10 bar BAT:OK
315 MHz
C: : START
2: FAIL
RAV4 III
NO SENSOR DETECTED
C: : START
3: FAIL
RAV4 III
DUPLICATE SENSOR
C: : START
4: FAIL
RAV4 III
REDUCE TIRE PRESSURE
C: : START
5: FAIL
RAV4 III
COM. ERROR
C: : START

VT36 TPMS TOOL user guide
UM-36400C-U User manual ATEQ VT36 Page 11/32
2. PROGRAM BLANK SENSOR
This section is to recover a sensor ID in order to enter it in the spare blank sensor. If the
"old" sensor can be read, use the "COPY ORIGINAL SENSOR" section to recover the ID.
If it can't be read, use the "CREATE NEW SENSOR" section to create a randomized ID.
MAIN MENU
PROG. SENSOR
VEHICLE SELECTION
SUBARU
SUZUKI
TESLA
> TOYOTA

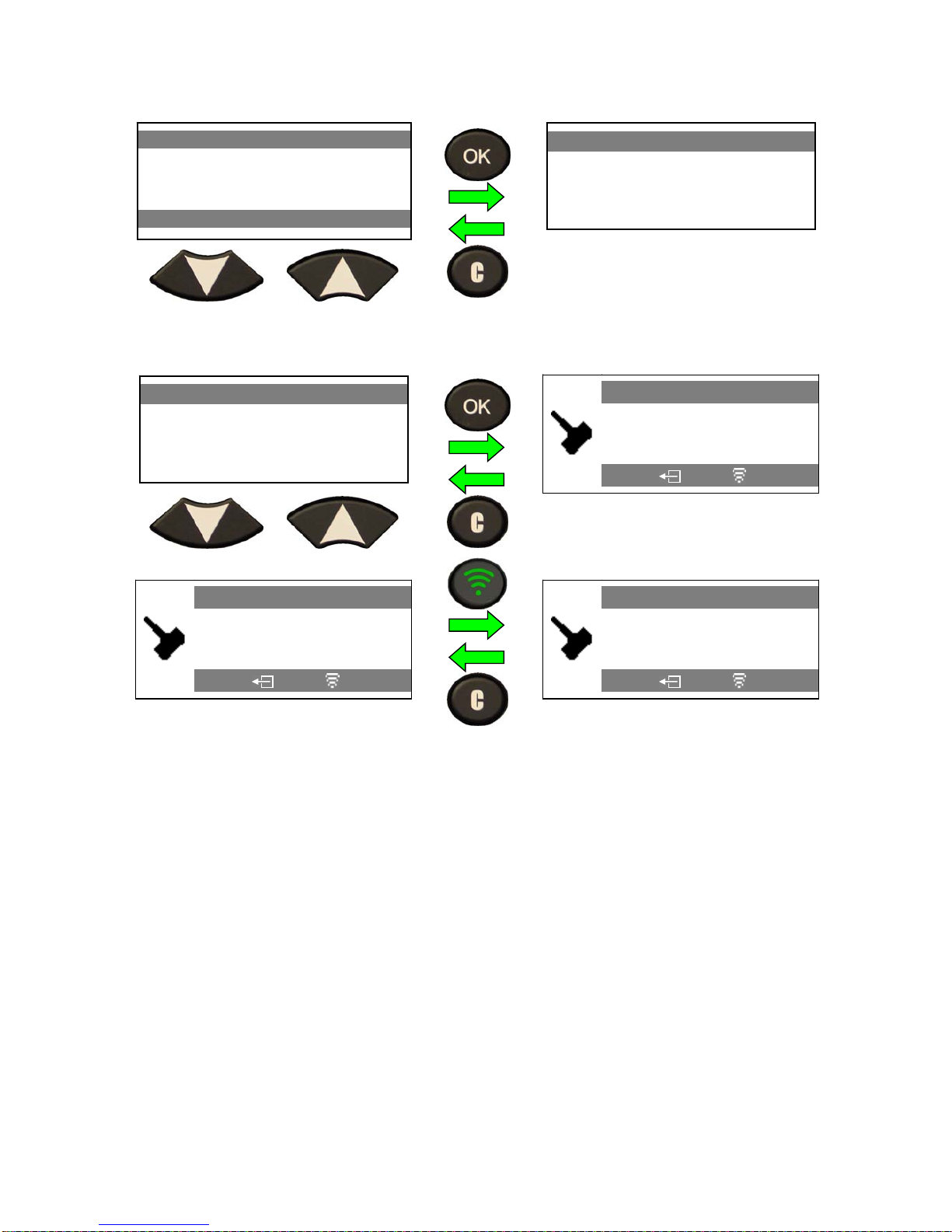

2.1. CHOOSE SELECTION
This option is to choose the way for select the sensor to program (Europe region only).
2.1.1. Sensor selection mode
PROGRAM SENSOR
> SENSOR SELECTION
VEHICLE SELECTION
PROGRAM SENSOR
ALCAR by Schrader
ALLIGATOR Sens.it
> EU−Pro
HUF Intellisens
PROGRAM SENSOR
ALCAR by Schrader
ALLIGATOR Sens.it
> EU−Pro
HUF Intellisens
VEHICLE SELECTION
SUBARU
SUZUKI
TESLA
> TOYOTA
2.1.1. Vehicle selection mode
PROGRAM SENSOR
SENSOR SELECTION
> VEHICLE SELECTION
VEHICLE SELECTION
SUBARU
SUZUKI
TESLA
> TOYOTA

VT36 TPMS TOOL user guide
UM-36400C-U User manual ATEQ VT36 Page 12/32
2.1. SELECT CAR MANUFACTURER
VEHICLE SELECTION
SUBARU
SUZUKI
TESLA
> TOYOTA
TOYOTA
ProAce Combi
> RAV4 III
RAV4 IV
Solara II
2.2. SELECT VEHICLE MODEL
TOYOTA
ProAce Combi
> RAV4 III
RAV4 IV
Solara II
RAV4 III
> 2005−2013
2.3. SELECT YEAR
RAV4 III
> 2005−2013
PROGRAM SENSOR
ALCAR by Schrader
ALLIGATOR Sens.it
> EU−Pro
HUF Intellisens
Following option some sensor model
may not be available.
2.4. SELECT BLANK SENSOR MODEL
PROGRAM SENSOR
ALCAR by Schrader
ALLIGATOR Sens.it
> EU−Pro
HUF Intellisens
TOYOTA
Use EU-Pro1 or EU-Pro
Hybrid
(C) STOP (OK) NEXT
The device displays blank sensor's
reference of the selected dealer.
to continue.

VT36 TPMS TOOL user guide
UM-36400C-U User manual ATEQ VT36 Page 13/32
2.5. SELECT THE OPTION
TOYOTA
Use EU-Pro1 or EU-Pro
Hybrid
(C) STOP (OK) NEXT
EZ−sensor
> COPY ID
CREATE SENSOR
Following sensor brand some option
may not be available.
2.6. "COPY ORIGINAL SENSOR"SECTION
EZ−sensor
> COPY ID
CREATE SENSOR
RAV4 III
COPY ID
C: : START
RAV4 III
COPY ID
C: : START
RAV4 III
TRIGGER PROCESSING
C: : START

VT36 TPMS TOOL user guide
UM-36400C-U User manual ATEQ VT36 Page 14/32
2.6.1. Test results
RAV4 III
TRIGGER PROCESSING
C: : START
1: PASS: See
"Sensor reprogramming" section.
1: PASS
RAV4 III
F383834 25°C
0.10 bar BAT:OK
315 MHz
C: : START
2: FAIL: press to test again. 2: FAIL
RAV4 III
NO SENSOR DETECTED
C: : START
3: FAIL: reduce the tire pressure and
press to test again. 3: FAIL
RAV4 III
REDUCE TIRE PRESSURE
C: : START
4: FAIL: press to test again. 4: FAIL
RAV4 III
COM. ERROR
C: : START

VT36 TPMS TOOL user guide
UM-36400C-U User manual ATEQ VT36 Page 15/32
2.7. PROGRAMMING SENSOR
RAV4 III
F383834 25°C
0.10 bar BAT:OK
315 MHz
C: : START
Hold the new programmable sensor
near the device antenna.
RAV4 III
PROGRAM SENSOR
315 MHz
C: : START
2.7.1. Results
RAV4 III
PROGRAM SENSOR
315 MHz
C: : START
RAV4 III
UPLOADING…
C: : START
RAV4 III
VERIFYING
315 MHz
C: : START
RAV4 III
F383834 25°C
0.10 bar BAT:OK
315 MHz
C: : START

VT36 TPMS TOOL user guide
UM-36400C-U User manual ATEQ VT36 Page 16/32
2.8. "CREATE NEW SENSOR"SECTION
EZ−sensor
COPY ID
> CREATE SENSOR
RAV4 III
CREATE SENSOR
315 MHz
C: : START
Hold the new programmable sensor
near the device antenna.
2.8.1. Results
RAV4 III
CREATE SENSOR
315 MHz
C: : START
Note: in this operation the ID is a
random number.
RAV4 III
UPLOADING…
C: : START
RAV4 III
VERIFYING
315 MHz
C: : START
.
RAV4 III
EE995DD 25°C
0.10 bar BAT:OK
315 MHz
C: : START

VT36 TPMS TOOL user guide
UM-36400C-U User manual ATEQ VT36 Page 17/32
3. PART # LOOKUP
This is a spare parts data base for all the sensors available for all cars.
MAIN MENU
PART # LOOKUP
VEHICLE SELECTION
SUBARU
SUZUKI
TESLA
> TOYOTA
3.1. SELECT CAR MANUFACTURER
VEHICLE SELECTION
SUBARU
SUZUKI
TESLA
> TOYOTA
TOYOTA
ProAce Combi
> RAV4 III
RAV4 IV
Solara II
3.2. SELECT VEHICLE MODEL
TOYOTA
ProAce Combi
> RAV4 III
RAV4 IV
Solara II
RAV4 III
> 2005−2013

VT36 TPMS TOOL user guide
UM-36400C-U User manual ATEQ VT36 Page 18/32
3.1. SELECT YEAR
RAV4 III
> 2005−2013
PART# LOOKUP
> OE
OE Sensor ref
OE SERVICE KIT
OE SERVICE VALVE
to scroll dealers.
3.1. SELECT DEALER
PART# LOOKUP
> OE
OE Sensor ref
OE SERVICE KIT
OE SERVICE VALVE
OE
42607-20010
TOYOTA
RAV4 III
2005-2013
to scroll dealer's part number.
