Atlanta Attachment Company 1317A User manual

Atlanta Attachment Company
362 Industrial Park Drive
Lawrenceville, GA 30046
770-963-7369 • www.atlatt.com
Technical Manual & Parts Lists
Model 1317A
Revision 2.2 Updated Jan 17, 2017

Technical Manual & Parts Lists
1

Technical Manual & Parts Lists
ATLANTA ATTACHMENT COMPANY,INC.
Confidential and Proprietary Information
The materials contained herein are confidential and proprietary information of Atlanta
Attachment Company. In addition to any confidentiality and non-disclosure obligations that currently
exist between you and Atlanta Attachment Company, your use of these materials serves as an
acknowledgment of the confidential and proprietary nature of these materials and your duty not to make
any unauthorized use or disclosure of these materials.
All materials contained herein are additionally protected by United States Copyright law and
may not be used, disclosed, reproduced, distributed, published or sold without the express written
consent of Atlanta Attachment Company, which consent may be withheld in Atlanta Attachment
Company’s sole discretion. You may not alter or remove any copyright, trademark or other notice from
copies of these materials.
Patents & Patents Pending
The sale of this product does not sell or otherwise transfer any license or other rights under any
U.S. Patent or other corresponding foreign patent.
This equipment is manufactured under one or more of the following patents:
4,280,421 ● 4,432,294 ● 4,466,367 ● 4,644,883 ● 5,134,947 ● 5,159,889 ● 5,203,270 ● 5,373,798 ●
5,437,238 ● 5,522,332 ● 5,524,563 ● 5,562,060 ● 5,634,418 ● 5,647,293 ●5,657,711 ● 5,743,202 ●
5,865,135 ● 5,899,159 ● 5,915,319 ● 5,918,560 ● 5,924,376 ●5,979,345 ● 6,035,794 ● 6,055,921 ●
6,202,579 ● 6,279,869 ● 6,295,481 ● 6,494,225 ●6,523,488 ● 6,574,815 ● 6,802,271 ● 6,834,603 ●
6,968,794 ● 6,994,043 ● 7,543,364 ●7,574,788 ● 7,647,876 ● 7,735,439
Foreign Patents: 9-520,472 ● 0,537,323 ● 92,905,522.6 ● 96,936,922.2 ● 2,076,379 ● 2,084,055
Other U.S. and Foreign Patents Pending.
IMPORTANT
It is important to read and understand the information contained within this
manual before attempting to operate the machine. Atlanta Attachment Co., Inc.
shall not be held liable for damage resulting from misuse of the information
presented within, and reserves the right to change the information contained
within, without prior notification.

Technical Manual & Parts Lists
Contents
Important Safety Instruction ....................................................................................................................... 1
Liability ...................................................................................................................................................... 2
Safety Equipment on the Machines ............................................................................................................ 3
Protective Eyewear ..................................................................................................................................... 4
Important Notices........................................................................................................................................ 5
Maintenance ................................................................................................................................................ 7
Repair .......................................................................................................................................................... 8
A Word to the End User.............................................................................................................................. 9
Safety Precautions ....................................................................................................................................... 9
1317A AUTO FLANGER OPERATING INSTRUCTIONS ................................................................... 10
MAIN SCREEN........................................................................................................................................ 10
SETUP SCREEN ...................................................................................................................................... 13
ADVANCED SETTING PAGES ............................................................................................................. 14
ADVANCED MANUAL PAGES: ........................................................................................................... 14
LAST CORNER ADJUSTMENTS: ......................................................................................................... 15
Assembly Drawings & Parts Lists ............................................................................................................ 18
11317A AUTO H/D PANEL FLANGER ................................................................................................ 19
1317475 GUIDE CLAMP ........................................................................................................................ 20
1317580 TURNTABLE DRIVE ASSY. .................................................................................................. 21
1317587 GUIDE WHEEL ASSY. ............................................................................................................ 22
1317740 TURNTABLE CONSOLE ........................................................................................................ 24
1317888 TURNTABLE ASSY................................................................................................................. 26
1317894 ROTATING ASSY. ................................................................................................................... 28
1317900 MATERIAL ADV. & CUTTER................................................................................................ 30
1317923 PULLER ASSY. ........................................................................................................................ 32
1317969 ACCESS DOOR SIDE .............................................................................................................. 33
1317983 FLANGE ROLL HOLDER ASSY. ........................................................................................... 36
1318003 CONVEYOR ............................................................................................................................. 38
1318052 CONVEYOR DRIVE ASSY. .................................................................................................... 40
1318360 CONV. TENSION ROLLER ASSY. ........................................................................................ 41
1318079 CONV. TENSION ROLLER ASSY. ........................................................................................ 42
1318083 CONV. DRIVE IDLER ASSY. ................................................................................................. 44
1318112-1 CONTROL PANEL ............................................................................................................... 46
1318112-2 CONTROL PANEL ............................................................................................................... 48
1318117 AIR REG. & C/B ASSY. ........................................................................................................... 49
1318133 EDGE GUIDE DRIVE ASSY. .................................................................................................. 52

Technical Manual & Parts Lists
1318140 EDGE GUIDE ASSY ................................................................................................................ 53
1318160 ENCODER WHEEL ASSY. ..................................................................................................... 54
1318201 UPPER SBUS ENCLOSURE.................................................................................................... 56
1318210 PANEL CLAMP ASSY ............................................................................................................. 57
1318220 UNCURLER DRIVE ASSY...................................................................................................... 60
1318230 UNCURLER ASSY. .................................................................................................................. 61
1318240 SWING ARM W/CLAMP ASSY. ............................................................................................ 62
1318267 FINISH GUIDE ASSEMBLY ................................................................................................... 63
1318280 ROTATE SENSOR ASSY. ....................................................................................................... 64
1318290 DUAL GUIDE WHEEL ............................................................................................................ 65
1318291 THREAD TRIMMER ASSEMBLY ......................................................................................... 68
1318292 PULLER ENGAGE EYE ASSY. .............................................................................................. 69
318293 REAR PANEL GUIDE................................................................................................................ 70
1318300 EDGE GUIDE EYE ASSY. ...................................................................................................... 71
1318341 TOUCH SCREEN ASSY. ......................................................................................................... 72
1318342 THREAD STAND ASSY. ......................................................................................................... 73
1318344 CONSOLE FRAME ASSY. ...................................................................................................... 75
1318352 CONVEYOR SUB ASSY #1 .................................................................................................... 77
1318354 CONSOLE SUB ASSY #1 ........................................................................................................ 79
1318356 CONVEYOR SUB ASSY #2 .................................................................................................... 80
1390123 STOP BUTTON BOX ASSY .................................................................................................... 82
1458122 FOOT PEDAL ASSY. SPDT .................................................................................................... 85
1278-8010 START/STOP BUTTON ASSY. ........................................................................................... 86
1278-6160J FOOT PEDAL ASSY. 3 PEDAL ......................................................................................... 89
11337 HSEHLJ28D SEW HEAD, AUTO FLANGER ............................................................................ 90
1317992 TENSION OPENER ASSY. ...................................................................................................... 91
1318294 STITCH CONDENSING ASSY. .............................................................................................. 92
1337595 SEWING HEAD ASSEMBLY.................................................................................................. 94
1337830 BELT FEED ASSY. .................................................................................................................. 96
1337852 DRIVE ASSY W/MOTOR ........................................................................................................ 98
1317A-PSM PROGRAM SETTINGS MAP ............................................................................................ 99
1317A-WD WIRNG DIAGRAM, CNTRL PNL ................................................................................... 100
1317A-PD PNEUMATIC DIAGRAM, 1317A ...................................................................................... 101

Technical Manual & Parts Lists
1
Important Safety Instruction
This part of the Instruction Material is provided for the safe use of your equipment.
It contains important information to help work safely with the unit and describes the
dangers inherent in machinery. Some of these dangers are obvious, while others are
less evident.
Mandatory Information
All persons operating and/or working on the 3200PB1 Mattress Border Workstation should read and
understand all parts of the Safety Instructions. This applies, in particular, for persons who only operate
and/or work on the unit occasionally (e.g. for maintenance and repair). Persons who have difficulty
reading must receive particularly thorough instruction.
Scope of the Instruction Material
The Instruction Material comprises:
Safety information
Operator Instructions
Electrical and Pneumatic diagrams
And may also include;
A list of recommended spare parts
Instruction Manual(s) for components made by other manufacturers
The layout and installation diagram containing information for installation
Intended Use
Our machines are designed and built in line with the state of the art and the accepted safety rules.
However, all machines may endanger the life and limb of their users and/or third parties and be damaged
or cause damage to other property, particularly if they are operated incorrectly or used for purposes
other than those specified in the Instruction Manual.
Exclusion of Misuse
Non-conforming uses include, for example, using the equipment for something
other than it was designed for, as well as operation without duly installed safety
equipment. The risk rests exclusively with the end user.
Conforming use of the machine includes compliance with the technical data,
information and regulations in all parts of the complete Instruction Material, as
well as compliance with the maintenance regulations. All local safety and
accident prevention regulations must also be observed.

Technical Manual & Parts Lists
2
Liability
The machine should only be operated when in perfect working order, with due regard for safety and the
potential dangers, as well as in accordance with the Instruction Material. Faults and malfunctions
capable of impairing safety should be remedied immediately. We cannot accept any liability for personal
injury or property damage due to operator errors or non-compliance with the safety instructions
contained in this booklet. The risk rests exclusively with the end user.
The Instruction Material should always be kept near the machine so that it is accessible to all concerned.
The local, general, statutory and other binding regulations on accident prevention and environmental
protection must also be observed in addition to the Instruction Material. The operating staff must be
instructed accordingly. This obligation also includes the handling of dangerous substances and
provision/use of personal protective equipment.
The Instruction Material should be supplemented by instructions, including supervisory and notification
duties with due regard for special operational features, such as the organization of work, work
sequences, the personnel deployed, etc.
The personnel's awareness of the dangers and compliance with the safety regulations should be checked
at irregular intervals.
Choice and Qualification of Personnel
Ensure that work on the machine is only carried out by reliable persons who have been appropriately
trained for such work - either within the company, by our field staff or at our office - and who have not
only been duly appointed and authorized, but are also fully familiar with the local regulations. Work on
the machine should only be carried out by skilled personnel, under the management and supervision of a
duly qualified engineer.
This not only applies when the machine is used for production, but also for special work associated with
its operation (start-up and maintenance), especially when it concerns work on the hydraulic or electrical
systems, as well as on the software/serial bus system.
Training
Everyone working on or with the machine should be duly trained and informed with regard to correct
use of the safety equipment, the foreseeable dangers which may arise during operation of the machine
and the safety precautions to be taken. In addition, the personnel should be instructed to check all safety
mechanisms at regular intervals.
Responsibilities
Clearly define exactly who is responsible for operating, setting-up, servicing and repairing the machine.
Define the responsibilities of the machine operator and authorize him to refuse any instructions by third
parties if they run contrary to the machine's safety. This applies in particular for the operators of
machines linked to other equipment. Persons receiving training of any kind may only work on or with
the machine under the constant supervision of an experienced operator. Note the minimum age limits
permitted by law.

Technical Manual & Parts Lists
3
A Word to the Operator
The greatest danger inherent in our machines:
is that of fingers, hands or loose clothing being drawn into a machine by live, coasting or rotating tools
or assemblies or of being cut by sharp tools or burned by hot elements.
ALWAYS BE CONSCIOUS OF THESE DANGERS!
Safety Equipment on the Machines
All machines are delivered with safety equipment, which shall not be removed or
bypassed during operation.
The correct functioning of safety equipment on machines and systems should be
checked every day and before every new shift starts, after maintenance and repair
work, when starting up for the first time and when restarting (e.g. after prolonged
shutdowns).
If safety equipment has to be dismantled for setting-up, maintenance or repair work, such safety
equipment shall be replaced and checked immediately upon completing the maintenance or repair work.
All protective mechanisms shall be fitted and fully operational whenever the machine is at a standstill or
if it has been shut down for a longer period of time.
Damage
If any changes capable of impairing safety are observed in the machine or its mode of operation, such as
malfunctions, faults or changes in the machine or tools, appropriate steps must be taken immediately, the
machine switched off and a proper lockout tagout procedure followed. The machine should be examined
for obvious damage and defects at least once per shift. Damage found shall be immediately remedied by
a duly authorized person before resuming operation of machine.
The machine should only be operated when in perfect working order and when all protective
mechanisms and safety equipment, such as detachable protective mechanisms, emergency STOP
systems, etc. are in place and operational.
Faults or Errors
The machine must be switched off and all moving or rotating parts allowed to come to a standstill and
secured against accidental restart before starting to remedy any faults or errors.
Signs on the Machine
Safety and danger signs on the machine should be observed and checked at regular intervals to ensure
that they are complete and undamaged. They should be clearly visible and legible at all times.
Clothing, Jewelry, Protective Equipment
Long loose hair, loose-fitting clothes, gloves and jewelry, including rings, should be avoided in order to
avoid injuries due to being caught, drawn in and wound up inside the machine.

Technical Manual & Parts Lists
4
Protective Eyewear
Protective eyewear that has been tested by the local authorities should be worn
whenever there is a possibility of loose or flying objects or particles such as when
cleaning the machine with compressed air.
Tools
Always count the number of tools in your possession before starting work on the machine. This will
allow you to check that no tools have been left behind inside the machine. Never leave a tool in the
machine while working.
Oils, Lubricants, Chemicals
Note the applicable safety regulations for the product used.
No Smoking, Fire, Explosion Hazard
Smoking and open flame (e.g. welding work) should be prohibited in the production area due to the risk
of fire and explosions.
Workplace
A clear working area without any obstructions whatsoever is essential for safe operation of the machine.
The floor should be level and clean, without any waste.
The workplace should be well lit, either by the general lighting or by local lights.
Emergency STOP
The emergency STOP buttons bring all machine movements to a standstill. Make sure you know exactly
where they are located and how they work. Try them out. Always ensure easy access to the nearest
emergency STOP button while working on the machine.
First Aid
1. Keep calm even when injured.
2. Clear the operator from the danger zone. The decision of what to do and whether to seek
additional assistance rests entirely with you, particularly if someone has been trapped.
3. Give First Aid. Special courses are offered by such organizations as the employers' liability
insurance association. Your colleagues should be able to rely on you and vice versa.
4. Call an ambulance. Do you know the telephone numbers for the ambulance service, police and
fire service?

Technical Manual & Parts Lists
5
Important Notices
Reporting and Fighting Fires
Read the instructions posted in the factory with regard to reporting fires and the emergency exits. Make
sure you know exactly where the fire extinguishers and sprinkler systems are located and how they are
operated. Pass on the corresponding information to the firemen when they arrive. Ensure there are
enough signs to avoid fire hazards.
The following fire extinguishers may be used:
- Dry powder extinguishers, ABC fire-extinguishing powder.
- Carbon dioxide fire extinguishers to DIN 14461 for electronic components. Great care must be
exercised when using carbon dioxide fire extinguishers in confined, badly ventilated rooms (see DIN
14406 and 14270).
Isolate the machine from the power supply if a fire breaks out. Do not use water on burning electrical
parts until it is absolutely certain that they have been completely disconnected from the power supply.
Burning oils, lubricants, plastics and coatings on the machine can give off gases and vapors that may be
harmful to your health.
A qualified person should be consulted to repair the damage after a fire.
Electrical Power Supply
Before undertaking any maintenance or repair work on the machine, switch off the
electrical power to the machine at the main source and secure it with a padlock so
that it cannot be switched on again without authorization.
In practice, this may mean that the technician, electrician and operator all attach
their own padlock to the master switch simultaneously so that they can carry out
their work safely. Locking extension plates should be available for multiple locks if
required. The primary purpose for a lockout/tagout procedure is to protect workers
from injury caused by unexpected energizing or start-up of equipment.
Energy sources (electrical/pneumatic/hydraulic, etc.) for the equipment shall be turned off or
disconnected and the switches locked or labeled with a warning tag. It is the responsibility of the
employer to establish control procedures. Follow lockout/tagout procedures before, setup and/or any
service or maintenance work is performed, including lubrication, cleaning or clearance of jams.
Caution: The machine is still not completely de-energized even when the master
switch is off.
- Electricity - The machine is always isolated from the electrical power supply whenever the master
switch has been switched off. However, this does not apply for the power supply in the control cabinet,
nor for equipment that does not draw its power via the master switch.
- Pneumatic / hydraulic energy - Almost all our machines carry compressed air. In addition to switching
off the master switch, the air supply must also be disconnected and the machine checked to ensure it is
depressurized before starting any work on the machine; otherwise the machine may execute
uncontrolled movements.

Technical Manual & Parts Lists
6
- Kinetic energy - Note that some motors or spindles, for example, may continue to run or coast run on
after being switched off.
- Potential energy - Individual assemblies may need to be secured if necessary for repair work.
Delivery of the Machine/Packaging
Note any markings on the packaging, such as weights, lifting points and special information. Avoid
temperature fluctuations. Condensation may damage the machine.
Transport Damage
The packaging and machine must immediately be examined for signs of damage in transit. Such damage
must be reported to the shipper/transporter within the applicable time limits. Contact Atlanta Attachment
Company and/or your transport insurer immediately, if signs of damage are visible. Never operate a
damaged machine.
Interim Storage
If the machine has to be stored temporarily, it must be oiled or greased and stored in a dry place where it
is protected from the weather in order to avoid damage. A corrosion-inhibiting coating should be applied
if the machine has to be stored for a longer period of time and additional precautions taken to avoid
corrosion.
Transporting the Machine
Disconnect the machine from all external connections and secure any loose assemblies or parts. Never
step under a suspended load. When transporting the machine or assemblies in a crate, ensure that the
ropes or arms of a forklift truck are positioned as close to the edge of the crate as possible. The center of
gravity is not necessarily in the middle of the crate. Note the accident prevention regulations, safety
instructions and local regulations governing transport of the machine and its assemblies.
Only use suitable transport vehicles, hoisting gear and load suspension devices that are in perfect
working order and of adequate carrying capacity. Transport should only be entrusted to duly qualified
personnel.
Never allow the straps to rest against the machine enclosure and never push or pull sensitive parts of the
machine. Ensure that the load is always properly secured. Before or immediately after loading the
machine, secure it properly and affix corresponding warnings.
All transport guards and lifting devices must be removed before the machine is started up again. Any
parts that are to be removed for transport must be carefully refitted and secured before the machine is
started up again.
Workplace Environment
Our machines are designed for use in enclosed rooms: Permissible ambient temperature approx. 5 - 40
°C (40 - 104 °F). Malfunctions of the control systems and uncontrolled machine movements may occur
at temperatures outside this range.
Protect against climatic influences, such as electrostatic charges, lightning strikes, hail, storm damage,
high humidity, salinity of the air in coastal regions.

Technical Manual & Parts Lists
7
Protect against influences from the surroundings: no structure-borne vibrations, no grinding dust, or
chemical vapors.
Protect against unauthorized access.
Ensure that the machine and accessories are set up in a stable position.
Ensure easy access for operation and maintenance (Instruction Manual and layout diagram); also verify
that the floor is strong enough to carry the weight of the machine.
Local Regulations
Particular attention must be paid to local and statutory regulations, etc. when installing machines and the
plant (e.g. with regard to the specified escape routes). Note the safety zones in relation to adjacent
machines.
Maintenance
General Safety Instructions
The machine shall be switched off, come to a standstill and be secured so that it cannot be switched on
again inadvertently before starting any maintenance work whatsoever. Use proper lockout/tagout
procedures to secure the machine against inadvertent startup.
Remove any oil, grease, dirt and waste from the machine, particularly from the connections and screws,
when starting the maintenance and/or repair work. Do not use any corrosive-cleaning agents. Use lint-
free rags.
Retighten all screw connections that have to be loosened for the maintenance and repair work. Any
safety mechanisms that have to be dismantled for setting-up, maintenance or repair purposes must be
refitted and checked immediately after completing the work.
Maintenance, Care, Adjustment
The activities and intervals specified in the Instruction Manual for carrying out adjustments,
maintenance and inspections must be observed and parts replaced as specified.
All hydraulic and pneumatic lines should be examined for leaks, loose connections, rubbing and damage
whenever the machine is serviced. Any defects found must be remedied immediately.
Waste, Disassembly, Disposal
Waste products should be cleared from the machine as soon as possible as not to create a fire hazard.
Ensure that fuels and operating lubricants, as well as replacement parts are disposed of in a safe and
ecologically acceptable manner. Note the local regulations on pollution control.
When scrapping (disassembling) the machine and its assemblies, ensure that these materials are disposed
of safely. Either commission a specialist company familiar with the local regulations or note the local
regulations when disposing of these materials yourself. Materials should be sorted properly.

Technical Manual & Parts Lists
8
Repair
Replacement Parts
We cannot accept any liability whatsoever for damage due to the use of parts made by other
manufacturers or due to unqualified repair or modification of the machine.
Repair, Electrical
The power supply must be switched off (master switch off) and secured so that it cannot be switched on
again inadvertently before starting any work on live parts.
Those parts of the machine and plant on which inspection, maintenance or repair work is to be carried
out must be isolated from the power supply, if specified. The isolated parts must first be checked to
determine that they are truly de-energized before being grounded and short-circuited. Adjacent live parts
must also be isolated.
The protective measures implemented (e.g. grounding resistance) must be tested before restarting the
machine after all assembly or repair work on electric parts.
Signal generators (limit switches) and other electrical parts on the safety mechanisms must not be
removed or bypassed. Only use original fuses or circuit overloads with the specified current rating. The
machine must be switched off immediately if a fault develops in the electrical power supply.
The electrical equipment of our machines must be checked at regular intervals and any defects found
must be remedied immediately.
If it is necessary to carry out work on live parts, a second person should be on hand to operate the
emergency OFF switch or master switch with voltage release in the event of an emergency. The working
area should be cordoned off and marked by a warning sign. Only use electrically insulated tools.
Ventilation/Hazardous Gases
It is the end users responsibility to ensure adequate ventilation is provided to exhaust any and all
noxious or hazardous gases that may be present in the working environment.
Hydraulic and Pneumatic Systems
Work on hydraulic or pneumatic equipment shall only be carried out by persons with training,
knowledge and experience of hydraulic systems. Pressure lines shall be depressurized before starting
any repair work.
General Liability
Liability for machine damage and personal injury is extinguished completely if any unauthorized
conversions or modifications are undertaken. The machine must not be modified, enlarged or converted
in any way capable of affecting safety without the manufacturer's prior approval.
Starting Machine Movements
Read the Instruction Manual carefully to establish which keys and functions start machine movements.

Technical Manual & Parts Lists
9
A Word to the End User
The end user has sole responsibility to enforce the use of safety procedures and guards on the machine.
Any other safety devices or procedures due to local regulations should be should be retrofitted in
accordance to these regulations and/or the EC Directive on the safety of machines.
Operator’s position must always be readily accessible. Escape routes must always be kept clear and
safety areas should be identified.
Safety Precautions
Safety should be a constant concern for everyone. Always be careful when working with this equipment.
While normal safety precautions were taken in the design and manufacture of this equipment, there are
some potential safety hazards.
Everyone involved with the operation and maintenance of this equipment should read and follow
the instructions in this manual.
Operate the equipment only as stated in this manual. Incorrect use could cause damage to the
equipment or personal injury.
It is the owner’s responsibility to make certain that the operator reads and understands this
manual before operating this equipment. It is also the owner’s responsibility to make certain that
the operator is a qualified and physically able individual, properly trained in the operation of this
equipment.
Specific safety warning decals are located on the equipment near the immediate areas of potential
hazards. These decals should not be removed or obliterated. Replace them if they become non-readable.
•ALWAYS keep safety shields and covers in place, except for servicing.
•ALWAYS operate equipment in daylight or with adequate working lights.
•Follow daily and weekly checklists, making sure hoses are tightly secured and bolts are
tightened.
•ALWAYS watch and avoid holes or deep depressions.
•ALWAYS wear adequate eye protection when servicing the hydraulic system and battery.
•NEVER operate a poorly maintained machine.
•NEVER allow persons to operate this machine without proper instruction.
•NEVER put hands or feet under any part of the machine while it is running.
•NEVER attempt to make any adjustments or repairs to the machine while running. Repairs or
maintenance should be performed by trained personnel only.
•NEVER work under the machine unless it is safely supported with stands, blocks or a hoist and
blocks.
•NEVER touch hot parts of machine.

Technical Manual & Parts Lists
10
1317A AUTO FLANGER OPERATING INSTRUCTIONS:
MAIN SCREEN
At power-up the machine displays this screen. The machine will not start until all five “Ready”
conditions are met. With the machine unloaded, all the conditions should be ready except Panel Trailing
Edge Eye. It will not be ready until a panel is loaded.
The Sew Needle Up condition can be corrected by turning the hand wheel manually, or if there is
material loaded you can tap the sew pedal to allow the sew motor to position the needle.
The Flange Material Out condition refers to a photocell under the sewing console that detects the
presents of flange material. When threading the flange material, be sure the material goes under the
spring loaded bar.
If the Rotate Home condition is not met, press the Rotate Home / Footlift button on the screen. This
button returns the rotator to the home position and is also used to reset the presser foot to the up
position for loading.
If the All Doors Closed condition is not ready it means one of the three safety doors is open.
Pressing the Setup button switches the screen to the Setup pages where you can access other machine
functions.
Pressing the Operator Functions button switches to the Operator screen to manage various functions
including Label stops and unload mode.
Pressing Reset completely resets the machine to its initial power up condition.
Pressing Language switches to a screen for changing the displayed language.
Press the time display button to adjust the machine clock.

Technical Manual & Parts Lists
11
The blank area to the left of the time display will show the machine piece counter. Press it to reset the
daily piece count and access the machine monitor information.
Also shown on the main screen is the sew time for the previous panel.
FOOT PEDALS:
There are four foot pedals located in front of the console.
The right side pedal labeled CONVEYOR is used to run the main conveyor at high speed for loading
and unloading the panel.
The next pedal to the left is the sew pedal. It causes the sewing head to run at medium speed. After using
this pedal, use the Rotate Home/ Footlift button to reset the foot up.
The next pedal to the left is the Footlift pedal. Press it to lower and raise the foot. After using this pedal,
use the Rotate Home/ Footlift button to reset the foot up.
The left pedal is an air pedal used to remove the down air pressure from the presser foot so it can be
swung out for sew head maintenance. To use this function, first tap the foot lift pedal to drop the foot.
Then step on the left air pedal to remove the air pressure on the foot. There is a spring on the belt feed
mechanism that will lift the foot under slight tension, so you need to press the foot down manually as
you unlatch the presser arm lock, and the foot will swing out.
MACHINE OPERATION:
When all the “READY” conditions are good except the Panel Trailing Edge Eye, use the CONVEYOR
pedal to move the panel into position at the needle. The panel should be stopped so that it is under the
foot, against the front edge guide, and the trailing edge should be about 3-4” in front of the RED
photocell dot on the panel. Tap the Footlift pedal to drop the foot. Press the SEW pedal to sew a few
inches while holding the panel tight against the edge guide plate. Do not sew past the RED dot. (If you
sew past the red dot the first corner will not sew correctly.) If the right edge of the trailing edge of the
panel is not against the rear edge guide, press the CONVEYOR pedal to swing the panel up against the

Technical Manual & Parts Lists
12
rear edge guide. All five READY conditions should be good and you can now swipe the start switch
located below the screen.
The machine will sew up to the first corner, sew the first corner, then sew the next side up to the LAW
TAG insertion position and stop (if enabled). The operator then manually inserts the law tag and sews it
to the panel manually using the SEW pedal. Then swipe the start switch to resume automatic sewing.
The machine will sew around the next corner and stop at the LABEL insertion position (if enabled).
Manually sew the label to the panel and swipe the start switch again. The machine will continue sewing
around the panel until the first corner is about 12-18” in front of the foot. The machine will stop and the
flange will be cut. The machine will continue sewing and the front edge guide will shift in as the
previously sewn part of the first corner passes. As the trailing edge passes under the foot the needle
tension release will open allowing the machine to chain-off until the trailing edge passes the chain
cutting knife. The chain will be cut and the machine will either stop or feed at high speed to unload the
panel (depending on the setting of the UNLOAD mode on the operator screen). If the UNLOAD mode is
set to 1 the conveyor will continue to run at high speed until the CONVEYOR pedal is pressed. The
flange will automatically reinsert up to the presser foot.
Thread break detectors monitor all five sewing threads and will stop the machine if an error occurs. The
thread break monitors are named from left to right as Needle 1, Needle 2, Looper 1, Looper 2, and
Looper 3. Sewing can be resumed by pressing the CONTINUE button.
OPERATOR SCREEN:
The Operator Screen allows the operator control of Law Tag and Label positions, and some manual
functions useful for managing the machine. Positions can be set as needed and each function can be
enabled or disabled as desired.
The UNLOAD mode can be selected (stop after cutting or continuous conveyor run). Flange Feed Motor
will feed flange without cutting. Flange Cut will cut the flange. There is also a setting called Actual
Stitch Length. This MUST be set to indicate the actual stitches-per-inch that the machine is sewing and
is used by the machine to control the corner sewing, conveyor synchronization, flange overlap, and
flange cut position. The resolution is in tenths of an inch – so 6.0 indicates six stitches per inch, 6.5
would be 6-1/2 stitches per inch, for example. The RESET button returns to the MAIN scree

Technical Manual & Parts Lists
13
SETUP SCREEN
The SETUP screen provides access to various machine manual functions, settings adjustments, and
other machine information. In the SERVICE MODE screen you can sew manually at HIGH SPEED.
You can actually sew a complete panel while in this mode, manually turning corners and cutting the
flange,
You also have the option of sewing with or without the conveyor running (useful when doing
maintenance on the sewing head).

Technical Manual & Parts Lists
14

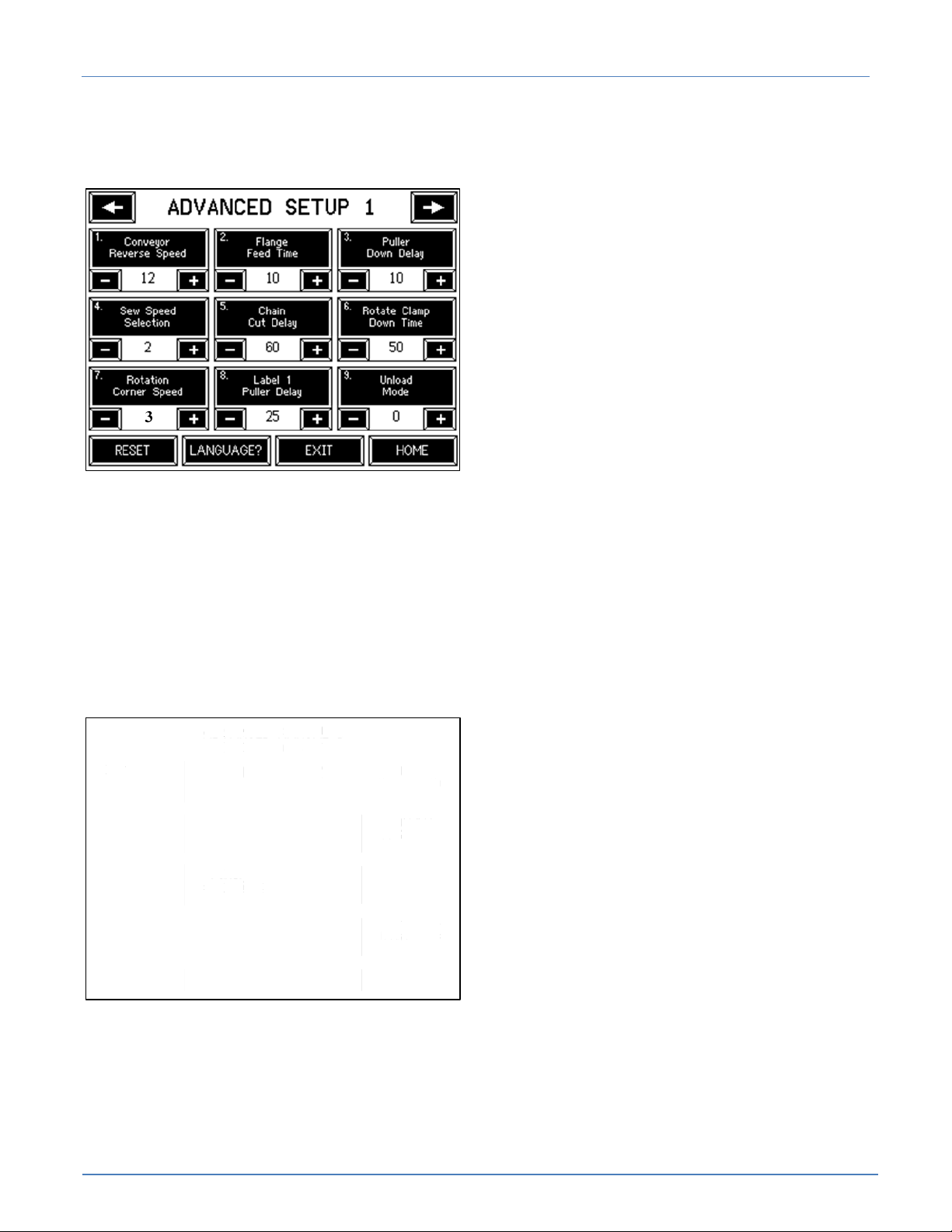

ADVANCED SETTING PAGES:
Press SECURITY button. Enter security code 33333. Press enter, exit. There are multiple setting pages
that allow the control and adjustment of various functions of the machine.
Pressing the dark area above each setting displays information about each setting. The + & - buttons can
be held down to scroll fast or pressed momentarily for fine adjustment. Pressing the ARROW buttons at
the top will switch between next and previous pages.
ADVANCED MANUAL PAGES:
There are multiple MANUAL pages that allow the manual activation of machine hardware and the
monitoring of the function and state of all inputs (like photocells, etc.)
White background rectangles indicate input devices like switches and photocells. Activating the device
will toggle on and off a dark bar across the lower portion of the rectangle indicating a change of the
input condition. Dark rectangles with 3D borders control outputs like solenoids. Most are press and hold
to turn on, release to turn off. Some will toggle on and hold until you press again to turn off. Press
RESET to exit back to the MAIN screen. All outputs will reset to their normal power up stat

Technical Manual & Parts Lists
15
LAST CORNER ADJUSTMENTS:
#1. The Finish Guide in front of the sewing head shifts “in” to control the over-sew alignment on the last
corner. It should shift when the unsewn portion of the last side has just passed the guide. This is
controlled by the Finish Guide Count (Setting #36). Increasing the number makes the guide shift sooner.
#2. The flange cut position is set with the Flange Overlap Stitch Count (Setting #13). It can be set as
desired, but it must be set so that when the machine stops to cut the flange the Trailing Edge eye is still
covered by the panel ( red dot is still visible on the panel). Increasing this number makes the flange cut
sooner (which actually makes the overlap smaller)
#3. The “Edge Guide Stop Count” (#12) controls when the edge guide stops guiding. Increasing the
number makes the edge guide stop sooner. It should be set so the edge guide stops before the unsewn
edge of the panel passes the edge guide eye so the edge guide does not try to guide off of the already
sewn portion of the panel and pull the last corner to the right and out of alignment at the last corner.
ALL OTHER SETTINGS:
Conveyor Reverse speed (#1) is always set to 12, no not adjust. It controls the reverse speed of the
conveyor when the head is rotating back to the home position after corner sewing.
Flange Feed time (#2) controls how much flange is fed to the foot after flange is cut. Adjust as needed.
Puller down Delay (#3) controls the dropping of the puller wheel after the leading edge of the panel has
covered the Puller Engage Eye located above the puller hardware. Adjust so the puller wheel drops onto
the panel just pass the trailing edge.
Sew Speed Selection (#4) controls the speed of the head during straight sewing. Factory set to 2, do not
adjust.
Chain Cut Delay (#5) controls the cutting of the thread chain at the trailing edge of the panel. It is a
stitch count from the Puller Engage Eye uncovering. Adjust to leave 1-2” of chain after cutting.
Rotate Clamp Down time (#6) sets the delay time between the rotate clamps starting down and the
rotator beginning to turn. Adjust so the clamps are fully down before the rotation starts.
Rotation Corner Speed (#7) controls the speed of the head rotate motor in the corners. Factory set to “3”,
do not adjust.
Label 1 Puller Delay (#8) delays the puller down after a label has been inserted. Adjust so the puller
does not drop onto the label and damage it
Unload Mode (#9) controls the behavior of the conveyor after chain cutting at the trailing edge of the
finished panel. Set to “0”, the conveyor stops after cutting. Set to “1”, the conveyor continues to run,
