Atlas Copco LMS88 GIR38 Instruction sheet

LMS88 GIR38
Printed Matter No. 9836 6500 00 Impact Wrench
Product Instructions
Valid from Serial No. A2520001
2012-12
8434 1880 00LMS88 GIR38 (1000-5500 Nm)
WARNING
Read all safety warnings and instructions
Failure to follow the safety warnings and
instructions may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for
future reference

Table of content
Product information .......................................................................3
EN
Installation ....................................................................................4
EN
Operation .....................................................................................6
EN
Service .........................................................................................7
EN
Spare part list ..............................................................................15
EN
Accessories .................................................................................20
EN
© Atlas Copco Industrial Technique AB - 9836 6500 00
2
LMS88 GIR38Table of content

General information
TWARNING
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
Safety signal words
The safety signal words Danger, Warning, Caution, and Notice have the following meanings:
DANGER indicates a hazardous situation which, if not avoided, will result in death
or serious injury.
DANGER
WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
WARNING
CAUTION, used with the safety alert symbol, indicates a hazardous situation which,
if not avoided, could result in minor or moderate injury.
CAUTION
NOTICE is used to address practices not related to personal injury.NOTICE
Warranty
Contact the Atlas Copco sales representative within your area to claim a product. Warranty will only be approved
if the product has been installed, operated and overhauled according to the Operating Instructions.
Please also see the delivery conditions applied by the local Atlas Copco company.
ServAid
ServAid is a utility for providing updated product information concerning:
- Safety instructions
- Installation, Operation and Service instructions
- Exploded views
ServAid facilitates the ordering process of spare parts, service tools and accessories for the product of your
choice. It is continuously updated with information of new and redesigned products.
You can use ServAid to present content in a specic language, provided translations are available, and to
display information about obsolete products. ServAid offers an advanced search functionality of our entire
product range.
ServAid is available on DVD and on the web:
http://servaidweb.atlascopco.com
For further information contact your Atlas Copco sales representative or e-mail us at:
[email protected]
Overview
Applications
This powerful, high-speed impact wrench (LMS) is typically used for loosening applications where fast tight-
ening or disassembly is needed.
Service intervals
Service recommendations
Overhaul and preventive maintenance is recommended at regular intervals. See the Preventive maintenance
section for detailed information regarding overhaul of your tool and specic parts. If the machine is not working
properly, it should immediately be taken away for inspection. At the overhauls, all parts should be cleaned ac-
curately and defective or worn parts should be replaced.
3
© Atlas Copco Industrial Technique AB - 9836 6500 00
Product informationENLMS88 GIR38

Installation requirement
General
The machine is designed for a working pressure (e) of 6.3 - 7 bar (max.) = 630 - 700 kPa (90 - 102 psi).
If the compressed air line pressure is higher than 7 bar it is preferable reduced with a pressure regulator of
the type Atlas Copco REG.
The Atlas Copco Air Line Test equipment is suitable for checking of air pressure and airow at the installation
point (please see AirLine Accessories in our main catalogue).
The machine can operate at a lower working pressure. Maximum torque will be reduced at lower pressures.
AIf frequent used for tightening or loosening that need longer time than 3-5 seconds, a larger wrench
should be used. Otherwise the servicelife of the impact mechanism will be reduced.
To avoid pressure drop use recommended hosesize, length, and connections. For more information please read
Atlas Copco Airline Installations, Ordering No. 9833 1191 01.
Air quality
• For optimum performance and maximum machine life we recommend the use of compressed air with a
maximum dew point of +10°C. We also recommend the installation of an Atlas Copco refrigeration-type air
dryer.
• Use a separate air lter of type Atlas Copco FIL. This lter removes solid particles larger than 15 microns
and also removes more than 90 % of liquid water. The lter must be installed as close as possible to the
machine/equipment and prior to any other air preparation unit such as REG or DIM (please see Air Line
Accessories in our main catalogue). Blow out the hose before connecting.
Models which need air lubrication:
• The compressed air must contain a small quantity of oil.
We strongly recommend that you install an Atlas Copco oil-fog lubricator (DIM). This should be set according
to air consumption by the air line tool according to the following formula:
L= Air consumption (litre/s).
(May be found in our sales literature).
D= Number of drops per min (1 drop = 15 mm3)
L* 0.2 = D
this applies to the use of long work cycle air line tools. A single point lubricator type Atlas Copco Dosol can
also be used for tools with short running cycles.
Information about Dosol settings may be found under Air Line Accessories in our main catalogue.
Lubrication-free models:
• In the case of lubrication-free tools it is up to the customer to decide on the peripheral equipment to be used.
However, it is no disadvantage if the compressed air contains a small quantity of oil e.g. supplied from a fog
lubricator (DIM) or Dosol system. This does not apply to turbine tools, which should be kept oil free.
Installation proposal
Choosing the correct couplings, hose and clamps can be a troublesome digging into details. To save your time
and to ensure correct capacity of the airline installation, from the tapping point to the tool, we offer you an in-
stallation proposal.
© Atlas Copco Industrial Technique AB - 9836 6500 00
4
LMS88 GIR38ENInstallation

5 m RUBAIR 16
8202 1180 32
ErgoQIC 10
ErgoNIP 10 0.7 m RUBAIR 16 Nipple
is included
with the tool
ErgoNIP 10
BALL VALVE + MIDI F/RD 15 + ERGOQIC 15B
8202 0829 11
ip28
Filtered, regulated and oil fog lubricated air for a
max. air flow of 30 l/s
For more information please read, Atlas Copco Industrial Power Tools catalogue Ordering No. 9837 3000 01.
5
© Atlas Copco Industrial Technique AB - 9836 6500 00
InstallationENLMS88 GIR38

Ergonomics
Ergonomic guidelines
1)Take frequent breaks and change work positions frequently.
2)Adapt the workstation area to your needs and the work task.
• Adjust for convenient reach range by determining where parts or tools should be located to avoid static
motion.
• Use workstation equipment such as tables and chairs appropriate for the work task.
3)Avoid work positions above shoulder level or with static holding during assembly operations.
• When working above shoulder level, reduce the load on the static muscles by reducing the weight of the
tool, using for example torque arms, hose reels or weight balancers. You can also reduce the load on the
static muscles by holding the tool close to the body.
• Make sure to take frequent breaks.
• Avoid extreme arm or wrist postures, particularly for operations requiring a degree of force.
4)Adjust for convenient eld of vision by minimizing movement of the eyes and head during the work task.
5)Use the appropriate lighting for the work task.
6)Select the appropriate tool for the work task.
7)Use ear protection equipment in noisy environments.
8)Use high-quality inserted tools or consumables to minimize exposure to excessive levels of vibrations.
9)Minimize exposure to reaction forces.
• When cutting:
A cut-off wheel can get stuck if the wheel is either bent or if it is not guided properly. Make sure to use
correct anges for cut-off wheels and avoid bending the wheel during cut-off operation.
• When drilling:
The drill might stall when the drill bit breaks through. Makes sure you use support handles if the stall
torque is too high. The safety standard ISO11148 part 3 recommends to use something to absorb the reaction
torque above 10 Nm for pistol grip tools and 4 Nm for straight tools.
• When using direct driven screw or nutrunners:
Reaction forces depend on tool setting and joint characteristics. The ability to bear reaction forces depends
on the operator’s strength and posture. Adapt the torque setting to the operator's strength and posture and
use a torque arm or reaction bar if the torque is too high.
10)Use dust extraction system or mouth protection mask in dusty environments.
Operating instructions
Tightening torque
The tightening torque attained depends on the air pressure, tightening time and bolted joint in question. Extension
pieces and worn sockets will reduce the effective tightening torque. Oversized power sockets (diameter and or
length) will overload the impact mechanism and reduce the life of vital parts as the impact mechanism. The
impact wrench must be used within the specied torque range. Never exceed the recommended maximum
tightening torque.
Test methods
Measurement using a hydraulic Torque Tension tester is recommended for testing tool performance, see Test
data.
© Atlas Copco Industrial Technique AB - 9836 6500 00
6
LMS88 GIR38ENOperation

Maintenance
Service instructions
Overhaul and preventive maintenance are recommended at regular inter-
vals once a year or after max. 100 000 tightening operations at the latest,
whichever comes rst. More frequent overhauls may be required if the
machine is used for heavy-duty applications. If the machine fails to
function correctly, it must be decommissioned immediately for inspec-
tion.
The strainer at the air inlet must be cleaned regularly in order to pre-
vent clogging due to contamination. The machine capacity will otherwise
be reduced.
All parts must be cleaned thoroughly during overhaul work and defect-
ive or worn parts must be replaced
It is important to ensure that the threaded connections on the machine
are tightened properly; i.e. in accordance with the specications in the
exploded views. Lubricate the threads with grease prior to tting.
AAll O-rings must be greased prior to assembly.
The motor has to be lubricated with oil from the handle's oil chamber
unless a permanent air lubrication device is installed. Check daily to
ensure that the oil chamber is lled and that the discharge air contains
a sufcient amount of oil. See Handle.
When the machine is in constant operation, installation of an Atlas
Copco DIM oil mist lubricating device or a Dosol type single point
lubricating device is recommended.
Impact mechanism
Check the specied wear limits and replace all parts which exceed these.
See Inspection.
ARecommended maximum wear limits for the clutch jaw, anvil
and driver.
Rust protection and internal cleaning
Water in the compressed air, dust and wear particles cause rust and
sticking of vanes, valves etc. An air lter should be installed close to
the machine (see 'Air quality'). Before longer standstills, ush with oil
(some drops) into the air inlet, run the machine for 5-10 seconds when
absorbing the oil in a cloth.
How to optimize service and performance of your
impact wrench
The service life of the impact mechanism is mainly de-
pendent on:
•service intervals
•air pressure
•tightening time/torque
•number of tightening
•socket/bolt size
•socket length
7
© Atlas Copco Industrial Technique AB - 9836 6500 00
ServiceENLMS88 GIR38

Service intervals
Shorter service intervals with cleaning and lubrication of the impact
parts will improve the function and reduce the wear. Follow our service
recommendations.
Air pressure, tightening time/torque and number of tightening
It is obvious that wear will increase with increased air pressure, longer
tightening time/higher torque and number of tightening.
A tightening time of 1-5 seconds is recommended. The Skidmore-
Wilhelm table in Test data can be used as a guide for max. tightening
time.
Longer tightening or loosening times will increase wear, producing
malfunction and risk of breakage.
Socket and bolt size
Each impact wrench covers a certain bolt size range. The impact mech-
anism parts have been designed for good durability in combination with
the recommended standard socket/bolt size.
Usage of oversized sockets/bolts will increase premature wear and
risk of breakage.
If frequent square drive breakages occur and different square drive
sizes are avaliable, use the largest size.
Long sockets/extensions
It is better to use extensions + standard socket instead of long or extra
long sockets as the lower inertia /mass of the extension will give less
stress on the impact mechanism. However an extension will reduce the
applied torque to some degree.
s005530
Long socketExtension + socket
Recommendations for maximum socket / bolt size
A/F
B
L
D
d
S
s011091
Bolt size
B (max)
Socket opening
A/F (max)
Socket size
D (max)
Socket length
L (max)
Socket size
d (max)
Drive
S
M45 (1 3/4")70mm (2 3/4")105mm105mm86mm1 1/2"
© Atlas Copco Industrial Technique AB - 9836 6500 00
8
LMS88 GIR38ENService

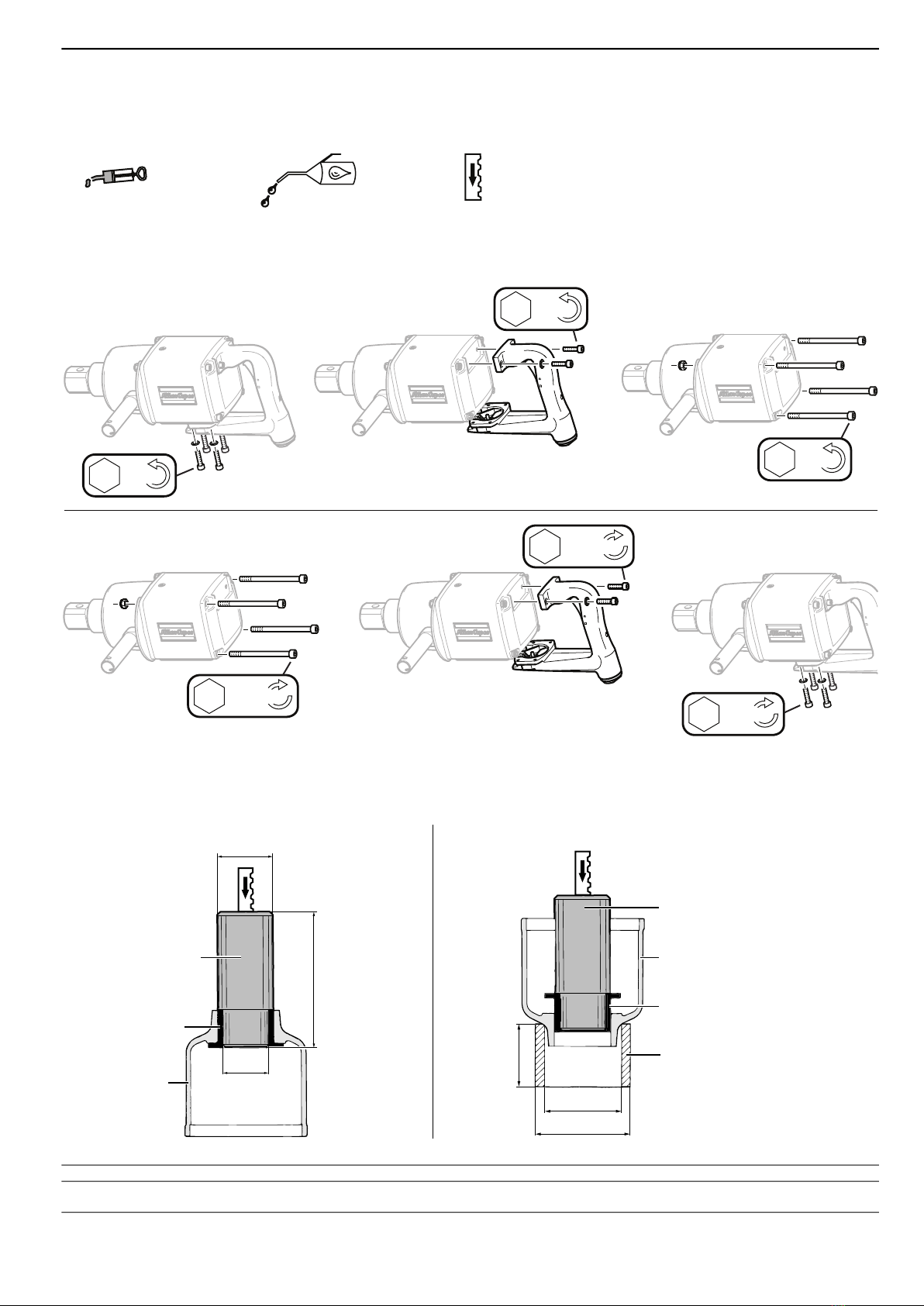

Dismantling/ Assembling
Symbols
= Grease = Oil = Press
s011130
Motor housing vs. Handle
3
2
1
Dismantling order
s000170
123
Assembling order
6
mm
20 Nm
5
mm
12 Nm
4
mm
5 Nm
4
mm
OFF
5
mm
OFF
6
mm
OFF
Bushing
1
1
2
Bushing
Clutch
housing
D
L
d
Bushing
Clutch
housing
L
d
D
Dismantling Assembling
s000192
Remark / Included in Service kitDescriptionQtyOrdering No.Ref. No.
L=140mm, D=55.5mm, d=47.5mm. (Previous D=57mm)Mandrel14080 0578 001
L=85mm, D=87mm, d=69mmSupport ring14080 0207 052
9
© Atlas Copco Industrial Technique AB - 9836 6500 00
ServiceENLMS88 GIR38

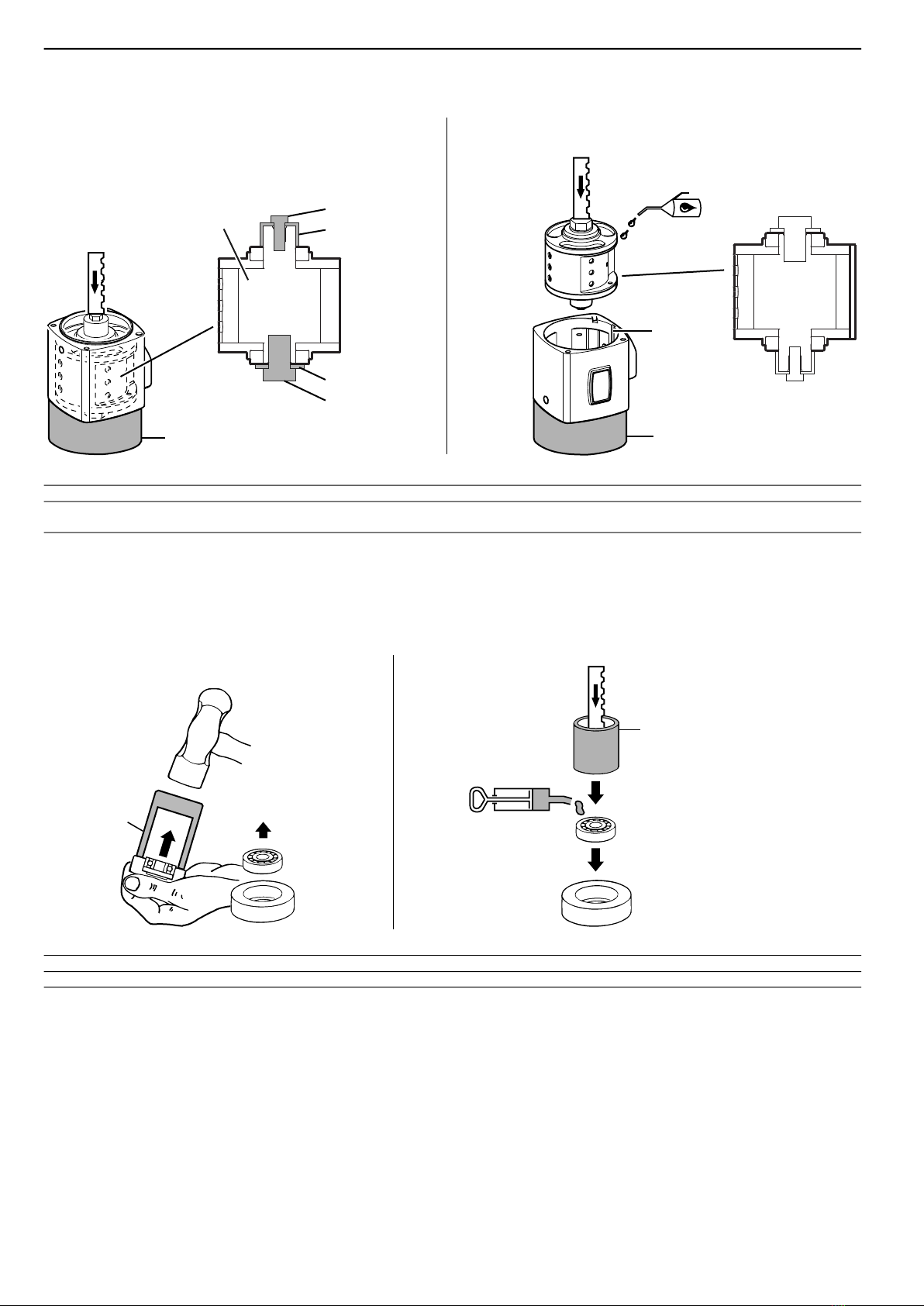

Motor
1 1
Screw
Socket
Washer
Screw
22
Assembling
Key
Dismantling
(Motor)
Press
Press
s000182
Remark / Included in Service kitDescriptionQtyOrdering No.Ref. No.
Mandrel14080 0206 091
4pcsMotor service tool14080 1356 802
Motor bearings
1
1
Press
Dismantling Assembling
s000200
Remark / Included in Service kitDescriptionQtyOrdering No.Ref. No.
Mandrel14080 1332 001
© Atlas Copco Industrial Technique AB - 9836 6500 00
10
LMS88 GIR38ENService

Valve and reversing valve
s011291

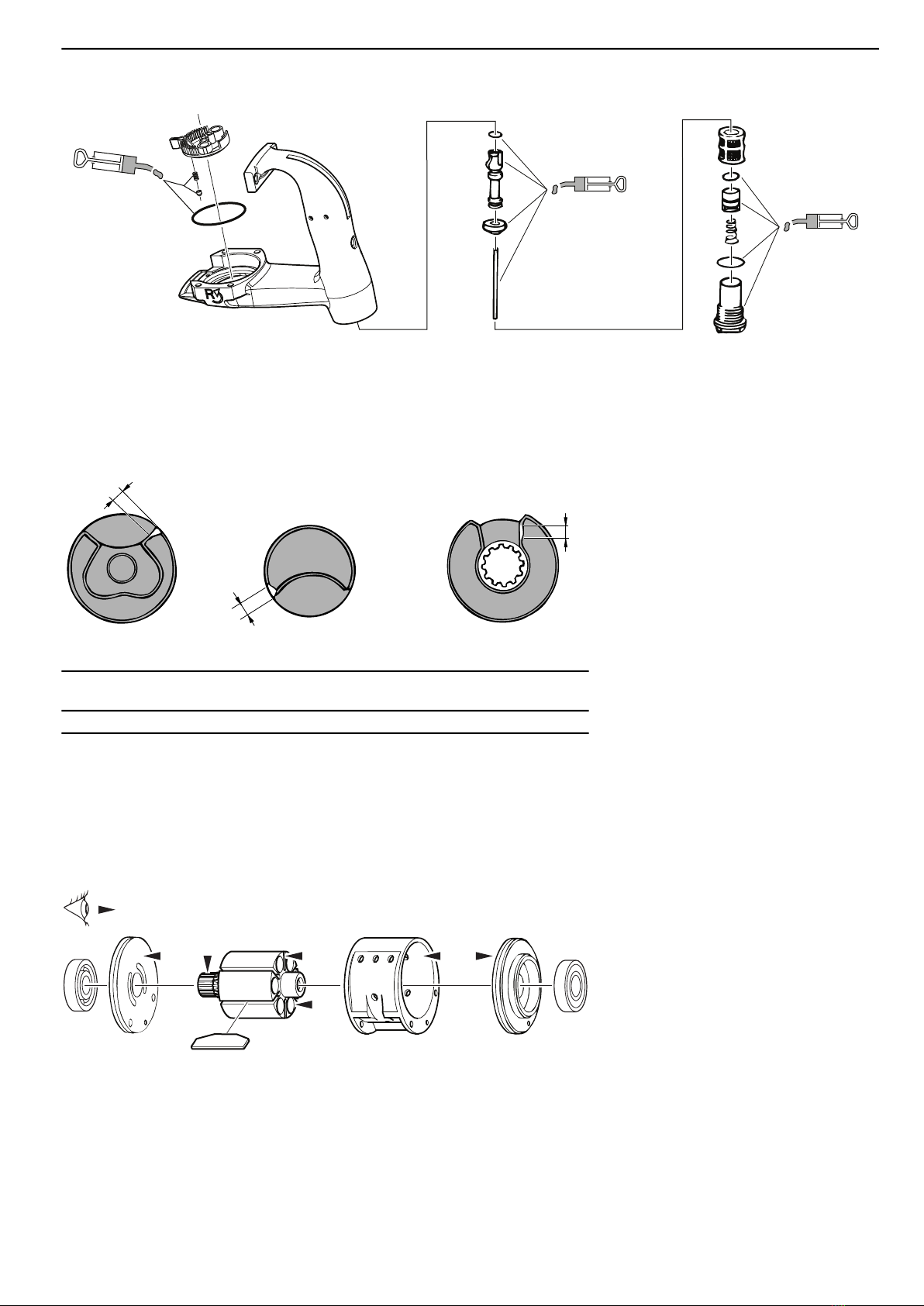

Inspection
Inspection for wear on impact parts
s000480
B
A
C
Wear limits
Driver
C (max)
Clutch jaw
B (max)
Anvil
A (max)
4.0 mm3.0 mm3.0 mm
Inspection of silencer
Change or clean the lters regularly. Clogged lters will reduce power
output.
Inspection of motor parts
s012502
check
•Clean all parts before inspection.
•End plates: Check that they not are scored or scratched. If these are
shallow, polish with ne grinding paste against a face plate. Clean
thoroughly.
11
© Atlas Copco Industrial Technique AB - 9836 6500 00
ServiceENLMS88 GIR38

•Rotor: Check that the end faces do not have any marks or burrs.
Check that the splines are not worn or cracked. Check that there are
no cracks at the holes for the plugs.
•Cylinder: Check that the bore is not scored or scratched. If these are
shallow, polish with a ne grinding cloth. Clean thoroughly.
Lubrication
Lubrication guide
Air and motor lub-
rication
Impact mechanismGeneral purpose
grease
Brand
Energol E46Energrease LS-EP2BP
Spheerol EP L2Castrol
Arox EP46Beacon EP2Esso
Chopin 46Rembrandt EP2Q8
Almo oil 525Mobilegrease XHP
222
Mobil
Torcula 32Alvania Grease RL 2Alvania EP2Shell
Aries 32Multifak EP2Texaco
Molycote

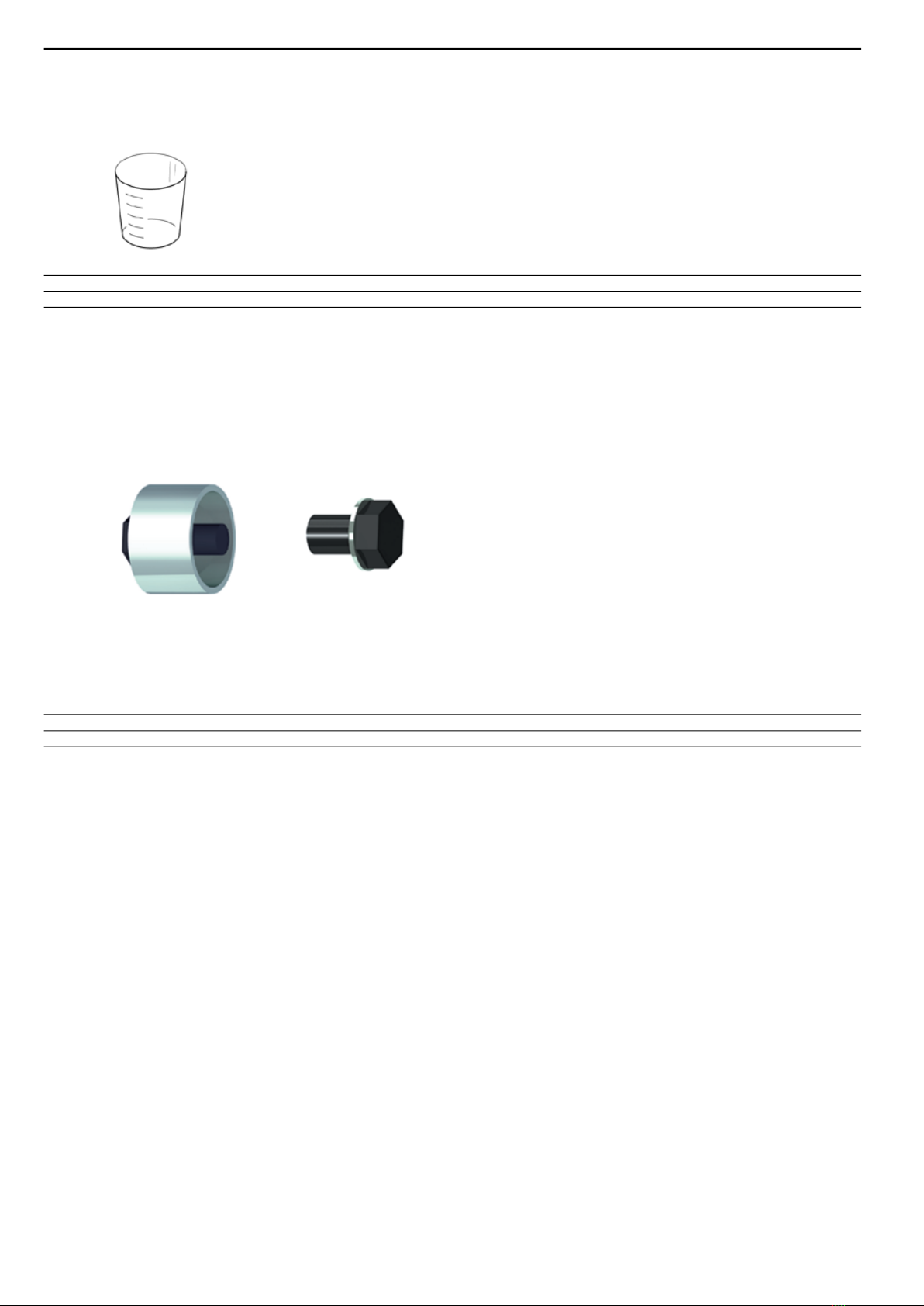

Filling of oil for Motor
Fill up with appr. 10ml of oil. Please see Lubrication guide for recom-
mended oil.
s005400
Lubrication of impact mechanism
s000150
Spread a layer of grease on all sliding and impact surfaces. Use the rest
of the grease, approximately half the amount, inside the cavity of the
hammer and on the driver ange. Total grease amount 35ml.
© Atlas Copco Industrial Technique AB - 9836 6500 00
12
LMS88 GIR38ENService

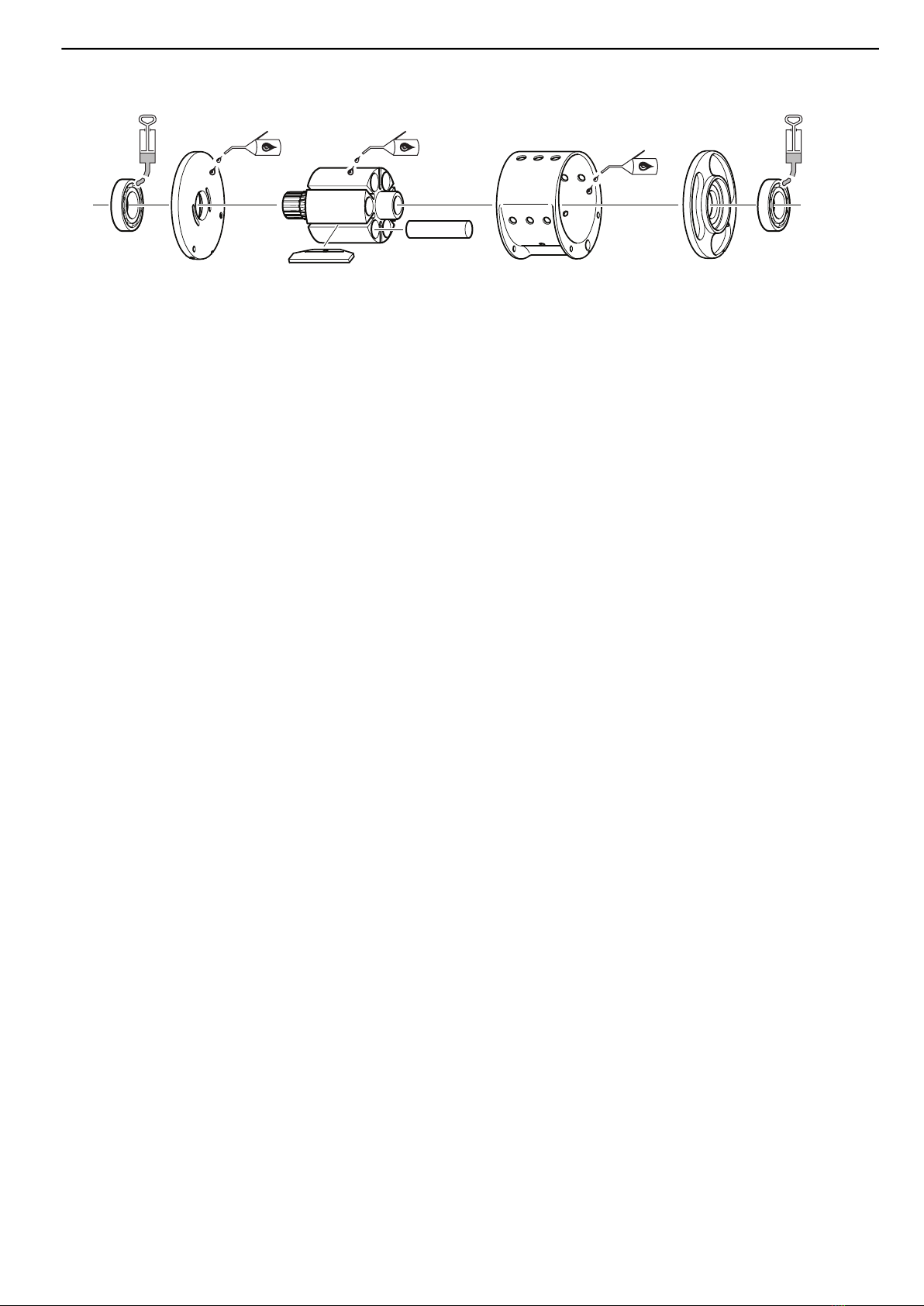

Lubrication of motor parts
s001000
Note
•No grease is needed for protected Ball bearings (ex. 2Z).
•Where oil is needed, apply only a thin layer.
13
© Atlas Copco Industrial Technique AB - 9836 6500 00
ServiceENLMS88 GIR38

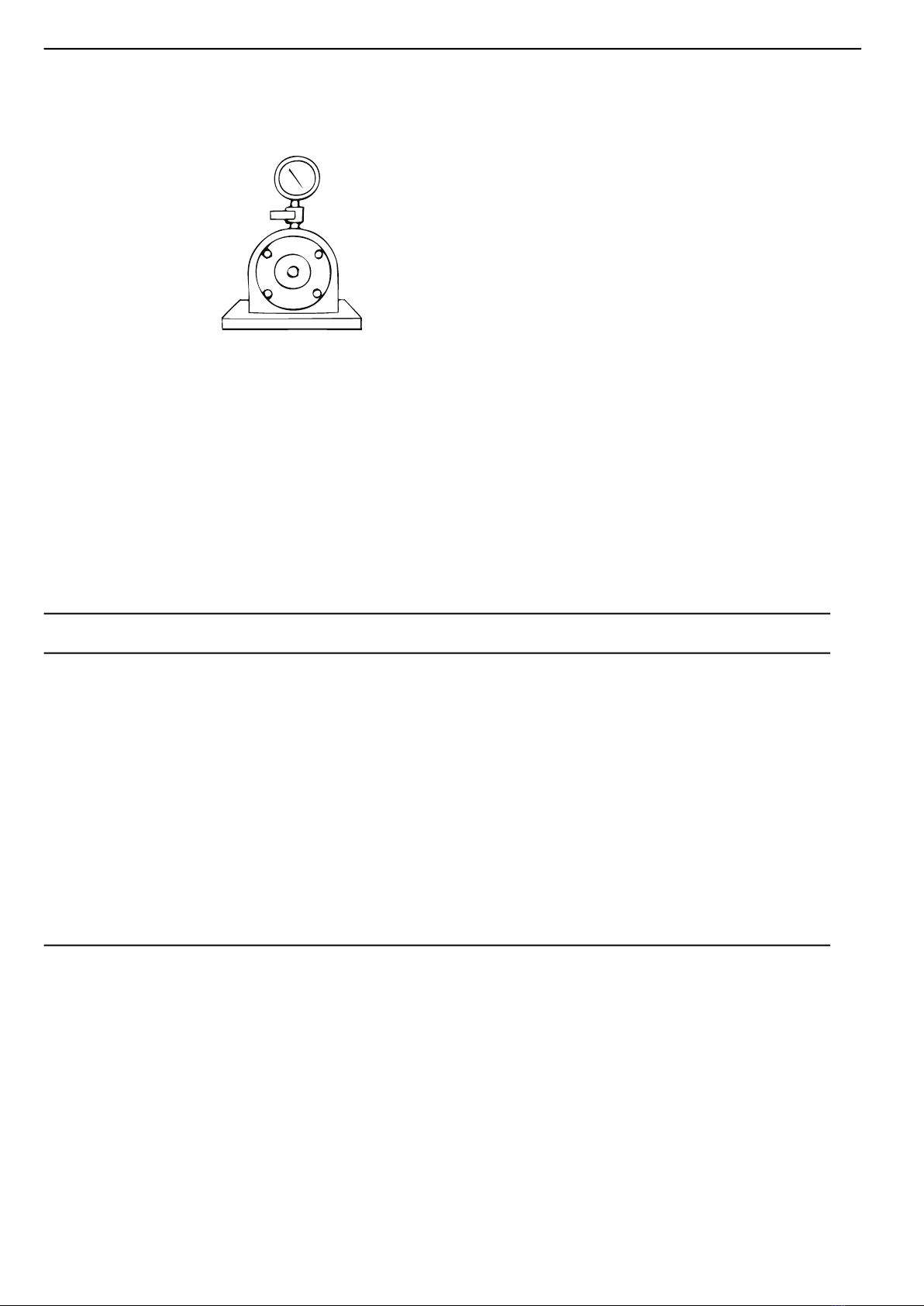

Test data
Test on Tension tester (Skidmore-Wilhelm)
s005371
Test performance:
Test equipment according to the tables below.
Assemble selected test bolt set in the tester ensuring that threads and
pressure faces are well lubricated with Molycote Longterm W2 or sim-
ilar molybdenum disulphide lubricant.
Make 3 tightenings and check that the minimum tension can be
reached.
Test conditions:
Air pressure = 6.3 bar (90 psi) dynamic.
Test result
Test hose (3 m)
inner diam.
Min. *
Free speed
Tightening
time
Min.
TensionBolt sizeTesterModel
6.3 mm (1/4”)11000 rpm2 s34 kN5/8”Skidmore-Wilhelm model JLMS08 HR10
6.3 mm (1/4”)11000 rpm2 s21 kN5/8”Skidmore-Wilhelm model JLMS08 HR42
6.3 mm (1/4”)11000 rpm2 s33 kN5/8”Skidmore-Wilhelm model JLMS08 SR10
6.3 mm (1/4”)11000 rpm2 s19 kN5/8”Skidmore-Wilhelm model JLMS08 SR42
10 mm (3/8”)7000 rpm2 s39 kN7/8”Skidmore-Wilhelm model JLMS18 HR10
10 mm (3/8”)7000 rpm2 s53 kN7/8”Skidmore-Wilhelm model JLMS18 HR13
10 mm (3/8”)8000 rpm2 s83 kN3/4”Skidmore-Wilhelm model RLLMS28 HR13
10 mm (3/8”)6800 rpm2 s110 kN1”Skidmore-Wilhelm model RLLMS38 HR13
12.5 mm (1/2”)5500 rpm3 s161 kN1”Skidmore-Wilhelm model RLLMS48 HR20
12.5 mm (1/2”)4700 rpm3 s260 kN1 1/4”Skidmore-Wilhelm model HLMS58 HR20
12.5 mm (1/2”)4700 rpm3 s270 kN1 1/4”Skidmore-Wilhelm model HLMS58 HR25
16 mm (5/8”)4200 rpm4 s470 kN1 1/2”Skidmore-Wilhelm model HLMS68
16 mm (5/8”)3200 rpm6 s660 kN2”Skidmore-Wilhelm model KLMS88
* = If Free speed is to low: check silencer for clogged lters.
© Atlas Copco Industrial Technique AB - 9836 6500 00
14
LMS88 GIR38ENService

Exploded views/tables
Spare parts
Parts without ordering number are not delivered separately for technical reasons.
The use of other than genuine Atlas Copco replacement parts may result in decreased tool performance and
increased maintenance and may, at the company option, invalidate all warranties.
Clutch housing
1
2 3
4
5
67
8
9
10
11
50 Nm
= Included in
Service kit
0001061
6
mm
20 Nm
000
Remark / Included in Service kitDescriptionQtyOrdering No.Ref. No.
Screw, kit14250 2871 911(2-3)
M8x8 Black, AF13Nut4-2
M8x145Screw4-3
Small parts kit 4082 0009 90Shim1-4
Clutch housing, compl.14250 2869 905(6-8)
Bushing14250 1249 016
47.6x2.4 / Service kit 4081 0443 90O-ring10663 2100 287
Clutch housing1-8
Washer24250 1248 209
Handle bracket14250 2871 8010
Support handle14250 0930 0211
6 mm. Accessory includedAllen key10902 0114 00
Ø47.5/57 mm. Service tool for dismantling/ assembling of Bushing. For further inform-
ation, pls see Service instructions
Mandrel14080 0578 00
Ø69/87 x 85 mm. Service tool for assembling of Bushing. For further information, pls
see Service instructions
Support ring14080 0207 05
15
© Atlas Copco Industrial Technique AB - 9836 6500 00
Spare part listENLMS88 GIR38

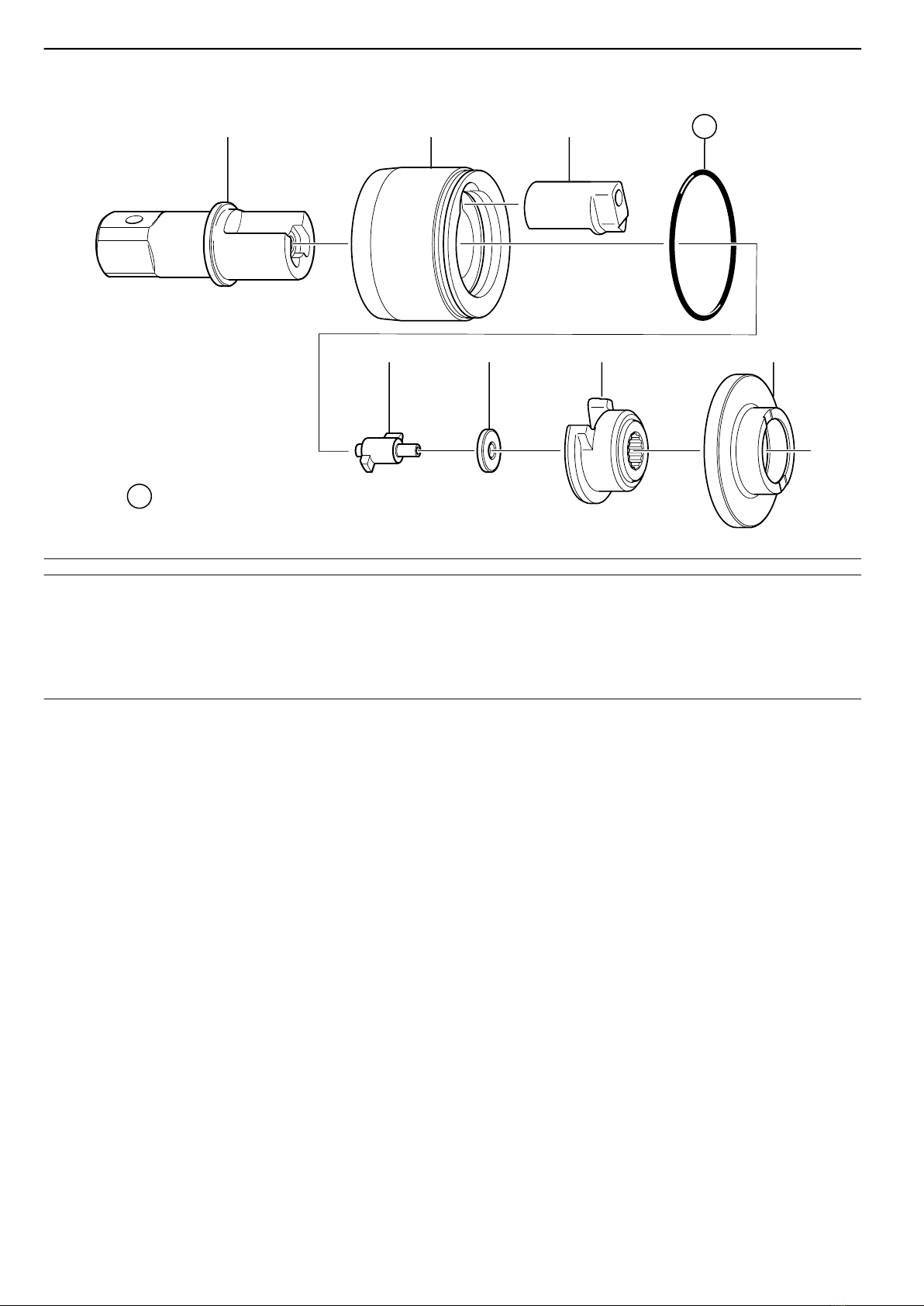

Impact mechanism
1 2 3 4
5 6 7 8
= Included in
Service kit
0001012
Remark / Included in Service kitDescriptionQtyOrdering No.Ref. No.
1 ½” squareAnvil14250 2848 001
Hammer14250 2868 002
Clutch jaw14250 2867 003
101.19x3.53 / Service kit 4081 0443 90O-ring1-4
Cam14250 2861 005
Washer14250 2863 006
Driver14250 2865 007
Cover14250 2870 008
© Atlas Copco Industrial Technique AB - 9836 6500 00
16
LMS88 GIR38ENSpare part list

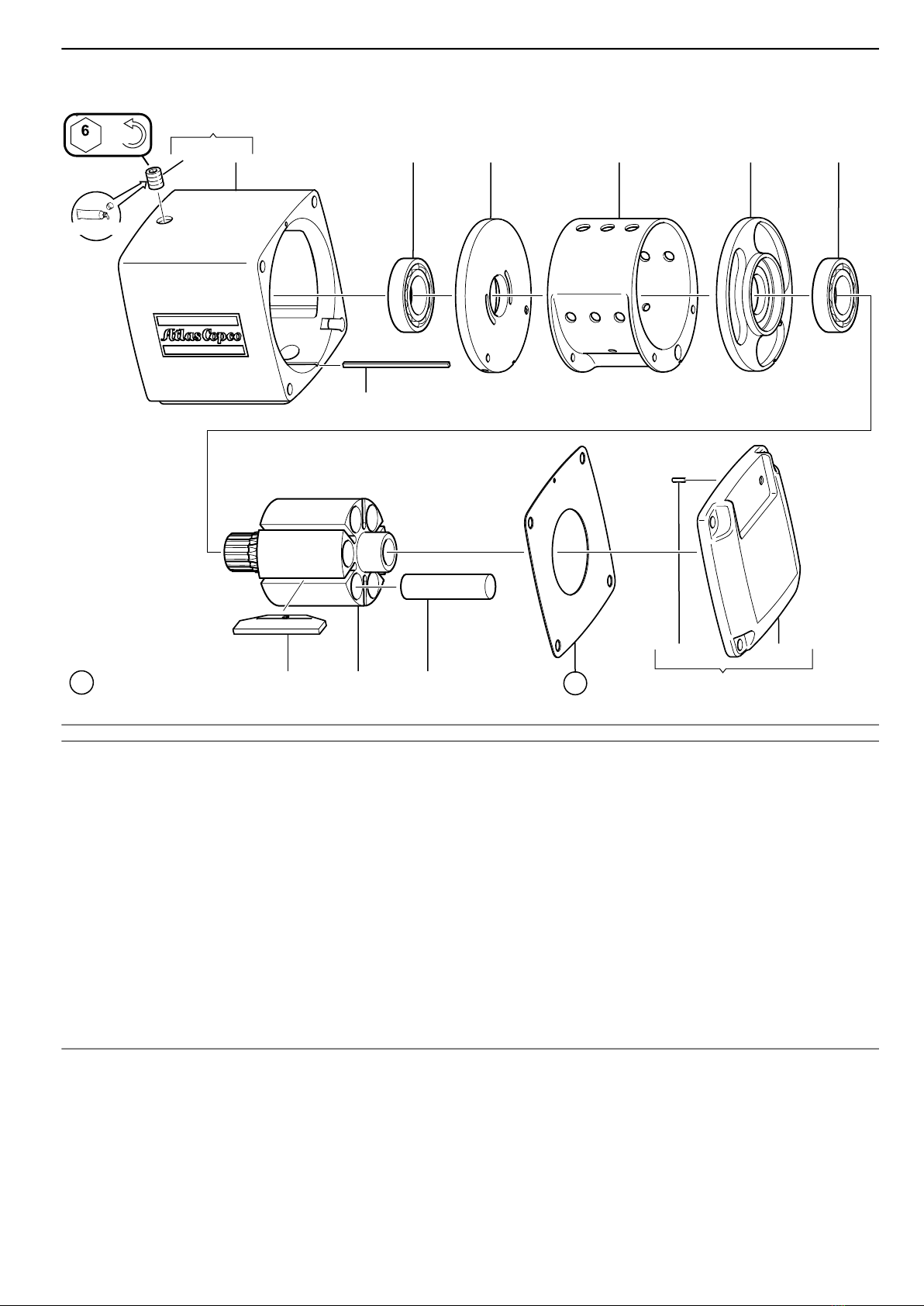

Motor and motorcasing
1
2 3
4
5 56 67
8 9 10 11 12
13 14
0001021
= Included in
Service Kit
LOCTITE 243
mm
OFF
000
Remark / Included in Service kitDescriptionQtyOrdering No.Ref. No.
Motor casing, compl.14250 2822 901(2-3)
SK6SS 12x14Stop screw10196 1396 002
Motor casing1-3
Key14250 1236 004
6006Ball bearing20502 1106 005
End plate24250 2858 006
Cylinder14250 2859 007
6 pcsVane, kit14250 2862 908
Rotor14250 2860 009
6 pcsPlug, kit14250 1239 9010
Service kit 4081 0443 90Gasket1-11
Cover, compl.14250 2846 9012(13-14)
CP 3x8Parallel pin10101 1205 0013
Cover1-14
Accessory included. Service tool for dismantling/ assembling of Motor. For further in-
formation, pls see Service instructions
Motor service tool14080 1356 80
Ø116/127 mm. Service tool for dismantling/ assembling of Motor. For further informa-
tion, pls see Service instructions
Mandrel14080 0206 09
Ø79 x 45 mm. Service tool for dismantling/ assembling of Motor bearings. For further
information, pls see Service instructions
Mandrel14080 1332 00
17
© Atlas Copco Industrial Technique AB - 9836 6500 00
Spare part listENLMS88 GIR38

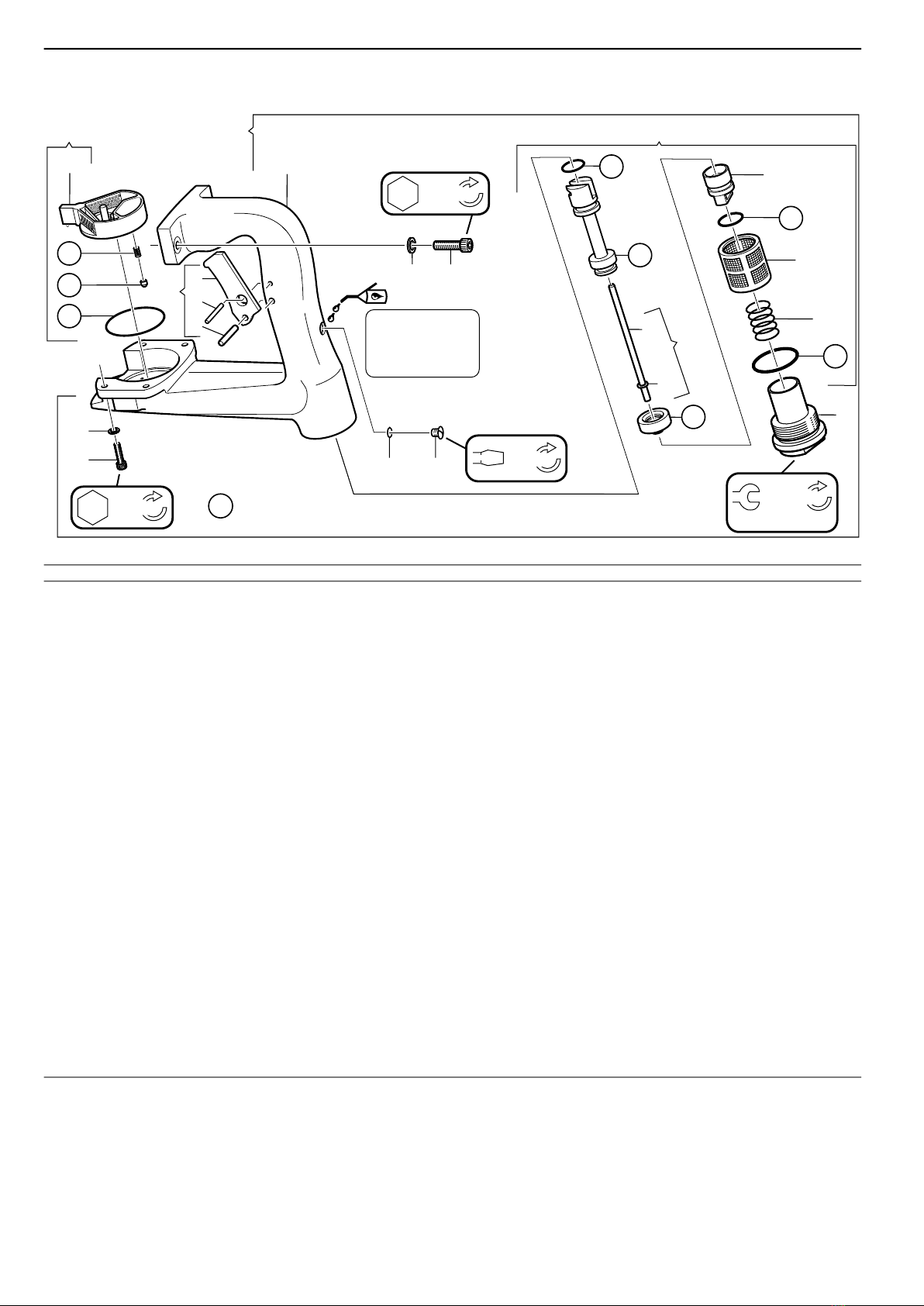

Handle
1
2
34
5
6
7 8
9 10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
00
0000991
= Included in
Service kit
5 Nm
30mm
120 Nm
Note
Use oil of type
SHELL:
TORCULA 68/32
or equivalent
5
mm
10 Nm
4
mm
8 Nm
Remark / Included in Service kitDescriptionQtyOrdering No.Ref. No.
Handle, compl.14250 1384 901(2-25)
Handle14250 1384 602
Trigger, compl.14250 1385 903(4-6)
Trigger1-4
FRP 3x26 / Small parts kit 4082 0009 90Pin1-5
CP 5x25 / Small parts kit 4082 0009 90Pin1-6
6.4x12x1.6 / Small parts kit 4082 0009 90Washer2-7
M6x22 12.9 / Small parts kit 4082 0009 90Screw2-8
4.1x1.6 / Small parts kit 4082 0009 90O-ring1-9
M8 11x9.5 / Small parts kit 4082 0009 90Screw1-10
Valve, compl.14250 0726 9211(12-22)
14.3x2.4 / Service kit 4081 0443 90O-ring1-12
Service kit 4081 0443 90Guide1-13
Pin, compl.14250 1256 0014(15-16)
Pin1-15
RS 4x9x0.7Circlip10335 3106 0016
Service kit 4081 0443 90Valve seat1-17
Valve1-18
17.1x1.6 / Service kit 4081 0443 90O-ring1-19
Strainer14250 0729 0020
Spring14250 0725 0021
29.2x3 / Service kit 4081 0443 90O-ring2-22
With NPT-thread (for the US, Canada) 4250 0724 01Adapter24250 0724 0023
M5x30 12.9 / Small parts kit 4082 0009 90Screw4-24
5.3x10x1.5 / Small parts kit 4082 0009 90Washer4-25
Reversing valve, compl.14250 1250 9026(27-30)
Reversing valve1-27
Service kit 4081 0443 90Spring2-28
Service kit 4081 0443 90Retainer pin2-29
49.5x3 / Service kit 4081 0443 90O-ring1-30
4 mm. Accessory includedAllen key10902 0112 00
5 mm. Accessory includedAllen key10902 0113 00
© Atlas Copco Industrial Technique AB - 9836 6500 00
18
LMS88 GIR38ENSpare part list

Service Kits
Small-parts kit — Clutch housing / Handle
Ordering No. 4082 0009 90
Remark / Included in Service kitDescriptionQtyOrdering No.
Shim1-
FRP 3x26Pin1-
CP 5x25Pin1-
6.4x12x1.6Washer2-
M6x22 12.9Screw2-
4.1x1.6O-ring1-
M8 11x9.5Screw1-
M5x30 12.9Screw4-
5.3x10x1.5Washer4-
Service kits are designed for a variety of products. This Service kit may contain more parts than listed in the
table and parts might remain unused.
Service kit — Clutch housing / Impact mechanism / Motor and motorcasing / Handle
Ordering No. 4081 0443 90
Remark / Included in Service kitDescriptionQtyOrdering No.
47.6x2.4O-ring10663 2100 28
101.19x3.53O-ring1-
Gasket1-
14.3x2.4O-ring1-
Guide1-
Valve seat1-
17.1x1.6O-ring1-
29.2x3O-ring2-
Spring2-
Retainer pin2-
49.5x3O-ring1-
Service kits are designed for a variety of products. This Service kit may contain more parts than listed in the
table and parts might remain unused.
Service Tools
Service Tools
RemarkDescriptionOrdering No.Section
L=140mm, D=55.5mm, d=47.5mm(Previous D=57mm)Mandrel4080 0578 00Bushing
L=85mm, D=87mm, d=69mmSupport ring4080 0207 05Bushing
Mandrel4080 0206 09Motor
4pcsMotor service tool4080 1356 80Motor
6 mmAccessory includedAllen key0902 0114 00Clutch hous-
ing
Ø47.5/57 mmService tool for dismantling/ assembling of Bushing. For further informa-
tion, pls see Service instructions
Mandrel4080 0578 00Clutch hous-
ing
Ø69/87 x 85 mmService tool for assembling of Bushing. For further information, pls
see Service instructions
Support ring4080 0207 05Clutch hous-
ing
Accessory included. Service tool for dismantling/ assembling of Motor. For further in-
formation, pls see Service instructions
Motor service tool4080 1356 80Motor and mo-
torcasing
Ø116/127 mmService tool for dismantling/ assembling of Motor. For further information,
pls see Service instructions
Mandrel4080 0206 09Motor and mo-
torcasing
Ø79 x 45 mmService tool for dismantling/ assembling of Motor bearings. For further
information, pls see Service instructions
Mandrel4080 1332 00Motor and mo-
torcasing
4 mmAccessory includedAllen key0902 0112 00Handle
5 mmAccessory includedAllen key0902 0113 00Handle
19
© Atlas Copco Industrial Technique AB - 9836 6500 00
Spare part listENLMS88 GIR38

Accessories included
Cup
Remark / Included in Service kitDescriptionQtyOrdering No.Ref. No.
For filling Impact mechanism with grease, see service instructionCup4080 1358 00
Motor service tool
Remark / Included in Service kitDescriptionQtyOrdering No.Ref. No.
For assembly and disassembly of motor into casing, see service instructionMotor service tool4080 1356 80
© Atlas Copco Industrial Technique AB - 9836 6500 00
20
LMS88 GIR38ENAccessories
