Atlas Elektronik Atlas North America Marine Sonic Technology Sea Scan ARC Scout... User manual

Sea Scan ARC Scout MKII Operations Manual
V1.2.4
© 2017 MarineSonic Technology, ATLAS North America
Doc: SCTM2-OPS
Marine Sonic Technology
[A Brand of ATLAS North America]

ATLAS North AmericaProprietary
Sea Scan ARC Scout MKIIOperations Manual 1 of 1
Page:1
Issue:1.2.4 SCTM2-OPS
OperationsManual
This product was designed and developed by a team of engineers at ATLAS North America.
© 2017 Marine Sonic Technology, ATLAS NorthAmerica, All Rights Reserved.
ATLASNorthAmerica
120Newsome Drive Suite H
PO Box 1309
Yorktown, VA 23692-1309
23183-0730
[phone]
[phone]
TechnicalSupport
Copyright
For technical support call [phone] or visit our web site at http://www.marinesonic.com.
This manual and the hardware/software described in it are copyrighted with all rights reserved.
Underthe copyright laws, neither this manual nor the hardware/software may be copied, in whole or
in part, withoutthe writtenconsent of Marine Sonic Technology, except in the normal use of the
software orto make backup copies. This exception does not allowcopies tobe made forothers.
Trademarks
Sea Scan® is a registered trademark of Marine Sonic Technology.
SHARPS™ is a trademark of Marine Sonic Technology.
Other product or brand names are trademarks or registered trademarks of their respective holders.

ATLAS North AmericaProprietary
Sea Scan ARC Scout MKIIOperations Manual 1 of 1
Page:2
Issue:1.2.4 SCTM2-OPS
OperationsManual
Table of Contents
Section 1 Introduction 5
Section 2 Quick Start (Single Frequency Configuration) 5
Section 3 Quick Start (Dual Frequency Configuration) 7
Section 4 Communications 14
Section 5 Web Interface 15
...................................................................................................................................161Application Settings Page Configuration
..........................................................................................................................................................16NetworkSettings
..........................................................................................................................................................17SonarStartupSettings
..........................................................................................................................................................19Sync I/OSettings
..........................................................................................................................................................20MiscellaneousSettings ...................................................................................................................................202Data Collection Control
..........................................................................................................................................................24Range andRange DelaySettings
...................................................................................................................................253 Commands
...................................................................................................................................264 Status
...................................................................................................................................305Firmware Update
...................................................................................................................................326Setting The Time
Section 6 Console 33
...................................................................................................................................331Console Messages
...................................................................................................................................342Console Commands
...................................................................................................................................343NMEA Data Input
..........................................................................................................................................................35Standard NMEA DataStrings
.........................................................................................................................................................36RMC .........................................................................................................................................................36GGA .........................................................................................................................................................37HDT .........................................................................................................................................................38VTG .........................................................................................................................................................39DPT .........................................................................................................................................................39ZDA ..........................................................................................................................................................40ProprietaryNMEA DataStrings
.........................................................................................................................................................40DPT .........................................................................................................................................................40AUV .........................................................................................................................................................42SOS .........................................................................................................................................................42SYNC ..........................................................................................................................................................43General NMEA 0183 Sentence Format
Section 7 SDS Data Output 43
...................................................................................................................................431The Sonar DataStream
..........................................................................................................................................................44Variable Types

ATLAS North AmericaProprietary
Sea Scan ARC Scout MKIIOperations Manual 1 of 1
Page:3
Issue:1.2.4 SCTM2-OPS
OperationsManual
..........................................................................................................................................................44General Packet Structure
..........................................................................................................................................................45DataPacketTypes
.........................................................................................................................................................46Sync Data Packet(SYNC)
.........................................................................................................................................................46SonarData Packet(SNR2)
.........................................................................................................................................48ChannelOperation
.........................................................................................................................................49Automatic Samples PerChannel
.........................................................................................................................................................49NavigationData Packet
.........................................................................................................................................................49OrientationData Packet
.........................................................................................................................................................50Fathometer Data Packet
.........................................................................................................................................................50NMEAData Packet
.........................................................................................................................................................51MkIIData Packet
..........................................................................................................................................................52Synchronizingthe Sonar DataStream
...................................................................................................................................522SDS Over UDP
...................................................................................................................................523Saving SDS Data In Files
...................................................................................................................................534Creating Survey Files
Section 8 Automatic Management 54
...................................................................................................................................541Power Management
..........................................................................................................................................................54Active Power Management
..........................................................................................................................................................54SleepPowerManagement
.........................................................................................................................................................55Wake OnLAN
.........................................................................................................................................................56Wake OnSync-In ................................................................................................................................... 562Temperature Management and Monitoring
Section 9 Time Synchronization 57
Section 10 Important Things To Note 57
...................................................................................................................................571Heat Dissipation
...................................................................................................................................582Transducer Temperature
Section 11 Troubleshooting 58
...................................................................................................................................591EMI& Noise Interferance
...................................................................................................................................622Unevern / Irregular Noise
...................................................................................................................................633Loss of aChannel
...................................................................................................................................644AcoutsicInterference
Section 12 SeaScan ARC Scout MKII Specifications 65
...................................................................................................................................651 Acoustic
...................................................................................................................................662Power Specifications
...................................................................................................................................673Interface Specifications
Section 13 Document History 68
Section 14 Contact and Support Information 68

ATLAS North AmericaProprietary
Sea Scan ARC Scout MKIIOperations Manual 1 of 1
Page:4
Issue:1.2.4 SCTM2-OPS
OperationsManual

ATLAS North AmericaProprietary
Sea Scan ARC Scout MKIIOperations Manual 1 of 1
Page:5
Issue:1.2.4 SCTM2-OPS
OperationsManual
1 Introduction
The SeaScanARCScoutMkII isanembedded side scansonardatacollectionsystemcreatedby Marine
Sonic Technology / ATLAS North America. Itfeatures a fully integrated power supply, DSP processor
transmitter,and receiverall inasingle boardcompactpackage. The ScoutMkII'sDSP boardcontainsa
specializedFPGA basedsignal processingengine andsoftcore processorbasedcontroller.
The ScoutMkIIcommunicates overthe builtin10/100Ethernetport. It also featuresisolatedRS232and
Synchronization IO. The system accepts NMEA 0183V1.5standard datastrings forrecordingof navigation
dataas well as custom NMEA 0183formattedstringsforadditional datasuch as Altitude,Roll andPitch.
2Quick Start (Single Frequency Configuration)
Thissection serves as a how-to for getting yourScout MkII setup and runningquickly. Follow the procedure
below:
1. Before connectingthe input powersupplies tothe ScoutMkII, make sure thatthe input powersupplies
are operatingproperly and withinthe specifiedoperatingparametersforMkII.

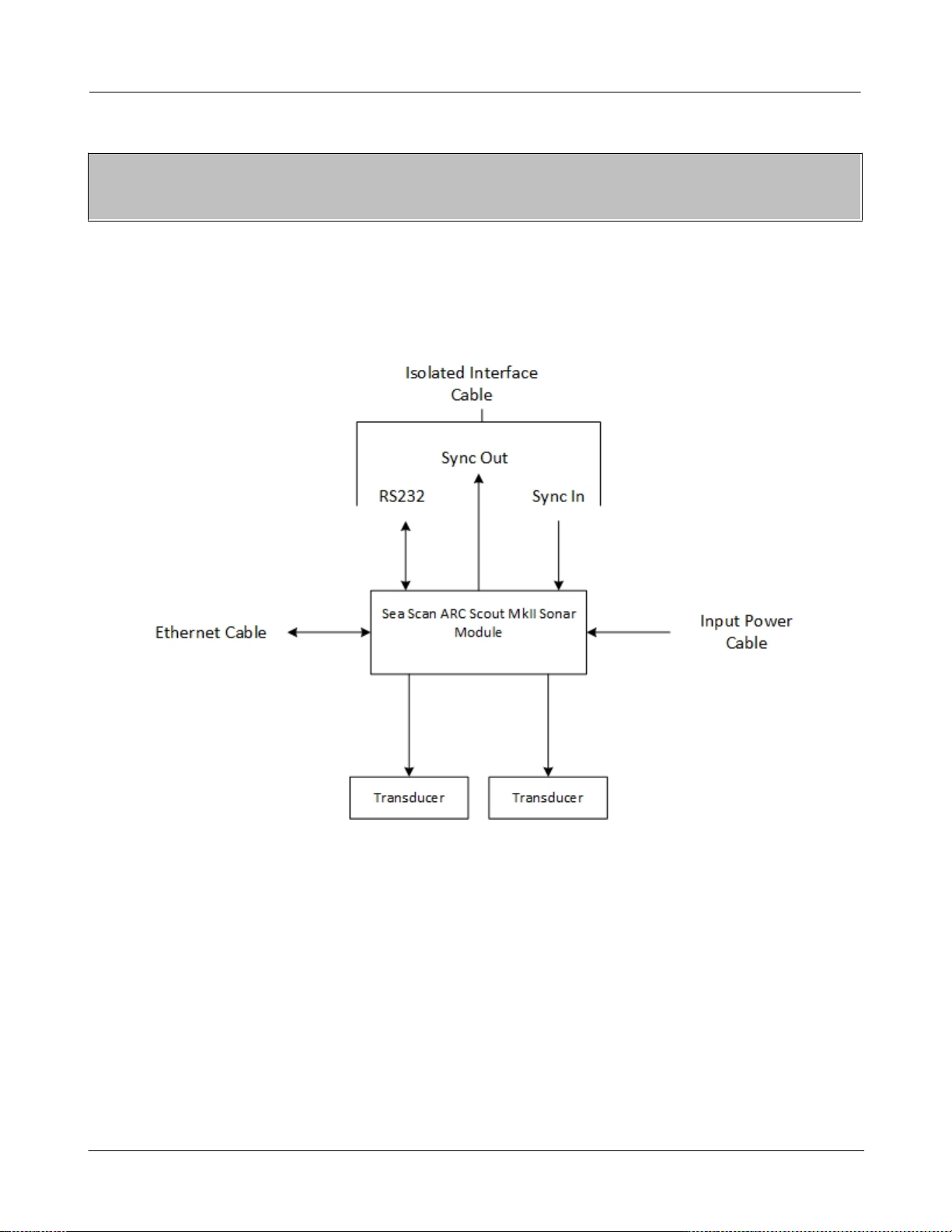

2. Check that everythingis connected accordingto the "SeaScan ARC ScoutMkII Installation Guide",
followingthe single frequency installationinstructions. Ataminimumthe inputpowerandnetwork
connections need tobe connected.
3. To verifyproperoperation, connectthe supplied serial connectiontoaserial port(viaDB9to USB
converterordirectconnection) onacomputer. Ensure thatthe console isconnected and thatthe
terminal programon the PCissetto 115.2kbps, 8data bits, no parity, and 1stopbit. Hand shaking
shouldbe turnedoff. The console displaysmany useful start-upand run-time messages.

ATLAS North AmericaProprietary
Sea Scan ARC Scout MKIIOperations Manual 1 of 1
Page:6
Issue:1.2.4 SCTM2-OPS
OperationsManual
4. Applythe inputand isolated interface power. The serial console will display itsstart-upmessage which
includesthe versionand copyrightinformation. Youwill nowsee information relatedto the network
startup.
Sea Scan ARC Scout Boot Manager
Build: Jun 29 2017 17:15:03
Looking for valid images.
Sea Scan ARC Scout Boot Manager
Build: Jun 29 2017 17:15:03
Looking for valid images.
Loading image #2
Executing application. Address(0x04000000)
main: starting ARC Scout...
System Info
Serial Number: SCTM2F-46-2000
Build Date: Jul 21 2017 17:02:21
Software Version: 6.2.26
Hardware Version: 0.0
Board Rev: PSU(-) Logic(-) RXTX(-)
0 Transducer: 1800kHz => Chirp UP 256uS 150kHz
1 Transducer: 900kHz => Chirp UP 256uS 150kHz
2 Transducer: 1800kHz => Chirp UP 256uS 150kHz
3 Transducer: 900kHz => Chirp UP 256uS 150kHz
Copyright 2016 Marine Sonic Technology
Initializing network hardware...done.
Initializing Sonar Hardware...done.
Fri Jan 1 00:00:02 2016 : PingRate(0Hz) Temp(21.0C) Power(12.0V, 0.500A, 6.0W) SDS(0 packets, 0KB, 0 FIFO)
Network Using IP(169.254.86.213) Subnet(255.255.0.0)
System Info
Serial Number: SCTM2F-46-2000
Build Date: Jul 21 2017 17:02:21
Software Version: 6.2.26
Hardware Version: 7.3
Board Rev: PSU(-) Logic(-) RXTX(-)
0 Transducer: 1800kHz => Chirp UP 256uS 150kHz
1 Transducer: 900kHz => Chirp UP 256uS 150kHz
2 Transducer: 1800kHz => Chirp UP 256uS 150kHz
3 Transducer: 900kHz => Chirp UP 256uS 150kHz
Copyright 2016 Marine Sonic Technology

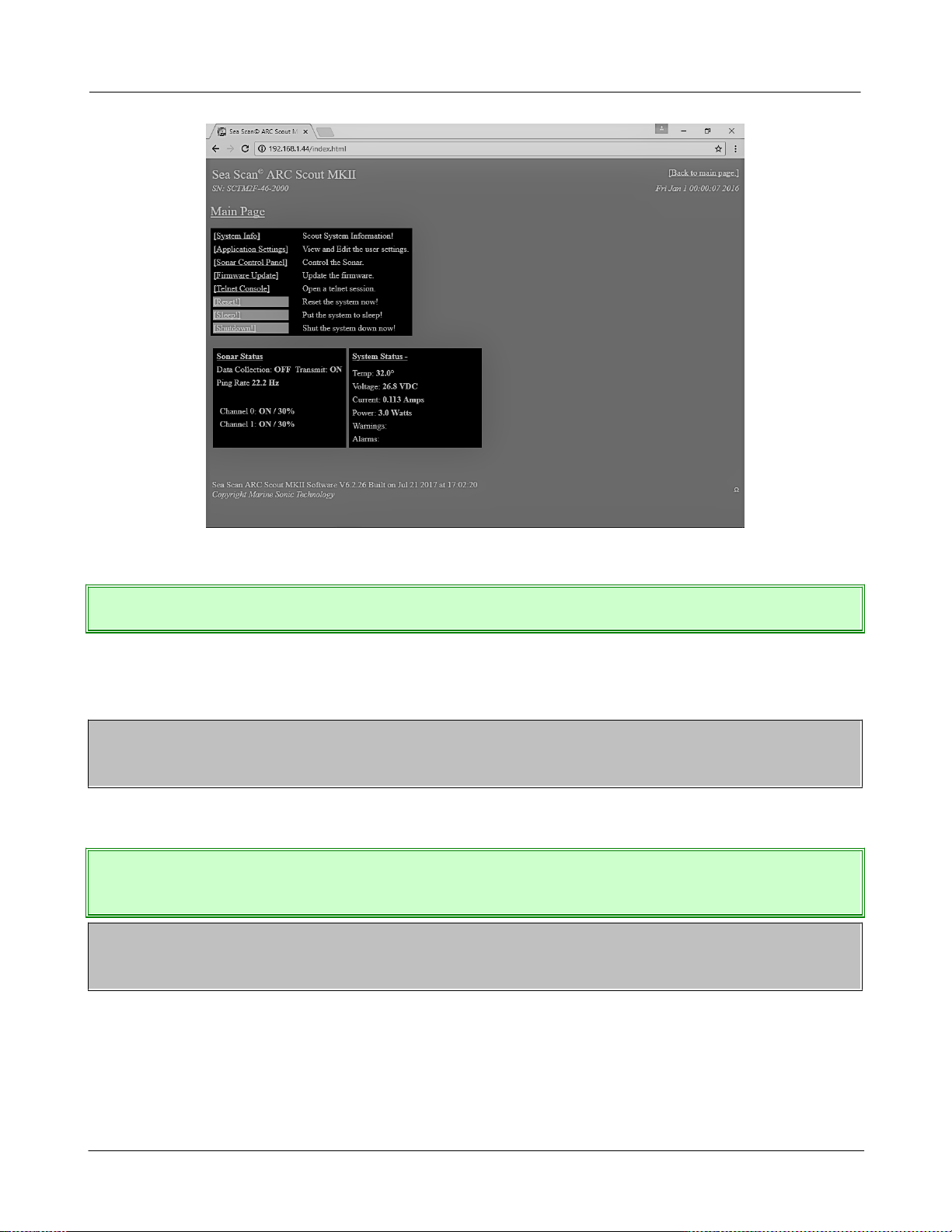

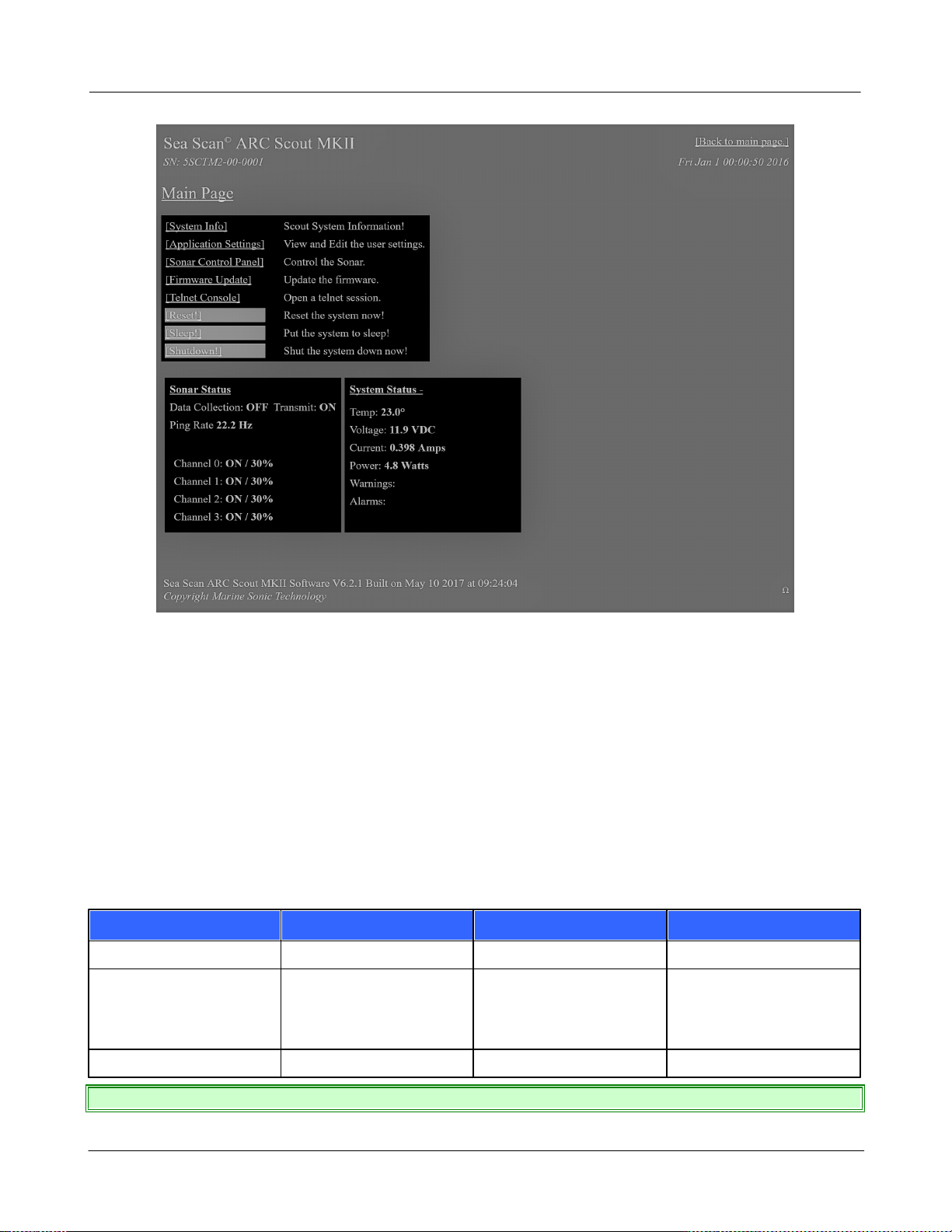

5. Afterthe ScoutMkII systemhassuccessfullystarted,connectto the ScoutMkII's webserver. The default
IP address is 169.254.86.213. The mainweb page will display the system'scurrentstate.

ATLAS North AmericaProprietary
Sea Scan ARC Scout MKIIOperations Manual 1 of 1
Page:7
Issue:1.2.4 SCTM2-OPS
OperationsManual
6. Navigate to the Application Settings page by selectingthe linkon the mainpage. Underthe ScoutMKII
Mode Setting,verify thatthe MKIIUnitisconfiguredasaSingle Frequency.
Note: Changing the application settingsrequiresthe settings tobe savedand resettingthe ScoutMkII unit
forthe changestotake affect.
The ScoutMkIInow isready togo. Use the SonarControl web page tocontrol the Sonar. See section5for
more informationon the WebInterface.
CAUTION: Do not connect the MkII Interconnect Cable to any unit until confirming that one
device is configured as a Dual Frequency Master and the second device is configured as a Dual
Frequency Slave. Damage to the device interface may occur if they are not properly configured.
3Quick Start (Dual Frequency Configuration)
Note: If the unitsare ordered inadual frequencyconfiguration, theywill be configuredin the factoryand
labeled as Dual FrequencyMasterorDual Frequency Slave tomake the setup and configuration easieron
the end user.
CAUTION: Do not connect the MkII Interconnect Cable to any unit until confirming that one
device is configured as a Dual Frequency Master and the second device is configured as a Dual
Frequency Slave. Damage to the device interface may occur if they are not properly configured.
Thissection serves as a how-to for getting yourScout MkII setup and runningquickly. Follow the procedure
below:
Dual Frequency Master Configuration
1. Before connectingthe input powersupplies tothe ScoutMkII, make sure thatthe input powersupplies
are operatingproperly and withinthe specifiedoperatingparametersforMkII.

ATLAS North AmericaProprietary
Sea Scan ARC Scout MKIIOperations Manual 1 of 1
Page:8
Issue:1.2.4 SCTM2-OPS
OperationsManual
2. Check thateverythingis connectedtothe device labeled"Master",accordingtothe "SeaScanARCScout
MkIIInstallation Guide", followingthe single frequency installationinstructions. Thisappliestothe
dual frequencyconfigurationto ensure properdevice configuration. Ataminimumthe inputpowerand
network connectionsneedto be connected.
3. To verifyproperoperation,connectthe suppliedserial connectiontoaserial port(viaDB9toUSB
converterordirectconnection) on acomputer.Ensure thatthe console is connectedand thatthe
terminal programon the PCis set to115.2kbps, 8databits, no parity, and 1stop bit. Hand shaking
shouldbe turned off. The console displaysmany useful start-upandrun-time messages.
4. Applythe inputand isolatedinterface power. The serial console will display itsstart-up message which
includesthe version and copyright information. You will now see information relatedto the network
startup.
Sea Scan ARC Scout Boot Manager
Build: Jun 29 2017 17:15:03
Looking for valid images.
Sea Scan ARC Scout Boot Manager
Build: Jun 29 2017 17:15:03
Looking for valid images.
Loading image #2
Executing application. Address(0x04000000)
main: starting ARC Scout...
System Info
Serial Number: SCTM2F-46-2000
Build Date: Jul 21 2017 17:02:21
Software Version: 6.2.26

ATLAS North AmericaProprietary
Sea Scan ARC Scout MKIIOperations Manual 1 of 1
Page:9
Issue:1.2.4 SCTM2-OPS
OperationsManual
Hardware Version: 0.0
Board Rev: PSU(-) Logic(-) RXTX(-)
0 Transducer: 1800kHz => Chirp UP 256uS 150kHz
1 Transducer: 900kHz => Chirp UP 256uS 150kHz
2 Transducer: 1800kHz => Chirp UP 256uS 150kHz
3 Transducer: 900kHz => Chirp UP 256uS 150kHz
Copyright 2016 Marine Sonic Technology
Initializing network hardware...done.
Initializing Sonar Hardware...done.
Fri Jan 1 00:00:02 2016 : PingRate(0Hz) Temp(21.0C) Power(12.0V, 0.500A, 6.0W) SDS(0 packets, 0KB, 0 FIFO)
Network Using IP(169.254.86.213) Subnet(255.255.0.0)
System Info
Serial Number: SCTM2F-46-2000
Build Date: Jul 21 2017 17:02:21
Software Version: 6.2.26
Hardware Version: 7.3
Board Rev: PSU(-) Logic(-) RXTX(-)
0 Transducer: 1800kHz => Chirp UP 256uS 150kHz
1 Transducer: 900kHz => Chirp UP 256uS 150kHz
2 Transducer: 1800kHz => Chirp UP 256uS 150kHz
3 Transducer: 900kHz => Chirp UP 256uS 150kHz
Copyright 2016 Marine Sonic Technology
5. Afterthe ScoutMkII system hassuccessfully started, connectto the ScoutMkII'sweb server. The default
IP address is 169.254.86.213. The mainweb page will display the system'scurrentstate.
6. Navigate to the Application Settings page by selectingthe linkonthe mainpage.Underthe ScoutMkII
Mode Setting, verify that the MkII Unit is configured as aDual Frequency Master.
Note: Changing the application settingsrequiresthe settings tobe savedand resettingthe ScoutMkII unit
forthe changes totake affect.
The Scout MkII Dual Frequency Masteris now ready to go. Continue withthe Dual Frequency Slave
configurationprocedure below.

ATLAS North AmericaProprietary
Sea Scan ARC Scout MKIIOperations Manual 1 of 1
Page:10
Issue:1.2.4 SCTM2-OPS
OperationsManual
CAUTION: Do not connect the MkII Interconnect Cable to any unit until confirming that one
device is configured as a Dual Frequency Master and the second device is configured as a Dual
Frequency Slave. Damage to the device interface may occur if they are not properly configured.
Dual Frequency Slave Configuration
7. Check thateverythingis connected tothe device labeled "Slave", accordingtothe "SeaScanARCScout
MkIIInstallation Guide", followingthe single frequency installationinstructions. Thisapplies to the
dual frequencyconfigurationto ensure properdevice configuration. Ataminimum the inputpowerand
network connectionsneedto be connected.
8. To verifyproperoperation,connectthe suppliedserial connectiontoaserial port(viaDB9toUSB
converterordirectconnection) on acomputer.Ensure thatthe console is connectedand thatthe
terminal programon the PCis set to115.2kbps, 8databits, no parity, and 1stop bit. Hand shaking
shouldbe turned off. The console displaysmany useful start-upandrun-time messages.
9. Applythe inputand isolatedinterface power. The serial console will display itsstart-up message which
includesthe version and copyright information. You will now see information relatedto the network
startup.
Sea Scan ARC Scout Boot Manager
Build: Jun 29 2017 17:15:03
Looking for valid images.
Sea Scan ARC Scout Boot Manager
Build: Jun 29 2017 17:15:03
Looking for valid images.
Loading image #2

ATLAS North AmericaProprietary
Sea Scan ARC Scout MKIIOperations Manual 1 of 1
Page:11
Issue:1.2.4 SCTM2-OPS
OperationsManual
Executing application. Address(0x04000000)
main: starting ARC Scout...
System Info
Serial Number: SCTM2F-46-2000
Build Date: Jul 21 2017 17:02:21
Software Version: 6.2.26
Hardware Version: 0.0
Board Rev: PSU(-) Logic(-) RXTX(-)
0 Transducer: 1800kHz => Chirp UP 256uS 150kHz
1 Transducer: 900kHz => Chirp UP 256uS 150kHz
2 Transducer: 1800kHz => Chirp UP 256uS 150kHz
3 Transducer: 900kHz => Chirp UP 256uS 150kHz
Copyright 2016 Marine Sonic Technology
Initializing network hardware...done.
Initializing Sonar Hardware...done.
Fri Jan 1 00:00:02 2016 : PingRate(0Hz) Temp(21.0C) Power(12.0V, 0.500A, 6.0W) SDS(0 packets, 0KB, 0 FIFO)
Network Using IP(169.254.86.213) Subnet(255.255.0.0)
System Info
Serial Number: SCTM2F-46-2000
Build Date: Jul 21 2017 17:02:21
Software Version: 6.2.26
Hardware Version: 7.3
Board Rev: PSU(-) Logic(-) RXTX(-)
0 Transducer: 1800kHz => Chirp UP 256uS 150kHz
1 Transducer: 900kHz => Chirp UP 256uS 150kHz
2 Transducer: 1800kHz => Chirp UP 256uS 150kHz
3 Transducer: 900kHz => Chirp UP 256uS 150kHz
Copyright 2016 Marine Sonic Technology
10.Afterthe ScoutMkII system hassuccessfully started, connectto the ScoutMkII'swebserver. The default
IP address is 169.254.86.213. The mainweb page will display the system'scurrentstate.

ATLAS North AmericaProprietary
Sea Scan ARC Scout MKIIOperations Manual 1 of 1
Page:12
Issue:1.2.4 SCTM2-OPS
OperationsManual
11. Navigate tothe Application Settings page by selectingthe link onthe mainpage. Underthe ScoutMkII
Mode Setting, verify that the MkII Unit is configured as aDual Frequency Slave.
Note: Changing the application settingsrequiresthe settings tobe savedand resettingthe ScoutMkII unit
forthe changes totake affect.
The ScoutMkII Dual FrequencySlave is now readyto go. Continue withthe Dual Frequency configuration
procedure below.
CAUTION: Do not connect the MkII Interconnect Cable to any unit until confirming that one
device is configured as a Dual Frequency Master and the second device is configured as a Dual
Frequency Slave. Damage to the device interface may occur if they are not properly configured.
12.Check thateverything is connectedaccordingto the "Sea Scan ARC ScoutMkII Installation Guide",
following the dual frequency installationinstructions. At aminimum the inputpower, interconnect
cable andnetwork connectionsneed to be connected.
13.Toverify properoperation,connectthe suppliedserial connectiontoaserial port(viaDB9toUSB
converterordirectconnection) on acomputer.Ensure thatthe console is connectedand thatthe
terminal programon the PCis set to115.2kbps, 8databits, no parity, and 1stop bit. Hand shaking
shouldbe turned off. The console displays manyuseful start-up andrun-time messages.
14.Apply the inputand isolatedinterface power. The serial console will display itsstart-up message which
includesthe version and copyright information. You will now see information relatedto the network
start-up.
Sea Scan ARC Scout Boot Manager
Build: Jun 29 2017 17:15:03
Looking for valid images.
Sea Scan ARC Scout Boot Manager

ATLAS North AmericaProprietary
Sea Scan ARC Scout MKIIOperations Manual 1 of 1
Page:13
Issue:1.2.4 SCTM2-OPS
OperationsManual
Build: Jun 29 2017 17:15:03
Looking for valid images.
Loading image #2
Executing application. Address(0x04000000)
main: starting ARC Scout...
System Info
Serial Number: SCTM2F-46-2000
Build Date: Jul 21 2017 17:02:21
Software Version: 6.2.26
Hardware Version: 0.0
Board Rev: PSU(-) Logic(-) RXTX(-)
0 Transducer: 1800kHz => Chirp UP 256uS 150kHz
1 Transducer: 900kHz => Chirp UP 256uS 150kHz
2 Transducer: 1800kHz => Chirp UP 256uS 150kHz
3 Transducer: 900kHz => Chirp UP 256uS 150kHz
Copyright 2016 Marine Sonic Technology
Initializing network hardware...done.
Initializing Sonar Hardware...done.
Fri Jan 1 00:00:02 2016 : PingRate(0Hz) Temp(21.0C) Power(12.0V, 0.500A, 6.0W) SDS(0 packets, 0KB, 0 FIFO)
Network Using IP(169.254.86.213) Subnet(255.255.0.0)
System Info
Serial Number: SCTM2F-46-2000
Build Date: Jul 21 2017 17:02:21
Software Version: 6.2.26
Hardware Version: 7.3
Board Rev: PSU(-) Logic(-) RXTX(-)
0 Transducer: 1800kHz => Chirp UP 256uS 150kHz
1 Transducer: 900kHz => Chirp UP 256uS 150kHz
2 Transducer: 1800kHz => Chirp UP 256uS 150kHz
3 Transducer: 900kHz => Chirp UP 256uS 150kHz
Copyright 2016 Marine Sonic Technology
15. Afterthe ScoutMkII systemhas successfully started, connectto the Scout MkII's webserver. The
default IP address is169.254.86.213. The mainweb page will display the system'scurrentstate.

ATLAS North AmericaProprietary
Sea Scan ARC Scout MKIIOperations Manual 1 of 1
Page:14
Issue:1.2.4 SCTM2-OPS
OperationsManual
16. The ScoutMkII now isready togo. Use the SonarControl web page tocontrol the Sonar. See section5
formore informationon the WebInterface.
4 Communications
The ScoutMkII system'scommunicationscanbe broken upinto the followingcategories:
1. HTTP Server(Web Interface) - usedforcontrol and configuration
2. TCP Console - used forNMEADatainputandConsole Commands- available on TCP orRS-232
3. SDS DataOutput - available on UDP only
Belowisalistof the Scout MkII's networks connectionswith protocol type and associatedportnumber.
ConnectionName
Protocol
PortNumber
Description
HTTP Server
TCP/IP
80
Web server.
TCP Console
TCP/IP
23
Dual purposeconsoleand
NMEA0183 data over TCP
interface. Operates similar to
a telnetconnection.
SDS Over UDP
UDP/IP
1409
SDS Data Output
Note: A maximumof 3network ports canbe used simultaneously.

ATLAS North AmericaProprietary
Sea Scan ARC Scout MKIIOperations Manual 1 of 1
Page:15
Issue:1.2.4 SCTM2-OPS
OperationsManual
5Web Interface
The webinterface onthe Scout MkIIside scansonarsystemservesasauniversal interface.
There are some common features thateach webpage has. Each page hasaheaderthatshows the Scout
MkII'sserial numberand the ScoutMkII time thatthe page was sent. The headeralso hasalink backtothe
mainpage. Eachpage alsohasafooterthatdisplay the software version and builddate.
Belowisalistand example of the pages/interfaces available.
Name
ServerAddress
Description
Main Page
/ or /index.html
This is themain web pagefor theScout
MkII. Ithas links to all of theother
pages.It also shows thecurrent system
status.
SystemInfo
/info.html
Displays configuration information for
thesystemsuch as serial number,
software version,firmwareversion,
build date,electronic board versions,
Transducer Configuration.
Application Settings
/app_settings.html
Shows the system's application
settings. Allows theuser to edit the
settings such as network configuration,
sonar startup configuration,I/O
configuration, sleep configuration,etc.
Sonar Control Panel
/sonar.html
Allows control over thesonar settings
and data collection. Serves as an
examplefor embedded control of the
sonar.
FirmwareUpdate
/update.html
Allows theuser to updatetheScout
MkII's firmware.
TelnetConsole
telnet://<Scout MkII ip address>
Opens up a telnetconsole(if it is
configured on theweb client's system).
This is a useful shortcut as it
automatically fills in theIP address of
theScout MkII.
Reset!
/reset.html
Allows theuser to performa softsystem
reset.
Sleep!
/sleep.html
Puts thesystemto sleep. Wakeup
method is configured in theapplication
settings.
Shutdown!
/shutdown.html
Allows theuser to shutdown thesystem.
Status
/status.json
Returns thesystemstatus in JSON
format.Note:this fileis not linked from
any page.

ATLAS North AmericaProprietary
Sea Scan ARC Scout MKIIOperations Manual 1 of 1
Page:16
Issue:1.2.4 SCTM2-OPS
OperationsManual
5.1 Application Settings Page Configuration
The ScoutMkII is configuredthrough the ApplicationSettings webpage. Inthis section we will describe the
individual settings. Anexample ApplicationSettingsweb page is shownbelow.
Clickingthe Save buttonwill submitthe settingsshown onthe page tothe ScoutMkII. The ScoutMkII will
thenstore the settings. The ScoutMkIIwill then displayanew page withthe new settings.
Clickingthe Resetbutton resets the MkII unitand appliesthe settings thatwere saved.
Clickingthe cancel button will reload the previouslysavedand appliedsettings without applyingthe new
settingsto the Scout MkII.
Note: Changingthe application settingsrequiresthe settings tobe savedand resettingthe ScoutMkIIunit
forthe changestotake affect.
5.1.1 Network Settings
NetworkAddress

ATLAS North AmericaProprietary
Sea Scan ARC Scout MKIIOperations Manual 1 of 1
Page:17
Issue:1.2.4 SCTM2-OPS
OperationsManual
Thisis the ScoutMkII's IPV4addresson anetwork. The defaultaddressis 169.254.86.213. This is compatible
with the zeroconfig/autoconfigIP addressrange so the ScoutMkIIcanbe usedoutof the box withmost
computers in apoint-to-pointnetwork configuration.
NetworkMask
Thisis the ScoutMkII's networkmask. The defaultnetwork mask is255.255.0.0.
SDSDestinationAddress
Setthisto the addressofthe device thatthe SDS datastream will be sent to. Settingone ormore of the
loweroctetsto255will allow the SDSUDP/IP packetsto be broadcaston thatsubnet. The example above
showsthatthe Scout MkIIis broadcastingonthe 169.254subnet. The SDSoverUDPportis1409. The
defaultSDS destination address is setto 169.254.255.255.
Note: The Masterand Slave unitsdo NOTrequire different IP addresses.
5.1.2 Sonar Startup Settings
The SonarStartupsettingsdictate the initial settingsforthe sonarhardware onboot.
Range
Thissetting controlsthe sonarsystem's initial slantrange. Its unitsare metersandcanbe setfrom 5to 300
meters. The defaultvalue is30meters.
Note: Inthe dual frequency, 4channel configuration the range iscontrolled bychannels0and 1. Inthe
single frequency, 2channel configurationthe range iscontrolledbychannel 0.
Range Delay
Thissetting controlsthe initial range delay. Range delaysets the range (startingattime 0whendata
collection begins) atwhichthe sonarhardware startssamplingsonardata. Itis an offsetanditsunitsare in
meters. Itcan be setfrom0(noRange Delay) tothe currentRange setting. The defaultvalue is0meters
(noRange Delay).
Note: Inthe dual frequency, 4channel configuration the range delayiscontrolled bychannels0and1. In
the single frequency, 2channel configurationthe range delay is controlledby channel 0.
Channel Settings (Dual Frequency - 4 Channel Operation)
Settingsmaybe adjusted individuallyforeachof the ScoutMkII's 4channelsinthe Dual Frequency
configuration. The channels are dividedinto columns. The channelsare labeledMaster:0, 1andSlave:2, 3.
Channel Enabled
Thissettings enables ordisables the channel.
Channel Bandwidth
The bandwidth settingallows the userto choose aCHIRP bandwidththatthe channel will use for
transmitting and receiving. Thissettingis notavailable inthe SonarControl Panel. Changingthe
bandwidthmayreduce interference issues duringoperation. Please note thatthe across track resolution is
directlyrelatedto the CHIRP bandwidth. The narrowerthe bandwidth the lowerthe across track
resolution. Whenthe bandwidthis changedthe application settingspage will change the resolution
displayed below the bandwidth accordingly.

ATLAS North AmericaProprietary
Sea Scan ARC Scout MKIIOperations Manual 1 of 1
Page:18
Issue:1.2.4 SCTM2-OPS
OperationsManual
Channel SDS Sonar Type
Thissets the sonarchannel type (wSonarType) inthe SDSSNR2data. Formore informationon why these
needtobe changedfrom theirdefaults please referto the Channel Operation section.
The defaultvaluesare:
Master
Master
Slave
Slave
Channel
0
1
2
3
Enabled
Enabled
Enabled
Enabled
Enabled
Bandwidth
150 kHz
150 kHz
150 kHz
150 kHz
Resolution
~0.50 cm
~0.50 cm
~0.50 cm
~0.50 cm
SDS Sonar Type
STARBOARD
STARBOARD2
PORT
PORT2
Range
30.0 m
30.0 m
30.0 m
30.0 m
RangeDelay
0.0 m
0.0 m
0.0 m
0.0 m
Channel Settings (Single Frequency - 2 Channel Operation)
Settingsmaybe adjusted individuallyforeachof the ScoutMkII's 2channelsinthe standalone Single
Frequencyconfiguration. The channels are dividedinto columns. The channelsare labeledMaster:0, 1.
Note: The Single Frequencysystem utilizes Channels0and 1.
Channel Enabled
Thissettings enables ordisables the channel.
Channel Bandwidth
The bandwidth settingallows the userto choose aCHIRP bandwidththatthe channel will use for
transmitting and receiving. Thissettingis notavailable inthe SonarControl Panel. Changingthe
bandwidthmayreduce interference issues duringoperation. Please note thatthe across track resolution is
directlyrelatedto the CHIRP bandwidth. The narrowerthe bandwidth the lowerthe across track
resolution. Whenthe bandwidthis changedthe application settingspage will change the resolution
displayed below the bandwidth accordingly.
Channel SDS Sonar Type
Thissets the sonarchannel type (wSonarType) inthe SDSSNR2data. Formore informationon why these
needtobe changedfrom theirdefaults please referto the Channel Operation section.
The defaultvaluesare:
Master
Master
Channel
0
1
Enabled
Enabled
Enabled
Bandwidth
150 kHz
150 kHz
Resolution
~0.50 cm
~0.50 cm

ATLAS North AmericaProprietary
Sea Scan ARC Scout MKIIOperations Manual 1 of 1
Page:19
Issue:1.2.4 SCTM2-OPS
OperationsManual
Master
Master
SDS Sonar Type
STARBOARD
PORT
Range
30.0 m
30.0 m
RangeDelay
0.0 m
0.0 m
5.1.3 Sync I/O Settings
The I/O settingscontrol the behaviorof the Sonar's synchronizationhardware. The syncoutputallows
otherdatacollectionsystemsto be synchronizedwith the ScoutMkII'sdatacollectioncycle. The Syncinput
synchronizesthe ScoutMkII's datacollectioncycle withanexternal timingsource suchasanotherSonar
system.
SyncIN Enable
Thissetting enablesthe SyncInput. When the SyncInputisenabledthe ScoutMkII will only pingwhenthe
SyncInpinis high(TTLlevels). The ScoutMkIIwill notping whenthe SyncIn pinislow. Syncin isdisabled
by default.
SyncOUTEnable
Thissettings enables the SyncOutput. Whenthe SyncOutputis enabledthe ScoutMkII will send outaTTL
compatible synchronizationpulse onitsSyncOutpin. The pulse shape is determinedby the pulse length
andpulse decimation settings. The defaultvalue isdisabled.
SyncOUTPulse Length
The pulse lengthsettingcontrolsthe length of the SyncOutputpulse. Itsunits are microsecondsand canbe
setfrom 1to 1000(1ms). The defaultvalue 1000uS (1ms).
SyncPulse Every
Thissetting controlsthe SyncOutputdecimation counter. Itcan be setfrom0to30. A settingof 0will send
one synchronization pulse everyping. A settingof 30will sendone synchronization pulse every30pings.
Thisfeature will allow otherdatacollection systems to synchronize with the ScoutMkII thatdonotwork
well with itshigh pingrates(up to60Hz). The defaultvalue is 1(1pulse every otherping).
SyncOutputActive
The SyncOUTpulse canbe configuredto triggeraseitheranActive High orActive Lowdependingon whatis
requiredby the user's system. The figures belowshowthe differentSyncOutpulses.
Sync Output Active Low
