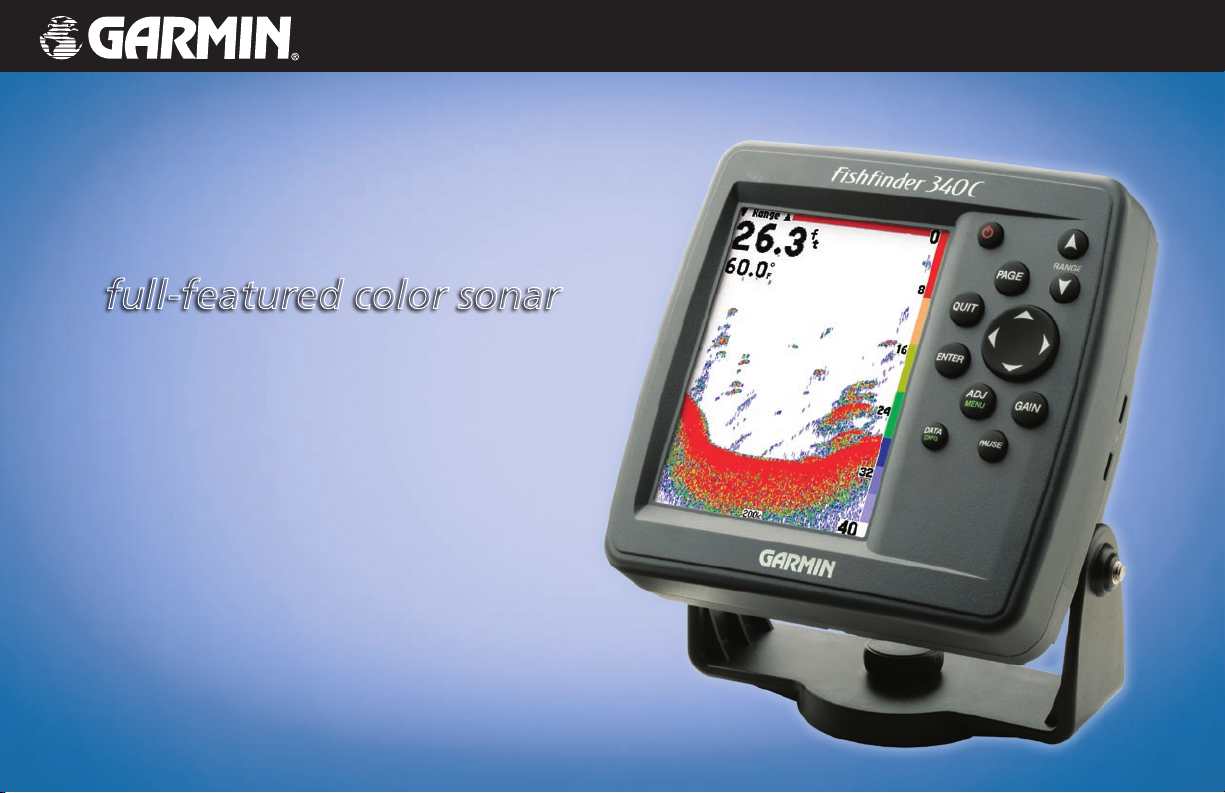

full-featured color sonar
Fishfinder 340C

© 2007 Garmin Ltd. or its subsidiaries
Garmin International, Inc.
1200 East 151
st
Street,
Olathe, Kansas 66062, USA
Tel. [phone] or [phone]
Fax [phone]
Garmin (Europe) Ltd.
Liberty House
Hounsdown Business Park,
Southampton, Hampshire, SO40 9RB UK
Tel. [phone] (outside the UK)
0808 2380000 (within the UK)
Fax [phone]
Garmin Corporation
No. 68, Jangshu 2
nd
Road,
Shijr, Taipei County, Taiwan
Tel. [phone]
Fax [phone]
All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated,
downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants
permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one
copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text
of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly
prohibited.
Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and to make changes in the content
without obligation to notify any person or organization of such changes or improvements. Visit the Garmin Web site (www.garmin.com) for current updates and
supplemental information concerning the use and operation of this and other Garmin products.
Garmin
®
is a trademark of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. CANet
™
, DynaColor
™
, and Ultrascroll
™
, AutoLocate
®
,
TracBack
®
, BlueChart
®
, and MapSource
®
are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of
Garmin.
March 2007 Part Number 190-00658-00 Rev. D Printed in Taiwan

Fishnder 340C Owner’s Manual i
IntroductIon > About thIs MAnuAl
IntroductIon
Thank you for choosing the Garmin
®
Fishnder 340C. The
Fishnder 340C is a full-featured, color sonar that offers a choice
of display styles, a dual beam or dual frequency option, and many
more features, including the following:
• Ultrascroll
™
, which gives you a much faster update rate on
your Sonar Pages.
• Auto Gain, which allows you to see more sh and structures.
• CANet
™
capability, which allows you to connect your unit
to CANet-capable Garmin chartplotters, so you can read the
Sonar Pages on chartplotters located elsewhere in the boat.
• Round asher, which gives you an option for how to view
the sonar.
• Whiteline, which helps you to interpret bottom hardness.
• 2x and 4x automatic and manual zoom.
• Adjustable keel offset.
• Alarms for sh size, shallow water, deep water, and low
battery.
• NMEA sonar data output and navigation data input.
About This Manual
To get the most out of your Fishnder 340C, read this manual and
learn the operating procedures. This manual includes the following:
• Introduction—contains the Table of Contents, product
registration, contact, and cleaning information.
• Getting Started—provides general information that can
help you before you install and use your Fishnder 340C.
• —covers the installation and
testing for the Fishnder 340C.
 —provides details about the
features and operations of the Fishnder 340C.
• Appendix—contains information, such as specications,
optional accessories, and messages that might appear. You
can also nd warranty information in the Appendix.
• Index—helps you quickly nd information in this manual.
This manual uses the term Warning to indicate a potentially
hazardous situation, which, if not avoided, could result in death or
serious injury.
This manual uses the term  to indicate a potentially
hazardous situation, which, if not avoided, may result in minor
injury or property damage. It may also be used without the symbol
to alert you to avoid unsafe practices.

ii Fishnder 340C Owner’s Manual
IntroductIon > tAble of contents
table of contents
Introduction...........................................................................i
About This Manual ................................................................... i
Product Registration.............................................................. iii
Contact Garmin ...................................................................... iii
Caring for the Fishnder ....................................................... iii
Warning ................................................................................... iv
Getting Started.....................................................................1
Packing List ............................................................................. 1
Optional Accessories.............................................................. 1
Understanding the Fishnder and Sonar.............................. 2
Installing the Fishnder 340C ............................................5
Selecting a Location for the Fishnder................................. 5
Mounting the Fishnder ......................................................... 6
Mounting the Transducer ....................................................... 9
Installing the Wiring Harness............................................... 15
Testing the Installation.......................................................... 20
Using the Fishnder 340C ................................................21
Learning the Basic Functions .............................................. 21
Using the Fishnder 340C Keypad ...................................... 22
Understanding the Main Pages............................................ 23
Using the Main Menu ............................................................ 26
Using the Adjustment Menu ................................................. 34
Conguring Advanced Data Fields...................................... 37
Pausing a Sonar or Flasher Page ........................................ 39
Marking a Waypoint............................................................... 40
Appendix ............................................................................42
Specications ........................................................................ 42
Optional Accessories............................................................ 42
Messages and Alarms........................................................... 43
Limited Warranty ................................................................... 44
Software License Agreement ............................................... 45
Index ...................................................................................46

Fishnder 340C Owner’s Manual iii
IntroductIon > Product regIstrAtIon, contAct gArMIn, And cArIng for the fIshfInder
Product Registration
Help us better support you by completing our online registration
today! Have the serial number of your Fishnder handy, and
connect to our Web site (http://www.garmin.com). Look for the
Product Registration link on our Home page.
Use this area to record the serial number (8-digit number located
on the back of the box). Be sure to keep your original sales receipt
in a safe place, or attach a photocopy inside the manual.
Serial Number: ___ ___ ___ ___ ___ ___ ___ ___
Contact Garmin
If you encounter any difculty while using your Fishnder, or if
you have any questions, in the U.S.A. contact Garmin Product
Support by phone: [phone] or 800/800.1020, Monday–
Friday, 8 AM–5 PM Central Time; or go to
www.garmin.com/support/ and click on Product Support. In
Europe, contact Garmin (Europe) Ltd. at 44/0870.8501241.
Caring for the Fishnder
The Fishnder case is constructed of high-quality materials and
does not require user maintenance except cleaning.
Cleaning the Case
Clean the Fishnder’s outer casing (except for the screen) using
a cloth dampened with a mild detergent solution. Wipe it dry.
Avoid chemical cleaners and solvents that can damage plastic
components.
Cleaning the Screen
Apply eyeglass lens cleaner to a clean, lint-free cloth, and then
gently wipe the screen with the moistened cloth.
The Fishnder 340C lens is coated with a special
anti-reective coating which is very sensitive to skin oils,
waxes, and abrasive cleaners. CLEANERS CONTAINING
AMMONIA HARM THE ANTI-REFLECTIVE COATING.
Storage
Do not store the Fishnder where prolonged exposure to
temperature extremes might occur (such as in the trunk of a car),
because permanent damage can result.
Water Immersion
The Fishnder is waterproof to IEC Standard 60529 IPX7. It can
withstand immersion in 1 meter of water for 30 minutes. Prolonged
submersion can cause damage to the Fishnder. After submersion,
wipe and air dry the Fishnder before reusing.

iv Fishnder 340C Owner’s Manual
IntroductIon > WArnIng
Warning
 This product, its packaging, and its components contain chemicals known to the State of California to cause cancer, birth defects, or reproductive
harm. This Notice is being provided in accordance with California’s Proposition 65. If you have any questions or would like additional information, please refer
to our Web site at http://www.garmin.com/prop65.
 requires the recycling of certain electronics. For more information on the applicability to this product,
see www.erecycle.org.

When navigating, carefully compare information displayed on the Fishnder 340C to all available navigation sources, including information from visual
sightings, and maps. For safety, always resolve any discrepancies or questions before continuing navigation.
Hg  

For more information go to:
www.garmin.com/aboutGarmin/environment/disposal.jsp.

Fishnder 340C Owner’s Manual 
gettIng stArted > PAckIng lIst And oPtIonAl AccessorIes
GettInG started
Before installing and using your Fishnder 340C, check to see that
your package includes the following items. The package number
is on the outside of the box. If any parts are missing, contact your
Garmin dealer immediately.
Packing List
Standard Package (010-00505-00)
• Fishnder 340C unit
• Tilt/swivel mount
• 6-foot data/power cable
• Owner’s manual
• Quick reference guide
• Flush mount template
• Protective cover
• Flush mount hardware kit
Optional Package (010-00505-01)
• Standard package
• Dual beam (14°/45°) plastic trolling motor/transom mount
transducer with depth and temperature and an attached
30-foot cable
Optional Package (010-00505-02)
• Standard package
• Dual frequency (200/50kHz) plastic transom mount
transducer with depth and temperature and an attached
30-foot cable
Optional Package (010-00505-03 with Worldwide
Language Support)
• Standard package
• Dual frequency (200/50kHz) plastic transom mount
transducer with depth and temperature and an attached
30-foot cable
Optional Accessories
The following optional accessories are available at
www.garmin.com:
• Speed sensors
• Quick-release ush mount kit
• CANet™connection kit
• Optional transducers and transducer accessories

 Fishnder 340C Owner’s Manual
gettIng stArted > understAndIng the fIshfInder And sonAr
Understanding the Fishnder and Sonar
The Fishnder 340C is a fully automatic, color sonar unit that
allows you to go out on the water and nd sh without having
to congure a lot of settings. However, you can customize each
setting as you prefer.
If you have used a Fishnder before, you might already know how
to interpret the sonar information on the screen, so you can skip
this section. If you have not used a Fishnder before, you might
want to learn a bit about sonar: what it is, how it works, and what
you might see on the Fishnder 340C screen. This manual provides
a general understanding of those things that you need to know
about sonar that can help you interpret the screen and nd the sh.
Understanding Sonar
During installation, you connect your Fishnder 340C to a
transducer. The transducer uses sound to determine information
about what is in the water beneath your boat. Then the transducer
sends the information to your Fishnder to be shown on the screen
for you to view and interpret.
The transducer sends sound waves down into the water in a cone
shape, similar to a ashlight beam (covering a smaller circular area
at the top and angling out to a larger circular area at the bottom).
These sound waves reect off of any object that they hit, and then
the waves travel back up to the transducer. These objects could
be sh, branches, the bottom, or any other object that has density
that is different from the water. The transducer receives the sound
wave information, and then sends the information to the Fishnder.
The Fishnder shows the information on the screen for you to see
and interpret. The type of transducer and settings that you choose
determine how the information appears on the screen.
Using Dual Frequency
Dual frequency works best for deep water (for example, off-shore)
applications. The 200 kHz frequency allows you access to great
detail about what is underneath your boat. The 50 kHz frequency
provides less detailed information, but penetrates to greater depths
with the same power. You can choose either or both frequencies to
get the information that you want. If you choose dual frequency,
the transducer alternates between the 50 kHz and 200 kHz signals.
This capability allows you to see the best picture available at any
depth.

Fishnder 340C Owner’s Manual 3
gettIng stArted > understAndIng the fIshfInder And sonAr
Using Dual Beam
Dual beam works best for shallow water (for example, inland)
applications. A dual beam transducer can transmit a narrow or a
wide beam. The water area covered by the transmitted sound waves
is determined by the beam width of the transducer and the water
depth. The narrow beam provides crisp detail of what is under your
boat, and is very helpful if you are shing in deeper water where
the beam covers more area (for example, at a depth of 30 feet, the
narrow beam covers the area of about a 7-foot circle).
Wide
Beam
Narrow
Beam
The wide beam is more helpful in shallow water, because it gives
you a much wider view of objects in the water, including areas
beyond the sides of your boat. At a depth of 30 feet, the wide beam
covers the area of approximately a 20-foot circle.
Understanding the Fishnder Screen
Experimentation and experience are the keys to successfully
interpreting your Fishnder screen. We recommend that you take
your Fishnder out on familiar water, and spend time learning to
interpret what you see on the Fishnder 340C screen.
Think of the Fishnder screen as if you took a picture from the
side of an aquarium in your home. You can see how deep a sh is
in the water (how close it is to the top or bottom), but you cannot
tell where the sh is located horizontally in the water (whether it is
near the front or the back of the aquarium). Remember this when
you are trying to locate exactly where something is in the water.

4 Fishnder 340C Owner’s Manual
gettIng stArted > understAndIng the fIshfInder And sonAr
Suspended
targets
Bottom
Surface
clutter
Water
depth
Depth
scale
The strongest sonar returns appear on your screen as the most
intense solid color (depending on your selected color scheme; red
is the default). The weakest returns appear as the less intense, less
solid colors (blue is the default).
The bottom of the water is always going to be the strongest
signal, and therefore the most intense color. The bottom is the
continuous, intensely-colored line running across the bottom of
the screen. The Fishnder 340C includes the latest technology in
interpreting bottom signals; it can see through sh, structures, and
thermoclines (shown in the weakest colors). Large schools of sh
or dense structures close to the bottom can affect water depth return
readings.
If the Fishnder is unable to track the bottom for any
reason, the digits which indicate depth ash on and off to alert
you that the Fishnder is not tracking the bottom.
Along the top of the screen, you might see a grouping of intense
colors. This area is surface clutter, which can be caused by waves
or any other sonar interference at the surface of the water. Too
much surface clutter can obscure your view of sh. You can turn
down the Gain setting to reduce this surface clutter.
Between the bottom and the surface clutter, you see suspended
targets in the previous illustration. Here, the targets appear as
arches. Actual suspended target returns might not always appear
as perfect arches, due to the speed, sh orientation, or other
conditions. You can turn on the Fish Symbols setting if you want to
see suspended targets indicated by a sh shape.
The strength of the sonar return can also help you interpret the
hardness of the bottom of the water. The thicker the bottom line,
the harder the bottom.
Hard Structure Soft Structure

Fishnder 340C Owner’s Manual 
InstAllIng the fIshfInder 340c > selectIng AlocAtIon for the fIshfInder
InstallInG the fIshfInder 340c
To ensure the successful operation of your Fishnder 340C, you
must properly install the Fishnder and all of its related parts.
To install and use your Fishnder, you must do the
following:
1. SelectaproperlocationfortheFishnder.
2. MounttheFishnder.
3. Installyourtransducer.
4. Connect to your power source.
5. Test the installation.
Each of these steps is described in detail in the following sections.
Selecting a Location for the Fishnder
Consider the following when you select an installation location:
• Provides optimal viewing as you operate your vessel.
• Allows easy access to the unit’s keypad.
• Is strong enough to support the weight of the Fishnder and
protect it from excessive vibration or shock.
• Allows room for the routing and connection of the power/
data and transducer cables. There should be at least a 3-inch
(8 cm) clearance behind the case.
DO NOT mount the unit in an area that is exposed to extreme
temperature conditions.
The temperature range for the Fishnder 340C is 5°F
to 131°F (-15°C to 55°C). Extended exposure to temperatures
exceeding this range (in storage or operating conditions) may
cause failure of the LCD screen. This type of failure and related
consequences are NOT covered by the manufacturer’s limited
warranty.
To get the best possible performance from your Fishnder 340C:
• Read the instructions rst, and then follow the instructions to
install the unit.
• Gather the appropriate fasteners and tools.
• Verify that all cables can reach the unit mounting location
and the transducer.
• Wear safety goggles and a dust mask when drilling, cutting,
or sanding.



 Fishnder 340C Owner’s Manual
InstAllIng the fIshfInder 340c > MountIng the fIshfInder
Mounting the Fishnder
There are two possible installation methods for your Fishnder:
• You can mount the Fishnder onto a bracket that attaches to
the console or overhead.
• You can ush mount the Fishnder into a at panel.
Surface Mounting the Fishnder
The Fishnder 340C’s compact, waterproof case is suitable for
mounting in exposed locations or at the nav station. The Fishnder
comes with a tilt/swivel mounting bracket that can be used for
console or overhead mounting.
Mounting the Bracket Assembly
—drill, screwdriver (Phillips or standard), and
one of the following:
• Three #8 (4 mm) pan-head machine bolts with matching nuts
and washers and a 5/32"(5 mm) drill bit.
• Three #8 pan-head self-tapping screws and a 1/16"drill bit
for drilling starter holes.
Use a pan-head machine bolt or self-tapping screw to secure the
swivel base. If you use a screw with a countersunk head, you risk
damaging the mounting bracket.
OK
To mount the bracket assembly:
1. Using the swivel base as a template, mark the location of
the three holes that secure the bracket to the mounting
surface.
2. Drill the mounting holes.
• Ifyousecurethebasewithmachinebolts,drillthree
5/32"(5mm)holesatthelocationsyoumarked.
• Ifyousecurethebasewithself-tappingscrews,drill
starterholesatthelocationsyoumarked.Donotmake
thestarterholesdeeperthanhalfthescrewlength.
3. Secure the swivel base with three bolts or screws. DO NOT
OVERTIGHTEN.
4. Placetheswivelmountbracketovertheswivelbaseand
secure it with the short knob.

Fishnder 340C Owner’s Manual 
InstAllIng the fIshfInder 340c > MountIng the fIshfInder

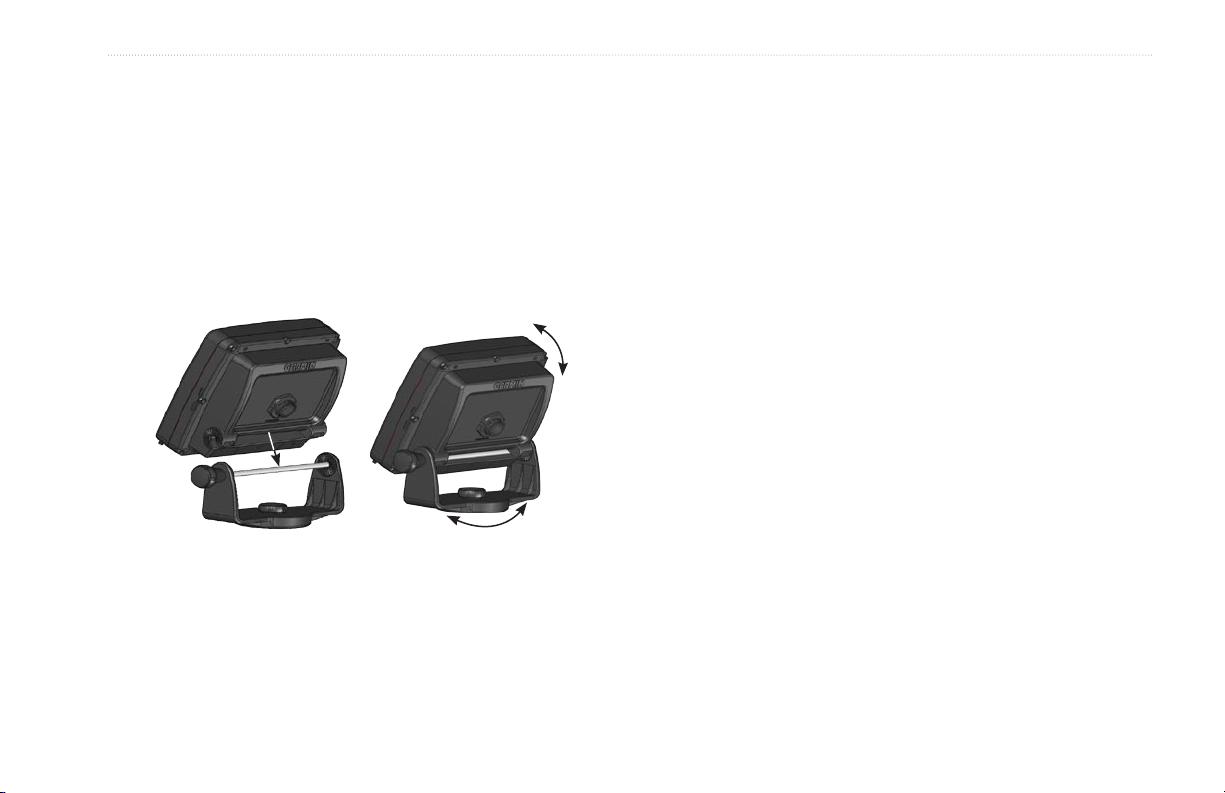

Installing the Unit on the Mounting Bracket
To install the Fishnder on the mounting bracket:
1. AligntheslotonthebackoftheFishnderwiththelong
mountingknob,andslidetheFishnderintoplace.If
necessary,adjustthelongknobtospreadthebracketarms
apart.(Turncounter-clockwisetowidenthebracketarms
andclockwisetotighten.)
2. AdjusttheFishnderangle,andtightenthelongmounting
knob until snug.
3. Rotate the swivel mount bracket by twisting it left or right.
Thebracketclicksasyouturnit.Selectagoodviewing
angle,andthentightenallknobs.
4. Connect the power/dataandtransducercablestotheback
oftheFishnder,makingsurethelockingringsarefully
tightenedonbothconnectors.
Flush Mounting the Fishnder
You can ush mount the Fishnder 340C into a at panel.
• Select an appropriately sized location for the unit.
• Use the Flush Mount Template provided in the box to
determine a location.
• Check that all cables reach the unit mounting location.
• Always wear safety goggles and a dust mask when drilling,
cutting, or sanding.
Included mounting hardware—(4) 3 mm studs, (4) at washers,
and (8) 3 mm hex nuts.
—center punch, drill, 1/8"(3 mm) drill bit,
3/8"(6 mm) drill bit, jig saw, 1/16"(2 mm) Allen wrench, and 9/32"
(7 mm) wrench.

 Fishnder 340C Owner’s Manual
InstAllIng the fIshfInder 340c > MountIng the fIshfInder
To ush mount the Fishnder 340C:
1. TrimtheFlushMountTemplate,andtapeittothechosen
location.
2. Usingacenterpunch,indentthecenterofeachmounting
hole location.
3. Usingan1/8"(3mm)drillbit,drillthefourmountingholes.
4. Usinga3/8"(6mm)drillbit,drillaholeforalocationto
begin cutting the mounting surface.
5. Usingthejigsaw,cutthemountingsurfacealongtheinside
ofthedashedlineindicatedonthetemplate.Beverycareful
when cutting this hole, there is only a small amount of
clearancebetweentheFishnderandthemountingholes.
Youcancutslightlyinsidetheindicatedlineandthensand
orlethepanel,asneeded,toobtainthebestt.
6. InstallthefourmountingstudsintotheFishnderby
screwingtheshortersectionintothebackoftheFishnder.
Use a 1/16" (2 mm) Allen wrench to tighten the mounting
studsuntilthestopcontactsthecase.Becarefulnotto
overtighten,becausethiscandamagethemountingstud!
Thestudshaveareusablethread-lockingpatchpre-applied
from the factory.
7. PlacetheFishnderintothecutoutinthemountingsurface.
8. Placewashersoverthemountingstuds,andthenthread
ononehexnutpermountingstud.Tightenallfouruntilthe
Fishnderissnugagainstthemountingsurface.Installand
tightenthesecondhexnutonallfourmountingstudstolock
therstoneintoplace.
Mounting Surface (Back View)
Hex nut
Washer
Studs

Fishnder 340C Owner’s Manual 
InstAllIng the fIshfInder 340c > MountIng the trAnsducer

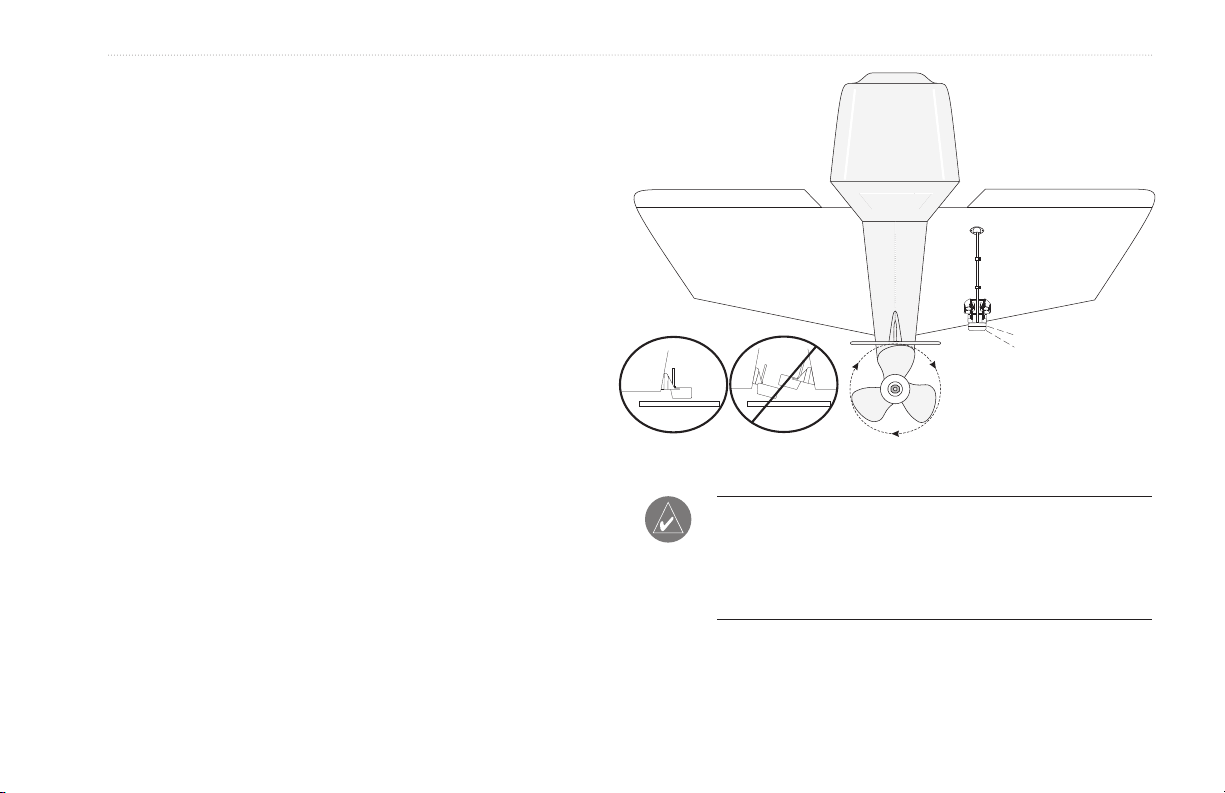

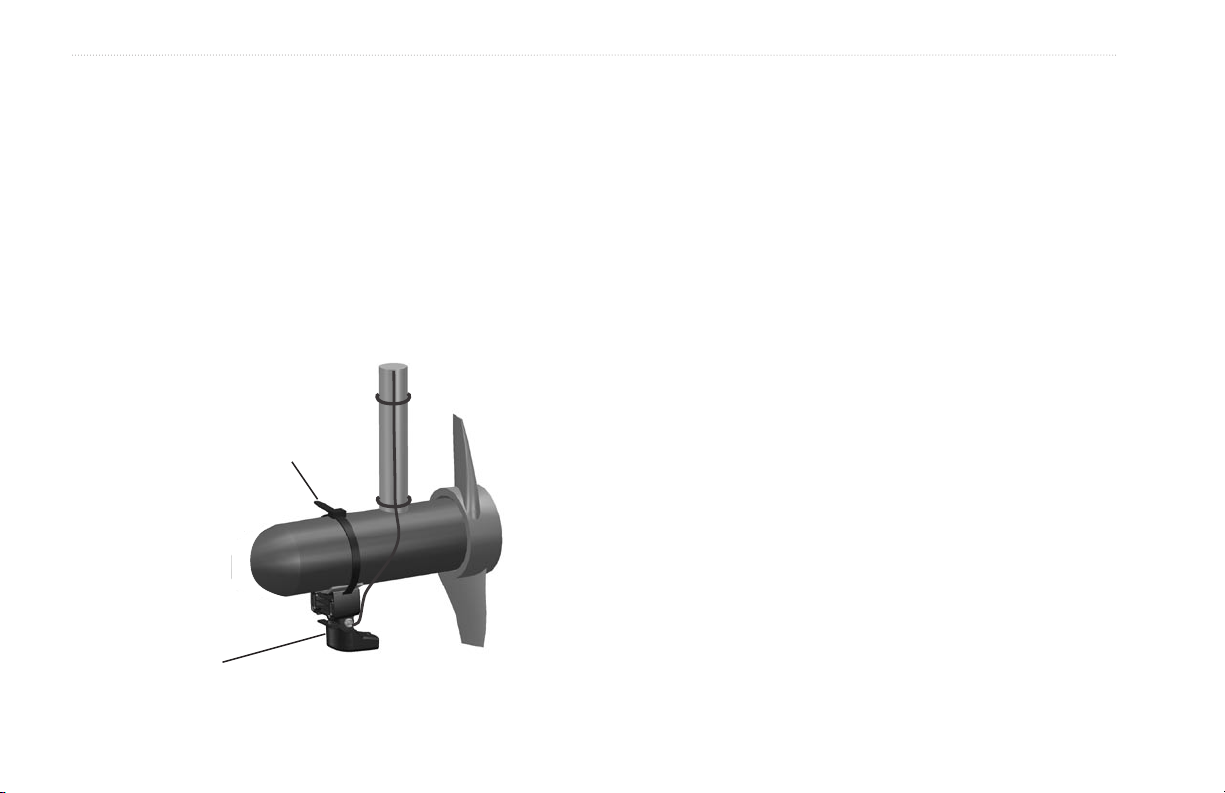

Mounting the Transducer
Proper transducer installation is key to getting the best performance
from your new Fishnder. If the transducer lead is too short,
extension cables are available from your Garmin dealer. Coil and
secure any excess cable.
DO NOT cut the transducer lead or any part
of the transducer cable, because cutting the transducer
cable voids your warranty. The cable cannot be spliced
and connected to any existing (Garmin or non-Garmin)
transducer cables.
The following pages contain tips and basic installation instructions
for some popular transducers. Detailed installation instructions are
provided in the transducer kits. Some transducers might have to be
installed by a professional marine installer.
Assembling the Transducer
To assemble the transducer:
1. Inserttherubberwasherandplasticspacerintothe
transduceratthesametime.DONOTlubricatetherubber
washer.
2. Routethecabletowardthebackofthetransducer.Slidethe
transducerintothetransducermount.
3. Placea5mmatwasheronthe10-32x1.75"screw,and
insertthescrewthroughthetransducermount,spacer,and
rubber washer.
4. Placetheremaining5mmatwasherontheexposedend.
Installthe10-32locknutngertight.Youcantightenthe
transducerfurtherafterinstallationontheboat.
Back of the transducer
Cable tie slot

0 Fishnder 340C Owner’s Manual
InstAllIng the fIshfInder 340c > MountIng the trAnsducer
Mounting the Transducer on a Trolling Motor
(Dual Beam Only)
To mount the transducer on a trolling motor:
1. Slidethelargecabletiethroughtheslotonthetransducer
mount (see the illustration on page 9)withtheridgesofthe
bandfacingupuntilequallengthsextendonbothsidesof
the mount. (NOTE:Forcoldwater,orheavytimberordebris
areas,ametal4-5"wormgearclampisrecommended.)
2. Positionthemountgasketonthecurvedtopofthe
transducermount.
Cable tie
Front of the transducer
3. Placethetransducerassemblyagainstthemotorbodyof
thetrollingmotor,withthefrontofthetransducerpointed
away from the trolling motor propeller.
4. Wrapthetwoendsofthecabletiearoundthemotorbody.
Placethepointedendofthecabletiethroughthefastener
holeontheoppositeendandpullitthroughuntilitissnug
but not tight. (The cable tie clicks when you pull it.)
5. Positionthetransducersothatitisparallelwiththebottom
wheninuse,andmakesurethegasketisalignedproperly.
Pullthecabletieenduntiltight.Trimofftheexcessif
necessary.Tightenthe10-32lockingnutuntilittouchesthe
mountingbracket,andthentighten1/4turnmore.(Donot
overtighten.)
6. Routethe30-foot(9m)transducercableusingthesupplied
cable ties to secure the cable to the motor shaft. You can
lltheforward-facingportion(exceptthecabletiepocket)
ofthetransducermountwithsealanttoavoidaccumulating
debris.

Fishnder 340C Owner’s Manual 
InstAllIng the fIshfInder 340c > MountIng the trAnsducer
Mounting the Transducer on a Transom
When selecting a transom mount location, consider the following
for optimal performance:
• For your sonar to operate properly, the transducer must be
located in calm water. DO NOT mount the transducer behind
strakes, rivet lines, struts, ttings, water intake, discharge
ports, eroding paint, or anything that creates turbulence.
• Mount the transducer as close to the center of the boat as
possible.
• DO NOT cut the transducer lead. (This voids your warranty.)
• DO NOT mount the transducer in locations where it might
be jarred when launching, hauling, trailering, or storing.
• DO NOT mount the transducer in the path of the prop on
single-drive boats. The transducer can cause cavitation that
can degrade the boat’s performance and damage the prop. On
twin-drive boats, mount the transducer between the drives, if
possible.
$ONOTMOUNTTHETRANSDUCERDIRECTLYINTHE
PATHOFTHEPROP4HETRANSDUCERCANCAUSE
CAVITATIONTHATMAYDEGRADETHEBOATS
PERFORMANCEANDDAMAGETHEPROP
-AKESURETHATTHETRANSDUCERISBELOW
WATERLEVELWHENTHEBOATISONPLANE
ATHIGHSPEED
!PPLYMARINESEALANTTOALL
SCREWTHREADSTOPREVENTWATER
FROMSEEPINGINTOTHETRANSOM
-OUNTTHETRANSDUCERCABLE
COVERWELLABOVETHE
WATERLINE
4RANSDUCERSHOULDEXTEND
BELOWFIBERGLASSHULLOR
BELOWALUMINUMHULL
/+
-OUNTTHETRANSDUCERPARALLELWITHTHEBOTTOM
533*AYHAWK
DO NOT mount the transducer behind strakes, struts,
ttings, water intake or discharge ports, or anything that creates
air bubbles or causes the water to become turbulent. The
transducer must be in clean (non-turbulent) water for optimal
performance.

 Fishnder 340C Owner’s Manual
InstAllIng the fIshfInder 340c > MountIng the trAnsducer
 (not included)—drill, 3/8" wrench or socket, 5/32" and
1/8" drill bits, masking tape, #2 Phillips screwdriver, and marine
sealant.
To mount the transducer on a transom:
1. Positionthetransducermountattheselectedtransom
location.Makesurethetransducerisparallelwiththe
water line. Mark the center locations of each hole on the
transducermount.
2. Usinga5/32"bit,drillthepilotholesapproximately1"
(25mm)deepatthemarkedlocations.Toavoiddrillingthe
holestoodeep,wrapapieceoftapearoundthebitat1"
from the point of the bit.
3. Applymarinesealanttothe5x30mmscrews.Attachthe
transducerassemblytothetransomusingthe5x30mm
screws.Adjustthetransducerassemblytoextendbeyond
the bottom of the transom approximately 1/8" (3 mm) on
berglasshullsor3/8"(10mm)onaluminumhulls.Adjust
thetransducerassemblytobealignedparallelwiththe
water.
4. Tightenthe10-32lockingnutuntilittouchesthe
mountingbracket,andthentighten1/4turnmore.(Donot
overtighten.)
5. Placetherstcableclamponthetransducercable
approximatelyonethirdofthedistancebetweenthe
transducerandthetopofthetransom.
 Markthelocation.Usinga1/8"bit,drillapilothole
approximately3/8"(10mm)deep.
6. Attach the cable clamp using a 4 x 12 mm screw. Coat the
screw with marine sealant before installation. Repeat steps
5and6usingtheothercableclamp.
7. Routethetransducercable,asneeded,totheFishnder.
DONOTCUTTHECABLE.Avoidroutingthecablewith
electrical wires or other sources of electrical interference.
OK
Level
Drill pilot holes here.
Vertical
Bottom of the transom
Align with the transom
bottom. The transducer
should extend /"
below berglass hulls
or 3/" below aluminum
hulls.
Keep it parallel with the water line.

Fishnder 340C Owner’s Manual 3
InstAllIng the fIshfInder 340c > MountIng the trAnsducer
Shoot-Thru-Hull Installation
To avoid drilling a hole to mount a thru-hull transducer, a
transducer can be secured with epoxy inside a boat (shoot-thru-
hull installation). This type of installation can provide better
noise reduction and allow you to use a higher Gain setting. For
a transducer to be mounted inside the hull (shoot-thru, not thru-
hull), the boat must be berglass, with no core. Contact your boat
manufacturer if you are unsure. Professional installation might be
necessary. Be sure to always wear a dust mask and safety goggles.
Some transducers are specically designed to be mounted inside a
berglass hull. The standard plastic transom mount transducer can
also be mounted using this method. If using a temperature sensing
transducer, the temperature shown reects the hull temperature.
Selecting a Location for a Shoot-Thru-Hull Installation
When installing a transducer, the installation location must be the
following:
• Solid berglass, without any air bubbles, laminates, llers, or
dead air space.
• In an area of clean (non-turbulent) water at all speeds.
• The location must not be over any strakes or behind any
obstruction on the hull that would create turbulence at speed.
Many modern hulls have a dedicated pocket for
shoot-thru-hull transducer installation. If you are unsure if your
hull is equipped with a pre-located pocket, contact your hull
manufacturer.

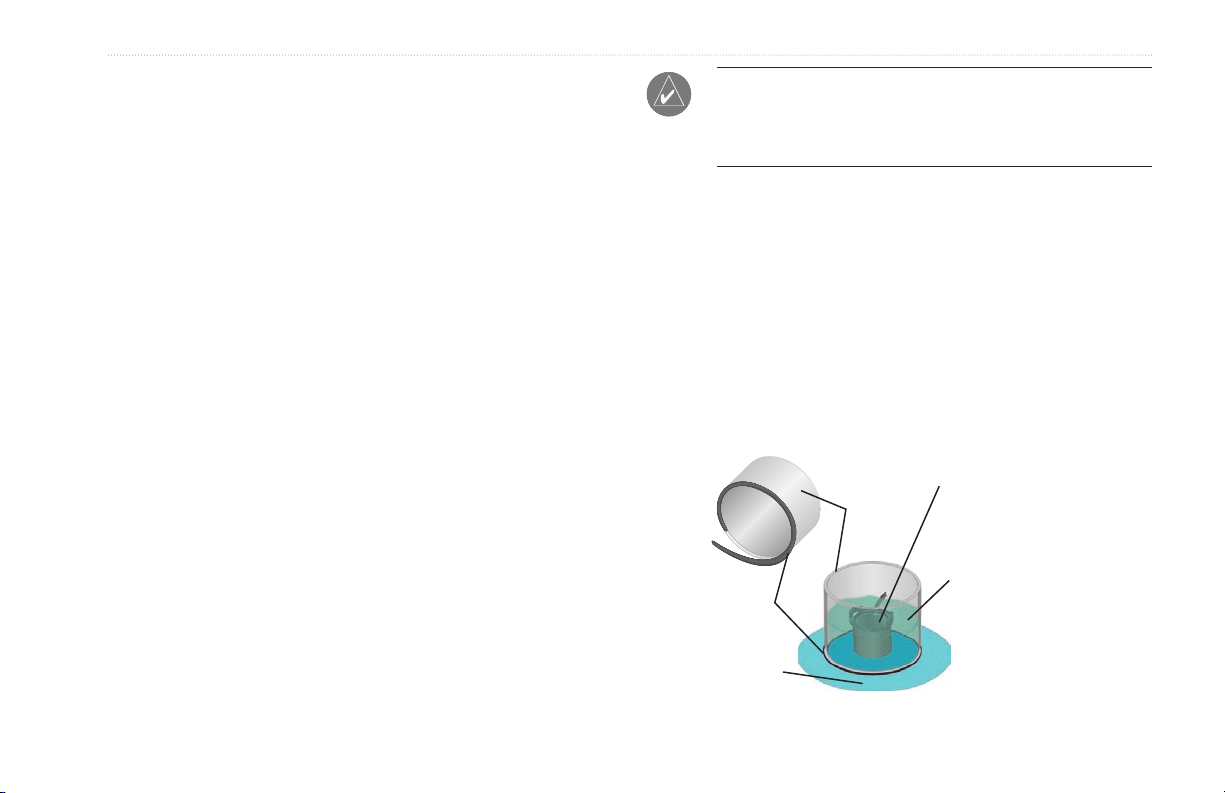

To test the location:
1. FabricateatestdevicefromasectionofPVCpipeoracan,
as shown in the following illustration.
2. Temporarilysealthetestdevicetothehullwithcaulkingor
RTVsealer,andllwithwaterorlightmineraloil.
3. Placethetransducerinthewater,pointeddirectlyat
thebottomandweightitdown.Settheunitforoptimum
performance.Ifthesonarperformanceissignicantly
degraded,anotherlocationmustbetested.
Testing the Location
Strip caulk
or RTV sealer
Hull surface
PVC pipe
or a can
Weight the transducer to
hold it in place.
Fill a pipe or can with water
or a light mineral oil.

4 Fishnder 340C Owner’s Manual
InstAllIng the fIshfInder 340c > MountIng the trAnsducer
To permanently install the transducer:
1. Lightlysandthesurfaceofthehullandfaceofthe
transducerwith400gritwetordrysandpaper.
2. Buildadamusingstripcaulkabout1/4"(6mm)tall.Pour
about 1/8" (3 mm) of two-part, slow-cure epoxy into the
dam.
3. Placethetransducerintheepoxy,turningthetransducerto
work out any air bubbles.
4. Weightthetransducerinplace,andallowittocurefor
24 hours.
