Furuno FE-700 User manual

Installation Manual
NAVIGATIONAL ECHO SOUNDER
FE-700
SAFETY INSTRUCTIONS .............................................................................i
EQUIPMENT LISTS ......................................................................................ii
SYSTEM CONFIGURATION .......................................................................iv
1. MOUNTING ...............................................................................................1
1.1 Category of Equipment .......................................................................................................1
1.2 Display Unit.........................................................................................................................1
1.3 Transducer..........................................................................................................................4
1.4 Distribution Box...................................................................................................................6
1.5 Matching Box ......................................................................................................................7
1.6 Digital Depth Indicator (option) FE-720 ...............................................................................7
1.7 Transducer Switch Box (option) EX-8..................................................................................8

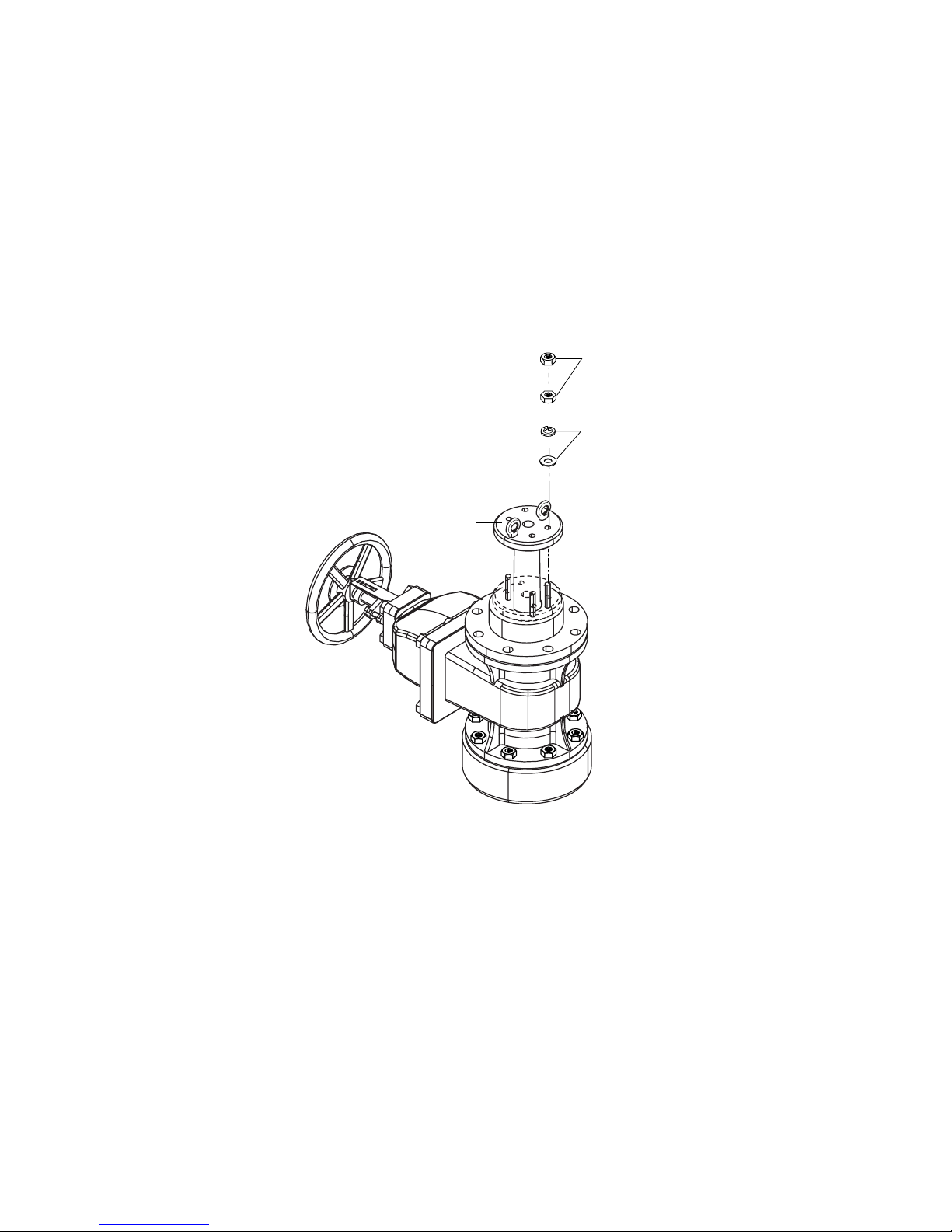

1.8 Gate Valve (option) GV-50B, GV-200B-8B ..........................................................................9

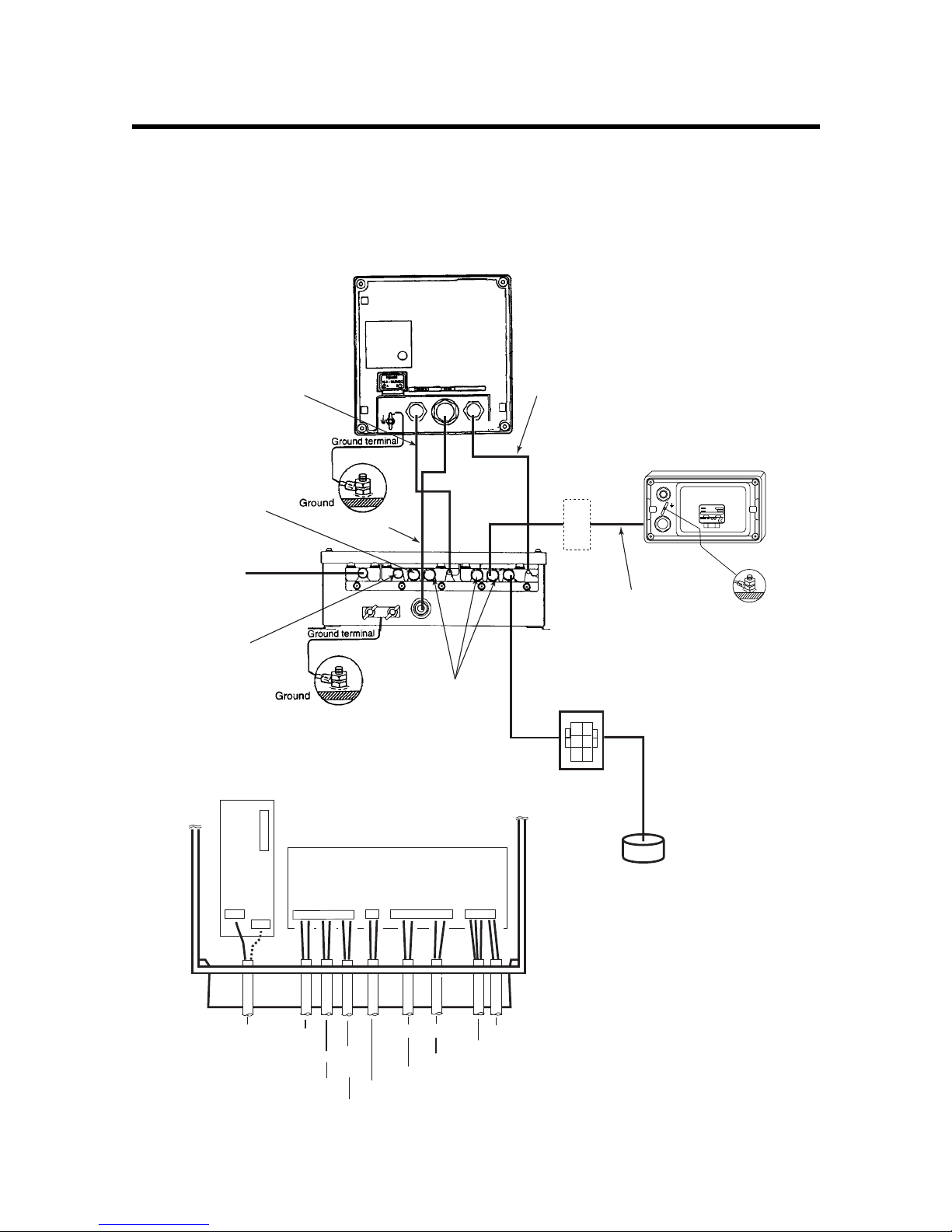

2. WIRING ................................................................................................... 11
3. CHANGING POWER SPECIFICATIONS ...............................................19
4. ADJUSTMENTS......................................................................................21
4.1 Transducer Setting............................................................................................................21
4.2 Setting the Time ................................................................................................................22
PACKING LISTS………………………………………………………………A-1
OUTLINE DRAWINGS………………………………………………………..D-1
INTERCONNECTION DIAGRAMS………………………………………….S-1
www.furuno.co.jp

The paper used in this manual
is elemental chlorine free.
・FURUNO Authorized Distributor/Dealer
9-52 Ashihara-cho,
Nishinomiya, 662-8580, JAPAN
Telephone : [phone]
Fax
:
[phone]
A : JAN 2000
.
Printed in Japan
All rights reserved.
P9 : AUG . 23, 2007
Pub. No. IME-23660-P9
*00080891010**00080891010*
(TATA ) FE-700
*
00080891010
*
*
00080891010
*
* 0 0 0 8 0 8 9 1 0 1 0 *

i
WARNING
Turn off the power at the switchboard
before beginning the installation.
Fire or electrical shock can result if the
power is left on.
Do not install the equipment where it
may get wet from rain or water splash.
Water in the equipment can result in fire,
electrical shock or equipment damage.
Be sure no water leaks in at the trans-
ducer mounting location.
Water leakage can sink the vessel. Also
confirm that the transducer will not loosen
by ship’s vibration. The installer of the
equipment is solely responsible for the
proper installation of the equipment.
FURUNO will assume no responsibility for
any damage associated with improper
installation.
Be sure that the power supply is
compatible with the voltage rating of
the equipment.
Connection of an incorrect power supply
can cause fire or equipment damage. The
voltage rating of the equipment appears
on the label above the power connector.
ELECTRICAL SHOCK HAZARD
Do not open the equipment
unless totally familiar with
electrical circuits and
service manual.
Only qualified personnel
should work inside the
equipment.
CAUTION
Observe the following compass safe
distances to prevent deviation of a
magnetic compass:
Display
unit
Standard Steering
compass compass
0.50 m 0.40 m
When handling the transducer cable,
keep in mind following points.
Keep the cable away from oil and
fuel.
Keep the cable away from the
place where it may be damaged
during the installation.
Do not paint the cable.
The sheath of the transducer cable is
made of chlorophrene rubber (or vinyl
chloride). Therefore, do not paint the
sheath with organic liquid (such as
toluene) since it may harm the sheath.
SAFETY INSTRUCTIONS
Distribution
Box 1.90 m 1.15 m
Digital depth
indicator (option) 0.50 m 0.40 m
Matching Box 0.50 m 0.40 m
Transducer
Switch Box
(option) 1.00 m 0.60 m
Junction Box
(option) 0.30 m 0.30 m

ii
EQUIPMENT LISTS
Standard Supply
Name Type Code no. Qty Remarks
Display Unit FE-701 - 1
w/Installation Materials
CP02-06400 (000-015-872)
and Accessories FP02-04800
(000-015-469)
Distribution Box FE-702 - 1
MB-502 000-013-602 For 50B-6B
Matching Box MB-504 000-013-604 1 For 200B-8B
50B-6B - w/15 m or 30 m cable
Transducer 200B-8B - 1 w/15 m, 30 m or 50 m cable
TTF-5600 000-015-586 For 50B-6B
Transducer Tank TTF-2000 000-015-587 1 For 200B-8B
Spare Parts SP02-04101 001-228-890 1 set For distribution box
Installation Materials CP02-06301 001-228-950 1 set For distribution box
Optional Supply
Name Type Code no. Qty Remarks
000-012-179 Flush mount, color specified
000-012-176 Bulkhead mount, color
specified
000-012-183 7.5BG7/2, Flush mount
000-012-182 7.5BG7/2, Bulkhead mount
000-012-180 N.G, Flush mount
Transducer Switch
Box EX-8
000-012-181
1
N.G, Bulkhead mount
Cable Assy. FM-C6FPS003-
020
000-143-821 1 2 m cable w/ a 6P connector
For EX-8
JUNCTION Box JIS F8821-1MO
0-20A3P
000-804-877 1
TTF-5001 000-015-877 For 50B-6B
TTF-2001 000-015-878 For 200B-8B
TTF-5002 000-015-885 For 50B-6B (w/Flange)
Transducer Tank
TTF-2002 000-015-887
1
For 200B-8B (w/Flange)
OP02-78-1 001-229-270 2.5GY5/1.5
Bulkhead Kit OP02-78-2 001-229-280 1 7.5BG7/2
OP02-79-1 001-229-290 N3.0
OP02-79-2 001-229-300 2.5GY5/1.5
Flush Mount Kit (F)
OP02-79-3 001-229-310
1
7.5BG7/2
Flush Mount Kit (S) OP02-80 001-229-320 1
Data Recording
Software for PC 02-522-990 001-229-090 1 For Windows 95/98/NT4.0
Digital Depth
Indicator FE-720 000-029-025 1 set
w/Installation Materials
CP02-06700 (000-029-068)
Spare Parts
SP65-00601 (002-889-730)
Accessories
FP65-00400 (000-029-067)

iii
MF-22L-1-100V 000-069-401 100 VAC-120 VAC,
Flush mount type
MF-22L-1-200V 000-069-403 200 VAC-240 VAC,
Flush mount type
MF-22L-2-100V 000-069-402 100 VAC-120 VAC,
Bulk head type
Dimmer
MF-22L-2-200V 000-069-404
1
200 VAC-240 VAC,
Bulk head type
Terminal Box DS-802 000-029-064 1 set With Installation Materials
CP65-00903 (000-029-064)
EGC Printer PP-505-FE 000-055-892 1 set
GV-50B-6B 000-015-265
Gate Valve GV-200B-8B 000-015-273 1 With Installation Materials
CP02-07601 (002-891-620)
Alarm Unit AU-12 - 1

iv
SYSTEM CONFIGURATION
TRANSDUCER
DISTRIBUTION
BOX
FE-702
DISPLAY UNIT
FE-701
JUNCTION BOX
JIS F8821-1 0-20A3P
MATCHING BOX MB-502 (for 50B-6B)
MB-504 (for 200B-8B)
JB
JB
IEC 61162-1
EIA-232C
IEC 61162-1 Navigation Device
Navigation Device
Personal Computer
IEC 61162-1
JB
TRANSDUCER SWITCH BOX
EX-8
DIGITAL DEPTH INDICATOR
FE-720
: Standard Supply
: Optional Supply
Terminal Box
DS-802
: Local Supply
CONTACT CLOSURE Alarm Unit
Ship's mains
100-115 VAC/200-230 VAC
or 24 VDC
DIMMER
Printer

1
1. MOUNTING
NOTICE
Do not apply paint, anti-corrosive sealant
or contact spray to coating or plastic
parts of the equipment.
Those items contain organic solvents that
can damage coating and plastic parts,
especially plastic connectors.
1.1 Category of Equipment
Equipment for protected area
• Display Unit
• Distribution Box
• Matching Box
• Transducer Switch Box (option)
• Digital Depth Indicator (option)
Equipment to be submerged
• Transducer
1.2 Display Unit
1.2.1 Mounting consideration
The display unit can be installed on a tabletop, on the overhead, on the bulkhead or flush mounted in
a console or panel.
When selecting a mounting location for the display unit keep the following in mind.
• Keep the display unit out of direct sunlight.
• The temperature and humidity should be moderate and stable.
• Locate the unit away from exhaust pipes and vents.
• The mounting location should be well ventilated.

2
• Mount the unit where shock and vibration are minimal.
• Keep the unit away from electromagnetic field-generating equipment such as motors and
generators.
• For maintenance and checking purposes, leave sufficient space at the sides and rear of the
unit and leave slack in cables.
• A magnetic compass will be affected if placed too close to the display unit. Observe the
following compass safe distances to prevent disturbance to the magnetic compass.
Standard compass: 0.50 meters
Steering compass: 0.40 meters
Cover

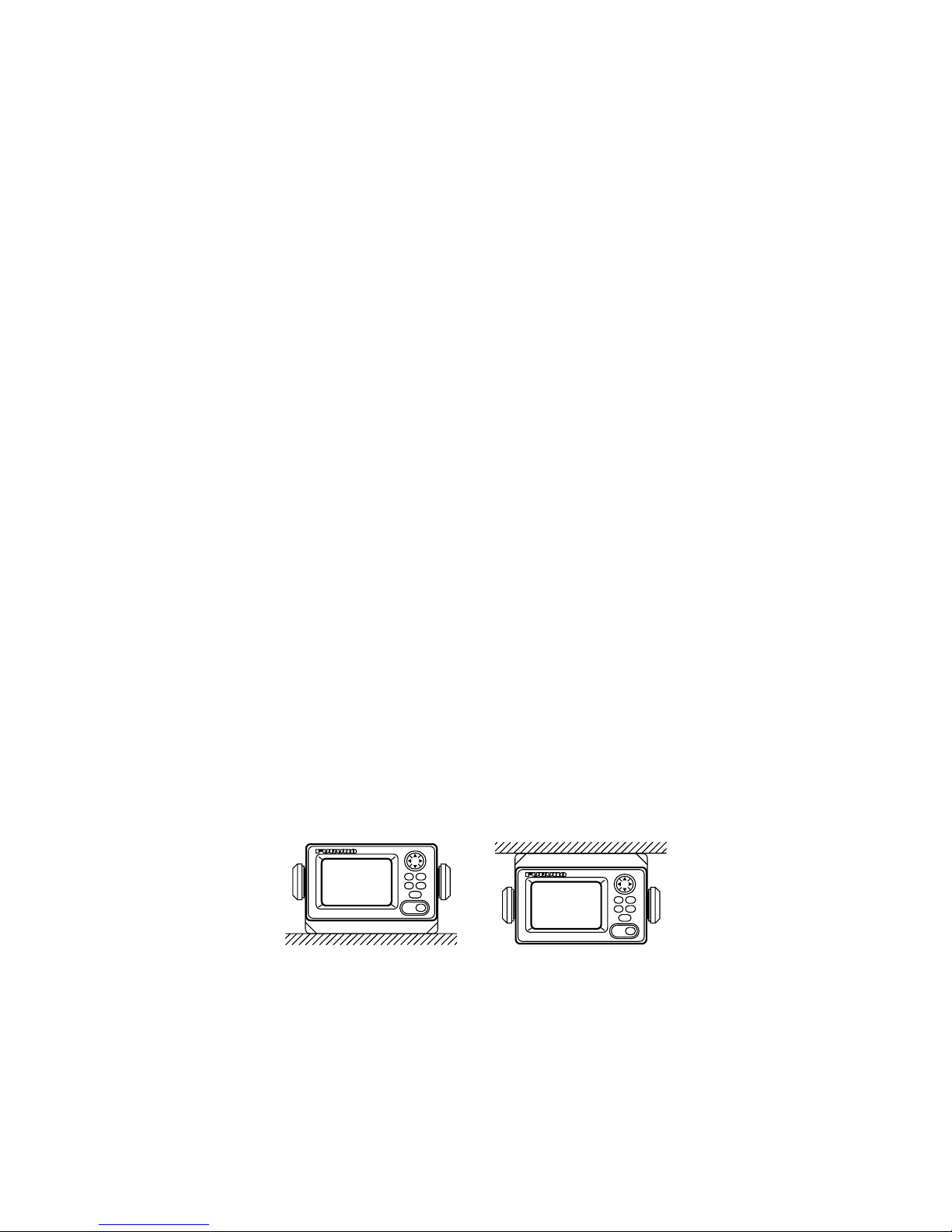

Desktop Overhead
1.2.2 Removing the cover
While pressing the center of the cover with your thumbs as illustrated, pull the cover towards you to
remove it.
1.2.3 Desktop mounting
1. Fix the hanger with four tapping screws (5x20).
2. Screw knob bolts in display unit, set it to hanger, and tighten knob bolts.
3. Attach the dummy covers to the unused holes.

3
Dummy cover
5x20 tapping screws

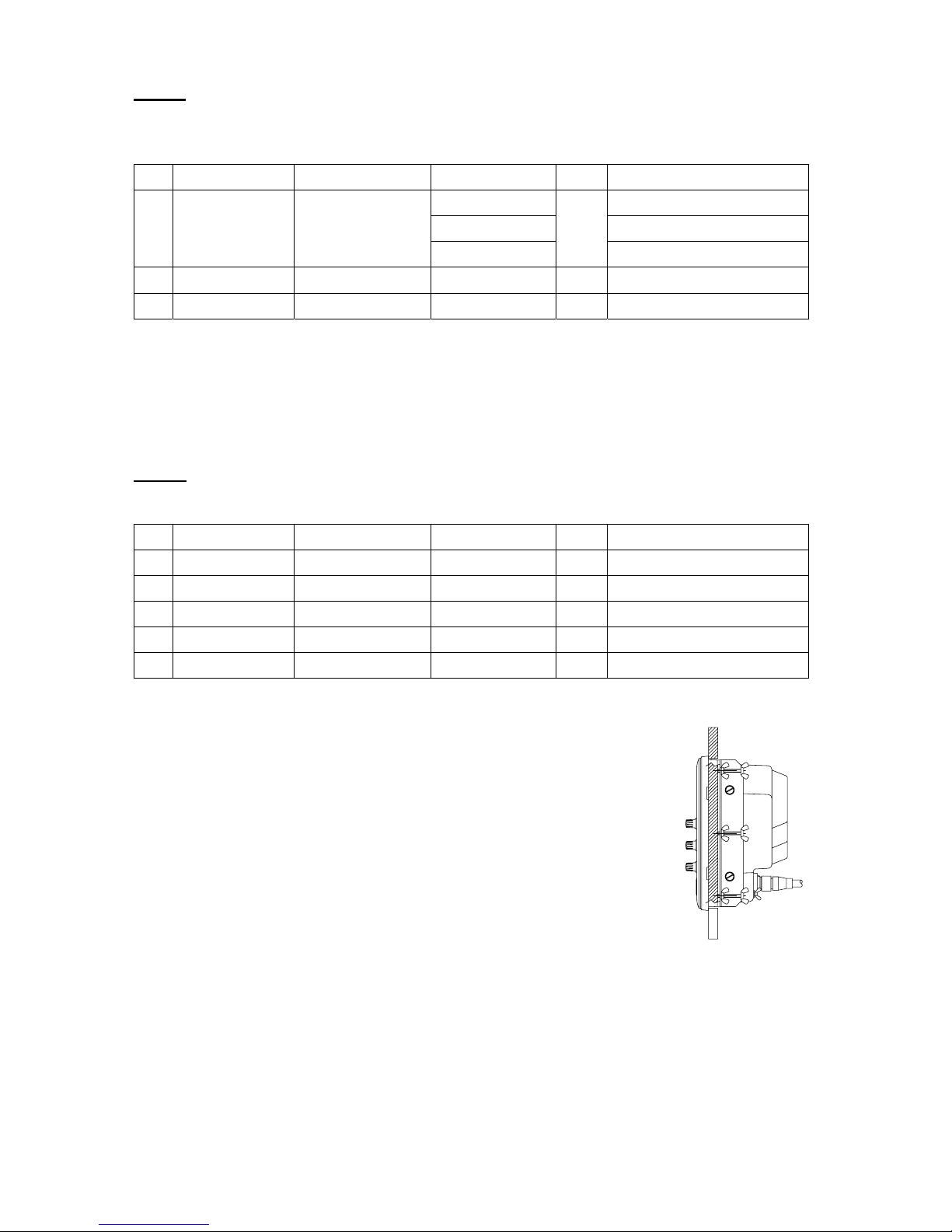

1.2.4 Flush mounting
There are two types of flush mount kits, F type and S type. For details, see the outline diagrams at
the back of this manual.

4
F type
Flush Mount Kit (F): OP02-79-1 (001-229-290)
OP02-79-2 (001-229-300)
OP02-79-3 (001-229-310)
No. Name Type Code no. Qty Remarks
100-279-270 OP02-79-1:N3.0
100-279-280 OP02-79-2:2.5GY5/1.5
1 Cosmetic panel 02-129-1041-0
100-279-290
1
OP02-79-3:7.5GY7/2
2 Hex bolt M6x12 000-162-897-10 4
3 Spring washer M6 000-158-855-10 4
1. Prepare a cutout in the mounting location whose dimensions are 210 (W) x 194 (H) mm.
2. Attach the cosmetic panel (02-129-1041-0) to the display unit with four hex bolts (M6x12)
and four spring washers (M6).
3. Fix the display unit to the mounting location with four tapping screws (5x20).
S type
Flush Mount Kit (S): OP02-80 (001-229-320)
No. Name Type Code no. Qty Remarks
1 Fixing plate 02-129-1045-0 100-279-300 2
2 Wing bolt M4x30 000-804-799 6
3 Hex bolt M6x12 000-162-897-10 4
4 Spring washer M6 000-158-855-10 4
5 Wing nut M4 000-863-306 6
1. Prepare a cutout in the mounting location whose dimensions are 194 x 194 mm.
2. Insert the display unit to the cutout.
3. Attach two fixing plates (02-129-1045-0) to the display unit with four
hex bolts (M6x12) and spring four washers (M6).
4. Screw six wing bolts (M4x30) to wing nuts (M4).
5. Fasten the display unit with six wing bolts and nuts.
1.3 Transducer

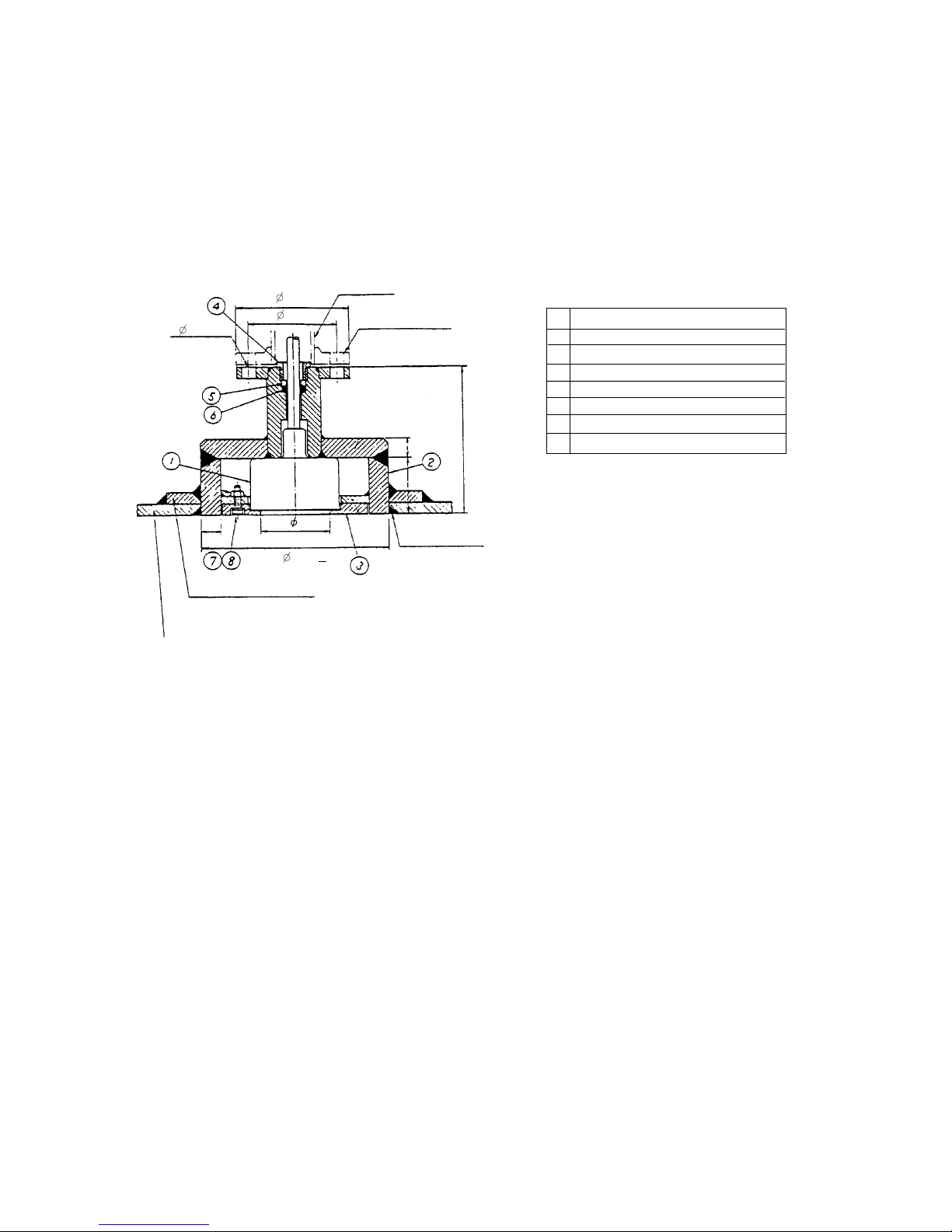

The installation of the transducer and the tank should be accomplished by a dockyard referring to
the installation drawings at the back of this manual. An example of transducer installation method is
also shown in paragraph 1.3.2.
Note: Discussions should take place and agreement reached with the dockyard for sufficient
reinforcement and watertightness of the hull to comply with the regulations concerned.
