Owner’s Manual
TSD-TXHL
High/Low Level Converter
AtlasIED.com– 1 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
TSD-TXHL
High Level to Line Level
Converter & Signal Isolator

Owner’s Manual
TSD-TXHL
High/Low Level Converter
AtlasIED.com – 2 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Description
The AtlasIED TSD-TXHL is a high to low level converter designed to interface with 4Ω/25V/70V/100V
distributed speaker lines. An unbalanced line level output is provided to drive remote amplifiers or
other devices.
The TSD-TXHL allows easy expansion of zones without the need for dedicated wiring to remote
locations. The high to low-level converter features an isolated transformer, which will not add
measurable load to the speaker line. An output level control allows for trim adjustment to best match
the remote amplifier (or other device) input sensitivity. The TSD-TXHL works perfectly in conjunction
with AtlasIED’s CP and PA series.
The TSD-TXHL is part of a full line of AtlasIED Time Saving Devices. These compact
(1.5" x 4" x 2.75") units are designed to solve some of the common audio system problems in the
easiest and in the most efficient and cost-effective way. All models are made from high quality
components and include removable individual I/O connectors for quick, precise wiring and separate
ground terminals for all I/Os assuring secured connections.
Features
• Speaker Level to Line Level Conversion
• Works with 4Ω, 25V, 70V, 100V Speaker
Systems
• Variable Output Level
• Transformer Isolated
• Trim Level Control
• Cable Management System
• Multiple Mounting Configurations
• Wide Bandwidth Frequency Response
• Separate Ground Connections
• Removable I/O Connectors
• No External Power Required
• Compact Chassis Design
Audio Applications
• System Isolation
• Level Matching
• Add a Zone Anywhere a
Speaker System Exists
Installation
• Government buildings
• Medical Facilities
 • OfceEnvironments 
• Churches
• Restaurants
• Schools
• Industrial Facilities
• House of Worship

Owner’s Manual
TSD-TXHL
High/Low Level Converter
AtlasIED.com– 3 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Rear Panel Description
TSD Input/Output connections are removable for easy system wiring. The connector has a 3.5mm
pitch between pins.
1. Speaker Level Input - Connect the loudspeaker line to the (G) and (+) terminals. The loudspeaker
line can be 4/8 ohm system or 25/70/100V signal levels.
2. Output Level Control - Adjust the signal level of the unbalanced line output. Turn clockwise to
increase the signal level and counter-clockwise to decrease it. Note: The output level control
knobs can be removed and replaced with supplied security covers to prevent unauthorized
adjustment.
3. Input Gain Adjustment Switch - Set this switch to match the signal level present on the
loudspeaker line. Use the 4 - 25V ohm position for 4/8 ohm and 25V systems, 70V or 100V for 70V
and 100V loudspeaker systems, respectively.
4. Unbalanced Line Output - Provides an unbalanced line output when an speaker level input signal
is present. Output is variable with adjustments made with the Output Level Control. Note the
polarity of the connector, reversing the polarity can cause sound quality issues.
5. Cable Management Retainer Points - Each TSD includes two cable retainer straps for securing
the included cable management retainers. Remove one of the rear panel screws, align the
 panelholewitharetainerandrmlytightenthescrews.
55
5 5
1 2 3 4

Owner’s Manual
TSD-TXHL
High/Low Level Converter
AtlasIED.com – 4 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Cable Management
Knob and Security Cover
All front panel level controls feature a removable knob that can be replaced with an included security
cover. Follow these steps to prevent potentiometer damage or unwanted changes.
1. Knob Installation - Turn the potentiometer shaft fully counter-clockwise. Align the knob indicator
to the lowest setting on the panel and the potentiometer shaft slot. Carefully press the knob onto
the potentiometer shaft. Do not force or damage may occur to the potentiometer.
2. Security Cover Installation - Remove the knob from the panel and insert the cover. Small pliers may
be required to remove the knobs. Align the security cover to the level control panel hole. Push the
cover into the hole until it snaps into place. Do not force or damage may occur to the potentiometer.

Owner’s Manual
TSD-TXHL
High/Low Level Converter
AtlasIED.com– 5 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]

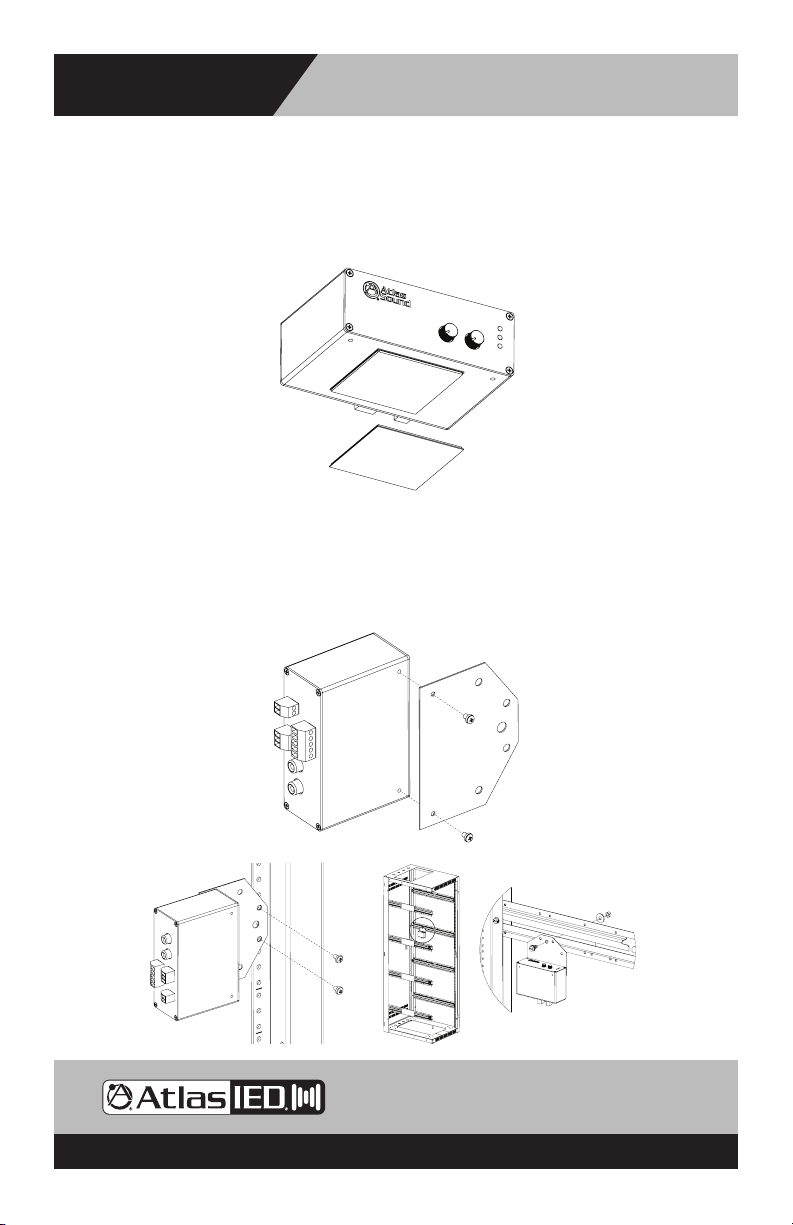

Mounting
Listed below are the ways to mount the TSD and the optional accessories that can be purchased.
1. Velcro™- Each unit includes two 2" x 2" pieces of industrial-grade Velcro™with adhesive backing
 toadheretoanyatsurface.CleanallsurfacesbeforeapplyingtheadhesivesideoftheVelcro™.
2. Multi Mount Plate - Each TSD includes a versatile multi-position mounting plate. This plate
allows the TSD to be mounted to any surface; but is ideal for use with rear rack rails or side rack
hat channels. Use the included M3 x 4mm screws to install the plate on the TSD. Note: Only use
the included M3 x 4mm screws as other screws may be too long and will cause internal damage
to the TSD. The multi-position mounting plate is a new addition being included with TSDs. If the
TSD being used did not include the mounting plate, contact AtlasIED customer service at
1-800-876-3333.
(M3 x 4mm)
(M3 x 4mm)

Owner’s Manual
TSD-TXHL
High/Low Level Converter
AtlasIED.com – 6 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Optional Mounting Accessories
1. TSD-RMK 19" Width Rack Mount Kit - For 19" rack mounting, AtlasIED offers an optional rack
mount kit, the TSD-RMK. This rack mount kit can support up to four TSD units. The kit includes
 threeblankpanelsdesignedtollanyunusedslots.UsetheincludedhardwaretomounttheTSD 
into the rack mount kit using the top mount screw holes on the TSD.
2. TSD-RMKHR Half Width Rack Mount Kit - AtlasIED offers an optional rack mount kit that can
be used in half width rack applications including the AtlasIED WMA-HR and AWR-HR models.
 TheTSD-RMKHRcansupportuptotwoTSDs.Includedisanextrablankpaneltolloneofthe 
spaces if only one TSD is being used.

Owner’s Manual
TSD-TXHL
High/Low Level Converter
AtlasIED.com– 7 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
3. TSD-RRMKRearRackMountingKit-ForcompleteexibilityinmountingaTSDorTSDexternal
power supplies the optional TSD-RRMK is available. The TSD-RRMK can support mounting of
either two larger TSDs with external power supplies or up to 4 TSD models. Note: Only use the
included M3 x 4mm screws as other screws may be too long and will cause internal damage to
the TSD.

Owner’s Manual
TSD-TXHL
High/Low Level Converter
AtlasIED.com – 8 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Block Diagram
UNBALANCED
INPUT
25V
70V
100V
COM
OUTPUT
600Ω

Owner’s Manual
TSD-TXHL
High/Low Level Converter
AtlasIED.com– 9 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Specications
Description High Level to Line Level Converter & Signal Isolator
Chassis Color Black
Chassis Material Aluminum
Inputs
High Level Input Qty 1, Amplifier Speaker Outputs 4Ω, 8Ω, 25V, 70V, 100V
Connection Removable 2 Position Captive Screw 3.5mm Spacing
Outputs
Type Qty 1, Unbalanced
Connection Removable 2 Position Captive Screw 3.5mm Spacing
Impedance 600ΩUnbalanced
Line Output Level Max Output 1V ±10%
Controls
Level Control Qty 1, Removable Knob with Security Cover
Input Level Adjustment Three Selections 4Ω-25V, 70V, 100V
Electrical
Transformer Isolation Step Down
Frequency Response 40Hz - 25kHz (-3dB)
Power Requirements
None Passive
Dimensions H 1.5" (39mm) x W 4" (101mm) x D 2.75" (70mm)
Weight 6oz, .165kg
Included Accessories
Velcro™ Industrial-Grade
Multi-Mount Plate Qty 1, Includes Two (2) M3 x 4mm Screws
Cable Retainers Qty 2
Level Control Knob Qty 1
Level Control Security Cover Qty 1
Optional Accessories
TSD 24VDC Power Supply
TSD-RMK 1 RU 19" Width Rack Mount Panel (Supports 4 TSD Units)
TSD-RMKHR 1 RU Half Rack Width Panel (Supports 2 TSD Units)
TSD-RRMK Rear Rack Mounting Kit

Owner’s Manual
TSD-TXHL
High/Low Level Converter
AtlasIED.com – 10 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Notes:

Owner’s Manual
TSD-TXHL
High/Low Level Converter
AtlasIED.com– 11 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Notes:

Owner’s Manual
TSD-TXHL
High/Low Level Converter
AtlasIED.com – 12 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Limited Warranty
All products manufactured by AtlasIED are warranted to the original dealer/installer, industrial or
commercial purchaser to be free from defects in material and workmanship and to be in compliance
with our published specifications, if any. This warranty shall extend from the date of purchase for
a period of three years on all AtlasIED products, including SOUNDOLIER brand, and ATLAS SOUND
brand products except as follows: one year on electronics and control systems; one year on
replacement parts; and one year on Musician Series stands and related accessories. Additionally,
fuses and lamps carry no warranty. AtlasIED will solely at its discretion, replace at no charge or
repair free of charge defective parts or products when the product has been applied and used in
accordance with our published operation and installation instructions. We will not be responsible
for defects caused by improper storage, misuse (including failure to provide reasonable and
necessary maintenance), accident, abnormal atmospheres, water immersion, lightning discharge,
or malfunctions when products have been modified or operated in excess of rated power, altered,
serviced or installed in other than a workman like manner. The original sales invoice should be
retained as evidence of purchase under the terms of this warranty. All warranty returns must comply
with our returns policy set forth below. When products returned to AtlasIED do not qualify for repair
or replacement under our warranty, repairs may be performed at prevailing costs for material and
labor unless there is included with the returned product(s) a written request for an estimate of repair
costs before any nonwarranty work is performed. In the event of replacement or upon completion of
repairs, return shipment will be made with the transportation charges collect.
EXCEPT TO THE EXTENT THAT APPLICABLE LAW PREVENTS THE LIMITATION OF CONSEQUENTIAL
DAMAGES FOR PERSONAL INJURY, ATLASIED SHALL NOT BE LIABLE IN TORT OR CONTRACT
FOR ANY DIRECT, CONSEQUENTIAL OR INCIDENTAL LOSS OR DAMAGE ARISING OUT OF THE
INSTALLATION, USE OR INABILITY TO USE THE PRODUCTS. THE ABOVE WARRANTY IS IN LIEU OF
ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE.
AtlasIED does not assume, or does it authorize any other person to assume or extend on its behalf,
any other warranty, obligation, or liability. This warranty gives you specific legal rights and you may
have other rights which vary from state to state.
Service
Should your Atlas TSD require service, please contact the AtlasIED
warranty department at 1-877-689-8055, ext. 277 to obtain an RA number.
AtlasIED Tech Support can be reached at 1-800-876-3333 or support.atlasied.com.
Visit our website at www.AtlasIED.com to see other Atlas products.
