INTRODUCTION
FEATURES
Atlona Technologies AT-COMP150SR can easily extend component (YPbPr) or composite (CVBS)
video with stereo audio over only one CAT5/6 cable. The AT-COMP150SR lets you extend signals
to cover the distance up to 330m (1,000ft). The devices are composed of a transmitter and a
receiver. The transmitter is installed near the video signal source, and the receiver is placed near
the desired display, up to impressive 330m (1,000ft) away for composite (CVBS) video and analog
stereo audio. The AT-COMP150SR does not need external power supply which is easier for
installation.

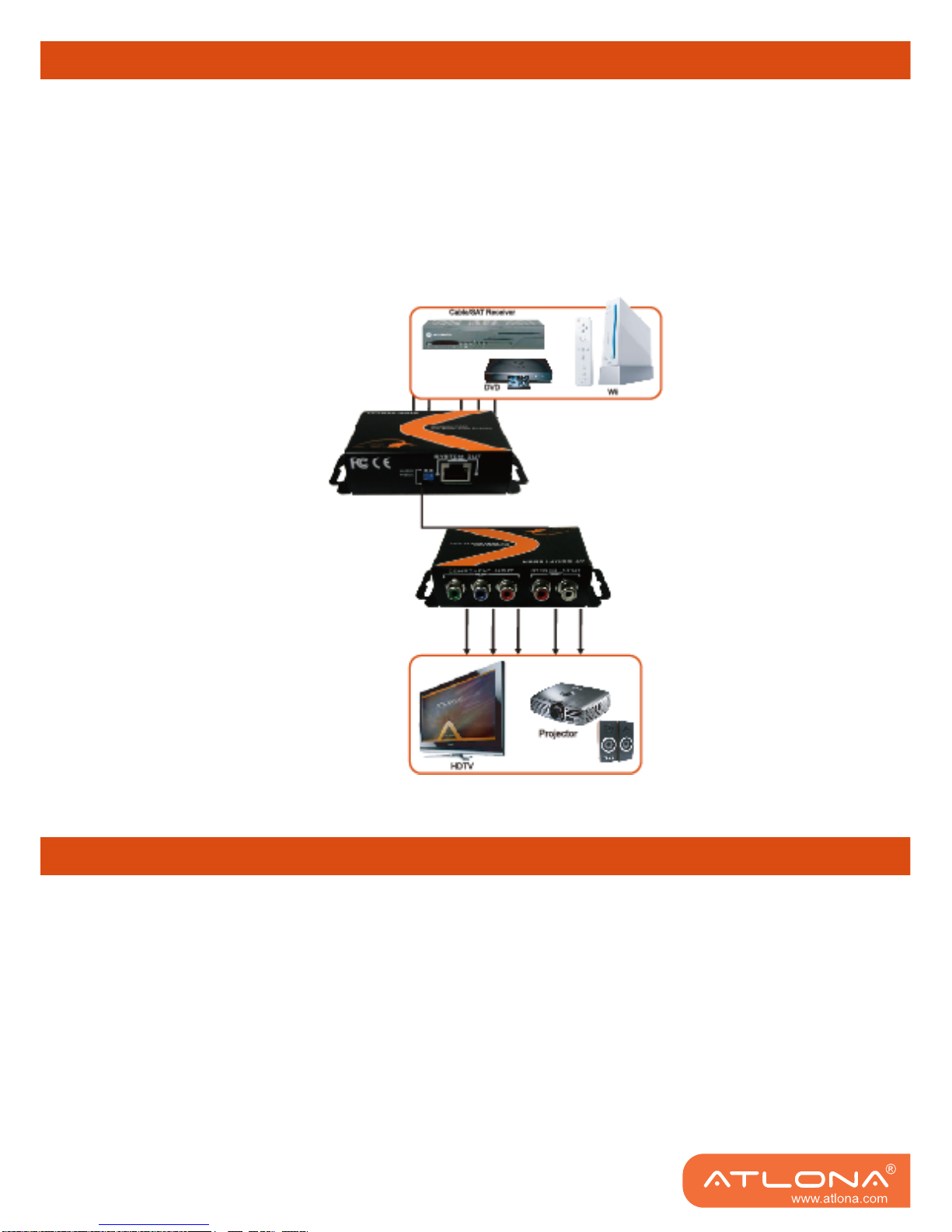

Diagram:
Passive and no power required
Supports component (YPbPr) and composite (CVBS) video and L/R stereo audio
Supports resolutions up to 720p/1080i (NTSC/PAL)
Transmission range up to 1,000 feet
Wall mountable
Note: The length depends on the characteristics and quality of the cables. Higher
resolutions and longer transmission distances require low skew cables (<25ns/100m)
for best performance. Unshielded CAT6 with metal RJ45 connectors is recommended

2
PACKAGE CONTENTS
SPECIFICATIONS
1x AT-COMP150SR (Sender unit and Receiver unit)
1x User's manual
Model Name AT-COMP150SR
Technical
Role of usage Sender (TX) Receiver (RX)
Video support Up to 720p60, 1080i60, 1080p30
Audio support L/R stereo analog audio
Transmission HD 720p/1080i – 185m (600ft)
480i – 330m (1,000ft)
Input 5x RCA 1x RJ45
Output 1x RJ45 5x RCA
RCA connector 75Ωfemale
RJ45 connector WE/SS 8P8C
Mechanical
Housing Metal enclosure
Dimensions
[L x W x H] Model [TX/RX] 54 x 85 x 26mm [2.1" x 3.3" x 1"]
Package 141 x 198 x 74mm [5.5" x 7.8" x 2.9"]
Weight Model [TX/RX] 170g [6oz]
Package 750g [1.7 lbs]
Fixedness Wall-mount case with screws
Power supply None
Power consumption 0.1 Watt [max]
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]

3
PANEL DESCRIPTION

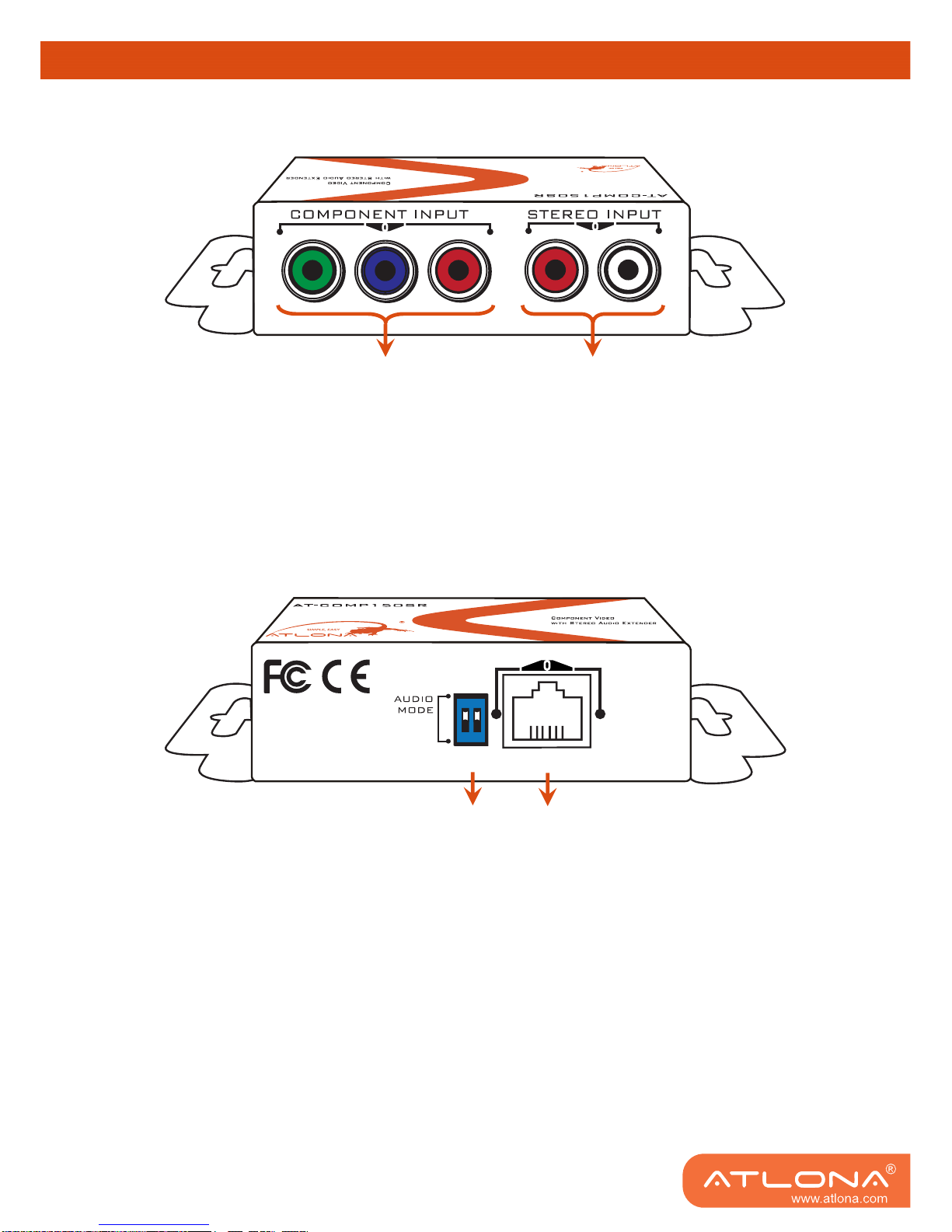

Sender Unit: AT-COMP150S
Input Panel
1. COMPONENT INPUT: Conennet to one component video or three composite video sources.
2. STEREO INPUT: Connect to an analog stereo audio source.
Output Panel
3. AUDIO MODE: See next section for more detail.
4.SYSTEM OUT: Connect a CAT5e/6 cable and link to the SYSTEM IN port on the Receiver unit.
1 2
34

4
Receiver Unit: AT-COMP150R
Input Panel
5. AUDIO MODE: See next section for more detail.
6. SYSTEM IN: Connect a CAT5e/6 cable and link to the SYSTEM OUT port on the Sender unit.
Output Panel
7. COMPONENT OUTPUT: Conennet to one component or three composite video displays.
8. STEREO INPUT: Connect to analog stereo audio speakers.
56
7 8

5
AUDIO MODE
DIP Switch Position Audio Description
Pin 1 Pin 2
ON [ª] ON [ª] Mono
Set both Sender unit and Receiver unit at this position to get
mono Left channel audio with Right channel grounded to get
better audio clarity
OFF [©] OFF [©] Stereo
Set both Sender unit and Receiver unit at this position to get
stereo Left and Right channel audio.
1. Use shielded or even double shielded cables to get better audio quality
2. Even though the mono sound is sent by setting the DIP switch to ON-ON [ªª]position on the
Sender unit, you still can hear stereo-alike sound by setting the DIP switch at OFF-OFF [©©]
on the Receiver unit. The key reason to set the DIP switch on the Sender unit at ON-ON [ªª]
position is to lower the interferences between wires in CAT5e/6 cable and this may result in
better audio and video qaulity especially for long range applications.

6
INSTALLATION
NOTICE
1. Switch off all devices, including monitors.
2. Connect the Sender unit of AT-COMP150SR to the video and audio sources.
3. Connect the Receiver unit of AT-COMP150SR to component or composite display(s) and
stereo speakers.
4. Power on the displays and speakers.
5. Power on the audio and video sources.
1. All component/composite over CAT5 transmission distances are measured using Belden
1583A CAT5e 125MHz UTP cable and ASTRODESIGN Video Signal Generator VG-859C.
2. The transmission length is largely affected by the type of category cables. The testing result
shows solid UTP cables (usually in the form of 1000ft bulk cables) can transmit a lot longer
signals than stranded UTP cables (usually in the form of fixed length patch cords). A solid UTP
CAT5e cable shows longer transmission length than stranded STP CAT6 cable. For long
extension users, solid CAT5e/6 cables are your only choice.
3. EIA/TIA-568-B termination (T568B) for CAT5e/6 cables is recommended.
4. To reduce the interference among the unshielded twisted pairs of wires in UTP cable, double
shielded STP cables are better suit than unshielded UTP cables to improve EMI problems,
which is worsen in long transmission.
5. Because the quality of the CAT5e/6 cables has the major effects in how long transmission
distance will be made and how good is the received display, the actual transmission length is
subject to the choice of your CAT5e/6 cables.
6. Increase in distance and resolution will generally result in loss of image sharpness or drop in
video sync.

SAFETY INFORMATION
7
SAFETY INFORMATION
Safeguards
To reduce the risk of electric shock, do not
expose this product to rain or moisture.
If the wall plug does not fit into your local
power socket, hire an electrician to replace
your obsolete socket.
Do not modify the wall plug.
Doing so will void the warranty and safety
features.
This equipment should be installed near the
socket outlet and the device should be easily
accessible in case it requires disconnection.
Precautions
FCC Regulations state that any unauthorized
changes or modifications to this equipment
not expressly approved by the manufacturer
could void the user’s authority to operate this
equipment.
Operate this product using only the included
external power supply. Use of other power
supplies could impair performance, damage
the product or cause fires.
In the event of an electrostatic discharge, this
device may automatically turn off. If this
occurs, unplug the device, and plug it back in.
Protect and route power cords so they will not
be stepped on or pinched by anything placed
on or against them. Be especially careful of
plug-ins, or cord exit points from this product.
Avoid excessive humidity, sudden temperature
changes or temperature extremes.
Keep this product away from wet locations such
as bathtubs, sinks, laundries, wet basements
and swimming pools.
Use only accessories recommended by ATLONA
to avoid fire, shock or other hazards.
Unplug the product before cleaning. Use a
damp cloth for cleaning. Do not use cleaning
fluid or aerosols, which could enter the unit and
cause damage, fire or electrical shock. Some
substances may also mar the finish of the
product.
Never open or remove unit panels or make any
adjustments not described in this manual.
Attempting to do so could expose you to dan-
gerous electrical shock or other hazards. It may
also cause damage to your AT-COMP150SR.
Opening the product will void the warranty.
Do not attempt to service the unit. Instead
disconnect it and contact your Authorized
ATLONA reseller or contact ATLONA directly.
