Atlona AT-HD800 User manual

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515
User Manual
AtlonA
Portable HDMI Signal Generator
with 3D Patterns
AT-HD800

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 2
TABLE OF CONTENTS
1. Introduction .................................................. 3
2. Appplications .................................................. 3
3. Package Contents .................................................. 3
4. Features .................................................. 3
5. Specication .................................................. 4
6. Power Consuming Chart .................................................. 4
7. Operation Controls and Functions .................................................. 4
7.1. Bottom Panel .................................................. 4
7.2. Front Panel .................................................. 5
8. Support Timing Table .................................................. 7
9. Support Pattern Table .................................................. 7
10. Connection and Installation .................................................. 9
11. Safety Information .................................................. 10
12. Warranty .................................................. 11
13. Atlona Product Registration .................................................. 12

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 3
INTRODUCTION
PACKAGE CONTENTS:
APPLICATIONS
The Atlona HD800 is a Portable HDMI signal generator capable of testing any video resolution or timing
in any digital format. The HD800 allows users to diagnose specic resolution, video timing, EDID, and
color space issues in any DVI or HDMI video system. The HD800 features 19 test patterns including
3D tests Side by side, Top and Bottom, and Frame packing, a format that is mandatory for all HDMI 1.4
devices. This powerful pocket sized signal generator features an HDMI output as well as an HDMI pass
through to easily switch between test patterns and content from any other digital sources, while also
giving the ability to read the EDID from the input source and displaying it on the display.
• Residential or Commercial Installation. The AT-HD800 is a very handy (must have) tool which helps
to make sure that all cables, extenders, switchers, AV receivers are passing proper signal because the
installation is nished. Even before sources arrive, the generator could be used to make sure that ev-
erything is working and HDCP and EDID are passing though.
• Cable, Display, Source Manufactures. Manufactures could be using HD800 in their QC department to
make sure certain frequencies and resolutions are working.
• AT-HD800 Portable HDMI Signal Generator with 3D
• 4 x AA Batteries
• 5V/2.6A DC power adaptor
• Protective Sleeve
• Manual
FEATURES:
• Portable size and battery operated HDMI generator
• Supports 19 Testing Patterns which includes 3 x 3D
• Cable integrity testing ability (see page 4, “7.1 Bottom Panel”)
• Computer Testing resolutions: VGA, SVGA, XGA, SXGA, WUXGA
• HDTV Testing Resolutions: 480i, 576i, 480p, 576p, 720p (50/60Hz), 1080i (50/60Hz), 1080p (24/50/60)
• 3D HDTV Testing: 720p (50/60Hz), 1080p 24Hz
• 2-channel LPCM is always active to test audio 1K -20dB
• EDID Reading function, allows user to view the displays capabilities (which video and audio formats
the display is capable of)
• HDMI Input, designed for reading EDID from both sources and displaying capabilities side by side.
This helps to prevent a lot of issues with installation and also troubleshoot the EDID readings in
applications where a lot of equipment is used.
• The Generator comes with a protective rubber case
• Power supply is included for cases where customer has no batteries
• Last memory function, allows the generator remember the setting the user had prior to powering OFF.

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 4
SPECIFICATIONS:
OPERATION CONTROLS AND FUNCTIONS
Computer Testing resolutions VGA, SVGA, XGA, SXGA, WUXGA
HDTV Testing resolutions 480i, 576i, 480p, 576p, 720p (50/60Hz), 1080i (50/60Hz), 1080p
(24/50/60)
3D HDTV Testing 720p (50/60Hz), 1080p 24Hz
3D Patterns Frame Packing, Side-by-Side(Half), Top-and-Bottom
Audio Testing 2-channel
EDID Supports Reading EDID from Source and Display
Indicators Lights Indicators will shop the resolution outputted and frequency
TMDS Clock Frequency 6.75Gps
Output 1 x HDMI (Type A)
Input 1 x HDMI (Type A)
Power 4 x AA Batteries or 5V/2A Power supply
Power Consumption 2.1W Bypass / 1.1W Patterns
ESD Protection ± 8kV (air-gap discharge); ± 4kV (contact discharge)
Dimensions (inch) 5W x 3.5L x 1H
Weight 0.4LB - without batteries
Operating Temperature 0°C ~ 40°C / 32°F~104°F
Relative Humidity 20~90% RH (non-condensing)
7.1. Bottom Panel
POWER CONSUMING CHART
Mode Resolution Voltage Time Out
Bypass 1080p/60 ~420mA ~6.1hrs
Pattern 1080p/60 ~220mA ~8hrs
Disclaimer: The above gures are tested base on Sony’s 2000mA AA batteries are for referencing
only. Different mode/resolution and batteries used may have different results.
DC 5V ON
HDMI IN HDMI OUT
OFF
POWER
③②① ④󳘚

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 5
1. INFO/PATTERN:

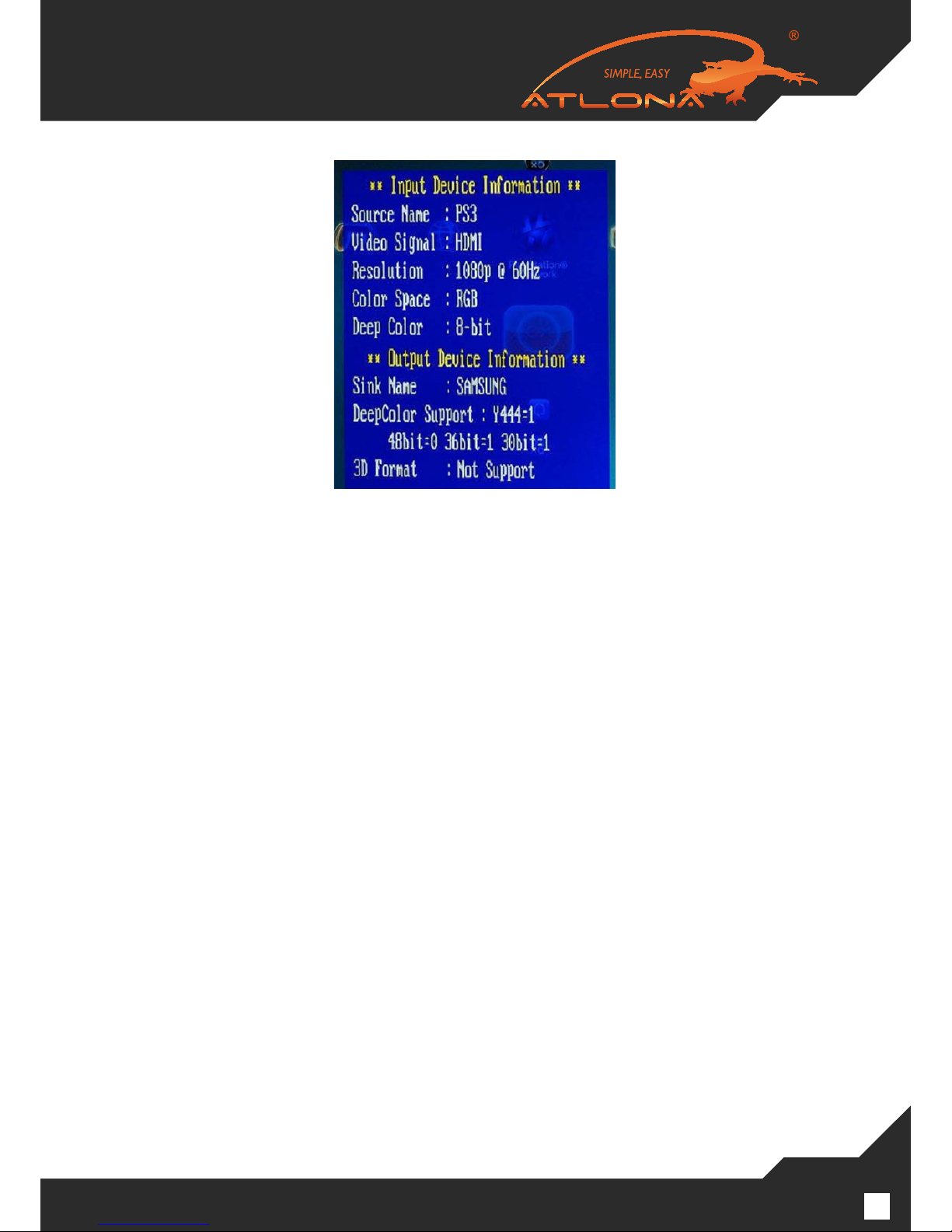

1.1. If the input of the HD800 is connected with the source and output is connected with the display (or other
gear before the display) and user wants to view capabilities of both source and display side by side the
Info Pattern can be pressed. This is needed to make sure that user knows the TV’s capabilities and would
not send something that is higher than acceptable by the display or the chain prior to the display.

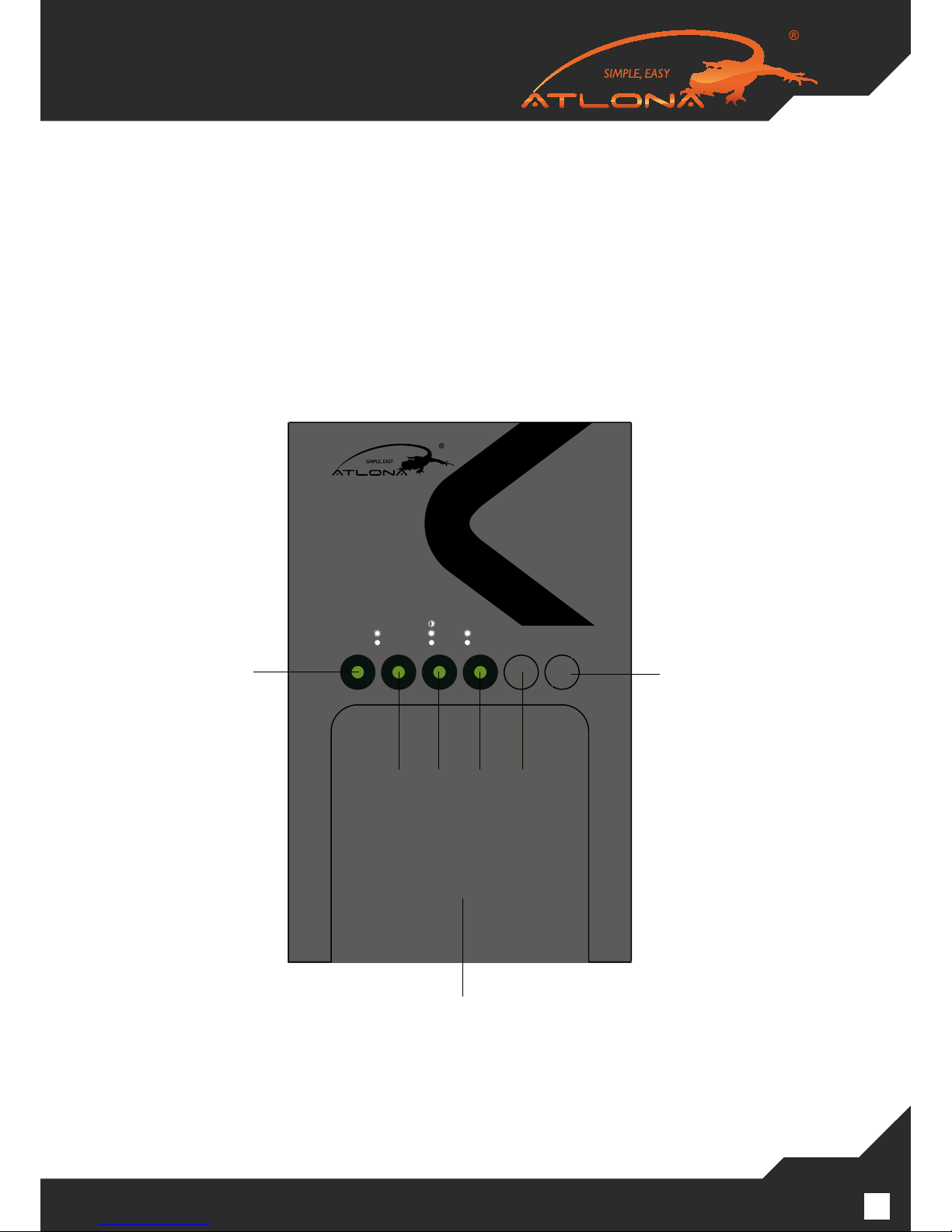

7.2. Front Panel
1. DC 5V: This input is for 5V power supply (if batteries are used, the power supply is not required)
2. Power Switch: Switch UP – ON, Switch Down - OFF
Note: If user is running out of power on the batteries and wants to use power supply, the power cycle is
required, so that the HD800 will recognize power supply as a priority.
3. HDMI IN: This input is for connecting input source such as DVD, Computer, Cables Box or any other
source for testing and pulling EDID le.
4. HDMI OUT: This connection is for connecting the generator to a display or devices before the display when
testing the full system capabilities.
5. For HDMI cable integrity test, insert both ends of the cable into the AT-HD800 Unit. See “Timing Select”
button for more information.
BATT.
LOWBYPASS
PATTERN
3D
PC
HD 50Hz 60Hz TIMING
SELECT INFO
PATTERN
Portable HDMI
Signal Generator
AT-HD800
⑦
②③④⑤
①
⑥

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 6
1.2. If the HDMI input is not connected, the “Info Pattern” can be pressed repeatedly to switch
between different patterns.
2. TIMING SELECT: This button will only be active when HDMI input is not connected. Press this
button repeatedly to bring up different resolutions (25 timings)
2.5 CABLE INTEGRITY TEST: Hold the timing select button for three(3) second to initiate cable
test. If the green LED is ashing, the cable is NOT transfering signal propperly. If LED is sold,
the cable has passed the test. Hold “timing select” for three(3) seconds again to exit cable test.
3. 50/60 Hz: The LED will illuminate when the signal resolutions are 50Hz. 50Hz refresh rate is
usually not compatible with displays sold in USA, Canada or Japan. 50hz is a standard for most
Europe and Asia.
4. 3D/PC/HD LED:
4.1. 3D – if the LED is ashing constantly, it means that user is sending 3D pattern.
4.2. PC – if the LED is illuminated green, it means that user is sending one of the computer
resolutions: 640~1920x1200 (VGA~WUXGA)
4.3. HD – if the LED is not illuminated, it means that user is sending one of the HD resolutions:
480p~1080p
5. Bypass/Pattern LED: This LED will illuminate in green when the input source is connected.
When the input source is not connected the LED will not illuminate.
6. BATT. LOW: This LED will illuminate in Red when the battery power is below 20%. If the LED is
ashing it means the battery power is below 10% and HD800 needs new batteries or a power
supply.
7. Battery Container: This container is for 4 x AA batteries.
8. If Timing Select and Info Pattern pressed at the same time, user can fast switch between 60Hz
and 50Hz.

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 7
SUPPORT TIMING TABLE
SUPPORT PATTERN TABLE
No. Resolution V Hz No. Resolution V Hz
1 480p 60 14 1024x768 60
2 720p 60 15 1280x1024 60
3 1080i 60 16 1920x1200 60
4 1080p 60 17 720p (3D Frame Packing) 60
5 480i 60 18 720p (3D Side-by-Side) 60
6 576i 50 19 720p (3D Top-to-Bottom) 60
7 576p 50 20 720p (3D Frame Packing) 50
8 720i 50 21 720p (3D Side-by-Side) 50
9 1080i 50 22 720p (3D Top-to-Bottom) 50
10 1080p 50 23 1080p (3D Frame Packing) 24
11 1080p 24 24 1080p (3D Side-by-Side) 24
12 640x480 60 25 1080p (3D Top-to-Bottom) 24
13 800x600 60
Note: If you are sending a 3D pattern and you get 2 images side-by-side or 2 images top-to-bottom, this would
mean that either display or devices connected to the display are not 3D capable.
Group No. Pattern Description
Full Screen Purity
P01 Purity Pattern
Purity offers ve
different full eld pat-
terns: Black, White (100%
Y) Primary colors: Red,
Green, Blue P01: Red
P02: Green P03: Blue
P04: Black
P05: White
P02
P03
P04
P05

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 8
Group No. Pattern Description
Color Bar P06 P06 Horizontal Black &
White Bar
P07 Vertical RGB Bar
P07
Line P08 720p 50/60 only P08 Line
Grid P09 720p 50/60 only P09 Cross Hatch
H-Character P10 720p 50/60 only P10 H-Character
Color Bar P11 720p 50/60 only P11 Split Color Bar
P13 720p 50/60 only P13 6 Color Bar
Gray Scale P12 720p 50/60 only P12 6 steps
TV Timing Info P14 720p 50/60 only P14 VESA Timings
P15 720p 50/60 only P15 Video Timings
Battery Info P16 720p 50/60 only P16 Battery level

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 9
Group No. Pattern Description
3D Type P17 P17 Frame Packing
P18 P18 Side-by-Side (Half)
P19 P19 Top-and- Bottom

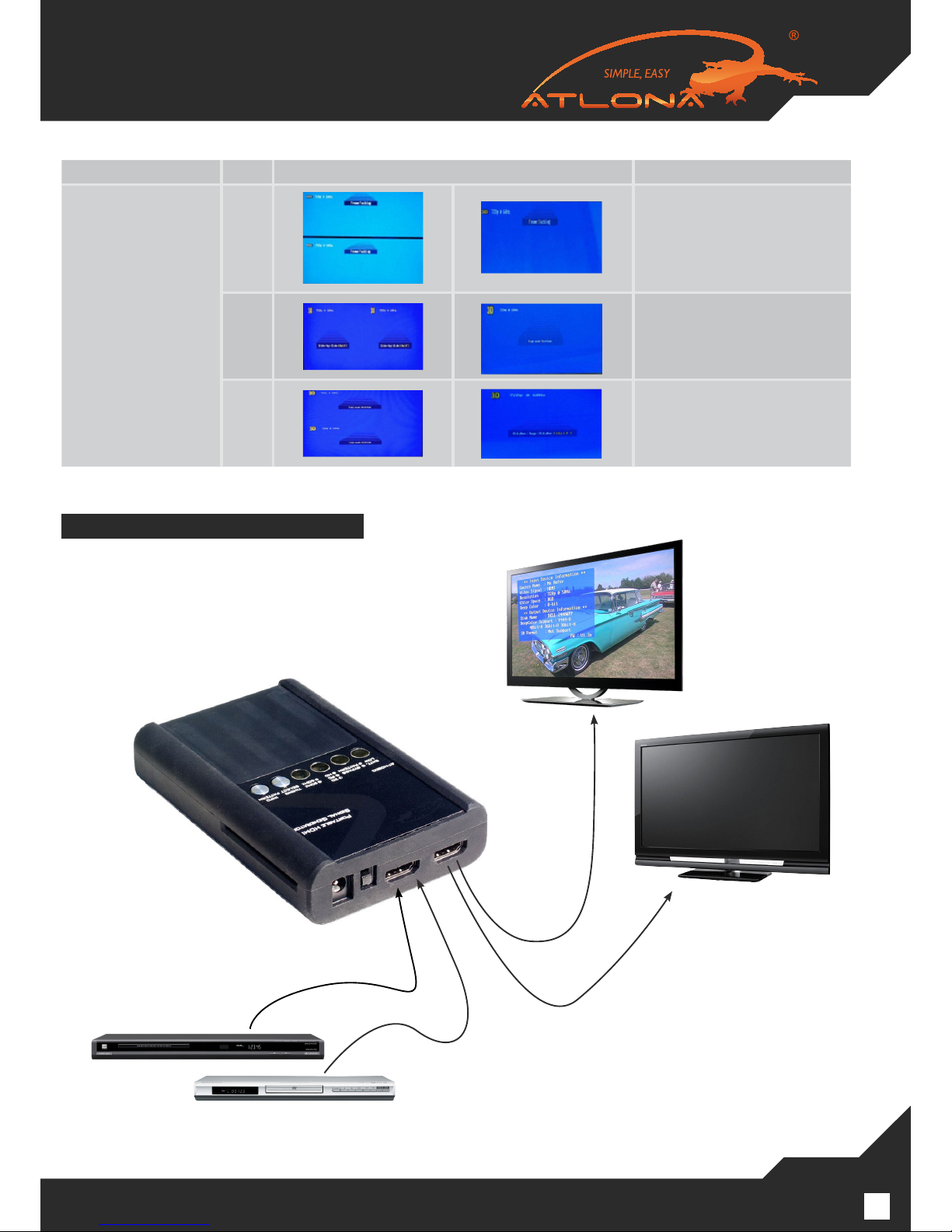

CONNECTION AND INSTALLATION
Blu-ray
DVD
LCD Monitor
AT-HD800
or
or
HDTV

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 10
SAFETY INFORMATION
Safeguards
To reduce the risk of electric shock, do not
expose this product to rain or moisture.
If the wall plug does not t into your local
power socket, hire an electrician to replace
your obsolete socket.
Do not modify the wall plug.
Doing so will void the warranty and safety
features.
This equipment should be installed near
the socket outlet and the device should
be easily accessible in case it requires
disconnection.
Precautions
FCC Regulations state that any
unauthorized changes or modications to
this equipment not expressly approved by
the manufacturer could void the
user’s authority to operate this
equipment.
Operate this product using only the
included external power supply. Use of
other power supplies could impair
performance, damage the product or cause
res.
In the event of an electrostatic discharge,
this device may automatically turn off. If this
occurs, unplug the device, and plug it back
in.
Protect and route power cords so they will
not be stepped on or pinched by anything
placed on or against them. Be especially
careful of plug-ins, or cord exit points from
this product.
Avoid excessive humidity, sudden
temperature changes or temperature
extremes.
Keep this product away from wet locations
such as bathtubs, sinks, laundries, wet
basements and swimming pools.
Use only accessories recommended by
ATLONA to avoid re, shock or other
hazards.
Unplug the product before cleaning. Use
a damp cloth for cleaning. Do not use
cleaning uid or aerosols, which could
enter the unit and cause damage, re or
electrical shock. Some substances may
also mar the nish of the product.
Never open or remove unit panels or make
any adjustments not described in this
manual. Attempting to do so could expose
you to dangerous electrical shock or other
hazards. It may also cause damage to your
AT-HD800. Opening the product will void the
warranty.
Do not attempt to service the unit. Instead
disconnect it and contact your Authorized
ATLONA reseller or contact ATLONA
directly.

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 11
1. LIMITED WARRANTY
Atlona Technologies warrants that (a) its products (the “Product”) will perform substantially in accordance with the ac-
companying written materials for a period of 3 YEARS from the date of receipt and (b) that the Product will be free from
defects in materials and workmanship under normal use and service for a period of 3 years. In the event applicable law
imposes any implied warranties, the implied warranty period is limited to 3 years from the date of receipt. Some jurisdic-
tions do not allow such limitations on duration of an implied warranty, so the above limitation may not apply to Customer.
2. CUSTOMER REMEDIES
Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’
option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet this
Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty
is void if failure of the Product has resulted from accident, abuse, or misapplication. Any replacement Product will be war-
ranted for the remainder of the original warranty period or 3 year, whichever is longer.
3. NO OTHER WARRANTIES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ATLONA TECHNOLOGIES AND ITS SUPPLIERS
DISCLAIM ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO IM-
PLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO
THE PRODUCT AND ANY RELATED WRITTEN MATERIALS. THIS LIMITED WARRANTY GIVES CUSTOMER SPE-
CIFIC LEGAL RIGHTS. CUSTOMER MAY HAVE OTHER RIGHTS DEPENDING ON THE JURISDICTION.
4. NO LIABILITY FOR DAMAGES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ATLONA TECHNOLOGIES OR
ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING WITHOUT LIMITATION, SPECIAL, IN-
CIDENTAL, CONSEQUENTIAL, OR INDIRECT DAMAGES FOR PERSONAL INJURY, LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING
OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT, EVEN IF ATLONA TECHNOLOGIES HAS BEEN AD-
VISED OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY CASE, ATLONA TECHNOLOGIES’ AND ITS SUPPLIERS’
ENTIRE LIABILITY UNDER ANY PROVISION OF THIS AGREEMENT SHALL BE LIMITED TO THE AMOUNT ACTU-
ALLY PAID BY YOU FOR THE PRODUCT. BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT
APPLY TO YOU.

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 12
ATLONA PRODUCT REGISTRATION
Thank you for purchasing this Atlona product — we hope you’ll enjoy it.
We also hope that you’ll take a few moments to register your new purchase. Registration creates an ownership
record if your product is lost or stolen and helps ensure you’ll receive notication of performance issues and rmware
updates.
At Atlona, we respect and protect your privacy and assure you that your registration information is completely
secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war-
ranty rights.
To register go to www.atlona.com/registration
