Atmel AT89STK-11 Installation manual

AT89STK-11 Starter Kit
..............................................................................................
Hardware User Guide

Table of Contents
AT89STK-11 Hardware User Guide 1
7676B–8051–08/07
Section 1
Introduction ........................................................................................... 1-1
1.1 Features ....................................................................................................1-1
1.2 Supported Devices....................................................................................1-2
Section 2
Hardware Description ........................................................................... 2-4
2.1 Board Overview.........................................................................................2-4
2.2 Block Diagram...........................................................................................2-5
2.3 Power Supply ............................................................................................2-5
2.4 Reset.........................................................................................................2-6
2.5 Features ....................................................................................................2-7
2.6 Interfaces ..................................................................................................2-7
2.7 Board Settings ..........................................................................................2-9
Section 3
ISP Programming ............................................................................... 3-12
3.1 Manual ISP Mode ...................................................................................3-12
3.2 Auto ISP Mode........................................................................................3-12
3.3 FLIP Software .........................................................................................3-13
3.4 Batchisp Software ...................................................................................3-13
Section 4
Appendix A: Board Layout .................................................................. 4-14
Appendix B: Bill of Materials ............................................................... 4-15
4.1 Bill of Materials Table..............................................................................4-15

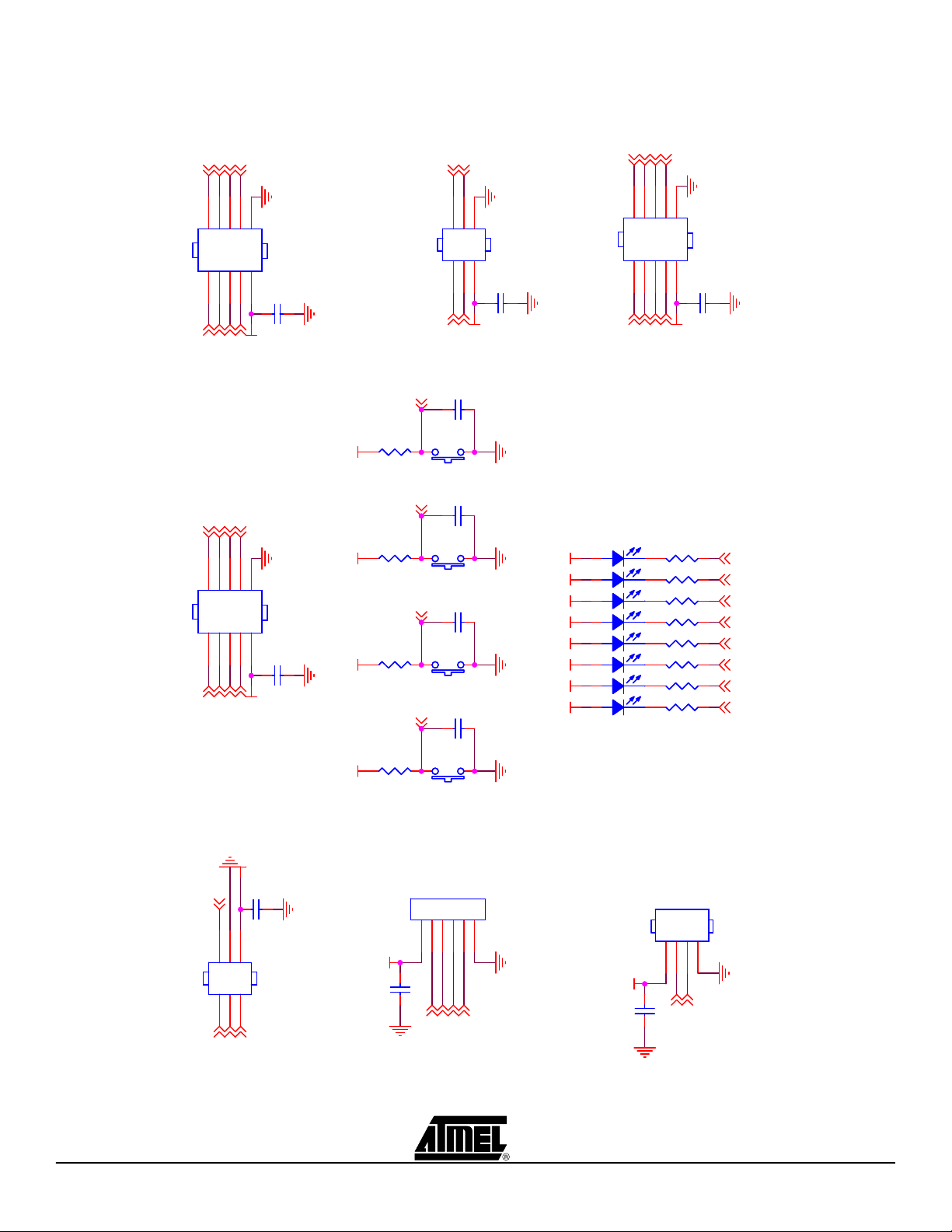

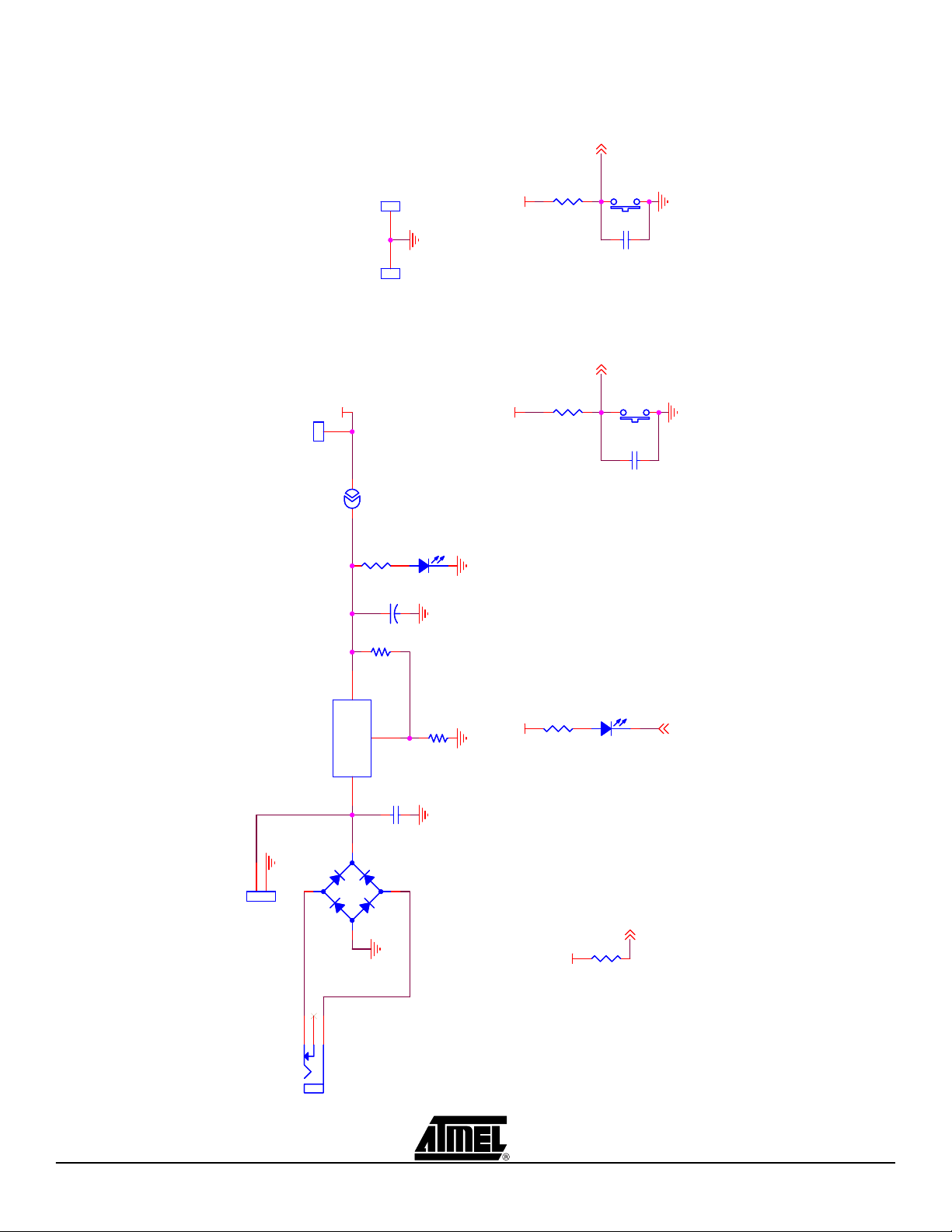

Appendix C: Board Schematics .......................................................... 4-17
Appendix D: References/Acronyms.................................................... 4-22
4.2 References..............................................................................................4-22
4.3 Acronyms ................................................................................................4-22

AT89STK-11 Hardware User Guide 1-1
7676B–8051–08/07
Section 1
Introduction
This document describes the AT89STK-11 board dedicated to the standard C51 micro-
controllers with in-system programming.
All of the microcontroller I/Os are made available in an expansion area with prototyping
facilities.
1.1 Features Stand-alone Board
In-System Programmable (ISP) including ‘Auto ISP’ feature
On-board Voltage Regulator
Microcontroler on its sockets
– PLCC44-pin package
On-board 3V or 5V power supply circuitry
– from an external power connector
– from an external battery
On-board RESET
Leds : Power, ALE, RS232 Rx and Tx
External MCU clock connector
External PCA clock connector
TWI, SPI and RS232 connectors
INT0 & INT1 Push-button
Expansion area with prototyping facilities
Commercial Temperature Range: 0 to +70°C Operating Temperature
Dimension: 95 mm x 120 mm

Introduction
AT89STK-11 Hardware User Guide 1-2
7676B–8051–08/07
1.2 Supported
Devices
AT89C51RE2
AT89C51RB2
AT89C51RC2/IC2
AT89C51RD2/ID2/ED2

AT89STK-11 Hardware User Guide 2-4
7676B–8051–08/07
Section 2
Hardware Description
2.1 Board Overview Figure 2-1 shows the AT89STK-11 board.
Figure 2-1. AT89STK-11
This photo is not contractual and may be modified without notification by Atmel.

Hardware Description
2-5 AT89STK-11 Hardware User Guide
7676B–8051–08/07

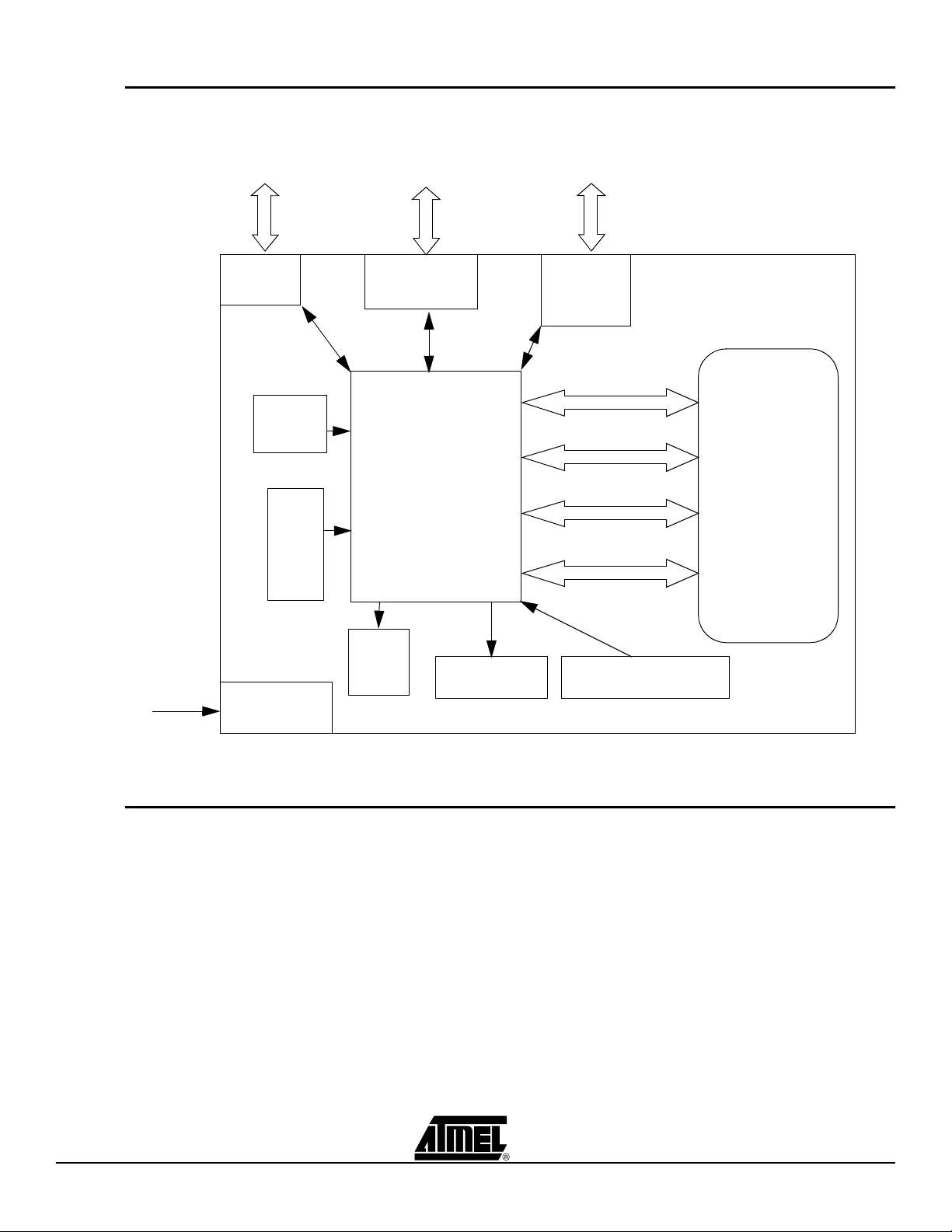

2.2 Block Diagram Figure 2-2 shows the functional block diagram of the AT89STK-11, with the I/O usage.
Figure 2-2. Block Diagram of AT89STK-11
2.3 Power Supply The on-board power supply circuitry allows various power supply configurations. This
gives the user the capability to power the devices in the 3V and in the 5V voltage range.
2.3.1 Power Supply
Sources
The power supply source can come from two different and exclusive sources:
either from the JACK PWR connector
either from the 2-point sip EXT connector.
2.3.1.1 JACK PWR
Connector
The Jack power connector implemented on board is a female Jack connector with inter-
nal 2.1mm conductor. It requires a male JACK outlet with 2.1mm capability.
No specific polarization is mandatory as on-board diode rectifier gives a protection
against inadvertent polarization invertion.
When using the JACK power supply, the board is powered with a 5V voltage.
Power Supply
Full UART
External
Power
PC Host
C51
P2
P3
EA
RST
ISP
Expansion
TWI
P0
P1
SPI
INT0
Leds:
PWR
ALE
16MHz
Quartz
PLCC44
3V or 5V
INT1
Area
User LEDs User Push Buttons

Hardware Description
AT89STK-11 Hardware User Guide 2-6
7676B–8051–08/07

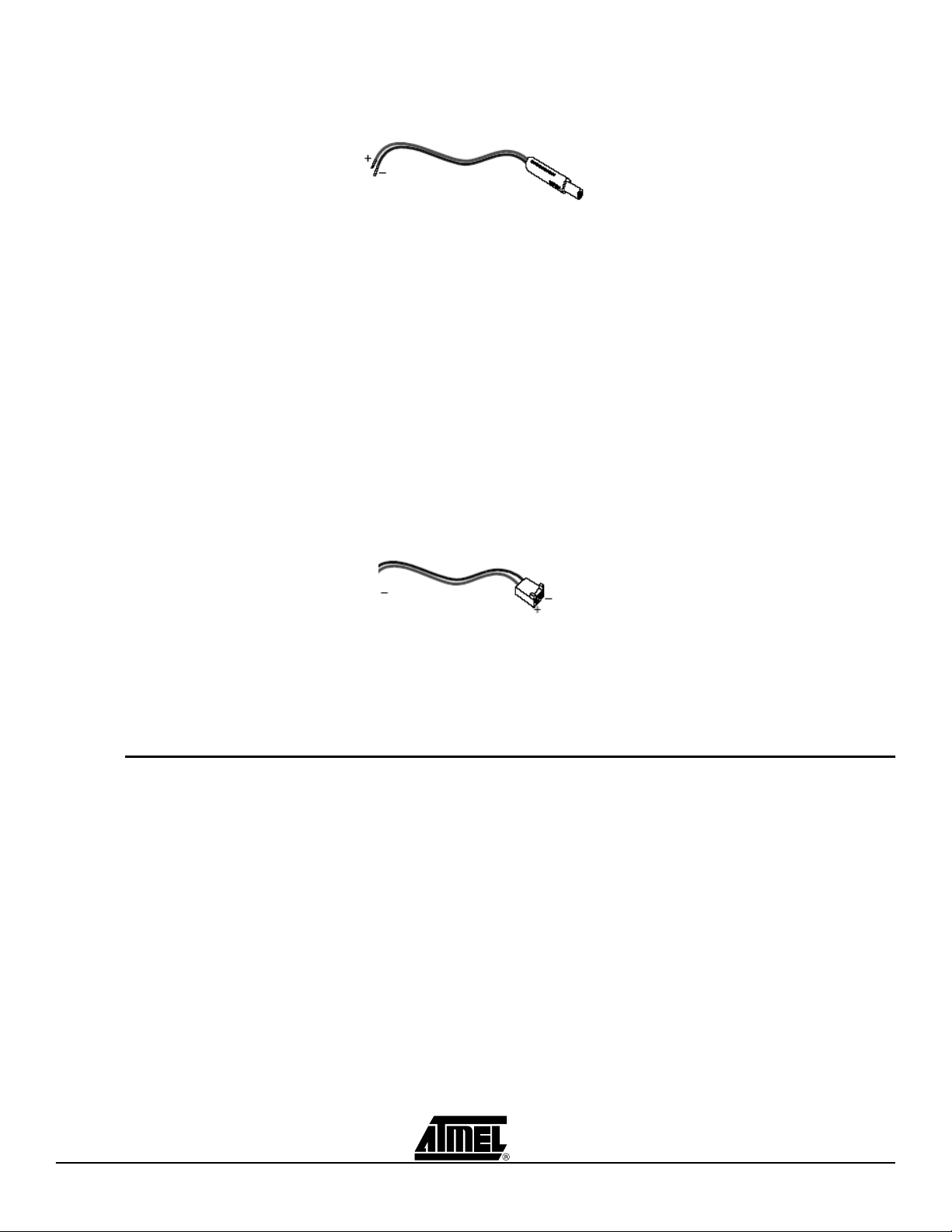

Figure 2-3. Male JACK Outlet and Wires
Note: Do not mount more than one power supply source on AT89STK-11 Board.
Note: There is a diode voltage level between the negative output of the power supply
and the “GND”. This could introduce some voltage gap during measurement
and instrumentation.
2.3.1.2 External EXT
connector
The battery power connector implemented on board is a male two point SIP connector.
It requires an external power cable with a female 2 points connector.
When powered though this interface, polarization is mandatory as no protection is given
on board.
The EXT power supply circuitry support input supply from 2.7V up to 5.5V DC.
Figure 2-4. EXT PWR Female Connector / Cable
Note: Do not mount more than one power supply source on board.
Note: Keep SP1 closed when using the EXT input
2.4 Reset To be compatible with Atmel microcontrollers which have (or not) its on-chip RESET cir-
cuitry (c.f.microcontroller datasheet), the board provides a RESET signal witch can
come from 2 different sources:
2.4.1 Power-on RESET The on-board RC network acts as power-on RESET.
2.4.2 RESET Push Button By pressing the RESET push button on the board, a warm RESET of the microcontroller
is performed.

Hardware Description
2-7 AT89STK-11 Hardware User Guide
7676B–8051–08/07
2.5 Features This section presents the various features such as leds, buttons, etc... available on the
board.
2.5.1 Push-Buttons RESET can be used to apply warm reset to the MCU
ISP can be used with RESET to apply hardware conditions resulting in bootloader
start
INT0 push-button can be used to activate INT0 input
INT1 push-button can be used to activate INT1 input
2.5.2 User Push buttons PB0, PB1, PB2 and PB3 are four push-buttons available for user application
They are made available on a 6 pins socket and in the expansion area so user can use
them according to the application needs.
2.5.3 Indicator LEDs PWR led is driven by input of voltage regulator
Rx led is connected to Rx of UART MCU (SP3 jumper can be soldered or not)
Tx led is connected to Tx of UART MCU (SP4 jumper can be soldered or not)
ALE led is connected to ALE of MCU
2.5.4 User LEDs LED0, LED1, ... LED7 are height leds available for user application
They are made available on a 10 pins socket and in the expansion area so user can use
them according to its application needs.
2.5.5 Ports Port 0 and Port 2 are made available on two 10 pins sockets to ease user interconnec-
tion to the MCU.
The are also available on the expansion area.
2.5.6 Clocks An external clock can be connected to the board to control externally XTAL1 input clock
of MCU by using the XTAL1 from the expansion area.
In the same way, another external clock can be connected to control externally the PCA
clock (P1.2/ECI).
2.6 Interfaces
2.6.1 TWI The TWI connector is controlled by hardware TWI I/O of MCU (for Product including this
feature). The signals sda and scl are controlled by the TWI ports of MCU.
This TWI bus is also connected to the expansion area.
External TWI pull-ups are not provided on the AT89STK-11.
2.6.2 SPI The SPI connector is directly connected to SPI I/O of the MCU.
2.6.3 RS-232 The DB9 connector is connected to on-chip UART peripheral through a standard RS232
driver/receiver. Two leds are provided to indicate activity on Rx and Tx lines (They can
be disconnected removing solder pad SP3 and SP4).
2.6.4 OCD The On-Chip Debug interface (OCD) is provided on a 6-pin connector.

Hardware Description
AT89STK-11 Hardware User Guide 2-8
7676B–8051–08/07
This interface enables the debug of the application through ATMEL OCD dongle for
AT89C51RE2/IE2/RD3/IE3 only.
2.6.5 Expansion Area In addition to a 16x29 pad array, two rows of pads are given on the right side of the
board to offer all the MCU signals tu user application. Any application expansion can be
built on board through this interface.
2.7 Board Settings
The C51 Demo Board has the following settings:
Jumpers
Solder straps
Test points
2.7.1 Jumpers The following table provides an overview of the jumpers, the solder straps and their
default configuration.

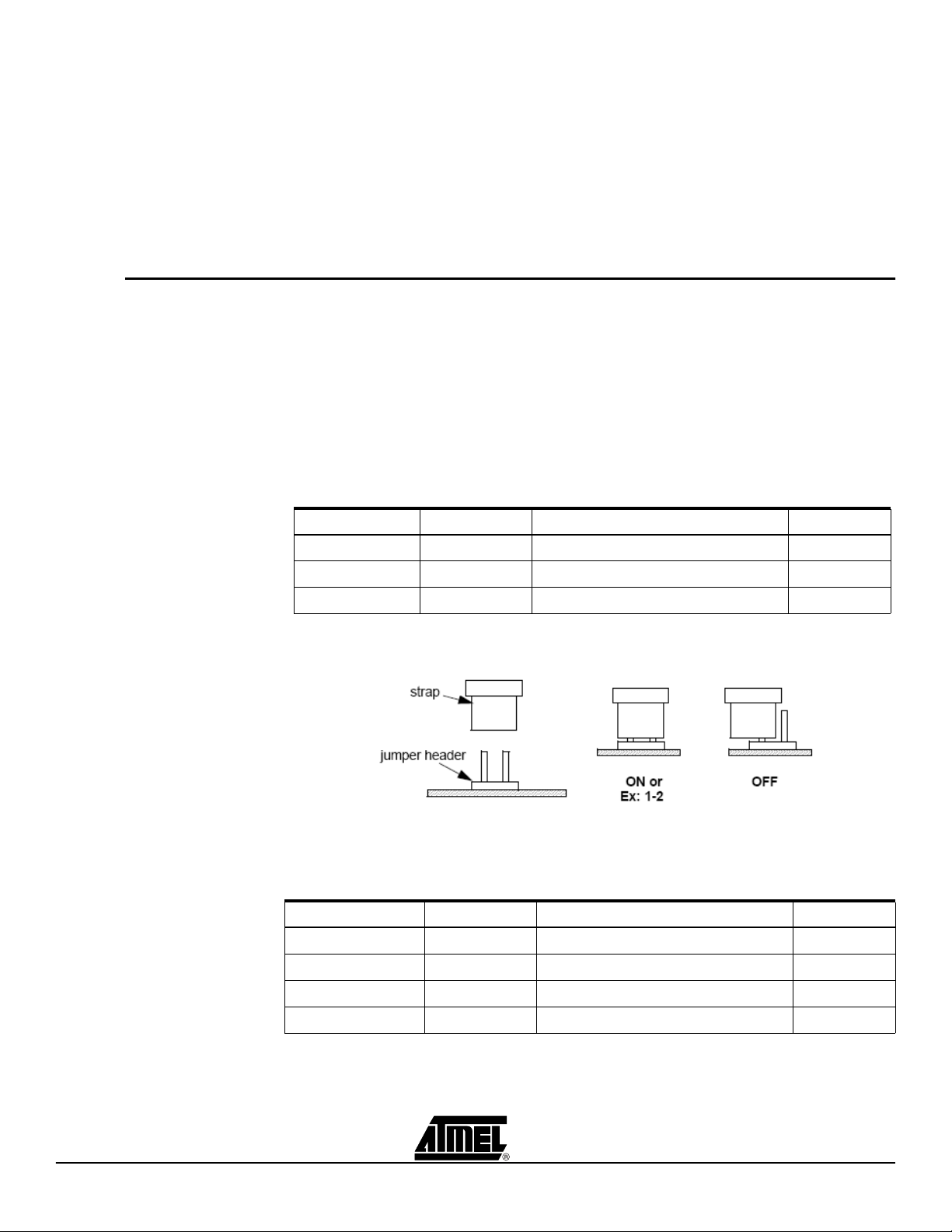

Figure 2-5. Jumper Setting Definition
2.7.2 Solder Straps Solder straps allow to modify the board configuration for specific usage.
Table 2-1. Jumpers and Switches Overview
Reference PCB Label Function Default
Jumper J11 J11 RTS of RS232 OFF
Jumper J12 J12 DTR of RS232 OFF
Jumper J13 J13 OFF
Table 2-2. Solder Straps Overview
Reference PCB Label Function Default
Solder strap SP1 SP1 External Power Supply Isolation Soldered
Solder strap SP2 ICC Consumption measurement Soldered
Solder strap SP3 SP3 Rx Led Soldered
Solder strap SP4 SP4 Tx Led Soldered

Hardware Description
2-9 AT89STK-11 Hardware User Guide
7676B–8051–08/07
Figure 2-6. Solder Strap Definition
2.7.3 Test Points
Test points are used to check the internal power supply of the microcontroller.
Table 2-3. Table of Test Points
Reference PCB Label Function
TP1 VCC
Test point for Vcc
TP2,TP3 GND Test point for GND

AT89STK-11 Hardware User Guide 3-10
7676B–8051–08/07
Section 3
ISP Programming
The On-Chip memories and configuration bytes can be programmed using the ISP
mode of the device and Atmel's FLexible In-system Programmer Software (FLIP)
described below.
3.1 Manual ISP Mode See Section “FLIP Software”, page 11.
3.1.1 Board Configuration To use ISP mode, no specific configuration is necessary on the board. Only make sure
that the EA pin of the product is tied to Vcc (internal code execution only).
3.1.2 Operating Mode To enter in ISP mode, press both the RESET and ISP buttons simultaneously.
First release the RESET button and then the ISP button. The device enters in
ISP mode.
3.2 Auto ISP Mode It allows the host PC application (Atmel Flip software for example) to control the hard-
ware conditions from the serial lines RTS and DTR.
Thus with the Auto ISP mode, the user does not need to push the ISP and RESET
buttons.
3.2.1 Board Configuration To use Auto ISP mode, put the board in the same configuration as ISP mode and also:
Close RTS (J11) jumper
Close DTR (J12) jumper

ISP Programming
3-11 AT89STK-11 Hardware User Guide
7676B–8051–08/07
3.3 FLIP Software FLIP software runs on Windows
®
and Linux
®
Operating Systems. FLIP supports in-sys-
tem programming of Flash C51 devices through RS232. The latest version of FLIP
software can be downloaded from the Atmel web site, www.atmel.com.
3.4 Batchisp
Software
Batchisp is an In-System Programming application which can perform the same opera-
tions as FLIP but is designed to be launched from the DOS command window.
The main purpose of batchisp is to automate ISP operations on several parts. It may
also be launched from an IDE like Keil's uVision
®
2 one : you can compile and link your
embedded program, generate the HEX file and download it to the target hardware with-
out leaving the Keil's IDE. This makes embedded software development and test faster.
Autoisp function is an operation which allows to enter in ISP mode without any hardware
handling.This is done thanks to DTR and RTS RS232 signals which can control on the
Board the RST and PSEN I/O of MCU.

AT89STK-11 Hardware User Guide 4-12
7676B–8051–08/07
Section 4
Appendix A: Board Layout

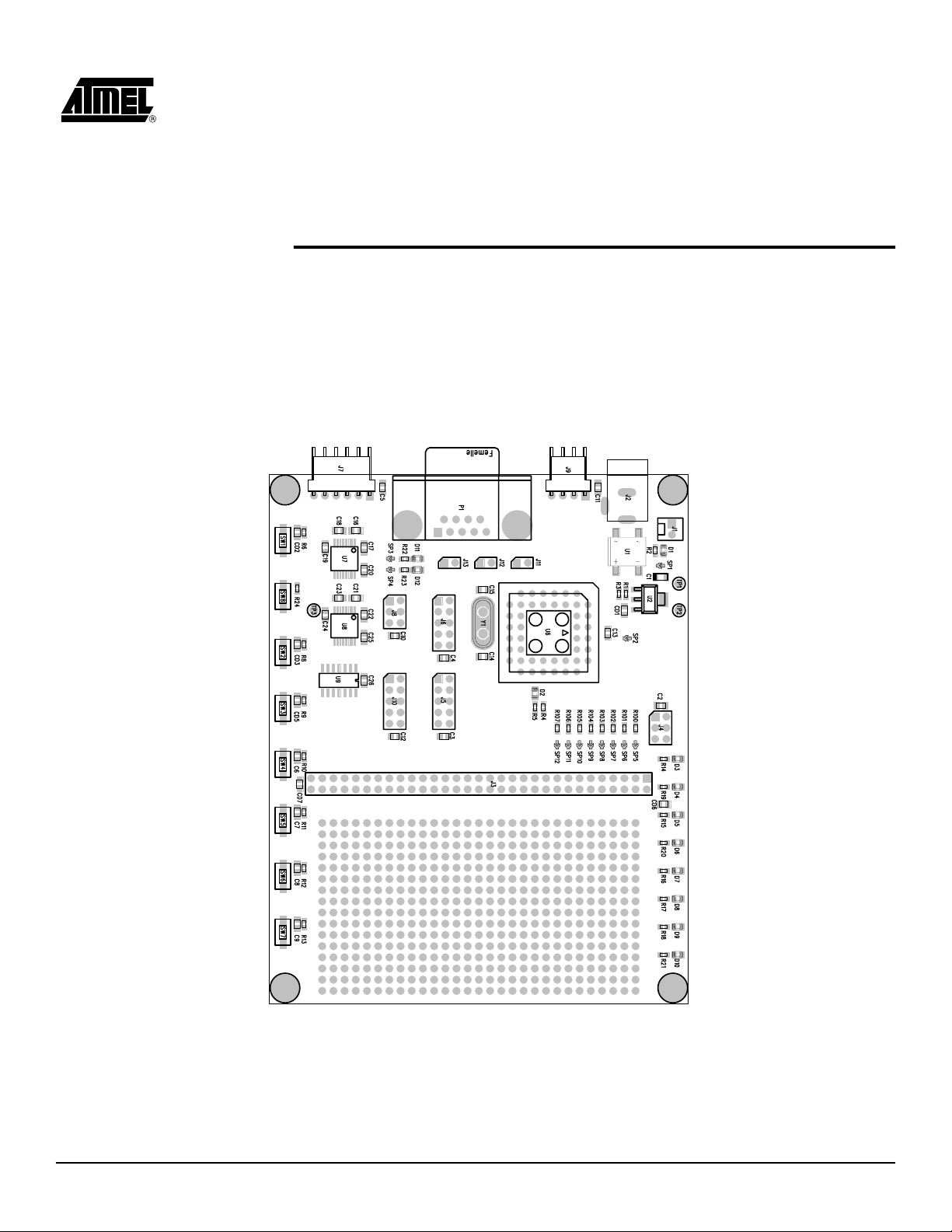

Figure 4-1. Board Components View Diagram

AT89STK-11 Hardware User Guide 4-13
7676B–8051–08/07
Appendix B: Bill of Materials
4.1 Bill of Materials
Table
Item Q.ty Reference Part Tech. Caracteristics Package Manufacturer
1
29
CD1,CD2,C2,CD3,C3,C4,
100n 50V-10% Ceramic CASE 0805 PHYCOMP
CD5,C5,CD6,C6,CD7,C7,C8,
C9,C10,C11,C12,C13,C16,
C17,C18,C19,C20,C21,C22,
C23,C24,C25,C26
2 1 C1 1µF 10Vmin ±10% Case A AVX
3 2 C14,C15 22pF 10Vmin ±10% EIA/IECQ
3216 PHYCOMP
4 1 D1 Red Led I=10 mA Agilent
®
5 11 D2,D3,D4,D5,D6,D7,D8,D9, Green Led I=10 mA Agilent
D10,D11,D12
6 1 J1 SIP2 SOCKET . Pitch 2.54mm Molex
®
7 1 J2 CONNECTOR JACK PWR Int.Diam=2.1mm Int. Diam.
2.1mm Cliff
®
8 1 J3 HEADER 31x2/SM
9 2 J4,J8 HEADER 3X2 BARRETTE SECABLE Pitch 2.54mm Tyco Elec. / AMP
10 3 J5,J6,J10 HEADER 5X2 BARRETTE SECABLE Pitch 2.54mm Tyco Elec. / AMP
11 1 J7 CONNECTOR SIP6 RA . . .
12 1 J9 SIP4 . . .
13 3 J11,J12,J13 JUMPER Pitch 2.54mm Tyco™Elec. / AMP
13bis 3 JUMPER shunt Pitch 2.54mm Arwin
14 1 P1 SUB-D9 FEMALE 90°with harpoons Tyco Elec. / AMP
15 1 R1 270 1/16W-5% SMD Case 0603 Multicomp
16
14
R2,R5,R14,R15,R16,R17,
1K 0.06W, 5% Case 0603 MulticompR18,R19,R20,R21,R22,R23,
R24
17 1 R3 820 1/16W-5% SMD Case 0603 Multicomp
18 8 R4,R6,R8,R9,R10,R11,R12, 10k 0.06W, 5% Case 0603 Multicomp
R13
19 4
SP1,SP2,SP3,SP4,SP5, SP6,
SP7, SP8, SP9, SP10, SP11,
SP12
SolderPad
20 8 SW1,SW2,SW3,SW4,SW5,SW6, PUSH-BUTTON SMD, rectangular See DS ITT Canon
®
SW7,SW8

Appendix B: Bill of Materials
AT89STK-11 Hardware User Guide 4-14
7676B–8051–08/07
21 3 TP1,TP2,TP3 TEST POINT Through Hole Pad Hole 1.1mm Vero
22 1 U1 DF005S TO269AA Vishay
®
23 1 U2 LM317 SOT-223 National
®
25 1 U6 AT8xC51_PLCC44 Socket
25bis 1 U6 AT8xC51_PLCC44
26 2 U7,U8 SIPEX-SP3232ECA Ref=SP3232ECA SSOP16 Maxim
®
27 1 U9 74HC125/SO SOIC texas
28 1 Y1 CRYSTAL HC49 . .
28bis 2 Y1 CRYSTAL tulip . .
29 8 R100, R101, R102, R103, 4,7K 0.06W, 5% Case 0603 Multicomp
R104, R105, R106, R107
Item Q.ty Reference Part Tech. Caracteristics Package Manufacturer

AT89STK-11 Hardware User Guide 4-15
7676B–8051–08/07
Appendix C: Board Schematics

Appendix C: Board Schematics
AT89STK-11 Hardware User Guide 4-16
7676B–8051–08/07
Figure 4-2. AT89STK-11 Schematics (1 of 4)
P3.3/INT1P3.2/INT0
Vcc
Vcc
Vcc Vcc
Vcc
/EA
P3_2/INT0
/ALE
P3_3/INT1
Default State : Closed
R2 1K R2 1K
CD5
100n
CD5
100n
R3 820 R3 820
R8 10K R8 10K
Vin Vout
ADJ
U2 LM317EMP/SOT223 SOT223 U2 LM317EMP/SOT223 SOT223
R4 10K R4 10K
1
TP1 Vcc TPTP1 Vcc TP
D2 ALE D2 ALE
1
TP3TP3
1 2
J1 SIP2 SOCKET Alternate Power Supply J1 SIP2 SOCKET Alternate Power Supply
1
3
2
4
- +
U1 DF005S
- +
U1 DF005S 1
TP2 GND TP TP2 GND TP
SW3 INT1 SW3 INT1
SW2 INT0 SW2 INT0
CD3 100n CD3 100n
SP1SP1
R9 10K R9 10K
D1 Power D1 Power
R1 270 R1 270
R5 1K R5 1K
CD1
100n
CD1
100n
3 2 1
J2 CONNECTOR JACK PWR Power Supply J2 CONNECTOR JACK PWR Power Supply
C1 1µF C1 1µF

Appendix C: Board Schematics
4-17 AT89STK-11 Hardware User Guide
7676B–8051–08/07
Figure 4-3. AT89STK-11 Schematics (2 of 4)
Vss Vcc
Vcc
Vcc
Vcc Vcc
Vcc Vcc Vcc Vcc Vcc Vcc Vcc Vcc
Vcc Vcc Vcc Vcc
Vcc Vcc
Vcc
P1.1/T2EX/SS
P1.5/CEX2/MISO P1.7/CEX4/MOSI
P1.6/CEX3/SCK
P0_0 P0_2 P0_4 P0_6
P0_1 P0_3 P0_5 P0_7P2_6
P2_0 P2_2 P2_4
P2_1 P2_3 P2_5 P2_7
LED_0
LED_1
LED_2
LED_3
LED_4
LED_5
LED_6
LED_7
PB_0 PB_1 PB_2 PB_3
LED_6
LED_1 LED_3 LED_5 LED_7
LED_0 LED_2 LED_4
PB_2 PB_0 PB_1
PB_3
TWI_hard_scl TWI_hard_sda
OCD_Rx OCD_Tx /PSEN
RST
Port P0 Port P2
LEDs Buttons
OCD
TWI
C11 100nC11 100n
R19 1K R19 1K
R10 10k R10 10k
C5 100nC5 100n
D6D6
2 4 6 8 10
1 3 5 7 9
J5
HEADER 5X2
J5
HEADER 5X2
C6 100n C6 100n
2 4 6
1 3 5
J4
HEADER 3X2
J4
HEADER 3X2
R20 1K R20 1K
D3D3
C2 100n C2 100n
D7D7 D10D10
SW7SW7
R21 1K R21 1K
2 4 6 8 10
1 3 5 7 9
J10
HEADER 5X2
J10
HEADER 5X2
D5D5
R16 1K R16 1K
R15 1K R15 1K
2 4 6 8 10
1 3 5 7 9
J6
HEADER 5X2
J6
HEADER 5X2
R14 1K R14 1K
C9 100n C9 100n
R13 10k R13 10k
SW6SW6
C7 100n C7 100n
SW5SW5
1 2 3 4
J9 SIP4 J9 SIP4
C8 100n C8 100n
C10 100n C10 100n
D9D9
C4 100n C4 100n
D8D8
C3 100n C3 100n
C12 100n C12 100n
2 4 6
1 3 5
J8
HEADER 3X2
J8
HEADER 3X2
R11 10k R11 10k
R18 1K R18 1K
R17 1K R17 1K
SW4SW4
R12 10k R12 10k
1 2 3 4 5 6
J7
SPI Male
J7
SPI Male
D4D4

Appendix C: Board Schematics
AT89STK-11 Hardware User Guide 4-18
7676B–8051–08/07
Figure 4-4. AT89STK-11 Schematics (3 of 4)
XTAL2 XTAL1
VccVcc_cpu
Vcc_cpuVcc
Vcc
Vcc
P0_0 P0_1 P0_2 P0_3 P0_4 P0_5 P0_6 P0_7
P1.0/T2
P1.1/T2EX/SS
P1.2/ECI
P1.3/CEX0 P1.4/CEX1
P1.6/CEX3/SCK P1.7/CEX4/MOSI
P2_0 P2_1 P2_2 P2_3 P2_4 P2_5 P2_6 P2_7 P3_0/RxD P3_1/TxD P3_2/INT0 P3_3/INT1 P3_4 P3_5 P3_6 P3_7 /ALE /PSEN
/EA
RST
TWI_hard_sda TWI_hard_scl
P1.5/CEX2/MISO
OCD_Rx
OCD_Tx
XTAL1
XTAL2
P0_0 P0_1 P0_2 P0_3 P0_4 P0_5 P0_6 P0_7
TWI_hard_scl TWI_hard_sda
/EA
XTAL1 XTAL2
/ALE
P0_0 P0_1 P0_2 P0_3 P0_4 P0_5 P0_6 P0_7
OCD_Rx OCD_Tx RST
P1.0/T2
P1.1/T2EX/SS
P1.2/ECI P1.3/CEX0 P1.4/CEX1 P1.5/CEX2/MISO
P1.6/CEX3/SCK
P1.7/CEX4/MOSI /PSEN
P3_0/RxD
P3_1/TxD
P3_2/INT0 P3_3/INT1
P3_4 P3_5 P3_6 P3_7
PB_1 PB_0
PB_3
PB_2
LED_6
LED_1 LED_3 LED_5 LED_7
P2_0 P2_1 P2_2 P2_3 P2_4 P2_5 P2_6 P2_7
LED_0 LED_2 LED_4
Expansion Connector
R105 4.7KR105 4.7K R104 4.7KR104 4.7K
Y1Y1
R103 4.7KR103 4.7K
SP6SP6
RST
10
XTAL2
20 XTAL1 21
GND
22
PSEN 32
ALE/PROG 33
EA/VPP
35
VCC 44
P1.0
2
P1.1
3
P1.2
4
P1.3
5
P1.4
6
P1.5
7
P1.6
8
P1.7
9
P2.0/A8 24 P2.1/A9 25
P2.2/A10 26 P2.3/A11 27 P2.4/A12 28 P2.5/A13 29 P2.6/A14 30 P2.7/A15 31
P3.0/RXD 11
P3.1/TXD 13
P3.2/INT0 14 P3.3/INT1 15
P3.4/T0 16 P3.5/T1 17
P3.6/WR 18
P3.7/RD 19
P0.0/AD0
43
P0.1/AD1
42
P0.2/AD2
41
P0.3/AD3
40
P0.4/AD4
39
P0.5/AD5
38
P0.6/AD6
37
P0.7/AD7
36
Rx_OCD
1
RxD_1/SDA 12
TxD_1/SCL 34
Tx_OCD
23
U6 AT8xC51_PLCC44 U6 AT8xC51_PLCC44
R102 4.7KR102 4.7K
SP2SP2
R101 4.7KR101 4.7K
C13
100n
C13
100n
R100 4.7KR100 4.7K
SP12SP12
SP11SP11
CD6 100n CD6 100n
CD7 100n CD7 100n
C15 22pF C15 22pF
C14 22pF C14 22pF
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62
1 3 5 7 9
11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 45 47 49 51 53 55 57 59 61
J3
HEADER 31x2/SM
J3
HEADER 31x2/SM
SP8SP8
R107 4.7KR107 4.7K
SP10SP10
SP7SP7
R106 4.7KR106 4.7K
SP9SP9 SP5SP5

Appendix C: Board Schematics
4-19 AT89STK-11 Hardware User Guide
7676B–8051–08/07
Figure 4-5. AT89STK-11 Schematics (4 of 4)
DSR
Vcc
RTS Rx_PC CTS
CTS RTS
Tx_MCU
DTR
Tx_PC
Rx_MCU
Vcc
Vcc
Vcc
Vcc
Vcc
Vcc
Vcc
Vcc
P3_0/RxD
P3_1/TxD
/PSEN RST
"grain de café""grain de café"
Vcc
SP4SP4
C26 100n C26 100n
CD2 100n CD2 100n
C16 100n C16 100n
C23 100n C23 100n
SW1 RESET SW1 RESET
R22 1K R22 1K
2 3
14
1
7
U9A
74HC125/SO_5
U9A
74HC125/SO_5
SP3SP3
C21 100n C21 100n
1 2
J11
RTS
J11
RTS
R24 1K R24 1K
C22 100n C22 100n
SW8 ISP SW8 ISP R23 1K R23 1K
C18 100n C18 100n
C17 100n C17 100n
C25 100n C25 100n
5 6
14
4
7
U9B
74HC125/SO_5
U9B
74HC125/SO_5
1 2
J13J13
C20 100n C20 100n
C1+
1
C1-
3
C2+
4
C2-
5
VCC 16
GND
15
V+ 2
V- 6
R1OUT 12 R2OUT 9
T1IN 11 T2IN 10
R1IN
13
R2IN
8
T1OUT
14
T2OUT
7
U8
SIPEX-SP3232ECA
U8
SIPEX-SP3232ECA
1 2
J12
DTR
J12
DTR
D11 Green Led Rx LED D11 Green Led Rx LED
R6 10K R6 10K
C24 100n C24 100n
C1+
1
C1-
3
C2+
4
C2-
5
VCC 16
GND
15
V+ 2
V- 6
R1OUT 12 R2OUT 9
T1IN 11 T2IN 10
R1IN
13
R2IN
8
T1OUT
14
T2OUT
7
U7 SIPEX-SP3232ECA U7 SIPEX-SP3232ECA C19
100n C19 100n
5 9 4 8 3 7 2 6 1
P1 SUB-D9 FEMALE RS232 P1 SUB-D9 FEMALE RS232 D12
Green Led Tx LED D12 Green Led Tx LED
