ATMIZONE atmizoo tripod User manual

Tripod
user manual

This is the Tripod
English 2
The Tripod is Atmizone’s new approach to 22mm RTA design for single coil setups. It
offers an unparalleled vaping experience focusing on performance, versatility and
ergonomics. With its enhanced flavor and vapor production, potential for variable specs,
instant real time access to deck, instant top refill system, easy rebuilding and attention
to details, the Tripod is one step ahead of most RTAs out there.
- Air flow tuning via 4 pin options with air hole D=1.0mm/1.2mm/ 1.5mm/1.8mm
pinned inside a D=4.0mm nest or via an AFCS Ring adjusting from zero to D=4.0mm.
- M2.5mm pan head phillips post screws.
- Two parts screw-in custom Drip Tip / inner D=4.0mm, can also host any 510 drip tip.
- 10.0mm post-to-post space, ~6.6mm post-to-post net space, ~5.8mm coil space.
- Tank capacity 2ml.
- Max. net coiling height ~9.0mm (C & C Reducer out) / ~5.3mm (C & C Reducer in)
- Chimney top inner D ~5.2mm (C & C Reducer out) / ~3.0mm (C & C Reducer in)
- Height 510 excl., 39mm [Drip Tip off] / 47.0mm [Drip Tip on] / Weight ~56g
Features and specs
What’s in the box
- 1 x Tripod RTA (1 x Chamber & Chimney Reducer pre-installed)
- 1 x Set of spares (2 x Post Screws, 1 x O-ring Kit, 1 x Tank Body, 1 x AF Pins Kit)
- 1 x Set of User Guide / Warranty Card

The parts of the Tripod
English 3
Drip Tip
Tank Body
Chamber
& Chimney
Reducer
Air Flow
Pins Kit
Pos. Post
Tube
Pos. Post
AFCS Ring
Pole
Insulator Pole
O-Ring 18x1
NBR Black
Custom Gasket
SIL70 Black
O-Ring 12.5x1.5
SIL70 Clear
O-Rings
14x1
NBR Black
Top Cap
Seal
Chimney
Post
Screws
Positive
Post Insulator Deck
(Neg. Post)
Base
O-Rings
2x1
SIL70 Red
Custom
Gasket
SIL70
Clear
O-Ring
6x1.5
SIL70 Clear
O-Ring
16x1
NBR Black
Materials List
- SS316 foodgrade metal
parts
- PEEK Thermoplastic
Insulators
- POM (Acetal) Drip Tip
- SS304 Post Screws
- Borosilicate Glass Tank

Vaping on the Tripod
Unlock the tank section and pull up to reveal
the deck.
To do this, rotate tank section on Base
- Deck assemby (preferably clockwise), until
you align the triangle that is engraved on
chimney with the triangle engraved on Deck
side. Deck triangle lies right where the liquid
slots are, just need to rotate in order to find it.
Hold tank section firmly and pull up, making
sure the triangles are still aligned.
When removing a full tank to access
deck, do the above after turning upside down.
The C&C R. is pre-installed. This creates
a vaporization chamber with lower volume
and a chimney with 3.0mm inner D, focusing
on flavour oriented setups rather than vapour
production. If you need it inside, skip this step.
Time to decide if you are vaping with the
Chamber & Chimney Reducer installed or not.
The C&C R. parts are sandwiching the
top Chimney part. To remove them 1. Consult
step 6 to remove top cap, 2. Unscrew the top
C&C part with a fitting flathead screw driver,
holding the bottom C&C part still with your
fingers (2a). Reverse to re-assemble (2b).
English 4

Vaping on the Tripod

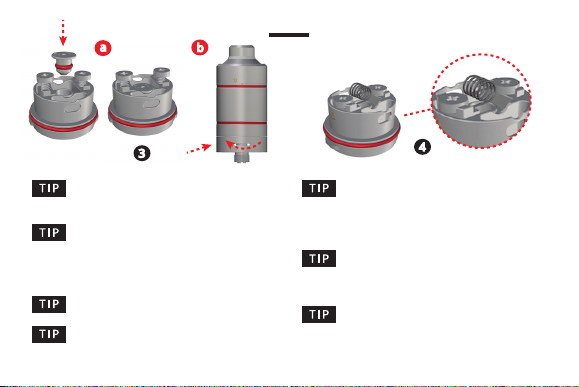

Air flow Pins and Ring.
You can regulate air flow in two ways.
1.pin the air flow pin of your choice inside its
Pos Post Tube nest or 2. adjust the AFC Ring
Add a bit of juice around the pin o-ring.
To insert the air flow pin, you need to unscrew
a few turns of both the Post Screws. This will
allow free space for the pin to pass through,
way in or out (3a).
Adjust the AFC Ring from zero to a fully
open D=4mm (3b).
Coiling! Fasten your coil down on the posts.
The two small, half circle cut outs on
the rims of the Deck are there for you to align
the coil properly. They also allow some extra
space if you need to lower your setup right
above the air hole.
Better orient the legs of the coil
downside. This will allow a. the cotton to cover
the legs and b. to position the coil closer to air
flow.
On to wicking. Use the desired cotton
quantity, trim and place cotton edges inside
the juice well. Amount of cotton depends on
your vaping profile.
English 5
AFC Ring has a stop point. This helps to
fully screw or unscrew Tripod on a 510 thread.

Vaping on the Tripod
About your mouth piece.
You may use either the custom Drip Tip
that comes pre-installed or replace it with any
510 type drip tip of your choice.
The pre-installed Drip Tip is a two -
parts assembly. The two parts are sandwich-
ing the Top Cap for extra stability. To remove
them, unscrew the top Tip part with your
fingers, holding the bottom part still (2a). Push
bottom Tip part down with the help of the
unscrewed top part (2b). This will also pop the
custom SIL gasket off its Top Cap nesting
groove, so gently put it back in place.
Refilling the Tripod.
Always shut off liquid intake slots
before refilling. To do this, rotate tank section
on Base until side slots of Chimney are quite
far from deck liquid slots right beneath.
English 6
To refill, rotate Top Cap on Seal, until
you align the triangle that is engraved on Top
Cap side with the dot engraved on Seal rim.
Then pull up gently. Refill through the Seal
slots and reverse the above steps to assemble
back for use. Always prefer to operate Top
Cap clockwise, either to remove or to replace,
to avoid accidental unscrewing of tank section
assembly.

Safety
If the product is used with nicotine containing
replacement liquid. The replacement fluid is not
intended for ingestion. Do not allow the liquid to
come into contact with the skin. Keep your
appliance in accordance with good hygiene
practices. Get medical help immediately if you
experience nausea or vomiting while using your
electronic cigarette. The electronic cigarette refill
fluids should not be mixed with any other liquids
or substances. Do not use the electronic cigarette
device when driving. To avoid possible overdose
of nicotine, electronic cigarette should not be
used concurrently with other sources of nicotine
(traditional cigarettes, cigars, pipe, patches, nasal
sprays, etc.). The liquid should not be released
into the environment and should not be
discharged into drains.
7English
Precautions
- Please read the user manual and warnings carefully before
first use.
– Keep the Tripod dry from water.
– Make sure the parts of the Tripod are safely and steadily
assembled to each other.
– Only use this device for vaporisation of e-liquid from trusted
sources.
– Only use the Tripod with 510 type battery holders.
– The Tripod can be damaged when used at very high voltages
or without e-liquid.
– The Tripod should only be used for rebuilding only with
materials and tools that are made for this purpose.
– Your built should be renewed periodically.
- The Tripod should be cleaned periodically with mild, non
abrasive substances.
- Don’t use the device with AFC Ring adjustment fully closed
(off).
- Don’t use the device if defective or deformed in whole or in
part.
Storage
Store away from high temperature or low temperature, away
from direct sun and high humidity. Store in dry place. Store
away from children.
Electronic cigarette is intended
for use by adults only. Using an
electronic cigarette without
medical consent is not
recommended for non-smokers
and nonadults.
Warnings

attack or stroke, hyperthyroidism, diabetes,
inflammation of the esophagus (tube between mouth
and stomach), inflammation of the stomach
(gastritis), stomach ulcer, duodenal ulcer, skin
problems, long-term throat problems, difficulty in
breathing due to bronchitis, emphysema or asthma,
pregnancy and breastfeeding.
Unwanted actions
If the product is used with nicotine-containing
replacement liquid.
Systemic symptoms that can be observed when using
nicotine replenishment fluids: nausea and vomiting,
sleep disturbances, headache, chest pain due to
nicotine toxicity. Mild to moderate toxicity:
Gastrointestinal disorder, nausea, vomiting,
dizziness, headache, tremor, sweating, irregular
heartbeat or tachycardia, paleness, and hypertension
are common symptoms. Severe toxicity: Seizures,
dizziness, weakness, bradycardia, hypotension and
respiratory or muscular paralysis may occur.
Symptoms may typically occur within 30 minutes to 2
hours after an oral report. Symptoms may be
immediate after inhalation of nicotine. Nicotine is an
extremely addictive substance. 8English
Risk group warnings
If the product is used with nicotine containing
replacement liquid - Do not inhale the vapor produced if
you are allergic to nicotine or any of its components. If you
have any health problems or if any nuisance occurs when
using an electronic cigarette, consult a doctor. Smoking
and use of an electronic cigarette is not recommended
during pregnancy or breast-feeding. Using the electronic
cigarette from an early age can cause serious damage to
health. Nicotine can be very dangerous and sometimes
fatal if used or swallowed by young children. Consult a
doctor before using during pregnancy.
Contraindications
If the product is used with nicotine - containing
replacement liquid.
It is not recommended for use in individuals who are
hypersensitive to nicotine or constituents, pregnancy,
lactation, cardiovascular insufficiency.
Nicotine should be used with caution by people
diagnosed with: moderate to severe liver disease, severe
kidney disease, heart disease including angina pectoris,
heart failure, very high blood pressure, problems with
heart rate or pulse, who have suffered a recent heart
Warnings

9English
