Atomic Aquatics TFX User manual

1
OWNERS MANUAL "The most
comfortable
breathing
experience on
every level"
Titanium
Front
Exhaust

32 ©2023 ATOMIC AQUATICS, INC.
Introduction ........................................................................................................................... 3
Nitrox Use - All Models ......................................................................................................... 4
Cold Water Use / DIN ............................................................................................................ 6
Innovative Product Features
First Stages ........................................................................................................................... 9
Second Stages.................................................................................................................... 12
System Set-Up.................................................................................................................... 18
Operation ............................................................................................................................ 20
Flexible Purge Cover............................................................................................................ 20
Rapid Adjustment Knob....................................................................................................... 21
Post Dive Care .................................................................................................................... 22
Required Service ................................................................................................................. 23
Limited Lifetime Warranty..................................................................................................... 25
TABLE OF CONTENTS THANK YOU...
for choosing Atomic Aquatics. You now own one of the nest regulators available. Since we
introduced the world’s rst line of Titanium diving regulators in 1997, we have continued our
dedication to designing and manufacturing only the nest diving products crafted from the most
durable, high-performance materials.
REGISTER YOUR REG
Your regulator has a limited LIFETIME WARRANTY. Registration enables you to obtain warranty
service and helps us contact you with safety notices, service updates, or changes regarding your
regulator. For your convenience, you can register online at www.atomicaquatics.com.
LET’S GO DIVING
Before you dive, please read this manual. It shows you the features and controls you need to know
for a great dive. Keep it for future reference about maintenance, service and warranty.

5
NITROX USE
4
IMPORTANT SAFETY INFORMATION PLEASE READ CAREFULLY
WARNING
This regulator is intended to be used only by those competent, trained and certied by
a nationally recognized SCUBA training agency. This manual is not a substitute for such
training. Diving without such training is extremely hazardous and could result in serious
personal injury or death.
NITROX (EAN) USE
Our regulators have been independently lab tested to meet the stringent ASTM G-175 requirements
for positive ignition testing. Each Atomic Aquatics reg model has been tested and passed the
ASTM G-175 requirement before we certify it as SAFE for EAN. Note: The TFX regulator may
be used interchangeably with air or EAN mixes of up to 40% oxygen concentration at 3500 psi
maximum. They need not be dedicated for EAN use, provided that they are used with air or EAN
mixtures that meet minimum dive industry purity standards.
WARNING
NITROX (EAN) USE — ALL MODELS
IMPORTANT NOTICE - READ BEFORE YOU USE THIS REGULATOR
These regulators have been assembled, cleaned and made compatible for enriched air
Nitrox (EAN) to a maximum 40% oxygen concentration at a maximum pressure of 3500
psi. They do not require additional cleaning or servicing.
If the regulator becomes grossly contaminated with dirt, oils, or greases from any source,
have the regulator re-cleaned before using it again with EAN. Do not use silicone or
hydrocarbon greases in or around regulators being used for EAN Nitrox or oxygen mixes.
Do not under any circumstances use these regulators with pure oxygen or any gas
mixture exceeding 40% oxygen. Failure to comply with the above warnings could cause
serious personal injury or death from re or explosion.

76
WARNING
COLD WATER USE
For diving in extreme cold waters below 50°F (10°C), we recommend having the rst
stage sealed with the installation of the optional anti-freeze kit (standard in TFX,T3, T2x,
ST1 & M1). This is a rubber sleeve that ts over the ambient chamber ports of the rst
stage to prevent icing of the rst stage. This is a factory or dealer installed item, as it
requires special tools and disassembly of the rst stage for lling of the chamber with a
special low temperature lubricant.

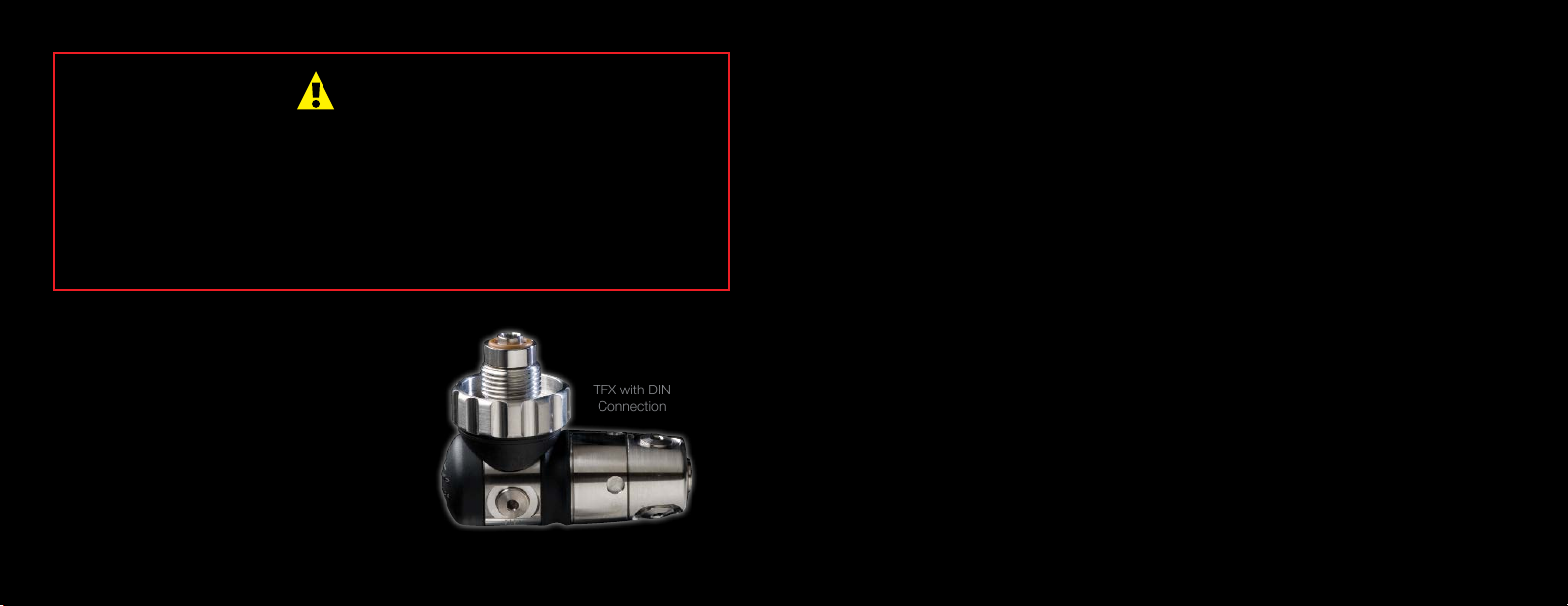

DIN CONNECTIONS
For use with cylinders having DIN style
valves (typically at pressures above 3000 psi),
a 300 BAR DIN connection is available.
It replaces the yoke connection and can
be ordered as standard from the factory or
as an option installed by the dealer.
TFX with DIN
Connection
You now own one of the nest and most unique regulators available. . . regardless of price. The TFX
forges a new Titanium standard as our signature regulator, providing you unprecedented reliability
and performance.
The TFX name refers to Titanium Front Exhaust. This diers from conventional second stages
which are congured with an exhalation diaphragm in the front and an exhaust valve in the rear.
The placement of the inhalation diaphragm and exhaust valve centered in the front of the regulator
oers some unique advantages for improved breathing and dryness.
The front exhaust in not a new concept. Developed over 40 years ago, we have taken a fresh look
at this unconventional design to bring you the ultimate "connoisseurs" breathing regulator with a
natural and sophisticated air delivery. The TFX includes many of the iconic features and specialty
materials found in all Atomic Aquatics regulators.
ATOMIC AQUATICS TFX

98
FRONT EXHAUST CONCEPT:
Showing frontal exhaust valve and bubble routing. (Front Cover Removed)
PRODUCT FEATURES
First Stage for TFX
Compact Size: Small size, high performance, high ow rst stage.
Balanced: Flow through piston design.
Freeze protection kit: Ambient chamber seal kit reduces the possibility of freezing at low
temperatures and prevents silt, sand, or contaminants from entering ambient chamber.
Enriched air compatible: Nitrox ready from the factory to 40% maximum oxygen concentration at
NON-dedicated at 3500 psi maximum pressure.
3 year or 300 dive service interval: Jet seat piston system for low maintenance and corrosion
resistant materials throughout.
Two high pressure ports and ve low pressure swivel ports: Allows virtually any hose orientation.
INNOVATIVE PRODUCT FEATURES
INNOVATIVE PRODUCT FEATURES
CONCEPT SHOWING
FRONTAL EXHAUST
VALVE AND
BUBBLE ROUTING.
(FRONT COVER REMOVED)

1110

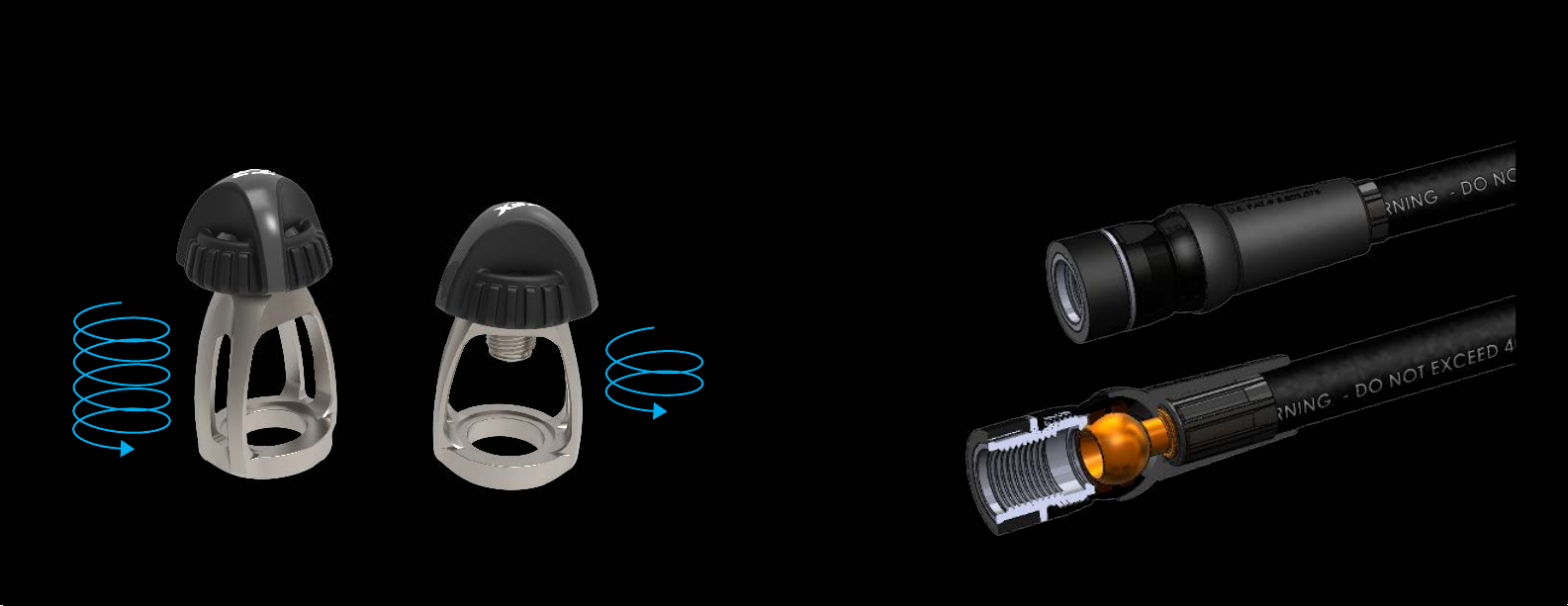

YOKE VERSION WITH UNIQUE 4x YOKE KNOB:
This new type of yoke knob has a special thread that moves in or out 4 times the
distance of conventional yokes with each turn for quick, easy setup.
TFX INCLUDES:
Patented All-Titanium comfort swivel with Black and Gold Zirconium PVD coatings.
ONE TURN OF THE 4xYOKE MOVES IT 4 TIMES THE DISTANCE OF A STANDARD SCREW
NEW 4x
YOKE SCREW
STANDARD
YOKE SCREW

1312
INNOVATIVE PRODUCT FEATURES

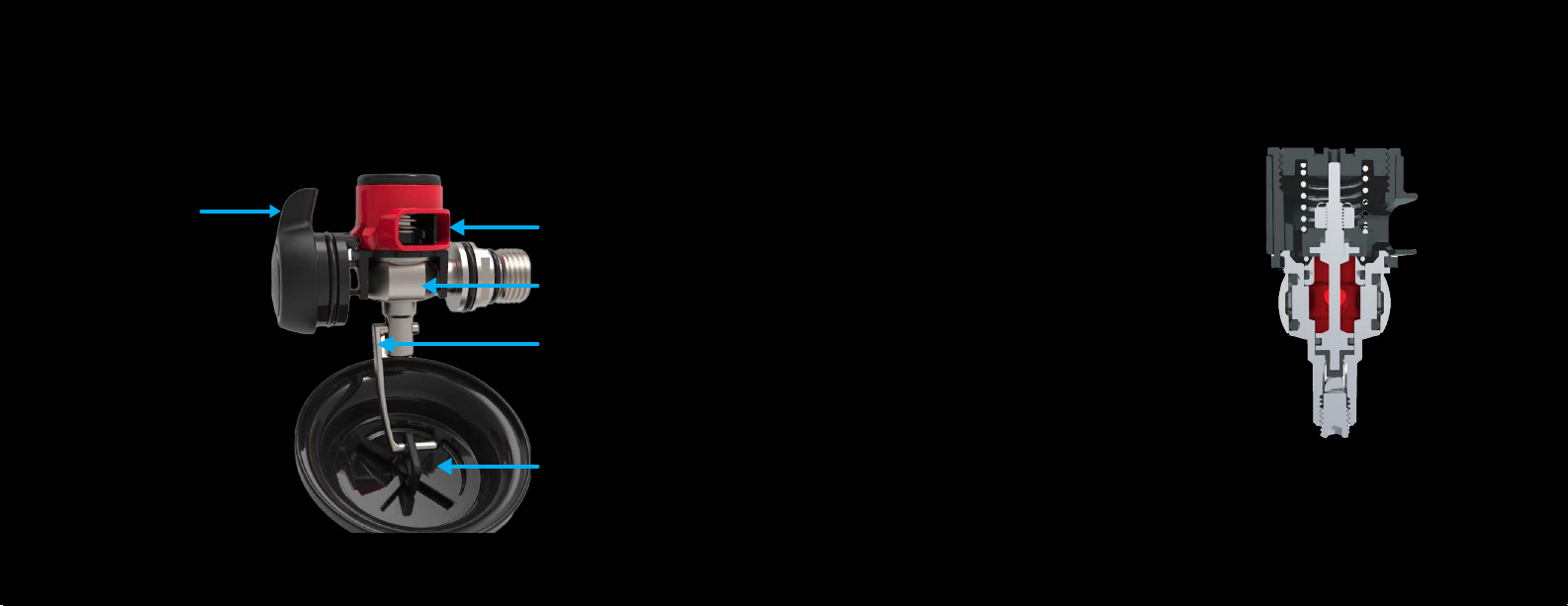

VIEW OF
INTERNAL
COMPONENTS
ADJUSTABLE VENTURI
NOZZLE WITH GEAR DRIVE
RAPID ADJUSTMENT
VENTURI CONTROL
TITANIUM DEMAND VALVE
LEVER WITH VARIABLE
LIFT CAM
COAXIAL EXHAUST VALVE IN
CENTER OF DIAPHRAGM FOR
360O BREATHING EFFECT
TITANIUM DEMAND VALVE:
Performance is always at its peak because
the vital internal components will never rust
corrode. They also make for one of the
lightest second stages available.
RAPID ADJUSTMENT KNOB:
Quarter turn venturi controls rotates the
venturi nozzle and allows quick detuning
for surf entries, octopus use or other
special situations.
COAXIAL EXHAUST VALVE:
The coaxial inhalation diaphragm and
exhaust valve minimizes the inhalation
variation in dierent breathing attitudes,
enhances water exhalation and
improves dryness.

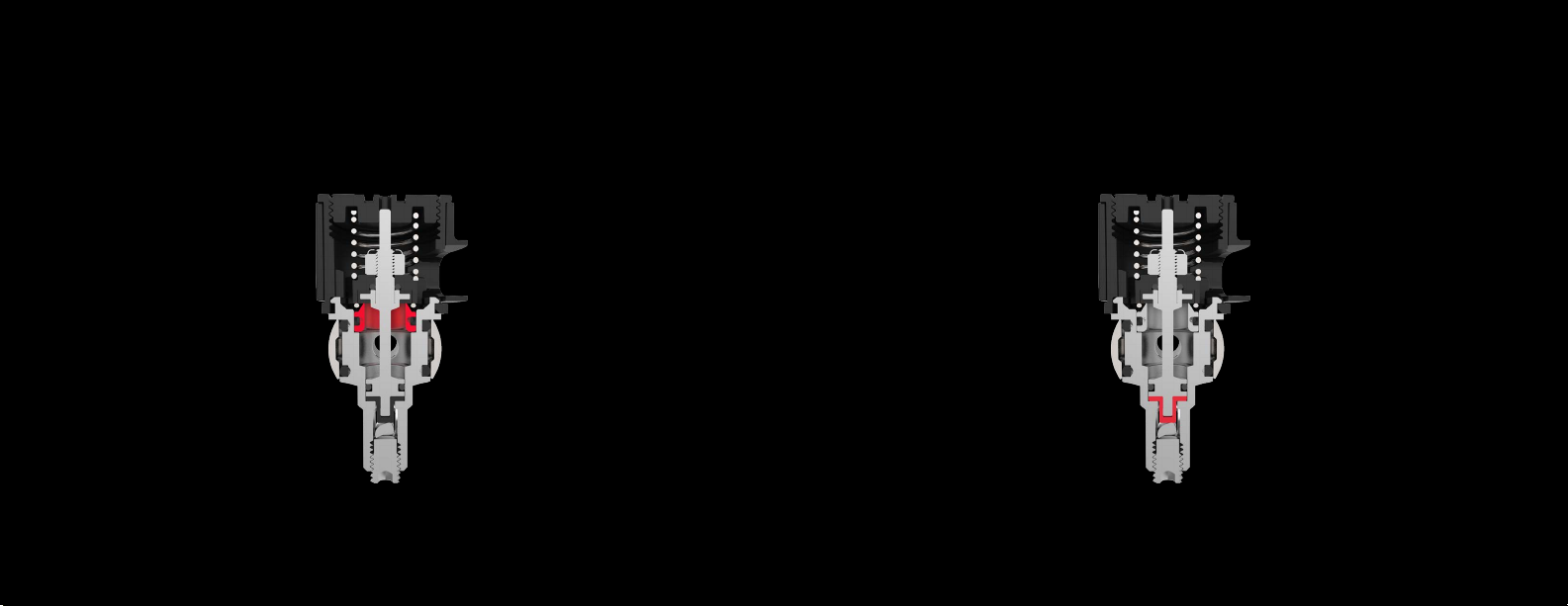

BALANCED POPPET:
Aerodynamic, pneumatically balanced
poppet provides enhanced airow and
easy breathing, regardless of tank
pressures.
SECOND STAGE
BALANCED POPPET

1514

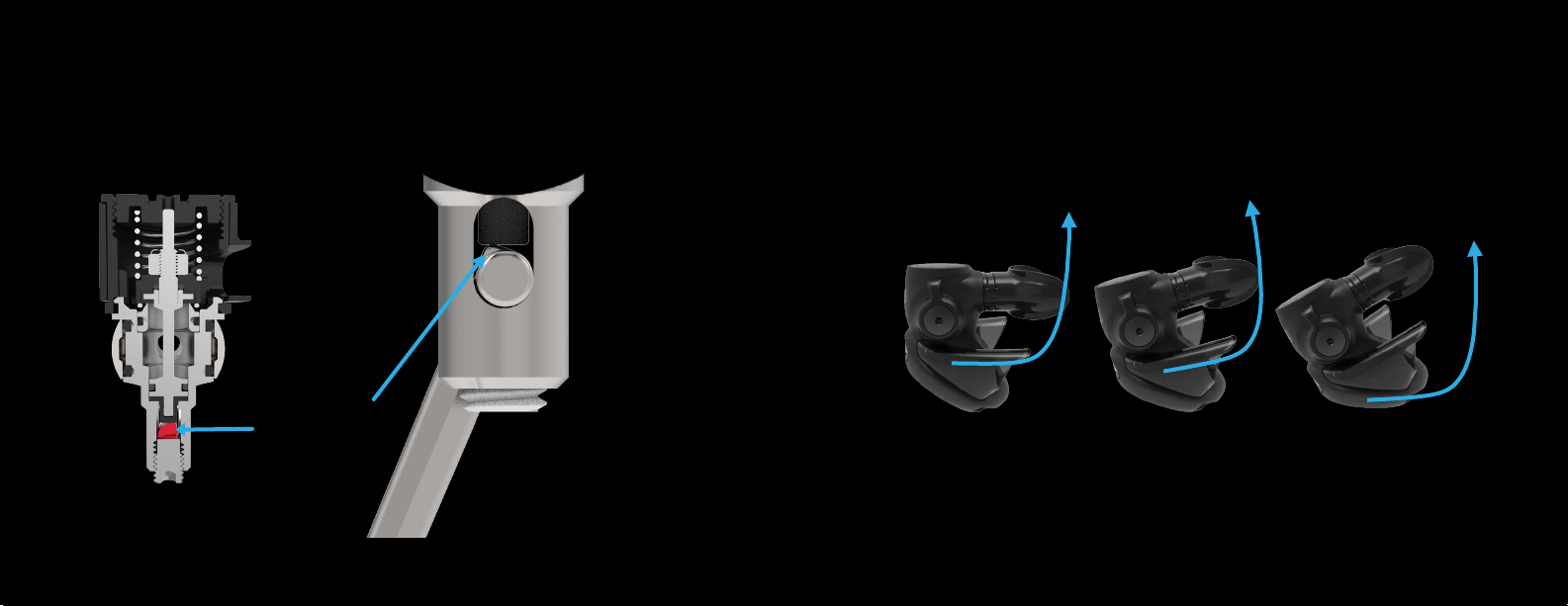

SEAT SAVING ORIFICE:
This new orice design dramatically prolongs the life of the rubber seat. Seat wear is the number one
cause of regulator leaks and performance degradation over time. The rst and only adjustable dynamic
orice is pressure energized and only contacts the rubber seat when the regulator is being used. The
orice is constructed of corrosion-free titanium.
LOW FRICTION BEARING SURFACES:
The demand valve is tipped with low friction cap that provides smooth, silky inhalation, even after
millions of cycles due to this proprietary reinforced polymer insert at the pivot point of the lever.
LOW FRICTION CAP
CAM SURFACE
SEAT SAVING
ORIFICE

1716
VARIABLE LIFT CAM:
The demand valve lever incorporates a computer designed cam that increases lift at high demands to
provide high ow yet maintain low inhalation eorts.
EXTENDED SILICONE EXHAUST TEE FOR MANAGEMENT OF BUBBLES:
Soft extensions on the exhaust tee divert the bubbles to the sides of the mask and out of your vision.
FLEXIBLE SILICONE EXHAUST DEFLECTORS
VARIABLE LIFT
CAM

1918
HOSES:
Your regulator was function tested and is ready for use from the factory. You will need to install
your high pressure gauge, instruments and low pressure accessories such as inators. If you are in
doubt on how to do this, see your Atomic Aquatics professional retailer for assistance.
LOW PRESSURE HOSES: (LP thread size 3/8"-24)
Your regulator has either 5 low-pressure (LP) ports on the swivel end of the rst stage
(T3, T2x, ST1, M1, B2) or 7 low pressure ports (Z2/Z3) in a xed orientation. Choose the ports
that give you the best orientation for your particular set-up. The LP port plugs can be removed by
unscrewing with a 5/32" (4mm) hex wrench. Install the LP hoses into the port and snug up with a
wrench. Do not overtighten as this will not improve the seal and may damage the threads.

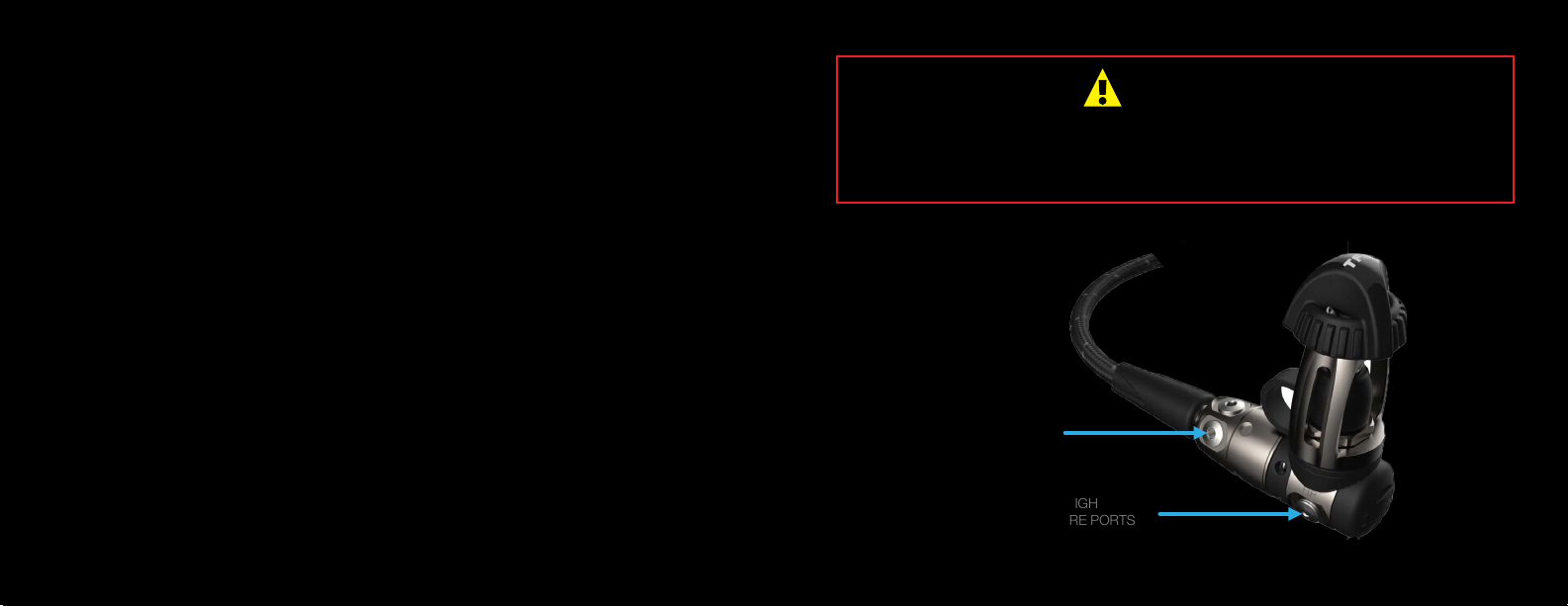

HIGH PRESSURE HOSES: (HP thread size 7/16"-20)
Your regulator has 2 high pressure ports (marked HP) on either side of the body. The HP ports and
plugs are larger in size than the LP plugs. Remove the plugs with the same hex wrench and install
the high pressure gauge hose into the high pressure port and snug it with a wrench.
SYSTEM SET-UP
CAUTION
Do not assemble any low pressure hoses to the HP port of the rst stage. The hose
could rupture and could cause serious personal injury. Do not assemble the high
pressure gauge to the low pressure port or the gauge will not indicate tank pressure.
2 HIGH
PRESSURE PORTS
5 LOW PRESSURE PORTS
ON FIRST STAGE SWIVEL

2120
OPERATION:
This front cover has a soft exible frontal surface that is easy to depress to purge. The closed frontal
surface reduces the chance of free ow that might occur if in a strong current, such as might be
encountered in caves or open water. The ambient water ports of the second stage are directed to the
sides, where a frontal current will not upset the regulator diaphragm.
RAPID ADJUSTMENT VENTURI CONTROL:
The quarter-turn manual override adjustment allows quick detuning for surf entries, jumping o a boat,
octopus use or other special situations. The knob rotates the Venturi nozzle towards or away from
the mouthpiece opening. Pushing it forward results in maximum ow during diving; pulling rearwards
reduces sensitivity and chances of free owing. Note that this control reduces overall ow yet does not
change the inhalation eort or make it harder to breathe.
SOFT VENTURI
CONTROL GRIP
SOFT FLEXIBLE
PURGE COVER
MINIMUM
FLOW
MAXIMUM
FLOW

2322
CAUTION
DO’S AND DON’TS:
Do set up your equipment carefully before each dive and check your entire system for signs
of damage, loose hose ttings, and air leaks. Make sure the yoke knob or DIN connection is
hand tight before turning on your air supply. Purge the regulator and take a test breath before
entering the water.
Do not use your regulator if you notice any problems or malfunctions. Return it to the factory
or authorized dealer to have it checked or repaired.
Do not pick up your tank by the hoses. You may damage them or work loose a connection
that could lead to loss of air.
POST DIVE CARE:
A simple fresh water rinse after every dive to clean the regulator of salt, sand or dirt is all that is
required. Do not rinse or soak the regulator in solutions containing bleach as this can permanently
damage the silicone rubber components. Dry or blow o any water in the rst stage dust cap and
t it in place. Rinse through the ambient ports of the rst stage (unless tted with an anti-freeze kit)
and through the mouthpiece of the second stage. Rinsing is particularly important with the chrome
plated brass rst stages (M1, B2, Z2/Z3) to maintain it in top condition and keep the chrome
looking attractive. Avoid soaking the regulator unpressurized, as water may enter the second stage
and rst stage mechanism. If the second stage is purged when it is rinsed or soaked, it is a good
idea to re-connect the regulator to a tank and blow out any water that may have entered the rst or
second stage.
Store the regulator away from direct sunlight to prevent fading and deterioration of the rubber and
plastic parts. Keep away from excessive heat, humidity or insects.
REQUIRED SERVICE
The major service interval for the Atomic Aquatics regulators is once every three years or 300
dives*.
We recommend that you take your regulator to an authorized Atomic Aquatics dealer annually for
a safety inspection. At this time, they will inspect and check for proper operation, and advise if a
major service is required. The major service will include replacement of all seals, seats and o-rings.
The labor charges for this service will vary with the individual dealer. Parts replacement will be in
accordance to the terms of the limited lifetime warranty in this manual.
*TFX,T3: 3 years or 300 dives.
POST DIVE CARE / REQUIRED SERVICE

2524
WEIGHTS:
System Weight (with yoke) 838 grams (1.80 lb) (0.816 kg)
System Weight (with DIN) 778 grams (1.71 lb) (0.775 kg)
Second Stage only with hose 385 grams (0.85 lb) (0.385 kg)
Service Interval 3 Years or 300 Dives.
PERFORMANCE:
Exceeds requirement for European EN250 (1.5 joules/liter @ 50 meters) and USN group A (0.14
kg.m/liter @ 200 feet at 62.5 RMV)
TFX LIMITED LIFETIME WARRANTY
(U.S.A.)
Atomic Aquatics warrants this TFX regulator against defects in materials and workmanship for the
lifetime of the original owner with the exception of mouthpieces, hoses, o-rings, lters, or valve
seats, which are warranted for Three years. Atomic Aquatics will at its option repair or replace any
components it nds defective.
IMPORTANT NOTE:
This warranty covers new regulators purchased from an authorized Atomic Aquatics reseller.
To activate this warranty you must complete and return the warranty registration card, or online
warranty registration is available at www.atomicaquatics.com.
It is IMPORTANT to register your regulator within 30 days of purchase in the event of we would
need to contact you for special safety notices, upgrades, or service bulletins in the future.
All titanium components are warranted for the lifetime of the original owner against the eects
of corrosion. Chromed or plated brass components are subject to corrosion and require as a
minimum reasonable maintenance fresh water rinsing after use in salt water and proper storage as
described in this manual.
This warranty is not contingent upon proof of service and will maintain in eect for the lifetime of the
original owner. It is recommended however that maintenance include an annual safety inspection to
be performed by an authorized Atomic Aquatics dealer or by the factory.
WARRANTY REGISTRATION / NITROX

2726
Factory or authorized dealer servicing is required at intervals of 300 dive hours or 3 years,
whichever occurs rst. This service will include disassembly, cleaning, replacement and lubrication
of all o-rings and seals, and safety check.
To obtain warranty service, you must deliver the regulator to Atomic Aquatics or one of its
authorized repair facilities. If you send the regulator to the factory, you must pay the shipping
charges to the factory. If the regulator is returned to the factory and it is determined that the
problem is due to material or manufacturing defect, there will be no charge for parts, labor or return
shipping within the continental USA.
This warranty does not cover damage or defects due to neglect, misuse, alteration, or attempted
repairs by someone other than an authorized dealer.
Atomic Aquatics shall not be liable for loss of use of this product or incidental or consequential
costs or damages incurred with the use of this regulator. Some states do not allow this exclusion so
the above may not apply to you.
This warranty gives you specic legal rights and you may have other rights which vary from state to
state.
MANUFACTURER
Huish Outdoors 1540 N 2200 W
Salt Lake City, UT 84116 – USA
HUISH OUTDOORS AUTHORIZED EUROPEAN MARKET REPRESENTATIVE:
Huish Outdoors LLC (BARE Sports)
Factory BLB019C, Bulebel Ind Estate
Zejtun, ZTN 3000 Malta

2928
All products sold by Huish Outdoors in the EU meet the following requirements EN ISO
12209:2013: This regulator’s thread and yoke connection conforms to ISO 12209:2013. Maximum
working pressure:300 bar (4351 PSI).
EN12021: This standard species the allowable contaminates and component gases that make up
compressed air. This standard is the equivalent of the USA Compressed Gas Association’s Grade
E air. Both standards allow very small amounts of contaminants that are not harmful to breathe, but
can cause a problem if present in systems using gases with a high percentage of oxygen.
Declaration of Conformity – www.huishoutdoors.com/eu-declarations/
Toll Free: [phone]
www.atomicaquatics.com
MADE IN THE U.S.A.
