Customer Service
Guide
BullSequana Edge
86 A1 93FR 01 - September 2019

The following copyright notice protects this book under Copyright laws which prohibit such actions
as, but not limited to, copying, distributing, modifying, and making derivative works.
Copyright ©Bull SAS 2019
Printed in France
Trademarks and Acknowledgements
We acknowledge the right of proprietors of trademarks mentioned in this manual.
All brand names and software and hardware product names are subject to trademark and/or
patent protection.
Quoting of brand and product names is for information purposes only and does not represent
trademark and/or patent misuse.
Bull Cedoc
357 avenue Patton
BP 20845
49008 Angers Cedex 01
FRANCE
September 2019
Hardware
The information in this document is subject to change without notice. Bull will not be liable for errors contained
herein, or for incidental or consequential damages in connection with the use of this material.

Contents i
Table of Contents
Preface p‐1...............................................................................
Intended Readers p‐1.................................................................
Chapter 1. Servicing a fan 1-1.......................................................
1.1. Removing a fan 1-2........................................................
1.2. Installing a fan 1-7........................................................
Chapter 2. Servicing a processor air duct 2-1.......................................
2.1. Removing a processor air duct 2-2.........................................
2.2. Installing a processor air duct 2-7..........................................
Chapter 3. Servicing a memory module 3-1........................................
3.1. Removing a memory module 3-2...........................................
3.2. Installing a memory module 3-9...........................................
Chapter 4. Servicing a Graphic Processing Unit (GPU) 4-1.........................
4.1. Removing a GPU 4-2.......................................................
4.2. Installing a GPU 4-8.......................................................
Chapter 5. Servicing a 2.5" disk 5-1.................................................
5.1. Removing a 2.5" disk 5-2..................................................
5.2. Installing a 2.5" disk 5-9...................................................
Chapter 6. Servicing a 3.5” disk 6-1.................................................
6.1. Removing a 3.5" disk 6-2..................................................
6.2. Installing a 3.5" disk 6-9...................................................

p‐1
Preface
Preface
This guide explains how to replace the Customer Replaceable Units (CRU).
See The Bull support web site for the most uptodate product information,
documentation, firmware updates, software fixes and service offers:
http://support.bull.com
Important ATTENTION: Please read carefully the safety instructions
before you perform the procedures described in this
manual.
ATTENTION : Merci de lire attentivement les consignes de
sécurité avant d'effectuer les procédures décrites dans ce
manuel.
ACHTUNG : Bitte lesen Sie sorgfältig die angegebenen
Sicherheitshinweise, bevor Sie die Verfahren in diesem
Handbuch beschrieben durchführen.
Multilingual Safety Notices Guide, 86 X1 12FL
Intended Readers
This guide is intended for use by Administrators and Operators.

Chapter 1. Servicing a fan 1-1
Chapter 1. Servicing a fan
Important ATTENTION: Please read carefully the safety instructions
before you perform the procedures described in this
manual.
ATTENTION : Merci de lire attentivement les consignes de
sécurité avant d'effectuer les procédures décrites dans ce
manuel.
ACHTUNG : Bitte lesen Sie sorgfältig die angegebenen
Sicherheitshinweise, bevor Sie die Verfahren in diesem
Handbuch beschrieben durchführen.
Multilingual Safety Notices Guide, 86 X1 12FL
C004 CAUTION
C004:
Static electricity can damage the server and other electronic devices. To
avoid damage, keep static-sensitive devices in their static-protective
packages until you are ready to install them.
To reduce the possibility of damage from electrostatic discharge,
observe the following precautions:
Limit your movement. Movement can cause static electricity to build up
around you.
Wear an electrostatic-discharge wrist strap.
Handle the device carefully, holding it by its edges or its frame.
Do not touch solder joints, pins, or exposed circuitry.
Do not leave the device where others can handle and damage it.
While the device is still in its static-protective package, touch it to an
unpainted metal surface on the outside of the server for at least 2
seconds. This drains static electricity from the package and from your
body.
Remove the device from its package and install it directly into the
server without setting down the device. If it is necessary to set down
the device, put it back into its static-protective package. Do not place
the device on the server cover or on a metal surface.
Take additional care when you handle devices during cold weather.
Heating reduces indoor humidity and increases static electricity.
See BullSequana Edge Description Guide, 86 A1 65FR to locate the fan.

1-2 Customer Service Guide
1.1. Removing a fan
Required Tools
None
Procedure
1. Unpack the new component on a clean ESD-protected work surface

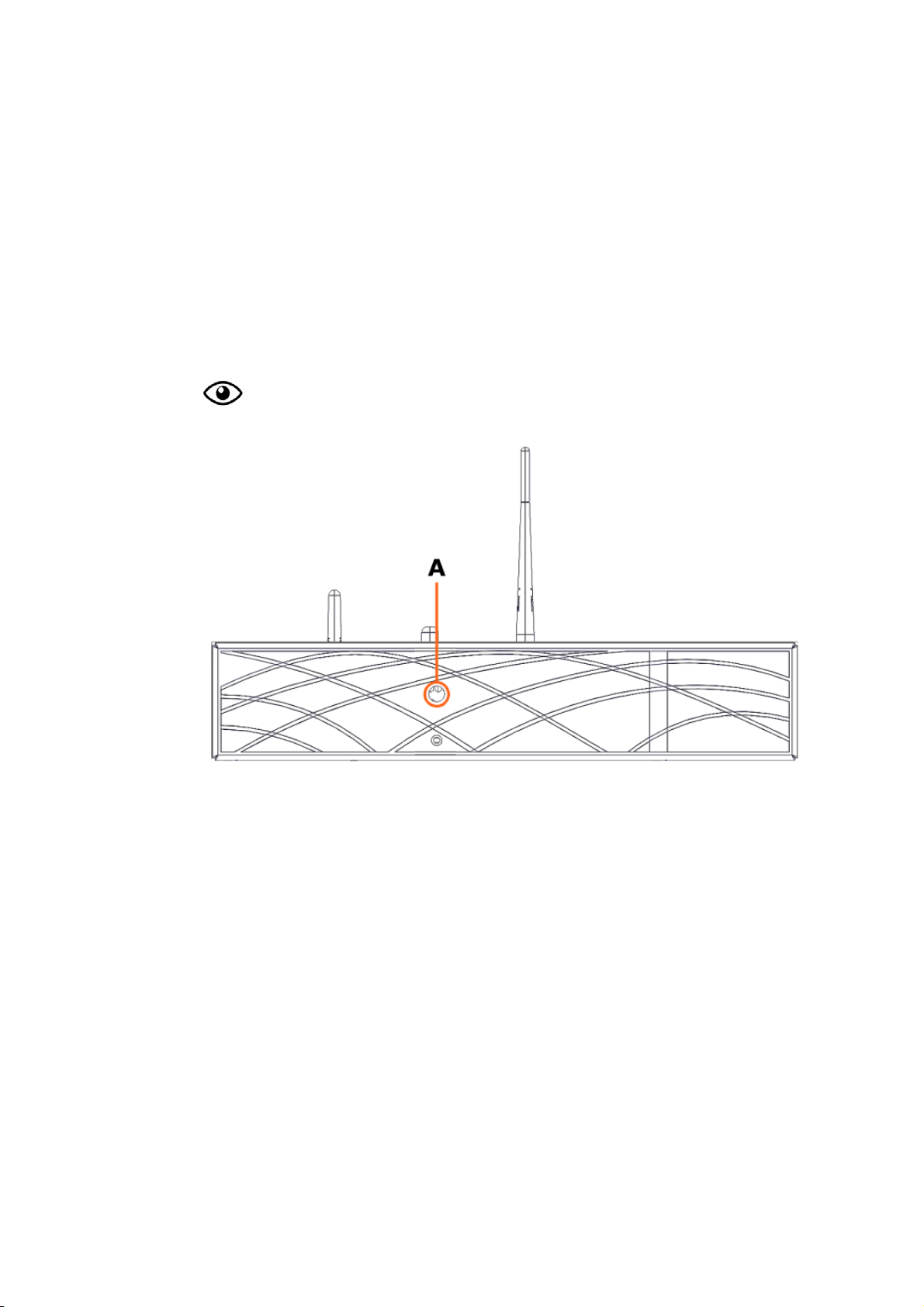

2. Power off the server
Push the power On/Off button (A) to power off the server.
Front view

Chapter 1. Servicing a fan 1-3

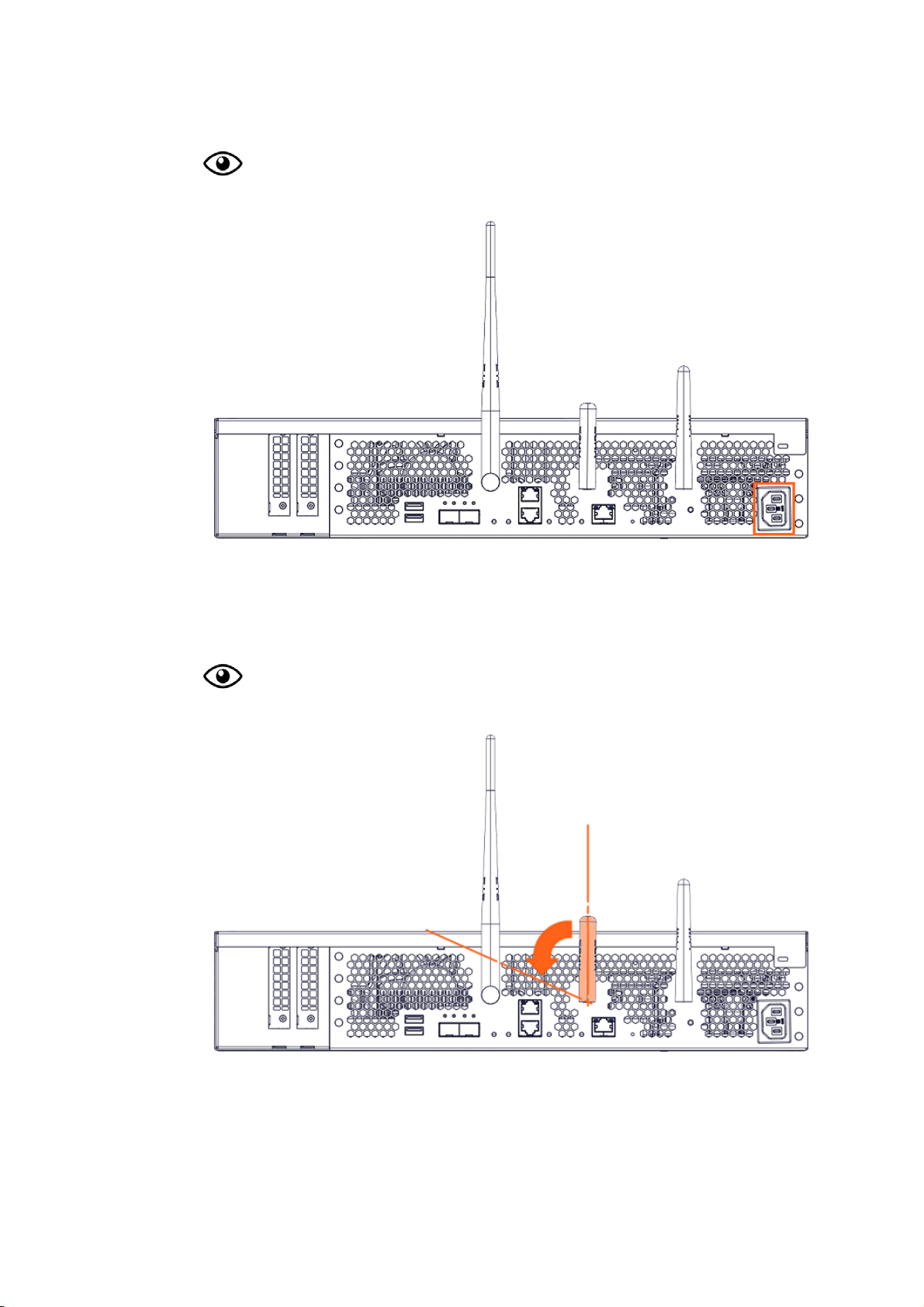

3. Disconnect the power supply cable
Rear view
4. Rotate external antenna 1 down
To allow the removal of the top cover, the external antenna 1 must be rotated
down to the left.
Rear view

1-4 Customer Service Guide

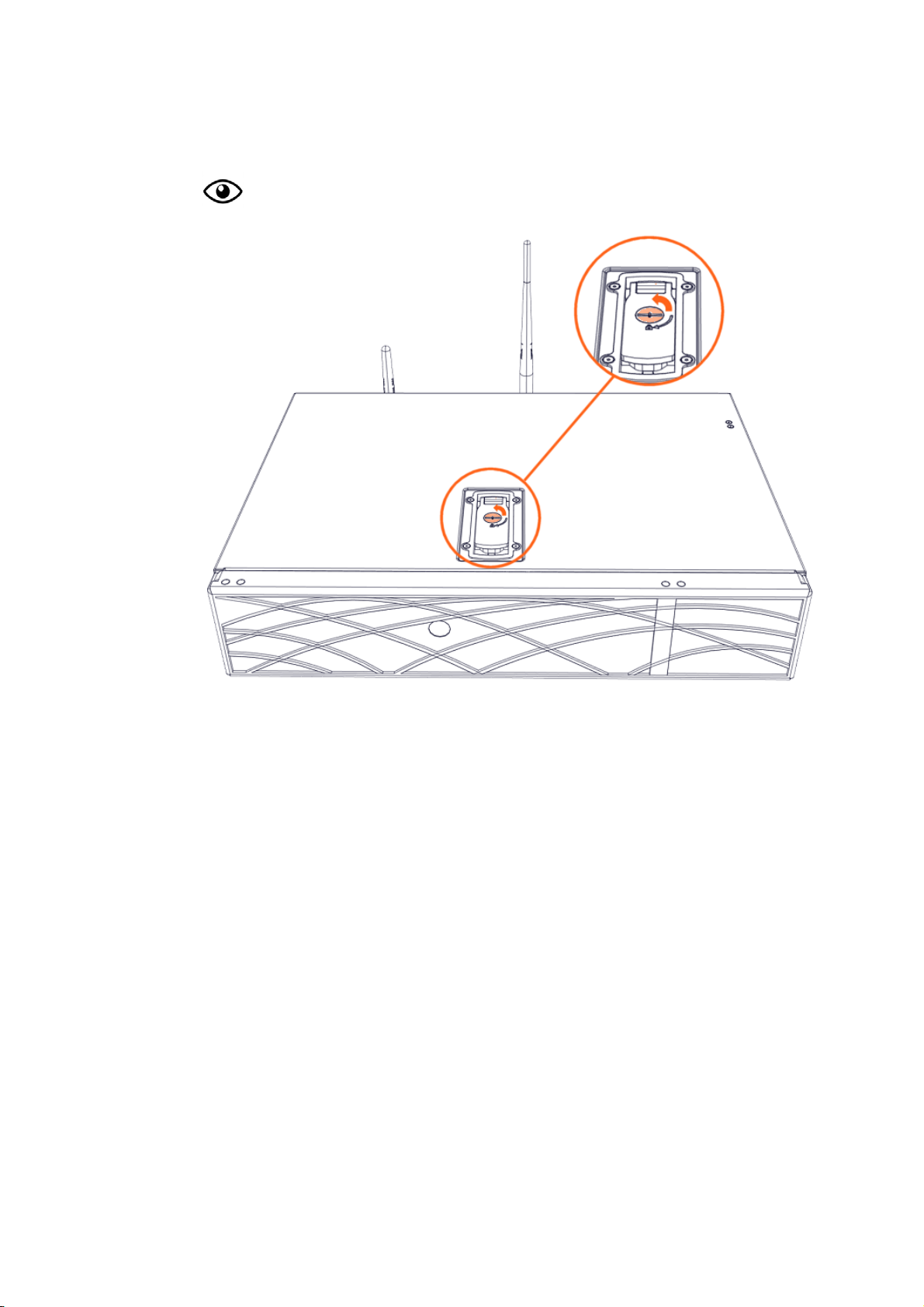

5. Unlock the cover latch
Use a flat screwdriver to unlock the latch.
Front view

Chapter 1. Servicing a fan 1-5

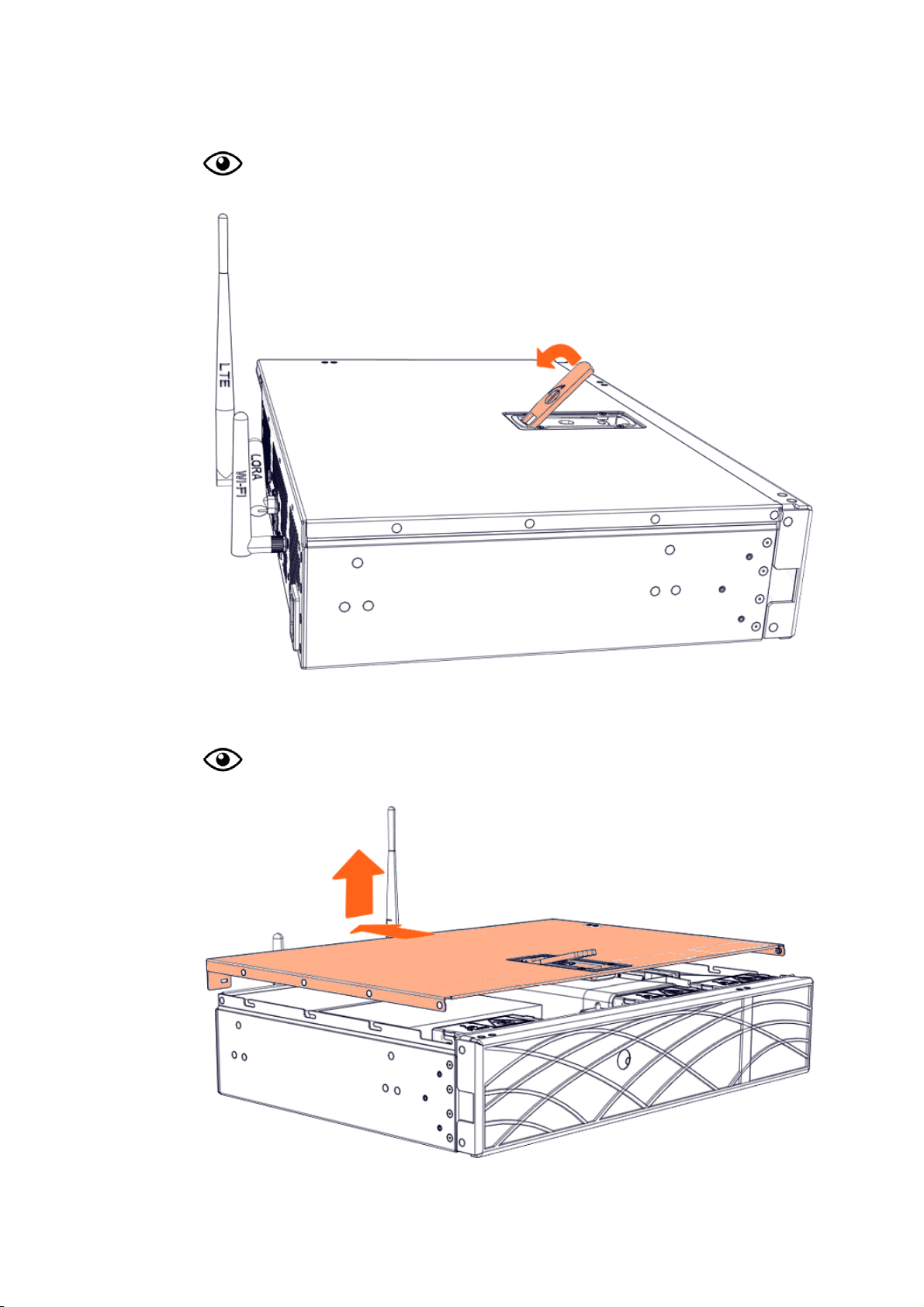

6. Pull the latch up
Side view
7. Remove the cover
Front view

1-6 Customer Service Guide
8. Remove the fan
1. Press the fan latch (A) in.
2. Pull the fan up.
Front view

Chapter 1. Servicing a fan 1-7
1.2. Installing a fan
Required Tools
None
Procedure
1. Take hold of the new component
2. Install the fan
Front view

1-8 Customer Service Guide
3. Install the cover
Front view
4. Close the latch
Side view

Chapter 1. Servicing a fan 1-9
5. Lock the latch to secure the cover in place
Use a flat screwdriver to lock the latch.
Front view
6. Restore external antenna 1 back into position
Rear view

1-10 Customer Service Guide

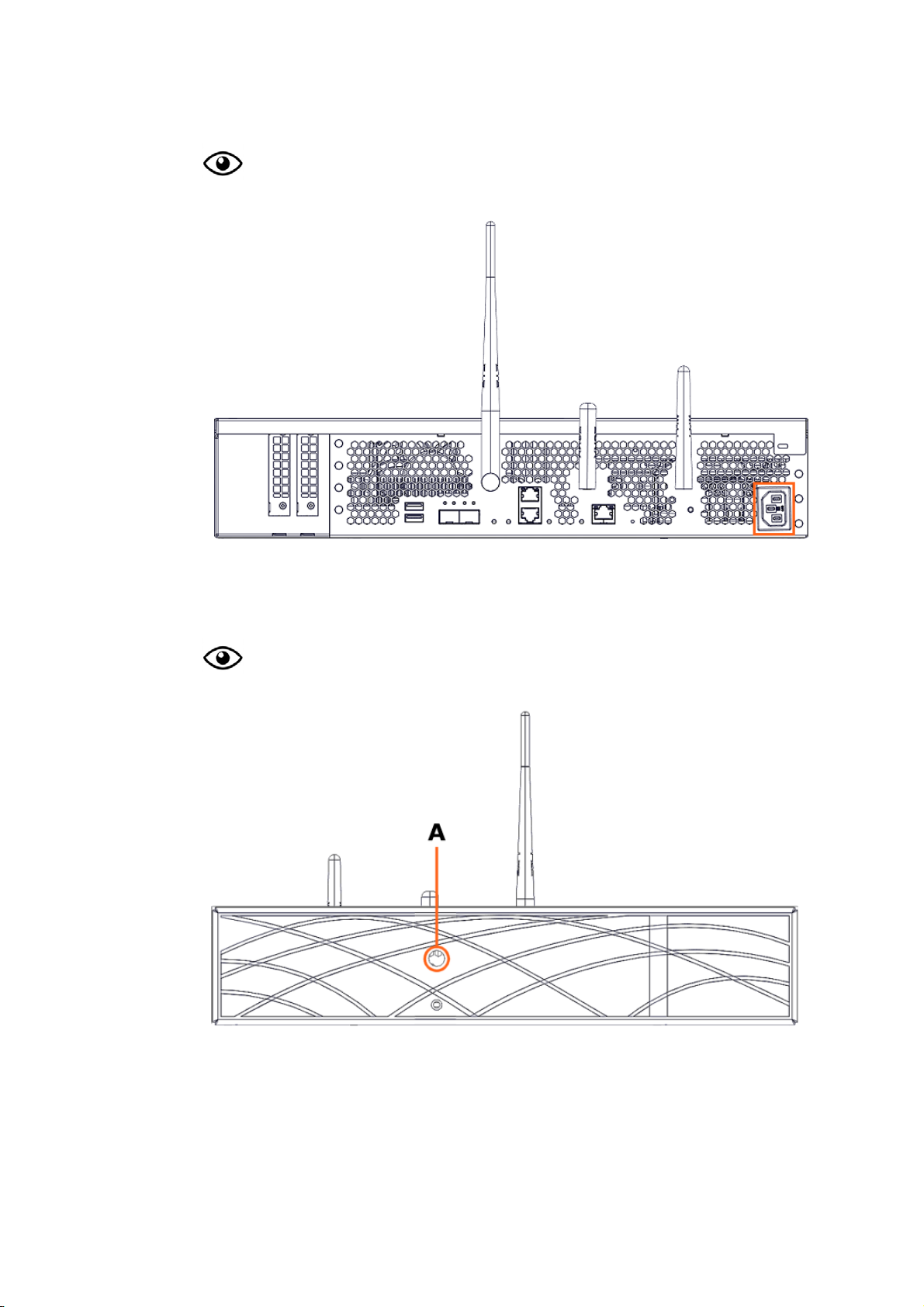

7. Connect the power supply cable
Rear view
8. Power on the server
Push the power On/Off button (A) to power on the server.
Front view

Chapter 2. Servicing a processor air duct 2-1
Chapter 2. Servicing a processor air duct
Important ATTENTION: Please read carefully the safety instructions
before you perform the procedures described in this
manual.
ATTENTION : Merci de lire attentivement les consignes de
sécurité avant d'effectuer les procédures décrites dans ce
manuel.
ACHTUNG : Bitte lesen Sie sorgfältig die angegebenen
Sicherheitshinweise, bevor Sie die Verfahren in diesem
Handbuch beschrieben durchführen.
Multilingual Safety Notices Guide, 86 X1 12FL
C004 CAUTION
C004:
Static electricity can damage the server and other electronic devices. To
avoid damage, keep static-sensitive devices in their static-protective
packages until you are ready to install them.
To reduce the possibility of damage from electrostatic discharge,
observe the following precautions:
Limit your movement. Movement can cause static electricity to build up
around you.
Wear an electrostatic-discharge wrist strap.
Handle the device carefully, holding it by its edges or its frame.
Do not touch solder joints, pins, or exposed circuitry.
Do not leave the device where others can handle and damage it.
While the device is still in its static-protective package, touch it to an
unpainted metal surface on the outside of the server for at least 2
seconds. This drains static electricity from the package and from your
body.
Remove the device from its package and install it directly into the
server without setting down the device. If it is necessary to set down
the device, put it back into its static-protective package. Do not place
the device on the server cover or on a metal surface.
Take additional care when you handle devices during cold weather.
Heating reduces indoor humidity and increases static electricity.
See BullSequana Edge Description Guide, 86 A1 65FR to locate the
processor air duct.

2-2 Customer Service Guide
2.1. Removing a processor air duct
Required Tools
None
Procedure
1. Unpack the new component on a clean ESD-protected work surface
2. Power off the server
Push the power On/Off button (A) to power off the server.
Front view

Chapter 2. Servicing a processor air duct 2-3
3. Disconnect the power supply cable
Rear view
4. Rotate external antenna 1 down
To allow the removal of the top cover, the external antenna 1 must be rotated
down to the left.
Rear view

2-4 Customer Service Guide
5. Unlock the cover latch
Use a flat screwdriver to unlock the latch.
Front view
