INSTALLATION MANUAL
CONTENTS
Installation manual 4
In general 4
Chimney 4
Technical data 5
Specifications 5
Dimensional sketches 8
Information plate 13
Installation 14
Delivery packaging 14
Disposal of packaging 14
Installation distances 15
Height adjustment 18
Fitting/changing the handle 19
Removing the combustion chamber lining 20
Lubricating hinges 21
Fitting the smoke outlet spigot 22
Fitting the top plate 24
Spare parts 25
Test certificate 28
This manual applies to the following models:
We are not responsible for typographical errors.
Revision:
Date:

4
GB
INSTALLATION MANUAL
Thank you for choosing your new RAIS or
ATTIKA product! This installation manu-
al will ensure that your fireplace insert is
installed correctly and that it will provide
you with comfort and pleasure for many
years to come.
IN GENERAL
It is important to correctly install the
fireplace insert out of consideration
for both the environment and personal
safety. The installation of the stove must
comply with all local rules and regula-
tions, including those that refer to na-
tional and
European standards.
No unauthorised alterations may be
made to the fireplace insert.
GENERAL INSTALLATION REQUIRE-
MENTS
The installation should be undertaken
by a qualified HETAS engineer. And a CO
monitor (certified) must be installed in
the same room as the appliance.
Before the fireplace insert may be put to
use, the installation should be reported
to the local Council/Authority.
There must be a plentiful supply of fresh
air in the installation room to ensure
good combustion – if required, through
an Air-System connection. NB: Any me-
chanical air extraction, for example a
cooker hood, can minimise the supply of
air.
The wood-burning stove has an air con-
sumption of at least 7,4 m3/h.
The floor structure must be able to sup-
port the weight of the wood-burning
stove and a chimney. If the existing floor
structure does not meet this require-
ment, suitable measures must be taken
(e.g. installation of a load distribution
plate). Seek advice from a building ex-
pert.
If the wood-burning stove is to be in-
stalled on a flammable floor, national and
local regulations must be complied with,
including for the size of the non-flam-
mable plate, which must cover the floor
in front of the wood-burning stove to
protect the floor from any embers that
fall out of the stove.
The fireplace insert must be positioned
at a safe distance from flammable ma-
terial. Due to risk of fire, flammable
items (e.g. furniture) may not be posi-
tioned closer to the fireplace insert than
the closest permitted distance stated
in the installation section. When decid-
ing where to install your RAIS/ATTIKA
fireplace insert, you should think about
being able to heat other rooms in the
home, so you get the most out of your
new fireplace insert.
After receiving your fireplace insert,
please check it for any defects.
CHIMNEY
The chimney must be tall enough
to ensure correct draught condi-
tions, i.e. -14 to -18 pascal. If the rec-
ommended chimney draught cannot
be achieved, problems from smoke
escaping from the door may arise
when lighting the fire. We recommend
adapting the chimney to suit the flue
outlet connector. The flue outlet con-
nector is 150 mm in diameter.
The Stove must not be installed in a
chimney serving more than one appli-
ance.
If the draught is excessive, it is recom-
mended that you equip the chimney
with a regulating damper. If a regulating
damper is fitted, you must ensure that
there is a free flow area of at least 20 cm²
at the closed regulating damper.
Remember that there must be unob-
structed access to the access door on
the chimney.
INSTALLATION MANUAL

5
GB
The fireplace insert is tested and approved by:
DTI
Danish Technological Institute
Teknologiparken Kongsvang Allé 29
8000 Aarhus C
Denmark
www.dti.dk
Tel.: [phone]
Fax: [phone]
TECHNICAL DATA
The technical data given below includes specifications, dimensional drawings and the
information plate.
SPECIFICATIONS
Danish Technological Institute ref.: 300-ELAB-2543-EN, 300-ELAB-2543-NS
CARO 90
Nominal output (kW) 5.0
Min./Max. Output (kW): 3–7*
Heating area (m2) 100
Fireplace insert width/depth/height (mm) 486 X 407 X 920
Combustion chamber W x D x H (mm) 352 X 225 X 228**
Min. uptake (pascal) -12
Weight (kg) min., depending on the model:
Efficiency (%) 80
CO emission attributed to 13% O2 (%) 0.07
(896 mg/Nm³)
NOx emission attributed to 13% O2 (mg/Nm³) 80
Particle emission in accordance with NS3058/3059 (g/kg) 2.17
Dust measurement in accordance with DIN + 13% O2 (mg/
Nm³) 10
Flue gas flow (g/s) 4.3
Flue gas temperature (°C) 286
Recommended amount of wood (kg) when stoking the fire
(Distributed between 2 logs, each max. 24 cm) 1.3
Intermittent operation Stoking should be done within 50 minutes
*Not verified by test.
**Max. load

6
GB
SPECIFICATIONS
Danish Technological Institute ref.: 300-ELAB-2543-EN, 300-ELAB-2543-NS
CARO 110
Nominal output (kW) 5.0
Min./Max. Output (kW): 3–7*
Heating area (m2) 100
Fireplace insert width/depth/height (mm) 486 X 407 X 1111
Combustion chamber W x D x H (mm) 352 X 225 X 228**
Min. uptake (pascal) -12
Weight (kg) min., depending on the model:
Efficiency (%) 80
CO emission attributed to 13% O2 (%) 0.07
(896 mg/Nm³)
NOx emission attributed to 13% O2 (mg/Nm³) 80
Particle emission in accordance with NS3058/3059 (g/kg) 2.17
Dust measurement in accordance with DIN + 13% O2 (mg/
Nm³) 10
Flue gas flow (g/s) 4.3
Flue gas temperature (°C) 286
Recommended amount of wood (kg) when stoking the fire
(Distributed between 2 logs, each max. 24 cm) 1.3
Intermittent operation Stoking should be done within 50 minutes
*Not verified by test.
**Max. load
TECHNICAL DATA

7
GB
SPECIFICATIONS
Danish Technological Institute ref.: 300-ELAB-2543-EN, 300-ELAB-2543-NS
CARO 130
Nominal output (kW) 5.0
Min./Max. Output (kW): 3–7*
Heating area (m2) 100
Fireplace insert width/depth/height (mm) 486 X 407 X 1329
Combustion chamber W x D x H (mm) 352 X 225 X 228**
Min. uptake (pascal) -12
Weight (kg) min., depending on the model:
Efficiency (%) 80
CO emission attributed to 13% O2 (%) 0.07
(896 mg/Nm³)
NOx emission attributed to 13% O2 (mg/Nm³) 80
Particle emission in accordance with NS3058/3059 (g/
kg) 2.17
Dust measurement in accordance with DIN + 13% O2
(mg/Nm³) 10
Flue gas flow (g/s) 4.3
Flue gas temperature (°C) 286
Recommended amount of wood (kg) when stoking the
fire (Distributed between 2 logs, each max. 24 cm) 1.3
Intermittent operation Stoking should be done within 50 minutes
*Not verified by test.
**Max. load
TECHNICAL DATA

8
GB
SPECIFICATIONS
Danish Technological Institute ref.: 300-ELAB-2543-EN, 300-ELAB-2543-NS
CARO 110 SST / 120 SST
Nominal output (kW) 5.0
Min./Max. Output (kW): 3–7*
Heating area (m2) 100
Fireplace insert width/depth/height (mm) 486 X 407 X 920
Combustion chamber W x D x H (mm) 352 X 225 X 228**
Min. uptake (pascal) -12
Weight (kg) min., depending on the model:
Efficiency (%) 80
CO emission attributed to 13% O2 (%) 0.07
(896 mg/Nm³)
NOx emission attributed to 13% O2 (mg/Nm³) 80
Particle emission in accordance with NS3058/3059 (g/
kg) 2.17
Dust measurement in accordance with DIN + 13% O2
(mg/Nm³) 10
Flue gas flow (g/s) 4.3
Flue gas temperature (°C) 286
Recommended amount of wood (kg) when stoking the
fire (Distributed between 2 logs, each max. 24 cm) 1.3
Intermittent operation Stoking should be done within 50 minutes
*Not verified by test.
**Max. load
TECHNICAL DATA

9
GB

10
A-A
B-B
A A
BB
480
0 5
920
350
406
400
0 5
125 790
Ø170
Ø125
202
243
n
100
202
163
n
98
486
243
202
407
n178
Caro 90 Without side windows
GB

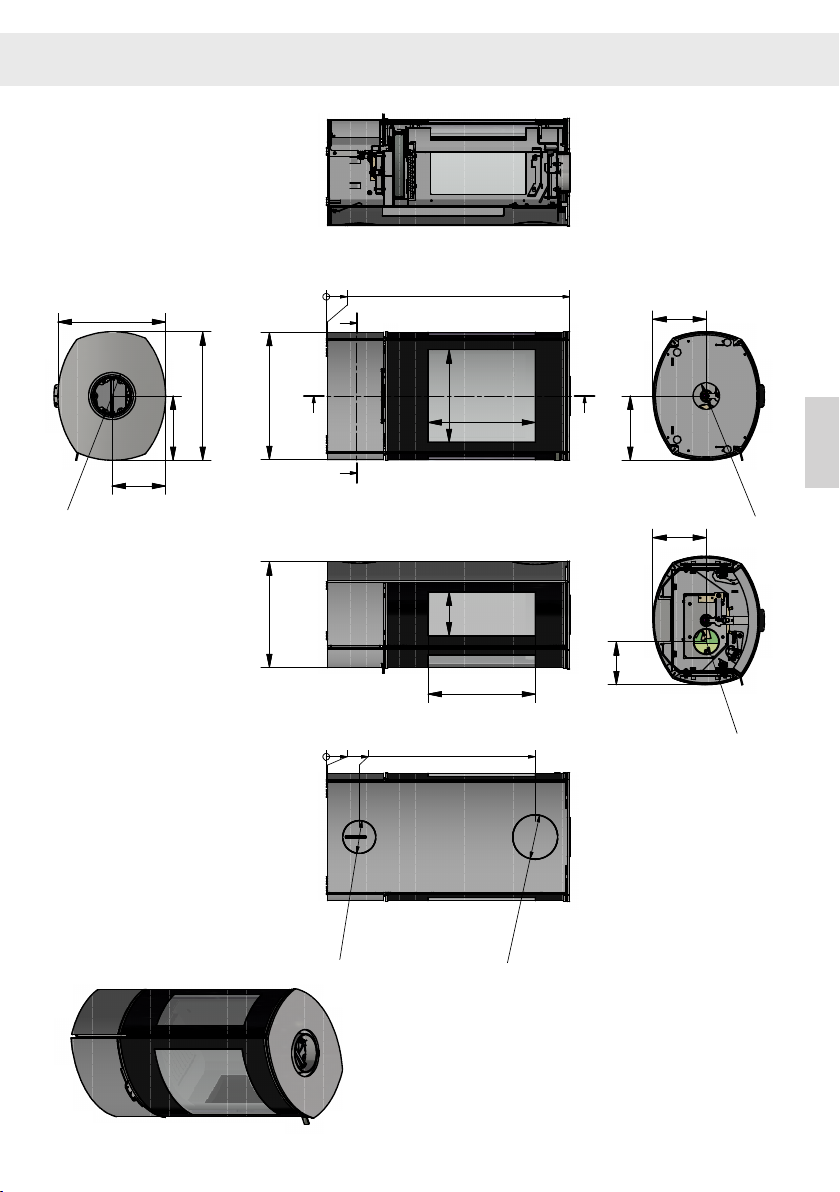

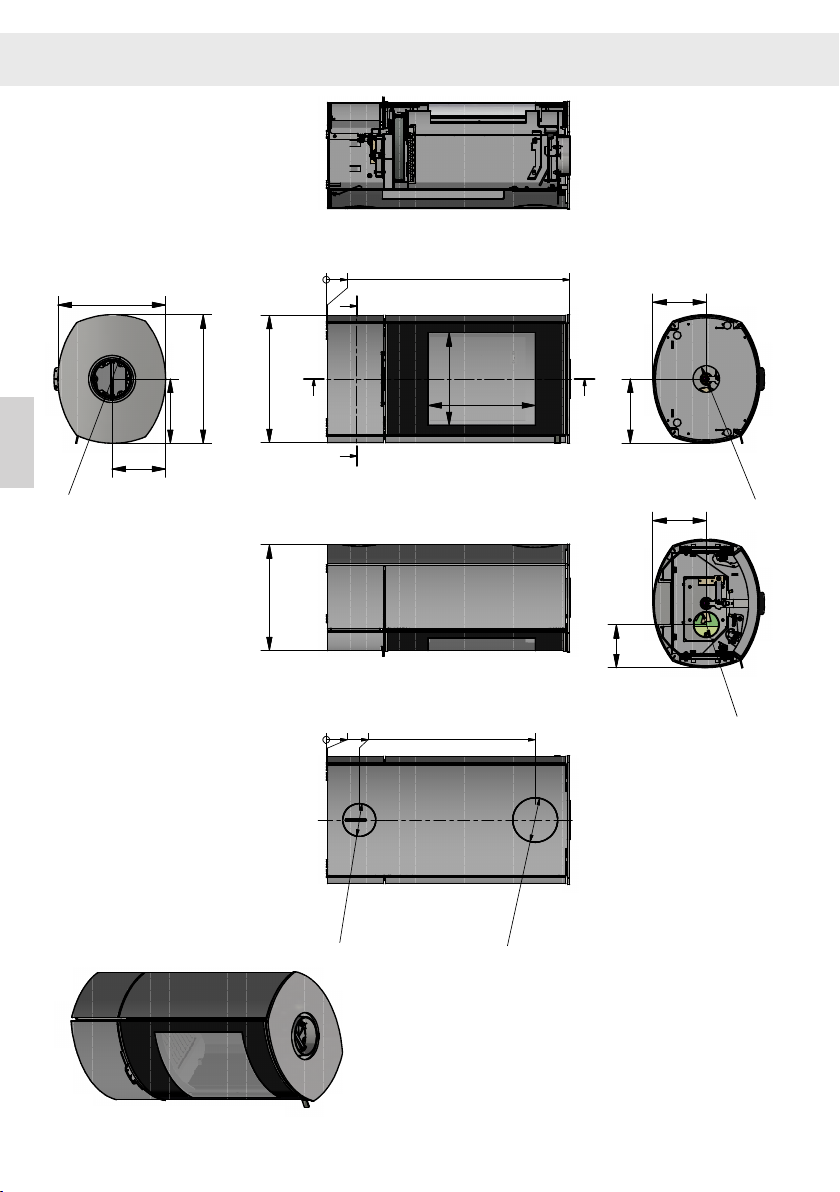

DIMENSIONAL SKETCHES

11
A-A
B-B
A A
BB
480
0 5
920
350
406
400
0 5
125 790
Ø170
Ø125
202
243
n
100
202
163
n
98
166
406
486
243
202
407
n
178
Caro 90 With side windows
GB

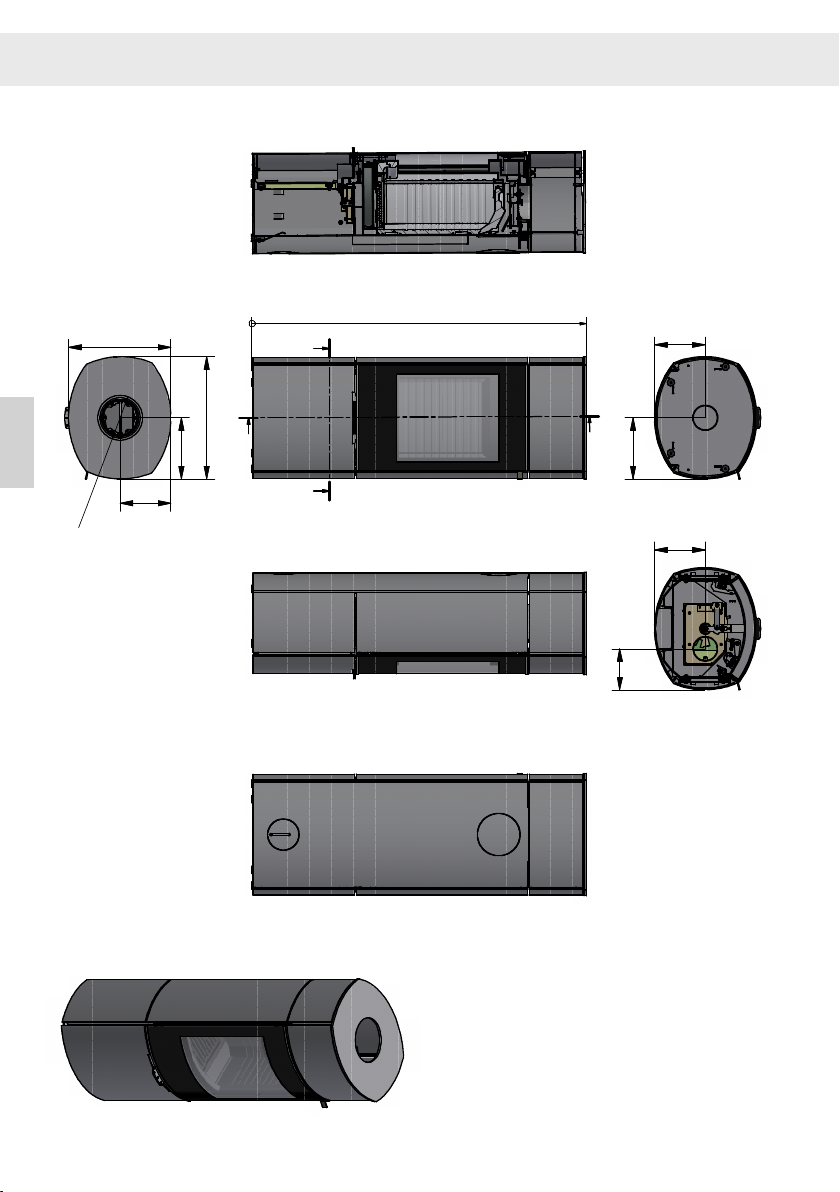

DIMENSIONAL SKETCHES

12
Caro 110 Without side windows
A-A
B-B
A A
BB
480
0 5
1111
350
406
400
0 5
125 981
Ø170
Ø125
202
243
n
100
202
163
n
98
486
243
202
407
n178
GB

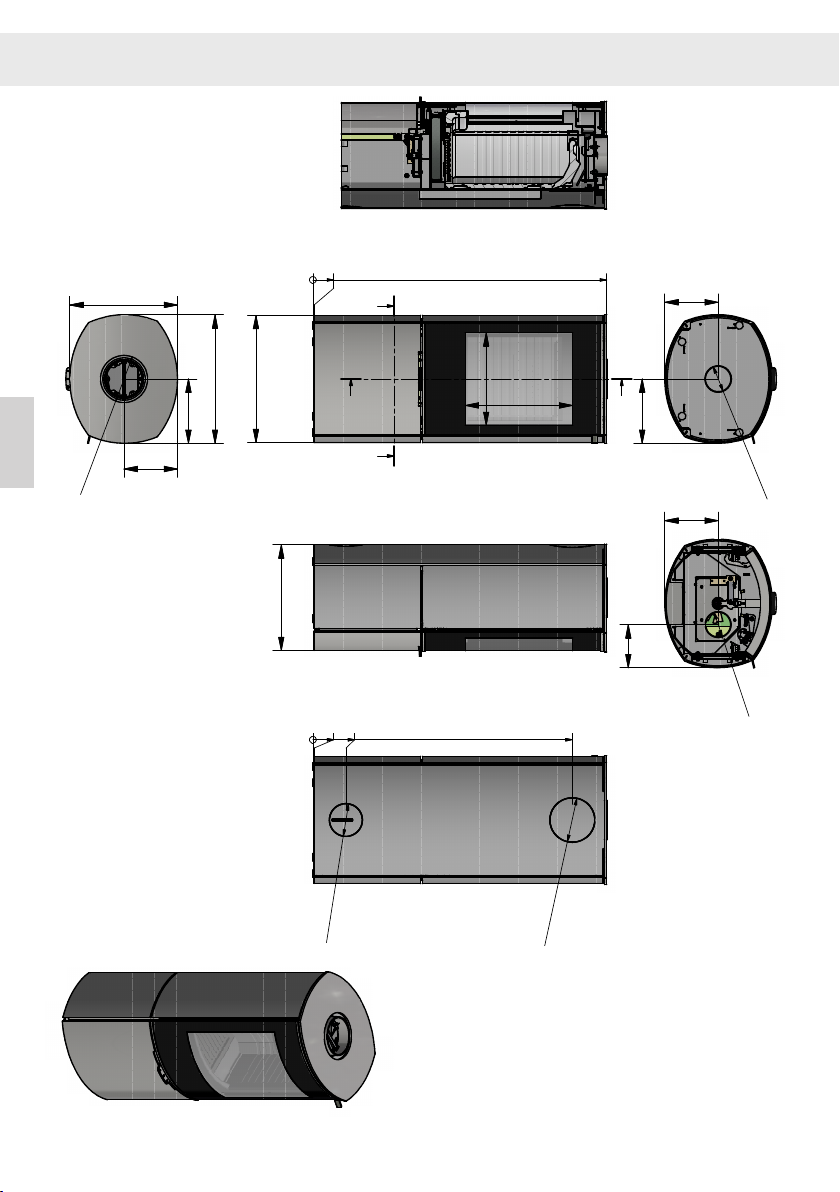

DIMENSIONAL SKETCHES

13
Caro 110 With side windows
A-A
B-B
A A
BB
480
0 5
1111
350
406
400
0 5
125 981
Ø170
Ø125
202
243
n
100
202
163
n
98
486
243
202
407
n
178
GB
DIMENSIONAL SKETCHES

14
Caro 130 Without side windows
A-A
B-B
A
A
BB
0
1329
202
243
202
163
w
i
t
h
o
u
t
s
i
d
e
w
i
n
d
o
w
s
14-6572
486
243
202
407
n
178
GB
DIMENSIONAL SKETCHES

15
Caro 130 With side windows
A-A
B-B
A A
BB
0
1329
202
243
202
163
w
i
t
h
s
i
d
e
w
i
n
d
o
w
s
14-6573
486
243
202
407
n
178
GB
DIMENSIONAL SKETCHES

16
A-A
B-B
A
A
BB
202
242
n
100
202
162
n
98
407
484
242
202
n
180
400480
0 8
420 581
1103 1148
0 8
125 986
Ø170
Ø125
683G
421G
Caro 110 SST Caro 120 SST
GB

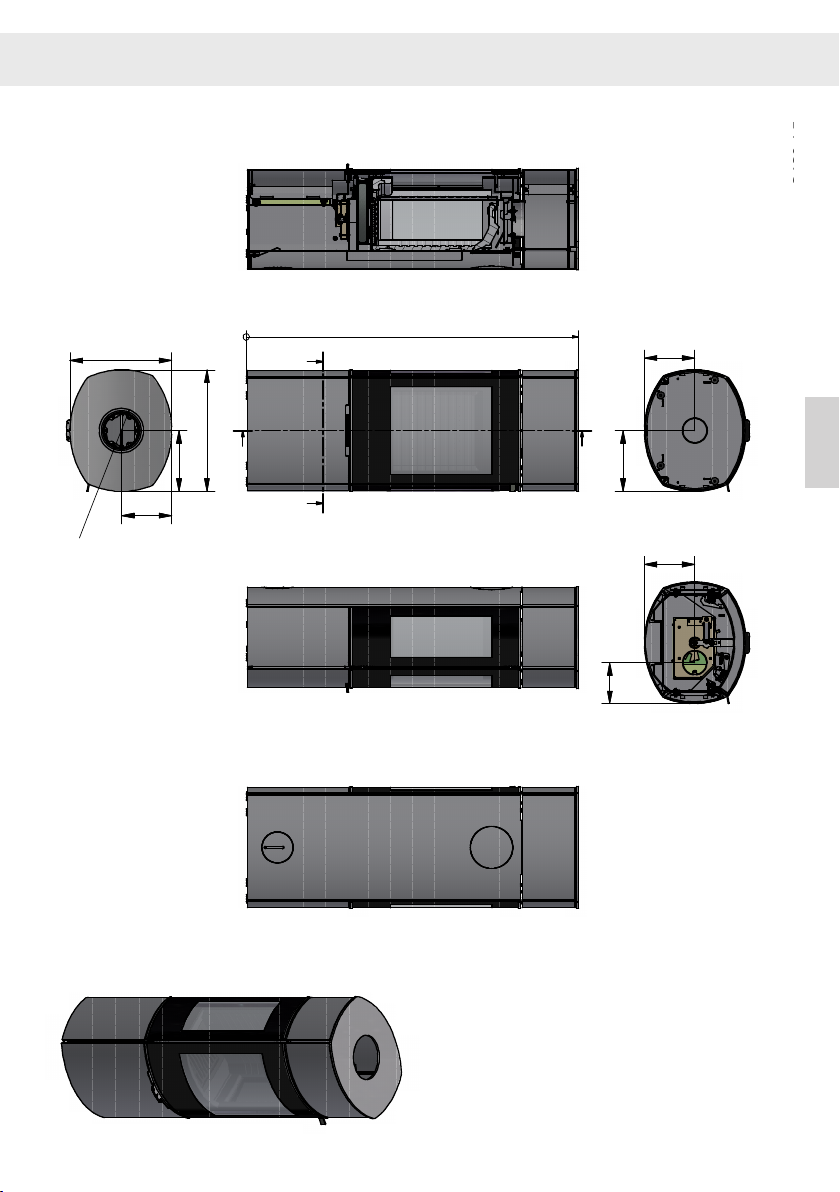

DIMENSIONAL SKETCHES

17
Notified Body: 1235
21
Caro 90 Manual, Caro 90 Manual Side glass, Caro 90 Manual Classic, Caro 90 Manual Classic Side glass,
Caro 110 Manual, Caro 110 Manual Side glass, Caro 110 Manual Classic, Caro 110 Manual Classic Side glass,
Caro 130 Manual, Caro 130 Manual Side glass, Caro 130 Manual Classic, Caro 130 Manual Classic Side glass,
Caro 110 SST Manual, Caro 110 SST Manual Classic, Caro 120 SST Manual, Caro 120 SST Manual Classic
AFSTAND TIL BRÆNDBART, BAGVÆG DK: SE BRUGERVEJLEDNING
ABSTAND ZU BRENNBAREN BAUTEILEN, HINTEN DE: SIEHE BEDIENUNGSANLEITUNG
DISTANCE TO COMBUSTIBLE BACK WALL UK: SEE USER MANUAL
DIST. ENTRE COMPOSANTS COMBUSTIBLES, ARRIÈRE FR: CONSULTEZ LE GUIDE DE L’UTILISATEUR
AFSTAND TIL BRÆNDBART, SIDEVÆG DK: SE BRUGERVEJLEDNING
ABSTAND ZU BRENNBAREN BAUTEILEN, SEITE DE: SIEHE BEDIENUNGSANLEITUNG
DISTANCE TO COMBUSTIBLE SIDE WALL UK: SEE USER MANUAL
DISTANCE ENTRE COMPOSANTS COMBUSTIBLES, COTÉ FR: CONSULTEZ LE GUIDE DE L’UTILISATEUR
AFSTAND TIL BRÆNDBART, MØBLERING DK: /SE BRUGERVEJLEDNING
ABSTAND VORNE ZU BRENNBAREN MÖBELN DE: /SIEHE BEDIENUNGSANLEITUNG
DISTANCE TO FURNITURE AT THE FRONT UK: /SEE USER MANUAL
DISTANCE ENTRE COMPOSANTS COMBUSTIBLES, DEVANT FR: /CONSULTEZ LE GUIDE DE L’UTILISATEUR
CO EMISSION (REL. 13% O2)
CO EMISSION IN DEN VERBRENNUNGSPRODUKTEN (BEI 13%O2) 0,07 % / 896 mg/Nm³
EMISSION OF CO IN COMBUSTION PRODUCTS (AT 13%O2)
EMISSION CO DANS LES PRODUITS COMBUSTIBLES (À 13%O2)
STØV / STAUB / DUST / POUSSIÈRES: 10 mg/Nm3
RØGGASTEMPERATUR / ABGASTEMPERATUR /
FLUE GAS TEMPERATURE / TEMPÉRATURE DES GAZ DE FUMÉE: 286 °C
NOMINEL EFFEKT / HEIZLEISTUNG /
THERMAL OUTPUT / PUISSANCE CALORIFIQUE: 5,0 kW
VIRKNINGSGRAD / ENERGIEEFFIZIENZ /
ENERGY EFFIENCY /EFFICACITÉ ÉNERGÉTIQUE: 80 %
DK: Brug kun anbefalede brændsler. Følg instrukserne i bruger manualen. DK: BRÆNDE
Anordningen er egnet til røggassamleledning og intervalfyring.
DE: Lesen und befolgen Sie die Bedienungsanleitung. DE: HOLZ
Zeitbrandfeuerstätte. Nur empfohlene Brennstoffe einsetzen.
UK: Fuel types (only recommended). Follow the installation and UK: WOOD
operating instruction manual. Intermittent operation.
F: Veuillez lire et observer les instructions du mode d’emploi. FR: BOIS
Foyer à durèe de combustion limitèe, homologué pour
cheminée à connexions multiples. Utiliser seulement les
combustibles recommandés.
Produced for:
ATTIKA FEUER AG, Brunnmatt 16, CH-6330 Cham /
RAIS A/S, Industrivej 20, DK-9900 Frederikshavn
Produced at:
RAIS A/S, Industrivej 20, 9900 Frederikshavn, Danmark
EN 13240:2001+A1:2004,
EC.NO: 14
Raumheizer für feste Brennstoffe
Appliance fired by wood
Poêle pour combustibles solides
CE Label: (13-06-2023)
Caro - 90
Caro - 110
Caro - 130
Caro 110 SST (RAIS)
Caro 120 SST (Attika)
GB
INFORMATION PLATE

18
14-6503 Caro
Skum klodser
1
A
B
A
B
14-6502 Caro
Transportsikring
14-6503 Caro
Skum klodser
1
A
B
A
B
14-6502 Caro
Transportsikring
A
B
A
B
14-6502 Caro
Transportsikring
GB
INSTALLATION
INSTALLATION
The following section explains how to install the fireplace insert and includes informa-
tion about the packaging, installation distances etc.
DELIVERY PACKAGING

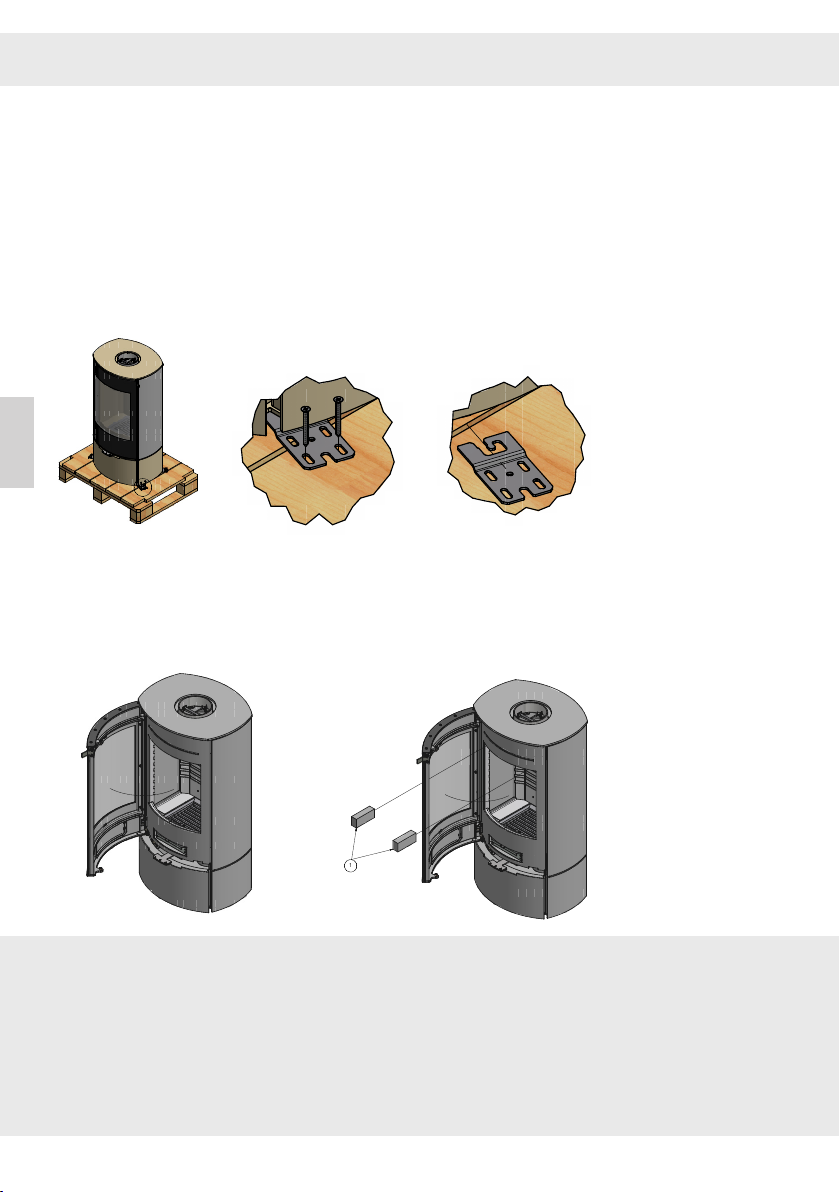

Upon delivery, the stove is secured to a transport pallet using four transport safety
fittings, one in each corner (A).
The safety fittings are secured with screws, which must be unscrewed. The safety fit-
tings can then be removed (B).
The top of the wood-burning stove has two polystyrene blocks (1), which protect the
combustion chamber lining in transit. These must be removed before starting a fire in
the stove.
The glass is not recyclable.
The glass must be disposed of along with any re-
sidual ceramic or porcelain waste. Heat-resistant
glass has a higher melting point, which is why it is
not recyclable.
By ensuring heat-resistant glass does not end up
alongside recyclable products you are making an
important contribution to the environment.
DISPOSAL OF PACKAGING
RECYCLING
The fireplace insert is delivered in recyclable packag-
ing.
This packaging must be disposed of in accordance
with national regulations relating to the disposal of
waste.
GB

19
GB
INSTALLATION DISTANCES.
IMPORTANT:
Please bear in mind that the installation distances on the following pag-
es only apply to the wood-burning stove.
The final choice of Chimney solution may have a larger safety distance to
the flammable material. The Chimney solution must always be installed
in accordance with current building regulations and in a manner that
ensures CE / UKCA-marking compliance.
INSTALLATION DISTANCES
GB

20
Rais Caro 90 without side glass
uninsulated chimney
14-0101-6401
100
350
250
250
750
900
900
302
493
493
593
Rais Caro 90 without side glass
uninsulated chimney
14-0101-6401
100
350
250
250
750
900
900
302
493
493
593
GB
INSTALLATION DISTANCES
INSTALLATION DISTANCE TO FLAMMABLE MATERIAL:
CARO 90 / CARO 110 / CARO 130 / CARO 110 SST / CARO 120 SST
The installation distances applicable to the wood-burning stove are shown below. Bear
in mind that the final choice of chimney may have a different safety distance.
All dimensions are in mm.
Right-angle installation Flammable ceiling
Safety distances to the flammable ceiling are measured from above the door.
GB
