ATZ HDBaseT HDBT-E150B-18 User manual

pg. 1
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDBT-E150B-18
Description: HDBaseT™ 1x8 Splitter HDMI 2.0b, HDR10 , 18G, support 4K@60hz
(150m) c/w 8x Receivers
This 18Gbps HDMI 1x8 HDBaseT Splitter can distribute 1 source signal to any 8 display
devices. Support video resolution up to 4K2K@60Hz 4 : 4 : 4. It is designed with 1 HDMI
loop output and 8 HDBaseT outputs. The HDMI signal transmission distance can be
extended up to 120 meters at the resolution of 4K2K@60Hz, or 150 meters at
1080P@60Hz via a single CAT6/ 6a/7 cable. The product supports IR and RS-232 signal
pass-through, audio extract function and advanced EDID management.
Features:
•HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
•Support 18Gbps video bandwidth
•Support video resolution up to 4K2K@60Hz 4 : 4 : 4
•Support HDR, HDR10 , HLG and Dolby vision
•Support up to 7.1CH HD audio pass-through
•Support digital and analog audio de-embedded output
•Extend the signal transmission distance up to 120 m at 4K2K@60Hz, 150 m at
1080P@60Hz via a single CAT6/6a/7 cable
•Support 1 HDMI input, 1 HDMI loop output and 8 HDBaseT outputs.
•IR, RS-232 routed to HDBaseT output
•Advanced EDID management
•Support one-way POC function (only from transmitter to receiver)
•Compact design for easy and flexible installation

pg. 2
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDBT-E150B-18
Description: HDBaseT™ 1x8 Splitter HDMI 2.0b, HDR10 , 18G, support 4K@60hz
(150m) c/w 8x Receivers
Specifications:
Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP
2.2/1.x
Video Bandwidth
594MHz/18Gbps
Video Resolution
Up to 4k2k@60Hz 4:4:4
Color Depth
8
-
bit,10
-
bit,12
-
bit(1080p@60Hz)
8-bit (4K2K@60Hz YUV4:4:4)
8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0)
Color Space
RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 /
4:2:0
HDR
Support HDR, HDR10 , HLG, Dolby vision
HDMI Audio Formats
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby
TrueHD,
Dolby Digital Plus(DD ), DTS-ES, DTS HD Master, DTS HD-
HRA, DTS-X
Coaxial
Audio Formats
PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1
Analog
Audio Formats
PCM 2.0CH
ESD Protection
Human body model
—
±8kV (Air
-
gap discharge) &
±4kV (Contact discharge)
Connection
Input
1×HDMI Type A (19
-
pin female)
Output
1×HDMI Type A (19
-
pin female
）
8x HDBaseT OUT [RJ45]
1x Coaxial Audio OUT [RCA]
1x L/R Audio OUT [5-pin phoenix connector]
Control
1×RS
-
232 (3
-
pin phoenix connector
）
1x EDID DIP switch [5-pin]
1x IR IN [3.5mm Stereo Mini-jack]
1x IR OUT [3.5mm Stereo Mini-jack]
Mechanical
Housing
Metal Enclosure
Silkscreen Color
Black
Dimensions
Transmitter: 440mm (W) × 130mm (D) × 44mm (H)
Receiver: 140mm (W) × 65mm (D) × 18mm (H)
Weight
Transmitter: 1.62kg Receiver: 246g
Power Supply
Input: AC100
-
240V 50/60Hz, Output: DC 24V/3.75A
(US/EU standards, CE/FCC/UL certified)
Power Consumption
72W

pg. 3
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDBT-E150B-18
Description: HDBaseT™ 1x8 Splitter HDMI 2.0b, HDR10 , 18G, support 4K@60hz
(150m) c/w 8x Receivers
Operation
Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-
20°C ~ 60°C /
-
4°F ~ 140°F
Relative Humidity
20~90% RH (non
-
condensing)
Operation Controls and Functions
Transmitter

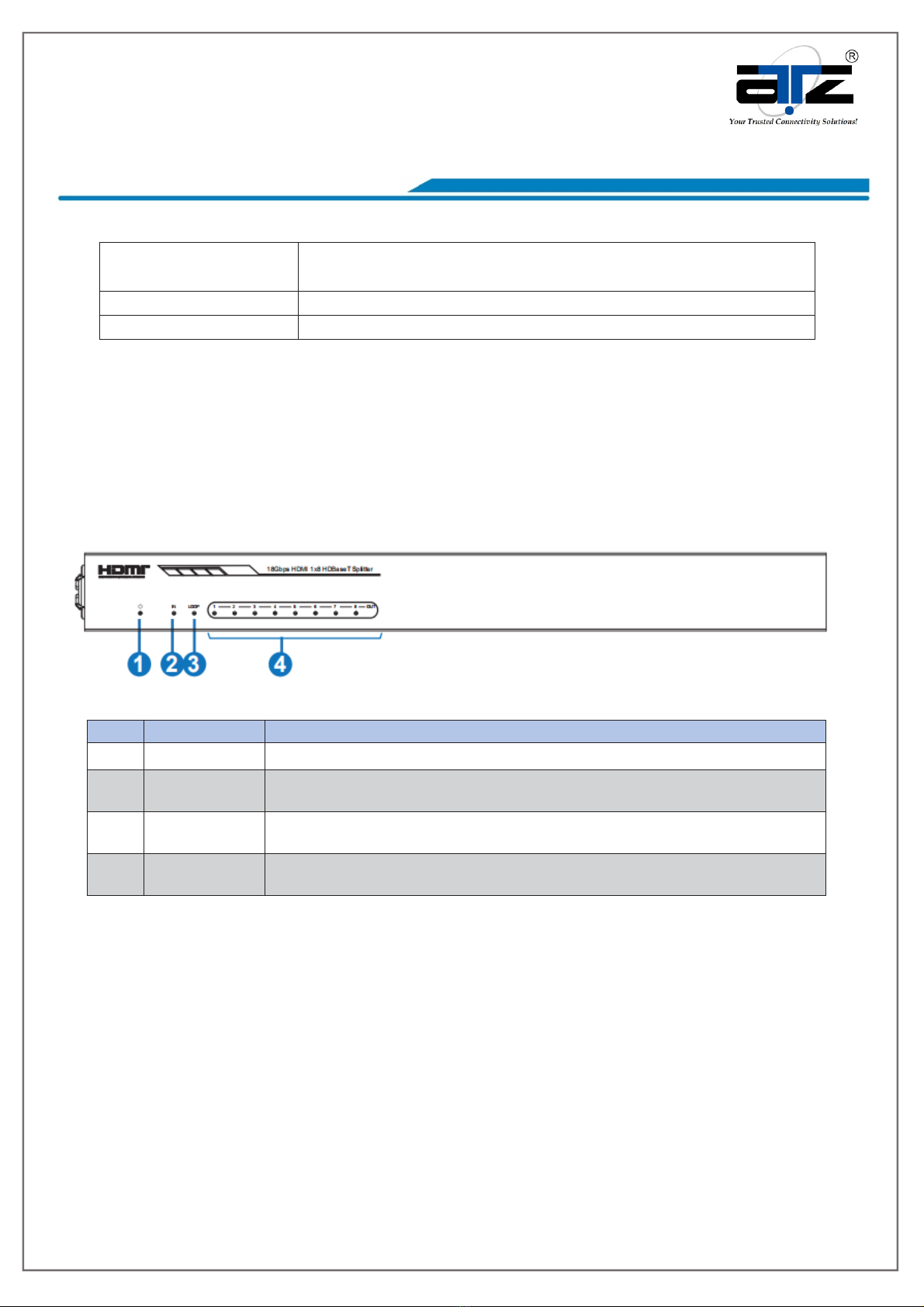

Front Panel:
No. Name Function Description
1 POWER LED When the device is powered on, the red power LED will be on.
2 IN LED
When
the
HDMI
IN
port
connects an active source device,
the green LED will be on.
3 LOOP LED
When
the
HDMI LOOP
OUT
port
connects an active display
device, the green LED will be on.
4
OUT(1~8)
LED
When the HDBT OUTPUT port connects an HDBaseT Receiver,
the corresponding green OUT LED will be on.

pg. 4
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDBT-E150B-18
Description: HDBaseT™ 1x8 Splitter HDMI 2.0b, HDR10 , 18G, support 4K@60hz
(150m) c/w 8x Receivers
Rear Panel:
No.
Name
Function Description
1
EDID DIP
switch
Used to set EDID mode. Please refer to Section “6. EDID
Mode” for details.
2 RS-232
Connect to a PC or control system via a 3
-
pin phoenix
connector cable for three functions:
1, Firmware update;
2, Control the Splitter via RS-232 commands;
3, RS-232 signal pass-through (from transmitter to
receiver or from receiver to transmitter).
3
IR IN
Connect to IR receiver cable, the IR receive signal will
emit to “IR OUT” port of the HDBaseT Receiver.
4
IR OUT
Connect to IR blaster cable, the IR emit signal is from “IR
IN” port of the HDBaseT Receiver.
5
AUDIO OUT
(COAX, L/R)
Coaxial/balanced
audio output port, connect
to
amplifer or
speaker.
6 HDMI port
IN: HDMI input port, connect to HDMI source device such
as DVD or set-top box with an HDMI cable.
LOOP OUT: HDMI loop output port, connect to the HDMI
display device such as TV or Monitor with an HDMI cable.
7
HDBT
OUTPUT
port (1~8)
Connect to the HDBT IN port of the HDBaseT receiver
with a CAT cable.
8 Connection
Signal Indicator
lamp (Green)
▪
Illuminating:
Transmitter
and
Receiver
are
in
good
connection status.
▪ Flashing: Transmitter and Receiver are in poor
connection status.
▪ Dark: Transmitter and Receiver are not connected.
9
Data Signal
Indicator lamp
(Orange)
▪
Illuminating: HDMI signal with
HDCP.
▪ Flashing: HDMI signal without HDCP.
▪ Dark: No HDMI signal.
10 DC 24V
Plug
the
DC
24V
power
supply
into
the
unit
and
connect the
adaptor to an AC outlet. (Note: The transmitter can power
the receiver via a CAT cable.)
11
POWER switch Press this switch to power on/off the device.

pg. 5
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDBT-E150B-18
Description: HDBaseT™ 1x8 Splitter HDMI 2.0b, HDR10 , 18G, support 4K@60hz
(150m) c/w 8x Receivers

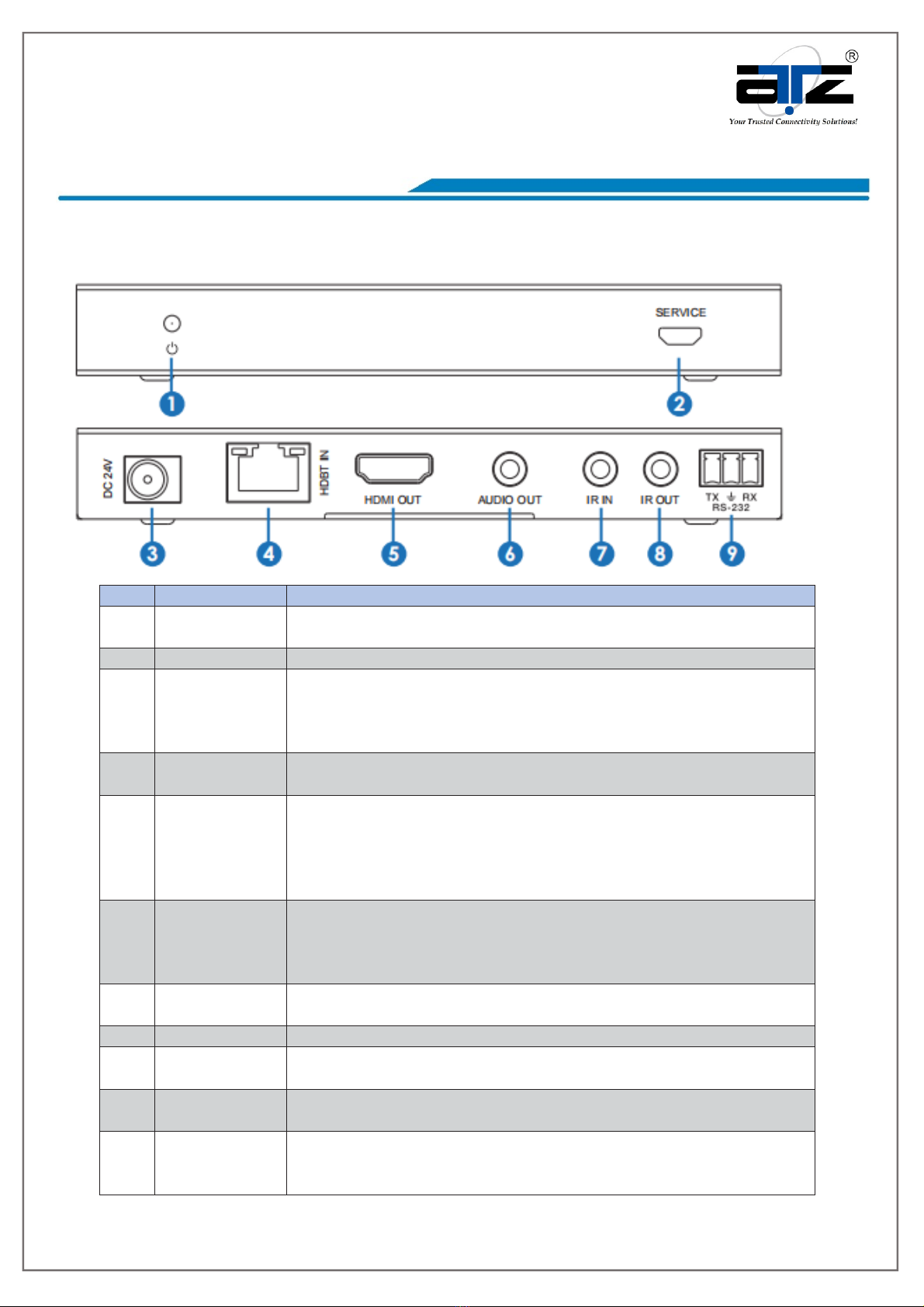

DBaseT Receiver
No.
Name
Function Description
1
Power
Indicator
When
the
receiver
is powered on, the
power indicator will
be
on.
2
SERVICE port
Used for firmware update.
3 DC 24V
Plug DC 24V/1A power supply into the unit and connect
the adapter to an AC outlet.
(Note: The HDBaseT receiver also can be powered by the
transmitter via a CAT cable.)
4
HDBT IN
Connect to the HDBT OUTPUT port on the transmitter
with a CAT cable.
5
Connection
Signal
Indicator lamp
(Green)
▪
Illuminating:
Transmitter
and
Receiver
are
in
good
connection status.
▪ Flashing: Transmitter and Receiver are in poor
connection status.
▪ Dark: Transmitter and Receiver are not connected.
6
Data Signal
Indicator
lamp
(Orange)
▪
Illuminating: HDMI signal with
HDCP.
▪ Flashing: HDMI signal without HDCP.
▪ Dark: No HDMI signal.
7
HDMI OUT
HDMI output port,
connect
to
HDMI display device
such as
TV or Projector with an HDMI cable.
8
AUDIO OUT
Audio output port, connect to amplif
i
er or speaker.
9
IR IN
Connect to the IR Receiver cable. The IR signal will
send to
the IR OUT port of the transmitter.
10
IR OUT
Connect to the IR blaster cable, the IR signal is from IR
IN port of the transmitter.
11 RS-232
3
-
pin Phoenix connector for RS
-
232 command transmission.
The RS-232 command will pass-through from transmitter to
receiver or from receiver to transmitter.

pg.
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDBT-E150B-18
Description: HDBaseT™ 1x8 Splitter HDMI 2.0b, HDR10 , 18G, support 4K@60hz
(150m) c/w 8x Receivers
Package Includes:
•1× 18Gbps HDMI 1×8 HDBaseT Splitter
•8× HDBaseT Receiver
•9× IR Blaster Cable (1.5 meters)
•9× 20K~60KHz IR Receiver Cable (1.5 meters)
•9× 3-pin Phoenix Connector
•1× 5-pin Phoenix Connector
•18× Mounting Ear
•1× 24V/3.75A DC Locking Power Adapter
•1× User Manual

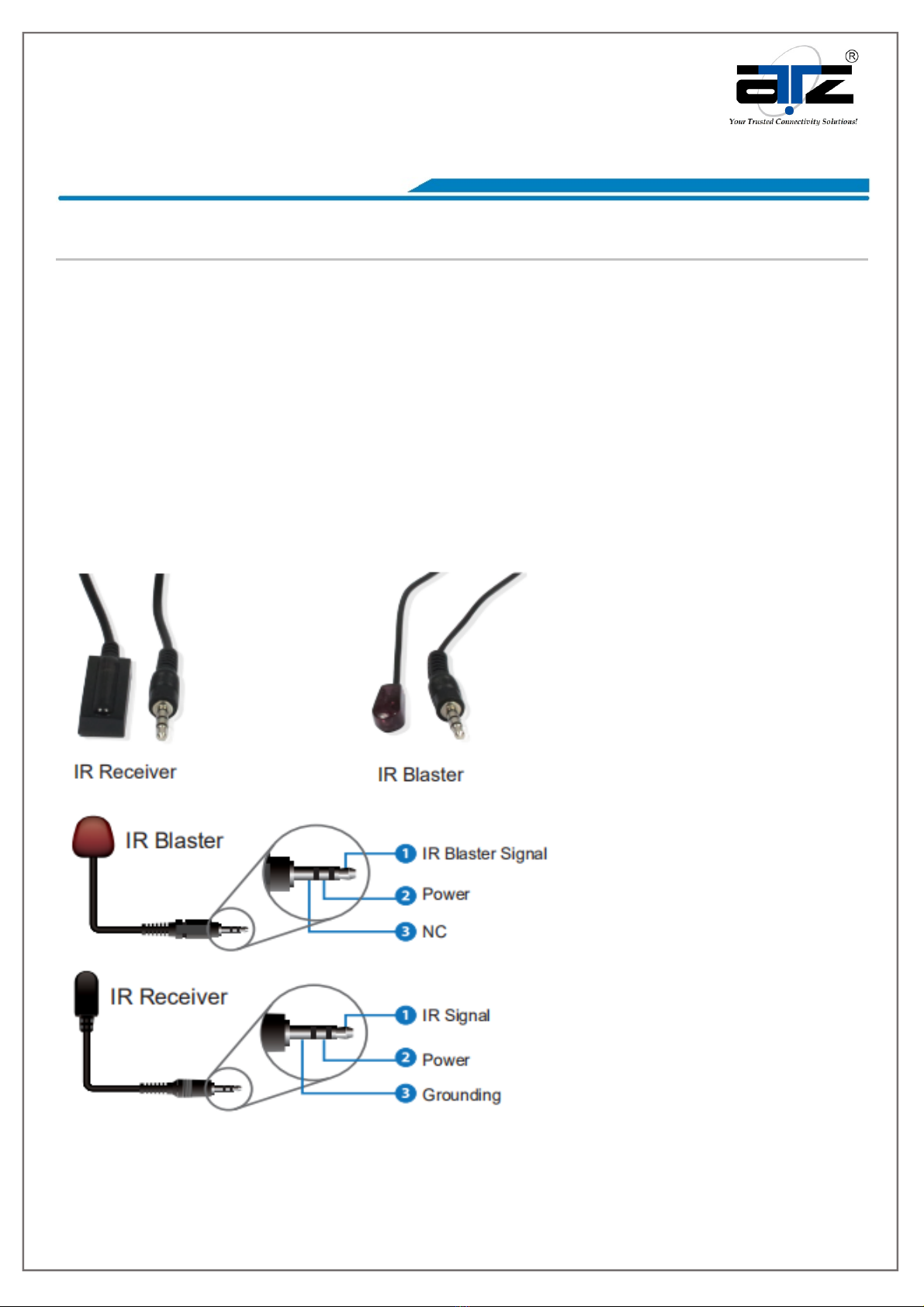

IR Pin Definition
Note: When the angle between the IR receiver and the remote control is ± 45 °, the
transmission distance is 0-5 meters; when the angle between the IR receiver and the remote

pg. 7
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDBT-E150B-18
Description: HDBaseT™ 1x8 Splitter HDMI 2.0b, HDR10 , 18G, support 4K@60hz
(150m) c/w 8x Receivers
control is ± 90 °, the transmission distance is 0-8 meters
EDID Mode
The defined EDID setting list of the product is shown as below:
EDID
Mode
EDID Description
11111
1080P, Stereo Audio 2.0
11110
1080P, Dolby/DTS 5.1
11101
1080P, HD Audio 7.1
11100
1080I, Stereo Audio 2.0
11011
1080I, Dolby/DTS 5.1
11010
1080I, HD Audio 7.1
11001
1080P 3D, Stereo Audio 2.0
11000
1080P 3D, Dolby/DTS 5.1
10111
1080P 3D, HD Audio 7.1
10110
4K2K30Hz_444, Stereo Audio 2.0
10101
4K2K30Hz_444, Dolby/DTS 5.1
10100
4K2K30Hz_444, HD Audio 7.1
10011
4K2K60Hz_420, Stereo Audio 2.0
10010
4K2K60Hz_420, Dolby/DTS 5.1
10001
4K2K60Hz_420, HD Audio 7.1
10000
4K2K60Hz_444, Stereo Audio 2.0
01111
4K2K60Hz_444, Dolby/DTS 5.1
01110
4K2K60Hz_444, HD Audio 7.1
01101
4K2K60Hz_444, Stereo Audio 2.0 HDR
01100
4K2K60Hz_444, Dolby/DTS 5.1 HDR
01011
4K2K60Hz_444, HD Audio 7.1HDR
01010
COPY_FROM_LOOP OUT
01001
COPY_FROM_HDBT OUT1
01000
COPY_FROM_HDBT OUT2
00111
COPY_FROM_HDBT OUT3
00110
COPY_FROM_HDBT OUT4
00101
COPY_FROM_HDBT OUT5
00100
COPY_FROM_HDBT OUT6
00011
COPY_FROM_HDBT OUT7
00010
COPY_FROM_HDBT OUT8
00001
1080P, Stereo Audio 2.0
00000
PC control mode

pg. 8
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDBT-E150B-18
Description: HDBaseT™ 1x8 Splitter HDMI 2.0b, HDR10 , 18G, support 4K@60hz
(150m) c/w 8x Receivers
ASCII Commands
The product also supports ASCII command control. Connect the RS-232 port of the product
to a PC with a 3-pin phoenix connector cable. Then, open a Serial Command tool on PC to
send ASCII commands to control the product. The ASCII command list about the product is
shown as below.
ASCII Commands
Serial port protocol. Baud rate: 115200, Data bits: 8bit, Stop bits:1, Check bit: 0
x - Parameter 1 y - Parameter 2
! - Delimiter
Command
Code
Function Description Example Feedback Default Setting
Power
s power z!
Power on/off the
device,z=0~1 (z=0 power
off, z=1 power on)
s power 1!
Power on
System Initializing...
Initialization Finished! FW
version x.xx.xx
power on
r power! Get current power state r power! power on/power off
s reboot! Reboot the device
s reboot!
Reboot…
System Initializing...
Initialization Finished! FW
version x.xx.xx
System
Setup
help! List all commands help!
r type!
Get device model
r type!
HDC
-
SPB18H150
r status! Get device current status
r status!
Get the unit all status:
power,
in/out connection, edid
mode
r fw version! Get Firmware version r fw version! MCU BOOT: Vx.xx.xx MCU
APP: Vx.xx.xx
r link in! Get the connection status
of the input port r link in! HDMI IN: connect
r link out y!
Get the connection status
of the y output port ,
y=0~9(0=all, 1~8=HDBT
1~8, 9=loop out)
r link out 1!
hdmi loop out:
connect
hdbt output 1: connect
s reset! Reset to factory defaults s reset!
Reset to factory defaults
System Initializing...
Initialization Finished! FW
version x.xx.xx
Command
Code
Function Description Example Feedback Default Setting
Output Setting
s hdmi
stream z!
Set hdmi loop output
stream on/off
z=0~1(0:disable,1:enable
)
s hdmi stream 1
!
Enable hdmi loop out
stream
Disable hdmi loop out
stream
enable

pg. 9
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDBT-E150B-18
Description: HDBaseT™ 1x8 Splitter HDMI 2.0b, HDR10 , 18G, support 4K@60hz
(150m) c/w 8x Receivers
s hdmi hdcp
z!
Set hdmi loop output hdcp
on/ off
z=0~1(0:disable,1:enable)
s hdmi hdcp 1!
Enable hdmi loop out hdcp
Disable hdmi loop out
hdcp
enable
s hdbt y hdcp
z!
Set hdbt output y hdcp
on/off, y=0~8(0=all)
z=0~1(0:disable,
1:enable)
s hdbt 1 hdcp 1
!
s hdbt 0 hdcp 1
!
Enable hdbt output 1
hdcp
Disable hdbt output 1 hdcp
Enable hdbt all outputs
hdcp Disable hdbt all
outputs hdcp
enable
s hdbt y
stream z!
Set hdbt output y stream
on/ off, y=0~8(0=all)
z=0~1
(0:disable,1:enable)
s hdbt 1 stream
1 !
s hdbt 0 stream
1 !
Enable hdbt output 1
stream
Disable hdbt output
1
stream
Enable hdbt all outputs
stream Disable hdbt all
outputs stream
enable
r hdmi
stream!
Get hdmi loop out
stream status r hdmi stream! Enable hdmi output
stream
r hdmi hdcp!
Get hdmi loop out hdcp
status
r hdmi hdcp! Enable hdmi output hdcp
r hdbt y
hdcp!
Get hdbt output y hdcp
status,
y=0~8(0=all)
r hdbt 1 hdcp! Enable hdbt output 1 hdcp
r hdbt
stream!
Get hdbt output y
stream status,
y=0~8(0=all)
r hdbt 1 stream!
Enable hdbt output 1
stream
Command
Code
Function Description Example Feedback Default Setting
EDID Setting
Set input EDID from
default EDID z, z=1~32
1 , 1080p,Stereo Audio 2.0
2 , 1080p,Dolby/DTS 5.1
3 , 1080p,HD Audio 7.1
4 , 1080i,Stereo Audio 2.0
5 , 1080i,Dolby/DTS 5.1
6 , 1080i,HD Audio 7.1
7 , 3D,Stereo Audio 2.0
8 , 3D,Dolby/DTS 5.1
9 , 3D,HD Audio 7.1
10 , 4K2K30_444,
Stereo Audio 2.0
11 , 4K2K30_444,
Dolby/DTS 5.1
12 , 4K2K30_444,HD Audio
7.1
13 , 4K2K60_420,
Stereo Audio 2.0
14 , 4K2K60_420,
Dolby/DTS 5.1
15 , 4K2K60_420,HD Audio
7.1
input EDID:1080p,
Stereo Audio 2.0
s edid in
from z!
s edid in from
1!
1080p,Stereo
Audio 2.0
Please toggle EDID

pg. 10
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDBT-E150B-18
Description: HDBaseT™ 1x8 Splitter HDMI 2.0b, HDR10 , 18G, support 4K@60hz
(150m) c/w 8x Receivers
16 , 4K2K60_444,
Stereo Audio 2.0
17 , 4K2K60_444,
Dolby/DTS 5.1
18 , 4K2K60_444,HD Audio
7.1
19 , 4K2K60_444,
Stereo Audio 2.0 HDR
20 , 4K2K60_444,
Dolby/DTS 5.1 HDR
21 , 4K2K60_444,
HD Audio 7.1 HDR 22 ,
copy from hdmi loop out
23 , copy from hdbt output
1
24 , copy from hdbt output 2
25 , copy from hdbt output 3
26 , copy from hdbt output 4
27 , copy from hdmi output 5
28 , copy from hdbt output 6
29 , copy from hdbt output 7
30 , copy from hdbt output 8
31 , 1080p,Stereo Audio
2.0 32 , use user1 EDID
dip switch to 00000!
Command
Code
Function Description Example Feedback Default Setting
s edid user1
00 FF FF FF
FF …!
Set user1 EDID data s edid user1
00 ff ff ff ff ….
!
user1 EDID data: 00 FF FF
….
r edid user1! Get user1 EDID data r edid user1!
user1 EDID data : 00 FF FF
FF FF FF FF
00 ………

pg. 11
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDBT-E150B-18
Description: HDBaseT™ 1x8 Splitter HDMI 2.0b, HDR10 , 18G, support 4K@60hz
(150m) c/w 8x Receivers
r edid in! Get EDID status of the
input
r edid in! input EDID: 4K2K60_
444,Stereo Audio 2.0
r edid in
data!
Get the EDID data of the
hdmi input
r edid in data! EDID data : 00 FF FF
FF FF FF FF 00 ……
RS-232 BYPASS Setting
s rs232
bypass hdbt
y!
Set RS-232 port connect
to HDBT out1 Receiver RS-
232 port , y=0~9( 0=all,
1~8= hdbt out 1~8,
9=NC)
s rs232 bypass
hdbt 1!
RS-232 connect to HDBT
OUT1
RS-232 not connect
to HDBT OUT
y=0
r rs232
bypass!
Get RS-232 port connect
to HDBT out receiver RS-
232 port
r rs232 bypass!
RS-232 connect to HDBT
OUT1
RS-
232 connect to all HDBT
OUT
RS-232 not connect
to HDBT OUT
s device
baud w size
x stop y
parity z!
Set receiver control
device COM port setting ,
w=2400,
4800,9600,19200,38400,
57600,115200, x=7,8
y=1,2, z=none, even,odd
s device baud
57600 size 8
stop 1 parity
none!
receiver device COM port
setting baudrate: 57600
data size :8, stop:1
parity: none
s rs232 time
x!
set send RS232 command
wait time
x=200~5000ms
s rs232 time
200!
send RS-232 command
wait time 200ms 200ms

pg. 12
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDBT-E150B-18
Description: HDBaseT™ 1x8 Splitter HDMI 2.0b, HDR10 , 18G, support 4K@60hz
(150m) c/w 8x Receivers

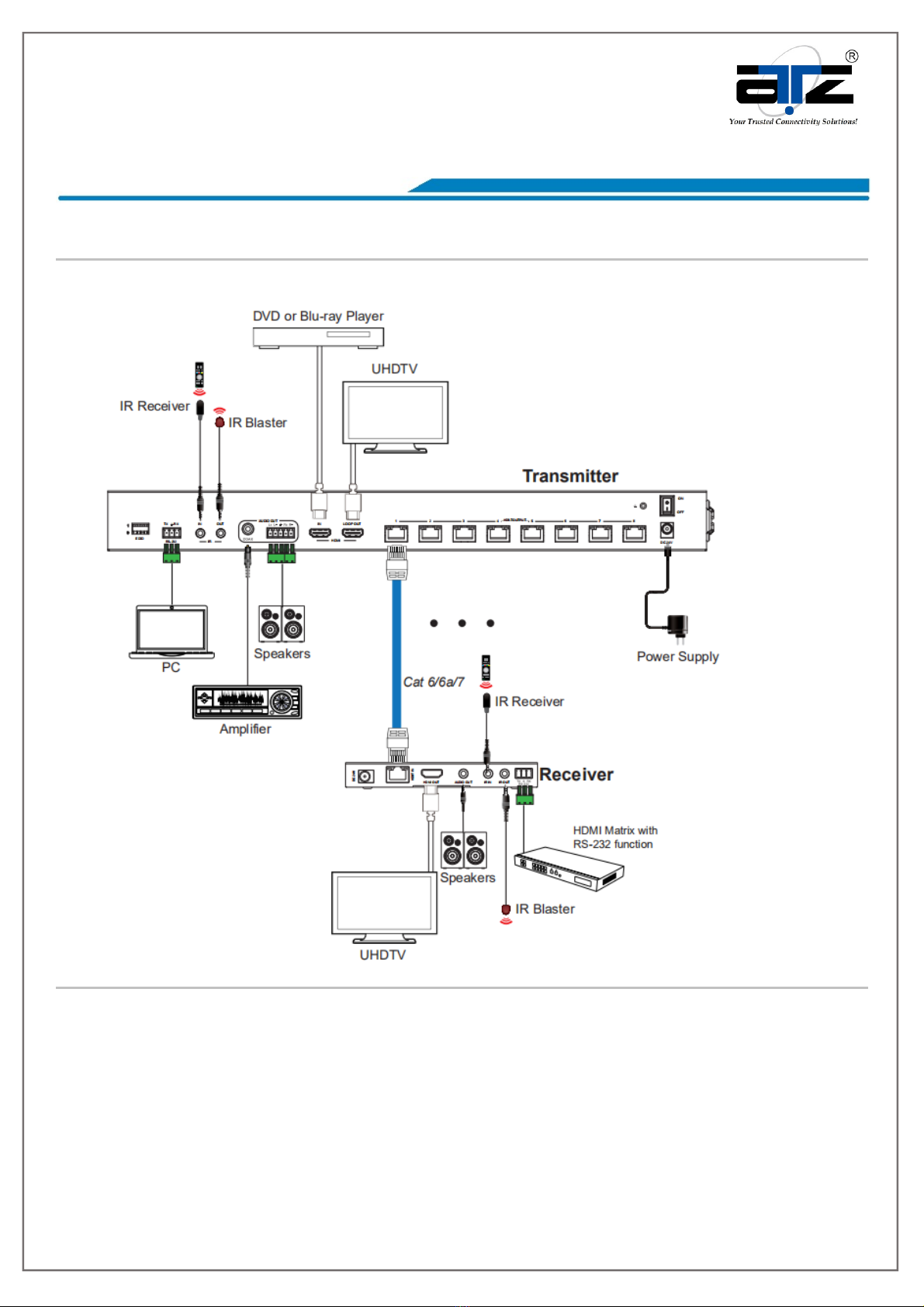

Product Diagram:
Warranty: 2 Years
Warranty is effective from the date of original delivery.
This warranty shall be void if a serial number has been removed from the product.
