ATZ HDMI-18E50 User manual

Model : ATZ HDMI-18E50
Description : 1x8 HDMI Splitter over Cat.6 Extender, w/8x receiver units
pg. 1
Notes:- All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be
slightly varied in items of colour, shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright

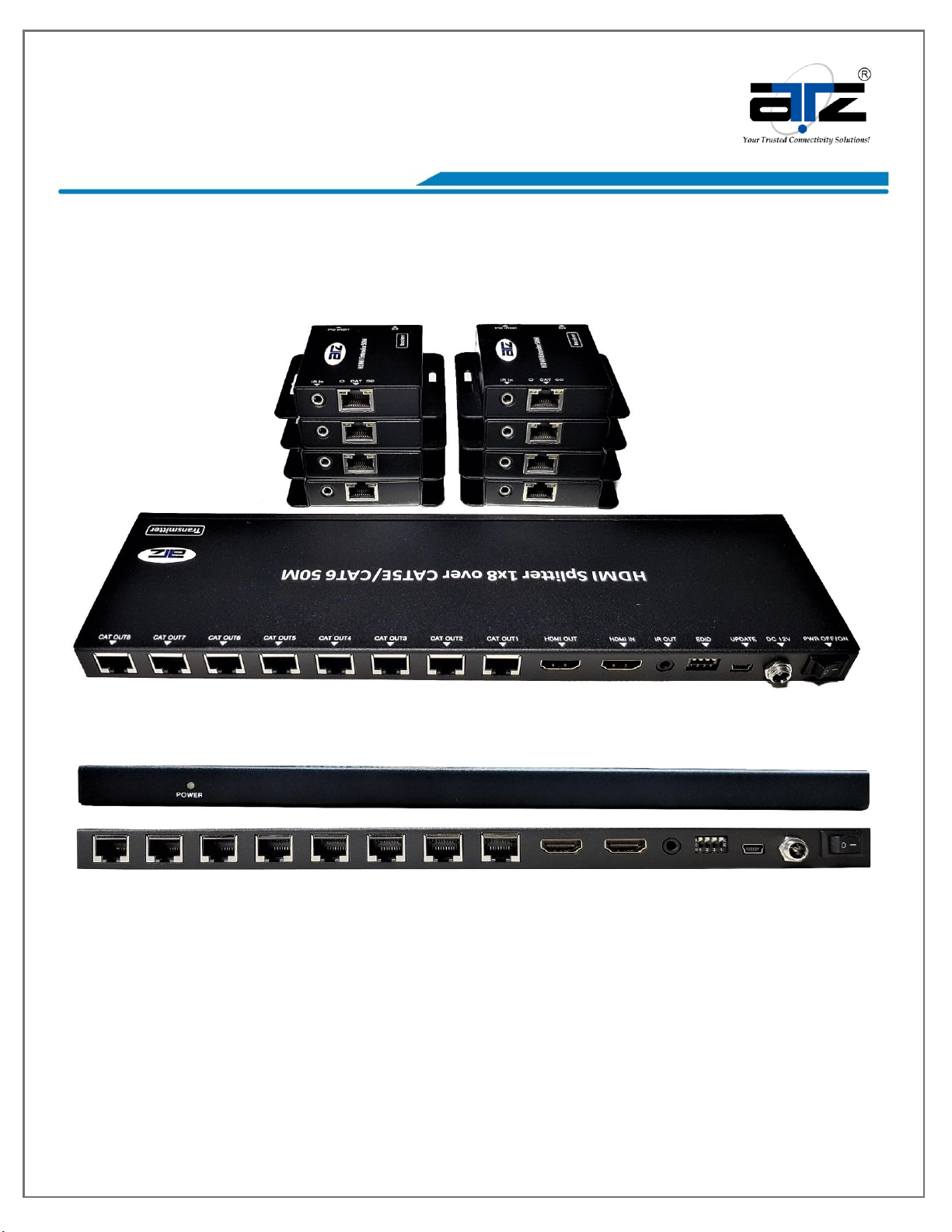

The Splitter is a product for splitting and extending your HDMI signal over long distances to a
compatible display. It is designed to convert the HDMI signal and transmit by Internet cable. The
splitter supports resolutions up to 1080p@60Hz, and supports smart EDID management.

Model : ATZ HDMI-18E50
Description : 1x8 HDMI Splitter over Cat.6 Extender, w/8x receiver units
pg. 2
Notes:- All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be
slightly varied in items of colour, shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright
Features:
Compliant with HDMI1.3, HDCP 1.2 and DVI 1.0.
Full HD support: 1080p@60Hz@24 bit/pixels.
Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio.
Operates for TMDS clock frequencies up to 148.5MHz.
Support Power over cable function.
Use single UTP LAN cable (CAT5E/6) to substitute HDMI cable to achieve long distances
transmission.
UTP cable termination follows the standard of IEEE-568B.
Supports EDID control via EDID selector.

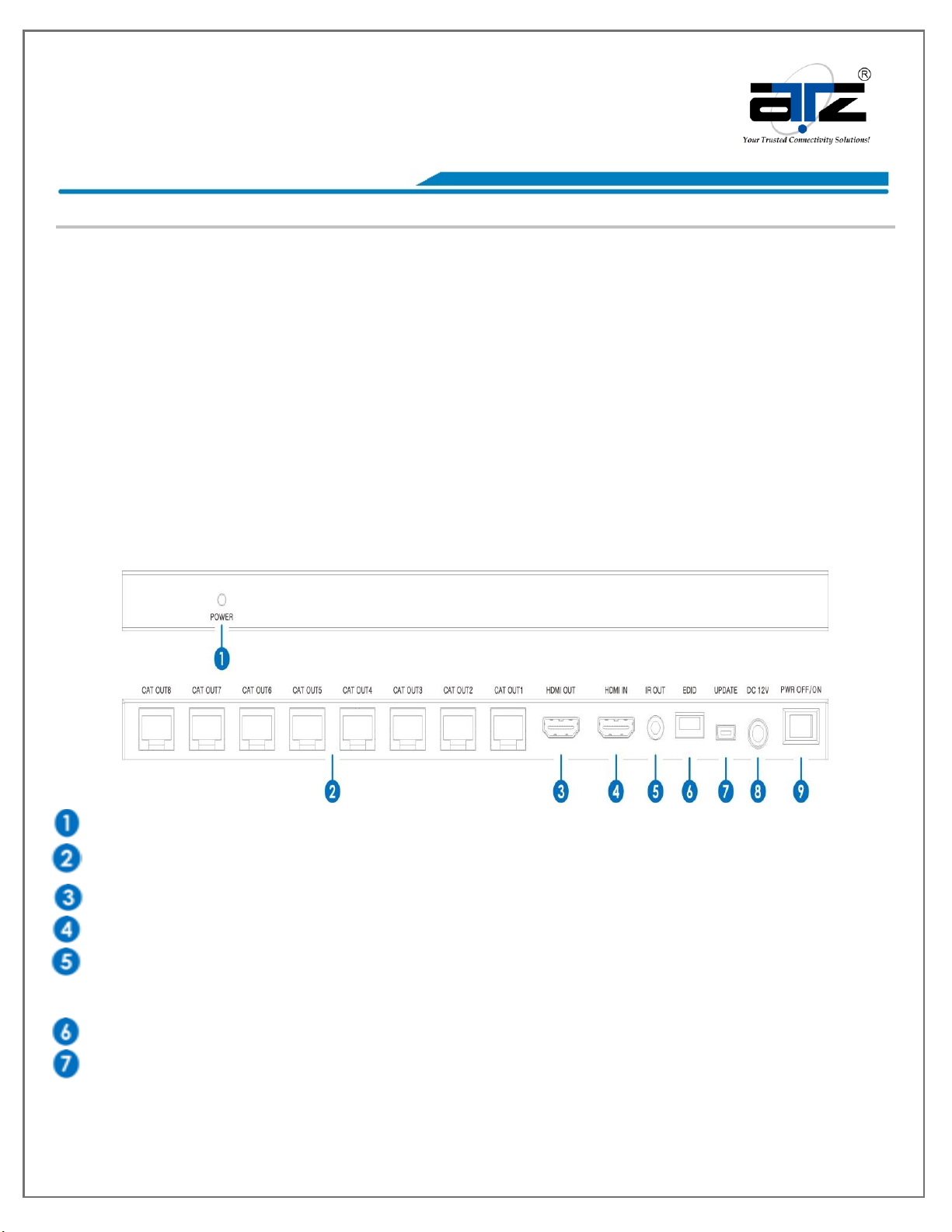

Operation Controls and Functions:
POWER LED: This red LED will illuminate when the device is connected with power supply.
CAT OUT1-OUT8: Eight RJ45 ports provide signal output.
HDMI OUT: Local HDMI loop output port.
HDMI IN: HDMI Input port. Connect source with HDMI cable.
IR OUT: Connect the IR Blaster cable included in the package for IR signal transmission. Pace
the IR blaster in direct line-of-sight of the equipment to be controlled.
EDID : Select output signal format via EDID Selector.
UPDATE: System software update.

Model : ATZ HDMI-18E50
Description : 1x8 HDMI Splitter over Cat.6 Extender, w/8x receiver units
pg. 3
Notes:- All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be
slightly varied in items of colour, shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright
DC12V: Plug the 12V2.5A DC power supply into the unit.
POWER OFF/ON: Power ON\OFF Switch.

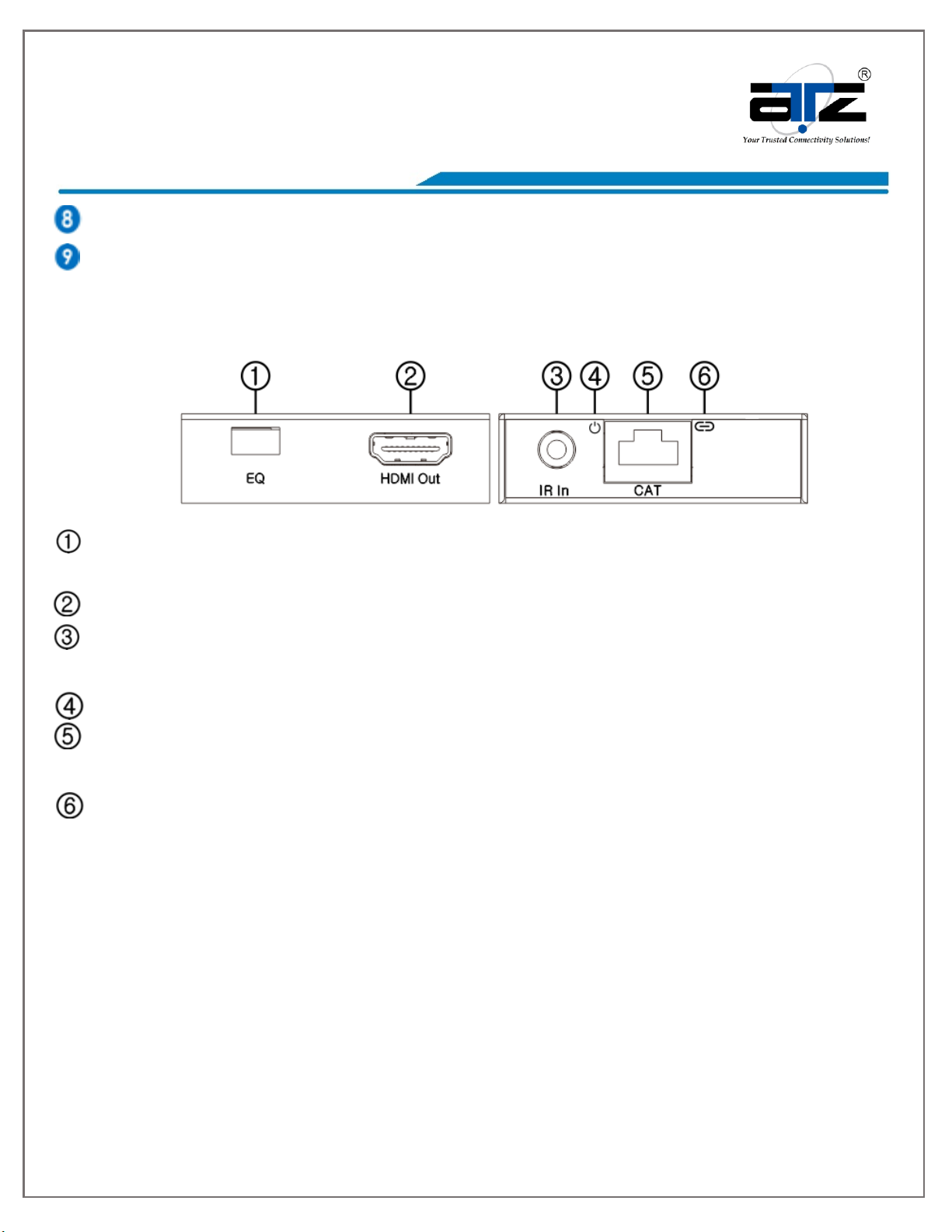

1.1 Receiver
EQ switcher: HDMI Receiver equalizer switcher.
See the description 2
HDMI out: This slot is to connect the HDMI input port of your display such as an HDTV.
IR In: Connect to the IR Receiver for IR signal reception. Ensure that remote being used is within
the direct line-of-sight of the IR receiver.
Power LED: This LED will illuminate when the device is connected with power supply.
CAT: Connect the CAT input of the receiver with the CAT output of the transmitter with CAT5E/6
cable.
Lock LED: This LED will illuminate when the HDMI signal from the transmitter is stable.

Model : ATZ HDMI-18E50
Description : 1x8 HDMI Splitter over Cat.6 Extender, w/8x receiver units
pg. 4
Notes:- All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be
slightly varied in items of colour, shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright
EDID Control
Under normal circumstances, a source device (digital and analog) will require information about a
connected device/display to assess what resolutions and features are available. The source can then
cater its output to send only resolutions and features that are compatible with the attached
device/display. This information is called EDID (Extended Display Information Data) and a source
device can only accept and read one EDID from a connected device/display. Likewise, the source
could only output one resolution to connect to device/display.
The EDID switch allows for EDID learning or to pre-set an EDID to encourage a “handshake”
between the display and source.
Manual EDID Learning Mode
When you switch to any number of “0-8”, the Transmitter will set a fixed
EDID to the source. The detail EDID description, please refer to the EDID
table.
Auto EDID Learning Mode
When you switch to “9”, the Transmitter will copy the HDMI LOOP OUT
port display EDID to source.
Attention: Please confirm the extender is work normally, when you want to modify the
new EDID to source, toggle the EDID switcher to the corresponding number first, then
plug the Transmitter power again. The extender will send the new EDID to source.

Model : ATZ HDMI-18E50
Description : 1x8 HDMI Splitter over Cat.6 Extender, w/8x receiver units
pg. 5
Notes:- All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be
slightly varied in items of colour, shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright

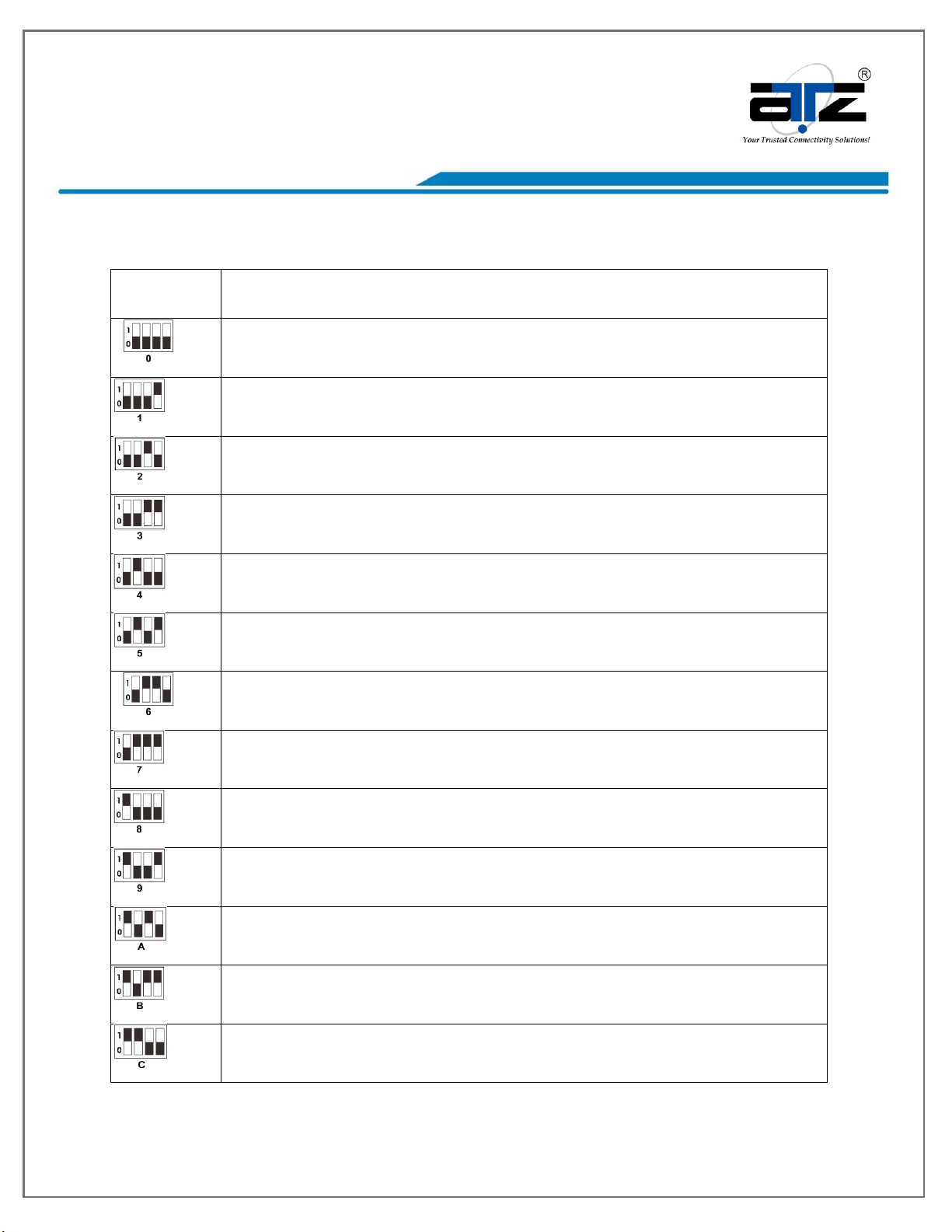

EDID TABLE:
Position
EDID Description
1080p, 2CH AUDIO
1080p, DOLBY/DTS 5.1
1080p, HD AUDIO
1080i, 2CH AUDIO
1080i, DOLBY/DTS 5.1
1080i, HD AUDIO
3D,1080p, 2CH AUDIO
3D, 1080p,DOLBY/DTS 5.1
3D,1080p, HD AUDIO
Copy EDID from the Transmitter HDMI loop out
1080p, 2CH AUDIO
1080p, 2CH AUDIO
1080i, 2CH AUDIO

Model : ATZ HDMI-18E50
Description : 1x8 HDMI Splitter over Cat.6 Extender, w/8x receiver units
pg. 6
Notes:- All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be
slightly varied in items of colour, shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright
1080i, 2CH AUDIO
1080i, 2CH AUDIO
1080i, 2CH AUDIO
RX Equalizer distance adjust
If you find flickering or blinking image on the display, adjust the EQ switch to improve the cable
skew. MAX stands for the strongest HDMI signal level for the longest possible transmission length
while MIN stands for the weakest HDMI signal level for short transmission length. Adjust the signal
level from MIN to MAX until ideal video quality displayed.

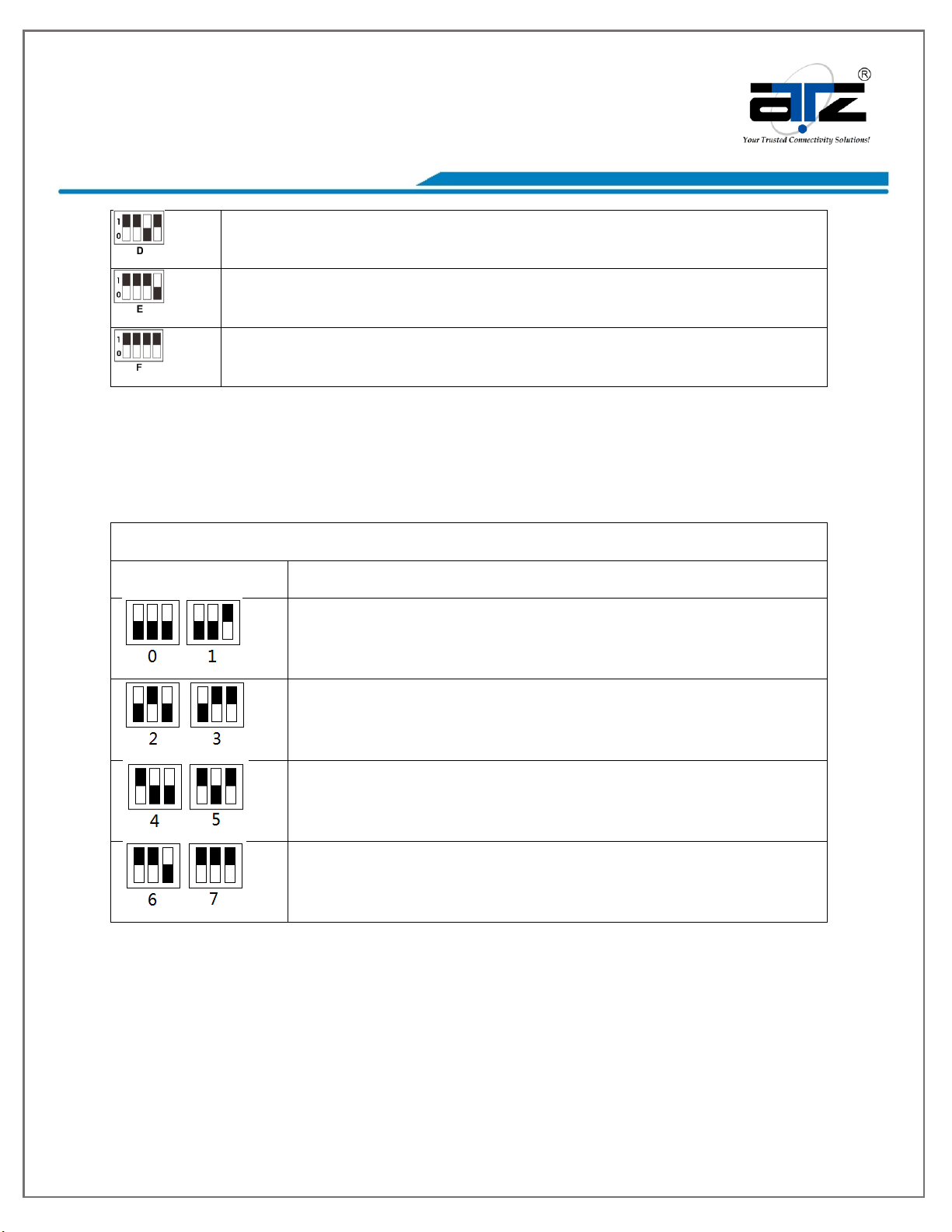

Recommended EQ setting
Position
Cable Length
under 15m (49.5ft)
15-30m (49.5 ft - 99ft)
30-40m (99ft - 132ft)
40-50m(132ft –164ft)

Model : ATZ HDMI-18E50
Description : 1x8 HDMI Splitter over Cat.6 Extender, w/8x receiver units
pg. 7
Notes:- All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be
slightly varied in items of colour, shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright
Wideband IR(30KHz---60KHz) introduction

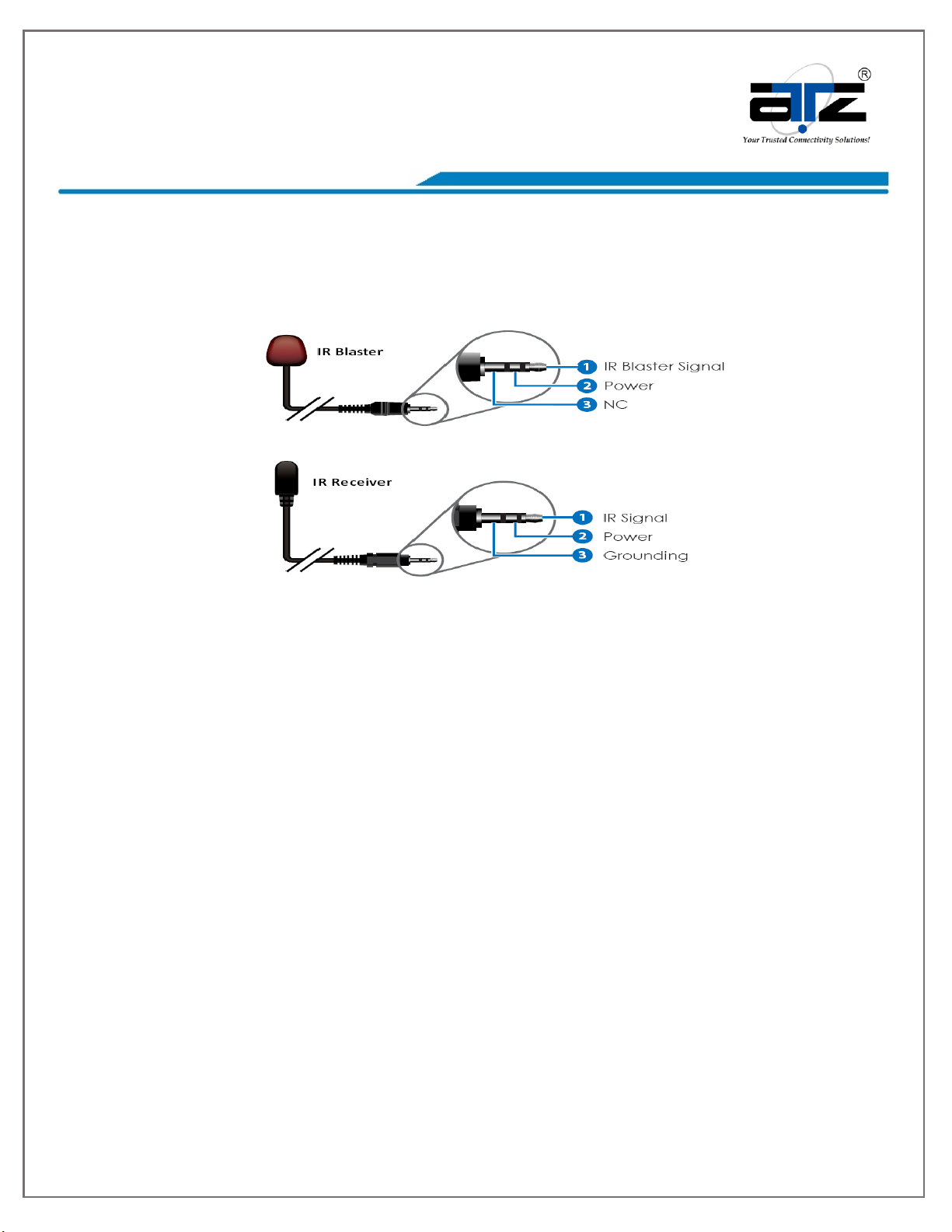

IR Cable Pin Assignment
Control local device (Blu-ray player or DVD player, etc) from remote: The IR Receiver is connected to
the receiver IR in port. The CAT output connector on the HDMI Splitter is connected via CAT6 cable
to an HDMI receiver. The IR Transmitter is connected to the HDMI Splitter IR OUT port.
IR remote can be used to control local source device from remote.
1.Connect a source such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver,
etc. to the HDMI input on the Transmitting unit.
2. Connect a display such as an` HDTV or HD Projector to the HDMI output on the Receiving unit.
3. Connect a single Cat5e/6 up to 164ft/50m to the output of the Transmitting unit, and the other
end to the input of the Receiving unit.
4. Connect the DC 12V Locking power supply to the power receptacle on the splitter.
5. Connect the power supply to an available electrical outlet.

Model : ATZ HDMI-18E50
Description : 1x8 HDMI Splitter over Cat.6 Extender, w/8x receiver units
pg. 8
Notes:- All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be
slightly varied in items of colour, shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright
Specifications:
Technical
Maximum Pixel Clock
165 MHz
Supports video resolutions up to
1080p@60Hz
ESD Protection
Human body model —±8kV (air-gap discharge)
& ±4kV (contact discharge)
Power Supply
DC 12V 2.5A
HDMI Splitter
Input Ports
1x HDMI, 1xMini USB
Output Ports
1xHDMI, 8xRJ45, 1xIR out
Receiver
Input Ports
1xRJ45, 1x IR in
Output Ports
1x HDMI
Mechanical
Dimensions (mm)
295(W) X 83 (D) X 17 (H)
Weight
HDMI Splitter: 720g
Receiver: 8 x 131g
Operating Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity
20~90% RH (Non-condensing)
Power Consumption (Max)
15W

Model : ATZ HDMI-18E50
Description : 1x8 HDMI Splitter over Cat.6 Extender, w/8x receiver units
pg. 9
Notes:- All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be
slightly varied in items of colour, shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright
Package Includes:
1x HDMI Splitter
8x Receiver
1x 12V2.5A DC Power Supply adapter
1x Wideband IR Tx cable
8x Wideband IR Rx cable
1x Operation Manual
2x Mounting ears

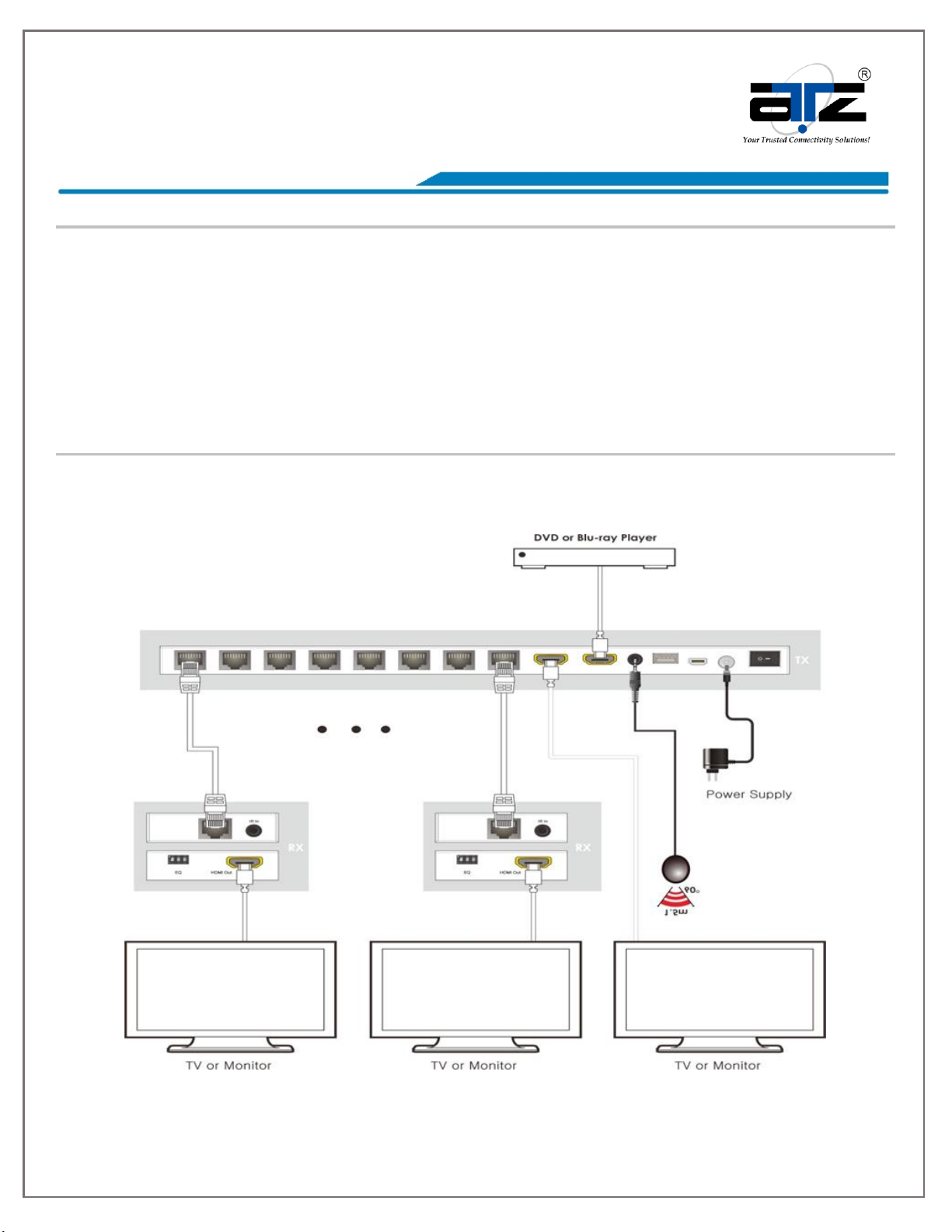

Product Diagram:

Model : ATZ HDMI-18E50
Description : 1x8 HDMI Splitter over Cat.6 Extender, w/8x receiver units
pg. 10
Notes:- All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be
slightly varied in items of colour, shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright
Warranty:
Warranty is effective from the date of original delivery.
This warranty shall be void if a serial number has been removed from the product.
