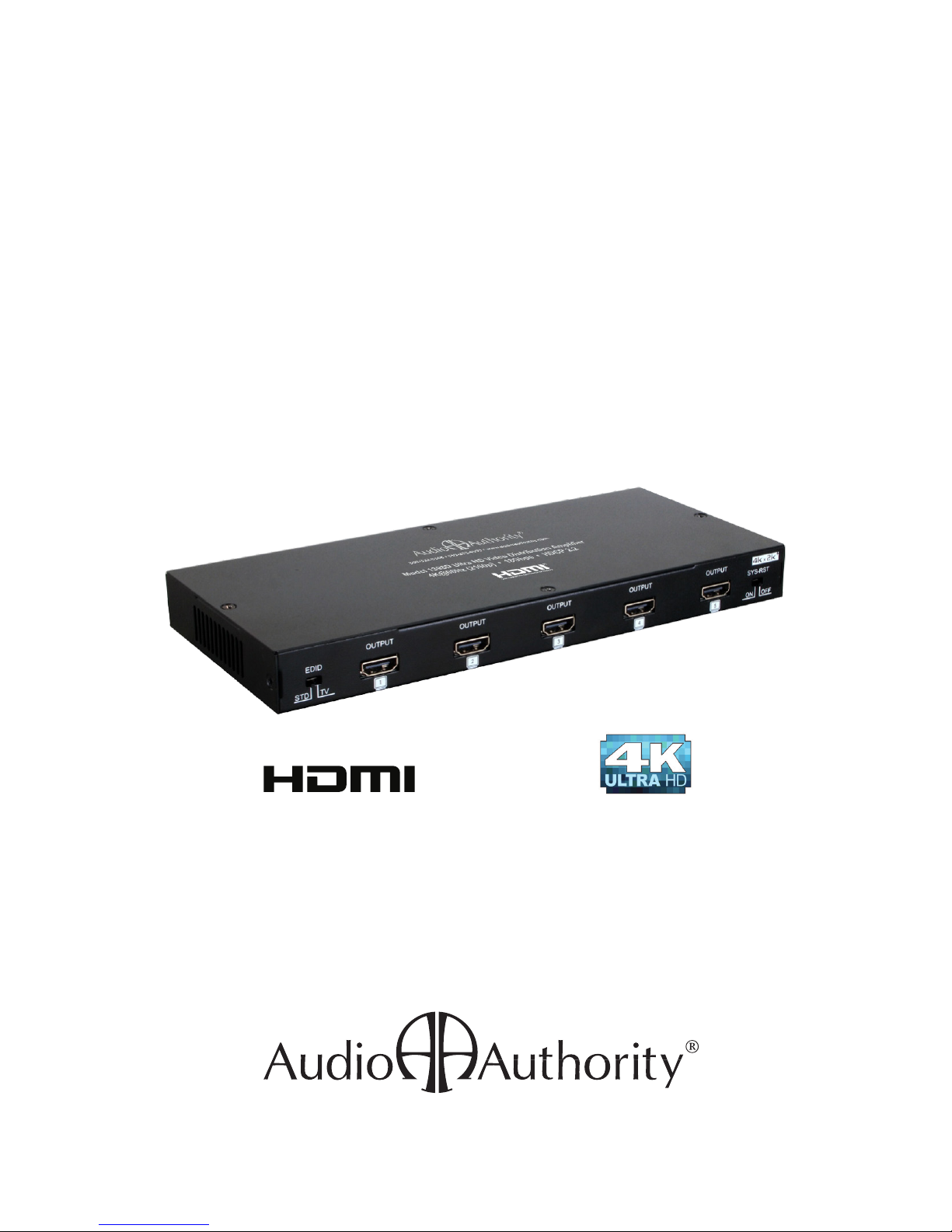

Audio Authority 1398D User manual

User Manual
4K Ultra HD
Video Distribution Amplier
Model 1398D
®

Liability Statement
Every effort has been made to ensure that this product is free of defects.
Audio Authority®cannot be held liable for the use of this hardware or any direct
or indirect consequential damages arising from its use. It is the responsibility of
the user of the hardware to check that it is suitable for his/her requirements and
that it is installed correctly.
Audio Authority reserves the right to revise any of its hardware and software
following its policy to modify and/or improve its products where necessary or
desirable. This statement does not affect the legal rights of the user in any way.
Audio Authority and the Double-A Symbol are registered trademarks of
Audio Authority Corp. Copyright July, 2016, all rights reserved. All third party
trademarks and copyrights are recognized.
HDMI®, the HDMI logo and High-Denition Multimedia Interface are trademarks
or registered trademarks of HDMI Licensing LLC.
HDCP (High-bandwidth Digital Content Protection) is licensed by Digital Content
Protection, LLC.
Dolby®is a registered trademark of Dolby Laboratories, Incorporated.
Warnings
Please read all instructions before attempting to unpack or install or operate this
equipment, and before connecting the power supply. Please keep the following
in mind as you unpack and install this equipment:
● Always follow basic safety precautions to reduce the risk of re, electrical
shock and injury to persons
● To prevent re or shock hazard, do not expose the unit to rain, moisture or
install this product near water
● Never spill liquid of any kind on or into this product
● Never push an object of any kind into this product through module openings or
empty slots, as you may damage parts
● Do not attach the power supply cabling to building surfaces
● Do not allow anything to rest on the power cabling or allow it to be abused by
persons walking on it
● To protect the equipment from overheating, do not block the slots and
openings in the module housing that provide ventilation

Table Of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Checking Package Contents . . . . . . . . . . . . . . . . . . . . . . 4
Getting the Best Results . . . . . . . . . . . . . . . . . . . . . . . . 5
Planning a Distribution System . . . . . . . . . . . . . . . . . . . . . 6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Regulatory Compliance . . . . . . . . . . . . . . . . . . . . . . . . .11
Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Model 1398D
Ultra HD 4K/2K
Video Distribution Amplier
®

4
Introduction
Thanks for purchasing the Model 1398D 4K Ultra HD distribution amplier from
Audio Authority®. The 1398D is designed to split a 4K HDMI®signal from
one source to a wide spectrum of HDMI display brands, as in a retail demo
environment. It is the ideal solution for merchandising 4K displays using
the latest content at the highest resolutions, and refresh rates including
2160p@60Hz. Display-source compatibility is enhanced by the 1398D’s multiple
EDID options. Link multiple 1398Ds or create a hub-and-spoke layout for large
distribution systems.
Features
● Supports resolutions up to 4096x2160@24/25/30/50/60Hz and
3840x2160@24/25/30/50/60Hz
● HDCP 2.2 and 1.4 compliant
● Video bandwidth: 18Gbps
● Wide frequency range: 25MHz~600MHz
● Supports default EDID and learns EDID from displays
● Mini-USB rmware update for expanding compatibility
● Supports all bitstream audio formats including Dolby and DTS
● Compact footprint with outputs on two sides to reduce sharp cable bends
Checking Package Contents
Before attempting to use this device, please check the packaging and make
certain the following items are contained in the shipping carton:
● 1398D distribution amplier
● 5VDC power adapter
● User manual

5
Getting the Best Results
Many factors inuence the quality and reliability of HDMI signal distribution
installations. The following are the main factors to consider, and basic precautions
that will ensure the best possible performance.
● Source Switching - If the source device will be switched often during operation,
as in the case of an HDMI switch connected at the head end of the distribution
system, use the SYS-RST switch. This setting prevents the 1398D from
interrupting video and audio transmission to re-learn EDID settings each time the
source is switched, or a TV is hot-plugged to the distribution system.
● Resolution tracking - Set the source to output the best resolution that all
TVs are capable of displaying. Utilize the following instructions to ensure that
all TVs connected to the DA receive video signal. If the TVs have a wide range
of resolution capabilities, the highest resolution sets may not be shown to their
best advantage.
● Source resolution and video/sound quality - Sources, such as satellite
receivers or cable boxes can output at low resolutions or deliver extremely
compressed video material that may yield poor results. Consider the source
when planning and troubleshooting your system.
● Output display devices - The quality of the video image depends upon the
type and quality of the HDMI display devices used. The device with the lowest
resolution will be the reference standard for the rest of the HDMI displays
connected to the DA.
● Distance between the DA source and the displays -Long distances are
possible, but quality cables and advanced HDMI extenders may be necessary
for the longest runs.
● Connection cables - HDMI cable design and quality are extremely important
in long cable runs where capacitance can severely degrade performance. Use
Premium High Speed Certied HDMI cables designed to handle 4K resolutions
and 3D; low quality cables are susceptible to interference. Always use good
strain relief methods to prevent cables from becoming loose over time.
● Interference from nearby electrical devices - This can have an adverse
effect on signal quality. For example, older computer monitors often emit very
high electromagnetic elds that can interfere with the performance of nearby
video equipment.
Higher
Lower
Shorter Distance Longer Distance
Resolution
Refresh Rate
Bit Depth

6
Planning a Distribution System
● Each display should be tested with the source(s) being used to ensure basic
compatibility before connecting them to a distribution amp and/or switcher.
Not all HDMI components and displays are compatible.
● Since all of the displays will be receiving the same video signal resolution and
format from the source, make sure all the displays connected to the 1398D
can accept 2160p resolutions. If a display is limited to 1080p, for example,
either it will not display any image, or the source will reduce its output to
all displays to 1080p, depending on the 1398D settings. You may consider
creating two or three separate distribution systems with different sources
and different output resolutions so that you can adequately demonstrate the
highest resolution HDTV sets.
● Since HDMI connectors can sometimes become loose, mount the switcher
or distribution amplier to a at surface and add strain relief tie-downs a few
inches away from every HDMI cable connector.
1398D
UHD PLAYER
DISTRIBUTION
AMPLIFIER
Eight UHD TVs on display
HDMI CABLE

7
Installation

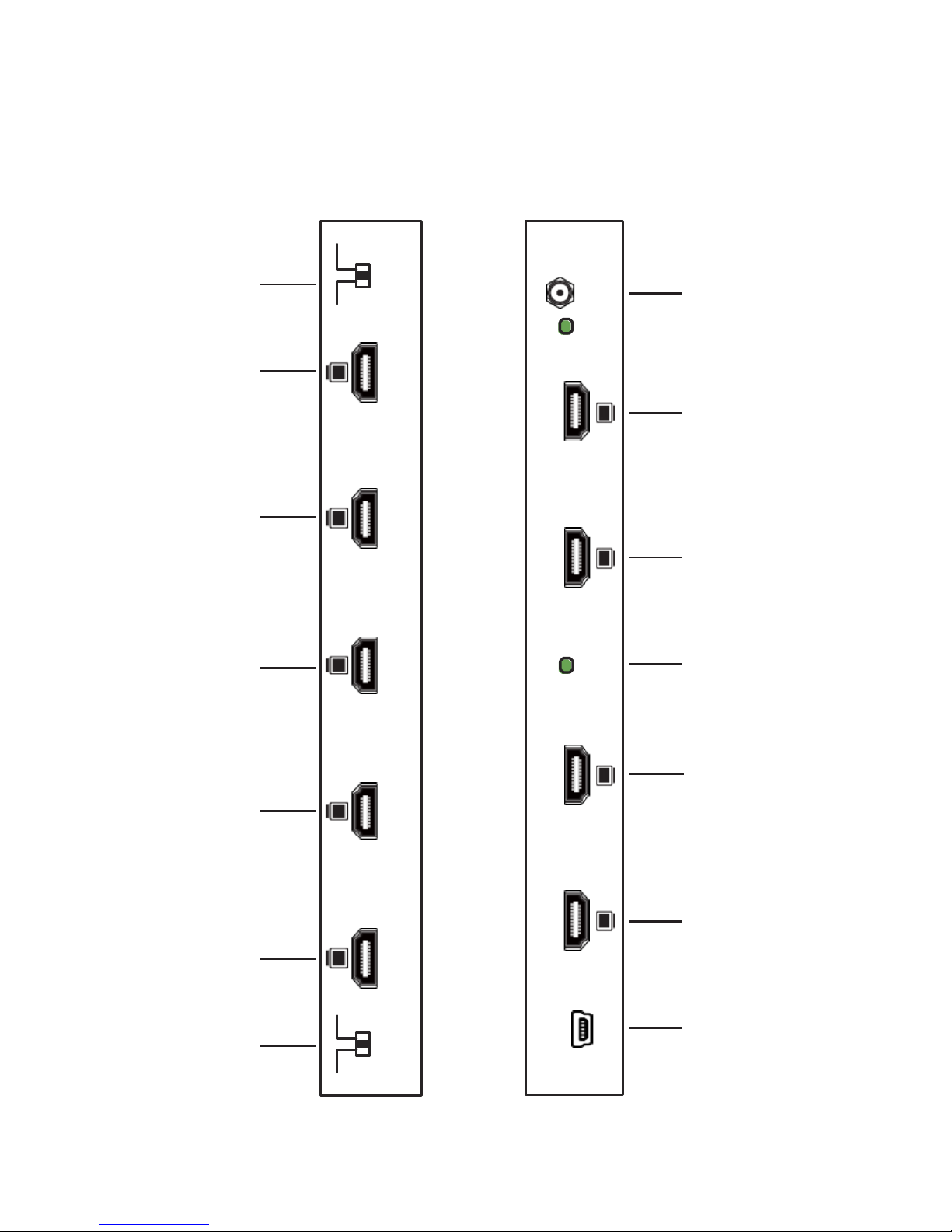

Study the drawing below and become familiar with the controls, signal input,
outputs and power input.
OUTPUT 4
OUTPUT 3
OUTPUT 2
OUTPUT 1
OUTPUT 8
OUTPUT 7
OUTPUT 6
OUTPUT 5
EDID MODE
INPUT
SYS-RST
SYNC
FIRMWARE
UPDATE
PORT
POWER
SER V IC E O U T P U T O U T P U T SYN C IN P U T O U T P U T P O W E R
D C 5 V
6
7
1 8
O U T P U T O U T P U T O U T P U T O U T P U T O U T P U T
E D ID SYS -R S T
STD TV
O N O F F
1
2
3
4
5
FRONT PANEL REAR PANEL

8
Wiring the System
● Switch off all devices, including monitors.
● Connect a Premium High Speed Certied HDMI cable from the HDMI source
to the input of the 1398D. Cable lengths should be kept as short as possible.
● Connect the outputs of the 1398D to displays or other devices.
● Make certain that the HDMI cables are securely plugged into the source and
display devices as well as the 1398D. Always use high speed cables, and the
shortest length possible, for best results.
● Connect the power adapter to the AC source and then to the 1398D.
● The unit begins to function as soon as the AC adapter is connected to the unit
and AC power. There is no power switch.
● Turn on the HDMI source and HDMI destination devices and observe the
source signal on the inputs of all of the destination devices.
Note: Proper operation of HDMI distribution ampliers depends on the use
of Premium High Speed Certied HDMI cables with low loss, high bandwidth signal
handling capabilities.
Operation
Supported Resolutions:
DVI and HDMI Resolutions Input Output
640x480@60/72/75/85
800x600@56/60/72/75/85
1024x768@60/70/75/85
1280x1024@60
1366x768@60
1600x1200@60
1920x1080@60
1920x1200@60
1440x576i@50
[email protected]/60
[email protected]/60
720x576p@50
1280x720p@50/59.94/60
1920x1080i@50/59.94/60
[email protected]/24/25/29.97/30/50/59.94/60
3840x2160@24/25/30/50/60
4096x2160@24/25/30/50/60

9
Switch Settings
● EDID: Choose TV mode, or Standard 1080p (STD) mode. In TV mode,
the 1398D automatically detects and stores EDID data from the device on
output 1. In STD mode 1080p/60 becomes the reference EDID for HDMI
sources on the 1398D input.
● SYS-RST: The 1398D checks the EDID of connected displays every eight
to ten minutes. Turn ON the SYS-RST switch to prevent the 1398D from
interrupting video and audio transmission to re-learn EDID settings each time
the source is switched, or a TV is hot-plugged to the distribution system.
Firmware Updates
Contact Audio Authority Technical Support at 800-322-8346 for information
regarding rmware updates.
Troubleshooting
● For 4K resolution, rst make certain that the input cable is as short as
possible, and that the cable is high-speed. HDMI cable design and quality
are extremely important in long cable runs where capacitance can severely
impact performance. Use a quality, high speed HDMI cable or high speed
HDMI extender that supports 4K.
● Make certain that the distribution amplier is receiving power by looking at the
power LED. It should be illuminated and not ickering on and off. Intermittent
operation generally means a problem with the DC power adapter or low AC
voltage being applied to the DC adapter’s input.
● If some lower resolution TVs do not display a picture, you may need to divide
your distribution system into separate 1080p, and 2160p systems with a
source for each system.
● If some displays are not receiving video signal, or lose signal, check to see
that the correct input is selected.
● If you still experience problems using the distribution amplier, troubleshoot
by rst attaching the source device directly to each of the destination devices
in turn using the same cables you are using with the expanded system. This
is a way of determining if the problem is due to bad cables or a problem with
the other devices. If you are unable to obtain a signal using this simplied
path, suspect the cables, the source device or the display.
If a problem still persists after trying the above suggestions, contact the
Audio Authority Technical Service department via email:
[e-mail], or call 800-322-8346 or 859-233-4599.

10
Specications
Model 1398D 1x8 Distribution Amplier (Splitter)
HDMI Features HDMI, 3D & 4K/2K
DVI Compliance DVI 1.0
HDCP Compliance HDCP 2.2
Video Bandwidth Single-link 600MHz (18Gbps)
Video Resolution
and Formats
4096x2160@24/25/30/50/60Hz
3840x2160@24/25/30/50/60Hz
480i~1080p@24/50/60
Audio Support DTS-HD Master Audio, Dolby TrueHD,
Dolby Atmos, Dolby Digital, DTS, DVD-
Audio, LPCM, SACD, MPCM
ESD Protection Human body model — ±8kV (air-gap dis-
charge) & ±4kV (contact discharge)
Firmware Update via Mini-USB port, contact Audio Authority
Input/Output 1x HDMI/8x HDMI
HDMI Connector Type A (19-pin female)
Control Switch EDID mode selection
Dimensions (L x W x H) 240 x 103 x 25mm
Weight 690g
Power Supply 5V DC 3A
Power Consumption 9.5 watts (max)
Regulatory Approvals US/EU standards, CE, FCC/UL certied
Operation Temperature 0~40°C (32~104°F)
Storage Temperature -20~60°C (-4~140°F)
Relative Humidity 20~90% RH (no condensation)

11
Limited Warranty
If this Audio Authority®product fails due to defects in materials or workmanship
within one year from the date of the original sale to the end-user, Audio Authority
guarantees that we will replace the defective product at no cost. Freight charges for
the replacement unit will be paid by Audio Authority (Ground service only). A copy
of the invoice showing the item number and date of purchase (proof-of-purchase)
must be submitted with the defective unit to constitute a valid in-warranty claim.
Units that fail after the warranty period has expired may be returned to the factory
for repair at a nominal charge, if not damaged beyond the point of repair. All freight
charges for out-of-warranty returns for repair are the responsibility of the customer.
Units returned for repair must have a Return Authorization Number assigned by the
factory.
This is a limited warranty and is not applicable for products which, in our opinion,
have been damaged, altered, abused, misused, or improperly installed. Audio
Authority makes no other warranties either expressed or implied, including limitation
warranties as to merchantability or tness for a particular purpose. Additionally,
there are no allowances or credits available for service work or installation
performed in the eld by the end user.
Warranty Service Procedures
If you suspect a product defect, contact Audio Authority’s Technical Service
Department at 800-322-8346 or 859-233-4599 for assistance in verifying the
problem. If a defect or potential defect is suspected, a replacement unit will be
shipped immediately on a defect-exchange basis and a Return Authorization
Number will be issued for the return of the defective product. Replacement units
are sent out at the Manufacturer’s Suggested Retail Price which is charged to the
Customer’s Credit Card at the time of shipment. Once we receive the defective
unit back at the factory, it will be evaluated under the conditions of this warranty
and if found to be in-warranty, a full credit will be issued to the Customer’s Credit
Card. Return freight charges for the defective unit are the customer’s responsibility.
Please contact our Technical Service Department for complete details concerning
all in and out of warranty service matters.
We appreciate your condence in our products and services and will always strive
to meet or exceed your needs.
Regulatory Compliance
Model 1398D distribution ampliers have been tested for compliance with
appropriate FCC and CE rules and regulations and are also RoHS compliant.
The power adaptor has been tested for compliance with UL, CE and CSA rules and
regulations and is also RoHS compliant.

E-137
Rev. 20160726
2048 Mercer Road, Lexington, KY 40511-1071 USA
800-322-8346 • 859-233-4599 • Fax: [phone]
[e-mail] • www.audioauthority.com
