Audio international MCD-104-01-x User manual

7300 Industry Drive, North Little Rock, AR 72117
Phone: [phone] Fax: [phone]
Guide to Operations
10 Disc CD Player/Changer
Model #’s: MCD-104-01-x
Document #560041

AUDIO INTERNATIONAL, INC. 8/99
2
Document #560041, Rev. IR, Model No.: MCD-104-01-x
TABLE OF CONTENTS
Page #
Cover Page……………………………………………………………………………………………… 1
Table of Contents……………………………………………………………………………………….. 2
Product Features………………………………………………………………………………………... 3
Warnings………………………………………………………………………………………………... 4
Cautions………………………………………………………………………………………………… 5
Introduction………………………………………………………………………….…………………. 6
Illustration of Front Panel………………………………………………………………………………. 8
Illustration of Digital Display Configuration…………………………………………………………... 9
Operating Instructions……………………………………………………………….…………………. 10
General Information…………………………………………………………………………... 10
To Load a CD Magazine...……………………………………………………………………. 10
To Play a CD………….…..…………………………………………………………………... 11
To Select Next CD Disc….……………………………………………….…………………... 11
To Select Previous CD Disc…………………………………………………………………... 12
To Locate the Next Track…………………………………………………………………….. 12
To Locate the Beginning of a Track Currently Played……………………………………….. 13
To Play Tracks in Random Order…………………………………………………………….. 14
To Repeat Tracks …………………………………………………………………………….. 15
To Stop Play…………………………………………………………………………………... 15
Optional Remote Operation…………………………………………………………….………………. 16
Troubleshooting …….………………………………………………………………….………………. 19

AUDIO INTERNATIONAL, INC. 8/99
3
Document #560041, Rev. IR, Model No.: MCD-104-01-x
PRODUCT FEATURES
•Multiple control options: Backlit LCD indicator with front panel controls
Infrared remote control capability
RS-485 digital data bus control capability
•High-quality output: Frequency response of 20 Hz to 20kHz (+/-1dB)
Audio output of 1 V to 5 V RMS adjustable
Total harmonic distortion of .01% (1kHz)
Signal to noise ratio of 93 dB
Dynamic range of 93 dB
Channel separation of 85 dB

AUDIO INTERNATIONAL, INC. 8/99
4
Document #560041, Rev. IR, Model No.: MCD-104-01-x
WARNINGS
- DO NOT insert or leave metallic objects inside the unit.
- DO NOT touch the liquid crystal display fluid if the LCD is
damaged or broken. The fluid may be dangerous or fatal. If
body or clothing comes in contact with fluid from the display,
wash immediately with soap and water
- DO NOT attempt to open the case. Removal of case voids all
warranties.
STOP

AUDIO INTERNATIONAL, INC. 8/99
5
Document #560041, Rev. IR, Model No.: MCD-104-01-x
CAUTIONS
- DO NOT take food or beverages near the unit.
- DO NOT use commercially available CD accessories (stabilizer,
protective sheets, CD cleaning discs, etc) that can be loaded into
the remote changer. They may cause operating failure and damage
to the internal mechanisms of unit.
- DO NOT play dirty CDs or CDs colored on the side opposite the
label; they may fail to slide in or out of the magazine.
- DO NOT apply tape to CDs on either side and attempt to insert the
CD into the changer; operating failure and damage may occur.
- DO NOT load adapted 3-inch CDs into the unit; the adapter can
separate from the CD and lodge inside of the unit .
CAUTION

AUDIO INTERNATIONAL, INC. 8/99
6
Document #560041, Rev. IR, Model No.: MCD-104-01-x
INTRODUCTION
•Cleaning the unit:
1. Turn the cabin power “OFF”and wipe the panel with a dry, lint free,
silicon cloth.
Note: Use of rough cloth or volatile solvents such as paint thinner or
alcohol may damage the surface of the panel and/or cause damage
to the liquid crystal display.
2. The CD magazine in the remote changer should be cleaned periodically as
accumulated dust can scratch the surface of the CDs when inserted or
removed from the magazine.
3. In cold weather, condensation may form on the lenses inside the remote
changer when the unit is first turned on. This lens fogging may make it
impossible to play a CD. Remove the CD and wait for the unit to warm
and the condensation to evaporate.

AUDIO INTERNATIONAL, INC. 8/99
7
Document #560041, Rev. IR, Model No.: MCD-104-01-x
•CD Care
1. Do not touch the CD on the side opposite the label.
2. Do not apply tape to either side of a CD.
3. Do not store CDs in hot locations or in areas exposed to direct sunlight.
4. Remove CDs from the changer and return them to their cases when not is
use; do not stack loose CDs or prop them edgewise.
5. Clean dirty CDs with a soft, dry, lint-free cloth. Start from the center of
the CD and move outward. Do not clean with conventional record
cleaners, anti-static formulas, or chemicals (paint thinner, benzene, etc.).
6. Check new CDs for burrs on the perimeter of the disc or in the center hole.
CDs with burrs may not load properly or may skip during play.

AUDIO INTERNATIONAL, INC. 8/99
8
Document #560041, Rev. IR, Model No.: MCD-104-01-x

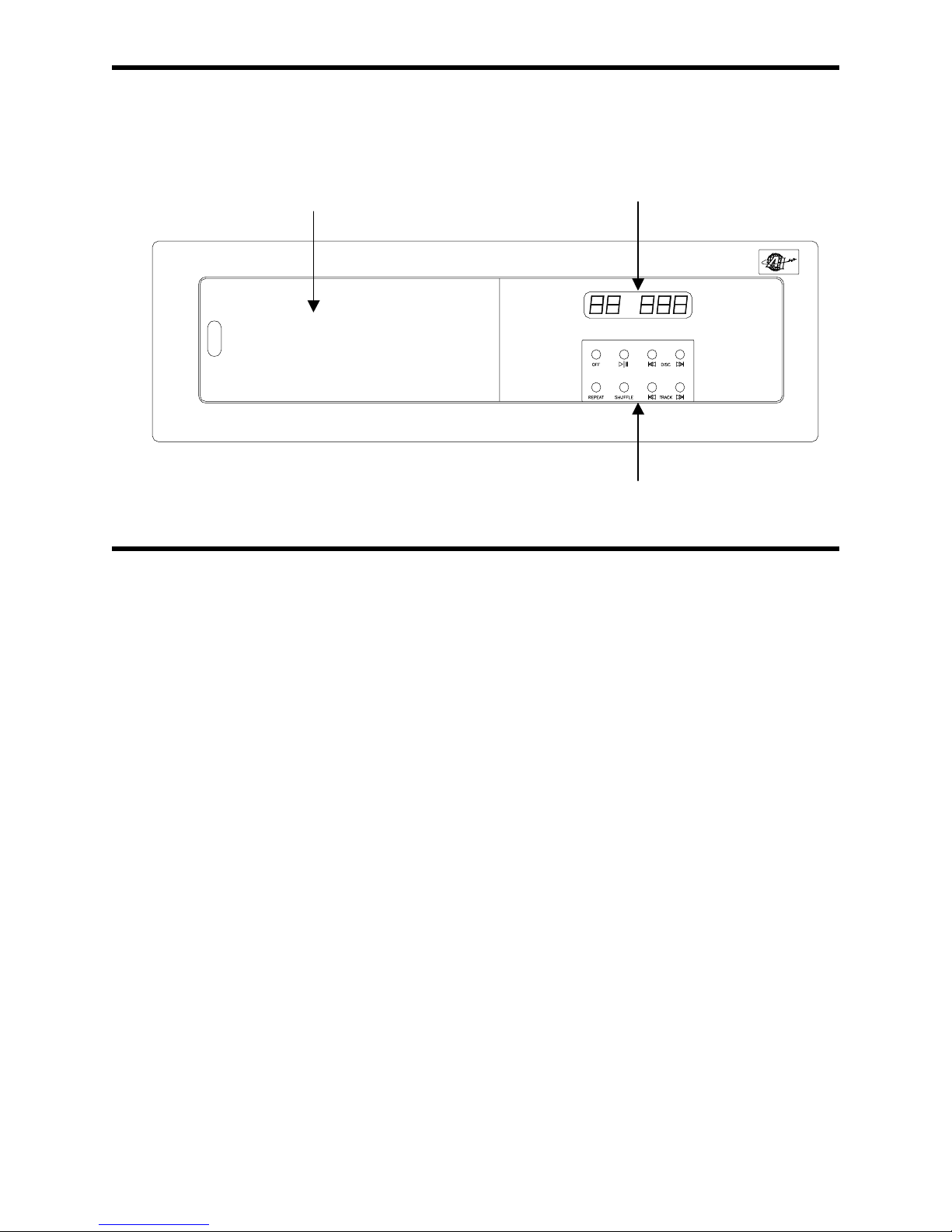

ILLUSTRATION OF FRONT PANEL
DIGITAL DISPLAY
CD MAGAZINE COMPARTMENT
MCD CONTROL PANEL

AUDIO INTERNATIONAL, INC. 8/99
9
Document #560041, Rev. IR, Model No.: MCD-104-01-x

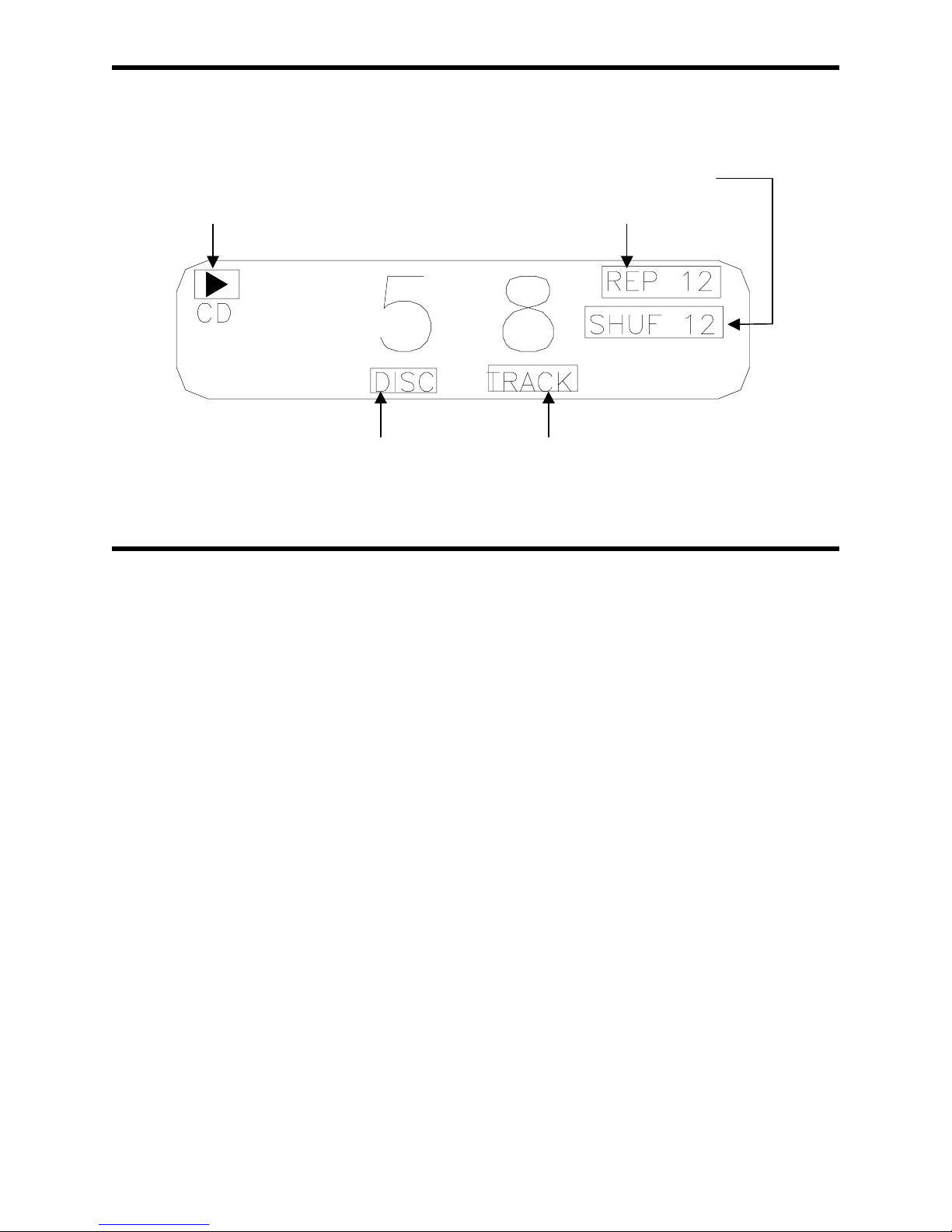

ILLUSTRATION OF DIGITAL DISPLAY CONFIGURATION
SHUFFLE PLAY INDICATOR
PLAY/PAUSE INDICATOR REPEAT PLAY INDICATOR
DISC NUMBER INDICATOR TRACK NUMBER INDICATOR

AUDIO INTERNATIONAL, INC. 8/99
10
Document #560041, Rev. IR, Model No.: MCD-104-01-x
OPERATING INSTRUCTIONS
•General Information:
Ensure power is available to the CD player/changer. Power is controlled from the
cockpit. Power up speakers from the appropriate control panel. Audio will be
supplied through headphones or entertainment speakers that are controlled by
switch panels in the aircraft.
•To Load a CD Magazine:
Load up to 10 CDs into the magazine with the label side up. Open the door on the
remote changer and insert the magazine. Observe the arrow on the magazine for
proper orientation.
Push the magazine into the unit until it “clicks”. If the magazine does not slide
into the unit easily, check the orientation and retry. (Do not use excessive force;
damage to the changer may result). If the magazine does not lock properly, take
out the magazine, press the EJECT button inside the door frame and reinsert in
accordance with the instructions above.
Close the door on the CD magazine compartment.

AUDIO INTERNATIONAL, INC. 8/99
11
Document #560041, Rev. IR, Model No.: MCD-104-01-x
•To Play a CD:
With a magazine loaded in the changer, press the play/pause button on the
unit or hand-held IR remote transmitter. The first CD will begin to play. The
display on the unit will indicate the number of the CD and the track that is
currently playing.
Press the button a second time to pause the CD. Press the same button to resume
play from the position at which the CD was paused.
•To Select Next CD Disc:
Press the DISC button once and release. The unit will advance to the next
CD and resume play at the first track.
Press the button repeatedly to advance through multiple CDs. The unit will
resume playback when the requested CD is reached.

AUDIO INTERNATIONAL, INC. 8/99
12
Document #560041, Rev. IR, Model No.: MCD-104-01-x
•To Select Previous CD Disc:
Press the DISC once and release. The unit will return to the beginning of the
previous CD and resume play at the first track.
Press the button repeatedly to reverse through multiple CD’s. The unit will
resume playback when the requested CD is reached.
•To Locate the Next Track:
Press TRACK once and release. The unit will advance to the next track on
the CD and resume play.
Press the button repeatedly to advance through multiple tracks. The unit will
resume playback when the requested track is reached.

AUDIO INTERNATIONAL, INC. 8/99
13
Document #560041, Rev. IR, Model No.: MCD-104-01-x
•To Locate the Beginning of a Track Currently Played:
Press TRACK once and release. The unit will return to the beginning of the
current track on the CD and resume play.
To locate a previous track, press the button repeatedly to reverse through
multiple tracks. The unit will resume playback when the requested track is
reached.

AUDIO INTERNATIONAL, INC. 8/99
14
Document #560041, Rev. IR, Model No.: MCD-104-01-x
•To Play Tracks in Random Order:
While a CD is playing, press and HOLD the SHUFFLE button. The CD player
will scan through the current track and subsequent tracks until released. The
display will indicate elapsed time. Release the button to resume play at the new
position.
Each time the SHUFFLE button is pressed, the display changes as follows:
Press the SHUFFLE button repeatedly until the desired setting appears (SHUF 1
or SHUF 2). After five seconds, the shuffle play starts. SHUF 1 can be selected
to play the tracks on the current disc in a random order; SHUF 2 can be selected
to play all the discs in a random order.
To go back to the normal playback mode, press SHUFFLE until the “SHUF”
disappears from the digital display.

AUDIO INTERNATIONAL, INC. 8/99
15
Document #560041, Rev. IR, Model No.: MCD-104-01-x
•To Repeat Tracks:

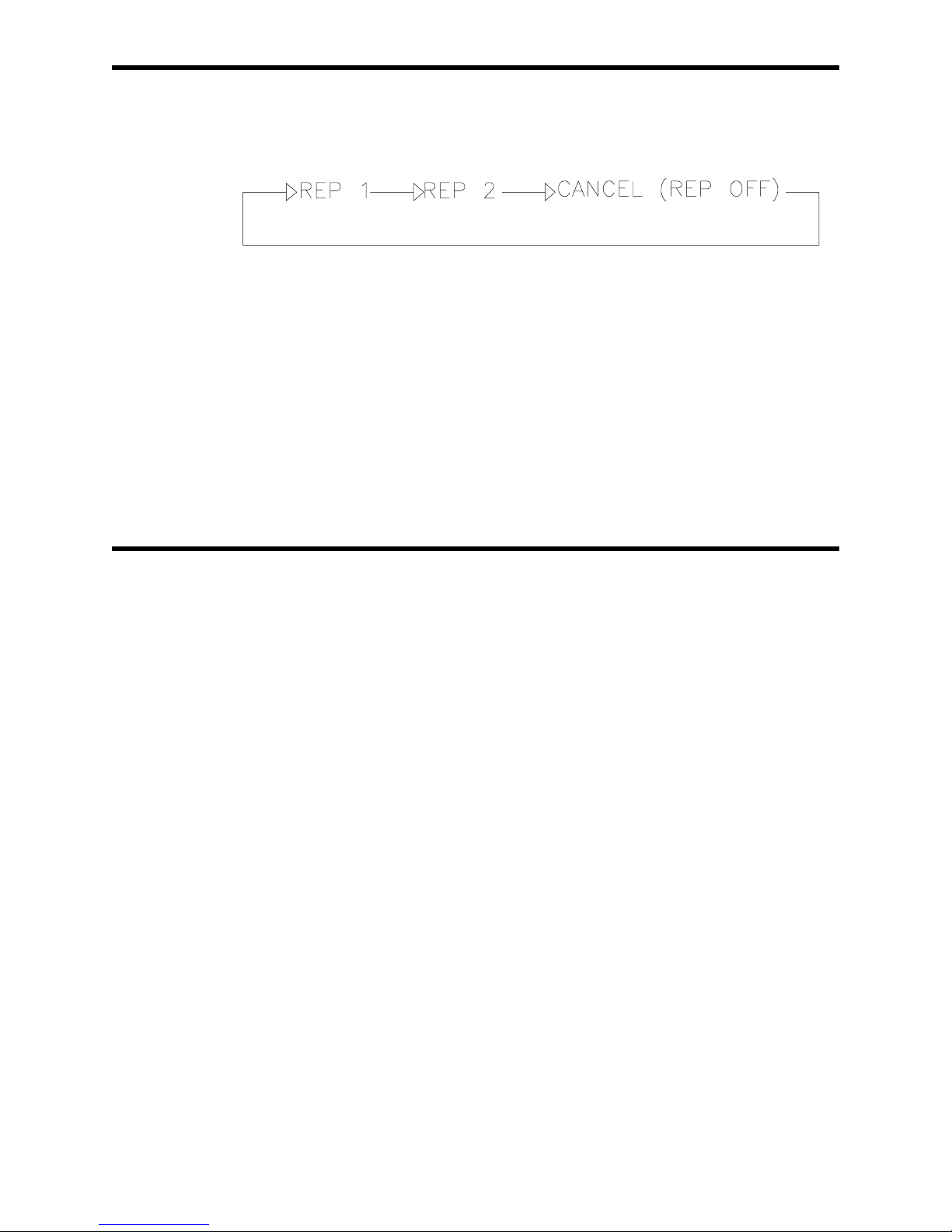

Each time the REPEAT button is pressed, the display changes as follows:
Press the REPEAT button repeatedly until the desired setting appears (REP 1 or
REP 2). After five seconds, the repeat play starts. REP 1 can be selected to
repeat the track; REP 2 can be selected to repeat the disc.
To go back to the normal playback mode, press the REPEAT button until the
“REP”disappears from the digital display.
•To Stop play:
Press the “OFF”button to stop CD playback.

AUDIO INTERNATIONAL, INC. 8/99
16
Document #560041, Rev. IR, Model No.: MCD-104-01-x
OPTIONAL REMOTE OPERATION
The following functions can be controlled using Audio International’s optional remote control
unit customized for your system configuration.
•To Play a CD:
With a magazine loaded in the changer, press the play/pause button on the remote.
The first CD will begin to play. The display on the control head will indicate the
numbers of the CD and track that is playing. Press the play/pause button to pause
the CD. Press the same button to resume play from the position at which the CD
was paused.
•To Advance or Repeat Tracks:
Press the track advance button on the remote once and release. The unit will
advance to the next track on the CD and resume play. Press the track advance
button repeatedly to advance through multiple tracks. The unit will resume
playback when the requested track is reached.
Press the track reverse button on the remote once to start at the beginning of the
current track. Press the track reverse button repeatedly to reverse through
multiple tracks.

AUDIO INTERNATIONAL, INC. 8/99
17
Document #560041, Rev. IR, Model No.: MCD-104-01-x
•To Scan Tracks:
While a CD is playing, press and HOLD the track advance button on the remote.
The CD player will scan through the current track and subsequent tracks until
released. Release the button to resume play at the new position. Press and
HOLD the track reverse button to scan backward through the tracks. Release the
button to resume play at the new position.
•To Advance or Repeat Disc:
Press the disc advance button on the remote once and release. The unit will
advance to the next CD and resume play at the first track. Press the disc advance
button repeatedly to advance through multiple CDs. The unit will resume
playback when the requested CD is reached. Press the disc reverse button on the
remote once and release. The unit will return to the beginning of the current CD
and resume play at the first track. Press the disc reverse button repeatedly to
reverse through multiple tracks. The unit will resume playback when the
requested CD is reached.

AUDIO INTERNATIONAL, INC. 8/99
18
Document #560041, Rev. IR, Model No.: MCD-104-01-x
•To Use Shuffle Mode:
Press the shuffle button on the remote. The display on the control head will
indicate SHUF1. The unit will play all tracks on a CD in random order and
advance to the next CD that will play in sequential order. Press the shuffle button
a second time. The display on the control head will indicate SHUF2. The unit
will play all tracks on all CDs in random order. Press the shuffle button a third
time to clear the display and return the unit to standard play.
•To Use Repeat Mode:
Press the repeat play button on the remote. The display will indicate REP1. The
unit will repeat the current track indefinitely. Press the repeat play button a
second time. The display will indicate REP2. The unit will repeat the current CD
indefinitely. Press the repeat play button a third time. The display will clear and
the unit will return to standard play.

AUDIO INTERNATIONAL, INC. 8/99
19
Document #560041, Rev. IR, Model No.: MCD-104-01-x
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
Sound skips CD is dirty or defective Clean CD or replace it.
DC magazine will not
lock in the changer Remove the CD magazine, press EJECT, reinsert the magazine until it is locked
securely.
Error Message –E-01 CD magazine not inserted into changer Insert the magazine
Error Message –E-02 CD not inserted in the magazine Remove magazine and insert CDs.
Error Message –E-04 CD is dirty or inserted upside down Clean CD, reinsert correctly
Error Message –E-99 Unit malfunctioning Contact AI Customer Support

AUDIO INTERNATIONAL, INC. 8/99
20
Document #560041, Rev. IR, Model No.: MCD-104-01-x
AUTHORIZED REPRESENTATIVES
Audio International, Inc. – Home Office Audio International, Inc. – Midwest Operations
7300 Industry Drive
North Little Rock, AR 72117 8925 West Maple Street, Suite #1 Wichita, KS 67209
Phone [phone]
Fax [phone] Phone [phone] Fax [phone]
Audio International, Inc. – Canadian Operations
200 Cote Vertu Road West
Dorval, Quebec H4S-1Y9
Phone [phone], Ext 2459
Fax [phone]
Audio International, Inc. – Western Operations
1255 Aero Park Blvd.
Tucson, AZ. 82706
Phone [phone]
Fax [phone]
