Audio international DVD-401-01-x User manual

7300 Industry Drive, North Little Rock, AR 72117
Phone: [phone] Fax: [phone]
www.audiointl.com
Installation and Operation
Manual
DVD-401-01-x
Dual Digital Video Disc Player
Document # 540254
a DeCrane Aircraft Company

Audio International, Inc. DVD-401-01-x Installation & Operation Manual
Document # 540254, Rev IR, 10/2002 Page 1 of 18
Document Revision History
Rev. Level Date Description
IR 10/2002 Initial Release
Reference Documents
Document # Description
524402 Rev IR DVD-401-01-x Outline Drawing
Service Bulletin List
Service
Bulletin # Subject Manual Revision Revision Date
Table of Illustrations
PROPRIETARY INFORMATION NOTICE: Despite any other copyright notice, this document and
information disclosed herein contains confidential, proprietary designs owned by Audio
International, Inc. Neither this document nor the data contained herein shall be reproduced, used,
or disclosed to anyone without the written authorization of Audio International, Inc.
Section # Sub-
section # Description Page #
I 6.2 Typical Application 5
II 9.0 Reference Drawings 15
III 2.0 Front Panel Controls 17
III 4.0 Infrared Remote Control 18

Audio International, Inc. DVD-401-01-x Installation & Operation Manual
Document # 540254, Rev IR, 10/2002 Page 2 of 18
Table of Contents
Section Description Page
I General Information……………………………………………… 3
1.0 Introduction…………………………………………………………. 3
2.0 Purpose of the Equipment………………………………………… 3
3.0 Operational Features……………………………………………… 4
4.0 Optional Equipment……………………………………………….. 4
5.0 Technical Specifications………………………………………….. 4
6.0 Application………………………………………………………….. 5
7.0 Video/Audio Disc Care……………………………………………. 6
II Installation……..………………………………………………… 7
1.0 Prior to Installation…………………………………………………. 7
2.0 Unpacking and Inspection………………………………………… 7
3.0
Cautions &Warnings……………………………………………… 8
4.0 Wiring Requirements……………………………………………… 9
5.0 Physical Characteristics…………………………………………... 10
6.0 Electrical Characteristics…………………………………………. 11
7.0 Post-Installation Test……………………………………………… 12
8.0 Troubleshooting Guide……………………………………………. 13
9.0 Reference Drawings………………………………………………. 15
III Operation…..…………………………………………………….. 16
1.0 General Information……………………………………………….. 16
2.0 Front Panel Controls………………….…………………………… 17
3.0 Basic Playback…………………………………………………….. 18

Audio International, Inc. DVD-401-01-x Installation & Operation Manual
Document # 540254, Rev IR, 10/2002 Page 3 of 18
SECTION I –GENERAL INFORMATION
1.0 Introduction
This manual contains information for the proper installation and operation of
Audio International’s (AI) Digital Video Disc Player, Model # DVD-401-01-x. The
“-x”suffix in the model number designates the type of connector utilized; “-1”=
Positronic and “-2”= D-Subminiature. Also included are mechanical and electri-
cal characteristics of the unit.
2.0 Purpose of the Equipment
2.1 Audio International’s DVD-401-01-x is a high-quality dual video disc player
specifically designed to meet the special requirements of aircraft use.
This video disc player represents a digital medium with the capacity for
independent playback of two (2) discs in one unit. In addition, the DVD
unit supports the following playback standards: Audio CD, CD-R, CD-RW,
VCD, MP3, DVD-ROM, and DVD Audio.
2.2 The DVD-401-01-x can be mounted in a cabinet or bulkhead. A unique
strapping feature allows up to four (4) similar devices to be used in the
same system at the same time for a total of eight (8) selectable players,
while maintaining independent control.
2.3 Optionally, a digital audio output is provided via a fiber optic interface to
allow input to audio processing modules such as a surround sound
processor. For DVD discs equipped with a Dolby Digital™, AC-3, or DTS
soundtrack, this allows decoding of six (6) discrete audio channels –front
L/R, center channel, rear L/R, and subwoofer –for a theater-like sound
experience.

Audio International, Inc. DVD-401-01-x Installation & Operation Manual
Document # 540254, Rev IR, 10/2002 Page 4 of 18
3.0 Operational Features
q Operates directly from +28 VDC
q Two (2) Independent Drive Tray Mechanisms
q Multi-Region DVD Disc Playback
q Internal A/V Switching Capability
q NTSC-Only Video Output
q Front panel controls
q Optional infrared remote control capability
q High fidelity, differential analog audio output
q Audio output level +2 VRMS into not less than 600 , factory preset
q Full range (4 Hz to 20 kHz) frequency response
q Eight (8) language and 32 subtitle options (dependent upon user-
supplied disc capabilities)
q Frame-by-frame video advance and reverse
q Choice of camera viewing angles (dependent upon disc
capabilities)
q Easy to mount and connect
q AI’s RS-485 data bus compatible
q Compact, lightweight package
q Digital audio fiber optic output capability
4.0 Optional Equipment
The DVD-401-01-x can be optionally controlled by infrared remote or AI’s touch
screen panel. Digital codes allow the unit to interface with an infrared handheld
remote via an infrared receiver, IFR-9A or IFR-485. Multiple units can be
controlled independently using available programming pins. Playback options
with remote or touch screen include ,but not limited to, play, stop, pause, search
(forward and reverse), and skip (forward and reverse).
Contact your AI representative for details.
5.0 Technical Specifications
Physical Specifications
Housing Aluminum
Weight 3.6 lb / 1.63 kg
Dimensions
(l x w x h) 9.86" x 7.18" x 3.32" 25.04 cm x 18.24 cm x 8.4 cm

Audio International, Inc. DVD-401-01-x Installation & Operation Manual
Document # 540254, Rev IR, 10/2002 Page 5 of 18
6.0 Application
6.1 Introduction
The DVD-401-01-x operates between +18 and +32 VDC with a power
consumption of less than 1A at +28 VDC. In addition, the
DVD-401-01-x is capable of withstanding power interruptions in duration of
200 msec or less. The video output has nominal impedance of 75 with
an output level rating of 1 V(p-p). The video output is not capable of level
adjustment. Stereo audio output is provided at a nominal impedance of
not less than 600 with an output level rating 2 VRMS (factory preset) for
each output channel. The unit is capable of switching either DVD
audio/video source to a single output by utilizing an internal switch. An AI-
RC5-170xxx IR remote transmitter must be used to utilize this feature.

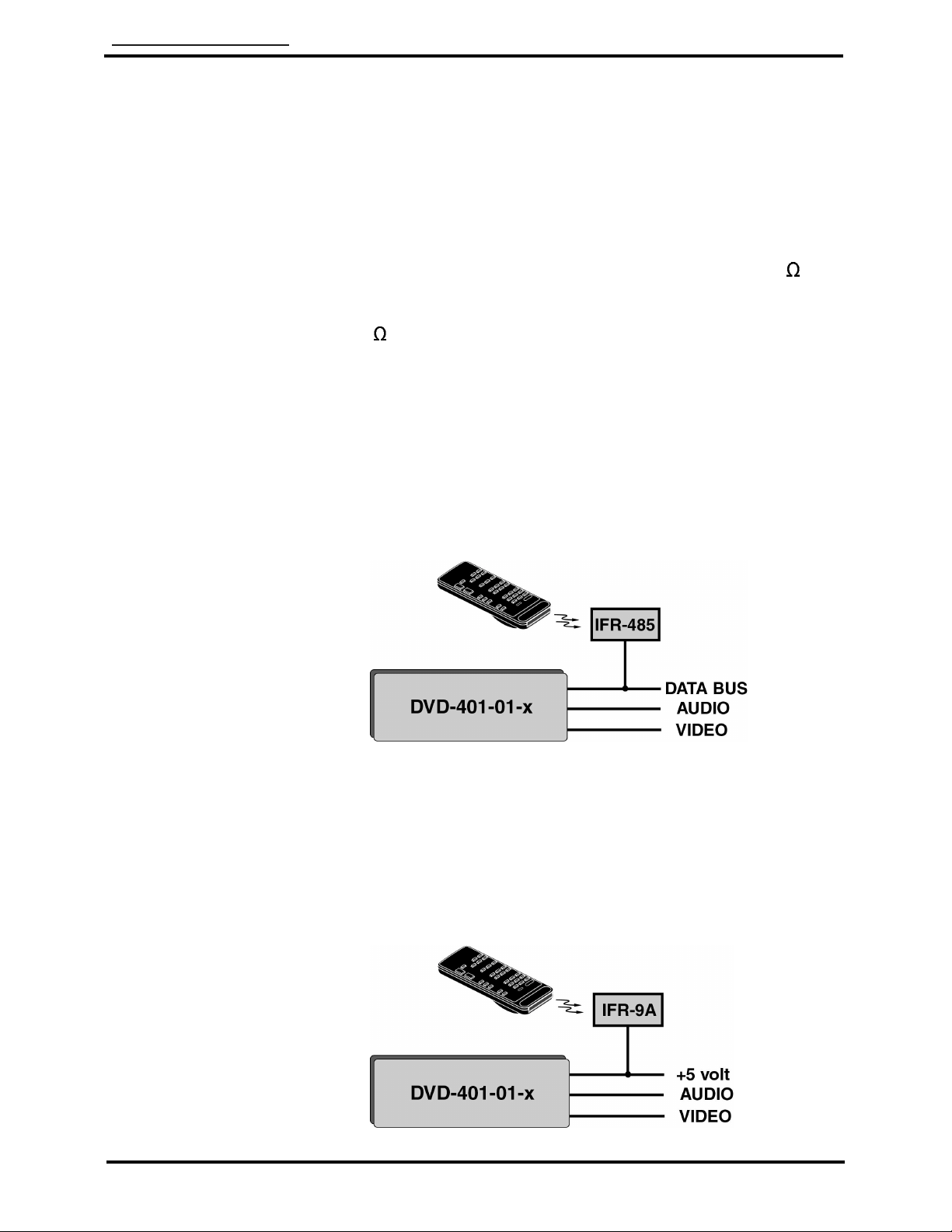

6.2 Typical Application
6.2.1 This system is fully compatible with Audio International’s proprietary
RS-485 digital data bus system. It can be configured for IR remote
control utilizing AI’s remote control unit AI-RC5-17xxxx and
IFR-485.
6.2.2 The unit can also be configured for IR remote control utilizing AI’s
remote control unit AI-RC5-17xxxx and IFR-9A. This following
configuration utilizes a +5 VDC digital logic level for activation of
infrared commands. Connection to multiple IFR-9A units utilizing
the +5 VDC digital logic level connection requires an external
Schottkey diode at each IFR-9A unit. This will prevent signal
loading. Contact AI for details.

Audio International, Inc. DVD-401-01-x Installation & Operation Manual
Document # 540254, Rev IR, 10/2002 Page 6 of 18
6.2.3 The unit can also be configured for Touch Screen or remote panel
control (i.e. entertainment control panels). The panels are on AI’s
proprietary RS-485 digital data bus system and configured to
control the operational features of the DVD-401-01-x.
7.0 Video/Audio Disc Care
7.1 When playing a disc for the first time, ensure that there are no burrs stuck
in the center hole of the disc.
7.2 Do not touch the playback side of the disc. Do not apply tape to either
side of the disc.
7.3 Do not store discs in hot locations or in areas exposed to direct sunlight.
Do not store in damp moist areas.
7.4 Do not stack loose discs or prop them against anything. Remove discs
from the player and return to their cases after each use.
7.5 Do not clean with solvents or other chemical. To clean dirty discs, wipe
gently with a soft, lint-free cloth. Start from the center of the disc and
move outward in a circular motion. Dust or fingerprints on the disc may
cause sound or picture difficulties.
7.6 Do not use liquid or aerosol cleaners on the DVD unit. When cleaning
heavy dirt from the unit, soak a soft cloth in a weak detergent solution.
Wring out excess liquid and gently wipe the unit. Dry the unit thoroughly
with a soft cloth.

Audio International, Inc. DVD-401-01-x Installation & Operation Manual
Document # 540254, Rev IR, 10/2002 Page 7 of 18
SECTION II - INSTALLATION
1.0 Prior to Installation
1.1 During the design and layout of the aircraft cabin, careful consideration of
the location of this and all other audio/visual modules is necessary. Some
of the items to be considered include:
• Space
• Available power supply
• Environmental conditions (temperature, humidity, etc.)
• Length of cable runs
• Location of other aircraft systems (oxygen delivery)
1.2 The DVD-401-01-x shall be installed to conform to the standards
designated by the customer, installing agency, and existing conditions as
to the unit location and type of installation.
1.3 Mounting screws are required to secure the unit. Refer to Section II, 9.0
for mounting hole diameters and configurations.
1.4 All headphone amplifiers and line level amplifiers should be located no
more than three (3) feet away from source equipment. Long low-level
audio runs may introduce noise into the audio signal.
1.5 The installing agency shall supply and fabricate all external cables to the
DVD-401-01-x. The length and routing of external cables shall be
carefully studied and planned before attempting installation of the unit.
Allow adequate space for installation of cable and connectors. Mating
connectors are the responsibility of the installing agency. Correct pin
assignments as outlined in Section II, 6.7 are the responsibility of the
installing agency.
2.0 Unpacking and Inspection
2.1 Carefully open the packaging and remove the DVD-401-01-x. Verify that
all components have been included in the package per the packing list.
Inspect the unit for shipping damage.
2.2 If damage has occurred during shipping, a claim should be filed with Audio
International WITHIN 24 hours and a Return Request Authorization
Number shall be obtained from AI. Refer to the front cover of this manual
for address and telephone number of Audio International, Inc. Repackage
the unit in its original packaging materials and return it to AI following
instructions given by the AI representative. If no return is necessary,
retain the packing list and the packing materials for storage.

Audio International, Inc. DVD-401-01-x Installation & Operation Manual
Document # 540254, Rev IR, 10/2002 Page 8 of 18
3.0 Cautions & Warnings
3.1 It is important to do a pin-to-pin power and ground check on all
connectors. Ensure that power and ground are applied only where
specified. Damage to the unit may result if power or ground is applied to
the wrong points.
3.2 DO NOT connect or disconnect the unit while power is applied.
3.3 DO NOT remove any factory-installed screws. Damage to the unit may
result and void any warranties.
3.4 DO NOT drop the unit or subject it to strong shock. The unit contains
glass parts that may break or crack.
3.5 DO NOT place foreign objects into openings. Contact with foreign objects
may result in dangerous voltage or electric shock.
3.6 DO NOT place near strong magnetic fields, radiators or other heat
sources.
3.7 DO NOT use this unit other than for its intended purpose. Doing so might
lead to electric shock or injury.
3.8 DO NOT use near water, moisture, or volatile sprays. Do not use any type
of solvent when cleaning (surface damage may occur).
3.9 DO NOT look directly into the laser beam through the disc tray opening.
Eyesight may be damaged.
3.10 DO NOT place fingers in disc tray when the tray is moving. Tray may
close on fingers and may cause injury.
3.11 DO NOT expose unit to sun or bright light. Damage to the sensor will
result.
3.12 NO scheduled maintenance is required to ensure continued airworthiness.
3.13 ESD (Electro Static Discharge) guidelines shall be followed.

Audio International, Inc. DVD-401-01-x Installation & Operation Manual
Document # 540254, Rev IR, 10/2002 Page 9 of 18
4.0 Wiring Requirements
4.1 Introduction
The installing agency shall supply and fabricate all external cables. The
length and routing of external cables shall be carefully studied and
planned before attempting installation of the equipment. Allow adequate
space for installation of cable and connectors. Avoid sharp bends and
placing cables near aircraft control cables. Maintain a minimum clearance
of three (3) inches from any control cable. If wiring is run parallel to
combustible fluid or oxygen lines, maintain a separation of six (6) inches
between the lines.
4.2 Power Wires
All power and ground wires shall be 22 AWG, MINIMUM,shielded twisted
pair with the shield properly bonded at one end only. Power ground wires
shall be bonded to electrically conductive chassis mounting point with
  UHVLVWDQFH XVLQJ   LPSHGDQFH  7wisted shielded pair cable
shall be in accordance with the standard specification of NEMA WC 27500
or equivalent.
4.3 Video Lines
Composite video connections shall be shielded coaxial cable in
accordance with the military specifications of M17/94-RG179 or
equivalent.
4.4 AI’s Proprietary RS-485 Data Bus
4.4.1 The DVD-401-01-x is designed to interface with other Audio
International equipment via AI’s proprietary RS-485 serial data bus.
The data bus shall be implemented using a twisted shielded pair
cable in accordance with the standard specification of
NEMA WC 27500 or equivalent. The wire size for the conductors
in this cable shall be 22 AWG, MINIMUM. The shield shall be
connected everywhere a shield pin is provided. Shield terminations
shall be made as close to the connector pin as possible.
4.4.2 All modules on AI’s proprietary RS-485 data bus shall be connected
in a ‘daisy-chain’configuration. AI’s proprietary RS-485 data bus
specification is available upon request.

Audio International, Inc. DVD-401-01-x Installation & Operation Manual
Document # 540254, Rev IR, 10/2002 Page 10 of 18
4.5 Digital Audio Lines
All digital audio cabling shall be 100/140 µm (core/cladding) multi-mode
fiber optic cabling. All fiber optic connectors/couplers shall use ceramic
ferrules to minimize adverse reflection effects. BRAND-REX P/N:
OC-1011 or equivalent fiber optic cabling is recommended for use for all
digital audio cabling.
4.6 Analog Audio Lines
All analog audio wiring shall be 22 AWG (MINIMUM) twisted, shielded
cable in accordance with the standard specification of NEMA WC 27500
or equivalent unless otherwise specified.
5.0 Physical Characteristics
5.1 Refer to Section II, 9.0 for unit dimensions and attachment points.
5.2 When mounting the unit, allow sufficient space for mating connectors.
5.3 Allow a MINIMUM of one (1) inch of air space around the unit to allow for
proper air circulation.
6.0 Electrical Characteristics
6.1 Electrical Specifications:
Electrical Power 900 mA @ +28 VDC
Operating Voltage
Range +18 to +32 VDC
Data Bus Type AI Proprietary RS-485
Audio Frequency
Response 4 Hz to 20 kHz
Audio Output 2 VRMS (factory preset)
into not less than 600 load
Audio Signal to Noise
Ratio >96 dB (NOMINAL)
Dynamic Range >93 dB
Video Output 1 V(p-p) into 75 , NTSC ONLY
Video Input Format Multi-Regional (NTSC & PAL)
Infrared Signal Input +5 V digital logic level

Audio International, Inc. DVD-401-01-x Installation & Operation Manual
Document # 540254, Rev IR, 10/2002 Page 11 of 18
6.2 The DVD-401-01-x utilizes two (2) 15-pin connectors for electrical
connections. These connectors provide power, data bus control, infrared
input, and three (3) infrared strapping pins for alternate configuration of
infrared digital command codes, respectively.
6.3 Standard configuration requires no infrared strap pins to be connected.
Each different type of AI source equipment can be configured to accept
one (1) of eight (8) different sets of infrared codes. To change the code
settings, connect one (1) of the strap pins to the strap common (never
connect more than one (1) strap pin to the strap common). Three (3)
strap pins are available to allow the infrared codes to be configured.
6.4 The video output connectors (BNC1 and BNC2) allow for proper video
output to the video distribution system.
6.5 Infrared input provides a ground reference connection (-). For optimum
infrared signal transmission, this ground reference connection
should connect along with the chassis ground reference connection (pin 2)
to the same ground termination location as that of the IFR-9A or IFR-485
module being utilized. If this is not possible, then the infrared ground
reference connection for the DVD-401-01-x shall connect to chassis
ground reference (Pin 2).
6.6 The fiber optic transceiver connectors (J3 and J4) allow for proper digital
audio output to the audio distribution system.
6.7 Mating Connector Information
Model # Connector Designator Mating Connector
DVD-401-01-1 J1 RD15F10JVL0
DVD-401-01-2 J1 DAMA-15S D20418-2 Female
Screwlock
DVD-401-01-1 J2 RD15F10JVL0
DVD-401-01-2 J2 DAMA-15S D20418-2 Female
Screwlock
BNC1 Video
Output BNC1 AMPHENOL 31-71013 or equivalent
BNC2 Video
Output BNC2 AMPHENOL 31-71013 or equivalent
Optical Digital
Audio Output
(DVD1) J3 ST Series optical
connector 501380-6
(AMP) or equivalent
Optical Digital
Audio Output
(DVD2) J4 ST Series optical
connector 501380-6
(AMP) or equivalent

Audio International, Inc. DVD-401-01-x Installation & Operation Manual
Document # 540254, Rev IR, 10/2002 Page 12 of 18
6.8 Pinout Assignment and Descriptions
J1 (DVD 1) J2 (DVD2)
Pin # Description Pin # Description
1 + 28 VDC 1 + 28 VDC
2 Ground 2 Ground
3 R+ Audio Output 3 R+ Audio Output
4 R- Audio Output 4 R- Audio Output
5 L+ Audio Output 5 L+ Audio Output
6 L- Audio Output 6 L- Audio Output
7 Data Bus (A) 7 Data Bus (A)
8 Data Bus (B) 8 Data Bus (B)
9 Infrared Input + 9 Infrared Input +
10 Infrared Input - 10 Infrared Input -
11 IR Strap 2 11 IR Strap 2
12 IR Strap 3 12 IR Strap 3
13 IR Strap 4 13 IR Strap 4
14 IR Strap Common 14 IR Strap Common
15 “Pause Mode”Constant GND Input 15 “Pause Mode”Constant GND Input
7.0 Post-Installation Test
7.1 Verify +28 VDC power has been connected to the unit. The audio signal
output of the unit is generally connected to cabin speaker systems in
addition to headphone locations. Verify all connections before supplying
power to the unit.
7.2 Load DVD1 with a disc. If the disc does not start playing automatically,
then use the DVD-401-01-x front panel controls or the handheld remote
control unit to select PLAY. Verify a picture can be viewed on the
appropriate monitor and that the audio can be heard through the
speaker/headphone system.
7.3 Repeat above step to verify DVD2.
NOTE: DVD1 is the top drive.

Audio International, Inc. DVD-401-01-x Installation & Operation Manual
Document # 540254, Rev IR, 10/2002 Page 13 of 18
8.0 Troubleshooting
8.1 General Troubleshooting Procedures
Many problems can be isolated with the following general techniques:
• Verify +28 VDC power is applied to the proper pins on the unit. Use a
voltmeter to verify correct level.
• Reset by removing power from the unit for at least one (1) minute and
reapply power.
• Recheck all connections to the unit for security and all harness runs for
possible pinching. Recheck all pinouts for application accuracy.
• Utilizing a voltmeter, oscilloscope, or other voltage instrument, verify
proper input voltage on the data bus pins to check data bus integrity.
Typical measurements are as follows:
A to Ground : 4.0 to 4.5 VDC
B to Ground : 0.1 to 0.2 VDC
If any device is transmitting (i.e., holding bus active), then these typical
measurements would be reversed for the A-to-Ground and B-to-
Ground measurements. This troubleshooting tool can help indicate a
data bus lockup. If this occurs, remove the data bus from all other
equipment one piece at a time. As each is removed, check the bus
status to see if it is now functioning properly. Once you have removed
the piece or pieces of offending equipment, disconnect power and then
reconnect everything but the suspect component, reapply power and
test the functionality of the unit.
• The RS-485 data bus is a bi-directional bus that does not have a ‘bus
controller’. The bus uses a differential digital signal that will transmit
only when commands are entered via switch selection or other system
synchronizing commands. The “A”leg of the bus is HI and the “B”leg
LO.

Audio International, Inc. DVD-401-01-x Installation & Operation Manual
Document # 540254, Rev IR, 10/2002 Page 14 of 18
8.2 Troubleshooting Chart
Problem Possible Cause Solution
No sound / No picture ½ Unit is improperly
installed
½ No disc in source unit.
½ Audio system not
powered or active
• Verify +28 VDC power and video
input is present
• Insert DVD in source unit
• Verify audio system is in active
mode
Playback not
functioning ½ Disc not in the disc tray
½ Disc upside down or not
aligned in guide
½ Incompatible disc in tray
½ Dirty Disc
½ Parental lock activated
½ Menu on the monitor
• Insert a disc in the tray
• Reposition disc
• Replace disc with compatible one
• Clean the disc
• Change or cancel parental lock
feature
• Exit the current menu
No power ½ Circuit breaker has
opened • Reset circuit breaker
Poor video quality ½ Poor DVD quality • Replace DVD
Buttons not operating ½ Moisture may have
condensed inside unit. • Allow unit to warm to room
temperature and moisture has
evaporated.
DVD disc cannot be
loaded ½ Foreign object in disc slot • Remove foreign object

Audio International, Inc. DVD-401-01-x Installation & Operation Manual
Document # 540254, Rev IR, 10/2002 Page 15 of 18
9.0 Reference Drawings
The following diagrams show the unit dimensions, mounting locations, and
connector locations for the DVD-401-01-x.

Audio International, Inc. DVD-401-01-x Installation & Operation Manual
Document # 540254, Rev IR, 10/2002 Page 16 of 18
SECTION III –OPERATION
1.0 General Information
1.1 The DVD-401-01-x can be operated via front panel buttons or optionally
controlled by infrared remote or AI’s touch screen panel. Digital codes
allow the unit to interface with an infrared handheld remote via an infrared
receiver, IFR-9A or IFR-485. Multiple units can be controlled
independently using available programming pins.
1.2 Playback options with front button control include play, chapter skip,
pause and stop.
1.3 Before setup or playing a disc, ensure that aircraft power is applied to the
player. There are no on/off controls on the unit.
1.4 Activate monitors and speakers from the appropriate control panels.
Audio will be supplied through headphones and/or speakers per system
design.
1.5 If power is interrupted (>200 msec) or power drops below +18 VDC while
a disc is playing, the player will shut down. If a DVD disc is in the player,
the unit will begin playback from the beginning of the disc automatically. If
an audio CD is in the player, the PLAY button must be pressed on the
front panel or on the infrared remote control before the CD audio can be
heard.

Audio International, Inc. DVD-401-01-x Installation & Operation Manual
Document # 540254, Rev IR, 10/2002 Page 17 of 18
2.0 FRONT PANEL CONTROLS
ILLUSTRATION OF DVD-401-01-x FRONT PANEL
The names and functions of the DVD-401-01-x are as follows:
Eject button –Press to eject a disc from the disc tray or to load a disc.
Play button –From Main Menu, pressing PLAY selects the highlighted
choice. When DVD is in STOP mode or PAUSED, or a CD is PAUSED,
pressing PLAY continues playback of a DVD disc or audio CD.
Chapter Skip (backward) button –During movie or audio play, press to
skip to go to the beginning of the previous chapter or CD track.
Chapter Skip (forward) button –During movie or audio play, press to skip
to the beginning of the next chapter or CD track.
Pause button - To pause a disc or CD playback. Press PAUSE twice to
advance frame by frame through the DVD.
Stop button –To stop the disc or CD playback. Pressing STOP once
holds playback similar to the PAUSE function, but with no video present.
Pressing STOP twice stops disc and ends playback mode.
Toggles between DVD1 control and DVD2 control.
• DVD1
• DVD2

Audio International, Inc. DVD-401-01-x Installation & Operation Manual
Document # 540254, Rev IR, 10/2002 Page 18 of 18
3.0 Basic Playback
3.1 To play a disc, press the EJECT button on the front panel. Gently pull out
the disc tray. Place the desired disc on the disc tray with the playback
side down. Ensure that the disc is placed on the center snap and clicks
into position. Gently push the disc tray in, until it clicks.
3.2 When the disc tray is closed, the CD or DVD will be loaded immediately.
CD playback will begin as soon as the disc is loaded. DVDs will either
begin playback or go to the Main Menu, depending upon the configuration
of the DVD.
