Audio Solutions LP3265 User manual
2
Introduction
Congratulaons on the purchase of your new Audio Soluons™ LP3265 Television Wall Mount. For
maximum benet, please read the enre manual before beginning installaon.
NOTE: This model has been designed to work with most 47 to 65 inch Plasma, LCD and LED televisions
with a maximum weight of 176lbs (80kg).
Safety Instructions
Please read this enre manual carefully before mounng this bracket to avoid bodily injury and/or any
property loss. If you do not understand these direcons, or have any doubts about the safety of the
installaon, please call a qualied contractor or contact the Audio Soluons™ customer service department
@ 1-866-839-9187. Please check carefully to ensure there are no missing or defecve parts. Our
customer representaves can quickly assist you with installaon quesons and missing or defecve parts.
Replacement parts for products purchased through authorized dealers will be shipped to you directly. Do
not aempt to use any parts not provided by the manufacturer. Using other screws could cause injury or
property loss. Never use defecve parts, as improper installaon may cause damage or serious injury. Do
not use this product for any purpose not explicitly specied by Audio Soluons™. Audio Soluons™ cannot
be liable for damage or injury caused by incorrect mounng, incorrect assembly, or incorrect use.
• Read these instrucons.
• Keep these instrucons.
• Heed all warnings.
• Follow all instrucons.
• Besuretochooseawallconstructedusing2x4studsorsolidconcrete,orotherreinforcement
strongenoughtosupporttheweightoftheTV.Thelocaonshouldbesafefromhazardssuchas
waterorcrushableitems.DONOTATTEMPTTOMOUNTTHISUNITTOAHOLLOWWALL!
Hollow Wall or Decorative Cardboard
NO!
Figure 1 - Hollow Wall WARNING!
• WARNING: Use only the supplied screws intended for the current applicaon to avoid personal injury
or property damage.
GETTING STARTED
3
Opening the Package
The LP3265 Wall Mount and accompanying hardware have been carefully packed in a carton designed to
protect it from transportaon damage. Aer opening the carton, check that the components are in good
condion and that all listed contents are included.
Package Contents
• Wall Plate (x1)
• Bracket (x2)
• Mounng/Assembly Hardware
• Leveling Tool
• This User Manual
Mounting Instructions
Please read all enclosed instrucons and verify hardware contents carefully before mounng.
GETTING STARTED
4
Wall Plate Mounting Hardware
#PartImage Descripon Qty
1 Square Head
Screw
6
2 Concrete
Anchor
6
3 M8 Washer 6
TV Bracket Assembly Hardware
#PartImage Descripon Qty
A M4 x 12 Bolt 4
BM5 x 12 Bolt 4
CM6 x 12 Bolt 4
DM8 x 16 Bolt 4
EM4 x 30 Bolt 4
FM5 x 30 Bolt 4
GM6 x 35 Bolt 4
HM8 x 40 Bolt 4
IM4/M5
Spacer
4
JM8/M6
Spacer
4
KM4/M5
Washer
4
GETTING STARTED
#PartImage Descripon Qty
L M6/M8
Washer
4
M M4 Washer 4
NM5 Washer 4
OM6 Washer 4
PM8 Washer 4
5
STEP 1
Read and understand all of the enclosed instrucons and verify that all parts are present and appear in
good working order before you begin.
STEP 2
Aach the Wall Plate to the wall.
Wood Stud Mounting
The Wall Plate must be mounted, at the top and boom, to at least 2 wooden studs, spaced a minimum of
16” apart. Locate two wooden studs and mark the center and edge locaons. Posion the Wall Plate over
the marked wooden studs and mark for drilling. Using the correct size drill bit, pre-drill a 2.5” deep hole
in each marked locaon. Aach the Wall Plate to the wall using the included square head screws and M8
washers (Figure 2).
NOTE: Do not use the concrete anchors illustrated in Figure 2 for wood stud mounng.
Concrete Wall Mounting
Choose a solid wall area (avoid securing the mount to mortar joints between concrete blocks or bricks).
Using the correct size drill bit, pre-drill a 2.5” hole in each marked locaon. Insert the concrete anchor
into the holes and then aach the Wall Plate to the wall using the included square head screws and M8
washers (Figure 2).
16"
16"
Figure 2 - Wood Stud/Concrete Mounting
INSTALLATION
6
INSTALLATION
STEP 3
In the hardware bag provided, locate the 4 pan head bolts that t the thread paern for your television.
With the two vercal brackets centered on the back of the TV, gently thread the screws into the holes by
hand. DO NOT USE AN ELECTRIC OR BATTERY DRILL unl you are certain you have the right size thread. DO
NOT OVER TIGHTEN the screws (Figure 3).
Figure 3 - Attach Brackets to TV
NOTE: Use the proper bolts and washers that correspond to the mounng holes on the back of the TV.
Take care to ghten by hand rst or damage to the mounng holes can occur. Some TVs without a at
back may require the use of a spacer when aaching the brackets. If applicable, make sure the two TV
brackets are even and that they’re using the same mounng holes on the bracket. Uneven assembly will
cause the TV screen to slant.
7
NOTE: You will need at least 2 people to nish this mounng procedure. To avoid possible injury, do not
aempt to mount the TV alone.
NO!YES!

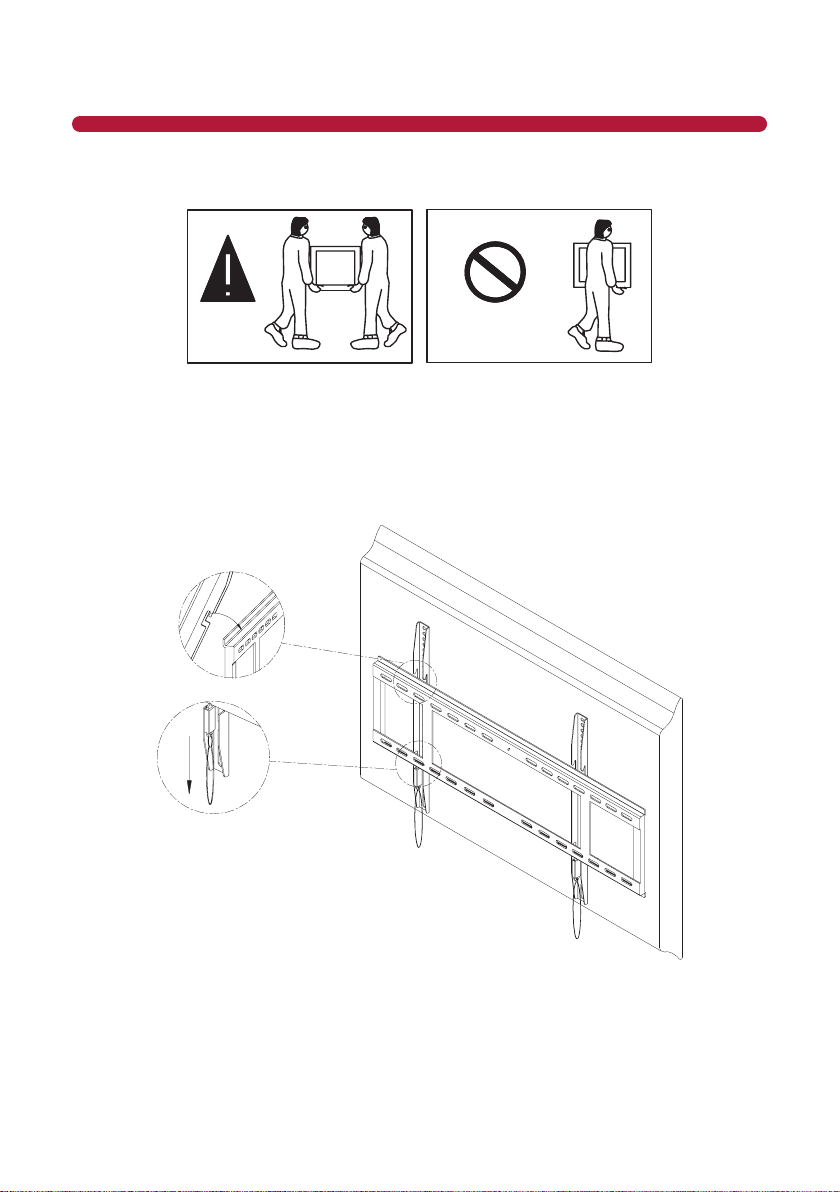

Figure 4 - Two Person Install WARNING!
STEP 4
Hang the pre-assembled TV unit on the Wall Plate. Pull down to release the safety catch on both Brackets
to aach the assembly to the boom part of the Wall Plate (Figure 5).
Figure 5 - Attach TV Assembly to Wall Plate
INSTALLATION
8
LIMITED WARRANTY
AudioSoluons™–AudioMount™–LimitedWarranty–ValidintheUnitedStatesandCanada
This 60 month limited warranty is provided by Metra Electronics Corporaon for the Metra product idened by the
purchaser’s registraon as indicated below, and there are no other warranes, expressed or implied, except as required
by law, including warranes of merchantability and tness for a specic purpose, that are provided for herein, however
all such implied warranes, if any, are limited to the duraon of this specic limited product warranty. Some states do not
allow limitaons on how long an implied warranty lasts, so the above limitaons may not apply to you.
Metra Electronics Corporaon shall not be liable, under any circumstances, for incidental, indirect, special, and
consequenal or mulple damages as a result of the sale or use of this product. Some states/countries do not allow the
exclusion or limitaon of incidental or consequenal damages, so the above limitaon or exclusion may not apply to you.
It is recommended that the purchaser execute the product registraon and warranty registraon via the web within ten
days of purchase.
LimitedProductWarranty:
This is a 60 month limited warranty, subject to the condions, limitaons and exclusions idened herein. Metra
Electronics Corporaon warrants to the original purchaser of the registered or idened product for a period of ve
years from the date of purchase, that the product shall be free of defects in design, material and workmanship, and
subject to the limitaons set forth below; Metra Electronics Corporaon will repair or replace, at its opon, any defecve
unit. This warranty is applicable only to the original purchaser and is not assignable or transferable. Metra hereby
warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use
and condions, prove to be defecve in material or workmanship within ve years from date of original purchase, such
defect(s) will be repaired or replaced with recondioned product (Metra’s opon) without charge for parts and repair
labor. Purchaser must return the product to Metra, return receipt requested or by other means that conrms delivery and
Metra shall make the said repairs or replacement within 60 days of receipt. In some instances the product may have been
disconnued and cannot be replaced, or repaired. In that instance Metra shall in its discreon aempt to replace the
product with a substanally similar product in model or design or pay the purchaser a sum for the then fair market value
of the price, considering the amount of me since sale, and the use of the product. This Limited Warranty is the original
retail purchaser’s sole remedy for any and all such defect(s).
CondionsandLimitaons:
(1) Proof of purchase is required (i.e. the sales receipt or other proof of payment, such as the bar code and serial number
from the shipping box), and
(2) Products must be registered with Metra Electronics by using either the enclosed registraon card, or using Metra’s
online services for registraon purposes. Products that have not been registered will not be covered by Metra’s extended
limited ve year warranty, but instead will only be warranted for the terms required by the State of purchase, if any.
(3) Damage caused by accidents, abuse, misuse or modicaon of the product will render this warranty null and void.
(4) To obtain repairs or replacement under the terms of this warranty, please contact Metra at 1-800-221-0932 or visit
www.metra-online.com. You will need to provide proof of purchase (dated receipt showing store where purchased) and
product serial number in order to receive warranty service. The purchaser is required to send the product back to Metra
Electronics Corp or to a designated repair center and the purchaser is responsible for all charges for shipping and handling.
ThisLimitedWarrantydoesNOTcover:
Products which have been subject to abuse, accident, alteraon, modicaon, tampering, negligence, misuse, improper
installaon, lack of reasonable care, unauthorized repair or service, or if the model or serial number has been altered,
tampered with, defaced or removed.
Inial installaon or the removal and re-installaon of product.
(1) Cosmec damage, damage that occurs in shipment, act of God or natural disaster.
(2) Missing accessories or components.
(3) Products used for any and all commercial purposes.
THE EXTENT OF METRA’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT AS PROVIDED
ABOVE AND, IN NO EVENT SHALL METRA LIABILITY EXCEED THE PURCHASE PRICE PAID BY THE ORIGINAL RETAIL
PURCHASER FOR THE PRODUCT.
Any quesons of Nocaons regarding this warranty should be addressed to:
Warranty Department, Metra Electronics Corporaon
460 Walker Street, Holly Hill, Florida 32117.
THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES OR LIABILITIES. ANY IMPLIED WARRANTIES, INCLUDING
ANY IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. IN
NO EVENT SHALL METRA BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY
OTHER WARRANTY EXPRESS OR IMPLIED WHATSOEVER.
No person or representave is authorized to assume for Metra any liability other than expressed herein in connecon with
the sale of this product. Some jurisdicons do not allow limitaons on how long an implied warranty lasts or the exclusion
or limitaon of incidental or consequenal damages so the above limitaons or exclusions may not apply to you. This
warranty gives you specic legal rights and you may also have other rights, which vary from jurisdicon to jurisdicon.
