VSL4 Instruction Manual

WARNING:This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter defibrillator (ICD) is in use, magnetic fields may aect the operation of
those devices, resulting in serious injury or death. If you have an implanted medical device, keep at least 13 cm (5in.) between your device and the magnet. Please consult with your physician or medical
professional prior to using this product.

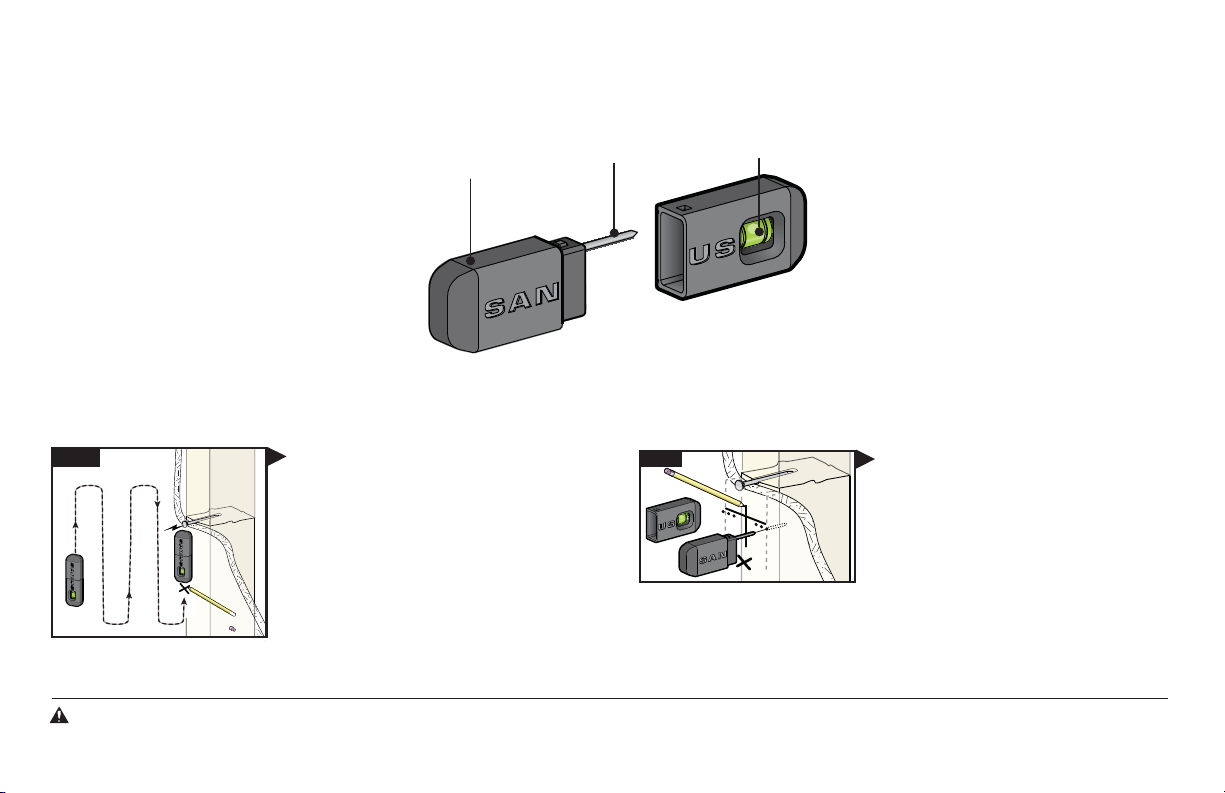

SANUS MAGNETIC STUD FINDER Designed to find your studs and make life easier – included in hardware kit.
TWO SIMPLE STEPS TO FINDING YOUR STUDS:
Holding it vertically, lightly move the SANUS
Magnetic Stud Finder up and down while
sliding across your wall. The magnet within
will be attracted to the screws in the stud.
Once the magnet has landed on a screw,
place a pencil mark on the wall
directly below the magnet.
You can verify this is a stud by moving the
Magnetic Stud Finder up or down to find
a second or third screw within the wall.
Pull apart the SANUS Magnetic Stud Finder to
expose the probing pin within. Starting about
1/2inch away from the first pencil mark insert
the probing pin into the wall every 1/8inch until
it inserts completely into the wall. Once that
happens, you know you've found one edge of
your stud. Repeat this process till you have
found the stud edges and center of the stud.
Step 1 Step 2
magnet
locates screws in drywall
to show exactly where
your studs are
probing pin
helps find the edges of
your stud within the wall
level
attaches to your wall plate
for hands free leveling

3
VSL4
Lo haremos sin estrés
Si tiene preguntas mientras realiza la instalación, llámenos.
1-800-359-5520 (Reino Unido: 0800-056-2853) Estamos listos para ayudarlo.
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
1-800-359-5520 (UK: 0800-056-2853) We’re ready to help!

4
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
Before getting started, let’s make sure this mount is perfect for you!
No — Perfect!
Yes — This mount is NOT compatible. Visit MountFinder.Sanus.com or call
1-800-359-5520 (UK: 0800-056-2853) to find a compatible mount.
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use
of this product, contact Customer Service at 1-800-359-5520 (UK: 0800-056-2853).
Do you have
all the tools
needed?
1
2
3
4
What is your
wall made of? Unsure?
Drywall with
wood studs?
Solid concrete or
concrete block?
50 lb
(22.7 kg)
CAUTION: Avoid potential personal injuries and property damage!
●This product includes directions and hardware for use with wood stud, solid concrete and concrete block walls –
DO NOT install into drywall alone.
●The wall must be capable of supporting five times the weight of the TV and mount combined.
●Do not use this product for any purpose not explicitly specified by manufacturer.
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
Call Customer Service:
1-800-359-5520 (UK: 0800-056-2853)
Perfect! Perfect!
Ready to
begin?
Does your TV weigh
more than 50 lb
(22.7 kg) including
accessories?
1/2 in.
(13 mm)
7/32 in.
(5.5 mm)
Wood
Screwdriver Tape Measure Drill Bit Drill Bit Electric Drill Hammer Socket Wrench Pencil Wrench
3/8 in.
(10 mm)
Concrete 3/8 in.
(10 mm)

5
STEP 1 Attach Bracket to TV
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged
item to your dealer; contact Customer Service. Never use damaged parts!

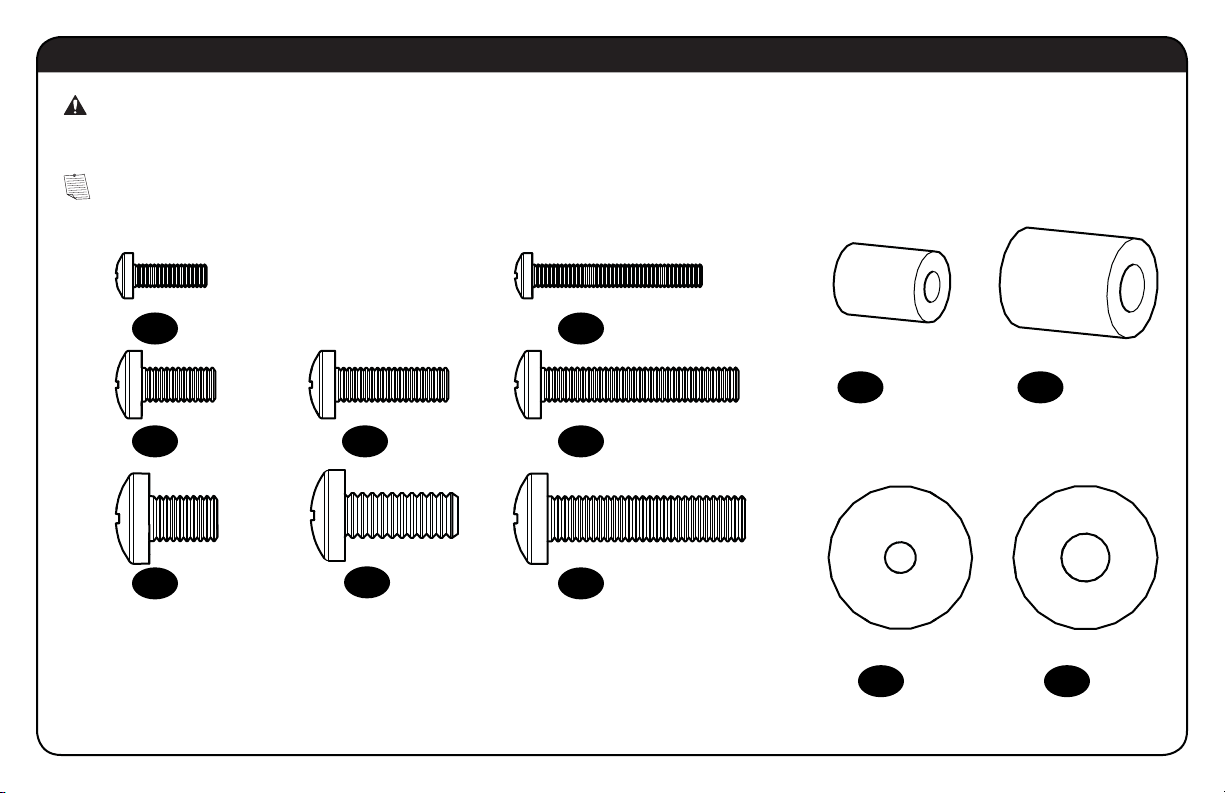

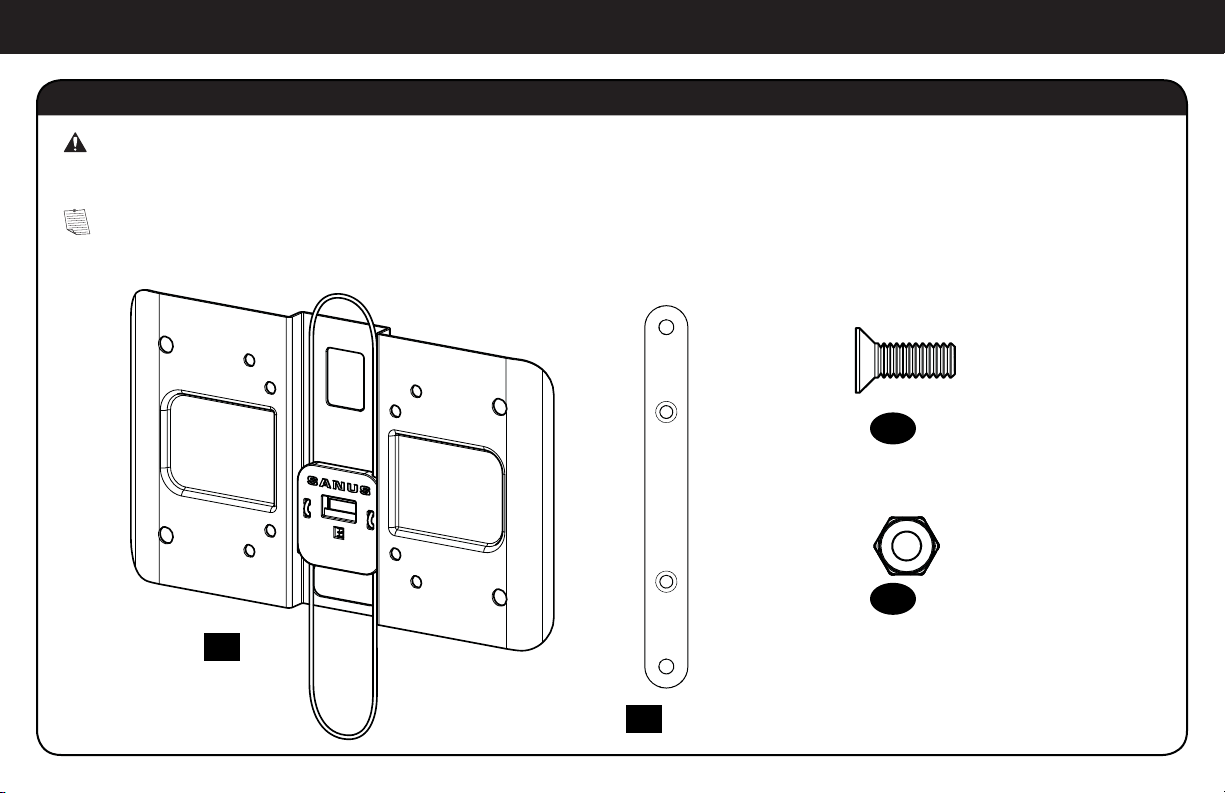

Parts and Hardware for STEP 1
NOTE: Not all hardware included will be used.
M6 x 14mm
TV Bracket 200 x 200 Extension 200 x 200 Extension Screw
200 x 200 Extension Nut
02 x2
01 x1
03 x4
04 x4

6
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged
item to your dealer; contact Customer Service. Never use damaged parts!
Parts and Hardware for STEP 1
NOTE: Not all hardware included will be used.
M4 M6/M8
M4 x 12mm
M6 x 12mm
M8 x 12mm
M4 x 30mm
M6 x 20mm M6 x 35mm
M8 x 35mm
M8 x 20mm
M4 M6/M8
05 x4
07 x4
10 x4 12 x4
11 x4
15 x8 16 x4
13 x4 14 x4
08 x4 09 x4
06 x4
TV Screws
TV Washers
TV Spacers

7

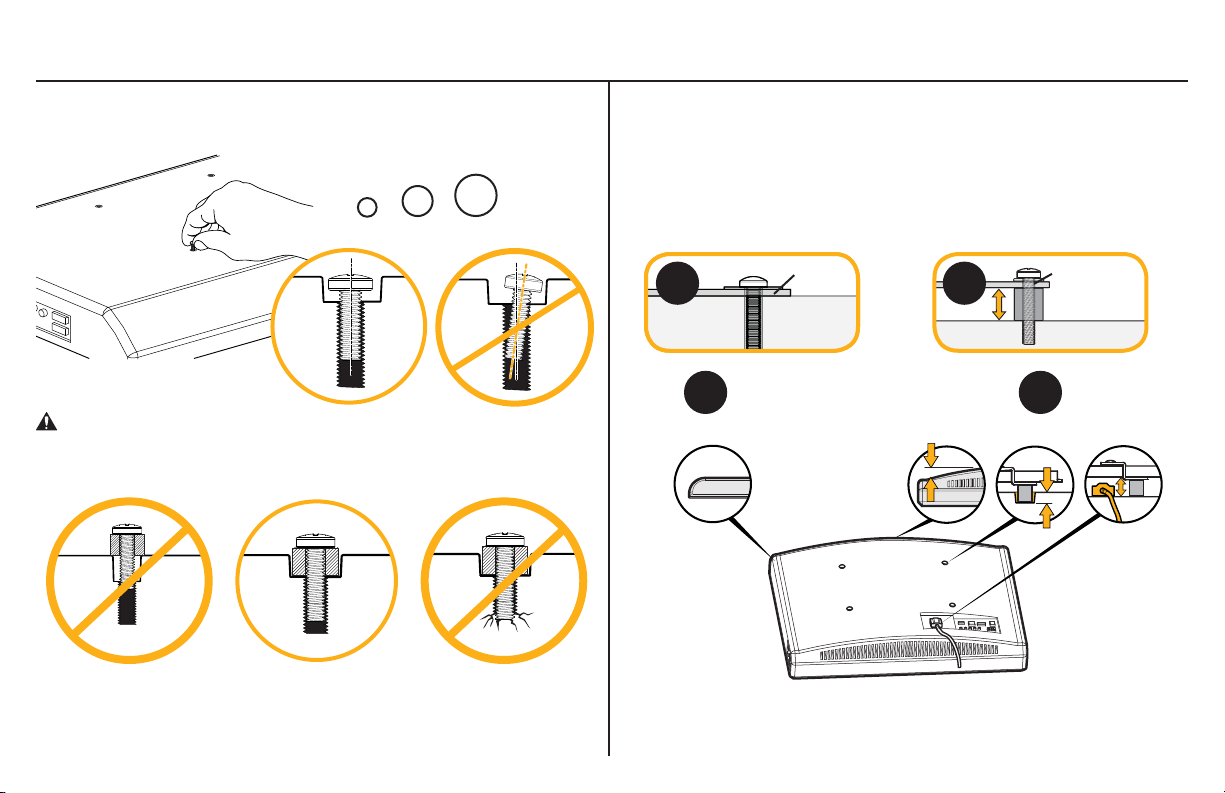

1-1 Select TV Screws 1-2 Spacers
Hand thread screws into the threaded inserts on the back of your TV
to determine which screw diameter (M4, M6, or M8) to use.
CAUTION: Verify adequate thread engagement of the screw/
spacer combination on your TV.
Too short will not hold the TV and too long will damage the TV.
M4 M6 M8
Too Short Correct Too Long
TV Bracket
TV Bracket
06
Round Back CablesInset HolesFlat Back
TV Bracket
A
A
B
B
Your TV type will help you determine which hardware
configuration to use. Match your type of TV to the suggested
hardware configuration on the next page.
A. Installation option without spacers (TVs with flat backs).
B. Installation option using spacers (TVs with obstructed backs
or inset mounting holes).
Standard configurations are shown. For special applications, or if you are
uncertain about your hardware selection, contact Customer Service at
1-800-359-5520 .

8

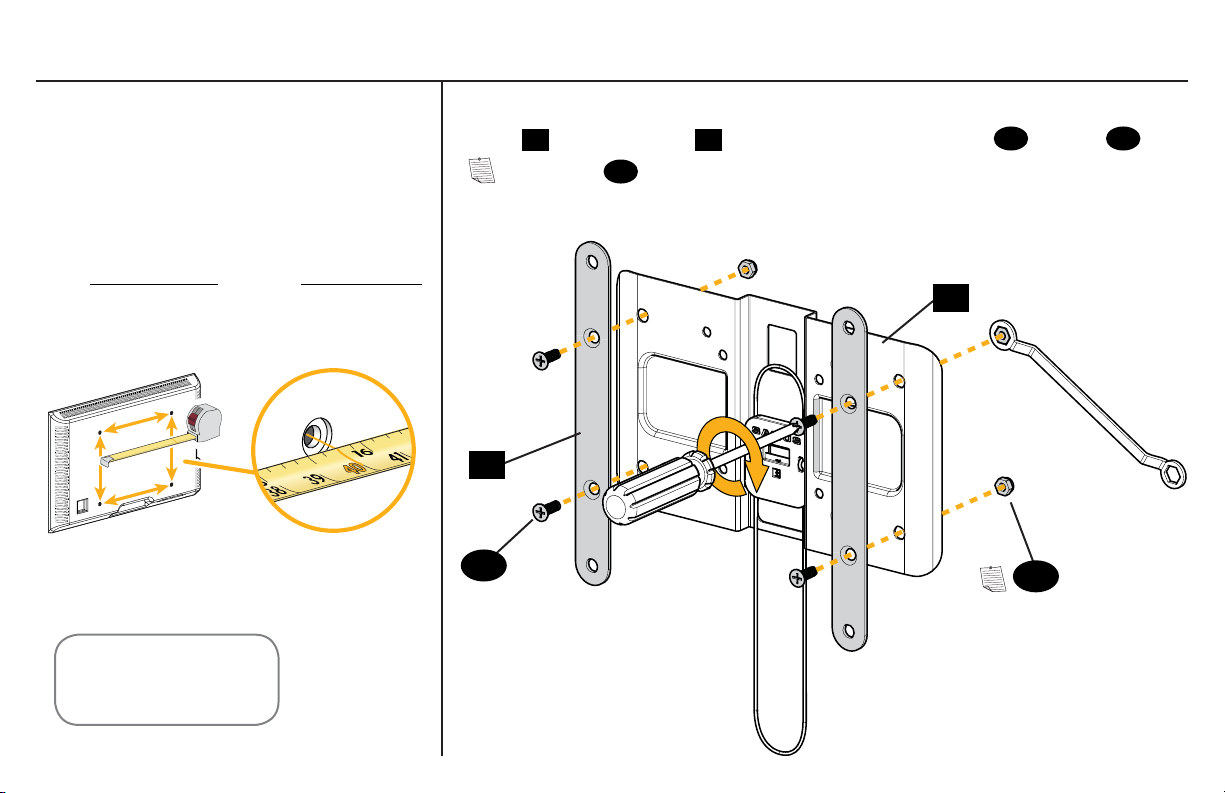

1-4 Attach Extensions (200 x 200 mm ONLY)1-3 Measure Your TV Hole Pattern
If mounting to a TV with a 200 x 200 mm (7 ⅞ x 7 ⅞ in.) hole pattern, add the extension
plates 02 to the TV bracket 01 using the extension plate screws 03 and nuts 04 .
NOTE: Nuts 04 are poly-locks and will need to be forcibly tightened.
Measure the width and height of your
TV hole pattern in mm.
Record your measurements:
cm
inches
xHeight
Width mm mm
75 mm = 7.5 cm = 3 in.
100 mm = 10 cm = 4 in.
200 mm = 20 cm = 7 7/8 in.
inch dimensions approximate
02
01
04
03

9
1-5 Attach TV Bracket with 200 x 200 mm Extensions
Position the TV bracket 01 with extensions 02 over your TV hole pattern and install using the screw, washer, and spacer (if needed)
combination you selected for your TV.
M6/M8 spacer, screw, and washer
M4/M6/M8 screw and washer
M4 spacer, screw, and washers
061513 15
05
15
07
16
08 10 11
16
14
09 12
01
02

10

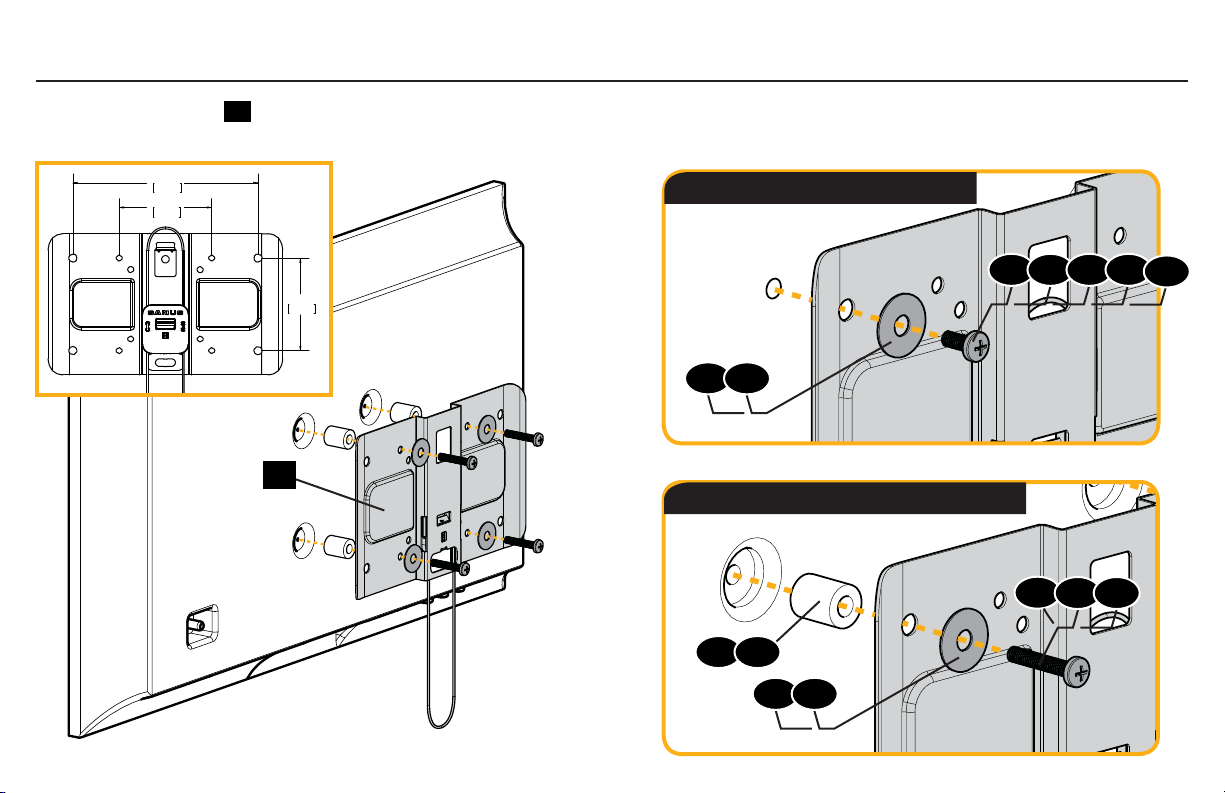

1-5 Attach TV Bracket 200 x 100 mm and 100 x 100 mm
Position the TV bracket 01 over your TV hole pattern and install using the screw, washer, and spacer (if needed) combination you selected for
your TV.
M4/M6/M8 spacer, screw, and washer
M4/M6/M8 screw and washer
01
7.87
200.0
3.94
100.0
3.94
100.0
05
15
15
07
16
16
08 10 11
13 14
06 09 12

11
1-5 Attach TV Bracket 75 x 75 mm
Position the TV bracket 01 over your TV hole pattern and install using the screw and spacer (if needed) combination you selected for your TV.
M4/M6/M8 screw and spacer
M4/M6/M8 screw
01
2.95
75.0
2.95
75.0
05 07 08 10 11
13 14
06 09 12

12

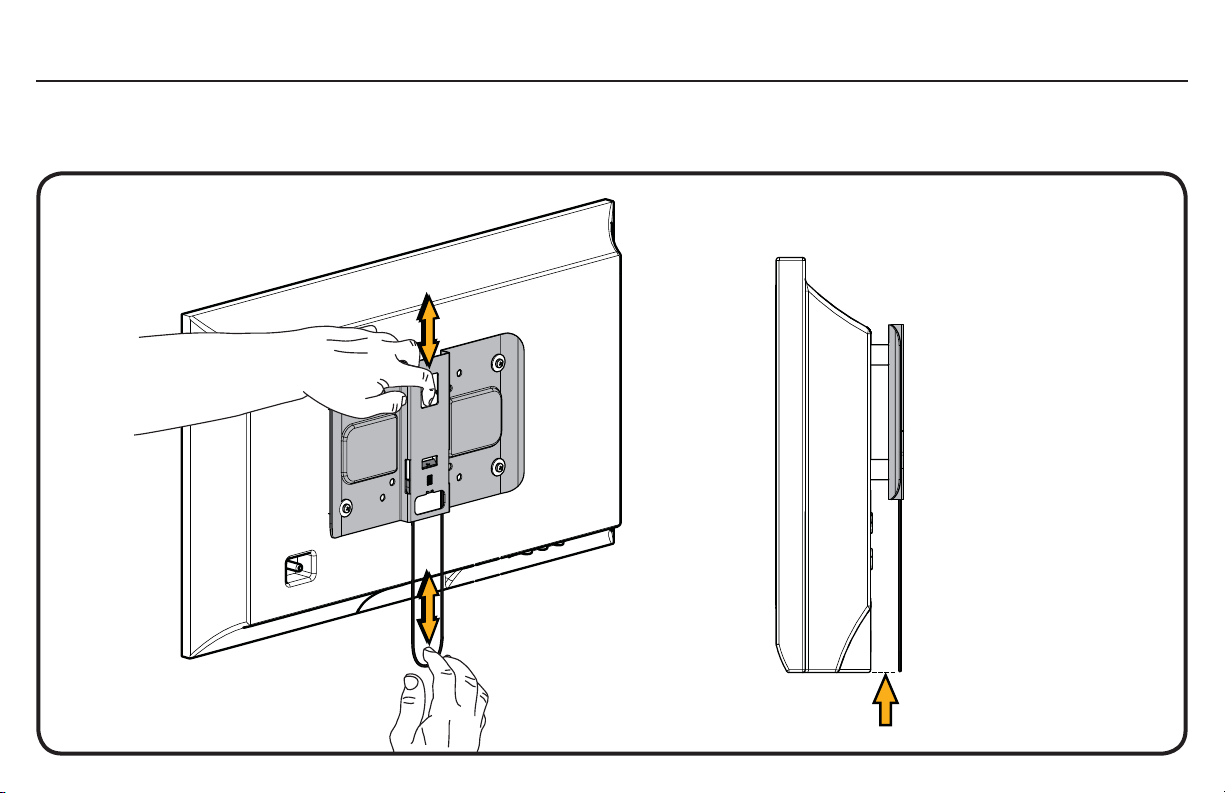

Adjust release cord until bottom of cord is level with the bottom of the TV.
1-6 Adjust Release Cord

13
STEP 2 Attach Wall Plate to Wall

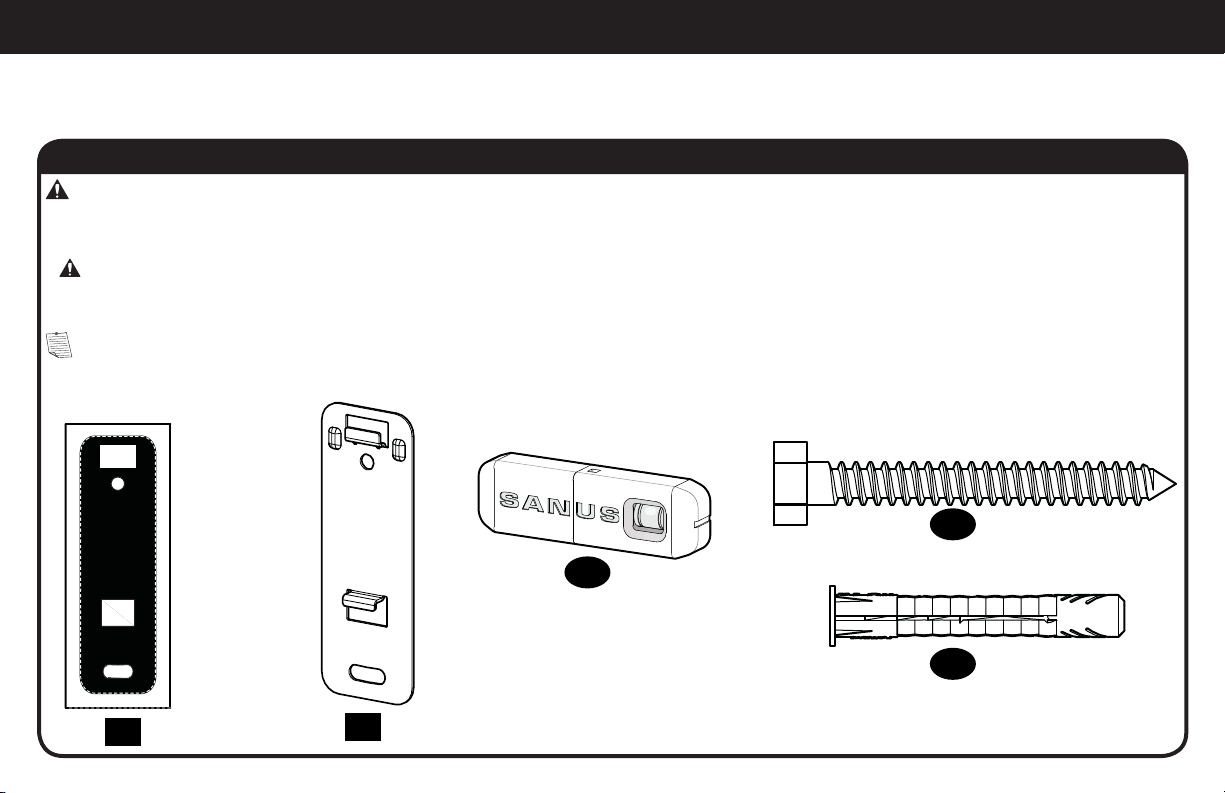

Parts and Hardware for STEP 2
For wood stud installations, follow STEP 2A on PAGE 14
For concrete installations, follow STEP 2B on PAGE 16
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are
included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never
use damaged parts!
17 x1 18 x1
Wall Plate
Wall Plate
Template
*WARNING:This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter defibrillator
(ICD) is in use, magnetic fields may aect the operation of those devices, resulting in serious injury or death. If you have an implanted medical device,
keep at least 13 cm (5 in.) between your device and the magnet. Please consult with your physician or medical professional prior to using this product.
5/16 x 2 ¾ in.
NOTE: Not all hardware included will be used.
20 x2
Sanus Magnetic Stud Finder*
19 x1
21 x2
Lag Bolts
Concrete Anchors

14
STEP 2A Wood Stud Option
1
2
3
CAUTION: Avoid potential personal injuries and property damage!
●Drywall covering the wall must not exceed
16 mm (5/8 in.)
●Minimum wood stud size: common 51 x 102 mm (2 x 4 in.) nominal 38 x
89 mm (1½x 3½in.)
●Stud center must be verified
1. Locate a nail/screw in the stud using the Sanus magnetic stud finder
19 provided.
2. Find the edges of the stud using the probe
of the stud finder 19 .
3. Mark the center of the stud with pencil.
19
Max. 16 mm
(5/8 in.)
Min. 89 mm
(3 1/2 in.)
Min. 38 mm
(1 1/2 in.)

15

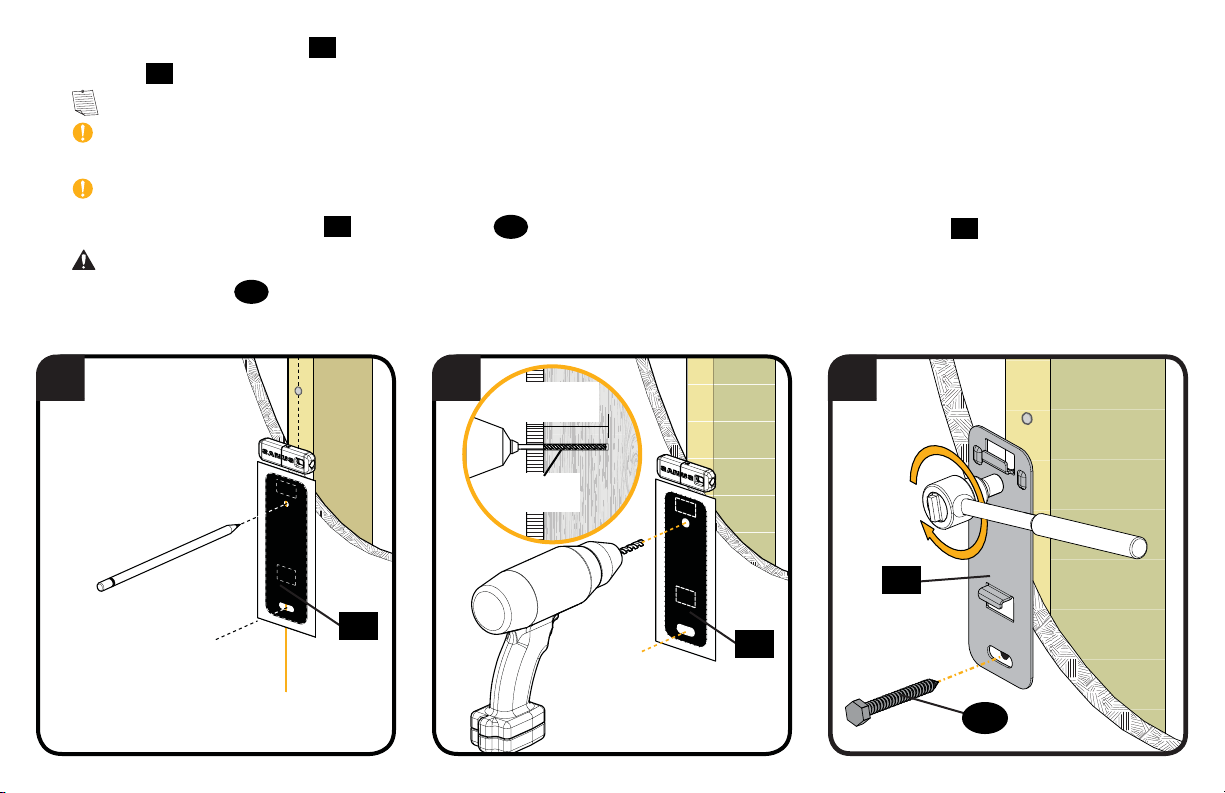

4. Place the wall plate template 17 at your desired height and position the slotted holes over your stud center line. Level the wall plate
template 17 and tape in place.
NOTE: For assistance in determining wall plate location, see HeightFinder at sanus.com.
IMPORTANT: Be sure you mark and drill into the center of the stud.
5. Drill the two pilot holes using a 5.5 mm (7/32 in.) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 75 mm (3 in.).
6. Remove the wall plate template 17 . Tighten lag bolts 20 only until they are pulled firmly against the wall plate 18 .
CAUTION: Improper use could reduce the holding power of the lag bolt. To avoid potential injuries or property damage, DO NOT over-
tighten the lag bolts 20 .
4 5 6
75 mm
(3 in.)
5.5 mm
(7/32 in.)
17 17
20
18

16
Solid Concrete or Concrete Block Option
CAUTION: Avoid potential personal injuries and property damage!
●Mount the arm assembly/wall plate 18 directly onto the concrete surface
●Minimum solid concrete thickness: 203 mm (8 in.)
●Minimum concrete block size: 203 x 203 x 406 mm (8 x 8x 16 in.)

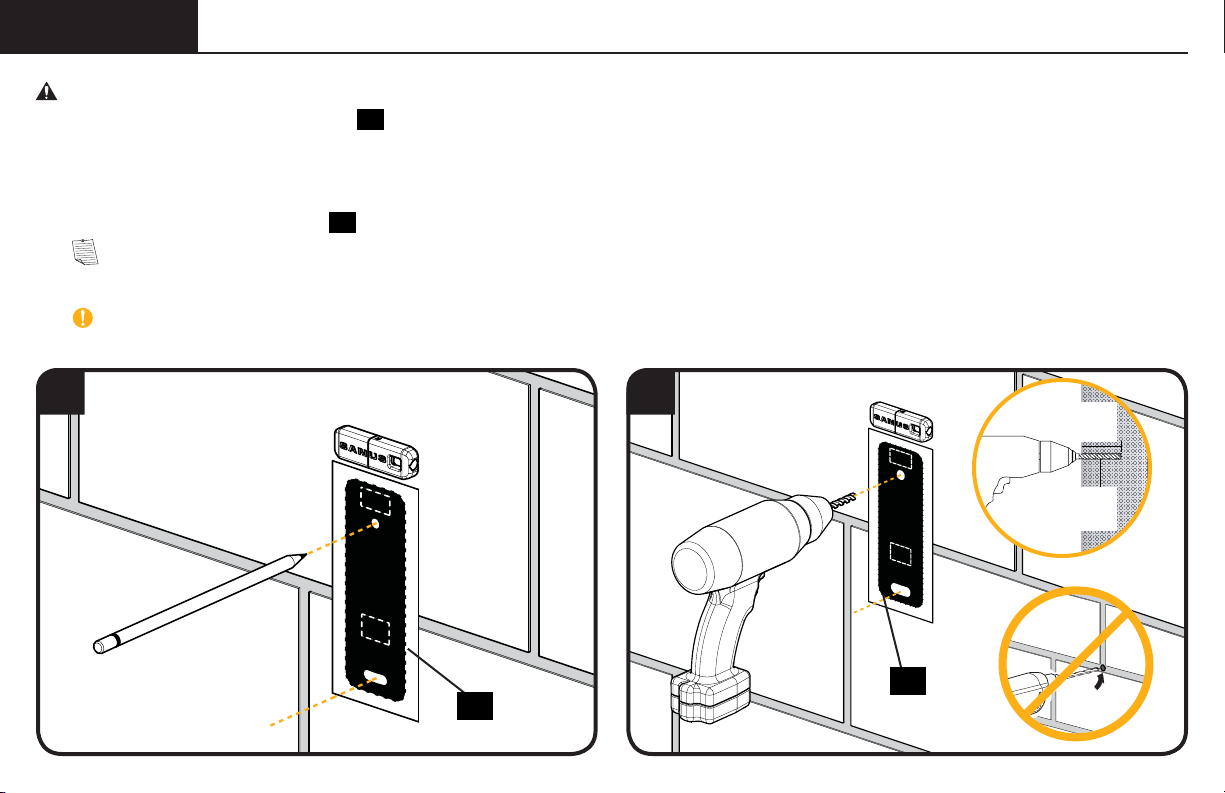

1. Position the wall plate template 17 on the wall at your desired height. Level the wall plate template and mark the hole locations.
NOTE: For assistance in determining wall plate location, see Height Finder at sanus.com.
2. Drill two pilot holes using a 10 mm (3/8 in.) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 75 mm (3 in.). Never drill into the mortar between blocks.
STEP 2B
1 2
10 mm
(3/8 in.)
75 mm
(3 in.)
17 17

17
34
3. Remove the wall plate template 17 and insert two anchors 21 .
CAUTION: Be sure the anchors 21 are seated flush with the concrete surface.
4. Tighten lag bolts 20 only until they are pulled firmly against the wall plate 18 .
CAUTION: Improper use could reduce the holding power of the lag bolt. To avoid potential injuries or property damage Do not over-
tighten the lag bolts 20 .
18
21 20
20

18
STEP 3 Attach TV to Wall Plate
HEAVY! You may need assistance with this step.
18
01
1. Fit the top hole on the TV bracket 01 onto the top hook of the wall plate 18 .
2. Swing the TV bracket 01 down until the locking tab engages the lower hook of the wall plate 18 .
You will hear a “click” sound when the locking tab snaps into place.
1
2
NOTE: To remove the TV, pull the release cord down and lift the TV up and out away from the wall plate.

19

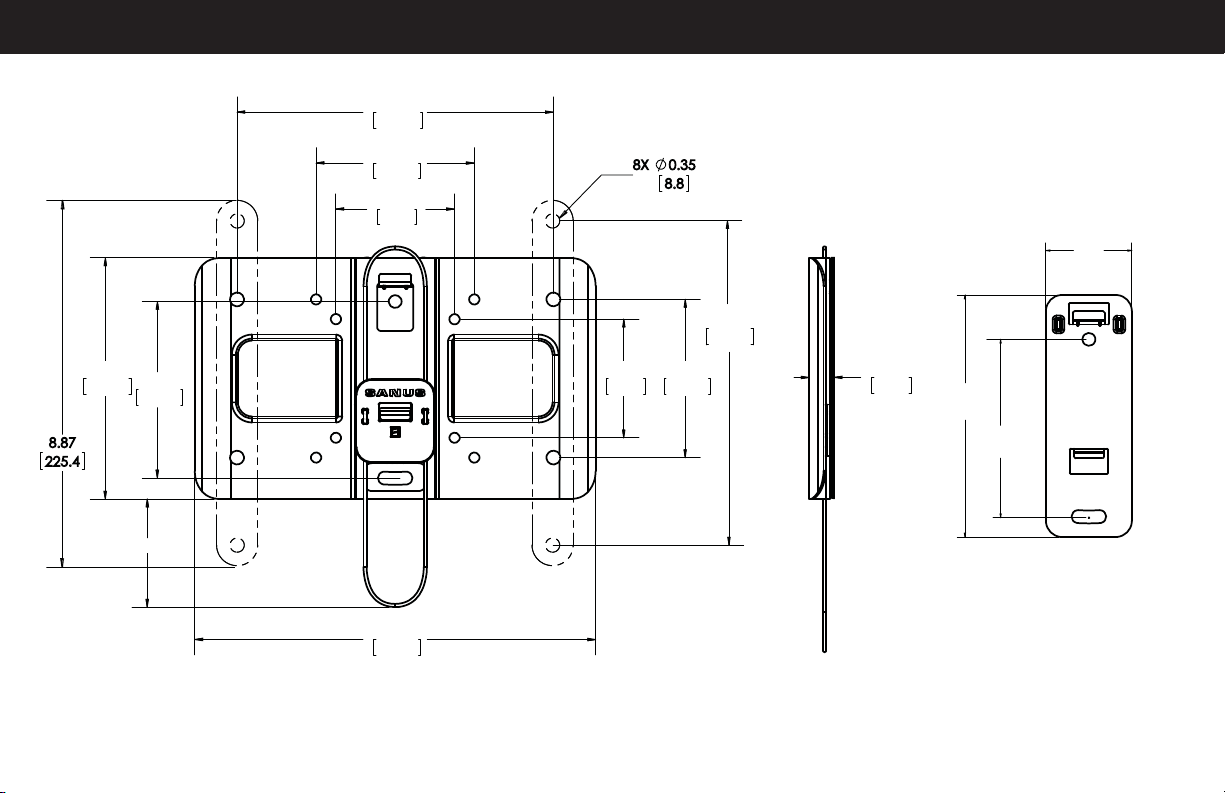

Dimensions
7.87
200.0
3.94
100.0
2.95
75.0
3.94
100.0
2.95
75.0
4.39
111.6
6.00
152.4
UP TO 10"
9.98
253.5
0.62
15.7
7.87
200.0
8X
0.35
8.8
8.87
225.4
2.13
[54.1]
6.00
[152.4]
4.42
[112.32]

20
ESPAÑOL
INSTRUCCIONES DE SEGURIDAD IMPORTANTES. CONSÉRVELAS. LEA TODO EL MANUAL ANTES DE
UTILIZAR ESTE PRODUCTO.
Antes de comenzar, verifiquemos que este soporte sea perfecto para usted.
10 mm
(3/8”)
5,5 mm
(7/32")
Madera
10 mm
(3/8'')
Hormigón
No — ¡Perfecto!
Sí — Este soporte NO es compatible. Visite MountFinder.Sanus.com o llame al
1-800-359-5520 (Reino Unido: 0800-056-2853) para encontrar un soporte compatible.
¿Su televisor pesa
más de 22,7 kg
(50 lb), incluidos
los accesorios?
Lea estas instrucciones en su totalidad para estar seguro de sentirse cómodo con este fácil proceso de instalación. Consulte
también el manual del usuario de su televisor para ver si existe algún requisito especial para instalar su televisor en la pared.
Si no entiende las instrucciones o si tiene dudas acerca de la seguridad de la instalación, del ensamblado o del uso del
producto, póngase en contacto con el servicio de atención al cliente al 1-800-359-5520 (Reino Unido: 0800-056-2853).
¿Tiene
todas las
herramientas
necesarias?
1
2
3
4
¿De qué está
hecha su
pared?
¿No está
seguro?
¿Hormigón sólido
o bloques de
cemento?
22,7 kg
(50 lb)
¿Listo para
comenzar?
13 mm
(1/2”)
¿Tabiques
de yeso con
montantes de
madera?
Llame al 1-800-359-5520
(Reino Unido: 0800-056-2853)
¡Perfecto! ¡Perfecto!
Destornillador Cinta métrica Broca Broca Taladro eléctrico Martillo Llave de tubo Llave inglesa
Lápiz
PRECAUCIÓN: Evite posibles lesiones personales y daños materiales.
●Este producto incluye instrucciones y elementos de sujeción para su instalación en paredes con montantes de madera,
en superficies de hormigón y sobre bloques de cemento. NO lo instale en tabiques únicamente de yeso.
●La pared debe soportar cinco veces el peso del televisor y del soporte juntos.
●No utilice este producto para ningún otro propósito que no sea el explícitamente especificado por el fabricante.
●El fabricante no se responsabiliza por ningún daño o lesión resultante del montaje incorrecto o de uso indebido.
