USX-MOUNT XML025-03 User manual

XML025-03
INSTRUCTION MANUAL(P1-P17)
Bedienungsanleitung(P18-P33)
For 37-90" TV
If you have any questions along the way, just message
to us. We’re ready to help!
DE-C0
R

2
MAX:600mm/23.62"
(MIN:200mm/7.87")
MAX:400mm/15.75"
(MIN:100mm/3.94")

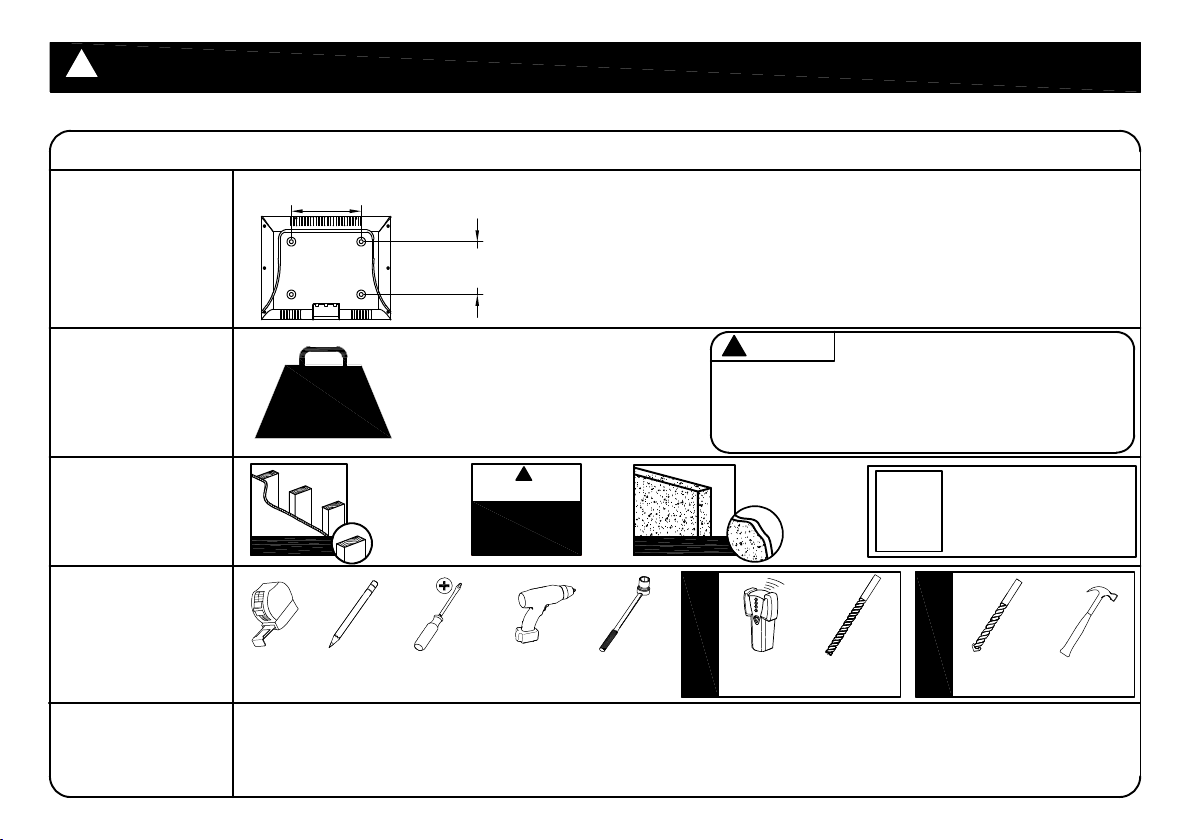

Before getting started, let’s check below lists to make sure it is just right for you!
2
3
4
5
Does your TV
(including accessories)
weigh MORE than
150 lbs. (68.2 kg)?
What is your
wall made of?
Do you have
all the tools
needed?
(NOT INCLUDE)
CAUTION
No? Perfect – you may continue.
Yes? This mount is NOT compatible.
Drywall with
wood studs?
CAUTION: DO NOT exceed the maximum weight
indicated. This mounting system is intended for use only
with the maximum weights indicated. Use with products
heavier than the maximum weights indicated may result
in collapse of the mount and its accessories, causing
possible injury.
Solid concrete
Stud
Finder
7/32 in.
(5.5 mm)
Wood
Drill Bit
● This product is designed for use in wood stud, solid concrete walls - DO NOT install into drywall alone
● The wall must be capable of supporting five times the weight of the TV and mount itself
● Do not use this product for any purpose not explicitly specified by manufacturer
● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
3/8 in.
(10 mm)
Masonry
Drill Bit
Hammer
1
Check your TV
VESA is within
Min and Max size
No? This mount is NOT compatible.
Yes? Perfect !
Tape
Measure Pencil Screw driver
Electric
Drill
1/2 in.
(13 mm)
Socket
Wrench
?Unsure?
Message to us via Amazon.
CAUTION: PLEASE READ ENTIRE MANUAL PRIOR TO USE AND SAVE THESE INSTRUCTIONS
MAX
150 LBS
(68.2 kg)
Per fect !Per fect !
Wood Stud Install
Concrete Install
!
CAUTION:
DO NOT
install into
drywall alone
!
!

TV INTERFACE 3-D
WALL PLATE
FULLY ASSEMBLED MOUNT TOP VIEW - RETRACTED
TOP VIEW - EXTENDED SIDE VIEW - EXTENDED
3
+5°
-15°
SIDE VIEW - EXTENDED
+45°
422mm
[16.61in]
64mm
[2.52in]
420mm
[16.54in]
679mm
[26.73in]
638mm
[25.12in]
277mm
[10.91in]
164mm
[6.46in]
200mm
[7.87in]
600mm
[23.62in]
400mm
[15.75in]
15mm
[0.59in]
245mm
[9.65in]
9mm
[0.35in]
203.2mm
[8.00in]
406.4mm
[16.00in]
609.6mm
[24.00in]
Dimensions

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts
are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact
Customer Service.
Never use damaged parts!
NOTE: Not all hardware included will be used.
4
Parts and Hardware
Parts and Hardware for STEP 1
!
M4x12mm
M6x12mm
M4x30mm
M6x35mm
Spacers
TV Screws
x4 x4
x4 x4
M8x45mm
M6x17mm
M8x22mm
M4 M6
10mm
2.5mm
Washers
x4
x4
x4 x4
x8 x4
x4
a
b
f
e
d
gh
ij
k l
05 x2
M8x25mm
x4
c
TV Brackets

5
Parts and Hardware for STEP 2
Lag Bolt
x4
Wall Plate Unit
x1
Allen Key
x1
M6x16mm Bolt
x2
Velcro x3
Mounting template
203.2mm(8")
406.4mm(16")
609.6mm(24")
R
01
02 03
04 Concrete Wall Anchor 4pcs
CAUTION:Do not use in drywall or wood
For concrete wall installations ONLY
!
Level x1

6
M8
M6
M4
1-1 Select TV Screws
STEP 1 Attach Brackets to TV

1-2 Figure out the suitable position of brackets
7
INSTALL UP/DOWN IF NEEDED TV BRACKETS MUST BE LEVEL
LOW MOUNTING HOLES HIGH MOUNTING HOLES
!
!
05

Tips: If you need to combine M6/M8(c/e/f) screws with
2.5mm spacers( i ), you have to remove the inner circle.
Yes, choose suitable screws, washers and spacers.
1-4 Attach the TV Plate
No!
No, choose suitable screws and washers.
1-3 Need Spacer?
8
b
ac
k l
e
df
kl
ih j
g

Centre line
CAUTION: Avoid potential personal injury or property damage!
● Drywall covering the wall, must not exceed 5/8 in. (16 mm)
● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)
● Maximum horizontal space between fasteners: 24 in. (609 mm)
● Stud center must be verified
1. Locate your studs. Verify and mark the center of the stud by finding the stud edges using a thin nail,
or an edge to edge stud finder.
2. Position the mounting template at your desired height and line up the holes with your stud center line.
Level the wall plate and mark the hole locations.
Again, find another wood stud
16"/24"
Mounting template
9
STEP 2A Attach Wall Plate to Wall Wood Stud Option
!

3. Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 2.9 in. (74 mm). Be sure to drill into the center
of the studs.
4. Install wall plate using four lag bolts . Tighten the lag bolts only until they are pulled firmly
against the wall plate.
CAUTION: Improper use could reduce the holding power of the lag bolt.
DO NOT over-tighten the lag bolts.
Go to STEP 3 on PAGE 13.
7/32"
(5.5mm)
10
2.9"(74mm)
No!
UP
04
04
01
01
!
!

3/8"
(10mm) 2.9"(74mm)
CAUTION: Avoid potential personal injury or property damage!
● Mount the wall plate assembly directly onto the concrete surface
● Minimum solid concrete thickness: 8 in. (203 mm)
1. Position the mounting template on the wall at your desired height. Level the wall plate and mark the
hole locations.
2. Drill four pilot holes using a 3/8 in. (10 mm) diameter masonry drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 2.9 in. (74 mm).
11
Mounting template
STEP 2B Attach Wall Plate to Solid Concrete Wall
04
!
!

3. Insert four anchors.
CAUTION: Be sure the anchors are seated flush with the concrete surface.
CAUTION: Improper use could reduce the holding power of the lag bolt.
DO NOT over-tighten the lag bolts.
4. Insert wall plate using four lag bolts . Tighten the lag bolts only until they are pulled firmly
against the wall plate.
12
Concrete Wall Anchor
No!
UP
04
04
01
01
!
!

Before hanging TV, please try to pull the mount to make sure that it has been assembled on the wall
tightly.
13
STEP 3 Wall Plate lnstallation lntegrity Test

Hang TV/bracket assembly onto wall plate, wrap clips on bracket around extension arms and tighten
them using bolts .
TV
1 2
14
STEP 4 Hang and Secure TV to Wall Plate
02
02

5-1 TV leveling adjustment (±4°):
Loosen 4 leveling bolts on the rear of TV plate by
maximum 2 turns, adjust to level, and retighten to secure.
Loosen
Tighten
±4°
15
STEP 5 Adjustments
03

5-2 Tilting angle adjustment (+5°/-15°)：
Loosen handle and tilting bolt, adjust TV to your desired position,
then tighten handle and tilting bolt. Put the handle level when finish.
Tilting bolts
+5°
-15°
Tighten
Loosen
Tighten
Loosen
+5° -15° Tilting bolts
16
Handle
Tighten
Loosen
03 03

5-3 Cables manage:
Manage TV cables orderly and guide them through the velcros.
Velcro
17

Bevor Sie beginnen, überprüfen Sie die folgenden Listen, um sicherzustellen, dass sie genau für Sie geeignet sind.
2
3
4
5
Wiegt Ihr Fernseher
(einschließlich
Zubehör) MEHR als
150 lbs. (68.2 kg)?
Was ist dein
Wand aus?
Hast du alle
Werkzeuge
erforderlich?
(Nicht enthalten) Maßband
VORSICHT
Bleistift Schrauben
dreher
elektrische
Bohrmaschine
Nein, Perfekt - Sie können fortfahren.
Ja, Diese Halterung ist NICHT kompatibel.
Trockenbau
mit Holzpfosten?
VORSICHT: Überschreiten Sie NICHT das angegebene
Maximalgewicht.Dieses Montagesystem ist nur zur Verwendung mit den
angegebenen Maximalgewichten vorgesehen. Die Verwendung mit
Produkten, die schwerer als das angegebene Höchstgewicht sind, kann
zum Zusammenfallen der Halterung und des Zubehörs führen und zu
möglichen Verletzungen führen.
Massiver Beton
1/2 in.
(13 mm)
Steckschlüssel Bolzensucher
7/32 in.
(5.5 mm)
Holzbohrer
● Dieses Produkt ist für die Verwendung in Holzpfosten und massiven Betonwänden vorgesehen. Installieren Sie es NICHT allein in Trockenbauwänden.
● Die Wand muss das fünffache Gewicht des Fernsehgeräts tragen und sich selbst montieren können.
● Verwenden Sie dieses Produkt nicht für Zwecke, die nicht ausdrücklich vom Hersteller angegeben wurden.
● Der Hersteller haftet nicht für Schäden oder Verletzungen, die durch falsche Montage oder Verwendung verursacht warden.
3/8 in.
(10 mm)
Steinbohrer Hammer
1
Überprüfen Sie, ob
sich Ihr Fernseher
in VESA befindet
Min und Max Größe?
Nein, Diese Halterung ist NICHT kompatibel.
Ja, Perfekt !
?Unsicher?
Simst uns über Amazon.
MAX:600mm/23.62"
(MIN:200mm/7.87")
MAX:400mm/15.75"
(MIN:100mm/3.94")
18
VORSICHT:Bitte lesen Sie vor der Verwendung das gesamte Handbuch und speichern Sie diese Anweisungen
MAX
150 LBS
(68.2 kg)
Per fekt !Per fekt !
Holzbolzen installieren
Steinbohrer
VORSICHT:
Nicht alleine in
Trockenbau
einbauen
!
!
!

3-D
+5°
-15°
+45°
422mm
[16.61in]
64mm
[2.52in]
420mm
[16.54in]
679mm
[26.73in]
638mm
[25.12in]
277mm
[10.91in]
164mm
[6.46in]
200mm
[7.87in]
600mm
[23.62in]
400mm
[15.75in]
15mm
[0.59in]
245mm
[9.65in]
9mm
[0.35in]
203.2mm
[8.00in]
406.4mm
[16.00in]
609.6mm
[24.00in]
TV SCHNITTSTELLE
WAND PLATTE
VOLL MONTIERTE MONTAGE DRAUFSICHT - EINGEFAHREN
DRAUFSICHT - ERWEITERT SEITENANSICHT - ERWEITERT
SEITENANSICHT - ERWEITERT
19
Produktabmessungen

WARNUNG: Dieses Produkt enthält kleine Gegenstände, die beim Verschlucken eine Erstickungsgefahr darstellen können.
Vergewissern Sie sich vor Beginn der Montage, dass alle Teile enthalten und unbeschädigt sind. Wenn Teile fehlen oder beschädigt
sind, senden Sie den beschädigten Artikel nicht an Ihren Händler zurück. Wenden Sie sich an den Kundendienst.
Verwenden Sie niemals beschädigte Teile!
HINWEIS: Es wird nicht die gesamte enthaltene Hardware verwendet.
20
Teile und Hardware
TV Halterung
Teile und Hardware für SCHRITT 1
!
M4x12mm
M6x12mm
M4x30mm
M6x35mm
Abstandhalter
TV Schrauben
x4 x4
x4 x4
M8x45mm
M6x17mm
M8x22mm
M4 M6
10mm
2.5mm
Unterlegscheiben
x4
x4
x4 x4
x8 x4
x4
a
b
f
e
d
gh
ij
k l
x2
05
M8x25mm
x4
c
