Audiodesign TRIO LA 6/10 User manual

PROFESSIONAL SPEAKERS, AMPLIFIERS AND ACCESSORIES
Via dell’industria, 28 - 42025 CAVRIAGO (RE)
[phone] - Fax [phone]
www.audiodesign-pro.com
[email protected]
Audiodesign Srl
TRIO LA 6/10
TRIO LA 8/12 TRIO LA 8/15
TRIO LA 16/15 TRIO LA 12/15
OTHER SYSTEMS OF THE TRIO LA FAMILY
User Manual
Full Range Sound System

- 7 -
Portable Full Range Sound System TRIO LA 6/10
Introduction
Thank you for purchasing an AudioDesign TRIO Active Sound system.
TRIO series is designed to provide an high and powerful sound quality in a compact size.
The main features are:
*Active subwoofer cabinet with additional amplifiers for the passive satellites.
*High sensitivity passive satellites.
*High and precise acoustic quality also with high power.
The final result is a full, detailed and powerful sound.
*Portability: the system is easy fit and portable by one person.
- 2 -
Application
The KPRO systems are a professional solution for every DJ or Live events where high pressure and extreme
sound quality is required.
Precautions:
Caution: When using any electric product , precautions should always be taken, including the following:
1) Read carefully all instructions before using the product.
2) To reduce the risk, strict supervision is necessary when the product is used near children.
3) Don't use the product near to water sources like sinks, kitchens, wet floors, pools,
or similar or when raining.
4) In case hearing losses or buzzing occur, please contact a doctor.
5) This products should be located so that its position does not interfere or reduce its proper ventilation.
6) This product should be site away from heat sources such as radiators or any other product that
generate heat.
7) This product should be connected to a power supply line only of the type described on the operating
instructions. Check always the status of the power cable.
8) In case you need to replace the fuse, unplug power supply before replacement. The fuse is located
over the power socket and needs to be replaced with a fuse of same type and value. If the fuse blows again,
please contact our service. DON'T replace it a second time with a higher value fuse.
9) Unplug power supply when left unused for a long period of time. Don't draw the cable but pull out the
plug.
10) Make sure that power switch can always be easily reached.
11) The product needs to be inspected by authorized or qualified personnel in case:
A- The power cable or plug are damaged
B- Objects or liquids fall inside the product
C- The product has been exposed to rain
D- The product doesn't appear to operate normally or exhibits a marked change in performance.
E- The product has fallen and been damaged.
12) DON'T operate on the product, except indications on the user's manual . Please refer to authorized
and qualified personnel for any other operation.
13) Caution: Don't place objects on the product's power cable or place it in a position where it could be
damaged or cause interferences. Improper installation could cause fire risk and/or personal injury.
Service
All Audio Design PRO products have been inspected and tested before leaving the factory and , if properly
used, they will work for many years. However, in case of any problem, please proceed in the following way:
Contact your dealer and inform about the defect you found
In case it won't be possible to solve the problem with the dealer, the product needs to be returned, preferably
in its original packaging or in a proper packing to protect it during the transport. Purchase documents must
be produced too.
Your dealer will arrange the shipment to our service centre.
Conformity:
Audiodesign Pro products comply with presently existing directives and standards.
TRIO
Portable Full Range Sound System TRIO LA 6/10

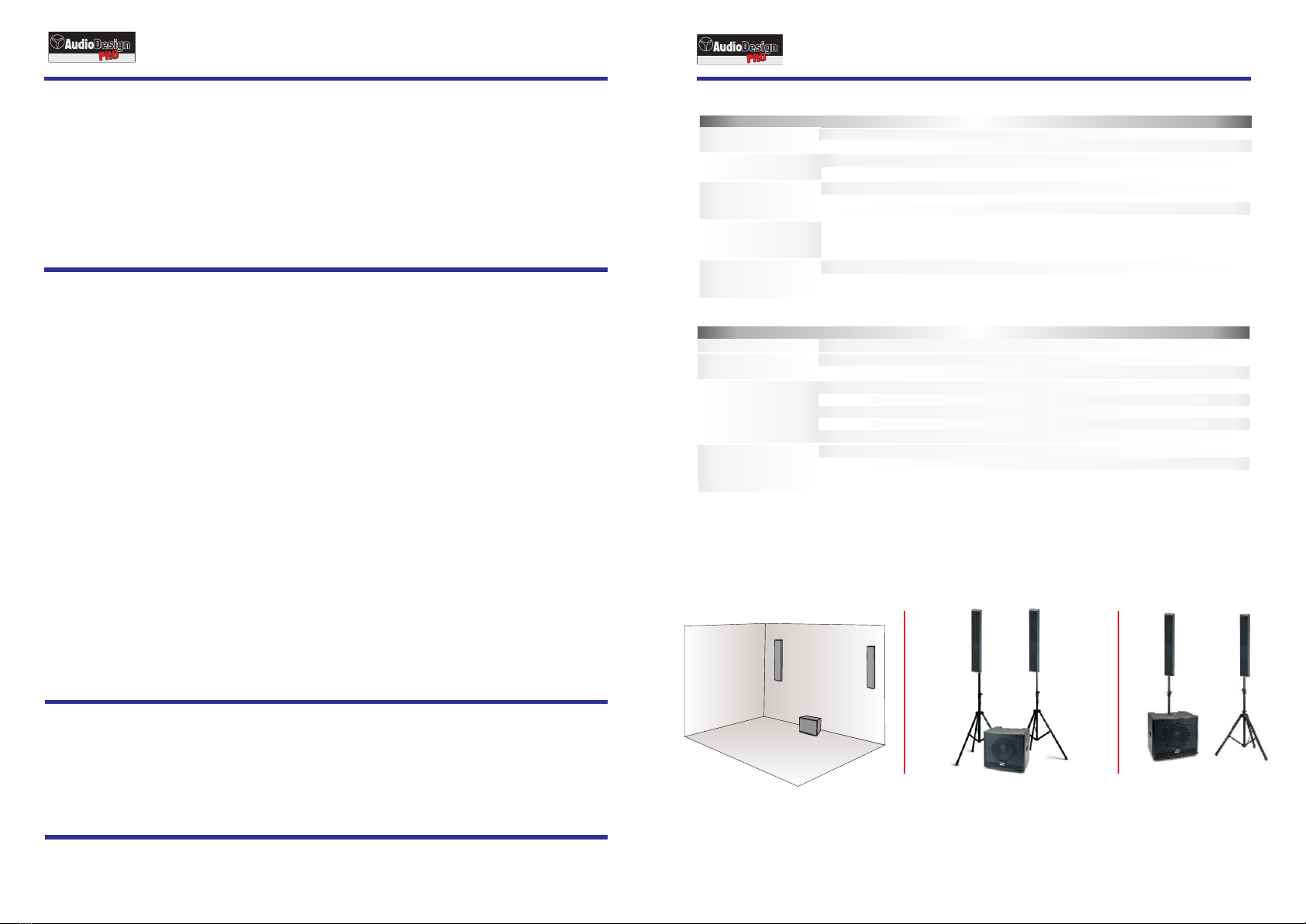

BY MEANS OF OUR ACCESSORIES, DIFFERENT CONFIGURATIONS OF THE SYSTEM ARE POSSIBLE
TECHNICAL SPECIFICATIONS
SUBWOOFER STAGE PRO W10
INPUT
OUTPUT SATELLITES OUTPUT: Speakon NL4 (pin 1+ = +, pin 1- = -)
AMPLIFIERS Subwoofer Power Output: 250 W RMS (500 W Max)
Satellites Power Outputi: 2x125 W RMS (2x250 W Max)
SPEAKER Subwoofer: 1 x 10” (250 mm)
Frequency Response: 30 ÷ 260 Hz (± 3 dB)
SPL Max: 123 dB
WEIGHT & SIZES Weight Subwoofer: 32 kg
Sizes (WxLxH) cm: 43 x 39 x 39
VC 50 mm
@ 4 Ohm Load
LINE IN: Combo Socket XLR 3-F / Jack Stereo
INPUT: Balanced and Unbalanced
Electronic Crossover HP Satellites: Frequency 38 - 250 Hz / 12 dB/Oct.
Electronic Crossover LP Subwoofer: Frequency 46 - 240 Hz / 12 dB/Oct.
SPL Max: 121 dB
SATELLITE STAGE PRO 65
INPUT SATELLITES INPUT:
SPEAKERS High Sensitivity Mid-Bass 6 x 3.5” (87 mm) Neodymium
Tweeter 4 x VC 13 mm
VC 25 mm
MAIN FEATURES TOTAL IMPEDANCE : 6 Ohm
TOTAL POWER : 160 W RMS (250 W Max) with X-over 120 Hz 12 dB/oct
TOTAL SPL Max: 121 dB
Frequency Response: 100 ÷ 20000 Hz ( )± 3 dB
WEIGHT & SIZES Weight Satellite: 3 kg
Size (WxLxH) mm: 105 x 65 x 650
Tweeter :Crossover 6000 Hz 12 dB/oct Passive
Speakon NL4 (pin 1+ = +, pin 1- = -)

- 6 -
AUDIODESIGN PRO: TRIO LA 6/10

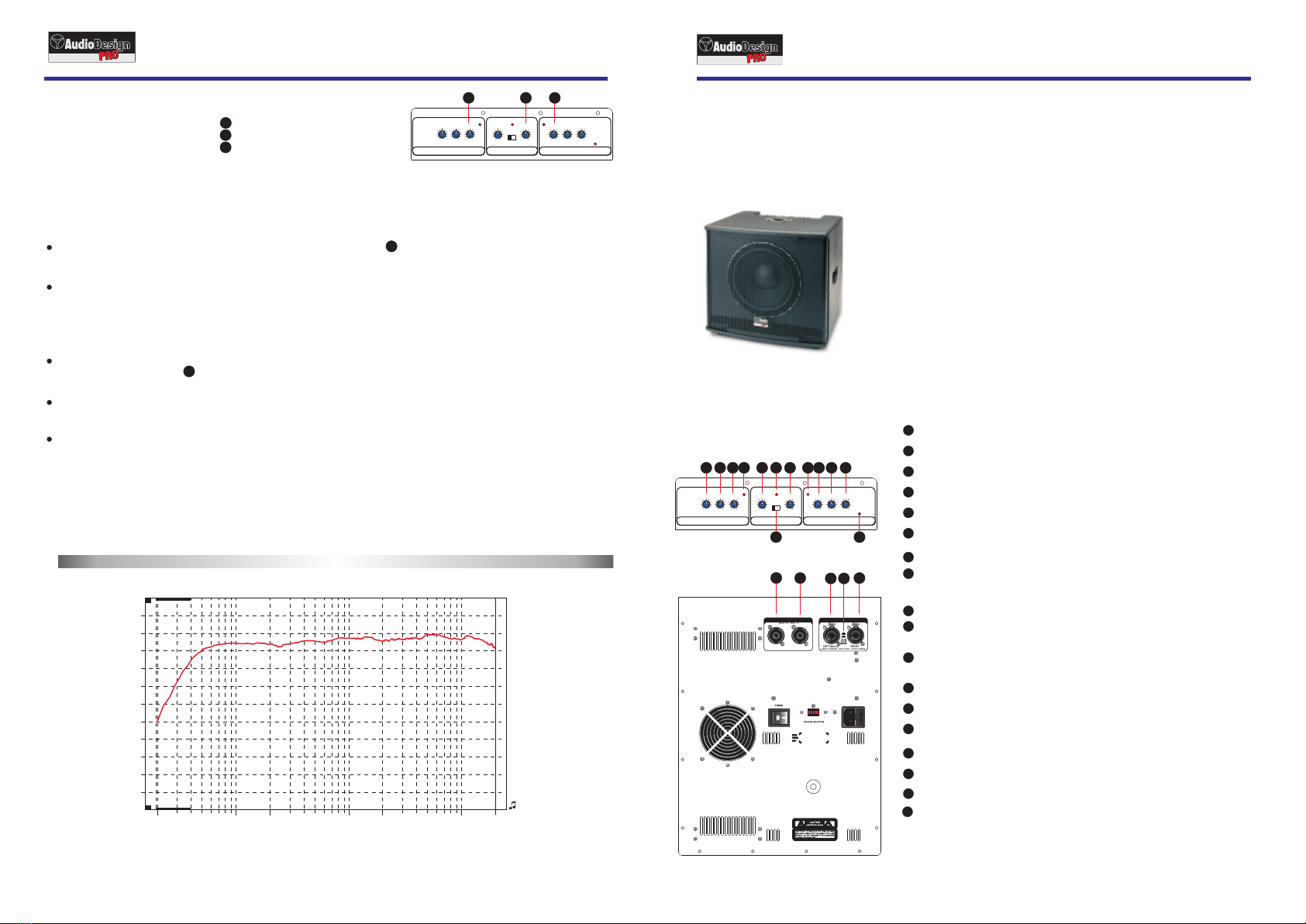

RESPONSE DIAGRAM OF SYSTEM TRIO LA 6/10
Sensitivity Magnitude dB SPL/watt (4 ohm load) -
log Frequency - Hz
MLSSA: Frequency Domain
@ 1W/1m
10000.01000.0100.020.0
BVUP
45.0
50.0
55.0
60.0
65.0
70.0
75.0
80.0
85.0
90.0
95.0
Portable Full Range Sound System TRIO LA 6/10 Portable Full Range Sound System TRIO LA 6/10
Satellites Volume setting
6
6
Switch power on and begin to turn clockwise the satellite GAIN knobs until the correspondent PEAK led begins
This is the optimal level being connected to a mixer sending to MAIN a signal with level peaks within 0 and +3dB.
Now listen to the satellites with this output level; if you detect distorsion or saturation of the signal (i.e of microphone) check
the possibility of reducing the level of the signal concerned at his source, otherwise try to slightly lower the mixer’s main
otput. Should this not be enough, reduce the satellites volume until you have an optimal sound.
Sub Volume setting
3
Volume setting of the system is made by means of the three LEVEL
knobs on top of the subwoofer:
- Left satellite is GAIN LEFT
- Right satellite is GAIN RIGHT
- Subwoofer is GAIN SUBWOOFER
Before switching power on and proceed to system setting, make sure that
all three knobs are completely turned counterclockwise, at level 0, and that the mixer output is set so that the peaks level
Set first the satellites volume alone and then the subwoofer volume alone.
After having memorized the knobs setting LEFT e RIGHT, take them back to 0 and begin now to turn clockwise the
SUBWOOFER GAIN knob until the correspondent PEAK led begins to flash shortly for less than 1 second.
This is the optimal level being connected to a mixer sending to MAIN a signal with level peaks within 0 and +3dB.
Now listen to the Sub with this output level; if you detect distorsion of basses, turn slightly the knob back counterclokwise.
Final system setting
Bring the three knobs at the optimal level you have checked and listen to the complete system, again at the mixer
main level peaks between 0 and +3 dB.
If you detect to much basses compared with satellites output, turn slightly back the SUB LEVEL knob.
If you detect instead not enough basses, turn slightly back the setellites LEVEL LEFT and RIGHT knobs.
LR
LOW PASS
-15 +15 0 10
HI PASS GAIN
PEAK
-15 +15
0 10
GAIN HI PASS
PEAK
LEFT speaker RIGHT speaker
0 10
GAIN
PEAK
50 260
80
120
60
Hz
PHASE
SHIFT
0-180°
Subwoofer
50 260
80
120
60
Hz 50 260
80
120
60
Hz
HIGH
PEAK
HIGH
3
6 6
POWER
stays about within 0 e +3 dB.
6
to flash shortly for less than 1 second.
3
Memorize the knobs setting.

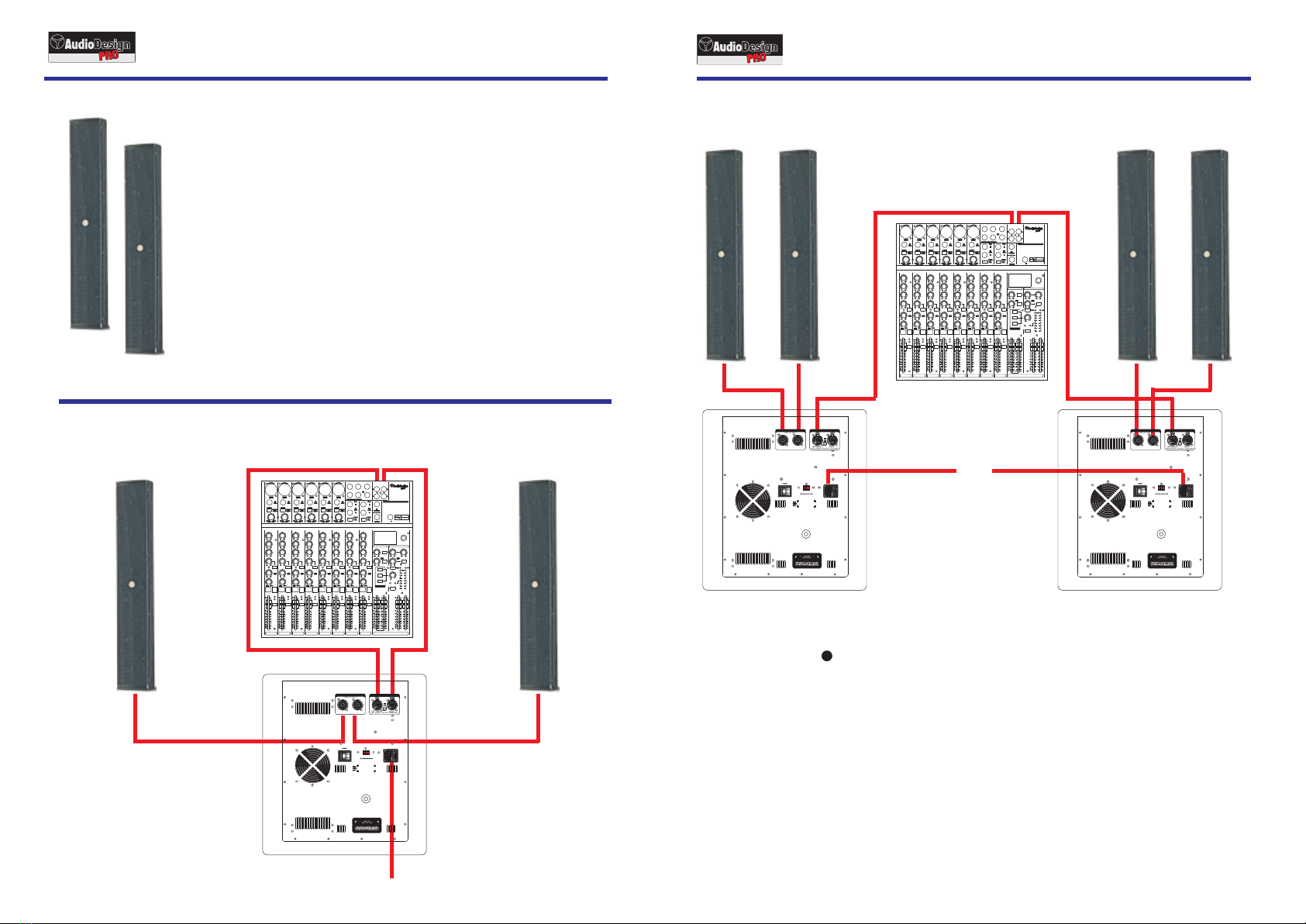

As a general rule , the output level of the mixers should be set so that the sound peaks remain between 0 to +3 dB
about. When the system TRIO MASTER gets in the two Line In (10 and 11) a signal with that amplitude and it is
set as explained above, it grants the maximum performance in terms of maximum undistorted amplification (at clip
limit) and in this conditions you get the maximum possible sound pressure (SPL).
10
- 3 -
11
13 12
LR
LOW PASS
-15 +15 0 10
HI PASS GAIN
PEAK
-15 +15
0 10
GAIN HI PASS
PEAK
LEFT speaker R IGHT speaker
0 10
GAIN
PEAK
50 260
80
120
60
Hz
PHASE
SHIFT
0-180°
Subwoofer
50 260
80
120
60
Hz 50 260
80
120
60
Hz
HIGH
PEAK
HIGH
3
1
2
4
7658 5 678
POWER
9
OUT+:1+/ OUT- :1-
OUTPUT
LEFT RIGHT
SPEAKER OUTPUT: GND=1=SLEEVE HOT=2=TIP COLD=3=RING
LEFT(Mono) RIGHT
ST
MONO
LINE IN
USEONLY WITH 250V FUSE
220
18
SYSTEM COMPONENTS
The TRIO LA 6/10 stereo system is composed by three elements:
Active Subwoofer STAGE PRO W10
1 Active Subwoofer STAGE PRO W10
2 Passive Satellites STAGE LA 6
Connections and Control Panels
The active subwoofer STAGE PRO W10 is equipped with a
The cabinet integrates all necessary electronics for amplification and system
3 amplifiersi in AB Class for a total power of 500 W RMS (1000 W Max)
10" (250 mm) woofer with 50 mm VC.
1 x 250 W RMS (500 W Max) for the Subwoofer itself
2 x 125 W RMS (250 W Max) for the two passive satellites (@ 4 Ohm load)
processing:
The Subwoofer signal is LowPass filtered, adjustable from 46 to 240 Hz 12 dB/oct.
Cabinet of high density MDF, anti-scratch embossed painting
Sizes & weight: 43 x 39 x 39 cm; 32 kg.
Practical transport handles hollowed into the wood
Integral rigid metal grill
Housing hole for ø 35 mm stand tubes
On/Off power switch - In positioe 0 the system is Off
15
16 Voltage Selector
17 Power Net Socket
Left Channel Lin In
Combo Socket XLR 3-F / Jack 6,3 mm Balanced
Right Channel Line In
10
11
Speakon Socket Right Satellite
12
Speakon Socket Left Satellite
13
Amplifier cooling fan; keep it clean for a correct ventilation.
14
Combo Socket XLR 3-F / Jack 6,3 mm Balanced
The Satellites signals are HighPass filtered, adjustable from 38 to 250 Hz 12 dB/oct.
1Subwoofer Clip Indicator
2Subwoofer LOW PASS control adjustable from 46 to 240 Hz
3Subwoofer Volume control
4Phase Switch 0-180°
5Satellites Clip Indicator (Separated Left and Right)
6Satellites Volume control separated on channel LEFT and RIGHT.
it controls only the signal going respectively to left and right satellite.
High tones equalization separated for left and right channel -15 / +15 dB
7
8Satellites HI PASS control separated LEFT and RIGHT from 38 to 250 Hz
9ON LED indicator (Red)
ATTENTION: the HI PASS frequency should not be set under 120 Hz
18 ST/MONO Switch (Stereo / Mono): se si seleziona STEREO,
correspondent Right and Left input signals.
When the system sends to both Right and Left channels onlyMONO is selected,
the LEFT input signal, so one complete system per channel can be used..
When STEREO is selected, the system sends to the Right and Left channels the

- 4 -
