AudioQuest Niagara 5000 User manual

The Niagara 5000 owner’s manual contains considerable information to ensure optimal performance, troubleshoot both common
and rare system interactions, and is a great primer to the technology that makes this unit so unique. However, we appreciate and
respect your valuable time. At the very least, we humbly ask that you follow this quick-start guide.
¡¡If the Niagara 5000 has been exposed to excessive rain, ooding, re, or has sustained considerable physical damage, we
ask that the unit be returned. Do not attempt to energize the unit or connect equipment to it!
¡¡The power source to which the Niagara 5000 is connected should be 120-127VAC single phase nominal voltage, 20
amps (current capacity RMS). However, the Niagara 5000 will operate very well with a 15-amp service outlet. For proper
operation, the Niagara 5000 requires a safety ground (supplied via the power utility AC wall outlet).
¡¡The Niagara 5000 may be placed on any table, cabinet, shelf, or oor. When rack-mounting is required, the four threaded
feet may be removed with a standard Phillips screwdriver.
¡¡Placement or proximity to other components is not critical, and, under standard use, the Niagara 5000 does not produce
any appreciable heat.
¡¡Once the Niagara 5000 is placed, an appropriate 20-amp-rated AC cord must be connected to the rear-panel AC inlet
(IEC-C20) connector. The AC cord must have an IEC-C19 female-end connector and a grounded male 120VAC Edison/
NEMA plug for use in North America or Taiwan. For the best performance and proper Ground-Noise Dissipation, we
recommend AudioQuest AC cords.
¡¡Connecting AC cables to the Niagara 5000’s NRG Edison AC outlets – WARNING! The AudioQuest NRG-Edison AC
outlets feature the strongest grip of any commercially available AC outlet in history. They will require slow and careful
“wiggling.”When either inserting a plug into these receptacles or removing an AC cord’s male plug from the receptacles,
gently move the male AC cord’s plug from side to side while providing an even forward or backwards pressure.
¡¡High Current/Low-Z Power Banks: There are two High Current/Low-Z Power banks (labeled “1” and “2”) with two AC
outlets each.Theoutlets featureourTransient PowerCorrectionTechnology, andaredesignedto enhance theperformance
of power ampliers via our circuit’s low-impedance transient current reservoir. Power ampliers, monoblock ampliers,
integrated ampliers, powered receivers, or powered subwoofers should only be connected to these four outlets.
¡¡Power Correction Switch: This rear-panel-mounted switch MUST be set in the ENGAGE position, regardless of the
equipment (line-level, digital, video components, or power amplication) that is connected to the Niagara 5000. It may
not function properly otherwise. If necessary, see user manual set-up for more detailed information. (Otherwise, please
place this switch in the ENGAGE position.)
¡¡Ultra-Linear Noise-Dissipation System Power Banks: Typically, these are for all line-level, digital, and video products.
There are four banks (labeled “3,”“4,”“5,” and “6”) that utilize this technology within the Niagara 5000. Further, each bank
employs ground-noise isolation that is independent from the others.
¡¡I hear a slight buzzing sound coming from the Niagara 5000. Is it damaged? No, it’s not damaged (or, at least, damage
is very unlikely). If you’re in an extraordinarily quiet room and you hear this buzzing sound only when in relatively close
proximity to the Niagara 5000, or only when you place your ear next to the unit, the buzzing is normal and cannot be
entirely eliminated (though easily detectable levels are rare). See the Niagara 5000 manual for detailed information about
high-level harmonic AC line distortion and its ability to make some of the circuits suer from mechanical ringing, or
magnetostriction.
Quick-Start Guide
Niagara 5000
Low-Z Power
|
Noise-Dissipation System

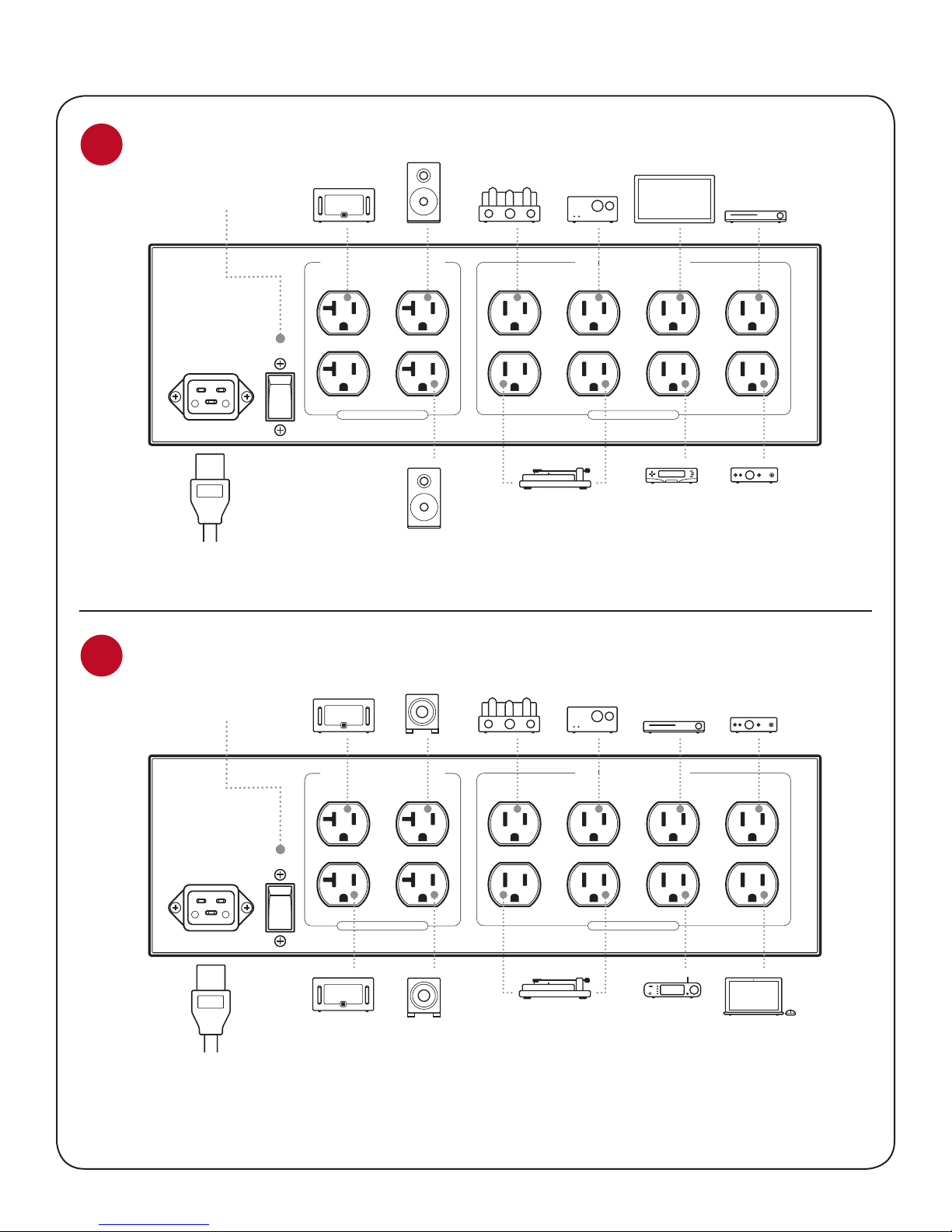

Suggested AC Connections
Note: Banks 3 through 6 are subject to many variables and circuit conditions, so experimentation for
best results is encouraged. Power ampliers must be connected to banks 1 or 2.
©2016 AudioQuest 2621 White Road, Irvine CA 92614 USA
|
[email protected]
|
www.audioquest.com
August 2016
120 VAC 60Hz
20 AMPS MAXIMUM
POWER CORRECTION
123456
STANDBY
ENGAGED
HIGH CURRENT |LOW-Z POWER CORRECTION
20 AMPS RMS MAXIMUM OUTPUT
NIAGARA-5000 DESIGNED AND TESTED IN U.S.A.
20 AMPS RMS MAXIMUM OUTPUT
ULTRA-LINEAR NOISE-DISSIPATION SYSTEM
“Engaged” position
must be default
setting.
20 Amp Rated
AC Cord
Stereo
Amplier
Powered
Loudspeaker
Powered
Loudspeaker
Line-Level
Preamp
Phono
Pre-
amplier
Turntable
Flat Screen
Monitor /
Projector
Cable /
Satellite
Box
Universal /
CD Player
DAC
Phono Amp
Cable / Sat Box DAC
Line-Level Pre Amp
Mono Block
Phono Amp
Cable / Sat Box DAC
Line-Level Pre Amp
Mono Block
Phono Amp
Cable / Sat Box DAC
Line-Level Pre Amp
Mono Block
Phono Amp
Cable / Sat Box DAC
Line-Level Pre Amp
Mono Block
Phono Amp
Cable / Sat Box DAC
Line-Level Pre Amp
Mono Block
Phono Amp
Cable / Sat Box DAC
Line-Level Pre Amp
Mono Block
Phono Amp
Cable / Sat Box DAC
Line-Level Pre Amp
Mono Block
Phono Amp
Cable / Sat Box DAC
Line-Level Pre Amp
Mono Block
Phono Amp
Cable / Sat Box DAC
Line-Level Pre Amp
Mono Block
Phono Amp
Cable / Sat Box DAC
Line-Level Pre Amp
Mono Block
Phono Amp
Cable / Sat Box DAC
Line-Level Pre Amp
Mono Block
“Engaged” position
must be default
setting.
120 VAC 60Hz
20 AMPS MAXIMUM
POWER CORRECTION
123456
STANDBY
ENGAGED
HIGH CURRENT |LOW-Z POWER CORRECTION
20 AMPS RMS MAXIMUM OUTPUT
NIAGARA-5000 DESIGNED AND TESTED IN U.S.A.
20 AMPS RMS MAXIMUM OUTPUT
ULTRA-LINEAR NOISE-DISSIPATION SYSTEM
20 Amp Rated
AC Cord
Monoblock
Monoblock
Subwoofer
Subwoofer
Line-Level
Preamp
Phono
Pre-
amplier
Turntable Streamer
Universal /
CD Player DAC
Computer
Phono Amp
Cable / Sat Box DAC
Line-Level Pre Amp
Mono Block
Phono Amp
Cable / Sat Box DAC
Line-Level Pre Amp
Mono Block
Phono Amp
Cable / Sat Box DAC
Line-Level Pre Amp
Mono Block
Phono Amp
Cable / Sat Box DAC
Line-Level Pre Amp
Mono Block
Phono Amp
Cable / Sat Box DAC
Line-Level Pre Amp
Mono Block
Phono Amp
Cable / Sat Box DAC
Line-Level Pre Amp
Mono Block
Phono Amp
Cable / Sat Box DAC
Line-Level Pre Amp
Mono Block
Phono Amp
Cable / Sat Box DAC
Line-Level Pre Amp
Mono Block
Phono Amp
Cable / Sat Box DAC
Line-Level Pre Amp
Mono Block
Phono Amp
Cable / Sat Box DAC
Line-Level Pre Amp
Mono Block
Phono Amp
Cable / Sat Box DAC
Line-Level Pre Amp
Mono Block
Phono Amp
Cable / Sat Box DAC
Line-Level Pre Amp
Mono Block
