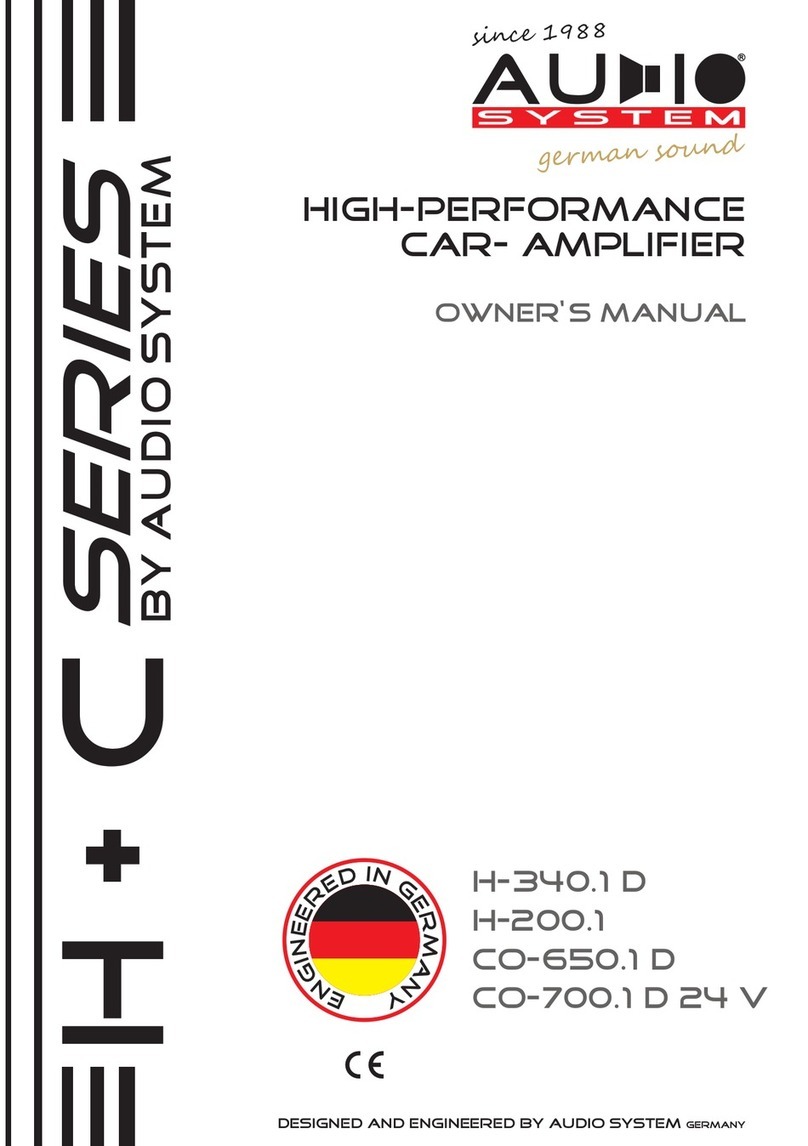

Audiosystem H Series User manual

designed and engineered by audio system Germany
High-Performance
Car- amplifier
owner‘s manual
R
since 1988
german sound
H-340.1 D
co-200.1
Co-650.1 d
Co- 700.1 d 24 v

-2-
features
H-340.1 D / co-200.1
CO-650.1 d / co- 700.1 d 24 V
- High-Level-Input with automatically TURN ON
- Very fast and correct 3-stage Music Detection
- 1-Channel digital Mono-High-Power amplifier / 1-Channel Mono-High-Power amplifier
- High efficiency of max. 86 %
- Stable into 2 Ohm mono
- Variable Low Pass Filter from 40 to 220 Hz and variable Subsonicfilter from 20 to 100 Hz
- Variable Phase Shift from 0° to 180°
- Input Sensitivity from 0,2 to 6 V
- Multi-Way Protection Circuitry: overheating, overcurrent, short circuitry and speaker DC protection
- Operation Voltage from 10 to 16 V
- Wired Remote Controller RTC
- 4mm²-cableset in 5 m length included (only H-340.1 D)
- Adaptercable HLAC und z-pro rca hi(optional)
- 1-Channel digital Mono-High-Power amplifier
- High efficiency of max. 84 %
- Stable into 2 Ohm mono
- Variable Low Pass Filter from 30 to 150 Hz and variable Subsonicfilter from 10 to 50 Hz
- Variable Phase Shift from 0° to 180°
- Input Sensitivity from 0,3 to 8 V
- Multi-Way Protection Circuitry: overheating, overcurrent, short circuitry and speaker DC protection
- Operation Voltage from 10 to 16 V / 20 to 28 V
- Wired Remote Controller RTC
- High-Level-Input with automatically TURN ON
- Adaptercable HLAC und z-pro rca hi(optional)
IMPORTANT: Before installation your power amplifier, we recommend to read the owner´s manual carefully
and to follow the instructions regarding connection and fitting exactly.
IMPORTANT: Your proof of purchase is evidence of warranty claim for repair or replacement. Keep your proof
of purchase, manual and original packaging.
ATTENTION: Pay attention to advices and instructions of the car manufacturer.
Audio SystemGermany accepts no liability for hearing loss, bodily injury or property
damage as a result of use or misuse of our products. We recommend installing the equipment by an
authorized service center or dealer. A professional fitting and connection is the requirement for further
warranty and perfect sound.
ATTENTION: Use of sound components can impair your ability to hear necessary traffic sounds and may
constitute a hazard while driving your automobile.
Congratulation on your purchase of your new h + c-Series amplifier.
PRICE/QUALITY: EXCELLENT
UPPER CLASS
1,4
TIP
TECHNO
PRICE/QUALITY: EXCELLENT
UPPER CLASS
1,6

-3-
1. Battery disconnection:
First, disconnect the power supply of the
vehicle by removing the ground cable of
the battery.
2. Ground connection:
Connect the GND (ground) connection
of the amplifier with the car chassis.
Keep this cable as short as possible (not
longer than 50 cm) and use a suitable
cross section (AWG size 7-5).
Make sure, that the connection with the
vehicle chassis is free of paint, dirt and
dust.
3. +12 V Power connection (+24 V in co- 700.1 d 24 V):
Connect the +12 V (+24 V in co- 700.1 d 24 V) contact of the amplifier with the supply cable via a fuse
directly to the vehicle battery. Keep in mind, that the length of the cable from fuseholder to vehicle battery has to be
maximum 30cm. For the amplifier to function at its best, use a high quality fuse holder and suitable cable preferably
AWG 7-5 cable. This fuse protects the amplifier and the vehicle against the possibility of a short circuit in the power
cable.
4. Remote connection:
Connect the REM-terminal of the amplifier to the remote-output (automatic 12 V
(+24 V in co- 700.1 d 24 V) antenna-output) of the head unit. Use a 0,5 - 1,5 mm power cable.
The H-340.1 D + co-200.1 have a remote out (RO) for additional amplifier.
GND REM +12V / +24V
BATTERY
GROUND
fuse
fuse Remote
connection
Remote
connection
HEAD UNIT
RO
orange
blue
REM
power connection
a) Take care of a professional attachement. Pay attention, that no electrical cable, gas tank, hydraulic
breakes or other components get damaged.
b) There has to be enough cooling and air circulation. Avoid the installation in small closed boxes or close to
heatening parts.
c) Protect the amplifier from fluids, wetness, heat and foreign material as well as from other influences.
d) The amplifier is only to be built into vehicles with a 12 V DC power supply
(+24 V in co- 700.1 d 24 V).
e) Never install the power supply cable with other original wires of the vehicle (gas cables), fan motors,
brand control moduls etc.
f) Install the signal cable (cinch cable) as well as the speaker cable far away of the power cables to avoid
troubles with the music signal.
g) The cables of your amplifier have to be installed, so that there is no danger of binding, squeezing or
breaking.
Please follow the instructions during the installation of your amplifier:
ATTENTION
co-200.1
CO-650.1 d
co- 700.1 d 24v
H-340.1 d

-4-

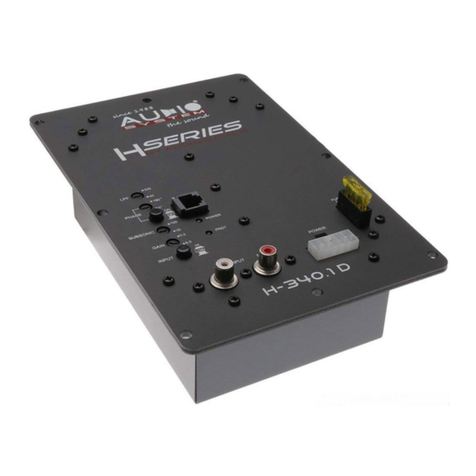

H-340.1 D
co-200.1
RCA connection
HEAD UNIT
Remote Controller
RTC
Remote Controller
RTC
LPF
PHASE
SUBSONIC
GAIN
INPUT
220
40
180
0
ON
OFF
100
20
0.2
6.0
HI
LOW
INPUT
L R
POWER
PROT
REMOTE
Optional a wire remote controller RTC can be installed to adjust the output level.
In this regard, AUDIO SYSTEM germany recommends to adjust your amplifier through a specialized
service center, dealer or a specialist.
The h/c Series amplifier offers RCA-Inputs, which are connected through cinch cables with the preamplifier-
outputs of the head unit. If the head unit (OEM-RADIO) has no RCA-Output, than it is possible to connect the speaker
output direct to RCA/Cinch-Input of the amplifier.
The Input Mode has to be switched on “HI“. Important: the Gain-Controller has to be adjusted to minimum, then
carfully turn up the volume. If signal is presented, the amplifier automatically turns on. Adaptercable HLAC und
z-pro rca hi can be purchased at your specialized dealer.
With the aid of the variable subsonicfilter, lowpassfilter, phase shift-controller, bass boost
(only CO-650.1 and co- 700.1 d 24 V) and the gain-controller you are able to adjust the amplifier on
to your prefered taste of hearing, the circumstances of the vehicle and to the speakers.
d
CO-650.1 d
co- 700.1 d 24 V
R
since 1988
german sound

-5-
speaker connection
CO-650.1 d / co- 700.1 d 24 V
POWER
ON
PROTECT
FUSE
30A x 2
+ 12 V REM GND
Mono
Speaker
Impedance
2 ~ 8 Ohm
SPEAKER
H-340.1 d + co-200.1
Mono
Speaker
Impedance
2 ~ 8 Ohm
Please note that this units are mono block units and have only one channel. Connecting to either the positive or
negative of either of the two connections will end in the same result as both positive connections (or both negative
connections) are tied together inside the unit. For example, if you connect two 4 ohm subwoofers, the amp will
parallel the connections for a 2 ohm load.

-6-
trouble shooting
Occuring an error the protection-LED will light in red. In order to check the problem, first turn down all levels of
the head unit, afterwards turn it off.
This power amplifier is featured with an efficient protection system to prevent any damages like over-heating,
overvoltage, short-circuit and DC at the loudspeaker output.
AMPLIFIER IS NOT
POWERED UP, NO LED IS
LIGHTENING
- analyze voltage on the amplifier.
- +12V powercable professional connected?
- ground connection professional connected?
- remote cable professional connected?
- fuses inserted and alright?
- cinch cable alrith and professional connected
- loudspeaker professional connected?
- head unit alright?
- amplifier too hot?
- short-circuit at the loudspeaker output?
- short-circuit caused by loudspeaker cable with vehicle chassi (ground)?
- input voltage too high (e.g.faulty generator)?
WHILE AMPLIFIER IS
SOUNDLESS
PROTECTION LED
ILLUMINATES GREEN
PROTECTION LED
ILLUMINATES RED
WHEN AMPLIFIER IS
POWERED UP
ERROR IN AMPLIFIER FUSE
- loudspeaker impedance alright?
- ground professional connected?
! CAUTION !
Make sure when changing fuses to use the same value.
LOW-DISTORTED SOUND
SOUND TOO LOW OR
- crossover frequencies has been properly set?
- output level control of the head unit alright?
frequency bandpassfilter...)
(Check head unit, amplilfier, DSP, soundprozessor, equalizer,
- loudspeaker error?
- input level control “GAIN” is set to match the head unit?
- loudspeaker cable checked?
- ground connection professional connected?
- short-circuit caused by loudspeaker cable with vehicle chassi (ground)?
- cinchcable (RCA) and/or loudspeaker cabel installed too
close to the power connection cable?
- cinch ground (RCA) of the head unit alright?
HIGH HISS-ENGINE NOISE
IN SPEAKERS
Please contact your specialized dealer if the amplifier is still not working after it has been
checked with the error list!
For warranty adjustement / repairs the original invoice has to be attached!
Opening the power amplifier is leading to a lost of warranty in either case!
ATTENTION
ILLUMINATES RED WHEN
AMPLIFIER IS POWERED UP)
OVERHEATING
(PROTECTION LED
! CAUTION !
- impedance alright?
After cooling down, the amplifier turns on automatically.
- loudspeaker error?
- adequate airflow of the amplifier?

-7-
specifications
H-340.1 d / co-200.1
Power Supply Voltage
Rated Power Output at 14,4 V / 3% THD
-RMS power @ 8 ohm mono
-RMS power @ 4 ohm mono
-RMS power @ 2 ohm mono
Signal to Noise Ratio
Low Pass Crossover
Subsonic filter
Frequency Response
THD@RMS Watts
Fuse Rating
Input Sensitivity
Dimensions
10 - 16 V / 20 - 28 V
1x 250 W / 1x 300 W
1x 400 W / 1x 450 W
1x 650 W / 1x 700 W
>96 dB
30 ~ 150 Hz
10 ~ 50 Hz
10 Hz ~ 150 Hz (+/-1 dB)
< 0,051%
2x 30 A
300 mV ~ 8 V (+/- 5%)
230(L) x 47(H) x 171(W) mm
10 - 16 V
1x 140 W
1x 235 W / 1x 135 W
1x 340 W / 1x 200 W
>96 dB
40 ~ 220 Hz
20 ~ 100 Hz
20 Hz ~ 220 Hz (+/-1 dB)
< 0,048%
1x 20 A
200 mV ~ 6 V (+/- 5%)
210(L) x 50(H) x 135(W) mm / 190(W) x 50(H) x 110(L) mm
CO-650.1 d / co- 700.1 d 24 V
Power Supply Voltage
Rated Power Output at 14,4 V / 3% THD
-RMS power @ 8 ohm mono
-RMS power @ 4 ohm mono
-RMS power @ 2 ohm mono
Signal to Noise Ratio
Low Pass Crossover
Subsonic filter
Frequency Response
THD@RMS Watts
Fuse Rating
Input Sensitivity
Dimensions
Audio System Germany
Falltorstraße 6 - 76707 Hambrücken
