OVERVIEW
OPTOPlay is the unique, yet simplistic USB device for producing high-fidelity analog and digital
audio output. Simply plug OPTOPlay into your PC’s USB port and instantly listen to 24-bit 96kHz
professional quality audio.
OPTOPlay delivers the stunning sounds of Dolby Headphone Technology, a unique signal-
processing system that enables your stereo headphones to portray the sound of a five-speaker,
surround-sound playback system.
* With Dolby Headphone Technology, sounds that were designed to come from all around you
are actually heard that way and not out of each side of the headphone.
* A 5.1 surround sound digital output can be achieved by using OPTOPlay’s Optical connector to
pass thru all popular surround sound formats like Dolby digital 5.1.
(* These functions will work only with the included WinDVD 4.0 software)
OPTOPlay’s compact design and high-fidelity headphone amp delivers the ultimate portable
audio solution with professional 24-bit 96kHz surround sound.
Connecting to the OPTOPlay
AUDIOTRAK OPTOPlay User’s Guide - 2-
AUDIOTRAK OPTOPlay User’s Guide - 3-
INSTALLATION
One of many benefits of a USB device is the ease of installation. Simply plug OPTOPlay into a
USB port, and the device is installed.
MINIMUM SYSTEM REQUIREMENTS
Intel Celeron 366 MHz CPU or equivalent AMD CPU
Windows 98SE, ME, 2000, XP operating system
One available USB port
64MB of RAM
HARDWARE INSTALLATION
Before you begin the installation, make sure you have read the section in your computer’s
manual for installing USB devices. Your computer’s manual should describe the precautions
you should take during installation. Typically, there is no need to shut down the computer to
install a USB device, however, we will begin the installation with the computer turned off.
1. Turn off the computer.
2. Find the USB port on your computer. A standard USB port is shown below. It is typically
located next to the PS/2 and serial ports on the back of a desktop computer system, or
on the side of a notebook computer.
3. Plug OPTOPlay’s USB cable (Series A plug type) into the USB port of your computer.
4. Turn on the computer. OPTOPlay gets power from the computer via the USB connection,
eliminating the need for an external power supply.
SOFTWARE INSTALLATION
After connecting the OPTOPlay, your computer will automatically detect the AUDIOTRAK
OPTOPlay as USB Composite Device and will be proceed with the installation. The steps below
are for a Windows 98 installation. Installations in other operating systems will proceed in a
similar manner.
AUDIOTRAK OPTOPlay User’s Guide - 4-
1. Windows will automatically detect that a new hardware has been connected and the
“Add New Hardware Wizard” will appear. Click ‘Next’.
2. Choose “Search for the best drivers…”
AUDIOTRAK OPTOPlay User’s Guide - 5-
3. Choose “specify a location” and specify the location of the Windows 98 CD or files. If
you are connected to the Internet, you may also choose “Microsoft Windows Update”.
4. The window will display the ‘Windows driver file search for the device’ and ‘Location
of driver’. Click ‘Next’.
AUDIOTRAK OPTOPlay User’s Guide - 6-
5. When “USB composite device” appears, click “Finish”.
After the USB Composite Device is installed, the installation will continue with the
installation of the USB Audio Device.
6. The USB Audio Device Window will appear. Just click “Next”. And choose “Search for
the best driver…” and click “Next”.
AUDIOTRAK OPTOPlay User’s Guide - 7-
7. Click “Next”.
8. When “USB Audio device” appears, click “Finish”.
AUDIOTRAK OPTOPlay User’s Guide - 8-

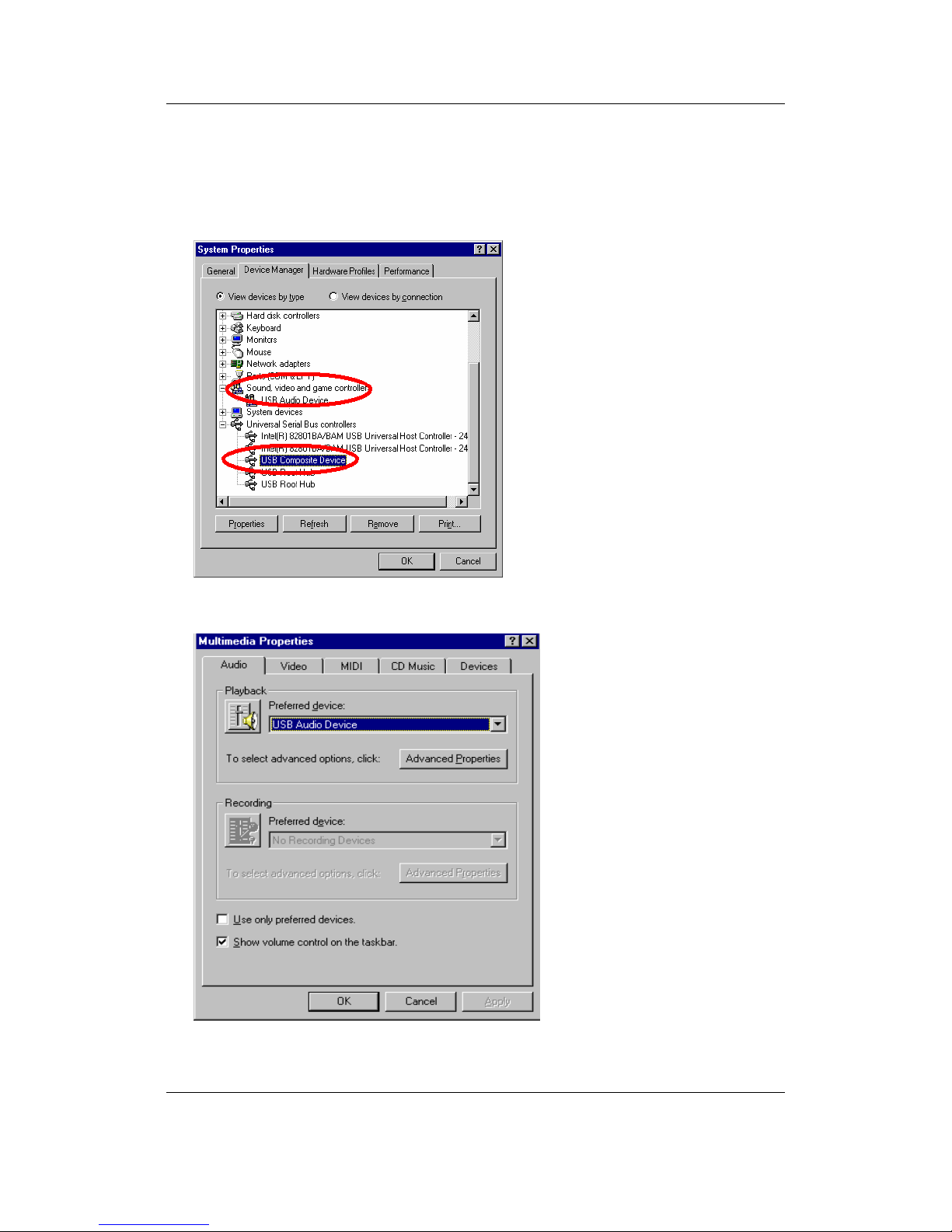

9. To confirm the installation of the OPTOPlay, go to ‘Start->Settings-> Control Panel ->
System -> Device Manager’. Confirm that the “USB Audio Device” is listed under ‘Sound,
video and game controllers’ and that the “USB Composite Device” is listed under
‘Universal Serial Bus controllers’.
10. Go to ‘Multimedia Properties’ and choose ‘USB Audio Device’ under Playback.
AUDIOTRAK OPTOPlay User’s Guide - 9-
CONFIGURING WINDVD4
WinDVD 4 must be installed to enjoy all the benefits of OPTOPlay. Locate the WinDVD folder on
the AUDIOTRAK Installation CD, and click on the setup.exe file to complete the installation.
Once WinDVD 4 is installed, open the application and complete the following steps to configure
WinDVD 4 for operation with OPTOPlay.
1. Right mouse click on the main window of WinDVD, and choose ‘Setup.’
2. Select the ‘Audio’ Tab.

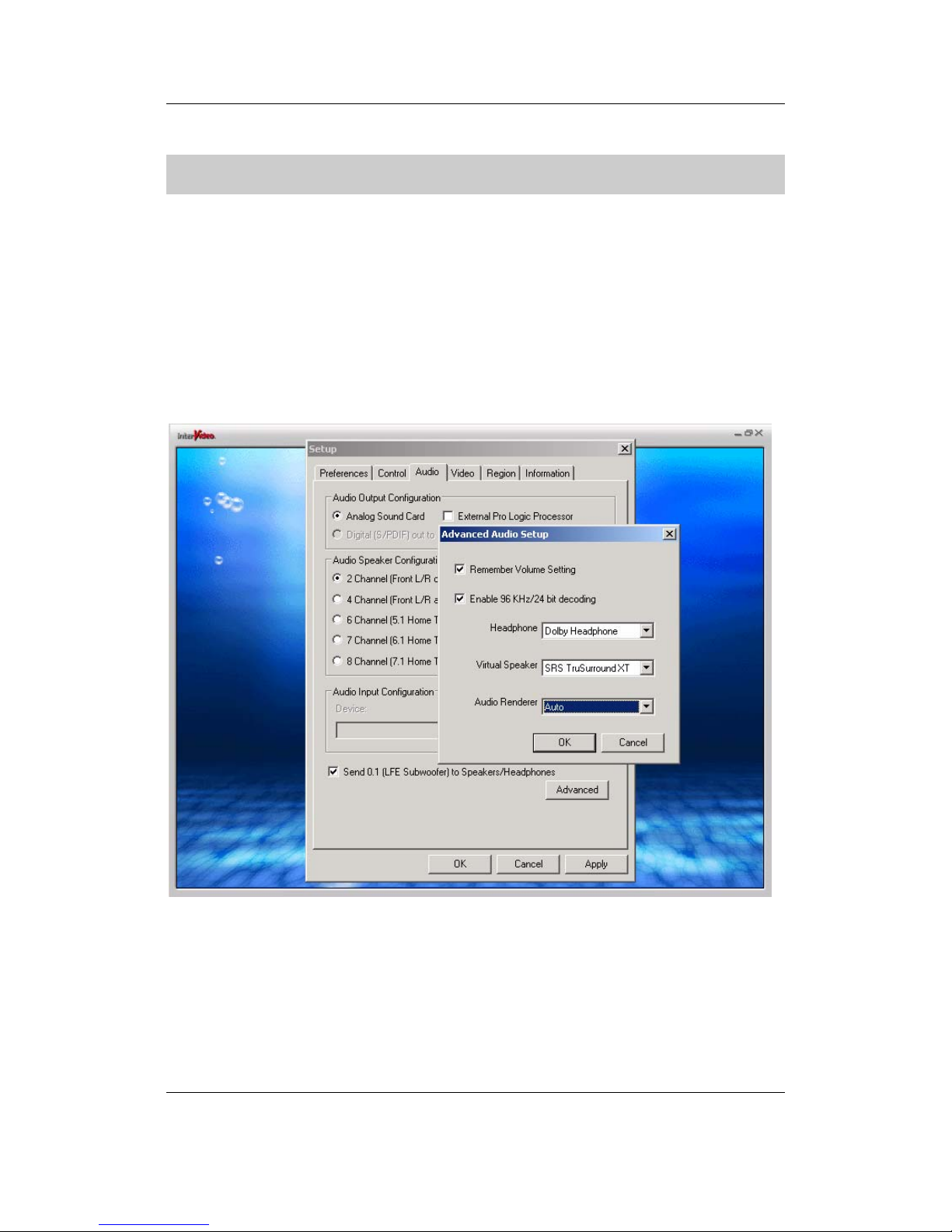

3. Select ‘2 channel’ and click ‘Advanced’ and select the settings as shown below to enjoy
Virtual Surround sound using Dolby Headphone Technology.
AUDIOTRAK OPTOPlay User’s Guide - 10-
A 5.1 surround sound digital output also can be achieved by using OPTOPlay’s Optical connector
to pass thru Dolby digital 5.1 with including WinDVD4.

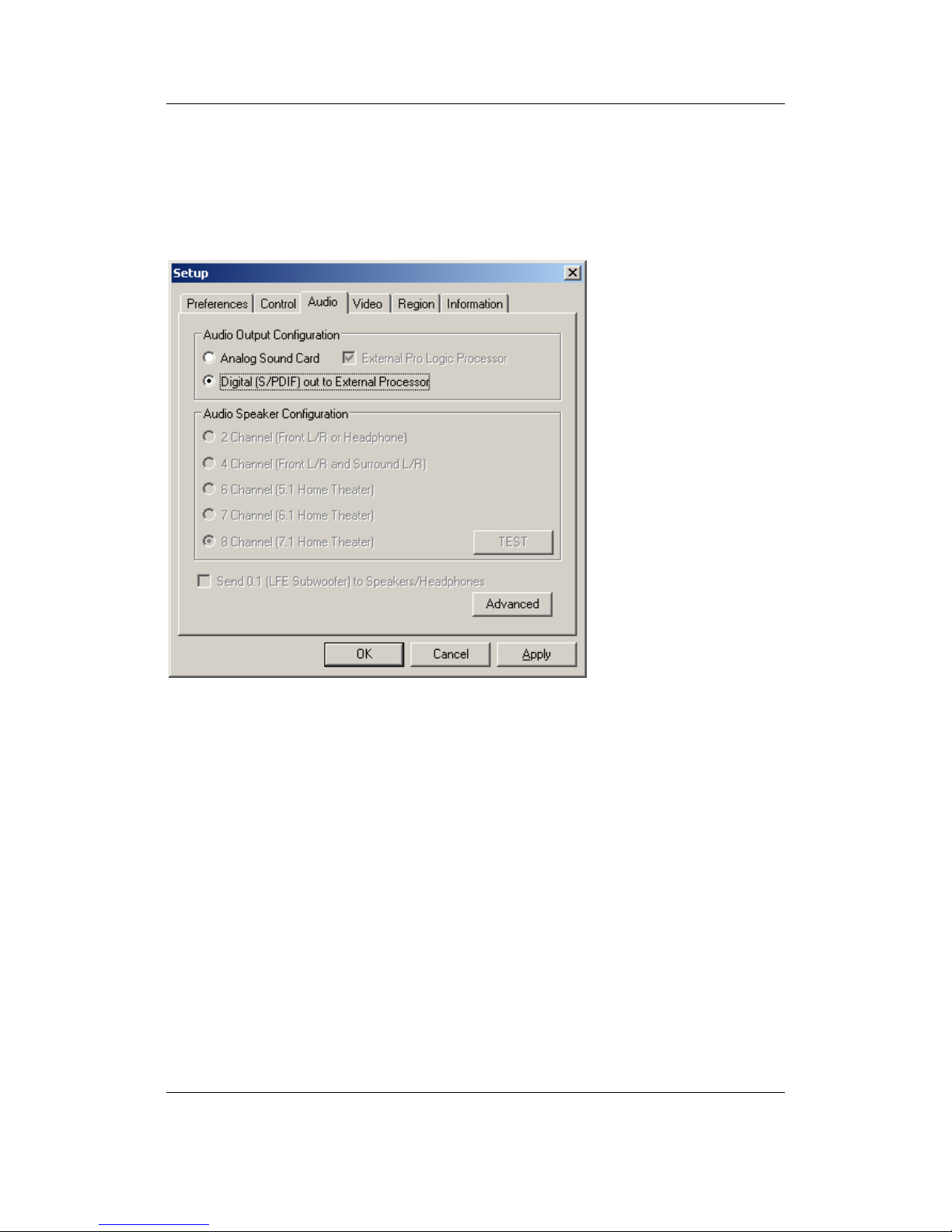

Select Digital ( S/PDIF) on Audio tab of WinDVD for Dolby Digital Pass Thru Connection to A
External Decoder
AUDIOTRAK OPTOPlay User’s Guide - 11-
SPECIFICATIONS
Interface: USB Spec Ver1.1, USB Audio Class Spec Ver1.0
Output: Analog & Digital Audio 2-channel output
Output Format: Analog Line or Headphone Output
SPDIF Optical Output (TOS-Link)
Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 64 kHz, 88.2 kHz, 96 kHz
* Digital output on Mac OS X is 48kHz
Bits Resolution: 16 Bits or 24 Bits
Analog output Level: 1.0 Vrms Maximum
Headphone Amp Power: 50mW Maximum
Power: USB Bus powered - 100mA
