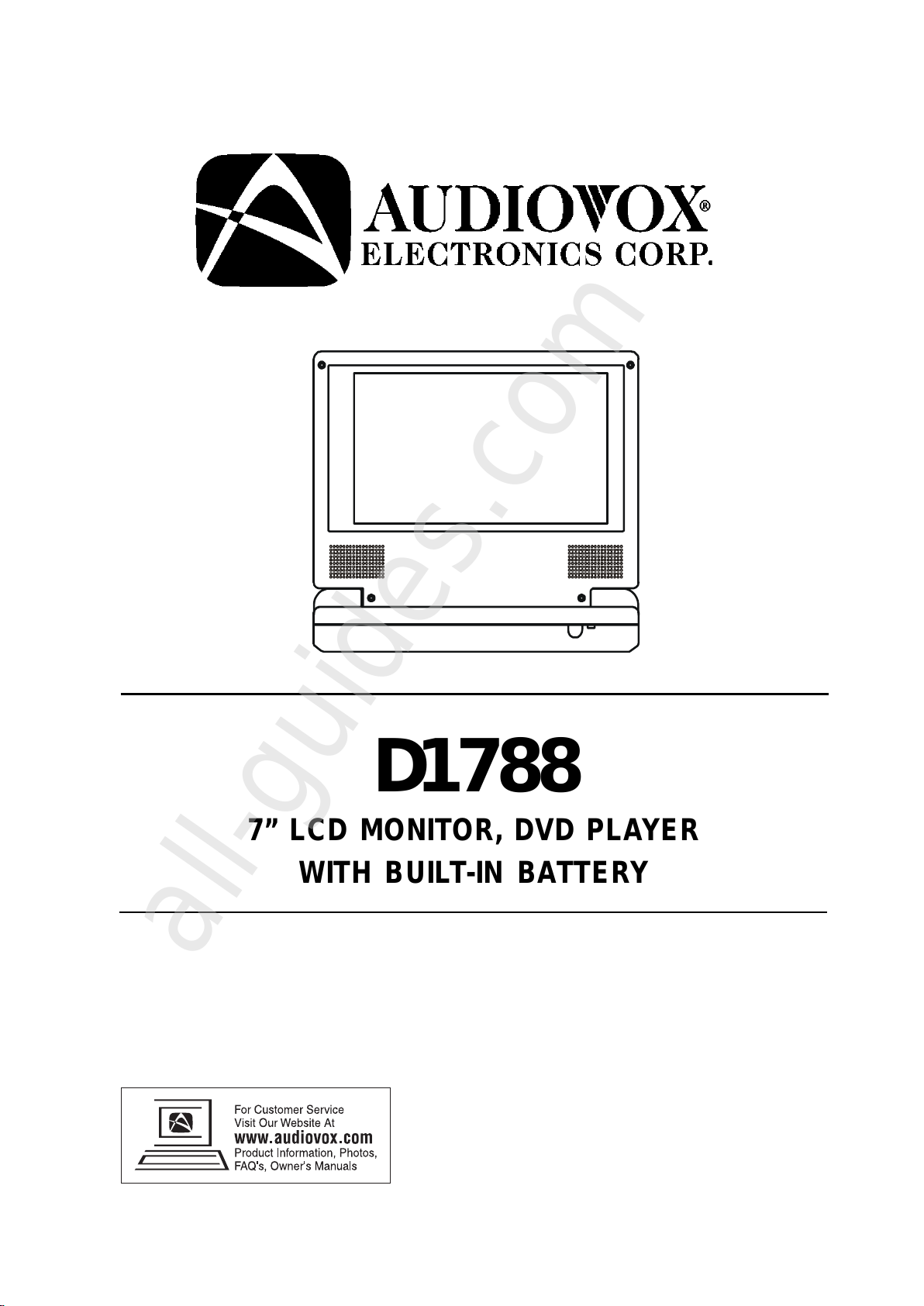

Audiovox Electronics D1788 User manual

D1788
7” LCD MONITOR, DVD PLAYER
WITH BUILT-IN BATTERY
All manuals and user guides at all-guides.com
all-guides.com

2

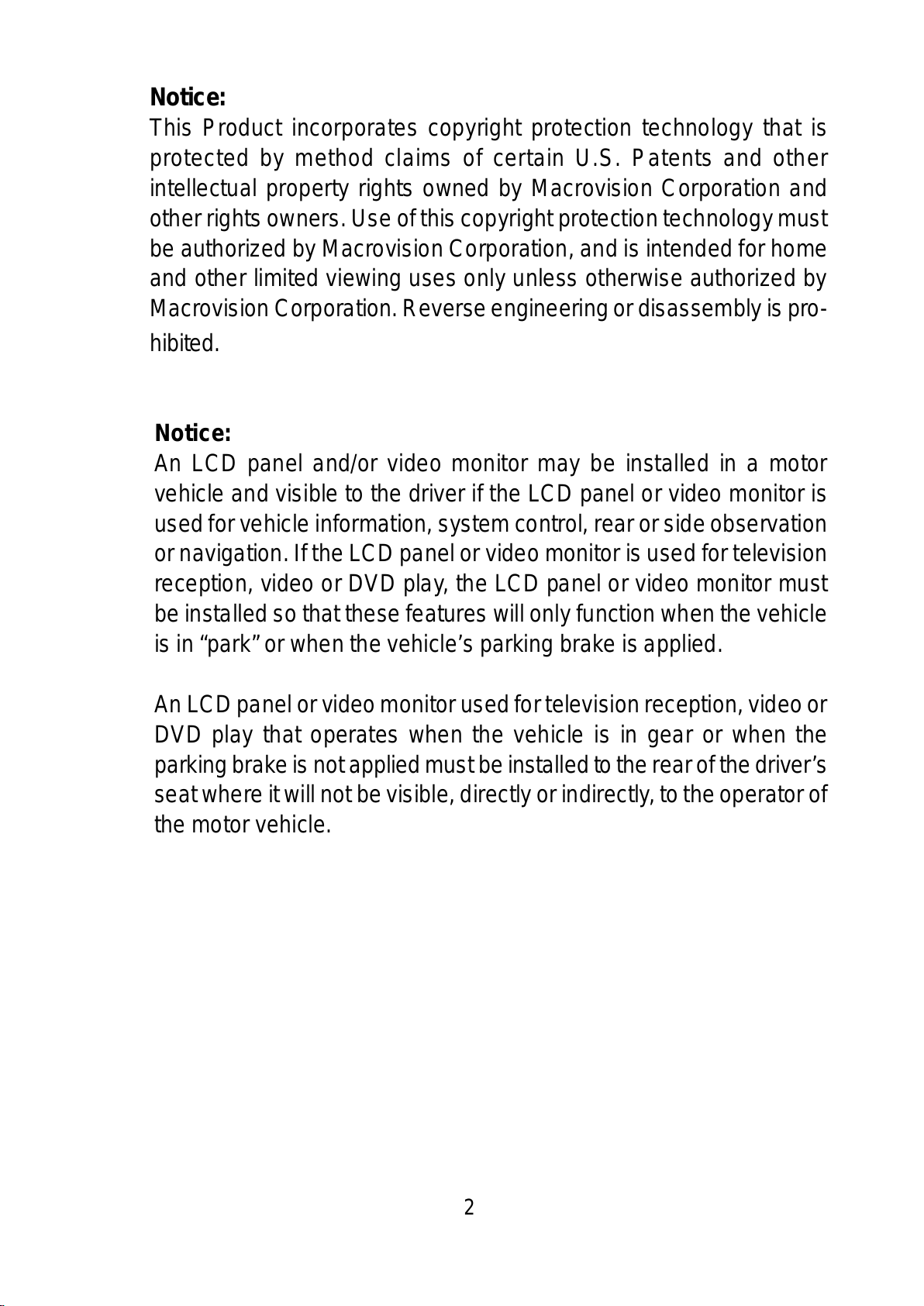

Notice:
This Product incorporates copyright protection technology that is
protected by method claims of certain U.S. Patents and other
intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology must
be authorized by Macrovision Corporation, and is intended for home
and other limited viewing uses only unless otherwise authorized by
MacrovisionCorporation.Reverseengineeringordisassemblyispro-
hibited.
Notice:
An LCD panel and/or video monitor may be installed in a motor
vehicle and visible to the driver if the LCD panel or video monitor is
used for vehicle information, system control, rear or side observation
or navigation. If the LCD panel or video monitor is used for television
reception, video or DVD play, the LCD panel or video monitor must
be installed so that these features will only function when the vehicle
is in “park” or when the vehicle’s parking brake is applied.
AnLCDpanel or video monitor usedfortelevision reception, video or
DVD play that operates when the vehicle is in gear or when the
parkingbrakeisnotappliedmustbe installedtotherearofthe driver’s
seatwhereit will not be visible,directlyor indirectly,tothe operator of
the motor vehicle.
All manuals and user guides at all-guides.com

3

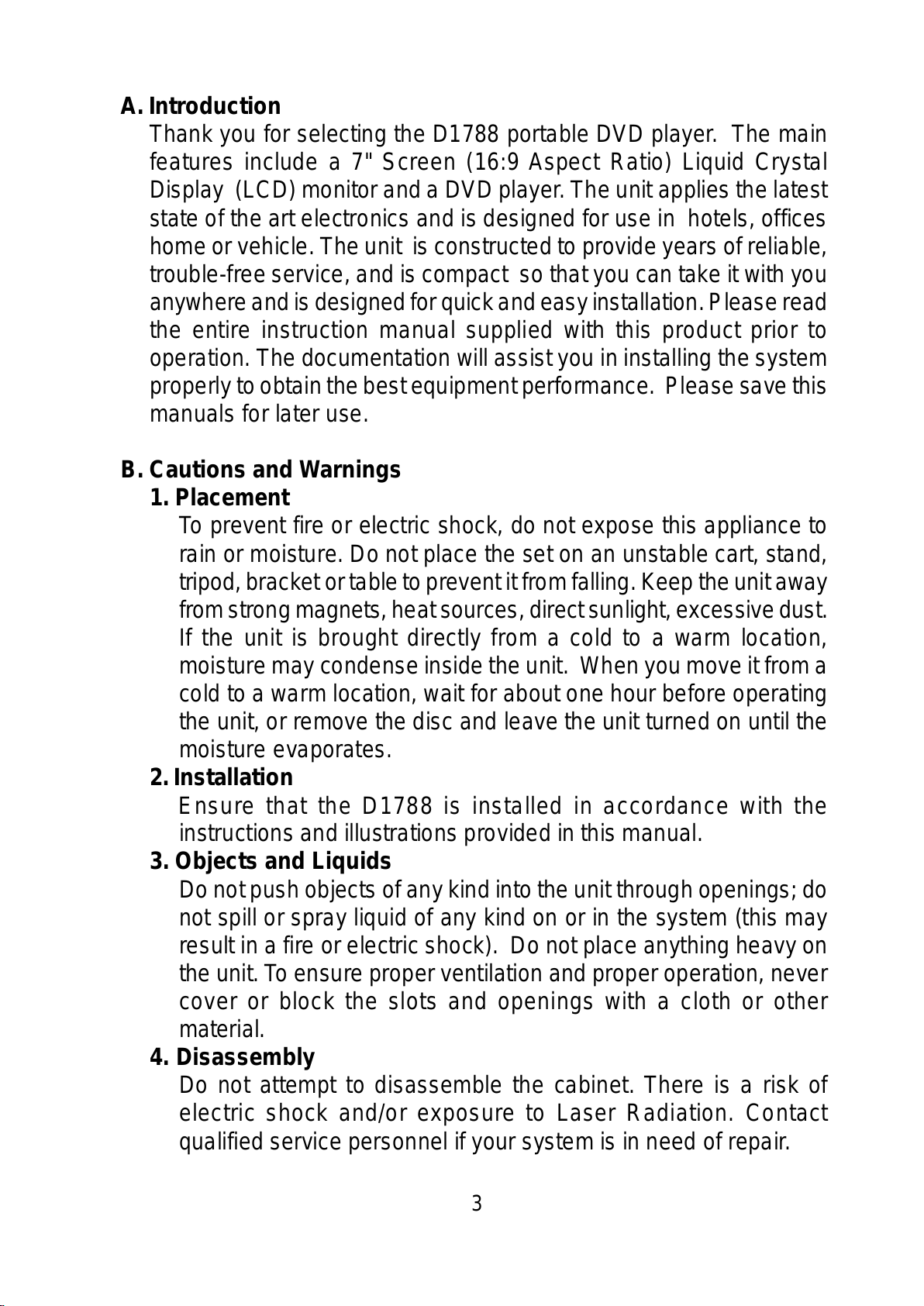

A. Introduction
Thank you for selecting the D1788 portable DVD player. The main
features include a 7" Screen (16:9 Aspect Ratio) Liquid Crystal
Display (LCD) monitor and a DVD player. The unit applies the latest
state of the art electronics and is designed for use in hotels, offices
home or vehicle. The unit is constructed to provide years of reliable,
trouble-free service, and is compact so that you can take it with you
anywhereand is designed for quick and easy installation. Please read
the entire instruction manual supplied with this product prior to
operation. The documentation will assist you in installing the system
properlyto obtain the best equipment performance. Please save this
manuals for later use.
B. Cautions and Warnings
1. Placement
To prevent fire or electric shock, do not expose this appliance to
rain or moisture. Do not place the set on an unstable cart, stand,
tripod,bracketortabletopreventitfromfalling.Keeptheunitaway
fromstrong magnets, heat sources,directsunlight,excessivedust.
If the unit is brought directly from a cold to a warm location,
moisture may condense inside the unit. When you move it from a
cold to a warm location, wait for about one hour before operating
the unit, or remove the disc and leave the unit turned on until the
moisture evaporates.
2. Installation
Ensure that the D1788 is installed in accordance with the
instructions and illustrations provided in this manual.
3. Objects and Liquids
Do not push objects of any kind into the unit through openings; do
not spill or spray liquid of any kind on or in the system (this may
result in a fire or electric shock). Do not place anything heavy on
the unit. To ensure proper ventilation and proper operation, never
cover or block the slots and openings with a cloth or other
material.
4. Disassembly
Do not attempt to disassemble the cabinet. There is a risk of
electric shock and/or exposure to Laser Radiation. Contact
qualified service personnel if your system is in need of repair.
All manuals and user guides at all-guides.com

4
5. Cleaning Unit
Whencleaning,make sure the system is unplugged from the power
source. Do not use liquid cleaners or aerosol cleaners. Use a
cloth lightly dampened with water for cleaning the exterior of the
system only.
6. Disc
Do not use irregularly shaped discs such as heart or star-shaped
discs as they may cause the unit to malfunction. Do not stick pa-
per, tape or glue on the disc. Do not expose the disc to direct sun-
light or heat sources such as hot air ducts. Do not touch the sur-
face of disc. Handle the disc by its edge. Clean the disc by wiping
the disc from the center out with a cleaning cloth. Remove the disc
from the unit and store it in its case after playing. Some playback
operations of discs may be intentionally fixed by software produc-
ers. Since this unit plays discs according to the disc contents the
software producers designed, some playback features may not be
available.Also refer to the instructions supplied with the discs.
C. Contents
1. 1 x 7” LCD Monitor and DVD Player
2. 1 x AC to DCAdapter
3. 1 x Remote Control w/Battery (CR2025)
4. 1 x InstructionManual
5. 1 x Audio/VideoCable
6. 1 x DC Power Adapter
D. Powering and installation
1. Powering the system indoors (Refer to Figure 1)
Plug one end of the AC to DC adapter into the DC 9-12V jack on
the right side of the main unit, then plug the other end into the 100-
240VAC power receptacle.
All manuals and user guides at all-guides.com

5

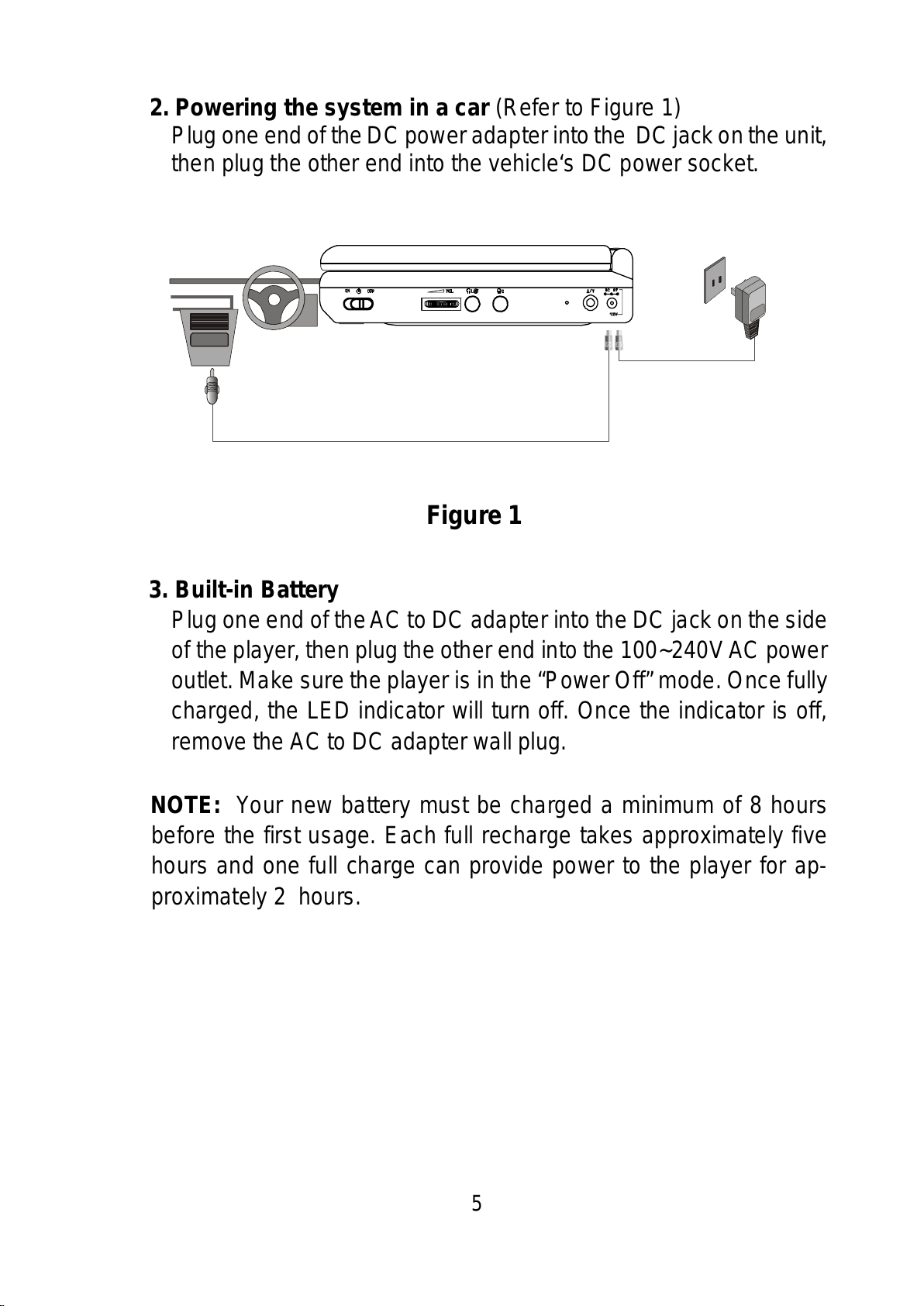

2. Powering the system in a car (Refer to Figure 1)
Plug one end of the DC power adapter into the DC jack on the unit,
then plug the other end into the vehicle‘s DC power socket.
Figure 1
3. Built-in Battery
Plug one end of theAC to DC adapter into the DC jack on the side
of the player, then plug the other end into the 100~240VAC power
outlet. Make sure the player is in the “Power Off” mode. Once fully
charged, the LED indicator will turn off. Once the indicator is off,
remove the AC to DC adapter wall plug.
NOTE: Your new battery must be charged a minimum of 8 hours
before the first usage. Each full recharge takes approximately five
hours and one full charge can provide power to the player for ap-
proximately 2 hours.
All manuals and user guides at all-guides.com

6

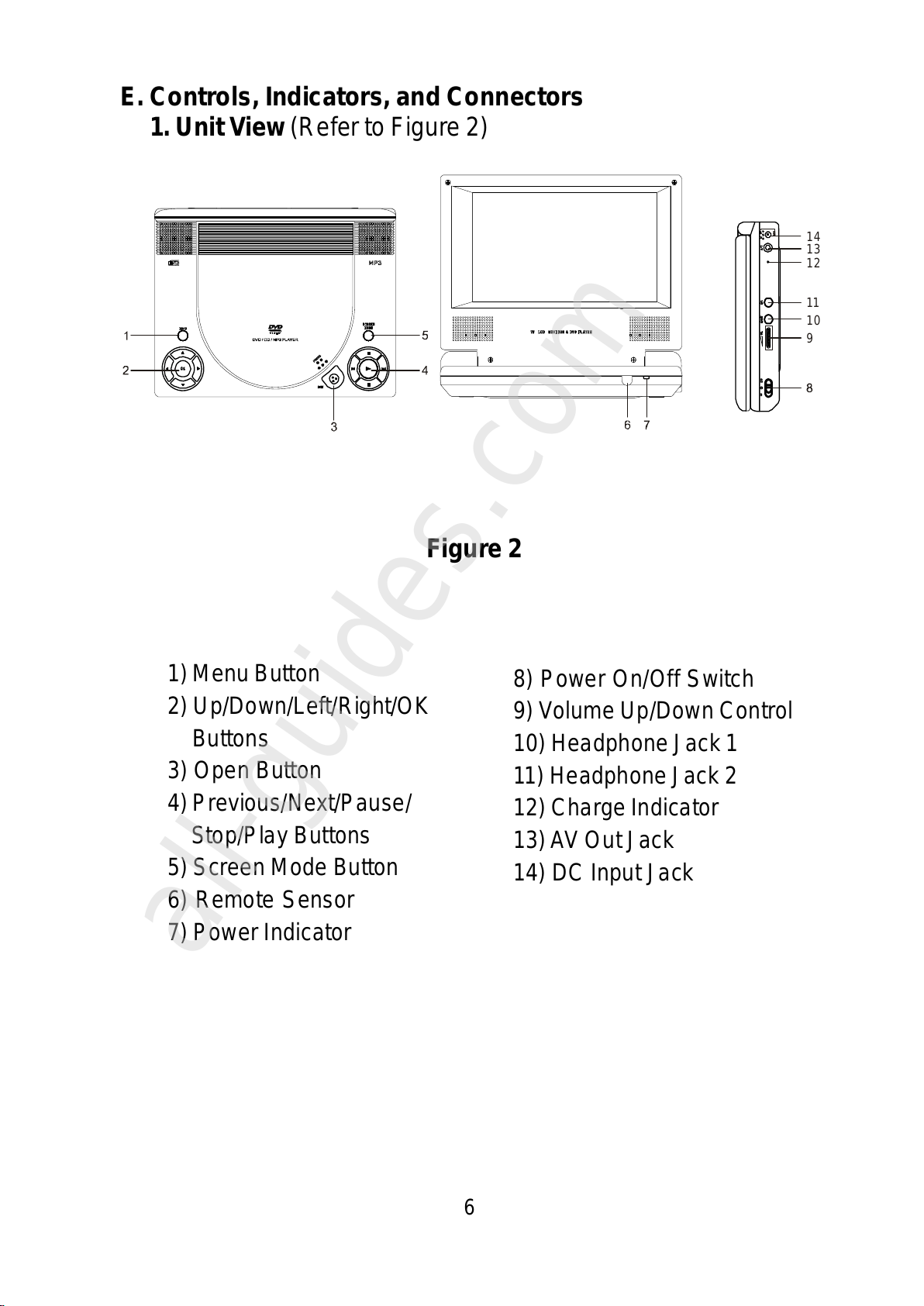

E. Controls, Indicators, and Connectors
1. Unit View (Refer to Figure 2)
Figure 2
1) Menu Button
2) Up/Down/Left/Right/OK
Buttons
3) Open Button
4) Previous/Next/Pause/
Stop/Play Buttons
5) Screen Mode Button
6) Remote Sensor
7) Power Indicator
8) Power On/Off Switch
9) Volume Up/Down Control
10) Headphone Jack 1
11) Headphone Jack 2
12) Charge Indicator
13)AV Out Jack
14) DC Input Jack
9
10
11
12
13
14
All manuals and user guides at all-guides.com
all-guides.com

7
2. Remote Control View (Refer to Figure 3)
1) Setup Button
2) Up Button
3) Previous Button
4) Enter Button
5) Reverse Scan /Left Button
6) Down Button
7) Numeric Keypad
8) Display Button
9) Zoom Button
10) Subtitle Button
11) Next Button
12) A-B Repeat Button
13) Forward Scan /Right Button
14) 1/All Repeat Button
15) Stop Button
16) Menu Button
17) Audio Button
18) Angle Button
19) Play/Pause Button Figure 3
F. Loading and Playing a Disc
a. After connecting power to the unit, apply power to the DVD player
with the power switch. The power indicator will light.
b. Open the disc tray by pressing OPEN button and place a disc into
the tray with the label side facing up.
c. Close the tray by pressing the “PRESS” button. The unit will load
the disc and start playing.
d. Rotate the VOLUME control to adjust the DVD player’s
volume.
e. To stop playing a disc, press STOP.
f. To turn off the DVD player, slide the POWER ON/OFF switch to
OFF.
All manuals and user guides at all-guides.com

8
G. SETUP
Press ‘SETUP’ to display the Main screen of the SETUP Menu on the
screen. Press ‘SETUP’ again to exit the SETUP Menu and the unit
will resume it’s last playback mode.
1) Press SETUP, the ‘GENERAL SETUP PAGE’ will display on
screen.
a).Select ‘TV DISPLAY’ using the DOWN button, and then press
‘ENTER’ to enter the submenu. Select the TV display mode on
the screen using UP/DOWN, and press ‘ENTER’ to confirm the
setting. Press LEFT to return.
* NORMAL/PS: When the player is connected to a normal TV,
and a wide picture is shown on the full screen.
* NORMAL/LB: When the player is connected to a normal TV,
and a wide picture is shown on the screen with a black strip
at both the top and bottom of the screen.
* WIDE: When the player is connected to a wide screen TV, a
wide picture is shown on the full screen.
General Video Password Preferen Exit
Angle Mark Off
General Video Password Preferen Exit
Angle Mark Off
Normal PS
Normal LB
/
/
Wide
Set TV Display Mode
TV Display Screen Display
Main Setup Menu Screen
All manuals and user guides at all-guides.com

9
b).Select ‘ANGLE MARK’ using the DOWN button, and then press
the ‘ENTER’button to enter the submenu. Choose Angle Mark
on or off using the UP/DOWN buttons and then press ‘ENTER’
to confirm the setting. Press the LEFT button to return.
* ON: The screen will show the angle mark icon. (*If an angle
optionisavailable).
* OFF: The screen will not display the Angle Mark icon.
NOTE: Not all discs contain above features.
General Video Password Preferen Exit
Angle Mark Off
On
Off
Set Angle Mark
Angle Mark Screen Display
All manuals and user guides at all-guides.com

10

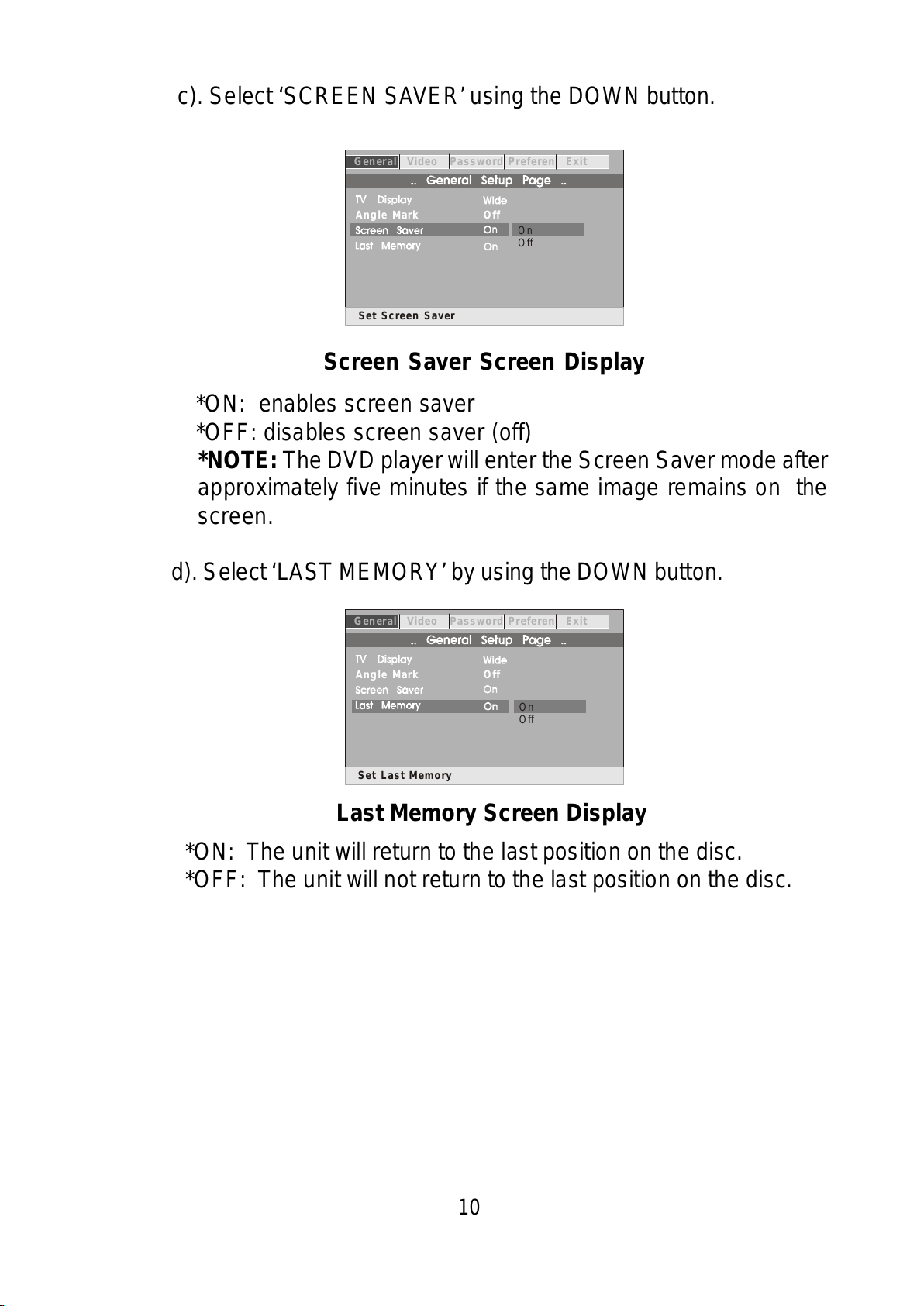

c). Select ‘SCREEN SAVER’ using the DOWN button.
*ON: enables screen saver
*OFF: disables screen saver (off)
*NOTE: The DVD player will enter the Screen Saver mode after
approximately five minutes if the same image remains on the
screen.
d). Select ‘LAST MEMORY’ by using the DOWN button.
*ON: The unit will return to the last position on the disc.
*OFF: The unit will not return to the last position on the disc.
General Video Password Preferen Exit
Angle Mark Off
On
Off
Set Screen Saver
General Video Password Preferen Exit
Angle Mark Off
On
Off
Set Last Memory
Screen Saver Screen Display
Last Memory Screen Display
All manuals and user guides at all-guides.com

11
a).Select ‘BRIGHTNESS’ by using the UP or DOWN buttons ,then
press ‘ENTER’. Adjust the Brightness by pressing the LEFT or
RIGHT buttons. To exit Brightness Setting, press
‘ENTER’again to return to the VIDEO SETUP PAGE.
b).Select ‘CONTRAST’ by using the UP or DOWN buttons, then
press ‘ENTER’. Adjust the Contrast by pressing the LEFT or
RIGHTbuttons.
To exit Contrast setting, press ‘ENTER’ again to return to the
VIDEO SETUP PAGE.
General Video Password Preferen Exit
Brightness
Contrast 00
00
.. .. Video Setup Page
Go To Video Setup Page
General Video Password Preferen Exit
Brightness
Contrast 00
00
Brightness
.. .. Video Setup Page
General Video Password Preferen Exit
Brightness
Contrast 00
00
Contrast
.. .. Video Setup Page
Brightness Screen Display
2) Select ‘VIDEO’ by using the LEFT/RIGHT buttons, press ‘ENTER’
to enter the VIDEO SETUP PAGE.
Contrast Screen Display
Video Quality Setup Screen Display
All manuals and user guides at all-guides.com
all-guides.com

12

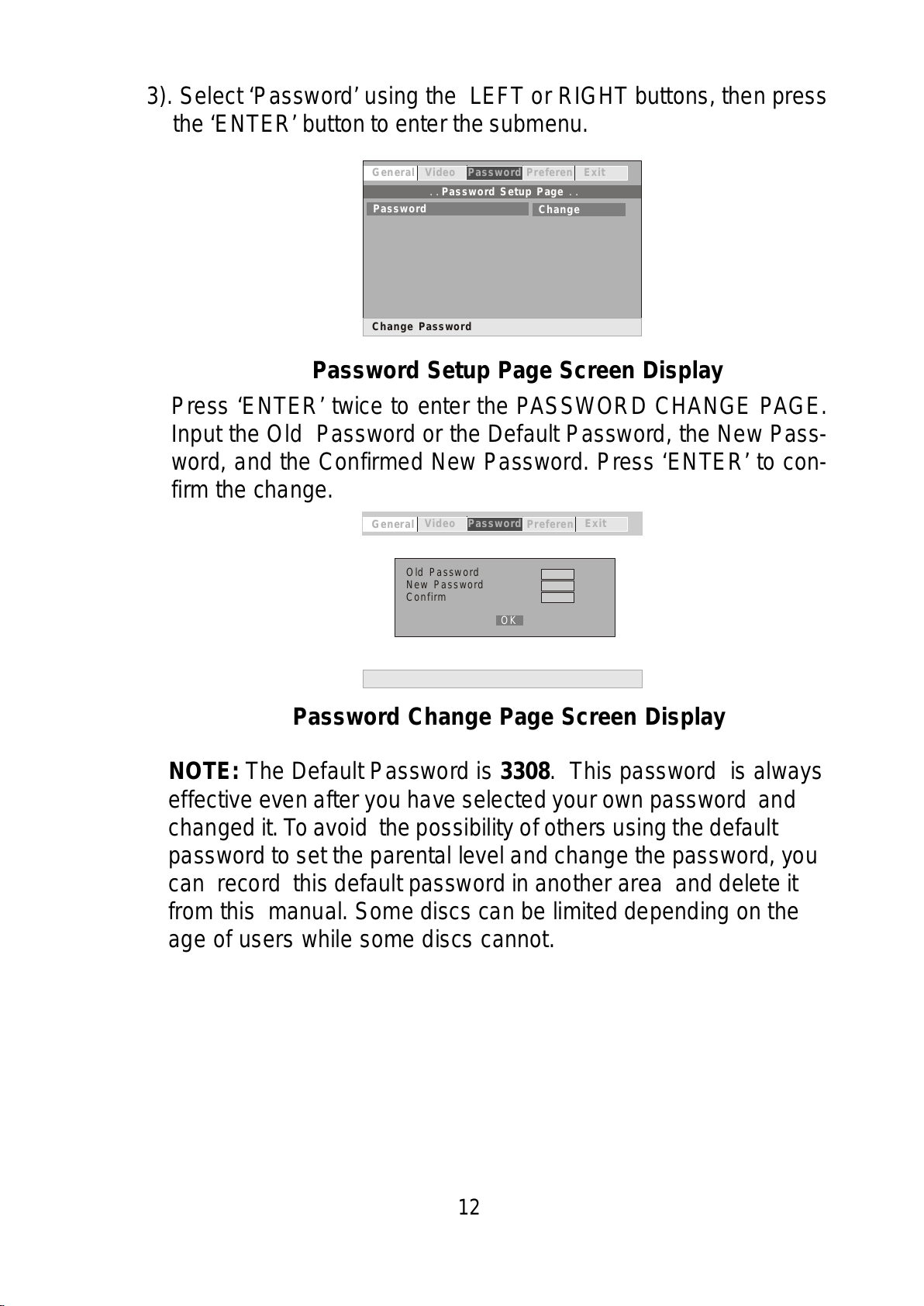

3). Select ‘Password’ using the LEFT or RIGHT buttons, then press
the ‘ENTER’ button to enter the submenu.
Press ‘ENTER’ twice to enter the PASSWORD CHANGE PAGE.
Input the Old Password or the Default Password, the New Pass-
word, and the Confirmed New Password. Press ‘ENTER’ to con-
firm the change.
NOTE: The Default Password is 3308. This password is always
effective even after you have selected your own password and
changed it. To avoid the possibility of others using the default
password to set the parental level and change the password, you
can record this default password in another area and delete it
from this manual. Some discs can be limited depending on the
age of users while some discs cannot.
General Video Preferen ExitPassword
Change Password
Password Change
.. .. Password Setup Page
General Video Preferen Exit
Password
Password
Old Password
New Password
Confirm
OK
Password Setup Page Screen Display
Password Change Page Screen Display
All manuals and user guides at all-guides.com

13

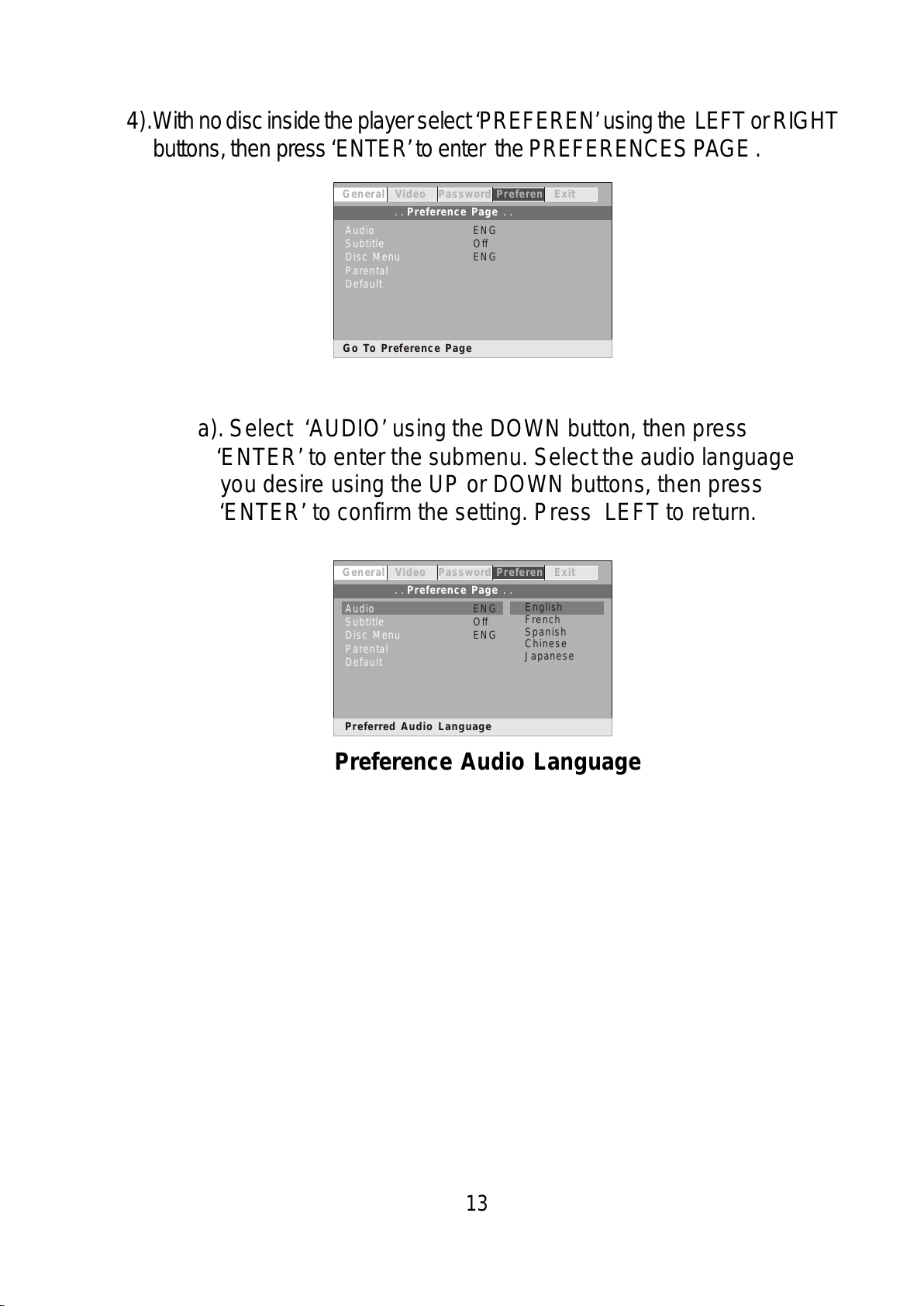

4).Withnodiscinsidetheplayerselect‘PREFEREN’ usingthe LEFTorRIGHT
buttons, then press ‘ENTER’to enter the PREFERENCES PAGE .
a). Select ‘AUDIO’ using the DOWN button, then press
‘ENTER’ to enter the submenu. Select the audio language
you desire using the UP or DOWN buttons, then press
‘ENTER’ to confirm the setting. Press LEFT to return.
General Video Password Preferen Exit
A
udio
Subtitle
Disc Menu
Parental
Default
ENG
Off
ENG
Go To Preference Page
.. ..
Preference Page
General Video Password Preferen Exit
.. .. Preference Page
Audio
Subtitle
Disc Menu
Parental
Default
ENG
Off
ENG
Preferred Audio Language
English
French
Spanish
Chinese
Japanese
Preference Audio Language
All manuals and user guides at all-guides.com

14
Preference Disc Menu Language Screen
NOTE:Languageandsubtitleselectionis only available fordiscs
that are recorded in the above listed languages. If the selected,
language is not available, the player will play and display on the
screen the original recorded language contained in the disc.
c). Select ‘DISC MENU’ using the DOWN button, then press ‘EN-
TER’toenterthe submenu. Select the Disc MenuLanguageyou
desire using the UP or DOWN buttons, then press ‘ENTER’ to
confirm the setting. Press LEFT to return.

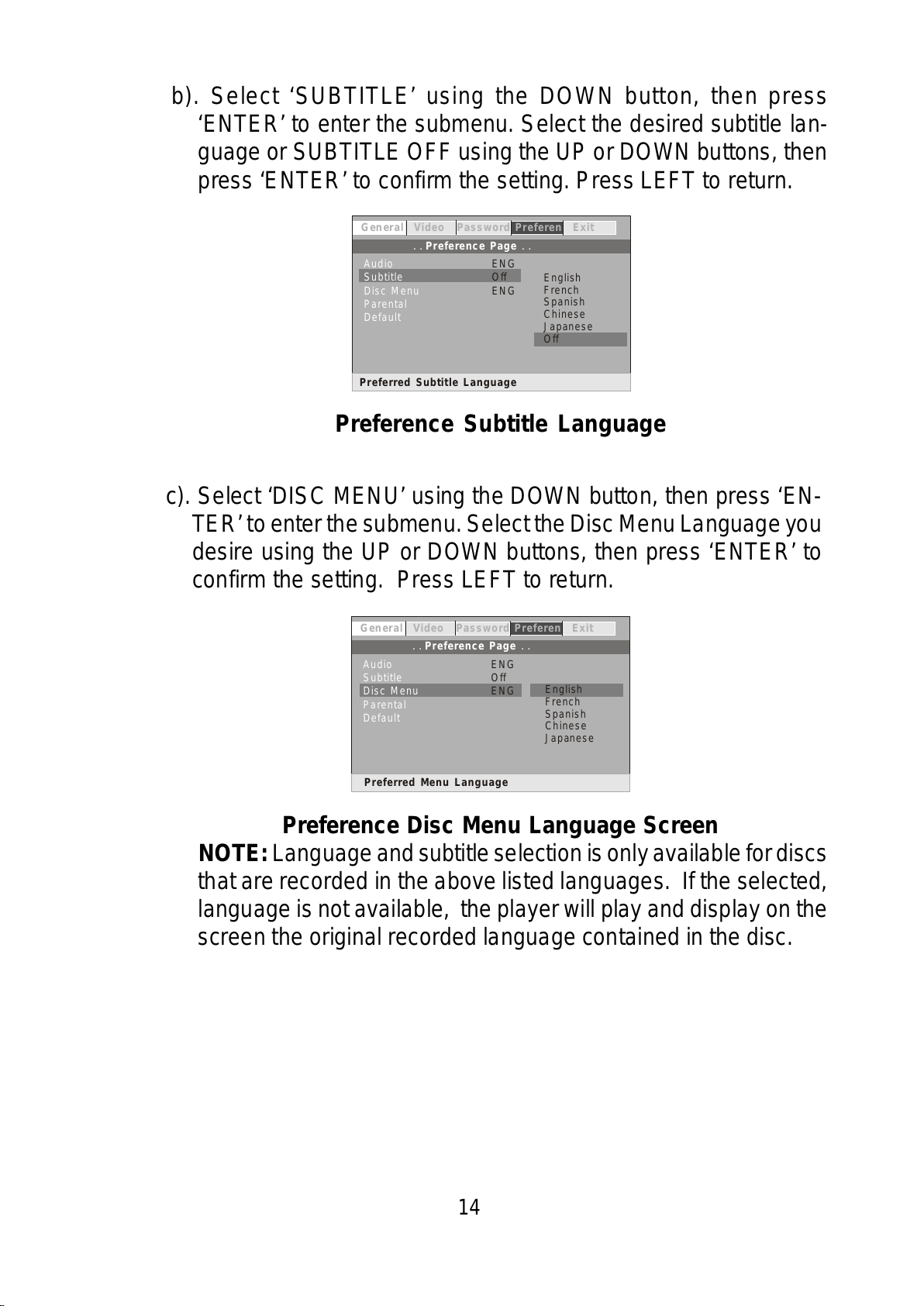

b). Select ‘SUBTITLE’ using the DOWN button, then press
‘ENTER’ to enter the submenu. Select the desired subtitle lan-
guage or SUBTITLE OFF using the UP or DOWN buttons, then
press ‘ENTER’ to confirm the setting. Press LEFT to return.
General Video Password Preferen Exit
.. .. Preference Page
Audio
Subtitle
Disc Menu
Parental
Default
ENG
Off
ENG English
French
Spanish
Chinese
Japanese
Off
Preferred Subtitle Language
General Video Password Preferen Exit
.. .. Preference Page
English
French
Spanish
Chinese
Japanese
Audio
Subtitle
Disc Menu
Parental
Default
ENG
Off
ENG
Preferred Menu Language
Preference Subtitle Language
All manuals and user guides at all-guides.com

15
e). Select ‘DEFAULT’using the DOWN button, then press ‘ENTER’
to enter the submenu. Press ‘ENTER’ to make the setting return
to the factory-set mode.
NOTE: The parental setting is not affected by the default reset
function.
Select the parental level you desire using the UP or DOWN but-
tonsfordiscswithlock-outfunctionormultipleratinglevels.These
are listed from the lowest level (1 KID SAFE) to the highest level
(ADULT). Enter a 4 digit password, then press ‘ENTER’ to con-
firm the parental level setting.
NOTE: The level of 8 ADULT is the factory default.
d). Select ‘PARENTAL’ using the DOWN button, then press
‘ENTER’ to enter the submenu.
General Video Password Preferen Exit
.. .. Preference Page
Set Parental Control
Audio
Subtitle
Disc Menu
Parental
Default
ENG
Off
ENG
1KIDSAFE
2G
3PG
4PG13
5PGR
6R
7NC17
8ADULT
-
-
-
General Video Password Preferen Exit
.. .. Preference Page
Audio
Subtitle
Disc Menu
Parental
Default
ENG
Off
ENG
Reset
Load Factory Setting
Parental Preference Screen Display
Loading Factory Setting
All manuals and user guides at all-guides.com

16

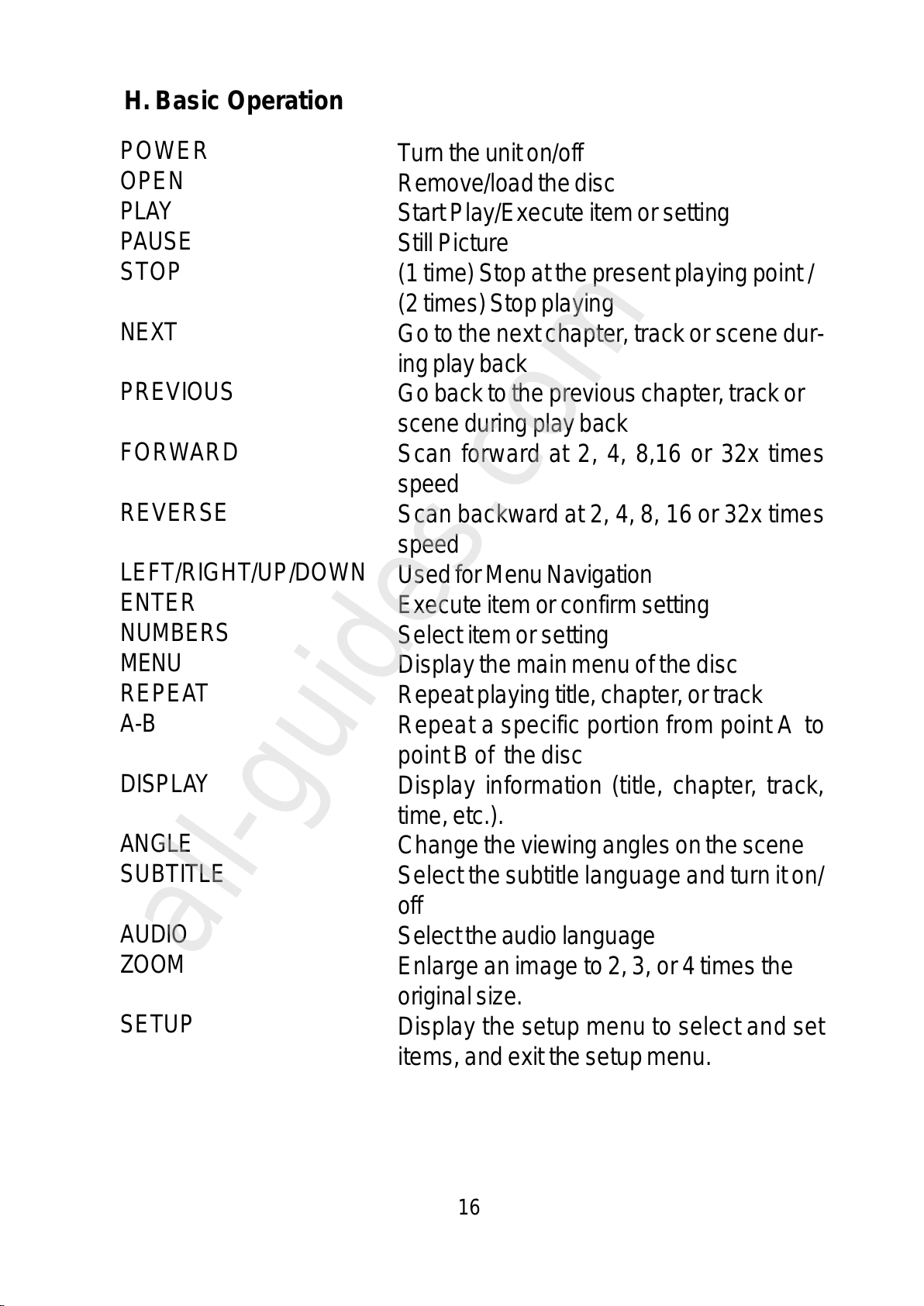

H. Basic Operation
POWER
OPEN
PLAY
PAUSE
STOP
NEXT
PREVIOUS
FORWARD
REVERSE
LEFT/RIGHT/UP/DOWN
ENTER
NUMBERS
MENU
REPEAT
A-B
DISPLAY
ANGLE
SUBTITLE
AUDIO
ZOOM
SETUP
Turntheuniton/off
Remove/loadthedisc
StartPlay/Executeitemorsetting
StillPicture
(1time)Stopatthepresent playingpoint/
(2times)Stopplaying
Goto thenext chapter, trackor scenedur-
ingplayback
Gobacktotheprevious chapter,trackor
sceneduringplayback
Scan forward at 2, 4, 8,16 or 32x times
speed
Scan backward at 2, 4, 8, 16 or 32x times
speed
UsedforMenuNavigation
Executeitemorconfirmsetting
Selectitemorsetting
Displaythemainmenu ofthedisc
Repeatplayingtitle,chapter,ortrack
Repeat a specific portion from point A to
pointB of thedisc
Display information (title, chapter, track,
time,etc.).
Changetheviewinganglesonthescene
Selectthe subtitlelanguage andturn iton/
off
Selecttheaudiolanguage
Enlargeanimage to2, 3,or 4times the
originalsize.
Display the setup menu to select and set
items,andexitthesetupmenu.
All manuals and user guides at all-guides.com
all-guides.com

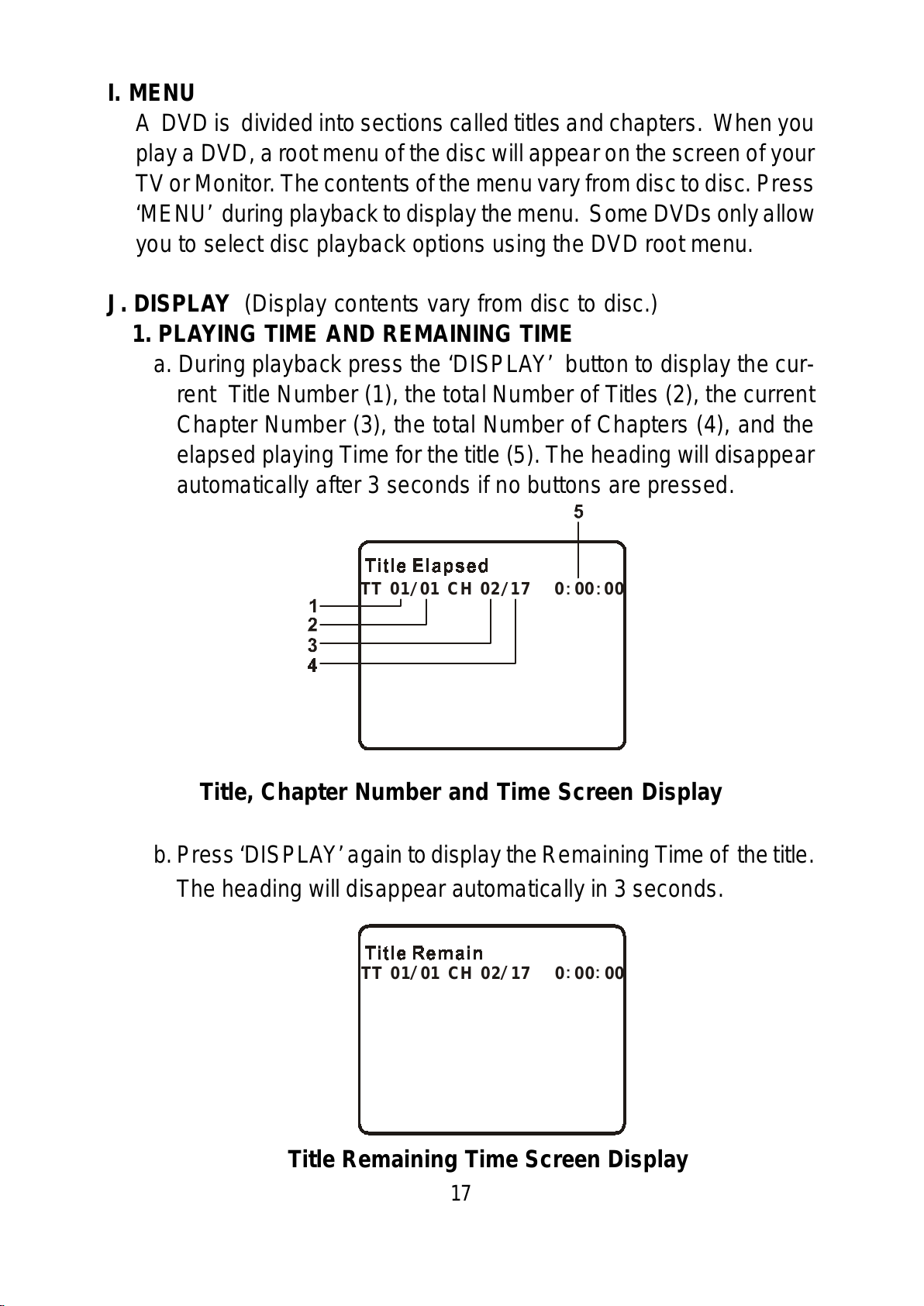

I. MENU
A DVD is divided into sections called titles and chapters. When you
play a DVD, a root menu of the disc will appear on the screen of your
TV or Monitor. The contents of the menu vary from disc to disc. Press
‘MENU’ duringplaybacktodisplay the menu. Some DVDs only allow
you to select disc playback options using the DVD root menu.
J. DISPLAY (Display contents vary from disc to disc.)
1. PLAYING TIME AND REMAINING TIME
a. During playback press the ‘DISPLAY’ button to display the cur-
rent Title Number (1), the total Number of Titles (2), the current
Chapter Number (3), the total Number of Chapters (4), and the
elapsed playing Time for the title (5). The heading will disappear
automatically after 3 seconds if no buttons are pressed.
b.Press‘DISPLAY’ again to displaytheRemaining Timeof the title.
The heading will disappear automatically in 3 seconds.
Title Remaining Time Screen Display
Title, Chapter Number and Time Screen Display
17
TT 01 01 CH 02 17 0 00 00
/ / ::
TT 01 01 CH 02 17 0 00 00
/ / ::
All manuals and user guides at all-guides.com

18
c. Press ‘DISPLAY’ a third time to display the Elapsed Time for the
chapter. The heading will disappear automatically in 3 seconds.
d. Press ‘DISPLAY’ a fourth time to display the Remaining Time for
the chapter. The heading will disappear automatically in 3 sec-
onds.
e. Press ‘DISPLAY’ a fifth time to exit, ‘DISPLAY OFF’ will be dis-
played and will disappear automatically in 3 seconds.
2. ANGLE
During playback of a disc, press ‘ANGLE’ to display the available
angles for discs containing multi-angles*, with the current angle
number (1) and the total number of angles (2) displaying. Press
‘ANGLE’ to select another angle, then press again to exit and re-
turn to the normal viewing angle. The angle display will disappear
automatically if the ‘ANGLE’ button is not pressed again within 3
seconds.
*NOTE: Notalldiscs contain thisfeature.
Chapter Elapsed Time Screen Display
Chapter Remaining Time Screen Display
TT 01 01 CH 02 17 0 00 00
/ / ::
TT 01 01 CH 02 17 0 00 00
/ / ::
All manuals and user guides at all-guides.com

19
3. SUBTITLE
During disc playback press ‘SUB’ to select the subtitle language
you desire*, with the current Subtitle Language Number (1) and
the total Number of Subtitle Languages (2) displayed. If there are
multiplelanguages press ‘SUB’ againto select another subtitlelan-
guage. To turn subtitles OFF, press the ‘SUB’ button until ‘SUB
OFF’is displayed. The Subtitle display will disappear automatically
if the ‘SUB’ button is not pressed again within 3 seconds.
Angle Screen Display
Subtitle Screen Display
*Some DVDs onlyallow access tothis function throughthe DVD
menu.
Subtitle 01 02 /
All manuals and user guides at all-guides.com

20
4. AUDIO
During playback press ‘AUDIO’ to select the audio language you
desire*, with the current Audio Channel Number (1) and the total
number ofAudio Channels (2)displayed. PressAUDIO againto se-
lect another audio language. The audio display will disappear auto-
matically if the ‘AUDIO’ button is not pressed within 3 seconds.
Audio Language Screen Display
*SomeDVDsonly allowaccessto thisfunctionthrough theDVD
menu.
5. ZOOM
Duringplaybackpress ‘ZOOM’ to enlarge the picture by 2x, 3x or 4X
with the current zoom multiple. (1) Press “zoom”one time, the pic-
ture will be enlarged 2X. (2) Press “zoom” a second time, the pic-
ture will be enlarged 3X. (3) Press “zoom” a third time, the picture
will be enlarged 4X. (4) Press “zoom” a fourth time, the picture will
return to normal size.
ZOOM Screen Display
Audio 1 2 Ac3 5 1ch /: .
All manuals and user guides at all-guides.com
