Important Notice
Installation of headrest products require careful planning and preparation. Be extremely careful
with seats that have airbags built into them. Keep wiring away from any air bag wiring (usually
identified by yellow connectors and yellow wire jackets). Damage to air bag wiring can result
in
personal injury to vehicle occupants. If you have any questions regarding wire routing or
installation
in avehicle, pleasecontactAudiovoxTechnical Supportat 1-800-225-607 4.
When connecting power and ground in a mobile video installation, insure that the ACC wire is
fused at the point where it is connected to the vehicle ACC wiring. Failure to do so can result
in
damage to the vehicle ifa short circuit develops between the vehicle connection point and the
mobilevideo product.
An LCD panel and/orvideo monitormay be installed
in a motorvehicle and visible to the driverif
the LCD panel or video monitor is used for vehicle information, system control, rear or side
observation or navigation. If the LCD panel or video monitor is used for television reception,
video or DVD play, the LCD panel orvideo monitor must be installed so that these features will
onlyfunction when the vehicle is
in "park"orwhen the vehicle's parking brake is applied.
An LCD panel or video monitor used for television reception, video or DVD play that operates
when the vehicle
is in gearorwhen the parking is not applied must be installed to the rear of the
driver'sseatwhere itwill notbe visible, directlyor
indirectly, to be operator
of the motorvehicle.
Licensed underoneormore
of thefollowing patents:
Patent NOS. 7,245,274, 6,899,365and 6,678,892

FEATURES
• 7" Digital Thin Film Transistor (TFT) Active Matrix Liquid Crystal Display (LCD) Monitor
• Built-in DVD Player
• Last position memory for DVD player
• FourAudio I Video Source inputs "DVD,
AV, AUX and Media (USB/SO)"
• USB 2.0 port I SD Card Reader input
• On Screen Display (OSD) for control
of picture quality and functions
• Full function remote control
• Plays DVD, CD and MP3 discs
• IR headphone (optional)
SPECIFICATIONS
Type
Resolution
Pixels
Operation Temperature
Storage Temperature
Backlit life
Video Display System
Headphone Audio Output
Video Output
TFTActive Matrix LCD
480x234
336,960
32
-113° F (0- 45° C)
-4- 149° F (-20- 65° C)
20,000 Hours
NTSC I PAL I AUTO
0.03W @ 32 ohms
1.0Vp-p @ 75 ohms
12VDC
Power Source
Dimension (L x W x H) 147mm x 275mm x 200mm
5. ?in x 10.8in x 7 .Bin
Specifications subject to change without notice.
3

MATERIAL TO USE IN THIS PACKAGE:
1) AVXMTGHR1 DA System Monitor with DVD Player (AVXMTGHR1DA) (1 pc)
4
'I
D
EEI!J( ti!i!l )EEEI
I~
NOTE: The AVXMTGHR1 DA monitor has been designed
with interchangeable covers. The headrest cover as
supplied is covered with shale colored vinyl. Black vinyl
and pewtervinyl can replace the shale colored vinyl.
NOTE: Headrest cables are included with the headrest DVD player and the headrest monitor.
1) Remote Control
(P/N 136-5433)-
(1 pc)
3)
AV IN I Power Cable, 8 Pin Din to 3 RCA (Red)
(P/N 112-4309)-(1pc)
5) Black Vinyl Headrest Cover
(P/N 126-1377)-(1pc)
';,.,J)
~:
7) Shrink Tubing, Black
(P/N 138-1495 )-(2pcs)
0""--- _ ___..)
2) AV Adapter Cable
(P/N 112B3227)-(1pc)
4)
AV OUT Cable, 8 Pin Din to 3 RCA (Green)
(PIN 112-4310)-(1pc)
6) Pewter Vinyl Headrest Cover
(P/N 126-1378)-(1pc)
8) Support Tube Adaptor Box
(P/N 170-0170)-(1
Tray)
111111
llllll

HEADREST COVER REPLACEMENT:
NOTE: If desired, replace the headrest cover before installing the headrest in the vehicle.
1. Using a Philips screwdriver, unscrew the two Philips screws and lift the bottom edge
of the monitor upward.
Unscrew Philips Screws
2. Remove the velcro tabs securing the headrest cover.
Remove Velcro Tabs
3. Replace the headrest cover with the desired color and secure the headrest cover by
re-attaching the velcro tabs.
4.Piace the monitor cable into the space
on the right side of the headrest and lower the
monitor into position to align the two Philips screws with the screw holes
in the headrest.
Close the screen and press the PUSH button to secure the screen.
5.Tighten screws
5

VEHICLE PREPARATION
1) Decide on the system configuration and the options that will be installed.
2) Read the manual and get familiar with the electrical requirements and
connections.
3) Decide on the mounting locations and methods
of
mounting the products that
will be connected to the AVXMTGHR1 DA.
4) Prepare the vehicle by removing any interior trim necessary to gain access to
the vehicle's wiring as well as all areas where interconnecting wire harnesses
will
be
located. This manual will only focus on the installation
of
the
AVXMTGHR1 DA Monitors
in
the supplied configuration.
NOTE: The Master Monitor should be installed
in
the passenger position most
used.)
5) Locate an accessory power source +12VDC (ACC) present when the ignition
key
is
in
the accessory and run positions.
OVDC
should be present when the
ignition key is
in
the OFF position), and a good ground. Generally, these
wires can be found at the ignition switch or fusebox.
NOTE: Ensure that the accessory power is fused at the source. Failure to do so
may result
in
vehicle wiring damage.
6) Run the wiring harnesses throughout the vehicle as necessary. (Refer to the
Wiring Diagrams on page 8). Be sure, that all the wiring is protected from sharp
edges and is routed
in
such a manner that it will not be pinched when it is fully
installed. Be sure to leave enough slack
in
the wiring at each component to
allow sufficient working room. Be sure to leave enough slack
in
the monitor
cables to allow the headrest to move up
or
down, and seat movement.
6

7) Install the headrests:
a.
Remove vehicle's original headrests.
b.
Insert appropriate support tube adaptors
in
vehicle post guides (if needed).
c.
Hold the headrest above the seat and insert the two cables into the vehicle
support guides. Make sure that the headrest
is
in
the correct position (display
facing the rear).
d.
Route the cables through the seat back and out the bottom
of
the seat while
pulling the cables to remove the slack. Be sure to leave enough slack
in
the
monitor cables to allow the headrest to move up or down.
8) Connect all the components together (electrically) and verify proper operation
of
all the system functions.
9) If 2 AVXMTGHR1 DA's are installed
in
a vehicle, set one unit to IRTA and the
other unit to IRTB. See page
14
for instructions.
Wireless
FM
Modulator
The AVXMTGHR1DA
is
equipped with a built-in wireless
FM
Modulator, that
allows you to listen to the DVD audio signal by tuning your vehicle's radio to the
selected frequency, (CH1 87.7MHz, CH2 88.1 MHz, CH3 88.5MHz, CH4
88.9MHz, CH5 106.7.1MHz, CH6 107.1MHz, CH7 107.5MHz, CH8 107.9MHz).
This feature
is
accessed by using the
FM
transmitter buttons
on
the remote
(FMM ON/OFF, and CH.l\NNEL SELECT).
Whenever the
FM
Modulator is on, broadcast reception on the vehicles radio will
be poor. Switching the
FM
Modulator off will allow normal radio reception.
NOTE:
In
certain areas where there are a large number
of
FM
radio stations (e.g.
large cities, urban areas), the reception of the
FM
signal may not be satisfactory,
resulting
in
static, distorted sound or signal bleed thru from strong local radio
stations. This
is
not a defect
in
the product, but the result
of
a stronger local radio
station overpowering the wireless
FM
transmitter
in
your headrest monitor. Under
these conditions use
of
wired or wireless headphones
is
recommended.
7

AVXMTGHR1
DA
WIRING DIAGRAM
Headrest Monitor
RED
-------------------------
I
I
I
I
+12V (ACC
r-u-------;?-~.:......;,J'---,wu...---.J'
.........
·----•
Ground-
~--1
AV
IN
I
Power Cable, 8 Pin Din to 3 RCA (Red)
(P/N 112-4309)
8
GREEN
:
Video Out Yellow
~......__.=====-...:U21D
Aud1o
Out Left
Wh1te
I=I::::::J..I_,._
_
___._.......__ICil-:=!11
Audio Out Right Red
AV OUT Cable, 8 Pin Din to 3 RCA (Green)
(P/N 112-4310)

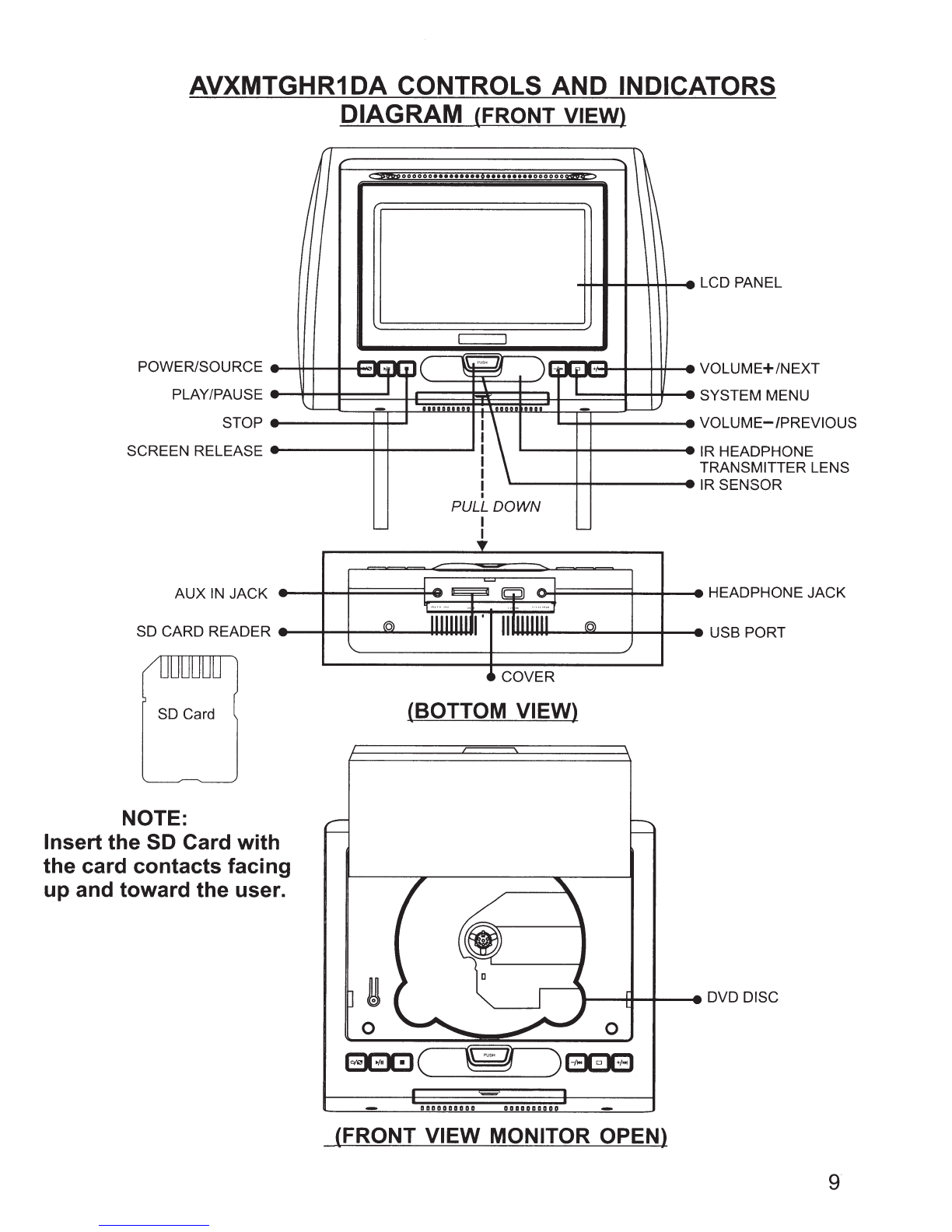

AVXMTGHR1 DA CONTROLS AND INDICATORS
DIAGRAM (FRONT VIEW}
POWER/SOURCE
PLAY/PAUSE
STOP
SCREEN RELEASE
SO Card
NOTE:
-
-
-
-
-
-
-
-
Insert the SO Card with
the card contacts facing
up and toward the user.
C: lllioooooo•••••••••l•••••••••ooooooilll :>
\
I I
"'· I
~~
)r-~
\
-
'L...--
-
IIIIDIIII
....
-
L,.;
!\
I
I
PULL DOWN
L....
I
L-.
(BOTTOM VIEW}
0 0
EEE~EEE
aaaaaaaaaa aaaaaaaaaa
(FRONT VIEW MONITOR OPEN}
-
--
-
--
--
-
-
-
-
-
LCD PANEL
VOLUME+/NEXT
SYSTEM MENU
VOLUME-/PREVIOUS
IR HEADPHONE
TRANSMITTER LENS
IR SENSOR
9

REMOTE CONTROL OPERATION
NOTE:
The remote control has a battery installed with a pull tab to prevent battery
discharge. Remove the pull tab before attempting to use the remote.
Battery Replacement
1.
Depress the tab (1) and slide the battery holder (2) out
in
the direction
of
the arrow.
2.
Install one CR2025 battery. Make sure that the proper polarity(+
or-)
is observed.
3.
Slide the battery holder into the remote control until it locks.
(1)
CR2025
Tab (1)
Battery
Holder(2)

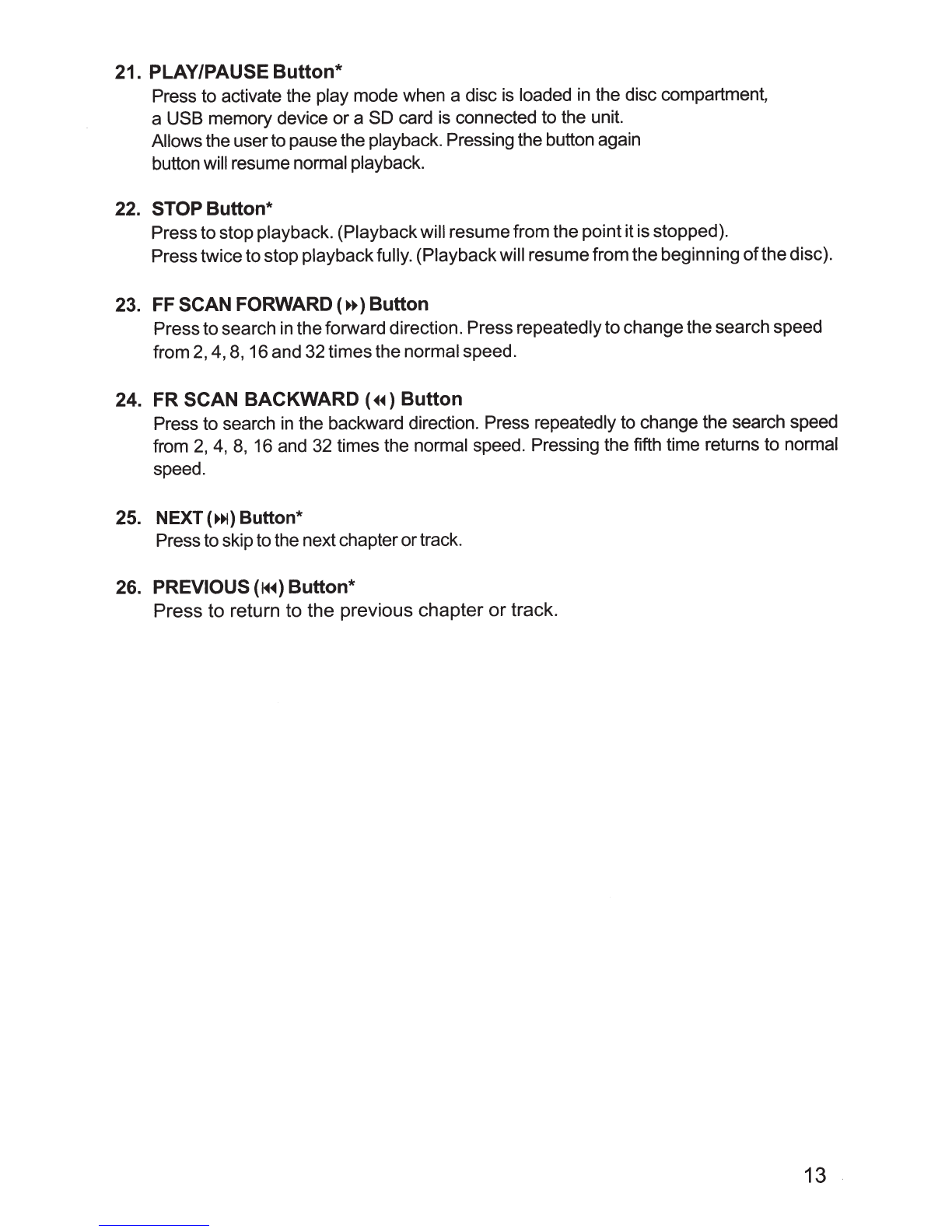

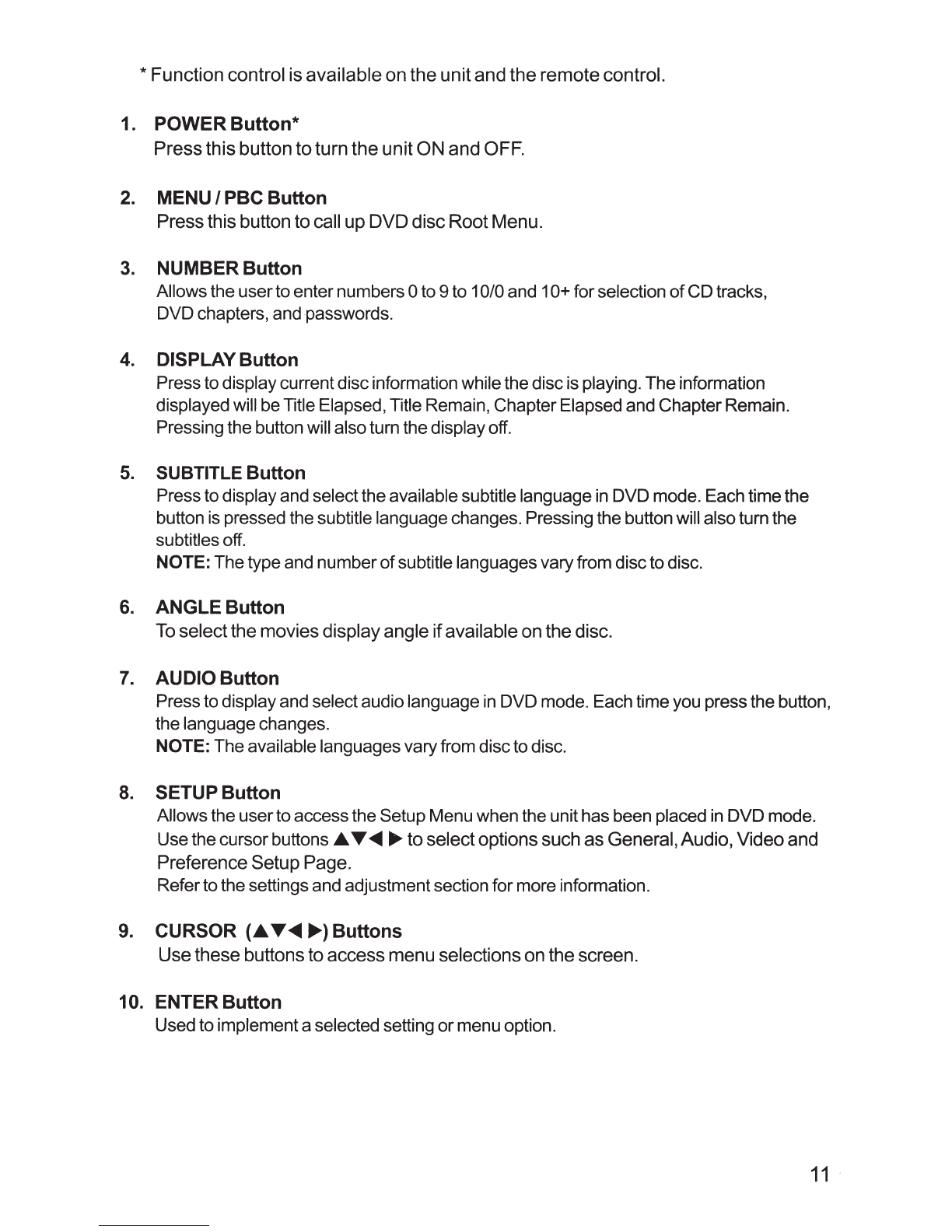

Remote Control Function Description
5 6
9
10/0
10
Protective PullTab
Clear Plastlc
CR202S
\MV..~f+----
13
L------tt--14

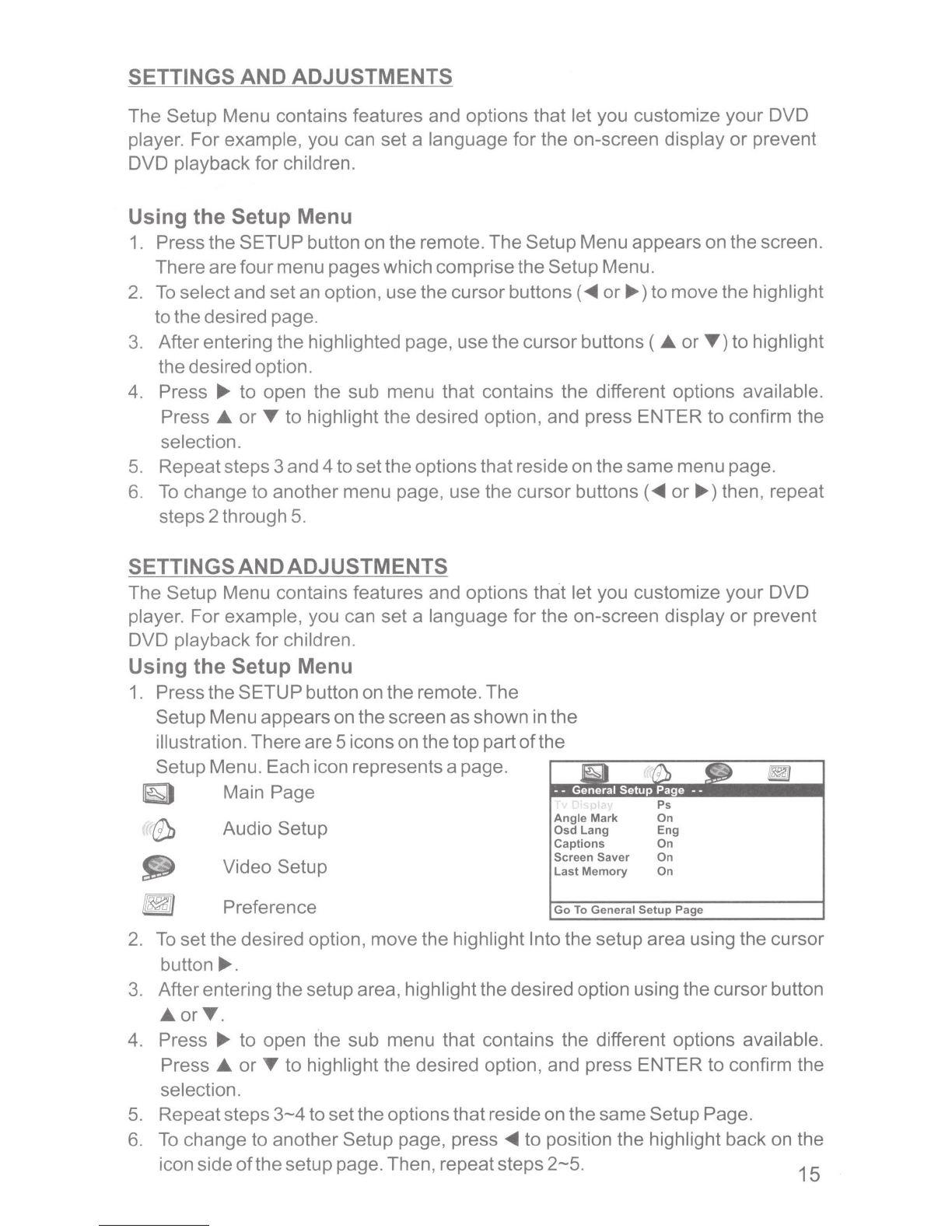

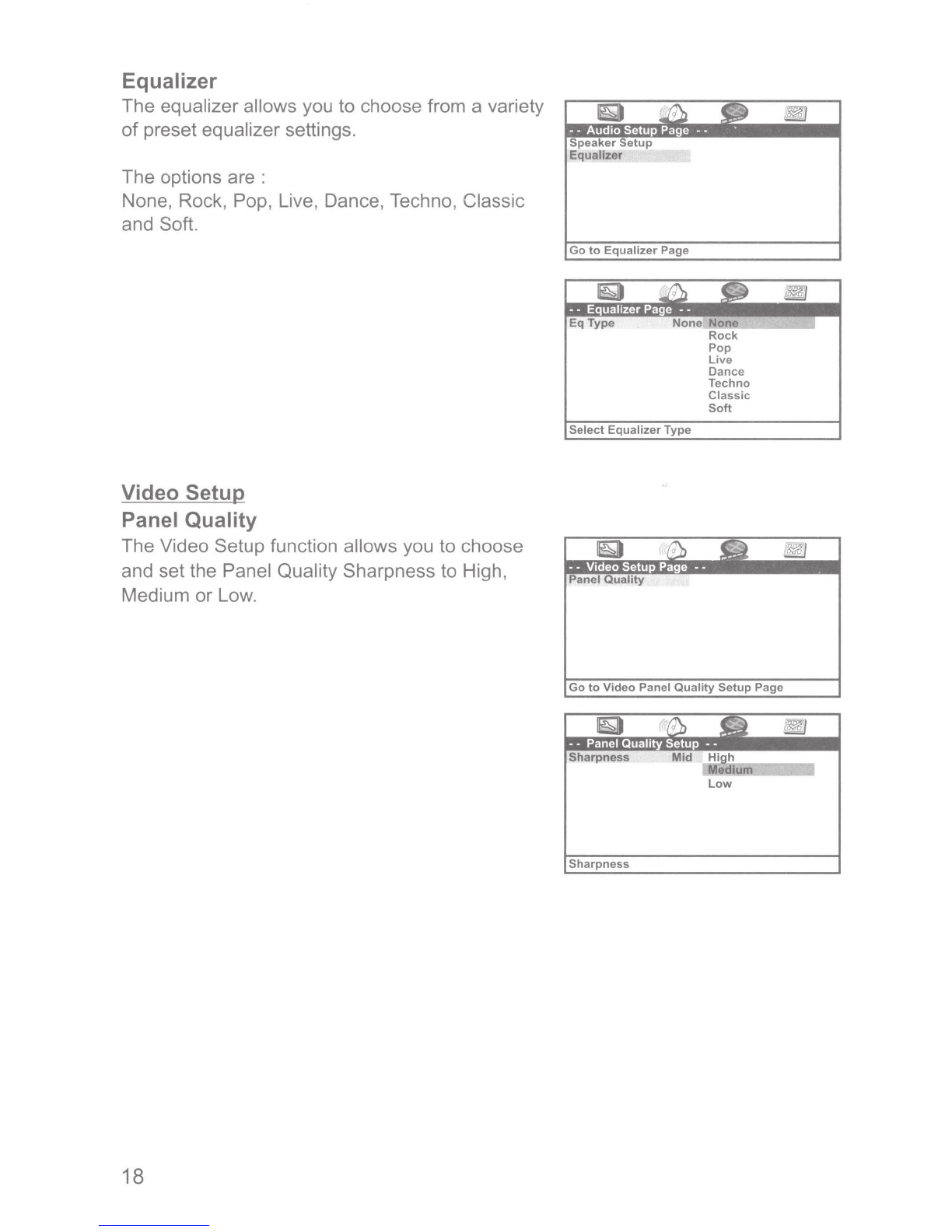

7 8
