Audiovox 6"x 9" User manual

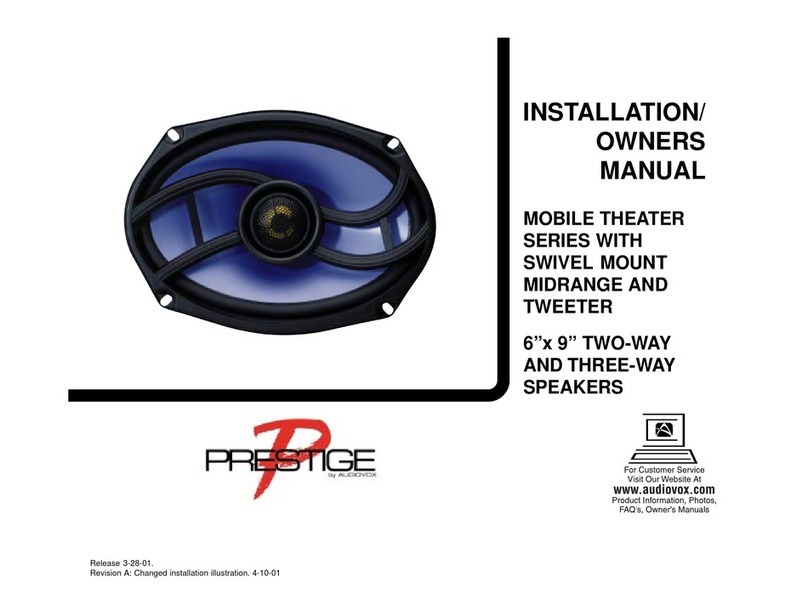

INSTALLATION/
OWNERS
MANUAL
6”x 9” TWO-WAY
AND THREE-WAY
SPEAKERS
MOBILE THEATER
SERIES WITH
SWIVEL MOUNT
MIDRANGE AND
TWEETER
Release 3-28-01.
Revision A: Changed installation illustration. 4-10-01

LEDOM296-TSP396-TSP
retemaiDlanimoN"9x6"9x6
noitpircseDyaW-2yaW-3
ecnadepmIsmhO4smhO4
esnopseR.qerF
)zH( 000,02-04000,02-04
)Bd(ytivitisneS1919
rewoPtupnI
gnildnaH sttaW571sttaW002
thgieWtengaM.zo52.zo52
eziSreteewTmm52mm91
eziSegnaRdiMA/Nmm52
noitallatsnI
htpeDgnitnuoM"2/13"2/13
SPECIFICATIONS
-2-

PRE-INSTALLATION TIPS
Before beginning your installation, read the following tips on proper
placement of speakers and how to obtain the best sound from the
speakers you have selected.
No. 1:
Always try to have the speakers aimed at the listener. Never install
speakersinamannerthatwoulddirectsoundtowardthefloorofthe
car. The only exception to not aiming a speaker would be the rear
deck(packageshelf behind rear seat). The natural curve of the rear
window,combinedwiththewide-dispersion tendencyof basssounds,
allows woofers to perform exceptionally well in this location. This is
not true for high-frequency sounds which will be absorbed by the
roof liner long before they reach your ears.
No. 2:
High and mid-frequency sounds are very directional (the higher the
frequency, themoredirectional itis).This simplymeansthat atweeter
or mid-range speaker pointing toward the floor (or roof) will only be
clearlyheardinthe direction at which it is pointed. For this reason, it
is critical that tweeters and mid-range speakers always be installed
so they aim in toward the passenger area and as high in the car as
possible (on top of dash or high up in door panels). Never install
tweeters low in the car.
No. 3:
Select solid mounting panels! Always make certain the selected
panel is solid and securely attached to the car. Clipped-in plastic
or fire panels make poor mounting surfaces and tend to vibrate
when used. This is far more critical when installing large power pro-
ducing woofers. Mount your speakers securely! If the speaker
has four mounting holes, use all of them.
No. 4:
Woofersneed“breathing”room! For a speaker to performefficiently,
it must move large amounts of air. If you restrict this airflow (try to fit
alarge speaker inasmall space orifyouundercut the recommended
mountinghole size), youwon’thave an efficientspeaker.Conversely,
the enclosure you mount them in should be somewhat sealed. In
other words, if you mount speakers in door panels, don’t cut any
extra holes in the door.
No. 5:
Tweeters can go in places other speakers can’t. They don’t need
“breathing” room or reinforced mounting panels. All they require is
directional placement. (See tip No. 2.)
No. 6:
Neverletany part of the speaker (except the mounting flange) touch
any part of the car. You’ll be amazed what noises a speaker (and
your car) can produce when one touches the other.
No. 7:
Don’tskimp on the qualityofthespeaker wiring. All Audiovox speak-
ers include wiring rated to properly transmit the normal power load
the speaker is designed for.
-3-

-4-
INSTALLATION INSTRUCTIONS
CAUTION: Do not mount the speakers in
the following locations:
- Where the door window glass comes in contact with the
speaker.
- Where the speaker comes in contact with the window crank
handles or gear assemblies when rotated.
- Where the speakers come in contact with the trunk springs,
shock towers, or trunk lid.
- Where the speakers come in contact with gas tanks or fuel
lines.
- Wherethe speakers come in contactwiththerear window glass,
car wall, etc.
We strongly recommend that you read these instructions first be-
fore you commence speaker installation. If the instructions appear
to be too difficult, or if you lack any of the equipment necessary to
finishthejob, perhaps it would be more prudent to refer theinstalla-
tion to a qualified, car stereo professional.
Ease of Installation - Thecarmanufacturer providesat least two,
and possibly four, pre-cut openings in all cars. When only two are
provided,oneis usuallyinthereardeckandtheother isinthefront
dash. Provisions for four speakers usually include two rear deck
openings and two door or dash openings. A car manufacturer picks
speaker locations that simplify installation andfit available spaces.
They are not always the best places for sound reproduction.
Using Factory Openings - Theoneadvantageto using the factory
openingsis you avoid having cut sheet metal, as the holes are pre-
punched. You normally have only to cut away thin plastic or fiber
panels that conceal the openings. Openings near the floor should
be avoided if at all possible.
Be Innovative - Ifyou’remechanicallyinclined, remove door pan-
els, dash, side panels, etc., and really get into the basic construc-
tion of the car. You’ll be amazed at the vast amount of good-to-
excellent speaker locations a car can conceal.
If You Don’t Wish to Cut Holes - Consider the hang-on or sur-
face-mounttype of speakers. Just pick a reasonably flat panel, drill
a few holes, fasten a few screws, and you’re listening to stereo.
INSTALLING OVAL SPEAKERS IN REAR DECKS OR
FLAT SURFACES
Most cars are factory-equipped with speaker openings in the rear
deck (package shelf). By examining the underside of this panel,
using trunk access, you will probably find at least one (usually two)
oval-shaped holes in the steel underliner of the rear deck.
The size of these holes vary with the make of car, but the most
common openings are for 6”x9”, 5”x7”, and 4”x10” speakers. Oc-
casionally, you’ll find a 5” or 5-1/4” round hole.
Selecting the Speaker Location
Use the following guidelines to select the speaker location:
1. Examinethedeck panel thoroughly. Observemovement of the
trunk springs, trunk lid, support hinges, power antenna, etc.
Obviously, you don’t want to install a speaker where the arc of
a moving trunk support would interfere with the speaker grille.
Avoid all areas that might cause interference with the normal
functions of the trunk lid and/or antenna assembly.
CAUTION: Even professional installers have mounted a speaker
andthen found out it interfered with some moving part.
2.Check the speakers you have purchased against the existing
holes in the steel sub-liner by placing the speaker against the

-5-
Speaker Cutting Detail
1. Place grille on top of package shelf, allowing the studs to
protrude through the holes you previously punched.
2. Place the speaker below the shelf and align it over the four
studs of the grille. Secure the speaker using four speed clips
included. If the grille requires screws and nuts, insert the
screws from the top of the rear deck, and through the grille
and speaker; secure grille and speaker with hex nuts.
3. Repeat entire procedure for remaining speaker.
4. Wire speakers per instructions for your stereo system.
bottom of the opening and check that the speaker matches the
shape of the existing cut-out. Also check that the four speaker
mountingholesalignwith the four existing holes in the steel sub-
liner.
Cutting Speaker Opening
Prepare the speaker opening as follows:
NOTE: This procedure can also be used for any flat panel install
(Wagons, Vans, etc.) that have sufficient space behind the
panel for recessing the speaker. (The panel must be re-
movable or accessible from behind.)
1. Provided that all holes align, place speaker aside and
proceed to cut out the oval opening in the fiber panel that
covers the existing hole in the steel sub-liner.
NOTE: It is easier to cut the opening if you use a sharp serrated
steak knife in a sawing motion. Use care not to over-cut the
hole size by periodically checking the speaker grille.
2. Once the speaker openings have been cut, pierce the four
speaker mounting holes and enlarge them to a diameter of
3/16”.
Grille Installation
Inspect the grille included with the speaker. If the grille contains
existing threaded studs projecting from it , skip this section. If the
grille contains four threaded holes in it, locate the threaded rods
included with the speaker and screw them firmly into the holes in
the grille. The third grille type contains four holes for use with four
screws. Proceed with grille installation as follows:

-6-
Speaker Mounting Details
The following illustrations define the requirements for mounting the
speaker on the near and far sides of the mounting surface or inde-
pendent mounting board.
TYPICALSPEAKER INSTALLATION
FACTORYSPEAKERREPLACEMENT
MESHGRILLE
APPLYBUTYLPUTTY
(4PLACES)
MACHINE SCREW
SPEAKER
MOUNTING SURFACE
GRILLE
NUT MOUNTING
SURFACE
MESHGRILLE
APPLYBUTYLPUTTY
(4PLACES)
SHEETMETAL
SCREW
SPEAKER
GRILLE
SPEED
CLIP
FACTORY
GRILLE
SPEAKER
EXISTINGFACTORY
HARDWARE
MOUNTING
SURFACE

-7-
