Thank you for purchasing the Audiovox WIDTV1 Mobile TV Receiver. The WIDTV1 is an ecient, user-friendly accessory for
viewing live free-to-air TV content on compatible Apple® iPads and iPhones, and is compatible with ATSC-M/H digital TV
transmissions. The WIDTV1 creates its own private Wi-Fi® network for use by the Apple® device and there is no need to search
for an internet connection or use cellular data airtime. Download the free Audiovox mobiletv with DyleTM TV app from the
App Store, watch TV and enjoy.
Highlights
• View live digital TV (ATSC-M/H broadcasts) on compatible Apple® iPads and iPhones.
• Pause and rewind programs while viewing
• Access to detailed programming information (Electronic Programing Guide - EPG)
• Equipped with internal battery for over 4 hours of viewing time
INTRODUCTION
Introduction and Package Contents
PACKAGE CONTENTS
1. WIDTV1 Mobile TV Receiver
2. Telescopic Antenna
3. Micro USB Cable
4. Quick Start Guide
1 3
4
2
1
128-9250a WIDTV1 MobileTV User's Guide APPLE 11 26 2013.indd 3 11/26/2013 11:26:21 AM

Supports the following Apple® devices: iPad2®, New iPad®, iPad Mini®, iPhone 4S®, iPhone 5®, and iPod 5® with iOS 5.1.X or
newer.
.
SYSTEM REQUIREMENTS
Live TV
With the Audiovox mobiletv with DyleTM TV app, users can view, and pause live TV.
Guide
The EPG (Electronic Programming Guide) can support up to 7 days of TV programming depending upon the
region. Detailed information can be viewed for each program in the guide.
Auto-scan
The application automatically selects the country using location services. If location services are disabled, country
selection can be made prior to the auto-scan.
Subtitles
Subtitles can be switched ON and OFF when viewing live TV if supported by the broadcast. The Subtitles feature is
accessible through the Gear icon while watching live TV.
Audio
Users can choose from a selection of audio tracks if supported by the broadcast. Audio can be switched ON and OFF
when viewing live TV.
Zoom
The application supports up to ve dierent zoom levels depending on the original resolution and aspect
ratio of the broadcast. The following zoom modes are supported: 1x, 1.5x, 2x, Standard, and Fill. The Zoom
feature can be selected from the settings menu while viewing or by double tapping on the screen itself while watching
live TV.
Volume Control
Users can control the volume while viewing live TV using the application volume control. Volume can be also controlled
using the Apple® iPhone® or iPad® volume control.
FEATURES
Features
2
Trademark Notice:
• iPad®/ iPad 2®/ iPad Mini®/ iPhone®/ iPhone 4S®/ iPhone 5®/ iPod® are all trademarks of Apple® Computer, Inc., registered
in the U.S. and other countries.
• Wi-Fi® is a registered trademark of the Wireless Fidelity Alliance, Inc.
• DYLE™ and DYLE logo are trademarks of and copyright Mobile Content Venture LLC.
• Siano® is a registered trademark of Siano Mobile Silicon, Ltd.
128-9250a WIDTV1 MobileTV User's Guide APPLE 11 26 2013.indd 4 11/26/2013 11:26:21 AM

Installation Instructions
INSTALLATION INSTRUCTIONS
1. Charge the WIDTV1 Mobile TV Receiver fully before initial operation.
• PlugthesuppliedUSBchargingcableintoaUSBport.
• InserttheMicroUSBchargingcableconnectorintotheWIDTV1MobileTVReceiverandthered“Charge”LEDwill
illuminate.
• WhentheWIDTV1MobileTVReceiverisfullycharged,thered“Charge”LEDwillturnOFF.
2. Download and install the free Audiovox mobiletv with DyleTM TV app from the App Store.
3. Open the application and perform the sign in process.
4. Turn the WIDTV1 Mobile TV Receiver ON by sliding the ON/OFF switch to the ON position. The blue “Power” LED will
illuminate.
NOTE: While the WIDTV1 is in use, the blue “Power” LED will turn o 10 minutes before the battery is depleted.
5. Release and fully extend the telescopic antenna from its docked position and swivel it to an upright position.
6. Place the WIDTV1 Mobile TV Receiver in a suitable location close to a window where it will not be subjected to
moisture or excessive heat.
7. Set up the Wi-Fi® connectivity on your Apple® iPhone® or iPad® settings manager.
• Use your Apple® device at a maximum of 7 meters distance from the WIDTV1 Mobile TV Receiver
• Go to the Wi-Fi® settings on your Apple® iPhone®or iPad® and search for the“Audiovox MobileTV xxxxxx”
network.
NOTE: The “xxxxxx” notation in the network name represents the last six digits of the WIDTV1 Mobile TV Receiver
MAC address.
NOTE: On Apple® iPhone® or iPad®, although the Wi-Fi® connection has been established, connection to the
Audiovox MobileTV Wi-Fi® network may not show a check mark. The check mark may be replaced by a
spiraling circle.
8. Activate the Audiovox mobiletv with DyleTM TV app.
9. Scan for channels.
a. Channels must be scanned in order to watch live TV with the app, go to;
Settings > Scan Channels > Scan
NOTE: The Channel Scan progress bar will be displayed and the process may take several minutes to complete.
b. When channels are found, the number of channels will be displayed. If channels are not found, re-perform the
channel scan process.
c. Once the channel scan is complete, press DONE.
10.To view available TV channels, select Live TV and a list of channels will be displayed. Select a listed channel to watch
live TV.
11.To access the electronic program guide, select Guide to view program information.
12.The Settings feature is used to scan for channels, monitor battery life, etc.
3
128-9250a WIDTV1 MobileTV User's Guide APPLE 11 26 2013.indd 5 11/26/2013 11:26:21 AM

LED Behavior and Functionality
The Audiovox WIDTV1 Mobile TV Receiver has two LEDs – blue for power indication, and red for battery charge indication.
Following is a detailed list of each LED functionality:
Blue LED:
• Whenthe device is poweredON –the Blue LED ashes for3seconds,pausesfor1 secondandthen continues
blinking for an additional 8 seconds. This function is normal and indicates that the device is booting up and loading
its internal rmware.
• Oncethepreviousfunctioniscomplete,andduringnormaloperation(i.e.,theappisconnected[ordisconnected]
and Live TV may be streaming) the LED is constantly ON.
• WhenthedevicegoesintoSleepmode(asdeterminedbytheSleepTimer,whichiscongurableintheappSettings
menu),theLEDstartstoashveryslowly(onceevery4seconds).
Red LED:
• WhenchargingRedLEDisOFF-Thechargingcableisnotconnected.
• WhenchargingRedLEDisON-Thechargingcableisconnectedandbatteryischarging.
• WhenRedLEDturnsOFF-Thechargingcableisconnectedandbatteryisfull.
Activating the Audiovox mobiletv with DyleTM TV app
1. Install Audiovox mobiletv with DyleTM TV app from the App Store.
2. Locate the Audiovox mobiletv with DyleTM TV app icon from the applications on your iPhone®or iPad® and open the app.
3. While connected to the Internet, complete the rst time registration process using the following steps:
Step 1. WhentheWelcomescreenappears,allowtheAudiovoxmobiletv withDyleTMTVapp touseyourcurrentlocationby
pressing “OK” then Next. This will shorten the time required to Scan for channels.
Step 2. The Terms and Conditions screen will appear. To access the Audiovox mobiletv with DyleTM TV app service, the
user must agree to the terms and conditions displayed on this screen. Press “I Agree” to continue.
OPERATION INSTRUCTIONS
Audiovox mobiletv with DyleTM TV app icon
Welcome Screen
Operation Instructions
4
128-9250a WIDTV1 MobileTV User's Guide APPLE 11 26 2013.indd 6 11/26/2013 11:26:21 AM

Terms and Conditions Screen
Activation screen
Connecting to a Mobile Device Screen
Step 3. AfteragreeingtotheTermsandConditions,theAudiovoxmobiletvwithDyleTMTVappActivationscreenwillappear.
Enter the requested information and press “Activate”.
Step4. Once activated, a message will appear indicating that the Audiovox WIDTV1 Mobile TV Receiver can be
connected to the Apple® iPhone® or iPad®. Follow the instructions on the screen:
1. Power ON your Audiovox WIDTV1 Mobile TV Receiver by sliding the switch on the side to the ON
position.
2. On the Apple® iPhone® or iPad®, press the Home buton, then tap Settings > Wi-Fi® and connect to the
mobile device network.
Operation Instructions
5
128-9250a WIDTV1 MobileTV User's Guide APPLE 11 26 2013.indd 7 11/26/2013 11:26:22 AM

Connecting to Audiovox WIDTV1 Mobile TV Receiver Wi-Fi®
Set up the Wi-Fi® connectivity on your Apple® iPhone® or iPad® settings manager. Go to the Wi-Fi® settings on your Apple®
iPhone® or iPad® and search for the“Audiovox MobileTV xxxxxx” network.
NOTE: The “xxxxxx” notation in the network name represents the last six digits of the WIDTV1 Mobile TV Receiver MAC
address.
NOTE: On your Apple® iPhone® or iPad®, although the Wi-Fi®connection has been established, connection to the Audiovox
MobileTV Wi-Fi® network may not show a check mark. The check mark may be replaced by a spiraling circle.
Scan for Channels
Step 1. Once the Audiovox WIDTV1 Mobile TV Receiver and the Apple® iPhone® or iPad® are connected, return to the
Audiovox mobiletv with DyleTM TV app and access the Settings Menu. Select Scan Channels.
Step 2. Press the “Scan” button to perform a channel scan.

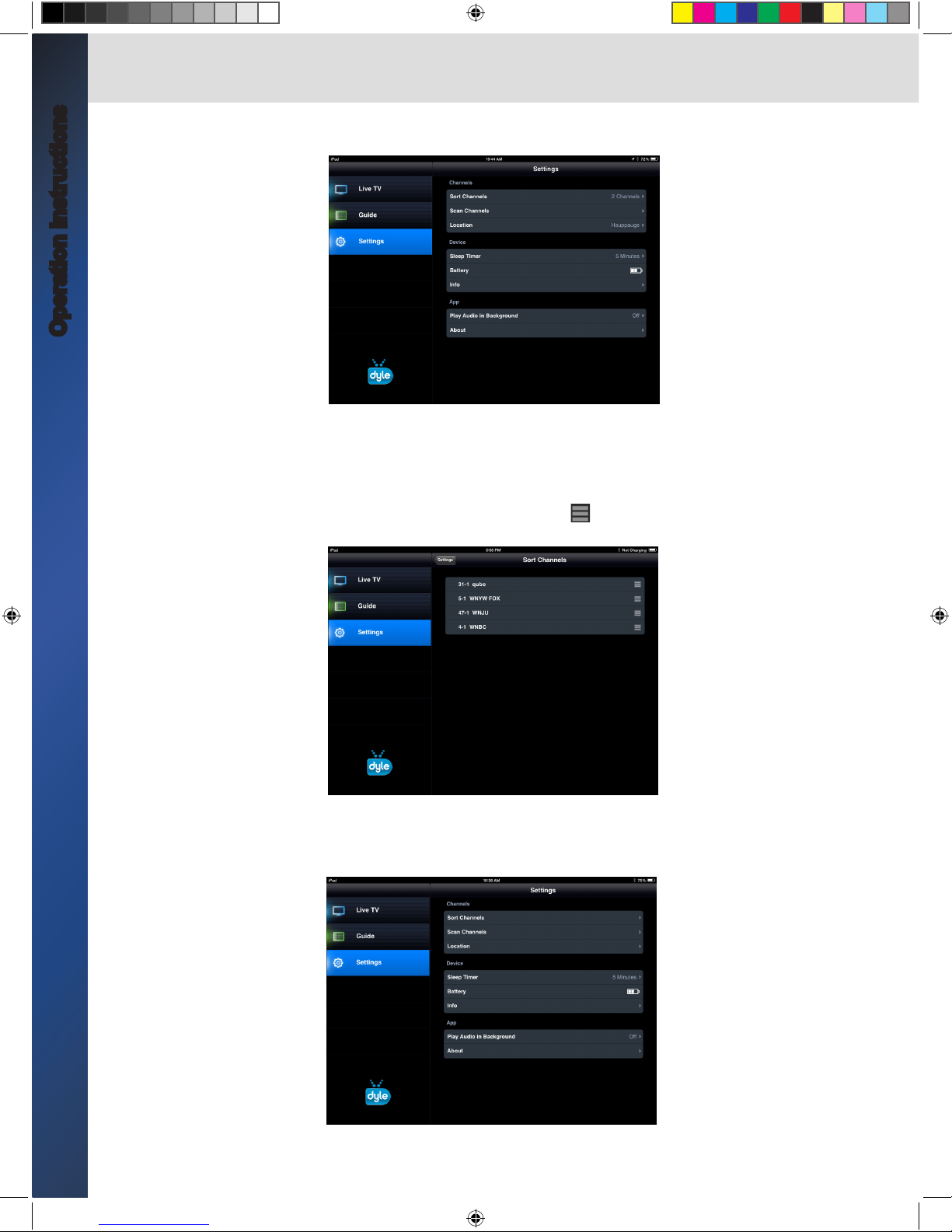

Settings Menu Screen
Channel Scanning Screen
Operation Instructions
6
Wi-Fi® Settings Screen
128-9250a WIDTV1 MobileTV User's Guide APPLE 11 26 2013.indd 8 11/26/2013 11:26:23 AM

Step 3. The scan process is indicated by a progress bar at the bottom of the screen.
NOTE: The scan process may take several minutes to complete.
Step 4. When the scan process is complete, the number of found channels will be displayed. Press the “Done”button
to access the list of available channels.
Watch Mobile Live TV
Select Live TV and the list of available channels appears on the screen. Select one of the displayed channels to watch
live TV.
List of Available Channels
Scanning Process Screen
Scanning Complete Screen
Operation Instructions
7
128-9250a WIDTV1 MobileTV User's Guide APPLE 11 26 2013.indd 9 11/26/2013 11:26:23 AM

Changing Channels
To change channels while watching liveTV, swipe ngertips over the screen either right or left, or after touching the screen
once, use the drop down menu from the top of the screen to switch to another channel. The same action can be also
performed using the left and right arrows beside the current channel name on the top bar.
Pause Live TV
Tap the screen once while watching live TV and the controls bar will appear on the screen. Press the Pause icon to pause
live TV. To continue watching the paused content, press the Play icon.
Audio Volume Control
Select the Audio icon at the top right side of the screen, and use the slide switch to increase or decrease the media
volume. NOTE: The volume can also be controlled using the Apple® iPhone® or iPad® volume control.
Drop Down Channel Selection Menu Left and Right Channel Selection Arrows
Controls Bar While Live TV is Playing Controls Bar When Live TV is Paused
Audio Volume Control
Operation Instructions
8
128-9250a WIDTV1 MobileTV User's Guide APPLE 11 26 2013.indd 10 11/26/2013 11:26:25 AM

Playback Control
Select the Gear icon at the top right side of the screen to adjust the picture size (Zoom), adjust the advanced audio
controls or select a closed caption language while watching live TV.
Guide Menu
Select the Guide button to view available Channels.
Select any of the available Channels to view program information and air times.
Playback Control Drop Down Menu
Operation Instructions
9
Channel Guide Screen
Channel Programing Guide Screen
128-9250a WIDTV1 MobileTV User's Guide APPLE 11 26 2013.indd 11 11/26/2013 11:26:26 AM

Settings Menu
Select the Settings button to make adjustments to the Channel settings, Device settings and Application settings.
Channels Sub Menu
Sort Channels
The Sort Channels feature allows the user to organize the available channels in any preferred order. Select the Sort
Channels button to display the available channels. Touch and hold the icon on the channel to be moved. Drag the
channel up or down into the desired position.
Scan Channels
Step 1. Once the Audiovox WIDTV1 Mobile TV Receiver and the Apple® iPhone® or iPad® are connected, return to the
Audiovox mobiletv with DyleTM TV app and access the Settings Menu. Select Scan Channels.
Operation Instructions
10
Settings Menu
Sorted Channel Menu
Settings Menu Screen
128-9250a WIDTV1 MobileTV User's Guide APPLE 11 26 2013.indd 12 11/26/2013 11:26:26 AM

11
Step 2. Press the “Scan” button to perform a channel scan.
Step 3. The scan process is indicated by a progress bar at the bottom of the screen.
NOTE: The channel scan process may take several minutes to complete.
Step 4. When the scan process is complete, the number of found channels will be displayed. Press the “Done” button
to access the list of available channels .
Scanning Process Screen
Scanning Complete Screen
Channel Scanning Screen
Operation Instructions
128-9250a WIDTV1 MobileTV User's Guide APPLE 11 26 2013.indd 13 11/26/2013 11:26:27 AM

Location
Select the Location button to set the current location of the Apple® iPhone® or iPad®. The date will be displayed to the
right of the location stored. Tap on the blue arrow to view details of the location stored.
Device Sub Menu
Sleep Timer
Select the Sleep Timer button to set the amount of time the Audiovox mobiletv with DyleTM TV app will remain ON while
not in use before shutting OFF. The user can set the Sleep Timer to 5, 10, 30 minute increments or never.
Sleep Timer Screen
Stored Location Screen Stored Location Detail Screen
Stored Location Channel List Screen
Operation Instructions
12
128-9250a WIDTV1 MobileTV User's Guide APPLE 11 26 2013.indd 14 11/26/2013 11:26:27 AM

Battery
This tab displays the state of the internal battery of the AudiovoxWIDTV1 Mobile TV Receiver. A battery icon is displayed
on the right side of the tab indicating the remaining battery life (full, half full or in need of charging).
Info
Select the Info button to view the Firmware, Version, Tuner Type and MAC Address. There is also Reset button to return
to factory default settings.
App Sub Menu
Play Audio In Backround
This feature allows the user to continue listening to the audio of the selected program while using other applications
on the Apple® iPhone® or iPad®. Select OFF and the backround audio will be disabled once the user presses the Home
button on the Apple® iPhone® or iPad® Select ON and the background audio will play after pressing the Home button
on the Apple® iPhone® or iPad®
About
Select the About button to view information about Audiovox mobiletv with DyleTM TV app .
Play Audio In Backround OFF(default) Screen Play Audio In Backround ON Screen
Operation Instructions
13
128-9250a WIDTV1 MobileTV User's Guide APPLE 11 26 2013.indd 15 11/26/2013 11:26:28 AM

14
Cannot connect to WIDTV1’s Wi-Fi®
• Turn OFF the WIDTV1 Mobile TV Receiver and then turn it ON again.
• Go to the network manager in your phone or tablet and search for the “ Audiov ox MobileTV xxxxxx”network.
• Makesurethatthemobiledeviceisnotinight/airplanemode.
Poor Image Quality
• Try to improve the antenna location (near a window if possible).
• Scan for available stations with strong signals again.
Application is stuck or is not working
a. Close the Audiovox mobiletv with DyleTM TV app
b. Turn the WIDTV1 Mobile TV Receiver OFF
c. Turn the WIDTV1 Mobile TV Receiver ON and reconnect to the Wi-Fi® network
d. Open the Audiovox mobiletv with DyleTM TV app again
Scan did not locate a TV channel
• Try to improve the antenna location (near a window if possible).
• For up-to-date information on what stations may be available in your area, please visit www.dyle.tv/coverage-map.
“No Content” message appears
• Ensure that the Apple® iPhone® or iPad® or tablet is within the Wi-Fi® range of the WIDTV1 Mobile TV Receiver.
• Try to improve the antenna location (near a window if possible).
• For up-to-date information on what stations may be available in your area, please visit www.dyle.tv/coverage-map.
Application does not recognize the device
• Close the application, turn the WIDTV1 Mobile TV Receiver OFF and back ON, reconnect to the Wi-Fi® and open the
application again
While using WIDTV1 Mobile TV Receiver, TV reception suddenly stops
• Make sure that the blue LED is ON
• If it is not on, this means that the battery is either empty or has only 10 more minutes of operation; charge the battery
until the red charging LED turns OFF.
NOTES:
a. Reception inside buildings may be sub-optimal; it is recommended that the WIDTV1 Mobile TV Receiver is placed near a
window.
b. Application may ask for a “Firmware Upgrade”. If asked, accept request. WIDTV1 Mobile TV Receiver will reboot and
when complete.
c. The WIDTV1 Mobile TV Receiver can only be used with one smartphone or tablet at a time. It is recommended to
“Forget” the Audiovox MobileTV network on original device Wi-Fi® manager before connecting the WIDTV1 Mobile TV
Receiver to another device.
TROUBLESHOOTING
Troubleshooting
128-9250a WIDTV1 MobileTV User's Guide APPLE 11 26 2013.indd 16 11/26/2013 11:26:28 AM

15
AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should
this product under normal use and conditions, be proven defective in material or workmanship within 12 months from
the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company’s
option) without charge for parts and repair labor.
To obtain repair or replacement within the terms of this Warranty, the product is to be delivered with proof of warranty
coverage (e.g. dated bill of sale), specication of defect(s), transportation prepaid, to the Company at the address
shown below.
This Warranty does not extend to the elimination of externally generated static or noise, batteries or to costs incurred
for installation, removal or reinstallation of the product. The warranty does not include damage to the vehicle’s electrical
system, audio/visual devices, speakers or accessories. The warranty does not cover damage caused by environmental
or abnormal conditions or changes necessitated by modication of the service provider.
The Company does not warrant that this product cannot be compromised or circumvented. THE EXTENT OF THE
COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED
ABOVE AND, IN NO EVENT SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY THE
PURCHASER FOR THE PRODUCT WITHOUT INSTALLATION LABOR.
This Warranty is in lieu of all other express warranties or liabilities.
ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE
DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR
BREACH OF ANY WARRANTY HEREUNDER INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE MUST BE BROUGHT WITH IN A PERIOD OF 12 MONTHS FROM DATE OF
ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY
OTHER WARRANTY. No person or representative is authorized to assume for the Company any
liability other than expressed herein in connection with the sale of this product.
THE COMPANY DOES NOT PROVIDE AND THIS WARRANTY DOES NOT
EXTEND TO ANY BROADCAST TELEVISION SERVICE. THE COMPANY DOES NOT ASSUME
RESPONSIBILITY FOR ANY BROADCAST SERVICE INCLUDING THAT OF DYLE TV OR TO ANY
DOWNLOADABLEAPPLICATIONSBYSIANO, DYLETV, OR OTHERS. PURCHASERACCEPTSANDASSUMES FULL
RESPONSIBILITY FOR SUCH SERVICES.
Some states do not allow limitations on how long an implied
warranty lasts or the exclusion or limitation of incidental or consequential
damage so the above limitations or exclusions may not apply to you. This Warranty gives you specic legal rights
and you may also have other rights which vary from state to state.
12 MONTH LIMITED WARRANTY
Applies to Audiovox Mobile TV Receiver
128-9248
Audiovox Electronics Corporation, 150 Marcus Blvd., Hauppauge, New York 11788 - 1-800-645-4994
Warranty
128-9250a WIDTV1 MobileTV User's Guide APPLE 11 26 2013.indd 17 11/26/2013 11:26:29 AM

128-9250a
ww
w.audiovoxproducts.com
© 2013 AUDIOVOX,150 Marcus Blvd. Hauppauge, NY 11788
128-9250a WIDTV1 MobileTV User's Guide APPLE 11 26 2013.indd 18 11/26/2013 11:26:29 AM
