USER’S
MANUAL
rev. 2.0
Valid for any of the below software versions
or above:
• Control Firmware 2.0
• Media Firmware 2.0
• Android APP. 2.0
• IOS APP 2.0
2
USER’S MANUAL bit Play HD /
Index
1. bit Play HD - bit Play HD SSD DESCRIPTION......................................................................................................................3
1.1 SAFETY CONSIDERATIONS ................................................................................................................................................3
1.2 PACKAGING CONTENT ........................................................................................................................................................4
1.3 DIMENSIONS AND FASTENING .........................................................................................................................................5
2. DESCRIPTION OF THE CONNECTION PANELS ..................................................................................................................6
3. REMOTE DESCRIPTION ............................................................................................................................................................9
3.1 ARC (Advance Remote Control) REMOTE........................................................................................................................9
3.2 USR (User Remote Control) REMOTE............................................................................................................................ 10
3.3 DRC MP Remote control (optional) ................................................................................................................................ 11
3.3.1 NAVI COMMAND ...................................................................................................................................................... 11
3.3.2 BIT PLAY HD SETTINGS ......................................................................................................................................... 11
4 CONNECTIONS......................................................................................................................................................................... 12

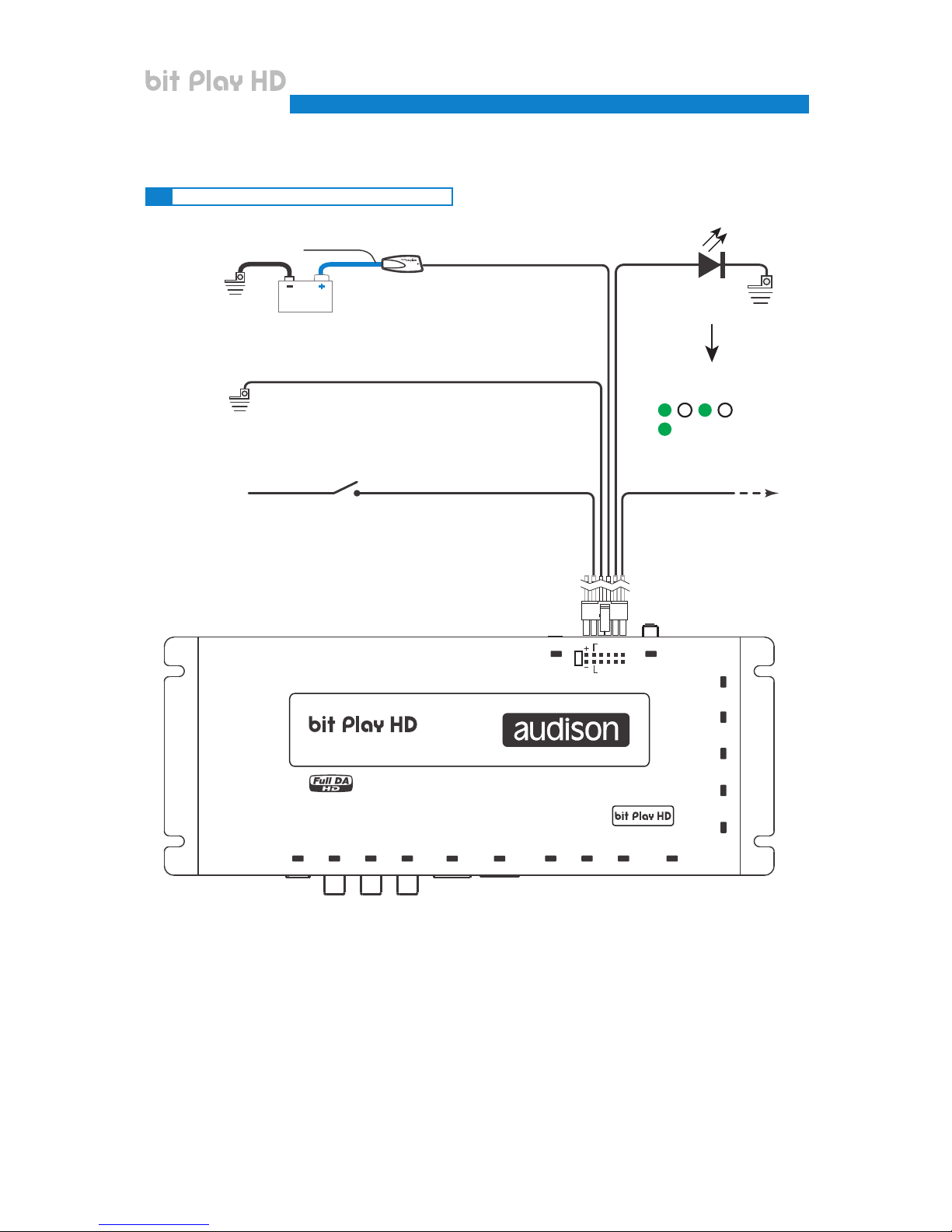

4.1 POWER SUPPLY AND REMOTE CONTROL................................................................................................................... 12

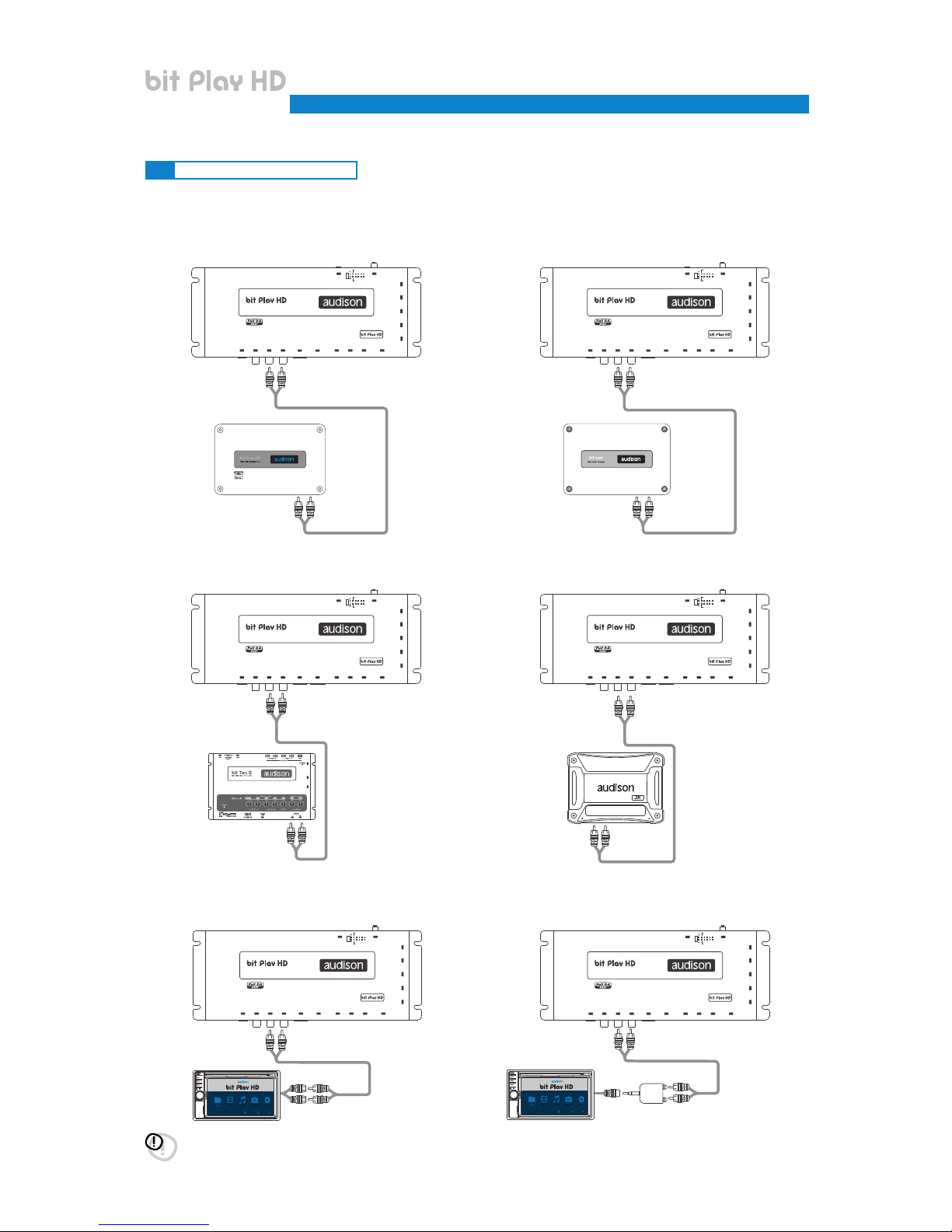

4.2 AUDIO OUTPUT SIGNALS ................................................................................................................................................ 13
4.2.1 ANALOG OUTPUT SIGNALS................................................................................................................................... 13
4.2.2 S/PDIF DIGITAL OUTPUT SIGNALS ..................................................................................................................... 14
4.2.3 S/PDIF DIGITAL OUTPUT SIGNALS WITH HI-DEFINITION VOLUME CONTROL ........................................ 15
4.2.4 HOW TO CONNECT THE bit Play HD TO THE AUDISON bit DMI .................................................................... 16
4.3 VIDEO OUTPUT SIGNALS................................................................................................................................................. 17
4.3.1 COMPOSITE VIDEO SIGNAL................................................................................................................................... 17
4.3.2 HDMI VIDEO SIGNAL .............................................................................................................................................. 17
4.4 AUX/OPTICAL INPUT AUTO SWITCH ........................................................................................................................... 18
4.5 STORAGE DEVICES/EXTERNAL FILE READING ......................................................................................................... 20
4.6 INFRARED RECEIVER ........................................................................................................................................................ 21
4.7 Wi-Fi AND MOBILE DEVICES .......................................................................................................................................... 21
5 HOW TO USE THE bit Play HD WITH AN EXTERNAL MONITOR ................................................................................. 22
6 HOW TO USE THE bit Play HD ON MOBILE DEVICES .................................................................................................... 24
6.1 ANDROID DEVICES ............................................................................................................................................................ 24
6.1.1 DOWNLOAD THE AUDISON bit Play HD APP from PLAY STORE ................................................................... 24
6.1.2 ANDROID DEVICES SETUP..................................................................................................................................... 25
6.1.3 AUDISON APP FOR ANDROID................................................................................................................................ 33
6.2 APPLE IOS DEVICES .......................................................................................................................................................... 38
6.2.1 DOWNLOAD THE AUDISON bit Play HD APP from APP STORE ..................................................................... 38
6.2.2 Apple DEVICES SETUP ............................................................................................................................................ 38
6.2.3 AUDISON APP FOR IOS........................................................................................................................................... 42
6.2.4 AIRPLAY ..................................................................................................................................................................... 47
7 MAIN SYSTEM SETTINGS..................................................................................................................................................... 48
7.1 INTERNAL HDD INSTALLATION......................................................................................................................................48
7.1.1 INTERNAL HDD FORMAT ....................................................................................................................................... 49
7.2 EXTERNAL MONITOR GRAPHIC RESOLUTION ........................................................................................................... 50
7.3 SELECT SYSTEM LANGUAGE.......................................................................................................................................... 51
7.4 SELECT AUDIO/VIDEO LANGUAGE ................................................................................................................................ 51
7.5 RESTORING FACTORY SETTINGS.................................................................................................................................. 52
8 TROUBLESHOOTING .............................................................................................................................................................. 53
8.1 MEDIA FIRMWARE UPGRADE ......................................................................................................................................... 53
8.2 CONTROL FIRMWARE UPGRADE................................................................................................................................... 53
8.3 FAQ ...................................................................................................................................................................................... 55
9 TECHNICAL SPECIFICATIONS ............................................................................................................................................. 59
3
1. BIT PLAY HD - BIT PLAY HD SSD DESCRIPTION
1. For the safety of the driver and third parties, the driver should not watch any video and/or operate the controls of
the device while driving. While driving, we also recommend to adjust the volume to a level that allows you to hear
sounds from outside the vehicle. The law prohibits the display and use of video while driving. For this reason, the
unit is equipped with a function that inhibits the viewing of such content, unless the car is parked and the parking
brake is engaged (see sections 2.1 and 4.3). We accept no responsibility if you choose to ignore this warning and
do not install the product correctly to inhibit video content while in motion.
2. Operate the bit Play HD only when the internal temperature is between 0°C (32°F) and 55°C (131°F). The bit Play HD
must be a minimum of 3 cm (1.5”) from other structures and there must be good air circulation around the chassis.
3. Make sure your car has a 12VDC negative ground.
4. Make sure the location you choosefor the product andits accessories does not affect the vehicle’s othermechanical
and electrical devices.
5. Make sure the power cable does not short circuit during installation and connection.
6. Use extreme caution when cutting or drilling the car chassis, checking that there is no electrical wiring or structural
elements underneath.
7. Use rubber grommets to protect wires running through holes in metal and use proper materials if close to
heat-generating devices.
8. Make sure all the cables are properly secured along their entire length. Also, make sure their outer protective jacket
is flame resistant and self-extinguishing. Secure the wiring near the terminals.
SAFE SOUND
Use common sense while listening; long exposure to excessive sound levels may damage your hearing. Safety while
driving must always come rst.
1.1 SAFETY CONSIDERATIONS
USER’S MANUAL bit Play HD /
1
4
1.2 PACKAGING CONTENT
-bit Play HD:
-2,5” SATA 250GB SSD HARD DISK (only for the bit Play HD SSD):
-NR. 4 Hard Disk assembling/fastening screws (only for the bit Play HD):
-Input/Rem cable with multi-pin connector:
-2 m. (79 in.) USB extension cable:
-5 m. (196 in.) infrared receiver cable:
-Wi-Fi USB dongle:
-ARC remote (Advanced Remote Control):
-USR remote (User Remote Control):
-1m (40 in.) AC-LINK (RJ12) cable
-NR. 1 (3A) replacement fuse:
-NR. 4 4.2 x 20 mm crosshead self-tapping fastening screws:
-Quick Start Guide:
-Warranty:
USER’S MANUAL bit Play HD /
3 A
1
5

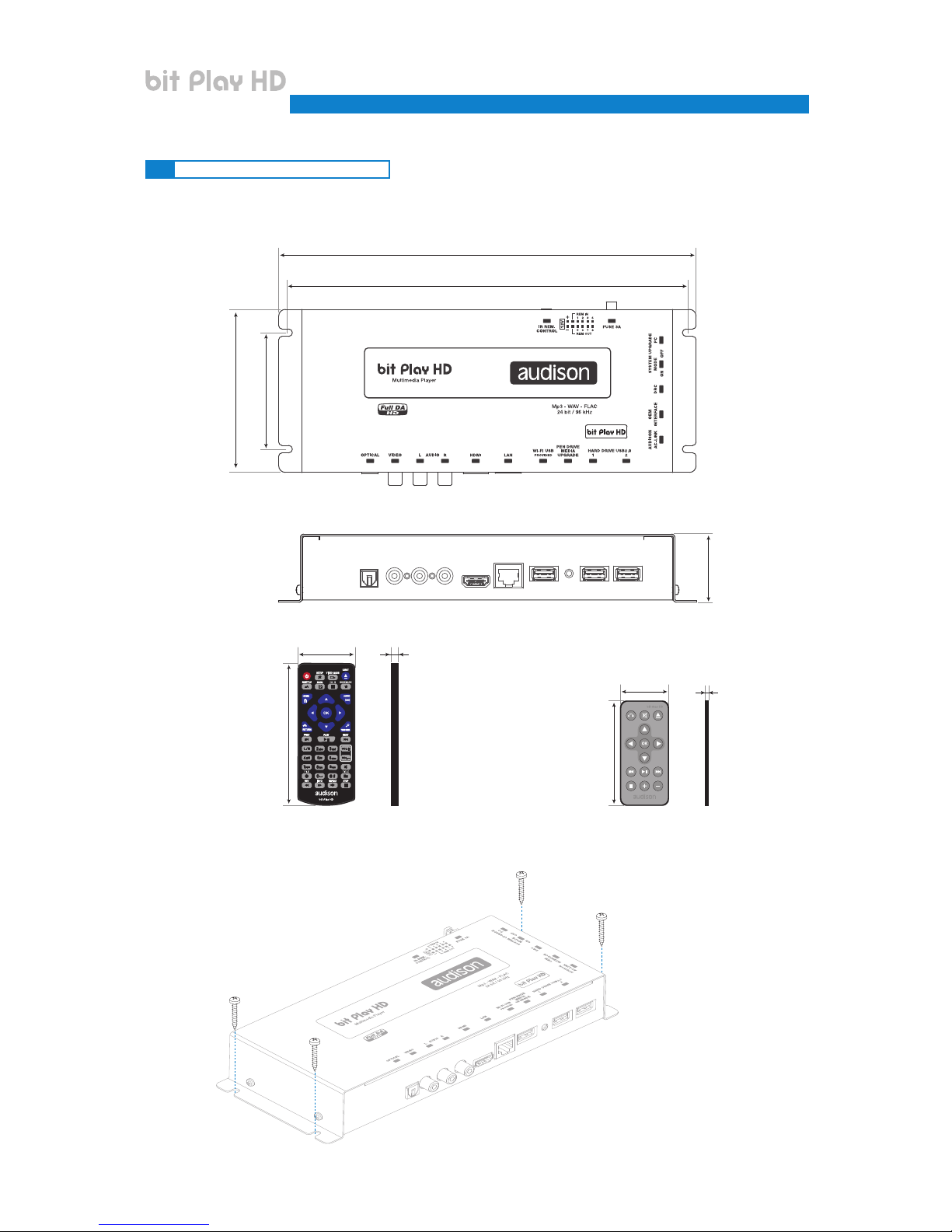

1.3 DIMENSIONS AND FASTENING
Fastening:
Dimensions:
249 mm (9.80 in.)
70 mm (2.76 in.)
98 mm (3.86 in.)
41 mm (1.61 in.)
239 mm (9.4 in.)
ARC Advanced Remote Control USR User Remote Control
47 mm (1.85 in.)
40 mm (1.57 in.) 8 mm (0.31 in.)
85 mm (3.34 in.)
15 mm (0.59 in.)
115 mm (4.52 in.)
USER’S MANUAL bit Play HD /
4,2 x 20 mm (0,16 x 0.78 in.)
1
6
2. DESCRIPTION OF THE CONNECTION PANELS
The bit Play HD comes with a 12-pin multi-pin connector through which you can manage the power and different
control connections.
A+12 VOLT - RED: 12V positive connection terminal from the car power supply.
B -12 VOLT GROUND - BLACK: negative power connection terminal (GND).
C REMOTE IN - BLUE: input to turn on the bit Play HD through the audio signal source Remote Out
D BRAKE - GREEN: this terminal prevents viewing video contents while driving. Connect this terminal to the
parking brake on the power supply side, and the “1A MONITOR” terminal to the power or consent terminal
to enable the monitor used.
E 1A MONITOR - ORANGE: consent terminal to enable the external monitor. This terminal reaches +12V
when the vehicle parking brake is engaged. The 1A MONITOR terminal can be connected to the power
consent terminal of the external monitor or directly to the power supply (MAX. 1 A).
USER’S MANUAL bit Play HD /
3
98764 5
1
1
2
15
12
10 11
16 13
14
A G
H
I
B
C
D
E
F
STATUS LED
Pink
Blue/White
LED
+12 Volt
Ground
REMOTE OUT
White
+ DSWC IN
White
- DSWC IN
Gray
+ DSWC OUT
Gray
Orange
Green
Blue
Black
Red
Brown
- DSWC OUT
REM IN
Amplifier
Steering
wheel
control
external
interface
FUSE HOLDER
Not provided.
Suggested fuse
3 A delayed
Ground
+ 12 V
Ground
Ground
BRAKE
REMOTE IN
GROUND
1 A Monitor
OPTICAL / AUX SEL
FRONT VIEW
Battery
Max 20 cm / 7.5 in.
COLOUR DESCRIPTION
1: red +12V
2: blue REM IN
3: green BRAKE
4: brown + OPTICAL/AUX SEL
5: white +D SWC IN
6: gray +D SWC OUT
7: black -12V
8: blue/white REM OUT
9: orange +1A MONITOR
10: pink + STATUS LED
11: white -D SWC IN
12: gray -D SWC OUT
+12V 1
REM IN 2
BRAKE 3
OPTICAL
AUX SEL 4
+ DSWC IN 5
+ DSWC OUT 6
7 - 12V
8 REM OUT
9 + 1A MONITOR
10 + STATUS LED
11 - DWSC IN
12 - DWSC OUT
2
7
F OPTICAL/AUX SEL BROWN: this terminal can be used for AUX and OPTICAL IN on the products with
OPTICAL/SEL AUX SEL activation input.
G STATUS LED PINK: connect a LED (not supplied) as shown in the gure (optional). This LED duplicates
the one in the infrared receiver sensor (see section 2). If the LED flashes, the product is processing information
and is not ready, while if it starts normally the bit Play HD is ready for use.
HREMOTE OUT - BLUE/WHITE: output to remotely control other devices/ampliers connected to the bit Play HD.
After turning on, the device takes 2 seconds to output the REM OUT signal. This output has a current
capacity of 130 mA.
ISTEERING WHEEL CONTROL: terminals for future use.
IR REM CONTROL: connector for the infrared receiver of the bit Play HD remote controls supplied with the
product. Point the remote at the sensor from within 2 meters (see sections 3.1 and 3.2). The sensor incorporates a
green status LED. If the LED flashes, the product is processing information and is not ready. If it starts
normally, the bit Play HD is ready for use.
FUSE: blade 3A protection fuse. If you need to replace the fuse, use only the same type and value of the original.
OPTICAL: connect a bre optic cable with a TOSLINK connector to a processor or Audison amplier with S/PDIF
optical input. In this way, you create a Full DA system capable of achieving a new quality benchmark that goes
well beyond the CD standard, since you can play FLAC encoded audio les up to 24 bit/96 kHz. This output is
subject to volume control via the remote or APP for mobile devices (see section 6.).
VIDEO: composite video output for an external monitor, 75-Ohm impedance. Connect an RCA male cable with
75-Ohm impedance to an external monitor. The external display is enabled by connecting the consent
terminal (active at +12V) to the power supply of the monitor (Max. Consumption 1A) or to the appropriate
monitor terminal. Default resolution set to 480P; to modify the video resolution see section 7.2.
INFRARED RECEIVER
STATUS LED
bit Play HD OPERATE
... WAIT
WARNING: if you choose to use the bit Play HD using the APP, the management via remote control may be disabled.
USER’S MANUAL bit Play HD /
2
3
4
5
3A
2
8
AUDIO L-R: stereo output. Analog connection for a processor or amplier. The output volume is controlled via
the remote (see sections 3.1 and 3.2) or Android App for mobile devices.
LAN: plug not enabled, used for future applications.
HDMI: HDMI video output for high denition external monitors. External display is enabled by connecting the
consent terminal (active at +12V) to the power supply of the monitor (Max. Consumption 1A) or to the
appropriate monitor terminal. To modify the video resolution see section 7.2
Wi-Fi USB: USB plug to connect the Wi-Fi DONGLE and interface with external mobile devices (see section 6).
PEN DRIVE MEDIA UPGRADE: button to enable bit Play HD rmware updates (see section 8.1).
HARD DRIVE USB 2.0: USB plugs to connect external data storage devices (Hard Disk, Pen Drive, DVD ROM ...).
Compatible storage device formats: FAT 32, NTFS, HFS+, EXT 3.
AUDISON AC-LINK: connection plug to control the volume of Audison processors with an AC LINK connection.
By connecting the AC LINK cable and the DRC to the bit Play HD, it is possible to build a system with
High Denition volume control (see section 4.2.3).
OEM INTERFACE: plug not enabled, used for future applications.
DRC: connection to remotely control the DRC volume (OPTIONAL) of the bit Play HD (see section 12).
SYSTEM UPGRADE: switch to enable bit Play HD rmware updates (see section 8.2).
WARNING: Audison assumes no responsibility for the loss of data from USB storage devices connected to the bit Play HD.
To prevent malfunction or damage, please observe the following:
- Do not disconnect USB devices while copying or executing a le.
-Carefully read the manual of the USB mass storage device used.
-Do not touch the USB terminals with your hands or metal objects.
-Do not strike the USB mass storage device.
-Do not modify or disassemble the USB mass storage device.
- Use only certied USB mass storage devices.
Avoid using and storing USB mass memories in the following places:
-In a car exposed to direct sunlight or high temperatures.
-In damp areas or near corrosive substances.
WARNING: for the USB memory device to work properly, the folders it includes must not contain more than 99 les.
Make sure the music tracks are divided into folders according to their extension (mp3, Wav, Flac), with special
attention to not include les that are not supported by the bit Play HD.
USER’S MANUAL bit Play HD /
6
8
7
9
10
11
12
13
14
15
STATUS LOGO: the bit Play HD incorporates an internal control that manages the state of the product;
The BLUE logo indicates:
the bit Play HD is on.
The flashing RED logo indicates:
the “UPGRADE MODE” switch is “ON”; the product is ready for rmware updates.
The flashing BLUE logo indicates:
the “UPGRADE MODE” switch is “ON”; the product rmware is updating.
16
2
9
3 REMOTE DESCRIPTION
3.1 ARC (Advanced Remote Control) REMOTE
1. SETUP:
open the Settings Menu.
13. FWD: fast-forward Audio/
Video tracks.
2. POWER:
bit Play HD power on/off.
14. REV: rewind Audio/Video
tracks.
3. SUBTITLE:
select Video subtitle language.
15. VIDEO MODE: change the
video resolution.
4. ZOOM:
zoom in Video mode.
16. EJECT: extract DVD from
the external player if installed.
5. HOME:
go to the main menu.
17. 16:9:
select 16:9 video format.
6. CURSORS: navigate the bit
Play HD internal menus.
18. BOOKMARK:
bookmark function.
7. RETURN: return to the
previous menu.
19. AUDIO:
select Video audio language.
8. PREV: select previous
Audio/Video tracks.
20. TIME SEEK:
seek rendering time.
9. PLAY/PAUSE: audio/Video
track Play/Pause.
21. VOLUME:
VOL+ -> increase volume.
VOL- -> decrease volume.
10. NEXT:
select next Audio/Video track.
22. MUTE:
audio muting.
11. ALPHA NUMERIC
KEYBOARD: alpha numeric
interface keyboard.
23. TITLE: show the title of the
current le.
12. FILE: transfer le key.24. STOP:
stop Audio/Video tracks.
25. REPEAT
repeat Audio/Video tracks.
NOTES ON USING THE REMOTE.
1. Point the remote at the bit Play HD control infrared sensor
which can receive input at 30° in all directions.
2. Remove the batteries if you will not be using the remote
for more than a month.
3. Do not store the remote in a place subject to direct sunlight
or near heat sources.
4. The remote batteries last 6 months under normal use. If the
remote does not work, replace the batteries.
5. Use only AAA 1.5 V batteries.
6. Do not recharge, disassemble, heat or expose the batteries
to heat.
7. Insert the batteries in the remote with the correct polarity
(+) and (-).
8. Keep the batteries and the remote control out of the reach
of children.
*WARNING: AAA batteries not included in the package.
*
USER’S MANUAL bit Play HD /
1
7
4
2
8
5
3
11
15
16
18
17
19
20
9
10
21
22
23
24
25
12
14
13
6
INSERT THE
BATTERIES.
Remove the back
cover. Insert the
AAA batteries with
the correct polarity
(+) and (-). Close
the cover.
REMOVE THE
BATTERIES.
Remove the back
cover. Remove
the batteries and
replace them if
necessary. Close
the cover.
3
10
3.2 USR (User Remote Control) REMOTE
1. MUTE: enable / disable Audio muting.
2. RETURN: return to the previous menu.
3. CURSORS: cursors to navigate the menu.
4. PLAY/PAUSE: Audio/Video track Play/Pause.
5. PREV: select previous track.
6. NEXT: select next track.
7. STOP: stop Audio/Video tracks.
8. EJECT: extract DVD from the external player if installed.
9. VOLUME -: decrease audio volume.
10. VOLUME +: increase audio volume.
NOTES ON USING THE REMOTE.
1. Point the remote at the bit Play HD control infrared sensor
which can receive input at 30° in all directions.
2. Remove the battery if you will not be using the remote for
more than a month.
3. Do not store the remote in a place subject to direct sunlight
or near heat sources.
4. The remote battery last 6 months under normal use. If the
remote does not work, replace the battery.
5. Use only coin CR 2025 3 V batteries.
6. Do not recharge, disassemble, heat or expose the battery
to heat.
7. Insert the battery in the remote with the correct polarity
(+) and (-).
8. Keep the battery and the remote control out of the reach
of children.
INSERT THE
BATTERY.
Slide the back
cover downwards.
Insert the CR2025
3 V battery with the
correct polarity
(+) and (-).
Close the cover
REMOVE THE
BATTERY.
Slide the back
cover downwards.
Remove the
battery and
replace it if
necessary.
Close the cover.
*
1 8
4 6
2
5 9
3
106
*WARNING: CR2025 battery not included in the package.
USER’S MANUAL bit Play HD /
3
11
3.3 DRC MP REMOTE CONTROL (Optional)
When the DRC MP is connected to an Audison bit Play HD
(see section 4.2.3)
, the DRC MP “Navi Command” function is
enabled. When activated, the player menu can be browsed with the use of the multi-function Joystick and the available
keys, like when using the remote control.
This menu enables the user to set the time for the player stand-by
mode, after the turn off signal has been sent to the “Remote-In”. By
default it is set to fteen minutes, but it can be set to 1 to 60 minutes or
disabled. This function ensures that the bit Play HD restart time drops
to zero in case of temporary lack of power supply (i.e. start&stop
vehicles or similar), pausing the tracks being reproduced and starting
them again when the ignition is on.
3.3.1 NAVI COMMAND
3.3.2 BIT PLAY HD SETTINGS
Press to go back to main Menu
Press to activate
NAVI COMMAND
menu
Available only with
bit Play HD connected
3 sec
3 sec
“bit Play HD” menu active
NEXT TRACK
PLAY; PAUSE
STOP
PREV TRACK
By enabling the Navi Command function through the DRC MP, it is
possible to interact with the bit Play HD connected to the system.
With this menu it is possible to operate in the same way as with the
remote control supplied with the bit Play HD, to access all the main
navigation menu features through the DRC MP joystick.
Menu
Left
Menu Down
ESC ENTER
Volume -
Menu
Right
Volume +
+
-
Menu UP
Press ESC to go back to main Menu
USER’S MANUAL bit Play HD /
3
12
4. CONNECTIONS
4.1 POWER SUPPLY AND REMOTE CONTROL
TURN THE bit Play HD ON AND OFF
The bit Play HD is on when the logo on the top cover turns blue. You can turn it on/off by connecting the Remote In
terminal to an external source or the car subkey terminal.
USER’S MANUAL bit Play HD /
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
STATUS LED
Pink
(optional)
LED
+12 Volt
Ground
Blue
Black
Red
FUSE HOLDER
Not provided.
Suggested fuse
3 A delayed
Ground
+ 12 V
Ground
REMOTE IN
GROUND
Battery
Max 20 cm / 7.5 in.
Blue/White to other
device
REMOTE OUT
LED STATUS
bit Play HD OPERATING
... WAIT
4
13
4.2 AUDIO OUTPUT SIGNALS
4.2.1 ANALOG OUTPUT SIGNALS*
AUX 1/2
AUX
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
PHONE
REM
IN
REM
OUT
12V
KEY
SW
INPUTS
MUTEIN FL FR RRRL
ADLink
ACLink
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
SD
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
SD
PRE IN
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
ANALOG OUTPUT TO
bit One HD AUX INPUTS
ANALOG OUTPUT TO
bit One AUX INPUTS
ANALOG OUTPUT TO
bit Ten AUX INPUTS
ANALOG OUTPUT TO
PRE-AMPLIFIER INPUTS
ANALOG OUTPUT TO
HEAD UNIT RCA AUX INPUT
ANALOG OUTPUT TO
HEAD UNIT RCA AUX INPUT
STEREO
ANALOG OUTPUT
STEREO
ANALOG OUTPUT
STEREO
ANALOG OUTPUT
STEREO
ANALOG OUTPUT
STEREO
ANALOG OUTPUT
STEREO
ANALOG OUTPUT
RCA JACK
ADAPTER
JACK 3.5
AUX INPUT
RCA
AUX INPUT
HEAD UNIT HEAD UNIT
NOT PROVIDED NOT PROVIDED
LL
LL
LL
L
R
LL
LL
LL
RR
RR
RR
RR
RR
RR
*WARNING: volume is controlled by the bit Play HD
USER’S MANUAL bit Play HD /
4
14

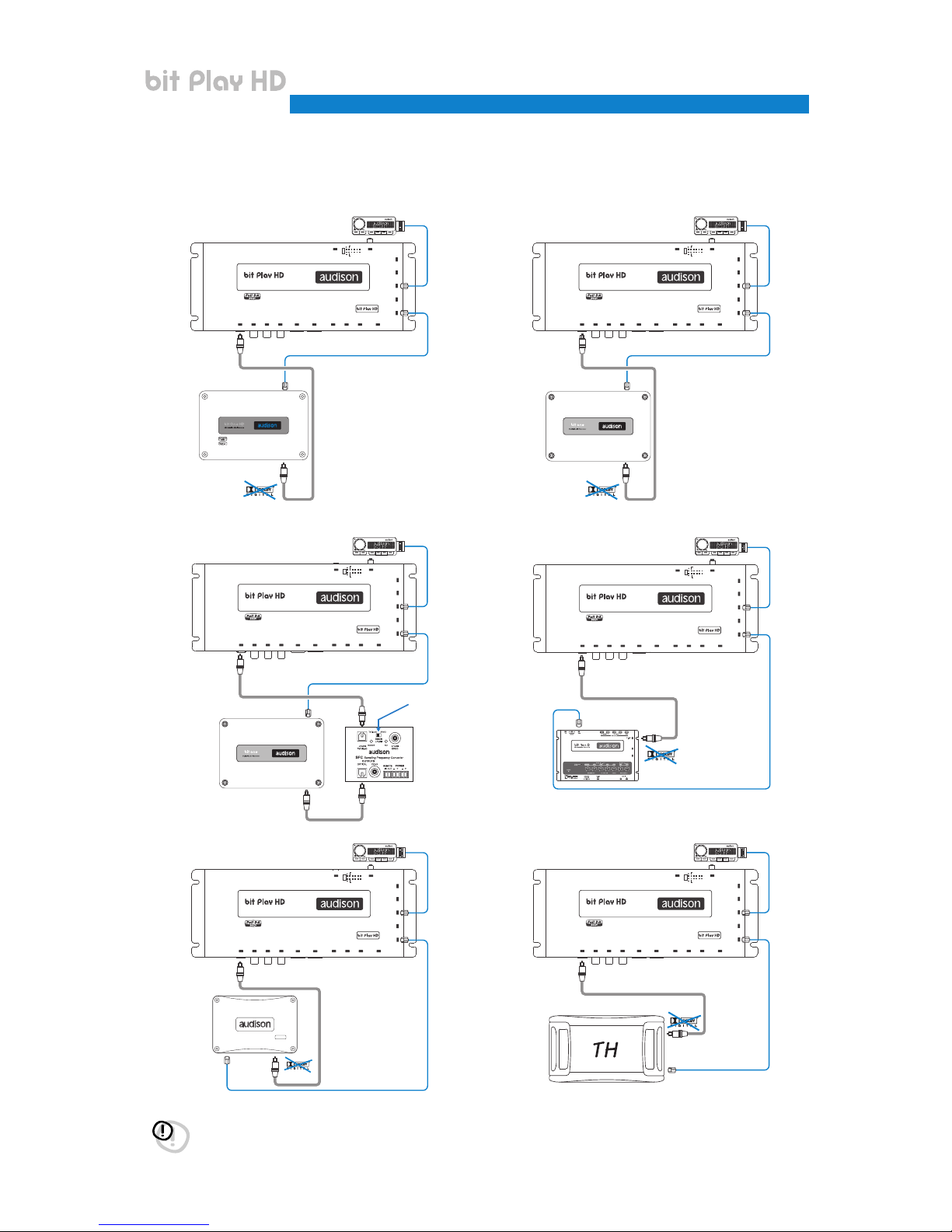

4.2.2 S/PDIF DIGITAL OUTPUT SIGNALS*
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
TOSLINK
Connector
TOSLINK
Connector
Optical fiber
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
TOSLINK
Connector
TOSLINK
Connector
Optical fiber
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
TOSLINK
Connector
TOSLINK
Connector
Optical fiber
set optical INPUT
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
TOSLINK
Connector
TOSLINK
Connector
Optical fiber
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
TOSLINK
Connector
TOSLINK
Connector
Optical fiber
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
TOSLINK
Connector
TOSLINK
Connector
Optical fiber
PHONE
REM
IN
REM
OUT
12V
KEY
SW
INPUTS
MUTEIN FL FR RRRL
ADLink
ACLink
OPTICAL OUT: bit One HD OPTICAL
INPUT, MAX 48KHz / 24 bit
OPTICAL OUT: bit One OPTICAL
INPUT, MAX 48KHz / 24 bit
MAX 48k Hz /24 bit MAX 48k Hz /24 bit
MAX 96k Hz /24 bit
OPTICAL OUT: AP bit Prima OPTICAL
INPUT, MAX 96KHz / 24 bit
OPTICAL OUT: bit One + SFC
OPTICAL INPUT, MAX 96KHz / 24 bit
OPTICAL OUT: bit Ten D OPTICAL
INPUT, MAX 96KHz / 24 bit
OPTICAL OUT: TH AMPLIFIERS
OPTICAL INPUT, MAX 96KHz / 24 bit
MAX 96k Hz /24 bit MAX 96k Hz /24 bit
MAX 96k Hz /24 bit
*WARNING: volume is controlled by the bit Play HD
USER’S MANUAL bit Play HD /
4
15
4.2.3 S/PDIF DIGITAL OUTPUT SIGNALS WITH HI-DEFINITION VOLUME CONTROL
OPTICAL OUT: bit One HD OPTICAL
INPUT, MAX 48KHz / 24 bit
OPTICAL OUT: bit One OPTICAL
INPUT, MAX 48KHz / 24 bit
OPTICAL OUT: AP bit Prima OPTICAL
INPUT, MAX 96KHz / 24 bit
OPTICAL OUT: bit One + SFC OPTICAL
INPUT, MAX 96KHz / 24 bit
OPTICAL OUT: bit Ten D OPTICAL
INPUT, MAX 96KHz / 24 bit
OPTICAL OUT: TH AMPLIFIERS OPTICAL
INPUT, MAX 96KHz / 24 bit
MAX 48k Hz/24 bit
AC LINK cable
AC LINK cable
AC LINK cable
AC LINK cable
AC LINK cable
MAX 96k Hz/24 bit
MAX 96k Hz/24 bit
MAX 96k Hz/24 bit
MAX 96k Hz/24 bit
DRC
MAX 96k Hz/24 bit
*
* *
*
*
DRC
*
DRC
*
DRC
*
DRC
*
DRC
*
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
TOSLINK
Connector
TOSLINK
Connector
Optical fiber
TOSLINK
Connector
TOSLINK
Connector
Optical fiber
PHONE
REM
IN
REM
OUT
12V
KEY
SW
INPUTS
MUTEIN FL FR RRRL
ADLink
ACLink
TOSLINK
Connector
TOSLINK
Connector
Optical fiber
TOSLINK
Connector
TOSLINK
Connector
Optical fiber
set optical INPUT
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
TOSLINK
Connector
TOSLINK
Connector
Optical fiber
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
TOSLINK
Connector
TOSLINK
Connector
Optical fiber
*Set to MAX the bit play HD Volume
*WARNING: connect the AC-LINK cable to the DRC input.
USER’S MANUAL bit Play HD /
4
16
4.2.4 HOW TO CONNECT THE bit Play HD TO THE AUDISON bit DMI
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
TOSLINK
Connector
OPTICAL INPUT
TOSLINK
Connector
TOSLINK
Connector
AP8.9 bit
AP5.9 bit
AP4.9 bit
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
TOSLINK
Connector
TOSLINK
Connector
OPTICAL INPUT
OPTICAL INPUT
TOSLINK
Connector
TOSLINK
Connector
COAXIAL
INPUT
COAXIAL
OUTPUT
TO MOST CHAIN
Optical fiber
set optical INPUT
DigitalMost Interface
MOSTOPTICALOUT POWER
USB
TO MOST CHAIN
DigitalMost Interface
MOSTOPTICALOUT POWER
USB
TO MOST CHAIN
DigitalMost Interface
MOSTOPTICALOUT POWER
USB
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
TOSLINK
Connector
TOSLINK
Connector
OPTICAL INPUT
TOSLINK
Connector
COAXIAL
INPUT
COAXIAL
OUTPUT
TO MOST CHAIN
Optical fiber
set optical INPUT
DigitalMost Interface
MOSTOPTICALOUT POWER
USB
PHONE
REM
IN
REM
OUT
12V
KEY
SW
INPUTS
MUTEIN FL FR RRRL
ADLink
ACLink
bit Play HD + BIT DMI WITH
AUDISON BIT ONE HD PROCESSOR
bit Play HD + BIT DMI WITH
AUDISON BIT ONE PROCESSOR
bit Play HD + BIT DMI WITH
AUDISON BIT TEN D PROCESSOR
bit Play HD + BIT DMI WITH
AUDISON AP BIT PROCESSOR
MAX 96k Hz/24 bit MAX 96k Hz/24 bit
STEREO
ANALOG OUTPUT
STEREO
ANALOG OUTPUT
AUX INPUT AUX INPUT
L
L
L
L
R
R
R
R
USER’S MANUAL bit Play HD /
4
17
4.3 VIDEO OUTPUT SIGNALS
4.3.1 COMPOSITE VIDEO SIGNAL
4.3.2 HDMI VIDEO SIGNAL
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
ORANGE 1A MONITORGREEN GREEN
Ground
BRAKE
Ground
VIDEO IN 75 Ohm
Coax Cable
75 Ohm
Coax Cable
VIDEO IN
VIDEO ENABLE +12V
+ 12 Volt
- GND
MONITOR
Power Supply
OEM HEAD UNIT
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
ORANGE 1A MONITOR
Ground
BRAKE
NOT PROVIDED
75 Ohm
Coax Cable
GREEN
VIDEO IN
VIDEO ENABLE +12V
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
ORANGE 1A MONITOR
Ground
BRAKE
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
ORANGE 1A MONITORGREEN
Ground
BRAKE
Ground
HDMI VIDEO INPUT
+ 12 Volt
- GND
MONITOR
Power Supply
HDMI Cable
SD
After Market Monitor
NOT PROVIDED
After Market Monitor
NOT PROVIDED
After Market Monitor
NOT PROVIDED
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
ORANGE 1A MONITORGREEN GREEN
Ground
BRAKE
Ground
VIDEO IN 75 Ohm
Coax Cable
75 Ohm
Coax Cable
VIDEO IN
VIDEO ENABLE +12V
+ 12 Volt
- GND
MONITOR
Power Supply
OEM HEAD UNIT
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
ORANGE 1A MONITOR
Ground
BRAKE
NOT PROVIDED
75 Ohm
Coax Cable
GREEN
VIDEO IN
VIDEO ENABLE +12V
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
ORANGE 1A MONITOR
Ground
BRAKE
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
ORANGE 1A MONITORGREEN
Ground
BRAKE
Ground
HDMI VIDEO INPUT
+ 12 Volt
- GND
MONITOR
Power Supply
HDMI Cable
SD
After Market Monitor
NOT PROVIDED
After Market Monitor
NOT PROVIDED
After Market Monitor
NOT PROVIDED
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
ORANGE 1A MONITORGREEN GREEN
Ground
BRAKE
Ground
VIDEO IN 75 Ohm
Coax Cable
75 Ohm
Coax Cable
VIDEO IN
VIDEO ENABLE +12V
+ 12 Volt
- GND
MONITOR
Power Supply
OEM HEAD UNIT
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
ORANGE 1A MONITOR
Ground
BRAKE
NOT PROVIDED
75 Ohm
Coax Cable
GREEN
VIDEO IN
VIDEO ENABLE +12V
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
ORANGE 1A MONITOR
Ground
BRAKE
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
ORANGE 1A MONITORGREEN
Ground
BRAKE
Ground
HDMI VIDEO INPUT
+ 12 Volt
- GND
MONITOR
Power Supply
HDMI Cable
SD
After Market Monitor
NOT PROVIDED
After Market Monitor
NOT PROVIDED
After Market Monitor
NOT PROVIDED
USER’S MANUAL bit Play HD /
4
18
4.4 AUX/OPTICAL INPUT AUTO SWITCH
OPTICAL / AUX SEL brown
OPTICAL SEL Pink
Set the terminal with
bit One HD PC software to
activate AUX IN
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
OPTICAL / AUX SEL brown
MUTE IN brown
Set the terminal with
bit Ten D PC software to
activate AUX IN
PHONE
REM
IN
REM
OUT
12 V
KEY
SW
INPUTS
MUTEIN FL FR RRRL
AD Link
AC Link
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
OPTICAL / AUX SEL brown
OPTICAL SEL Pink
Set the terminal with
AP Prima PC software to
activate AUX IN
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
AUX SELECT with bit Bit One HD AUX SELECT with bit Ten D
AUX SELECT with AP bit
STEREO
ANALOG OUTPUT
STEREO
ANALOG OUTPUT
L L
L
L L
L
R R
R
R R
R
AUX AUX
AUX
STEREO
ANALOG OUTPUT
USER’S MANUAL bit Play HD /
4
19
OPTICAL / AUX SEL brown
OPTICAL SEL Pink
Set the terminal with
bit One HD PC software to
activate OPTICAL INPUT
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
TOSLINK
Connector
TOSLINK
Connector
Optical fiber
OPTICAL / AUX SEL brown
OPTICAL SEL Pink
Set the terminal with
AP Prima PC software to
activate OPTICAL INPUT
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
TOSLINK
Connector
TOSLINK
Connector
Optical fiber
OPTICAL / AUX SEL brown
MUTE IN brown
Set the terminal with
bit Ten D PC software to
activate OPTICAL INPUT
PHONE
REM
IN
REM
OUT
12 V
KEY
SW
INPUTS
MUTEIN FL FR RRRL
AD Link
AC Link
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
TOSLINK
Connector
TOSLINK
Connector
Optical fiber
OPTICAL SELECT with bit One HD OPTICAL SELECT with bit Ten D
OPTICAL SELECT with AP bit
USER’S MANUAL bit Play HD /
4
20
4.5 STORAGE DEVICES/EXTERNAL FILE READING
External USB PEN DRIVE
External HARD DISK
External DVD ROM
External SD CARD READER
*WARNING: compatible File Systems:
FAT32; NTFS; HFS+; EXT 3
*WARNING: for the USB memory device to work properly, the folders it includes must not contain more than 99 les. Make sure
the music tracks are divided into folders according to their extension (mp3, Wav, Flac), with special attention to not
include les that are not supported by the bit Play HD.
*
*
*
*
USER’S MANUAL bit Play HD /
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
NOT PROVIDED
NOT PROVIDED
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
NOT PROVIDED
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
NOT PROVIDED
AUDISON
AC-LINK
OEM
INTERFACE DRC
ON OFF
MODE
SYSTEM UPGRADE
PC
IR REM.
CONTROL
FUSE 3A
OPTICAL VIDEO AUDIOL RHDMI
Mp3 - WAV - FLAC
24 bit / 96 kHz
Multimedia Player
LAN
WI-FI USB
PROVIDED 1
HARD DRIVE USB2.0
2
PEN DRIVE
MEDIA
UPGRADE
5 6 7 8
341 2
REM OUT
REM IN
12V
4
This manual suits for next models
1
Table of contents
Other Audison Media Player manuals
