AUGHTDOM SA300 User manual

PORTABLE POWER STATION
Where you are, where power is
PRODUCT MANUAL
（SA300 & SA500 & SA1000）
※It is a portable energy storage power supply, not a toy for children to play.
※Please read the product instructions carefully before using.
※If it is stored for a long time (more than a month), please charge the product to
about 70% of the electricity.
※Do not charge, use or place the product near the source of fire or overheating.
※Products and accessories are subject to change without notice.

1
CATALOG
(1) Spare parts list-------------------------------------------------------------------------------------- 2
(2) Product introduction---------------------------------------------------------------------------- 2~3
(3) Product diagram--------------------------------------------------------------------------------- 4~5
(4) Product parameters---------------------------------------------------------------------------- 5~6
(5) Product protection function--------------------------------------------------------------------- 7
(6) Operating instruction for the products--------------------------------------------------- 7~10
(7) Precaution------------------------------------------------------------------------------------- 11~12
(8) Solution for the common problems------------------------------------------------------ 12~13
(9) Trouble shooting----------------------------------------------------------------------------- 13~14
(10) After-sales service------------------------------------------------------------------------- 14~15

2
1
1. Spare parts list
4
NO.
Name
Accessories description
1
mainframe
SA300, SA500 or SA1000. There are
differences in appearance, as shown in the figure is SA1000.
2
Adapter
Charging products with municipal electricity
3
Power cord
Adapter to connect to city power
4
Car charger cable
12V car charging cable
5
Instructions
Operational Guidance and Warranty Card
2. Product introduction
This product is a portable multi-functional power source that can store energy, and it
is equipped with high-efficiency power lithium-ion battery, safe lithium battery
management system (BMS), high-efficiency energy conversion circuit, and it is
wrapped by high-strength aluminum alloy. After being repeatedly tested and verified
for a long time by R&D team of our company, the product has obtained international
certifications such as CE\FCC\ROHS\PSE\UN38.3. The top design and mature
production control, the products are safe and reliable, which can be powered by solar
power, vehicle power generation, and electric supply charging. The product features
light weight, small volume and high power, which can provide customers with
convenient mobile energy. The main features of the product are:
AC100V~240V/50~60HZ Pure sinusoidal output * 4 (Setting according to national or
regional power standards)
Solar energy MPPT Charging system (Maximum Power Point Tracking)
Automatic Adaptive Adapter for Electric Charging

3
Car charging
12V10A cigarette lighter output
12V5A DC5.5 output port*4
USB-C PD 45W/5~15V output
USB-A QC3.0 18W/5~12V output *2
USB-A 2.4A Intelligent recognition output port*2
Charging the Start Battery of a Vehicle，Auxiliary Start-up Vehicle
90%-97%High conversion efficiency（Reduce heat，Increase actual output energy）
LED High-brightness Display Screen（Real-time power, power, remaining time, etc.）
LED High-brightness Lighting Lamp
BMS Multilevel protection system
Intelligent identification device power, accurate display of remaining usage time
With overcharge, over-discharge, high and low temperature, multilevel over current,
short circuit and other protection functions
Ultra-long cycle life, 800 + cycles
Fanless design，product silence, safer
Waterproof for outdoor. IP rating IP65（Test data from factory laboratory）
Sandblasting oxidation treatment of industrial aluminum alloy shell
Products can meet the demand of power supply for most household appliances, such
as rice cookers, mini - refrigerators, speakers, televisions, mobile phones, computers,
digital cameras, tablet PC, LED lights, emergency lights, outdoor lighting, outdoor
construction, electric tools, pumps, medical equipment, etc. It includes a wide range
of applications, such as rescue and relief work, emergency rescue, first aid,
excavation, decoration, construction, tourism, camping, solar power generation and
other fields.

4
3. Product diagram
3.1 Product function description

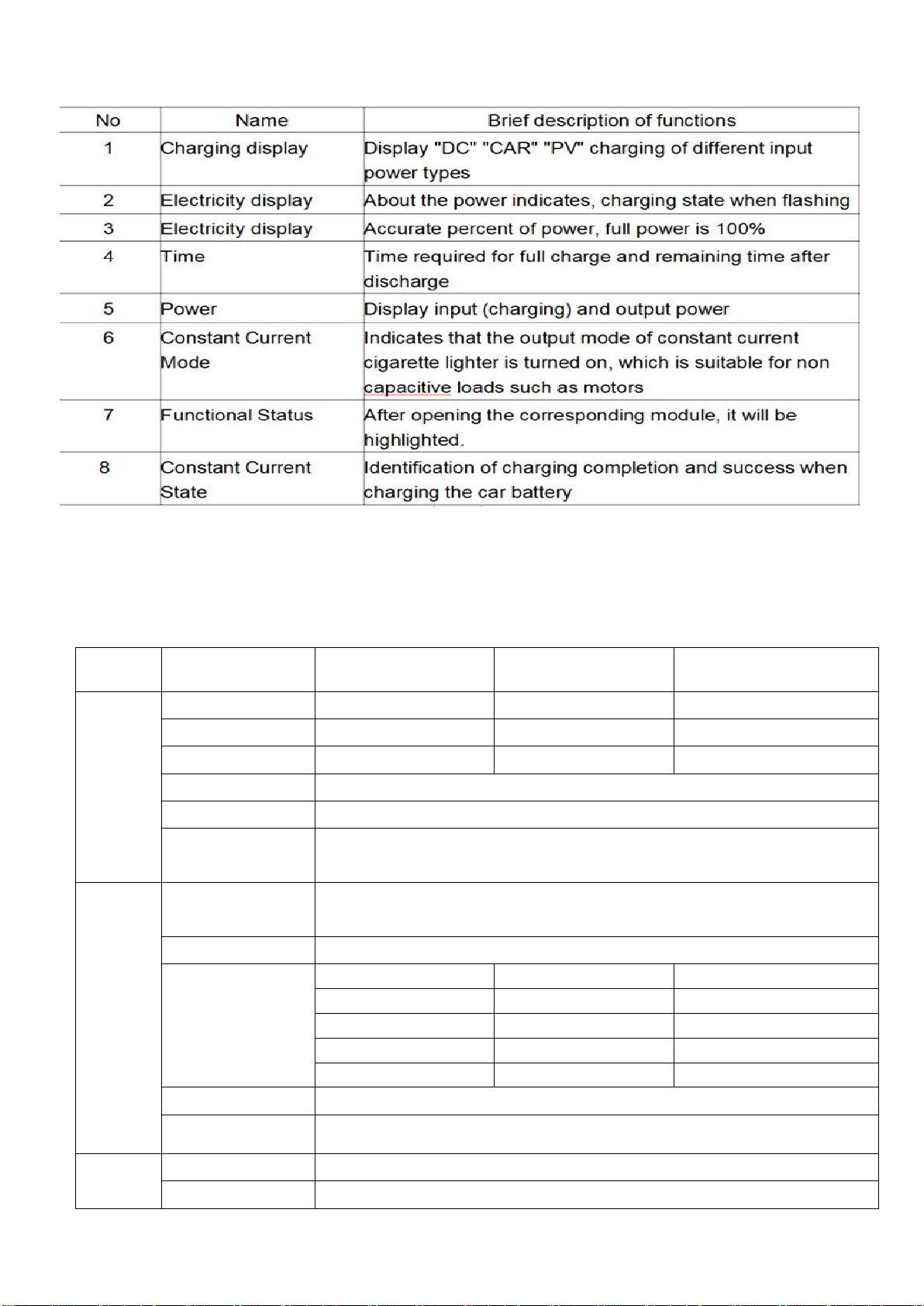

3.2 Display screen description.

5
4. Product parameters
Project
parameter
SA300
SA500
SA1000
Battery
Battery class
Lithium-ion battery
Lithium-ion battery
Lithium-ion battery
Battery power
300Wh
500Wh
1000Wh
Total capacity
83200mAh
135200mAh
270000mAh
voltage
14.8V
cycle life
800cycle
BMS protect
Over pressure, under pressure, high and low temperature, level 3
overcurrent, short circuit protection
AC
output
output voltage
100-240V（According to the factory setting of various countries and
regions）
Output frequency
50-60HZ（Manual switching）
Duration
AC300W about 40 mins
AC500W about 40 mins
AC1000W about 40 mins
AC200W about 65 mins
AC400W about 65 mins
AC800W about 60 mins
AC100W about 85 mins
AC300W about 85 mins
AC500W about 100 mins
AC50W about 130 mins
AC200W about 130 mins
AC300W about 160 mins
AC100W about 270 mins
AC100W about 540 mins
waveform
pure sine wave
Cigarette lighter port
70% load ＞90%
DC
output
DC5.5 port
DC12V5A
Cigarette lighter
DC12V10A

6
port
USB
output
USB1
5V2.4A
USB2
5V2.4A
USB3
QC3.0,5-12V,18W(MAX)
PD3.0
50-20V,60W(MAX)
LED
light
Low bright
5W(MAX)（On/SOS/flash light/OFFF）
High bright
10W(MAX)（On/SOS/flash light/OFFF）
Input
/charge
DC（No.1）
18-24V/5A Max120W
18-24V/5A Max120W
18-24V/5A Max120W
USB-C(No.2)
PD 60W Max
PD 60W Max
PD 60W Max
DC（No.6）
12-24V/5A Max120W
12-24V/5A Max120W
12-24V/5A Max120W
Quick charge port
(GX20 on the
back side)
200W Max
200W Max
200W Max
Charge
Adapter（No.1
&No.6）
20V5A about 4h
20V5A about 6h
20V5A about 13h
Car（No. 7）
13V8A about 4h
13V8A about 6h
13V8A about 13h
Quick charge port
（selective
purchasing）
16.8V12A about 2h
16.8V12A about 3h
16.8V12A about 7h
PV（DC No.1
&No.6）
18V100W about 5h
（Ideal sunshine）
18V100W about 8h
（Ideal sunshine）
18V100W about 16h
（Ideal sunshine）
TYPE-C
（No.3）
PD 60W about 6h
PD 60W about 10h
PD 60W about 20h
Dual adapter
（No.1 +No.6）
20V5A+20V5A about
2h
20V5A+20V5A about
3h
20V5A+20V5A about 7h
Dual adapter +
charger charge
20V5A+20V5A+16.8V
12A about 1h
20V5A+20V5A+16.8V
12A about 1.5h
20V5A+20V5A+16.8V12A
About 3h
Adapter+TYPE-C
20V5A+PD 60W
about 2h
20V5A+PD 60W
about 4h
20V5A+PD 60W about
8h
power
consump
tion
Quiescent current
＜100uA
＜100uA
＜100uA
Product
weight
Net weight
4.6KG
6.0KG
11.0KG
Gross weight
6.5KG
8.0KG
13.0KG
Product
volume
Host
200*142*146mm
200*176*146mm
200*294*146mm
Packaging
265*265*210mm
340*295*250mm
450*355*300mm
temperat
ure
Charge
0~40℃（32~104℉）
Dischareg
-20~50℃（-4~122℉）
Storage
-20~45℃（-4~113℉）

7
5. Product function description
Products for multi-functional output power, in order to reduce the waste of "multifunctional"
redundant circuit, we will have some functions for combined design, so more energy saving
and environmental protection, and the combined design will also bring the other side is some
functions used at the same time, the system will take the initiative to reduce power,
reasonable operation normal conditions will not affect the use.Your understanding is to
support our company's "environmental action."
6. Operating instruction for the products
6.1 How to charge
The product has a charging protection function,
and it will automatically stop charging, after the
product is fully charged according to the normal
charging operation. In order to avoid other
unexpected events, it is recommended to
disconnect the charging connection in time after
the product shows it is fully charged. While it is
used, it needs to be charged, if the output power
is less than 100W, the product will be fully
charged gradually according to the internal
battery cell capacity, if the output power is greater
than 100W, the product will slowly use up the
internal battery capacity, and the product can be
used normally after a full charge. The product
features design of one charging interfaces, the
DC5.5 input port in the front side. The Input interface supports adapter charging and solar
panel charging that meets voltage requirements 18V-24V/ 5A Max, car charging 12V/ 8A.
After any charging mode is activated, the last grid of the battery indicator ring will flash.
DC 5521（No.1）
18-24V/5A Max120W
TYPE-C1(No.2)
PD 60W Max
DC 5521（No.6）
12-24V/5A Max120W
Quick charge port
(selective purchasing
16.8V12A 200W Max

8
6.1.1 Solar power charging
Insert the plug of the unfolded solar panel into the “DC input” interface, after charging mode is
activated, the last grid of the battery indicator ring will flash.
The solar panel power is greatly affected by the light, and the generated power will change,
so it can result in the remaining time dynamically changes, which is normal.
6.1.2 Adaptor charging
STEP 1. Insert the adapter AC input plug into the electric supply.
STEP 2. Insert the adapter DC output plug into the “DC input” interface, the last grid of the
battery indicator ring will flash, and the remaining time of fully charging is displayed. when
charging is started, the system will automatically detect the input power, the remaining time
will change dynamically, which is normal.
6.1.3 Vehicle power supply charging
STEP 1. Start the car,
STEP 2. Insert the car charger cable into the car cigar lighter,
STEP 3. Insert the DC end into the "DC input" interface on the front of the product, the last
grid of the battery indicator ring will flash and display the remaining time for full charge.

9
6.1.4 Charge warning
The tank icon will light up and flash when the remaining power is 10%, reminding the userto
charge in time.
6.2 Product output (electricity consumption)
The product has high low voltage, high low temperature, multiple over-current, short circuit
and other protection circuits. If the output is suddenly interrupted, first check whether the
peripheral electrical equipment exceeds the power or short circuit occurs, restart the machine
to check whether there is power. After the power is used up, in order to save the power,
please manually shut down the machine after using, if there is any abnormal phenomenon,
please contact the manufacturer or dealer.
This product is designed with 4 regional function outputs, which are DC area, USB area, AC
area and Light area. Each area is provided with a corresponding button for turning on or off
the function output and all interfaces of the corresponding area. Press and hold the button of
the corresponding area for about 1 second to open all the interfaces of the corresponding
area, and the corresponding button will be lit and it is blue, and press the button again for
about 1 second to shut down all interfaces in the corresponding area. If the button is pressed
for more than 3 seconds during the shutdown process, the entire system will be shut down.
6.2.1 AC output
Press and hold the AC button in the AC area for about 1 second, the AC output will be turned
on, and the AC icon will be displayed on the interface discharging icon on display. In this case,
long press on the AC button for about 1 second, the AC output will be turned off. If the button
is pressed for more than 3S during the shutdown process, the whole system will be shut down.
6.2.2 AC output frequency switching
After the AC output function is turned on, frequency can be switched by pressing twice on AC
switch. Screen display corresponding frequency 50Hz or 60Hz. Automatic memory of last
frequency after shut down.

10
6.2.3 DC area output
Press and hold the DC button for about 1 second to turn on the DC5521 and cigarette lighter
output. The interface discharging icon will display the DC icons on the display. In this case,
long press on the DC button for about 1 second, the DC5521 and cigarette lighter output will
be turned off. If the button is pressed for more than 3S during the shutdown process, the
whole system will be shut down.
6.2.4 USB area output
Press and hold the USB button for about 1 second to turn on the USB-A and USB-C output.
The interface discharging icon will display the USB-A and USB-C icons on the display. In this
case, long press on the USB button for about 1 second, the USB-A and USB-C output will be
turned off. If the button is pressed for more than 3 seconds during the shutdown process, the
whole system will be shut down.
6.2.5 LED lighting
Press and hold the LED button for about 1 second to turn on the LED light, the LED light is
10W with white light. LED icon display on the display screen. When the Light is working,
press and hold the Light button for about 1 second, the Light lighting will be turned off. If the
button is pressed for more than 3 seconds during the shutdown process, the whole system
will be shut down.
6.3 Overheat Protection
When product temperature charge exceeds 45℃or discharge exceeds 60℃, thermometer
icon will light up. Both charging and output are protected and cannot work until the
temperature returns to normal.
6.4 Waterproof function
This product can be used in an application with IP rating of IP65. But considering a prolong
lifespan of electronic product, it is not recommended to use it in wet location.
Note: waterproof test data from factory laboratory.

11
7. Precaution
Please read the precautions that indicate “Danger”, “Warning” and “Caution” levels.
“Danger” indicates it will cause the personal injury.
“Warning” indicates it will happen the dangerous things.
“Caution” indicates it will cause the damage to the product or shorten the service life.
The product outputs high-voltage AC. Please do not insert the hand or hand-held metal
conductor into the AC socket.
Non-professionals should not open the product without authorization to avoid dangerous
things such as electric shock or short circuit.
Do not place the product in a high temperature environment (over 50 degrees Celsius) or
near a fire source.
The product is not a toy for children to play.
Do not use it in a humid environment.
Do not hit or strike the product.
Please read the specific battery charger manual before use.
Do not disassemble the product
Do not use obviously broken product
Please use the original adapter to charge or the adaptor that meets the manufacturer's
specified electrical parameters.
Please select the solar panel according to the electrical parameters specified by the
manufacturer. It is not allowed to charge with solar panels higher than 25V.
Charge the battery cell within the temperature range of 0 to 45 °C, under too low
temperature conditions, it will shorten the cycle life of the battery cell.
On the condition of long-term storage (more than 3 months), it should be stored in a
low-humidity environment without corrosive gas in a half-electrical state at a temperature
of -10 to 35 °C.
If the product emits undesirable smell and heating during charging or storage, stop

12
charging immediately and place it in an open place for long-distance observation. After
confirming the safety, contact the manufacturer or dealer.
This product is a power supply. Please select the corresponding model according to the
power equipment. It is not allowed to use this product with over power or over load.
Do not output the short circuit.
This product is set at the factory according to the voltage standards of different countries.
Before purchasing and using, please consult with the dealer or use the product operating
guide book.
When the power of product runs out, please charge it in time.
Product parts are environmentally friendly and recyclable. Please recycle it according to
local regulations.
In order to save the power of the product, please turn off the power when the poweris
used up, and turn it on again when you use it next time.
If the battery is stored for more than 6 months, please charge and discharge the product
1-2 times in order to extend the service life of battery.
8. Solution for the common problems
Q：If the product has no fan for cooling, is it safe?
A：The products are designed by top designers and use high-performance components.
The products without fan are quieter and safer.
Q：How long can the product be stored?
A：Half or above of the battery, it can be generally stored for 6-12 months. It is
recommended to charge it every three months.
Q：How long does it take to fully charge the product?
A：UAW700 can be charged to 80% in 6 hours with the standard adapter, and it can be
fully charged in about 9 hours; The UAW 1200 can be charged to 80% in 11 hours with
the standard adapter, and it can be fully charged in about 14 hours.
Q：Can it be charged with both solar energy and vehicle power supply at the same time?
A：It can be charged together at the same time, and the charging time will be greatly
shortened.
Q：Can the product be discharged while being charged (output used)?

13
A：This product supports discharging while charging, and it can be used at the same time.
When the output power is greater than the input power, the battery power is slowly
reduced, and when it is reduced to the low battery state, the output is turned off.
Q：Does the product have temperature protection？
A：When it is used in a high temperature environment, if the internal temperature is
higher than 50 °C, the circuit will be turned off for battery safety.
Q：Will the product automatically shut down?
A：After the product is deeply discharged, it will automatically shut down, but under
normal circumstances, after turning on it, it will not automatically sleep for continuous
power supply.
Q：How much discharging capacity of car can be started with this starting function of
product?
A：The product is used to charge the car battery, and then use the original battery to start
the car. If the battery is broken or the circuit is faulty, the car starting function cannot be
used.
9. Trouble Shooting
9.1 There is no response when the product is turned on, and output is unavailable for
DC, USB, AC, and Light.
Solution：
(1) Remove the product load, then charge it for 5-10 minutes and turn it on again.
(2) Please ensure that the product is currently used in the normal temperature.
9.2 The product can be turned on, but the corresponding output interface has no
output (DC, USB, AC).
Solution：
(1) Check if the power of product is too low, if so, please charge it in time.
(2) Check if the power equipment is higher than the output power of the product, which
results in the protection, please remove the load, and turn it on again.
(3) Confirm whether the output of this product meets the power requirements of the electric
device.
(4) Check if there is a short circuit between the output port and the electric device, and then

14
restart the device after removing the device.
(5) Check if the device is used normally on other power sources, if it is used abnormally,
which is caused by incompatibility of certain devices.
9.3 Accidentally shutdown during using product.
Solution：
This product has a built-in real-time monitoring system, which may cause a shutdown due to
starting internal protection system. The events that may cause the protection system to start,
it might be overcharge, over discharge, high temperature, low temperature, over current, and
short circuit. In order to solve the problem quickly, please remove all the electrical equipment,
keep the temperature of product within the normal temperature, and charge the product for
5-10 minutes, also check if there is any fault in the electrical equipment. Then re-start the
product.
9.4 The product cannot be charged.
Solution：
(1) Check if the electrical parameters of charging are within the charging range of this
product.
(2) Check if the current device has started temperature protection because the temperature
is too high or too low.
10. After-sales Service
Warranty Guidelines:
If product failure occurs, please follow the instructions. If you still can't solve the
problem, please contact our after-sales service personnel. When contacting the after-sales
service personnel, please provide the following information: product model, date of
purchasing, contact number, detailed address, description for product failure. Please
cooperate and answer the detailed inquiries from our after-sales service engineers,
including on-site conditions, fault performance status, frequent/incidental accidents, and
incorrect operation procedures, so that our company's after-sales engineers can find out the
reasons and then reply (or guide) the users how to solve product failures. If the problem still
cannot be solved, please contact your dealer.
The warranty period is valid for 12 months from the date of purchase;
During the warranty period, the defects in materials and workmanship and damage
caused by non-artificial reason, the company will provide repair free of charge and
replacement parts, the parts are owned by our company;
During the warranty period, the following conditions cannot be used for free maintenance
services:
Open the product by unauthorized personnel;
Damage to the surface coating and appearance is not covered by the warranty.

15
The user did not follow the instructions.
Failure or damage caused by accidents, man-made, environmental and other factors
(improper operation, collision, unreasonable voltages, dampness.).
The outer packing and accessories of product are not covered by the warranty.
After-sales Service Guarantee Card
Product model
Date of purchase
Buying merchant
Customer address
Contact number
Brief Introduction of
Fault Problems
