GST PSU24-5 User manual

PSU24-5 Intelligent PSU
PSU24-5A Intelligent Network PSU
Installation and Operation Manual
CONTENTS
1 Introduction................................................................................................................1
2 Technical Specifications...........................................................................................1
3 Construction, Installation and Wiring......................................................................1
4 Indicators and Keys...................................................................................................3
5 Maintenance ...............................................................................................................3
6 Troubleshooting.........................................................................................................3
7 Caution........................................................................................................................4

PSU24-5 Intelligent PSU
PSU24-5A Intelligent Network PSU
Installation and Operation Manual
Page 1
1 Introduction
PSU24-5 Intelligent Power Supply Unit (PSU) andPSU24-5AIntelligent Network Power
Supply Unit (PSU) can receive mains power ranged 230VAC, 50Hz. They are built in
with maintenance-free sealed lead acid batteries as standby power. It’s able to output
26.5VDC/5A power with the following features:
Seamless transfer between mains and standby power supply.
Battery rechargeable with temperature compensation. Charging current is 1A.
Maximum battery capacity is 12Ah sealed lead acid battery.
Battery over-discharge protection.
Indication of output voltage, output current, mains fault, battery fault, output fault
and charger fault.
Sound indication (beep sound) on fault condition, which is silenceable.
Self-test on audible and visual indications.
In addition to the above features, PSU24-5A is also able to remotely connect with fire
alarm control panel. It canbe programmedwith an address using handheldprogrammer.
When it’s connected to the loop of the control panel, it will be able to report fault with
mains supply, battery or output to the panel through special protocol.
2 Technical Specifications
Power Supply:
Mains Power: 230VAC+10% -15%, 50Hz
Battery: 24VDC /12Ah sealed lead battery
Rated Output Capacity at Mains Power: 26.5VDC, 5A
Rated Output Capacity at Battery Power: 21VDC～26.5VDC, 5A
Operating Environment:
Temperature: 0℃～+40℃
Relative humidity≤95%, non condensing
Dimension: 400mm×318mm×128mm
3 Construction, Installation and Wiring

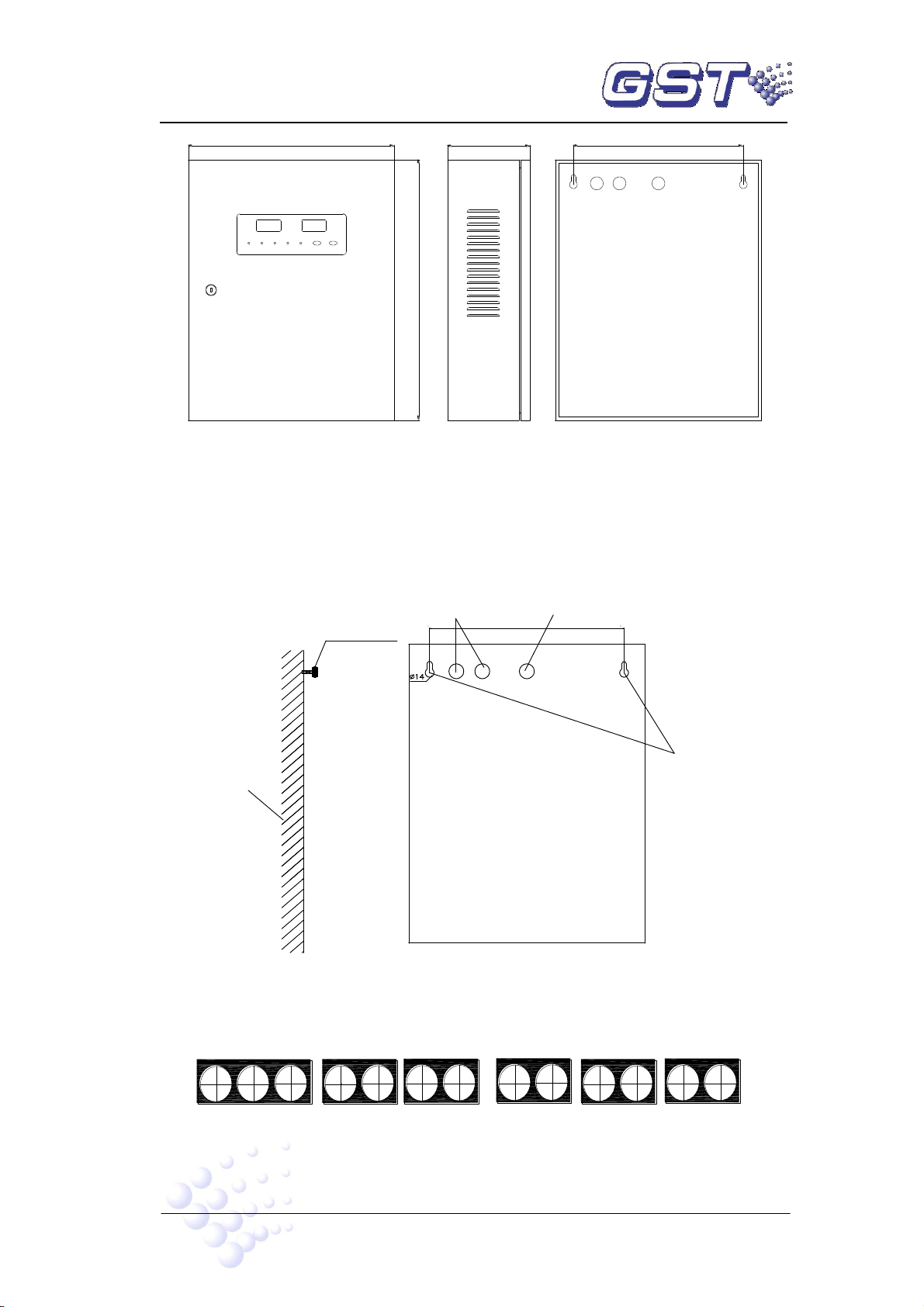

3.1 Appearance
The appearance of the PSU is shown in Fig.1 (taking PSU24-5A as an example).

PSU24-5 Intelligent PSU
PSU24-5A Intelligent Network PSU
Installation and Operation Manual
Page 2
BATACPower Output Charger
FaultFault Fault Fault Mute Test
On
Output Current(A)Output Voltage(VDC)
318mm 128.2mm 262mm
400mm
Fig.1
3.2 Installation
The PSU is wall-mounted.
Drill two 14 holes on the wall with hole distance 262mm.
Fix the PSU on the wall using M10 expansion bolts. The installation method is
shown in Fig. 2.
M10 Expansion Bolt
Wiring Holes 262mm
Wall
AC Wiring Holes
Mounting Holes
Fig. 2
3.3 Wiring
LPG
N24V GND Power Fault Battery Fault Mains Fault
-
+
Fig. 3
L, N, PG:AC input.
+,-: Battery input.

PSU24-5 Intelligent PSU
PSU24-5A Intelligent Network PSU
Installation and Operation Manual
Page 3
24V, GND: 24VDC output.
Z1, Z2: Polarity-insensitive loop output for PSU24-5A.
Power Fault: Power fault output terminal, contact capacity 30VDC/2A.
Battery Fault: Battery fault output terminal, contact capacity 30VDC/2A.
Mains Fault: Mains fault output terminal, contact capacity 30VDC/2A.

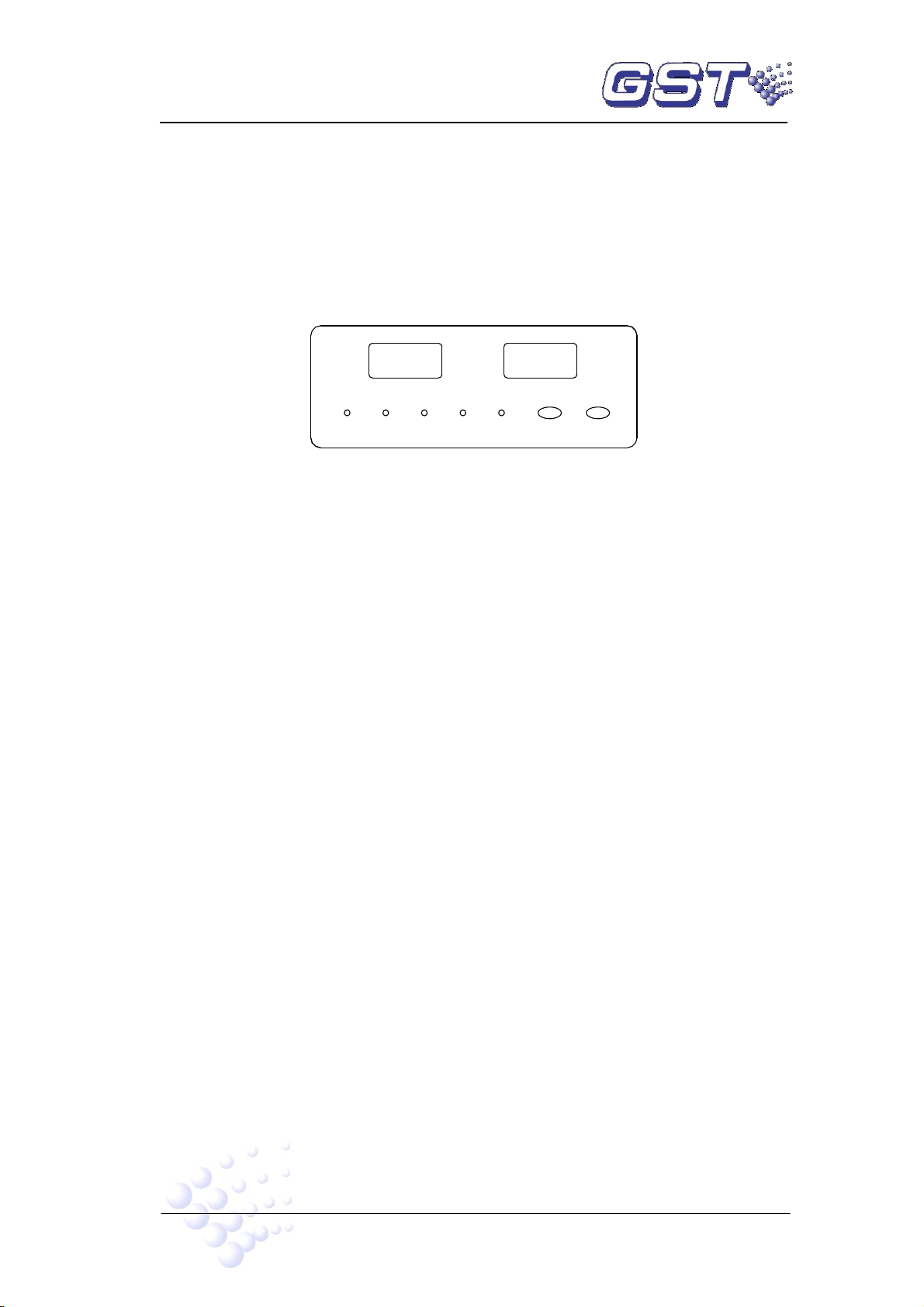

4 Indicators and Keys
BATACPower Output Charger
FaultFault Fault Fault Mute Test
On
Output Current(A)Output Voltage(VDC)
Fig. 4
4.1 Indicators
Output Voltage(VDC): Displaying the value of output voltage.
Output Current(A): Displaying the value of output current.
Power On:Green. It illuminates when the PSU is working.
AC Fault: Yellow. It illuminates when the mains supply is in fault condition.
BAT Fault: Yellow. It illuminates when the battery voltage is less than 20V or when
there is fault with battery charger.
Output Fault: Yellow. It illuminates when there is no output voltage.
Charger Fault: Yellow. It illuminates when there is fault with battery charger.
4.2 Keys
Mute: For silencing the alarm sound.
Test: For self-testing the indicators and alarm sound.
5 Maintenance
If the battery is protected from over-discharge, please try to charge it within 24 hours to
avoid reduction of its capacity due to long time in feeding state. Please replace the
battery if the battery voltage is lower than 15V.
6 Troubleshooting
If the PSU indicates output fault, please check if the fuse is blown. The specification
of the fuse is: dimension 5.2×20mm, 7Afast-blow.
If the PSU indicates AC fault or battery fault, please check cable connection.
If the PSU indicates charger fault, please contact the manufacturer for repair.
Please contact the manufacturer for any other troubles.

PSU24-5 Intelligent PSU
PSU24-5A Intelligent Network PSU
Installation and Operation Manual
Page 4
7 Caution
Before powering up, check if there is problem with the cables, such as short circuit,
open circuit or incorrect connection.
Please do not touch areas with high-voltage marks.
