aumate JC01 Pro User manual
Operating Manual of JC01 Pro Multifunctional
Fruit & Vegetable Juicer
MODEL: JC01 Pro
120V~ 60Hz 200W
Distinguished users, thank you for using JC01 Pro Multifunctional Fruit and Vegetable Juicer
from AUMATE, in order to facilitate you to operate this product correctly, please read this
instruction carefully before use. Please be sure to carefully read the Chapter II “Safe Use
Instructions and Precautions, and pay special attention to the boldface part in the manual.
(No further notice is made if technical specifications are altered in this instruction.)
1
General Introduction
Chapter I Precautions for Safety Use
Chapter II Parts and Functions
Chapter III Method of Application
Chapter IV Maintenance and Preservation
Chapter V Product Safety Indexes
Chapter VI Fault Analysis and Troubleshooting
Thank you for using the Multifunctional Fruit and Vegetable Juicer
from AUMATE. In order to correctly use and maintain this product for
you, we have specially prepared this instruction. Please carefully
read this instruction before using this product, and properly keep
this instruction for further consulting.
This manual is only applicable to JC01 Pro Multifunctional Fruit and
Vegetable Juicer from AUMATE, who reserves the right of final
interpretation. All contents in this instruction are only used as refer-
ences for users when using and maintaining this product. All users
are welcome to consult the Customer Service Department of this
corporation about unaccomplished matters. If there are deficiencies
in this instruction, all users are welcome to propose valuable opin-
ions. We hope that AUMATE products make your life warm and
sweet, convenient and healthy.
Content
Foreword
2
1. Input voltage of this product is AC120V～60Hz. Please confirm
before use.
2. Be sure to disconnect power supply before taking apart, packing
or commissioning of any part of this product.
3. This product belongs to Y connection. If power supply cords are
damaged, please contact with the Customer Service Department of
this company in order to avoid risks . Be sure not to take apart or
repair by yourself.
4. Before use, please check if the power cord, plug, fine strainer,
auger, noodle extruding body and other parts are damaged. Please
stop using the product if any damage is found, and contact our
customer service department in time, and do not disassemble and
repair voluntarily in case of danger.
5. If this product needs to be repaired in the course of application,
please contact with the Customer Service Department of this com-
pany in order to avoid risks . Be sure not to take apart or repair by
yourself in order to avoid risks.
6. Before switching on the power, please make sure that the remov-
able parts are fully installed, such as the juicing body, auger, fine
strainer, juicing body cover, etc.
7. During operation, in case of any damage to the operator or the
product, it is strictly forbidden to put fingers or sharp objects into the
material inlet to directly contact the rotating parts such as the auger,
etc.; it is strictly forbidden to use any object to replace pusher rods.
It is strictly forbidden to keep eyes close to the material inlet in case
of any accident.
8. The ingredients should be cut into small pieces so that they can
be put into the inlet of the juicing body. If there are fruits and vegeta-
bles with kernel, hard seed, thick skin or hard shell, remove them
before processing.
9. When ingredients are put in, the force to push the ingredients
should not be so great, and it is advisable that the ingredients can
be cut off.
10. It is normal for the fine strainer, juicing body cover, auger and
other parts to be stained after juicing certain fruits and vegetables. It
does not affect the quality of the food and will not be harmful to
eaters' health.
Chapter I Precautions for Safety Use
This product is a Class I appliance. The grounding wire
of the socket must be well grounded.
3
11. The product is equipped with an intelligent protection chip,
making it automatically stop after 20 minutes of continuous work. At
this time, please stop the operation for 20-30 minutes, and then
continue to use the motor after cooling. This method is conducive to
extending the service life of the product.
12. The product has a current limiting design. When processing
harder ingredients, the motor will be locked-rotor and the current will
increase. When the current exceeds 2A, the machine will make a
“tick” sound and the motor will stop working. This method can effec-
tively protect the motor from over-current and extend the service life
of the motor.
13. If the automatic stop of the motor due to the current restriction
protection or plugging of the machine and equipment during the
operation process, the "REV" key (removing the ingredients) can be
started at this time, and the "SOFT"/"HARD" key can be started a few
seconds later to make the machine work properly. If the plug is still
blocked, it is recommended to clean up the ingredients in the pro-
peller and continue to use it. This method protects motors and juice
extract accessories.
14. After use, please wait until the motor and auger stop rotating and
make sure that the power is disconnected before removing the
removable parts of the machine.
15. All parts of this product are not allowed to be disinfected with hot
water over 176°F(80°C) and microwave ovens to avoid thermal
deformation damage. Parts and materials in contact with food ingre-
dients are in line with food hygiene certification, clean, hygienic and
reliable.
16. Do not put the juicer body into water or other liquids, nor flush it
with water or other liquids to avoid damage the machine body.
17. Not allow to use steel wool, abrasive cleaner or corrosive liquid
(e.g. petrol or acetone) to wash this product
18. This product should be stored in a place that children cannot
reach. No allow persons with unsound extremities and sensation or
mental disorders and persons who are short of related experience
and knowledge (including children) to use or play with this product.
19. This product is only applicable to individual or home applica-
tion.
4
Serial
number
1
Name of parts Function introduction
Power Line Used to power on and provide power.
5 Juice Cup
Catch and collect fruit juice separated from the juicing body.
6 Pomace Cup Catch and collect pomace separated from the juice.
8 Juicing body
It is the main parts of juicing. The ingredients are put
in from the inlet on top of the juicing body, and
discharge the juice and pomace through the juice
outlet and pomace outlet.
2Juicer Body
The main parts of the machine, including the motor
and other parts. It is the source of this machine and
provides power.
7 Pusher
When ingredients are placed, gently push the
ingredients so that the ingredients are in full contact
with the auger to increase the juicing efficiency.
4Button
It is used to lock the juicing body and prevent the
body from loosening from the machine body during
operation. When you need to remove the juicing body
from the machine body, you must press and hold the
button.
3 Power Switch
Control the working status of the product, including
HARD (high-speed gear), SOFT (low-speed), OFF
(suspension), REV (reverse).
Chapter II Parts and Functions
5
10 Auger
It is the main parts of juicer, which is used to convey
the ingredients and grind the ingredients together
with a juice strainer or squeezer.
9Spin the lid
of juice
Prevent the remaining juice from dripping onto the
mainframe.
11
Fine strainer
(with screen
inside)
Run in with the auger to grind the juiced ingredients
and filter out the juice.
12 Juicing body
cover
The main components of juicing connects the juicing
body to play a role in security protection.
•Before using this product for the first time, please thoroughly wash parts that
touch with foods (see “Chapter V Maintenance and Preservation”)
Chapter III Method of Application
Key operation instructions:
"HARD" key: high-speed working key (suitable for
extracting hard fruits and vegetables such as carrots,
apples, pears);
"SOFT" key: low-speed working key (suitable for picking
soft fruits and vegetables such as tomatoes, watermel-
ons, grapes);
"OFF" key: motor workout key;
"REV" key: when the slag discharge is not smooth or
plugged, the key is used. ( Tip: when the slag
discharge is not smooth or plugged, press this key, the
propeller starts to reverse, and after a few seconds,
6
Connect the juicing body to the machine body:
1. Put the central position of the inlet of the juicing
body to align the position of “unlocking sign” on
the machine body (the three fasteners of the
juicing body will be aligned).
2. Then rotate counterclockwise, and when you
hear a "tick" sound, it shows that the juicing body
is fully connected.
I. Product Usage
Follow these steps to install and use the product:
1. Juicing
1
Point the spiral propeller at the hole in the body
and push it flat to the bottom. (If can't, you can
easily point it by turning the propeller slightly)
2
Inject the large hole of the juice mesh from the tail
of the propeller, and the positioning bar of the
juice mesh is pushed into the slot of the juice
squeezer.
3
Displace the three fastening slots on the juicing
body cover from the three fastening slots on the
juicing body, push into horizontally, and then
rotated counterclockwise to screw tightly the
juicing body cover and the juicing body.
4
Place the juice cup next to the machine body and
its open aligns the juice mouth of the juicing body.
5
7
Check whether the juice outlet of the juice
squeeze is in an open state (by rotating the lid of
the juice outlet).
Press the "SOFT" or "HARD" button of the switch
(users choose according to different fruits, and
the SOFT key is suitable for squeezing soft fruits
and vegetables such as tomatoes, watermelons,
grapes and other vegetables at low speeds; the
HARD key is suitable for extracting hard fruits
and vegetables such as carrots, apples and pears
at high-speed gears). The product starts to work
and the working time is ≤10 minutes.
Do not touch the power switch with wet hands
to avoid electric shock, electric leakage or fire.
9
10
Put the pomace cup under the pomace outlet of
the juicing body, close to the juice cup.
6
Turn on the power and get ready for work.
(Make sure the switch is off before turning on the
power)
Wash the fruits and vegetables and cut them into
blocks that can be put into the inlet.
Please remove kernels, hard seeds, thick or
hard shell of fruits and vegetables first.
Note: Fruits such as sugar cane, guava,
mango, and passion fruit cannot be juiced
with this machine.
7
8
8

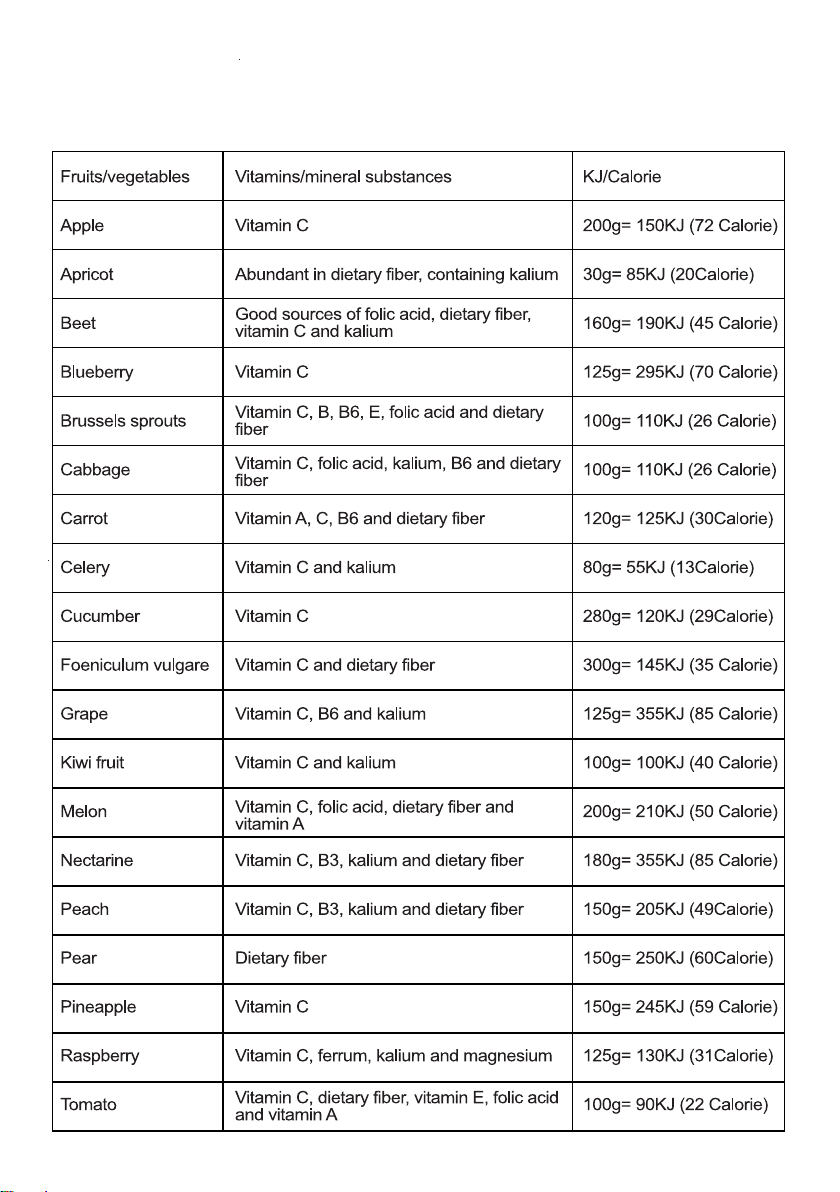

II. Tips for Fruit Selection
1. Select and use fresh fruits and vegetables, which contain more juice. Particularly
suitable fruits include: pineapple, celery sticks, apples, cucumbers, spinach,
melons, tomatoes, oranges, grapes, and the like.
2. Instead of paring the thin skin of fruits and vegetables, you only need to pare the
thick skin of fruits and vegetables like oranges, pineapples, etc. Seeds of citrus
fruits also need to be removed because they will bring bitterness to the juice.
3. Freshly juiced apple juice may quickly turn brown, and you can add a few drops
of lemon juice to slow this process.
4. Leaves and leaf stems (such as lettuce) can be juiced with this machine
5. The nutrients of common fruits and vegetables are as follows:
Put the ingredients into the feed inlet of the juicing
body and push the ingredients with the push rod.
.When ingredients are put in, the force to push
the ingredients should not be so great, and it is
advisable that the ingredients just can be cut
off.
(Don't put your fingers or other objects into the
feed inlet of the juicing body! If the pomace cup
or juice cup is full, should stop working and
clean it before use.)
When the ingredients are processed, the juice
outlet no longer has juice outflow, turn off the
switch, disconnect the power supply, and after the
spiral propeller completely stops turning, turn out
the juice mouth screw cover (the rotary cover
seals the juice mouth), and then take the juice cup
off the juice mouth.
(The fresh juice should be drunk immediately. If it
is exposed to the air for a while, its taste and
nutritional value will be affected.)
.Residues cannot be stored for long periods.
.Do not touch the power switch with wet hands
to avoid electric shock, electric leakage or fire.
11
12
9
10
1. Before washing this product, be sure to turn off the switch and disconnect the
power supply.
2. Please timely wash this product after application.
3. The juicer body must not be washed with water. The stains on the body must
be wiped with a drying rag or drying cotton cloth.
4. Please make sure the product is clean and dry before storage.
5.Please refer to the following steps to disassemble the juicer and then clean:
Take the pusher and the juice cup down first.
1
Hold the button near the juicing body down, and
at the same time rotate the juicing body clockwise
to take the body down. If the button is not pressed,
the body can't be taken down.
2
After the juicing body is disassembled, take the
juicing body cover, the juice fine strainer and the
auger down in proper order, and the removable
parts can be cleaned with clear water.
3
Rated voltage
Rated power
Rated frequency
Continuous Working Hours
Interval
120V～
200W
60Hz
≤10 minutes
≥20 minutes
Chapter IV Maintenance and Preservation
Chapter V Product Safety Indexes
11
After connecting the
power supply, turn
on the switch, but
this product cannot
work.
1. The power plug is not
plugged in properly
2. The outlet is in poor
contact
3. The internal cable of
the main unit is off or
the circuit board is
damaged.
1. Plug the power plug back
in again
2. Replace the power socket
and try again
3. Please contact with the
Customer Service Email：
When this product is
used initially, the
motor smells terrible.
This is not an abnormal
occurrence
If the product still emits this
odor after repeated use,
Please contact with the
Customer Service Email：
This machine stops
during the application.
1. The voltage is too low
2. Excessive or hard
ingredients
3. The continuous
working hour is too
long
1. Check if the voltage is too
low
2. Disconnect the power and
remove the excess
ingredients (Sugar cane
cannot be juiced. Hard
skin / hard core fruits and
vegetables should be first
removed the hard skin /
hard core before juiced)
3. It is a normal phenomenon,
and the motor will resume
operation after a break
Noise at work 1. The auger and fine
strainer are not fully
installed, resulting in
unsteady operation;
2. The start motor in the
machine body breaks
down.
3. Too noisy when some
ingredients are juiced.
1. Fully install the auger and
fine strainer.
2. Please contact with the
Customer Service Email：
3. The ingredients themselves
have frictional sounds,
which is a normal
phenomenon.
Fault phenomenon Analysis of causes Fault resolution
Chapter VI Fault Analysis and Troubleshooting
12
It is difficult to
unscrew the juicing
body cover after
juicing
1. There is oil stain on
the surface of the
juicing body cover;
2. The ingredients in the
juice net are not juiced
completely;
1. Clean the surface of the
juicing body cover;
2. Continue to turn on the
machine to squeeze the
ingredients or press the
reverse key for several
seconds to turn the
ingredients out of the juice
net.
Note:
•The above are analysis and resolution of common faults. As for other faults, please
