CONNECTION

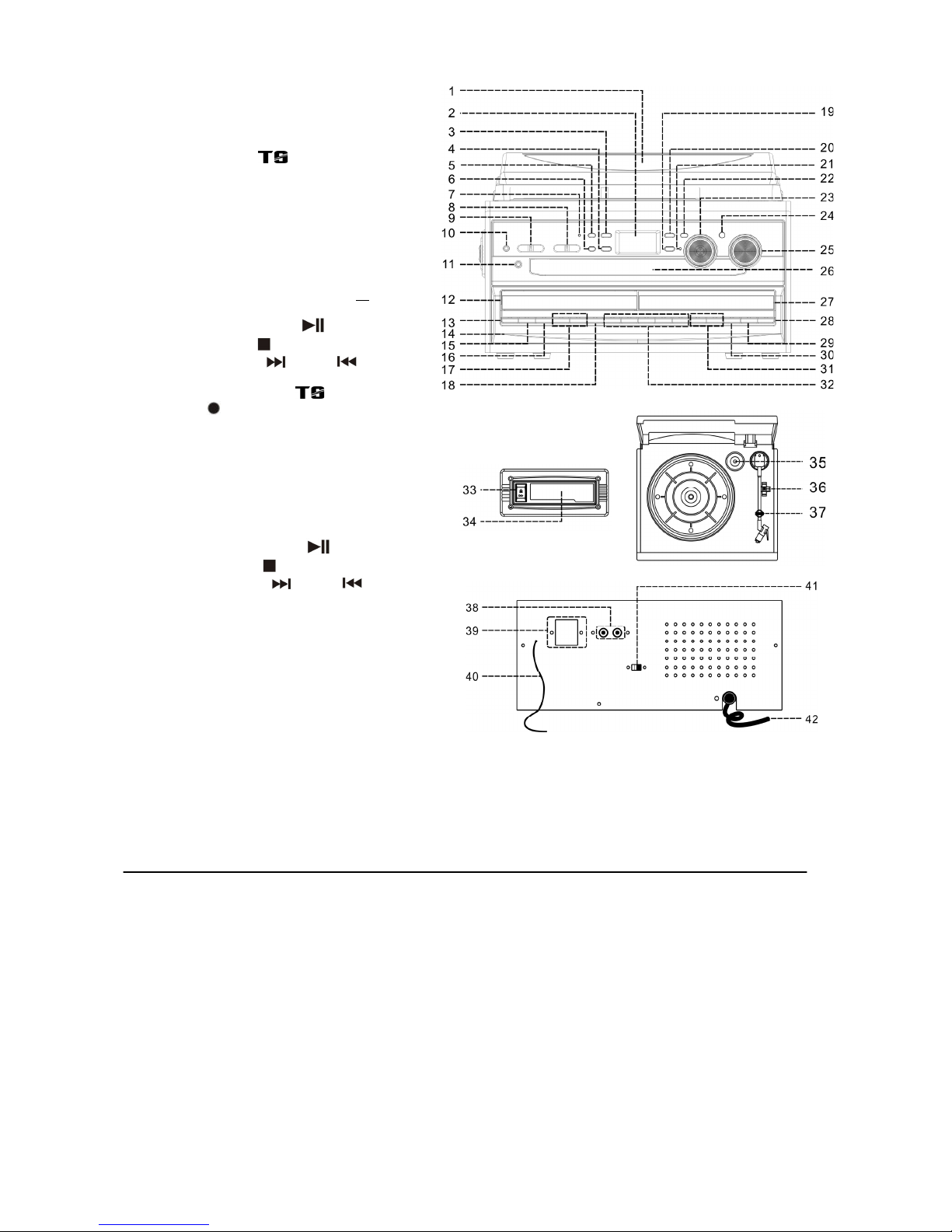

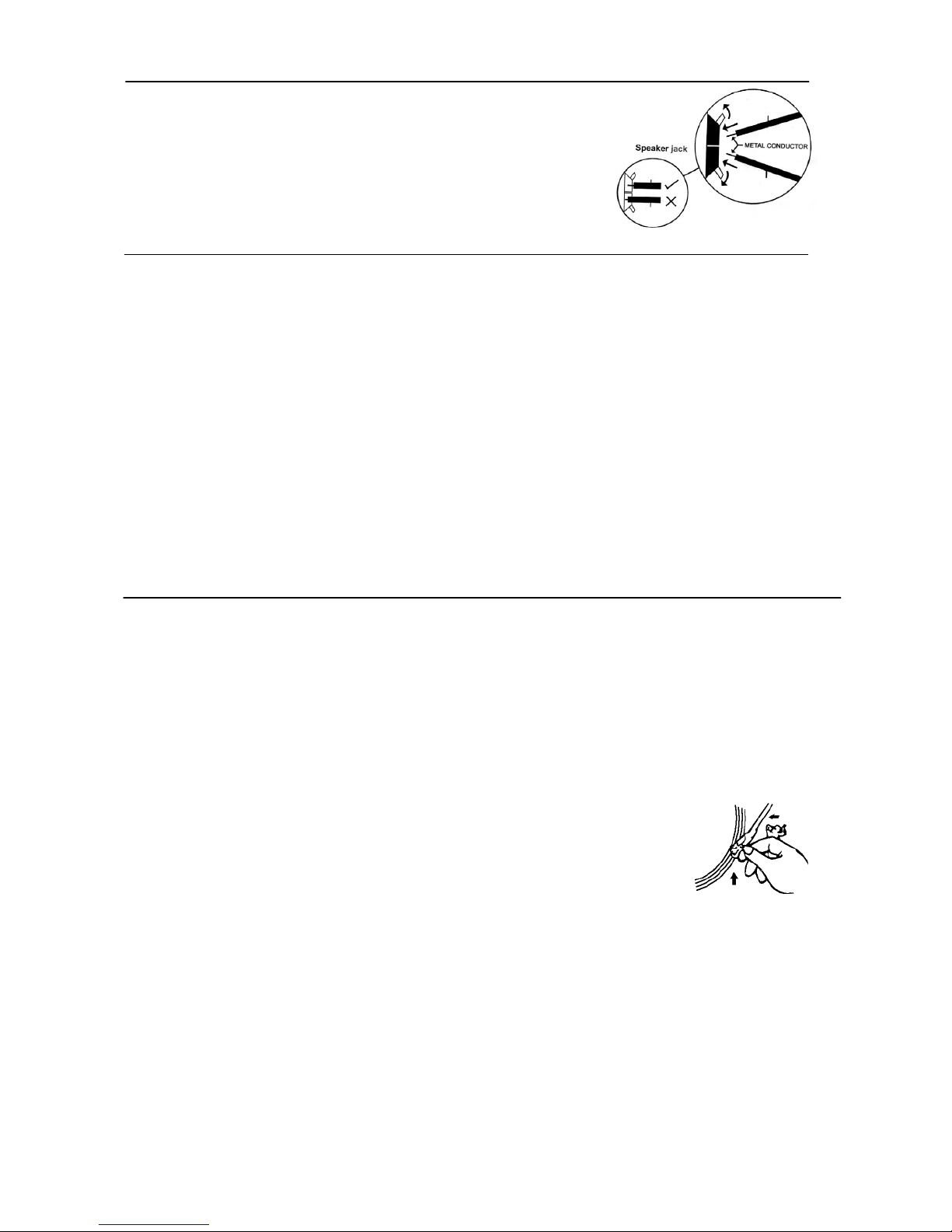

1. CONNECT THE POWER CORD (42) TO AN AC OUTLET AND CONNECT
THE SPEAKER WIRES TO THE SPEAKER TERMINAL S (L+R) (39)
LOCATED ON THE REAR OF THE UNIT.
2. SWITCH THE POWER ON (9), PRESS THE “ AM FM “ FUNCTION
BUTTON (32). IF THE YELLOW STATION MARKER LED AND THE RED
POWER LED INDICATOR (7) LIGHT UP AND SOUND IS COMING FROM
THE SPEAKERS, THIS INDICATES THE UNIT IS CORRECTLY
CONNECTED TO THE POWER. YOUR SYSTEM IS NOW READY TO
PLAY YOUR MUSIC.
LISTENING TO RADIO
MANUAL TUNING
1. SELECT THE DESIRED BAND BY PRESSING THE “ AM FM “ FUNCTION BUTTON (32) UNTIL THE LCD DISPLAY
(2) SHOWS YOUR DESIRED RADIO BAND (AM OR FM).
2. TUNE TO THE REQUIRED STATION BY TURNING THE TUNING KNOB (23) – THE YELLOW STATION MARKER
LED LIGHT WILL BE ON.
3. ADJUST THE VOLUME KNOB (25) TO THE DESIRED VOLUME LEVEL.
FM & FM-STEREO RECEPTION
zSET THE FM MODE SELECTOR (8) AT “ MONO ” POSITION. PROGRAMMES ARE RECEIVED IN MONO MODE.
WHEN A STEREO SIGNAL IS PARTICULARLY WEAK, IT IS PREFERABLE TO RECEIVE THE PROGRAMME IN
MONO.
zSWITCH THE FM MODE SELECTOR (8) TO “ STEREO ” POSITION FOR RECEIVING STEREO PROGRAMMES.
THE FM-STEREO LED INDICATOR (21) WILL LIGHT UP TO SHOW AN FM STEREO PROGRAMME IS BEING
RECEIVED.
HINTS FOR BEST RECEPTION:-
- AM (= MW): THE RECEIVER HAS A BUILT-IN AM BAR ANTENNA. IF “AM” RECEPTION IS WEAK, SLIGHTLY
ROTATING OR REPOSITIONING OF THE UNIT WILL USUALLY IMPROVE “AM” (MEDIUM WAVE) RECEPTION.
- FM : THE RECEIVER HAS A BUILT-IN FM WIRE ANTENNA (40) HANGING AT THE REAR OF THE CABINET.
THIS WIRE SHOULD BE TOTALLY UNRAVELLED AND EXTENDED FOR BEST RECEPTION.

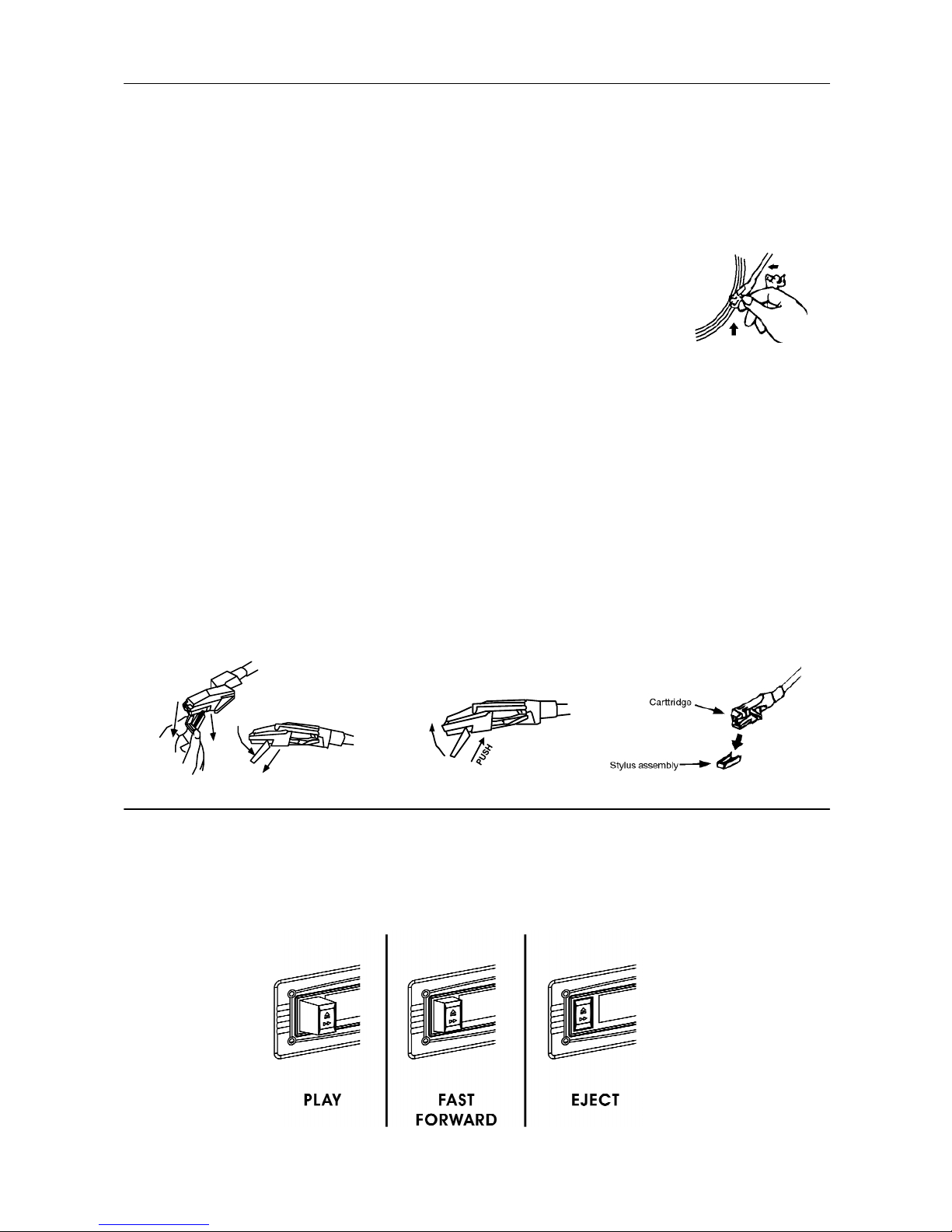

TURNTABLE OPERATION (PHONO)
zGETTING STARTED
-REMOVE ANY STICKY TAPE AND OTHER PACKING MATERIALS.
-CAREFULLY TURN THE CLEAR PLASTIC PROTECTIVE NEEDLE COVER UP TO EXPOSE THE STYLUS.
TURN DOWN THE STYLUS PROTECTOR AGAIN AFTER EACH USE.
-REMOVE THE BLACK TIE-WRAP AND GENTLY PUSH THE HOLD-DOWN CLIP, WHICH SECURES THE TONE
ARM TO THE ARM REST (37), UP AND TO THE RIGHT.
-ENSURE THAT THE TONE ARM HAS BEEN DETACHED FROM THE TONE ARM REST BEFORE OPERATING
AND RE-SECURED AGAIN AFTERWARDS.
-THE UNIT IS NOW READY TO PLAY A RECORD.
1. PRESS THE “ PHONO ” FUNCTION BUTTON (32) TO ACTIVATE THE TURNTABLE FUNCTION.
2. SET THE 33/45/78RPM SPEED SELECTOR (36) TO THE CORRECT POSITION,
DEPENDING ON THE TYPE OF RECORD TO BE PLAYED.
3. PLACE THE RECORD ON THE TURNTABLE PLATTER - USE THE 45RPM SPINDLE
ADAPTOR (35) IF REQUIRED*.
4. LIFT THE TONE ARM FROM THE ARM REST AND SLOWLY MOVE IT TOWARDS THE
RECORD EDGE. THE PLATTER WILL START ROTATING**.
5. PLACE THE TONE ARM ON THE DESIRED POSITION OF THE RECORD.
6. ADJUST THE VOLUME TO THE DESIRED LEVEL.
7. AT THE END OF RECORD, THE PLATTER WILL AUTOMATICALLY STOP ROTATING.
8. CAREFULLY LIFT THE TONE ARM FROM THE RECORD AND RETURN IT TO THE ARM REST, SECURING IT
AGAIN WITH THE CLIP WHEN FINISHED.
9. TO MANUALLY STOP THE RECORD, LIFT THE TONE ARM CAREFULLY AND RETURN IT TO THE ARM REST.
*NOTE: TO PLAY A 45RPM RECORD WITH THE CENTRE CLIP MISSING, FIRST PLACE THE SUPPLIED 45RPM
ADAPTOR (35) ONTO THE SPINDLE. THIS WILL NOT BE NECESSARY IF THE CENTRE CLIP OF THE RECORD IS
STILL IN PLACE.
E-2
