auna AV2-H5A User manual

www.auna-multimedia.com10005738
Surround - Karaoke - Receiver
AV2-H5A

2
Sehr geehrter Kunde,
zunächst möchten wir Ihnen zum Erwerb Ihres Gerätes gratulieren.
Bitte lesen Sie die folgenden Anschluss- und Anwendungshinweise sorgfältig durch und befolgen Sie diese
um möglichen technischen Schäden vorzubeugen.
Sicherheitshinweise und Gewährleistung
• Diese Bedienungsanleitung dient dazu, Sie mit der Funktionsweise dieses Produktes vertraut zu ma-
chen. Bewahren Sie diese Anleitung daher stets gut auf, damit Sie jederzeit darauf zugreifen können.
• Sie erhalten bei Kauf dieses Produktes zwei Jahre Gewährleistung auf Defekt bei sachgemäßem Ge-
brauch.
• Bitte verwenden Sie das Produkt nur in seiner bestimmungsgemäßen Art und Weise. Eine anderweiti-
ge Verwendung führt eventuell zu Beschädigungen am Produkt oder in der Umgebung des Produktes.
• Ein Umbauen oder Verändern des Produktes beeinträchtigt die Produktsicherheit. Achtung Verlet-
zungsgefahr!
• Önen Sie das Produkt niemals eigenmächtig und führen Sie Reparaturen nie selber aus!
• Behandeln Sie das Produkt sorgfältig. Es kann durch Stöße, Schläge oder den Fall aus bereits geringer
Höhe beschädigt werden.
• Halten Sie das Produkt fern von Feuchtigkeit und extremer Hitze.
• Lassen Sie keine Gegenstände aus Metall in dieses Gerät fallen.
• Stellen Sie keine schweren Gegenstände auf dieses Gerät.
• Reinigen Sie das Gerät nur mit einem trockenen Tuch.
• Blockieren Sie keine Belüftungsönungen.
• Verwenden Sie ausschließlich vom Hersteller oder vom qualizierten Fachhandel empfohlenes Zube-
hör.
Die Gewährleistung verfällt bei Fremdeingrien in das Gerät.
Kleine Objekte/Verpackungsteile (Plastikbeutel, Karton, etc.)
Bewahren Sie kleine Objekte (z.B. Schrauben und anderes Montagematerial, Speicherkarten) und
Verpackungsteile außerhalb der Reichweite von Kindern auf, damit sie nicht von diesen verschluckt
werden können. Lassen Sie kleine Kinder nicht mit Folie spielen. Es besteht Erstickungsgefahr!
Transport des Gerätes
Bitte bewahren Sie die Originalverpackung auf. Um ausreichenden Schutz beim Transport des Gerätes zu
erreichen, verpacken Sie das Gerät in der Originalverpackung.
Reinigung der äußeren Oberäche
Verwenden Sie keine üchtigen Flüssigkeiten, wie Insektensprays. Durch zu starken Druck beim
Abwischen können die Oberächen beschädigt werden. Gummi- oder Plastikteile sollten nicht über einen
längeren Zeitraum mit dem Gerät in Kontakt sein. Nutzen Sie ein trockenes Tuch.

3
Technische Daten
Artikelnummer 10005738
Anschlüsse
• 2 x 6,3mm-Klinke-Mikrofon-Eingang,
• 3 x HDMI-Eingang,
• 1 x HDMI-Ausgang,
• 2 x Cinch-Line-Eingang,
• 1 x 5.1-Cinch-Eingangssatz,
• 1 x Cinch-Subwoofer-Ausgang,
• 1 x UKW-Antennen-Eingang,
• 5 x Satz Lautsprecherklemmen
Betriebsmodi 2.1, 3.1, 5.1
Frequenzgang 20 Hz ~ 20 KHz
Verzerrungsgrad <0,1%
Stromversorgung 230V ~50Hz
Maße / Gewicht 511 x 397 x 220 mm / 5 kg
Lieferumfang
• Gerät,
• Fernbedienung,
• Batterien für Fernbedienung,
• Stereo-Cinch-Audiokabel,
• UKW-Radioantenne,
• Bedienungsanleitung

4
Anschluss und Inbetriebnahme
Rückseite:
1FM - Antennenanschluss
2HDMI-Ausgang: Anschluss für Monitor oder Beamer
33 x HDMI-Eingang: Anschlüsse für Blu-ray, DVD, Spielekonsole etc.
4Netzschalter
5Netzkabel
6Audio-Eingänge AUX und CD
7AC-3-Audioeingang
8Line-Out-Anschluss für (aktive) Subwoofer
9Lautsprecherklemmen
FR = Front Rechts; FL = Front Links; SR = Surround Rechts; SL = Surround Links; CEN = Center

5
Übersicht
Front:
1Display
2 CH+/CH-: Sender-Wahl (FM-Radio)
3 AUTO: Automatische Sendersuche
4INPUT: Auswahl der Eingangsquelle
5 MUTE: Stummschaltung
6CH.MODE: Ändern des Kanal-Modus
7 MIC MENU: Karaoke-Menü aufrufen
8 MUSIC MENU: Musik-Menü aufrufen
9Mikrofon-Anschlüsse (6,3mm Klinke) MIC1 & MIC2
10 VOLUME / MULTI

6
Übersicht
Fernbedienung:
1Standby
2TUN+/- Radio: Sender wählen
3Stereo / Mono Empfangspräferenz
4Nummernfeld
5DSP Displaymodus ändern
6BAL L / R Stereo-Balance einstellen
7VOL+/- /Mute Lautstärke +/- / Stumm
8BASS +/- Einstellung d. Tiefen
9CH.MODE +/- Kanaleinstellungen
10 Surround-Lautsprecher Lautstärke
11 Mikrofon-Klangeinstellungen
12 INPUT Wahl d. Audio-Quelle
13 PRO+/- Programmwahl
14 MEM Sender speichern
15 LOUD Loudness ein/aus
16 TRE +/- Einstellung d. Höhen
Achtung:
Legen Sie vor dem ersten Gebrauch die mitgelieferten
Batterien in das Batteriefach auf der Unterseite der
Fernbedienung ein.
Beachten Sie die korrekte Polarität (Symbole auf der
Innenseite des Batteriefachs).

7
Hinweise zur Bedienung
Generelles
• Wählen Sie die Audio-Quelle durch mehrfaches Drücken von INPUT. Der jeweilige Eingangskanal wird
auf dem Display angezeigt. Wenn Sie eine AC-3-Quelle wählen, kann das Gerät ein 5.1-Signal ausgeben.
• Regeln Sie die Lautstärke mit VOL+/- bzw. dem Volumen-Knopf am Gerät. Stellen Sie Höhen/Tiefen mit
den entsprechenden Tasten auf der Fernbedienung ein oder önen Sie das MUSIC MENU am Gerät:
Drücken Sie mehrfach, um durch die verfügbaren Optionen zu „blättern“ und ändern Sie die Werte
jeweils durch Drehen von VOL/MULTI.
Mit MUTE stellen Sie die Ausgabe Stumm. Drücken Sie nocheinmal für die Aufhebung der Stumm-
schaltung.
• Wechseln Sie mit DSP den Display-Modus und mit CH.MODE den Kanalmodus (AC-3 / Stereo).
• Stellen Sie die Lautstärke der einzelnen Surround-Lautsprecher mit den entsprechenden Lautstärke-
Tasten auf der Fernbedienung (10) ein (oder über das MUSIC MENU).
Karaoke
• Das Gerät „erkennt“ automatisch, welches Mikrofon gerade angeschlossen ist. Bitte regeln Sie die
Mikrofon-Lautstärke auf ein Minimum, bevor Sie eines anschließen.
• Nutzen Sie die Tasten zur Einstellung des Mikrofon-Klangs auf der Fernbedienung (11) oder rufen Sie
das MIC.MENU am Gerät auf, um die Klangoptionen M TRE (Höhen), M BASS (Tiefen), ECHO (Hall-
Eekt) und MIC VOL (Mikrofon-Lautstärke) anzupassen.
Hinweis: Halten Sie die Mikrofonkapsel nicht mit den Händen zu und vermeiden Sie es, das Mikrofon
auf Lautsprecher zu richten - beides führt insbesondere bei höheren Lautstärken zu Pfeifen durch so
genanntes Feedback.
HDMI
• Das Gerät verfügt über 3 HDMI-Eingänge und 1 HDMI-Ausgang. HDMI1, HDMI2 & HDMI3 sind die
Eingänge und HDMI OUT ist der Ausgang. An die Eingänge können Sie verschiedene Quellen anschlie-
ßen, an den Ausgang Wiedergabegeräte wie TV oder Beamer.
• Das HDMI-Videosignal der gewählten Quelle wird über den HDMI-Ausgang an das angeschlossenen
Wiedergabegerät ausgegeben.
ACHTUNG: Der Receiver arbeitet als HDMI-Verteiler. Um ein eingehendes HDMI-Audiosignal zu hören,
muss ein anderes HDMI-fähiges Gerät - typischerweise ein Fernseher - an den HDMI-Ausgang ange-
schlossen sein. Es ist nicht möglich, ein HDMI-Soundsignal direkt über den Verstärker wiederzugeben.

8
Hinweise zur Entsorgung
Elektroaltgeräte
Bendet sich die diese Abbildung (durchgestrichene Mülltonne auf Rädern) auf dem Pro-
dukt, gilt die Europäische Richtlinie 2002/96/EG. Diese Produkte dürfen nicht mit dem
normalen Hausmüll entsorgt werden. Informieren Sie sich über die örtlichen Regelungen
zur getrennten Sammlung elektrischer und elektronischer Gerätschaften. Richten Sie sich
nach den örtlichen Regelungen und entsorgen Sie Altgeräte nicht über den Hausmüll.
Durch die regelkonforme Entsorgung der Altgeräte werden Umwelt und die Gesundheit
ihrer Mitmenschen vor möglichen negativen Konsequenzen geschützt. Materialrecycling
hilft, den Verbrauch von Rohstoen zu verringern.
Konformitätserklärung
Hersteller: CHAL-TEC GmbH, Wallstraße 16, 10179 Berlin, Deutschland
Dieses Produkt entspricht den folgenden Europäischen Richtlinien:
2004/108/EG (EMV)
2006/95/EG (Niederspannung)
2011/65/EU (RoHS)
Radio
• Bevor Sie die Radio-Funktion nutzen können, müssen Sie die mitgelieferte Antenne anschließen.
Drücken Sie INPUT um TUNER für die Radiowiedergabe zu wählen.
• Mit CH+/CH- können Sie zwischen den gespeicherten Sender wechseln. Mit TU+/TU- können Sie die
Frequenz ändern.
• Wenn Sie AUTO drücken, werden auf dem gesamten Frequenzbereich Sender gesucht und automa-
tisch gespeichert.
• Um den aktuellen Sender zu speichern drücken Sie MEMO; es können bis zu 40 Sender gespeichert
werden.
• Stereo/Mono-Betrieb können Sie mit der entsprechenden Taste auf der Fernbedienung wählen.

9
Dear Customer,
Congratulations on purchasing this product. Please read and follow these instructions, in order to avoid
damaging the item. We do not cover any damages that may arise from improper use of the item or the
disregard of the safety instructions.
Important Safety Advice
• Read all instructions before using.
• To protect against a re, electric shock or personal injury, do not immerse cord, electric plugs or device
in water or other liquids.
• Do not expose the appliance to extreme temperatures. The appliance shall be used in moderate cli-
mates.
• The use of attachments that are not recommended by the appliance manufacturer may result in re,
electric shock or personal injury.
• Do not open the unit by removing any cover parts. Do not attempt to repair the unit. Any repairs or
servicing should be done by qualied personell only.
• Only qualied persons may perform technical work on the product. The product may not be ope-
ned or changed. The components cannot be serviced by the user. The manufacturer is not responsible
for any radio or TV interference caused by unauthorized modications.
• The appliance is not a toy. Do not let children play with it. Never let children insert foreign objects into
the appliance.
• Never clean the surface of the device with solvents, paint thinners, cleansers or other chemical pro-
ducts. Instead, use a soft, dry cloth or soft brush.
• Save these instructions.
Small objects
Keep small objects (i.e. screws, mounting material, memory cards etc.) and packaging out of the range of
children. Do not let Children play with foil. Choking hazard!
Transporting the device
Please keep the original packaging. To gain suicient protection of the device while shipment or transpor-
tation, make sure to put it back in its original packaging.
Cleaning the surface
Do not use any volatile liquids, detergents or the like. Use a clean dry cloth.

10
Technical Data
Art. # 10005738
Connections
• 2 x Mic In (6.3mm)
• 3 x HDMI In
• 1 x HDMI Out
• 2 x RCA Line In
• 1 x 5.1 RCA In
• 1 x Subwoofer Out (RCA)
• 1 x FM Antenna
• 5 x Speaker terminals
Possible channel modes
• 2.1
• 3.1
• 5.1
Frequency response 20 Hz ~ 20 KHz
Harmonic distortion <0.1%
Power supply 230V ~ 50Hz
Dimension / weight 511 x 397 x 220 mm / 5 kgs
Scope of delivery
• Device
• Remote control
• Batteries (for remote control)
• Audio cable (stereo RCA)
• FM antenna
• instruction manual

11
Connections and Setup
Rear:
1FM antenna jack
2HDMI Out: connect monitor, TV or projector here.
33 x HDMI In: connect Blu-Ray player, DVD player, gaming console etc. here.
4Power switch
5Mains cable
6Audio Inputs: AUX and CD
7AC-3 Audio In
8Line Out: connect (active) subwoofer here
9Speaker terminals
FR = Front Right; FL = Front Left; SR = Surround Right; SL = Surround Left; CEN = Center

12

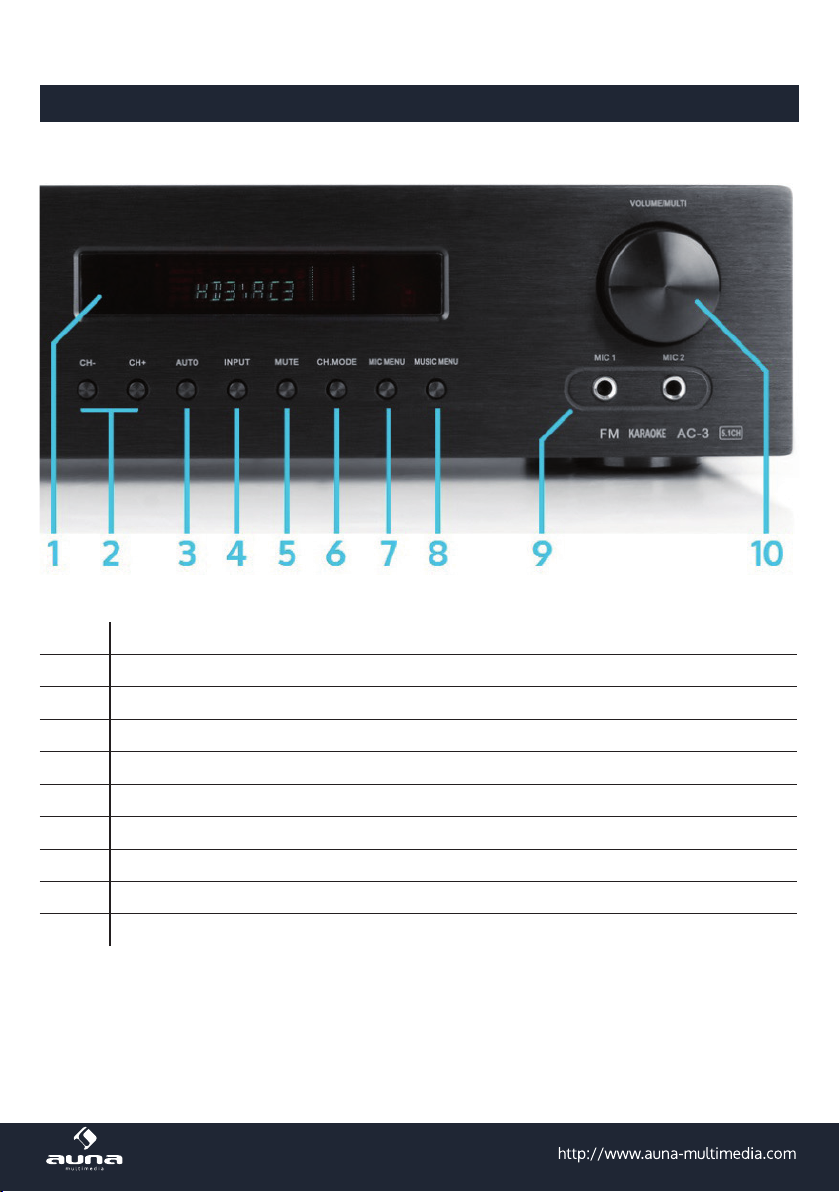

Overview
Front:
1Display
2 CH+/CH-: press to adjust the FM channel
3 AUTO: automatic scan for stations
4INPUT: input source selection (press repeatedly)
5 MUTE: press to toggle mute/unmute
6CH.MODE: press to select the channel modes
7 MIC MENU: select karaoke settings menu
8 MUSIC MENU: select music menu
9Microphone input jacks (6.3mm) MIC1 & MIC2
10 VOLUME / MULTI

13

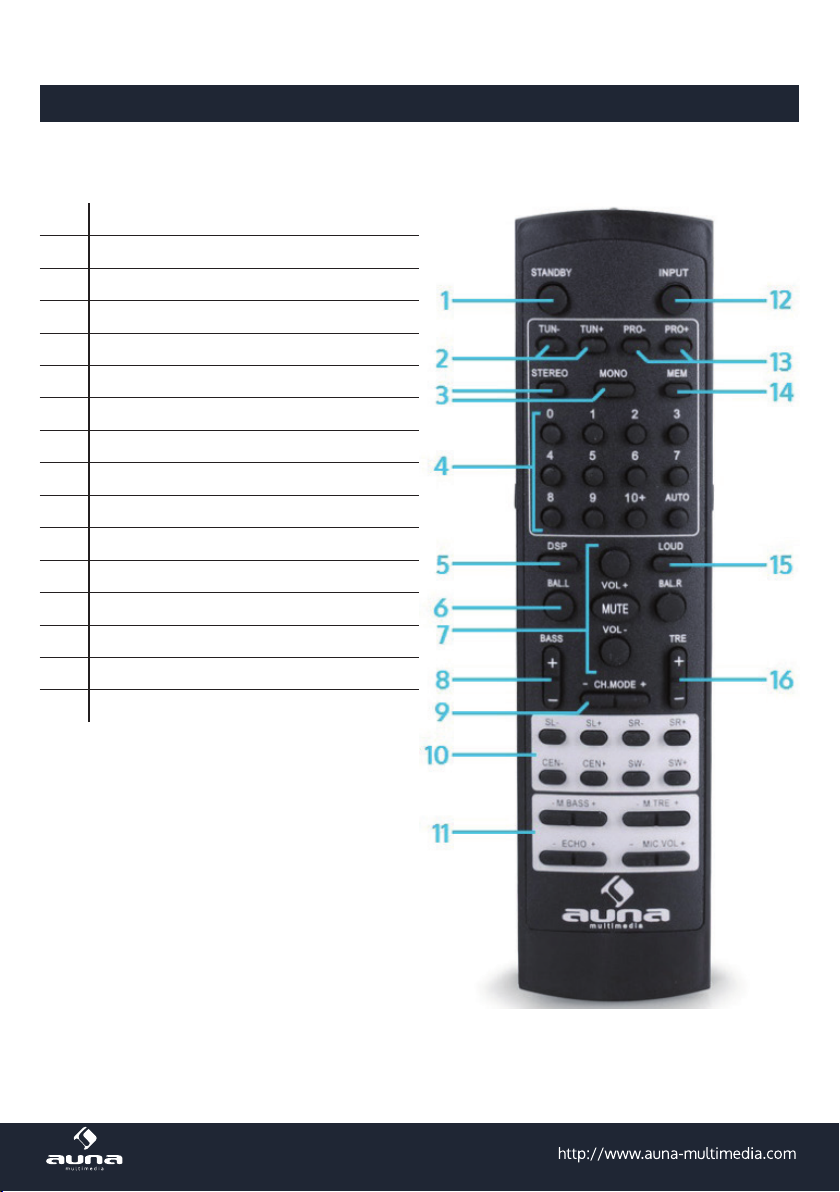

Overview
Remote Control:
1Standby
2TUN+/- select FM channel
3Stereo / Mono change preferred reception
4Num pad
5DSP set display mode
6BAL L / R adjust stereo balance
7VOL+/- /Mute adjust volume / mute
8BASS +/- adjust bass
9CH.MODE +/- select channel mode
10 Separate surround speaker VOL
11 EQ and sound settings for microphones
12 INPUT select input source
13 PRO+/- select programme
14 MEM save station to presets
15 LOUD toggle loudness on/o
16 TRE +/- adjust treble
Please note:
Insert the supplied batteries into the battery compart-
ment on the rear of the RC (slide open in indicated
direction).
Make sure to follow the correct polarity as indicated
inside the battery compartment.

14
How To Use
Basics
• Select audio source by pressing the INPUT key on the front panel or on the remote control. When
selecting AC-3 input, the machine can link decoder to 5.1 channel output.
• Adjust the volume with VOL+/- or with VOL/MULTI on the device front. Adjust treble/bass with the
corresponding buttons on the RC or launch the MUSIC MENU on the device. In this case, press MUSIC
MENU repeatedly to scroll through the options. Use the MULTI knob to adjust the respective value.
Press MUTE to mute or un-mute the sound output.
• Press DSP to change the display mode. Press CH.MODE to change the channel mode (AC-3 / Stereo).
• Use the surround speaker buttons on the RC (10) to adjust the volume levels of each speaker separately.
Karaoke
• The device automatically "notices" which microphone is connected at the time. Please always turn the
microphone volume down before connecting a microphone.
• Use the microphone sound setting buittons on the RC (11) or use the MIC.MENU to adjust sound options
for the microphone inputs, such as M TRE (treble), M BASS (bass), ECHO (reverb eect) und MIC VOL
(microphone volume).
Please note: Do not cover the microphone capsule with your hands and try to avoid pointing the
microphone towards a speaker cone - both will lead to a hooting feedback, particularly when the out-
put volume level is rather high.
HDMI
• This unit has three HDMI input jacks and one HDMI output jack for digital audio and video signal input/
output. Connect the HDMl1,HDMl2,HDMl3 jack of this unit to the HDMI output jack of other HDMI
components (such as a DVD player).Connect the HDMI OUT jack of this unit to the HDMI input jack of
other HDMI components (such as a TV and a projector).
• The video or audio signals input at the HDMI IN jacks of the selected input source are output at the
HDMI OUT jack of this unit.
ATTENTION:
This receiver works as an HDMI-hub. In order to listen to an ingoing HDMI audio signal another HDMI-
ready device - typically a TV - has to be connected to the HDMI output of this receiver. It is not possible
to listen to a HDMI audiosignal directly via this receiver.

15
Tuner
• Before using radio functions, please attach the supplied antenna. Adjust the antenna to obtain best
reception. Press INPUT on the front panel (amplier) or on the remote control, to select TUNER mode.
• Press CH+/CH- on the remote control, to nd the radio stations that you have listened to before. Use
the TU+/TU- buttons on the remote control, to adjust the radio frequency manually.
• Press AUTO on the remote control - the machine can scan radio channels from low-frequency to high-
frequency by itself and memorize the channels one by one.
• Press MEMO on the remote control and it will memorize the current radio frequency on the band. The
machine can memorize at most 40 FM radio bands.
• In FM mode. Press the ST.MO key on the remote control, to select stereo or mono reception
Environment Concerns
According to the European waste regulation 2002/96/EG this symbol on the product
or on its packaging indicates that this product may not be treated as household waste.
Instead it should be taken to the appropriate collection point for the recycling of electrical
and electronic equipment. By ensuring this product is disposed of correctly, you will hep
prevent potential negative consequences for the environment and human health, which
could otherwise be caused by inappropriate waste handling of this product. For more
detailled information about recycling of this product, please contact your local council or
your household waste disposial service.
Declaration of Conformity
Manufacturer: CHAL-TEC GmbH, Wallstraße 16, 10179 Berlin, Germany.
This product is conform to the following European directives:
2004/108/EC (EMV)
2011/65/EU (RoHS)
2006/95/EC (LVD)

16
Chère cliente, cher client,
Toutes nos félicitations pour l’acquisition de ce nouvel appareil.
Veuillez lire attentivement et respecter les consignes suivantes de branchements et d’utilisation pour éviter
d’éventuels dommages techniques.
Avertissement
• Ce mode d’emploi sert à vous familiariser aux fonctions de ce produit. Conservez-le bien an de pou-
voir vous y référer à tout moment.
• L’achat de ce produit donne droit à une garantie de deux ans en cas de défectuosité de l’appareil sous
réserve d’une utilisation appropriée de celui-ci.
• Veiller à utiliser le produit conformément à l’usage pour lequel il a été conçu. Une mauvaise utilisation
est susceptible d’endommager le produit ou son environnement.
• Tout démontage ou toute modication de l’appareil porte atteinte à la sécurité du produit. Attention
aux risques de blessure !
• Ne jamais ouvrir le produit de son propre chef et ne jamais le réparer soi-même !
• Manipuler le produit avec précaution. Les chocs, les coups ou les chutes - même de faible hauteur -
peuvent endommager l’appareil.
• Ne pas exposer le produit à l’humidité ou à une chaleur extrême.
• Ne pas introduire d’objets métalliques dans cet appareil.
• Ne pas poser d’objets lourds sur l’appareil.
• Nettoyer l’appareil uniquement avec un chion sec.
• Ne pas obstruer les ouvertures d’aération.
• Utiliser uniquement les accessoires recommandés par le fabricant ou par une entreprise spécialisée
et qualiée.
Toute modication apportée à l’appareil entraîne l’annulation de la garantie.
Petits objets / éléments d’emballage (sac plastique, carton, etc.)
Tenir les petits objets (par exemple les vis et le matériel d’assemblage, les cartes mémoire) et le matériel
d’emballage hors de la portée des enfants pour éviter qu’ils ne les avalent. Empêcher les enfants de jouer
avec les lms de protection. Il existe un risque d’étouement !
Transport de l’appareil
Conserver l’emballage d’origine. Pour garantir une protection suisante de l’appareil pendant son trans-
port, emballer l’appareil dans son emballage d’origine.
Nettoyage en surface de l’appareil
Ne pas utiliser de liquides volatiles comme ceux contenus dans les bombes insecticides. Une pression trop
importante exercée sur la surface de l’appareil pendant le nettoyage peut l’endommager. Éviter le contact
prolongé du caoutchouc ou du plastique avec l’appareil. Utiliser un chion sec.

17
Fiche technique
Numéro d’article 10005738
Connecteurs
• 2 x Mic In (6.3mm)
• 3 x HDMI In
• 1 x HDMI Out
• 2 x RCA Line In
• 1 x 5.1 RCA In
• 1x Caisson de basse out
• 1 x Antenne FM
• 5 x Speaker terminals
Modes de canaux
• 2.1
• 3.1
• 5.1
Sensibilité de fréquence 20 Hz ~ 20 KHz
Distorsion <0.1%
Alimentation 230V ~ 50Hz
Dimensions / Poids 511 x 397 x 220 mm / 5 kg
Contenu de l’emballage
• Amplicateur
• Télécommande
• Batteries (pour Télécommande)
• Câble audio
• Antenne
• Mode d‘emploi

18
Connexions
Arrière:
1Prise pour l’antenne FM
2Sortie HDMI – Connexion de l’écran ou du projecteur
3Entrées HDMI – Connexion des Blu-ray, DVD, PS3, etc.
4Interrupteur
5Prise d’alimentation (240V~50Hz)
6Entrées audio AUX & CD
7Entrée audio AC-3
8Prise du caisson de basse
9
Prises enceintes
(SR = surround droite; SL = surround gauche; CEN = enceinte centrale;
FR = frontale droite; FL = frontale gauche)

19
Éléments de commande
Avant:
1Aichage lumineux
2 CH+/CH-: Canal+/-
3 AUTO: recherche automatique des stations
4INPUT: sélectionner la source d’entrée
5 MUTE: mise en sourdine
6CH.MODE: changer le mode du canal
7 MIC MENU: ouvrir le menu karaoké
8 MUSIC MENU: ouvrir le menu musique
9MIC 1 & MIC 2: Ports du premier & deuxième micro
10 VOLUME / MULTI

20
Éléments de commande
Télécommande:
1Standby
2TUN+/-
3Stereo / Mono
4Num pad
5DSP
6BAL L / R
7VOL+/- /Mute
8BASS +/-
9CH.MODE +/-
10 Volume (pour enceintes surround)
11 Réglage du micro
12 INPUT
13 PRO+/-
14 MEM
15 LOUD
16 TRE +/-
Portée de la télécommande
• La télécommande peut être perturbée par
d’autres appareils.
• N’appuyez jamais en même temps sur des tou-
ches de la télécommande et de l’appareil.
• N’utilisez jamais deux télécommandes en même
temps.
• Utilisez la télécommande avec des piles UM-4 «
AAA » uniquement. Ne mélangez pas des piles
neuves avec des piles usagées.
• Si une pile est vide, changez-les toutes.
• Ne causez pas de court-circuit et ne jetez les pi-
les dans la poubelle normale
This manual suits for next models
1
Table of contents
Languages:
Other auna Stereo Receiver manuals
