AuraMist AMMF16R User manual

Rev. A 07/10 AMMF16R 1

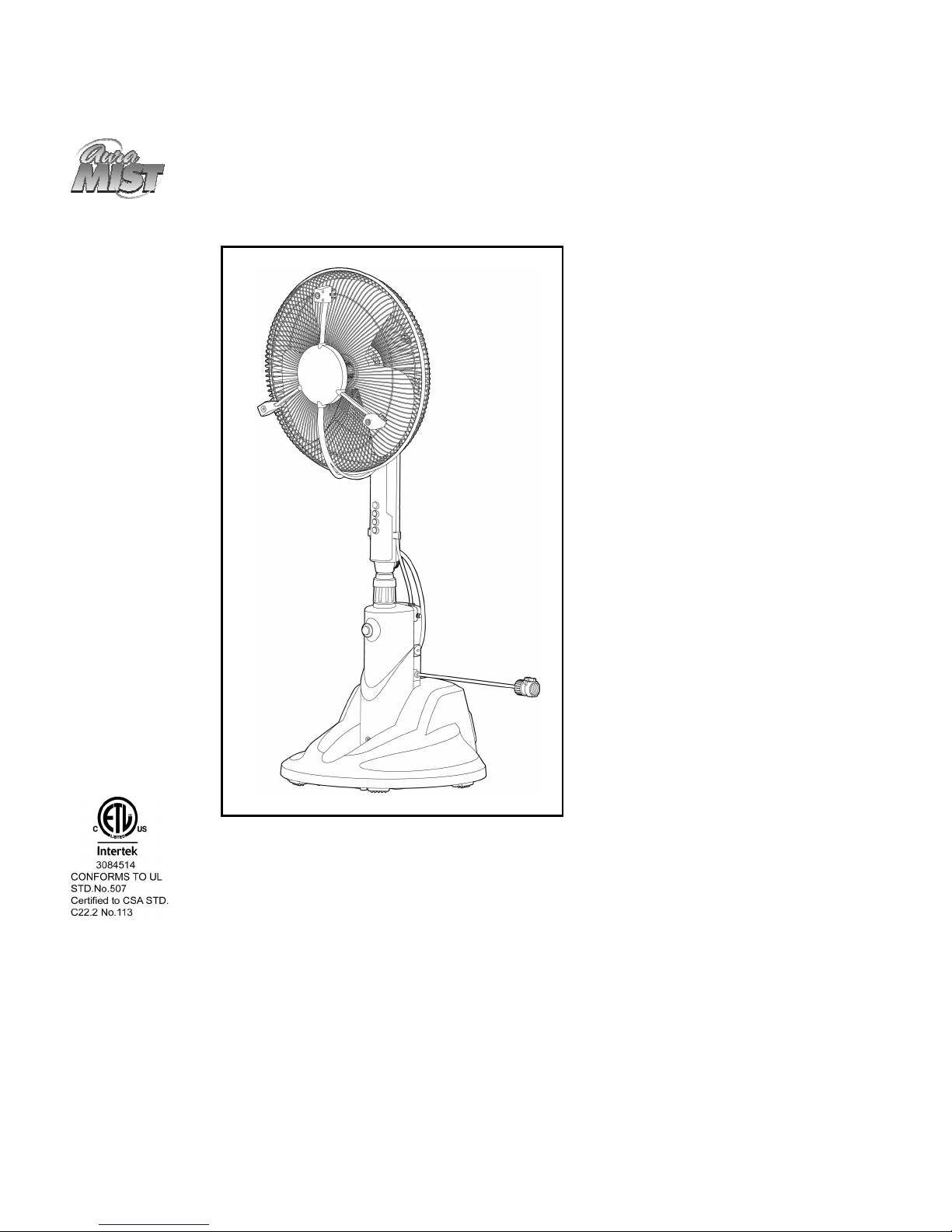

16” Outdoor Misting/Oscillating Fan
Model Number: AMMF16R
Owner’s Manual
READ AND SAVE THESE INSTRUCTIONS
CAUTION:
Before using this product, read this manual and follow all safety rules and operating instructions. Failure
to comply with instructions could result in personal injury and/or property damage.
IMPORTANT:
For replacement parts or assembly questions call 1-800-320-6478 or go to www.auramist.net

Rev. A 07/10 AMMF16R 2
SECTION PAGE
1. Safety Information …………….……………………………………………………….……………..2
2. Carton Contents……………………………………………………………………….….….……….…...5
3. General Assembly Instructions ……………………………………….……………………..……....…..6
4. Operation Instructions …………………………………….……………..……………..………...…..7
5. Maintenance ………………………………………………………………….…………………...…..9
6. Storage …………………………..…………………………………………….…………….…...…...11
7. Troubleshooting …………………………..…………………………………….………………..……11
8. Exploded View .........................................................................................................................12
9. Parts List… ……………………….……………………….….……………....................................13
10. Warranty ……………..……………………………………………….………...………………….....14
READ AN SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
Household Type
SAVE THIS MANUAL FOR FUTURE REFERENCE.
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
Read and understand this instruction manual and all labels on the misting fan before using.
Safety is a combination of common sense, staying alert and knowing how this misting fan works. Use this
misting fan only as described in this manual. To reduce the risk of personal injury or damage to the
misting fan, use only recommended accessories.
Understanding Safety Terminology
DANGER: If safety information is not followed, someone will be seriously injured or killed.
WARNING: If safety information is not followed, someone could be seriously injured or killed.
CAUTION: If safety information is not followed someone may be injured.
When using this misting fan follow basic safety precautions including the following:
Table of Contents
S
afety
W
arnings

Rev. A 07/10 AMMF16R 3
WARNING: To reduce the risk of fire, electric shock, or injury:
1. Make sure that the power source complies with the electrical requirements of the misting fan.
2. Do not use this misting fan with any solid state speed control device.
3. Do not expose to rain. Store indoors.
4. Do not use this misting fan with a damage filter or without a filter installed.
5. To reduce the risk of personal injury, the misting fan should not be use as a toy or placed where
children can reach it.
6. Close supervision is necessary when any appliance is used near children.
7. Use this misting fan only as described in this manual. Any other use may cause electrical shock,
fire, injury to people or animals.
WARNING: DO NOT USE THE MISTING ON-OFF SWITCHES AS THE MEANS
OF DISCONNECTING POWER WHEN INSTALLING OR SERVICING THIS PRODUCT.
ALWAYS DISCONNECT THE POWER CORD.
8. Disconnect the power cord before moving or performing any maintenance on the misting fan.
9. This misting fan shall not be used in potentially dangerous conditions, such as flammable,
explosive or chemically loaded atmospheres.
10. Do not use or store near hazardous materials.
11. Completely assemble the misting fan according to these instructions before connecting to the
power source.
12. If the misting fan is not working correctly, has missing parts, has been dropped or damaged, left
outdoors or dropped in water, call an authorized service center for evaluation, adjustment or
repair.
WARNING: IMPROPER CONNECTION OF THE EQUIPMENT-GROUNDING
CONDUCTOR CAN RESULT IN A RISK OF ELECTRICAL SHOCK. CHECK WITH A
QUALIFIED ELECTRICIAN OR SERVICE PERSON IF YOU ARE IN DOUBT AS TO
WHETHER THE OUTLET IS PROPERLY GROUNDED. DO NOT MODIFY THE PLUG
PROVIDED WITH THE MISTING FAN IF IT WILL NOT FIT THE OUTLET; HAVE A
PROPER OUTLET INSTALLED BY A QUALIFIED ELECTRICIAN. DO NOT USE A
THREE-PRONG TO TWO-PRONG ADAPTER. IMPROPER CONNECTION MAY CREATE
A RISK FOR ELECTRICAL SHOCK.

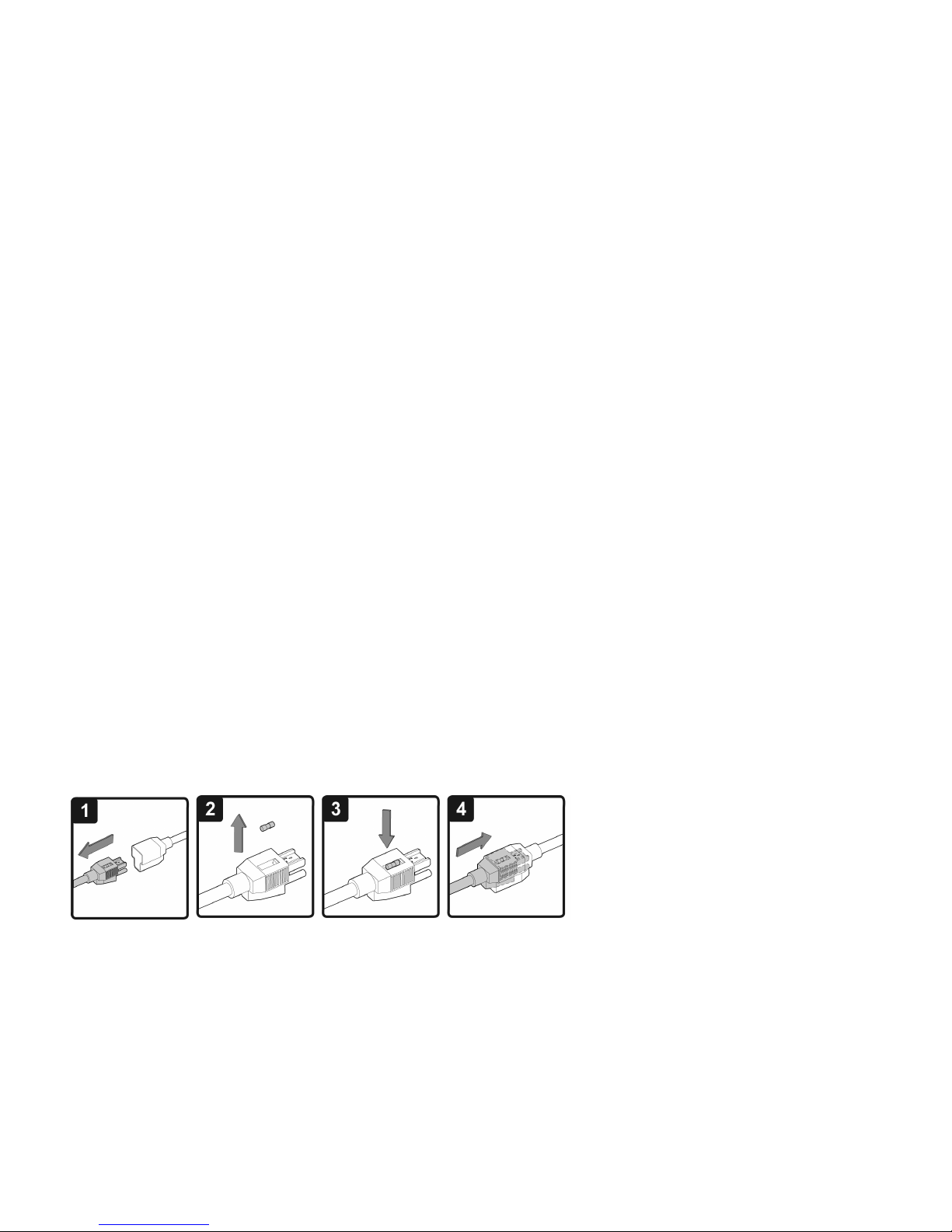

13. This product employs overload protection (fuse). A blown fuse indicates an overload or
short-circuit situation. If the fuse blows, unplug the product from the outlet. Replace the fuse
per the user servicing instructions (follow product marking for proper fuse rating) and check the
product. If the replacement fuse blows, a short-circuit may be present and the product should
be discarded or returned to an authorized service facility for examination and/or repair.”
14. To protect against electrical shock, do not immerse unit, plug, or cord in water or spray with
liquids.
15. Keep the cord away from heated surfaces.
16. To reduce the risk of injury from the misting fan accidentally starting, unplug the power cord
before replacing the filter.
17. Do not leave the misting fan unattended when it is plugged in. Unplug it from the power outlet
when not in use and before servicing. Turn off the misting fan before unplugging.

Rev. A 07/10 AMMF16R 4
18. Do not operate the misting fan with a damaged power cord, plug, or if the misting fan is
damaged in any manner. Call an authorized service center for evaluation, adjustment or
repair.
19. Do not run cord under carpets. Do not cover cord with throw rugs, runners, or similar
coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area
and where it will not be tripped over.
20. Do not insert or allow any foreign objects to enter the intake or exhaust air openings, as it may
cause mechanical, electrical, or fire damage to the mist fan.
21. Do not block or tamper with the misting fan nozzles, as it may reduce or impede the functionality
or quality of the mist. Call an authorized service center for evaluation, adjustment or repair.
22. Always place the misting fan on a stable flat surface to avoid the chance of tipping.
23. Never place the misting fan where it may fall into a water reservoir (example: bathtub or pool),
or anything containing an electrical conductive substance.
24. When the product is used outdoors, use only on GFCI (Ground Fault Circuit Interrupter)
protected receptacles.
25. This product must be grounded. If it should malfunction or break down, grounding provides a
path of least resistance for electric current to reduce the risk of electric shock. This product is
equipped with a cord having an equipment-grounding conductor and a grounding plug. Plug into
an appropriate outlet that is properly installed and grounded in accordance with all local codes
and ordinances.
26. Avoid contact with moving parts.
27. Do not hang or mount misting fan on a wall or ceiling.
28. Do not operate without misting fan guards properly in place.
CAUTION: DO NOT USE IN A WINDOW. FAILURE TO DO SO COULD RESULT
IN THE PRODUCT COMING APART DURING OPERATION AND/OR PERSONAL
INJURY.

Rev. A 07/10 AMMF16R 5
Parts QTY.
1. Front fan guard assembly 1
2. Rear fan guard 1
3. Rear fan guard nut (screw on motor housing) 1
4. Fan blade 1
5. Fan blade nut (screw on motor axis) 1
6. Power base assembly 1
7. Fan head assembly 1
8. Fan pole assembly 1
9. Fan pole screw 1
10. Screws 2
C
arton
C
ontent
s

Rev. A 07/10 AMMF16R 6
A screw driver is needed for assembly.
1. Ensure that the power cord is disconnected from the power outlet.
2. Align misting fan pole to the base hole to the front direction of the base. Gently push the hose and
power cable of the air pump aside and press the mist fan pole until the screw hole is aligned. (fig. 1).
Make sure you do not kink the hose in this process.
3. Fasten the misting fan pole assembly to the power base assembly with the two screws (fig.1).
4. Fasten the misting fan pole assembly to the power base assembly with the pole screw (fig.2).
5. Loosen the pole lock knob and pull the inner pole out. Tighten the lock knob and attach the mist fan
assembly to the inner center pole and fasten screw knob (fig. 3).
6. Disassemble the rear misting fan guard nut (rotate counterclockwise) and the misting fan blade nut
(rotate clockwise) from the misting fan head assembly (fig.4).
7. Align the rear fan guard hole to the three pins on the motor housing, and fasten the rear fan guard to
the fan head assembly with the rear fan guard nut (figure 5).
8. Mount the fan blade to the fan motor shaft (fig.6). Make sure the fan blade gap aligns with the pin clip
on the motor shaft and then screw on the blade nut (fig.7). Mount the front guard and tighten all the hinges
around outer rims of the fan guard (figures 8 & 9).
9. Connect nozzle housing by gently sliding the nozzle housing into the holder on the front fan guard
(fig.10)
10. Connect the air and water tubes to the connectors on the misting fan pole assembly. The water is the
smaller tube. Make sure the tube is pushed all the way into the connector, and then make the electrical
connection (fig.11)
General Assembly Instructio
ns
Formatted: Indent: First line: 0 ch
Deleted: kinked
Deleted: ¶

Rev. A 07/10 AMMF16R 7
IMPORTANT: Read this owner’s manual before operating this product.
THE MISTING FAN IS INTENDED FOR OUTDOOR USE BUT MAY BE USED INDOOR
WITHOUT THE MISTING FEATURE.
Place the misting fan on a level surface near an electrical outlet. Place the misting fan out of reach of
children. Do not insert anything into the grill. If moving the misting fan to a different location, turn it OFF
and unplug it from the socket.
1.To operate the misting mist fan, plug the power cord into a 120 VAC, 60Hz outlet.
CAUTION: MIST FAN AND/OR MISTING SYSTEM MAY START UP WHEN THE
UNIT IS INITIALLY PLUGGED TO THE POWER OUTLET .

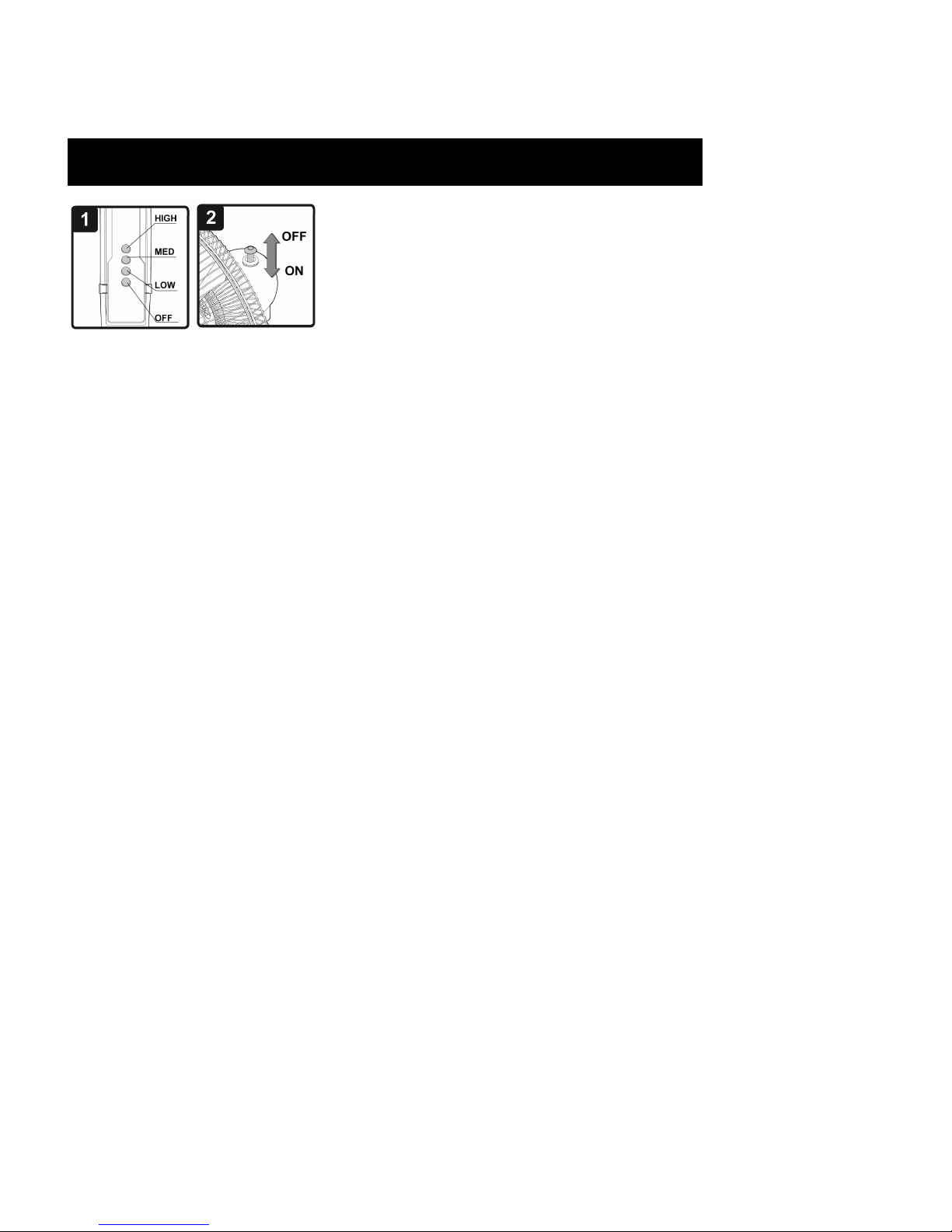

2. Fan Operation (ON-OFF, Speed control)
Press the button to Low, Medium, High, or OFF to select fan speed. (fig.1)
3. Fan Operation (Oscillation Control)
To operate the oscillation function, press down the oscillation switch. To stop the oscillation function,
pull-up the oscillation switch. The oscillation angle is approximately 65 degrees (fig. 2).
4. Misting Operation
IMPORTANT: This product is designed to operate with city water supply.
Make sure your water pressure is lower than 100 PSI. 40 to 80 PSI water pressure
will ensure optimal functionality of the system throughout maintenance intervals. The
misting fan and/or misting system may start up when the unit is initially plugged to
the power outlet.
DO NOT USE THE MISTING FEATURES INDOORS.
O
perating
I
nstruction
s

Rev. A 07/10 AMMF16R 8
IMPORTANT: BEFORE STARTING:
•Make sure the ball valve of the fan is placed in the OFF position. (fig. 1)
•Turn the mist control valve clockwise, until the valve is closed. (fig. 2)
•Connect the water hose connector to your garden hose. (fig. 3)
•Please keep the mist fan 12 feet away from your furniture and other electrical appliances. (fig. 4)
Misting ON/OFF control
Mist ON
Press the rocker switch to the ON position. (fig. 5)/
Turn the ball valve to the ON position (fig. 6)
Open the flow control valve until mist is visible, then refer to ADJUSTING MIST DENSITY section, to get
an optimal mist performance. (fig.7)
Mist OFF
Turn the ball valve to OFF position (fig.8)
To prevent the accumulation of mineral deposits, let the pump run for 2 minutes after closing the ball valve
so the air pump can clear the remaining water from the nozzles. Turn the pump switch to the OFF
position when complete. (fig.9)

Rev. A 07/10 AMMF16R 9
ADJUSTING MIST DENSITY
CAUTION: Do not over tighten and/or loosen the water flow control valve.
The misting function of this fan is adjusted by rotating the flow control valve on the fan pole assembly
counter clockwise to decrease mist density or counter-clockwise to increase mist density. It may take a
minute for a new misting fan to start misting. It is normal for air to come out of the nozzles before water
and the mist.
To optimize the cooling effectiveness of the system, you can:
•Operate the unit with a DRY or WET mist, based on your needs.
•To increase the mist density, turn the mist control valve counterclockwise. (fig.10)
•To decrease the mist density, turn the mist control valve clockwise. (fig.11)
5.Operating Tips
For dry climates, increasing the water flow will provide maximum cooling results. In humid climates, a
reduced water flow is recommended.
CUSTOMER RESPONSIBILITIES
Read and follow the maintenance schedule and the maintenance procedures listed in this section.
WARNING: ALLWAYS UNPLUG THE POWER CORD BEFORE MOVING OR
SERVICING THE MISTING FAN.
WARNING: DO NOT IMMERSE THE MISTING MIST FAN IN WATER!

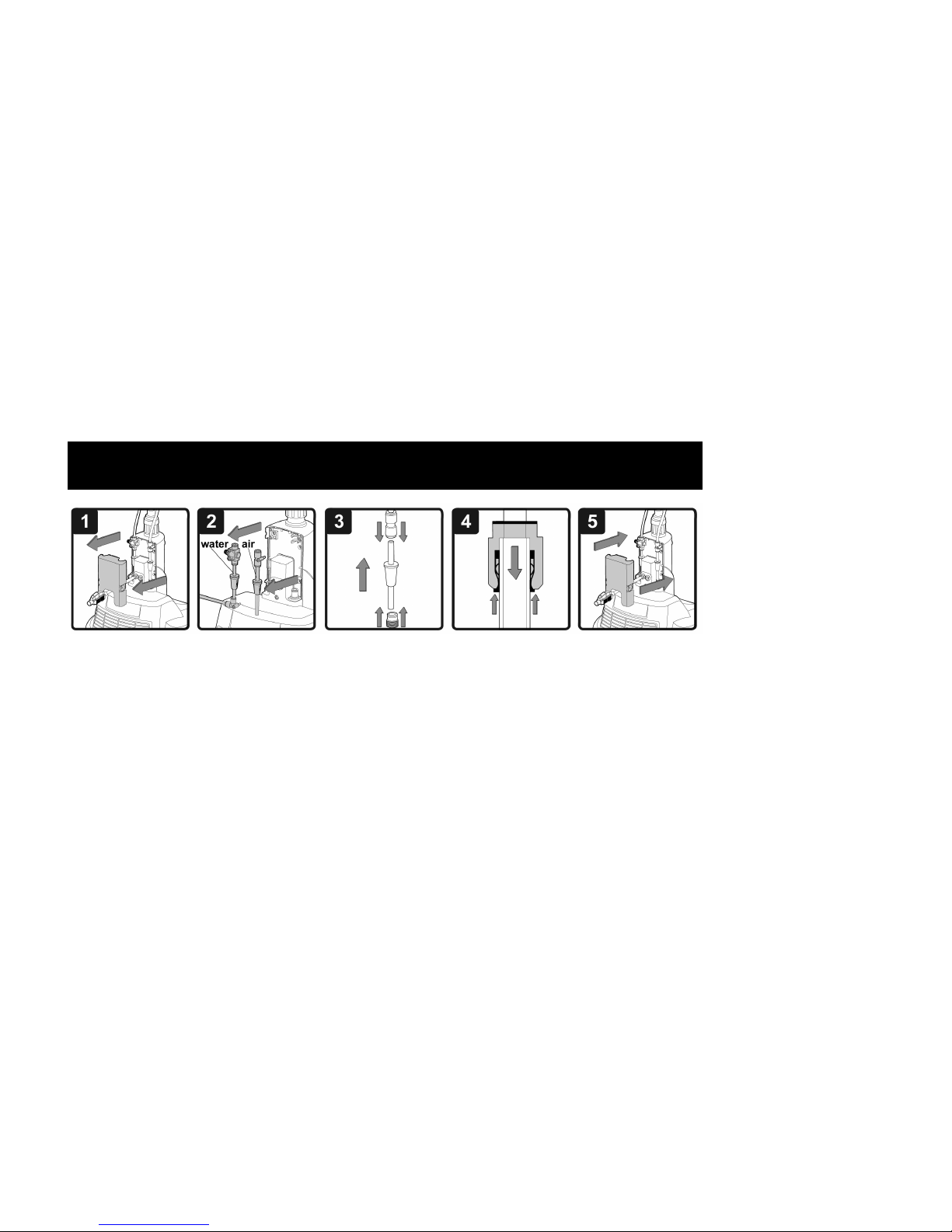

REPLACING FILTERS
WARNING: ANY SERVICING OF THIS UNIT, EXCEPT FOR GENERAL
MAINTENANCE DESCRIBED IN THIS SECTION, SHOULD BE PERFORMED BY AN
AUTHORIZED SERVICE REPRESENTATIVE.
CAUTION: The filters have been designed to provide optimal system
performance by catching any debris that may enter the supply lines throughout use.
Semi annual replacement of both the air and water filters ensures the life of your
system.
• Remove the filter cover and locate the air and water filters. (fig.1).
M
aintenance

Rev. A 07/10 AMMF16R 10
• Push the connector ring and pull out the air hose from the one-touch connector and the water hose from
the water flow control valve.
• Disassembly the screw of the one-touch connector and water flow control valve
• The filters are connected to the system via “Push-In” connectors for ease of service. Push the
connector and pull the hose. (fig.2).
• Dispose of old filter.
• Remove filter from package and orient the directional arrow so that the flow direction is towards the left.
(fig.3)
• Push the hose into the push-in connector to connect the filters. (fig.4)
• Assembly the one-touch connector and water flow control valve.
• Reinstall filter cover. (fig.5)
CAUTION: IMPROPER PLACEMENT OF THE FILTER CAN DEGRADE SYSTEM
PERFORMANCE.
• Remove filter from package and orient the directional arrow so that the flow direction is towards the left
(fig.3).
• Push the hose into the push-in connector to connect the filters
• Reinstall filter cover
FUSE REPLACEMENT
WARNING: ALLWAYS UNPLUG THE POWER CORD BEFORE REPLACE THE
FUSE.
CAUTION: This product employs overload protection (fuse). A blown fuse
indicates an overload or short-circuit situation. If the fuse is blown, unplug the
product from the outlet. Replace the fuse as indicated in the user servicing
instructions (follow product marking for proper fuse rating) and check the product. If
the replacement fuse is blown, a short-circuit may be present and the product should
be discarded or returned to an authorized service facility for examination and/or
repair.
1. Open the fuse box cover and remove the old fuse. (fig.1 & 2)
2. Install the new fuse. (fig 3)
3. Reinstall the fuse box cover. Make sure the waterproof sealed washer is aligned correctly. (fig 4)

Rev. A 07/10 AMMF16R 11
CAUTION: DO NOT USE GASOLINE, THINNER, ALCOHOL, SOLVENTS OR
OTHER HARSH CLEANNERS OR CHEMICALS TO CLEAN THE FAN. THEY WILL
DAMAGE THE MISTING MIST FAN.
•Clean the unit with a soft cloth and mild soap solution.
•Dry all parts completely.
•Store the mist fan in a clean and dry place.
PROBLEM CAUSE CORRECTION
Misting fan not running 1. Power cord is not connected
2. Switch is in the “OFF” position
3. Over current fuse is blown
1. Connect power cord
2. Switch mist fan on high, medium ,low and
positions
3. Replace the fuse
Unit not misting 1. Water faucet is OFF
2. Ball valve is OFF
3. Misting valve in the ”CLOSED”
position
4. Water filter needs to be replaced
1. Open the water faucet
2. Switch the ball valve to ON position
3. Open valve (counterclockwise)
4. Replace water filter
Water streaming from
nozzle
1. Air pump is not working
2. Air flow is lower
3. Air filter needs replacement
4. Air hose leaks
5. Foreign object in nozzle
1. Turn on the mist ON/OFF switch
2. Change the intake filter of air pump
3. Replace air filter
4. Turn off mist fan motor, and feel any air
leaks on hoses
5. Order and replace nozzle
Mist is not balanced on
three nozzle
1. Low water flow
2. Water hose leaks
1. Adjust the water flow control valve
2. Turn off mist fan motor, and feel any air
leaks on hoses
S
torage
T
roubleshooting

Rev. A 07/10 AMMF16R 12
Exploded View

Rev. A 07/10 AMMF16R 13
No. Part No.
Description QTY
1 FV9144.A0.01 nozzle asm. 3
2 FV9144.A0.02 nozzle hose asm. 1
3 FV9144.A0.03
Φ 8 connector 1
4 FV9144.A0.04
Φ 6 water flow control valve
1
5 FV9144.50.00
Φ 6 water filter 1
6 FV9144.40.00
Φ 8 air filter 1
7 FV9144.60.00 clapboard connector 1
8 FV9144.A0.05 angle connector 1
9 ZF01MF.A0.01 water inlet hose asm. 1
10 FV9144.70.03 water pre-filter 1
11 FV9144.70.10 ball valve 1
12 ZF01MF.A0.02 base plate asm. 1
13 ZF01MF.30.00 pump vibrate-resistant 4
14 WZQB01.00.00 air pump 1
15 ZF01MF.20.00 fan pole asm. 1
16 ZF01MF.A0.03 fan head asm. 1
17 ZF01MF.10.03 rear guard grill 1
18 ZF01MF.10.22 rear grill nut 1
19 ZF01MF.10.02 fan blade 1
20 ZF01MF.10.21 blade nut 1
21 ZF01MF.10.01 front guard grill 1
22 TODQ56.05.01 5A fuse 1
23 FV9144.00.03 nozzle housing frame 3
24 ZF01MF.00.05 front cover 1
25 TODXD9.18.UL power cable asm. 1
26 ZF01MF.00.03 filter door 1
27 ZF01MF.A0.04 pole cover asm. 1
28 WVDQ10.05.06 pump switch 1
Parts List

Rev. A 07/10 AMMF16R 14
SAFETWARRANTY
ONE YEAR FULL WARRANTY
This product is warranted for one year from the date of purchase against defects in materials and workmanship.
At our discretion, parts that prove to be defective will either be repaired or replaced, or the whole product will be
replaced. In either case copy of your proof of purchase will be required.
In case that any mechanical or electrical repairs are required during the warranty period send your complete
product, postage or freight prepaid to the auraMIST service center near you. Call the number below to get
the nearest service center.
This warranty does not include the air or water filters, which are expendable parts that can wear out from
normal use within the warranty period. This warranty applies for only 90 days if this product is ever used for
commercial or rental purposes.
AuraMIST, LLC
5210 Village Parkway
Rogers, AR 72758
The model number and manufacturing date code can be found on the label attached to the back of the power
unit.
You should record both the model number and the date of purchase and keep in a safe place for future
reference.
MODEL NUMBER: XXXXX
MFG DATE CODE: XXXX
SERIAL NUMBER: XXXXXXX
DATE OF PURCHASE: XX-XX-XX
CUSTOMER SERVICE NUMBER: 1-800-320-6478
Website: www.auramist.net
W
arranty
